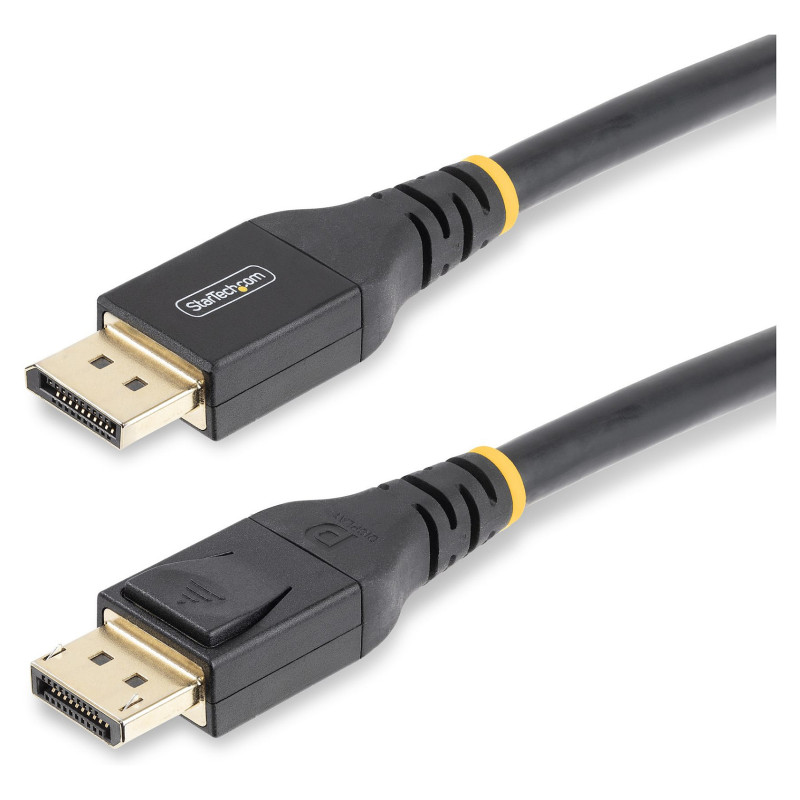

StarTech.com DP14A-15M-DP-CABLE DisplayPort cable

StarTech.com 15.2m (50ft) Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M. Cable length: 15.3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS. Cable diameter: 7.5 mm. Package width: 346 mm, Package depth: 286 mm, Package height: 63 mm. Master (outer) case width: 411 mm, Master (outer) case length: 341 mm, Master (outer) case height: 283 mm

Facilitate a longer 8K connection without requiring an external power source

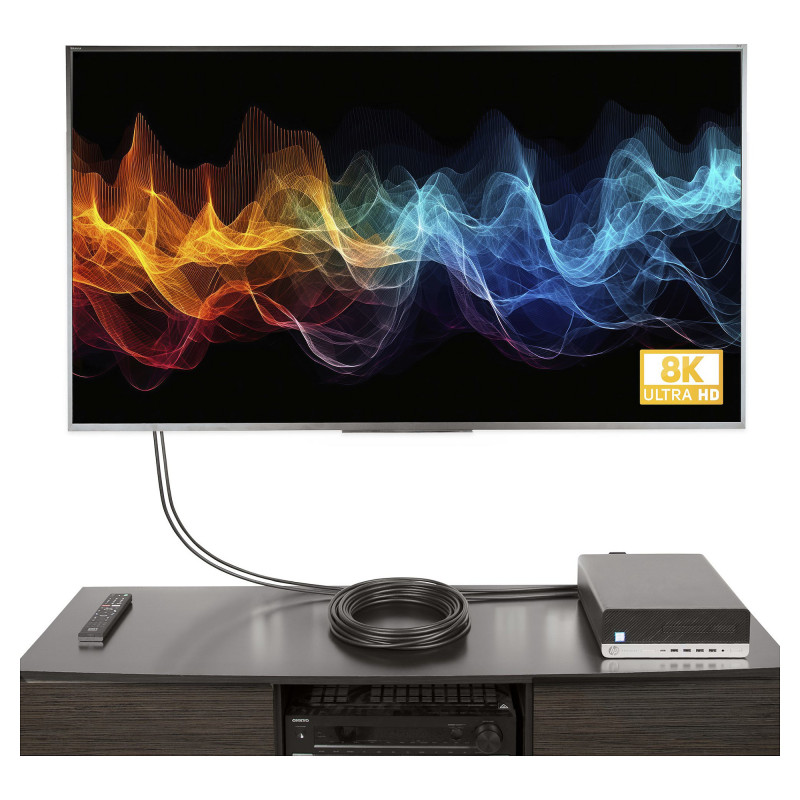

Connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this Active DisplayPort 1.4 Cable. The active signal booster ensures reliable audio and 8K video output at up to 50ft (15.2m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.

Durable Design

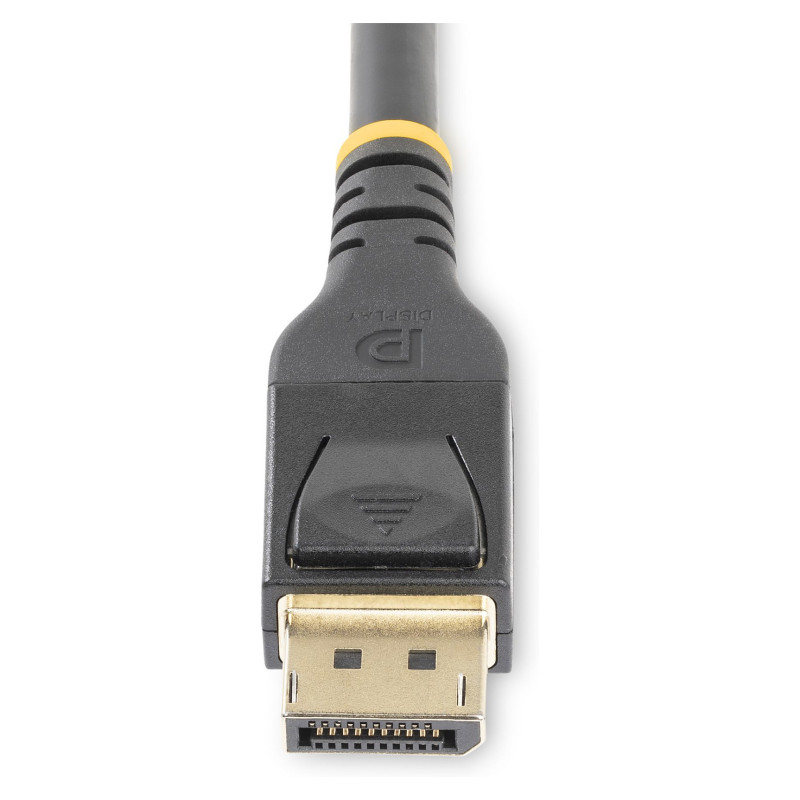

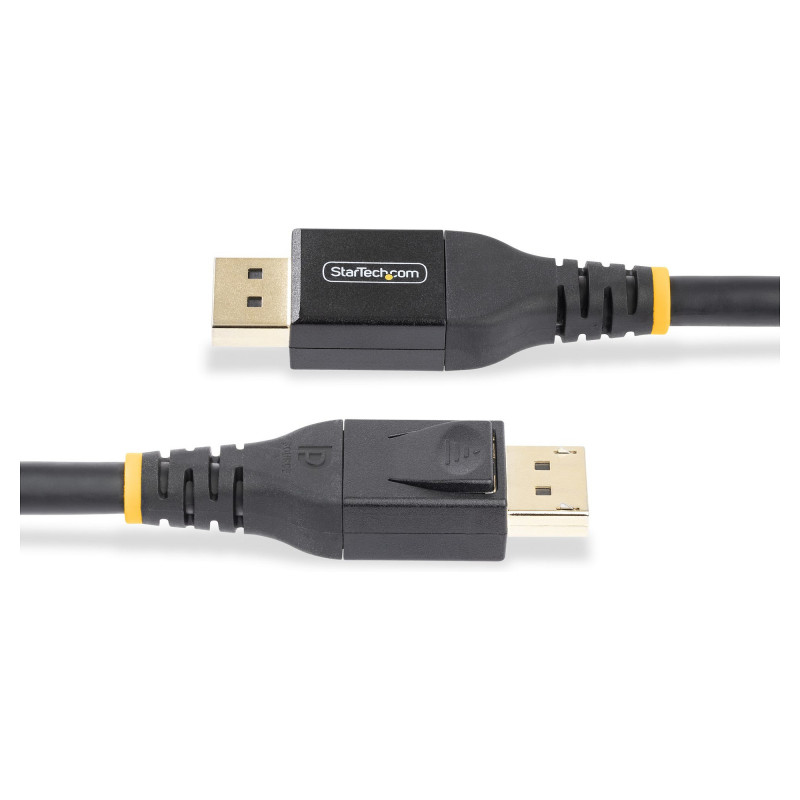

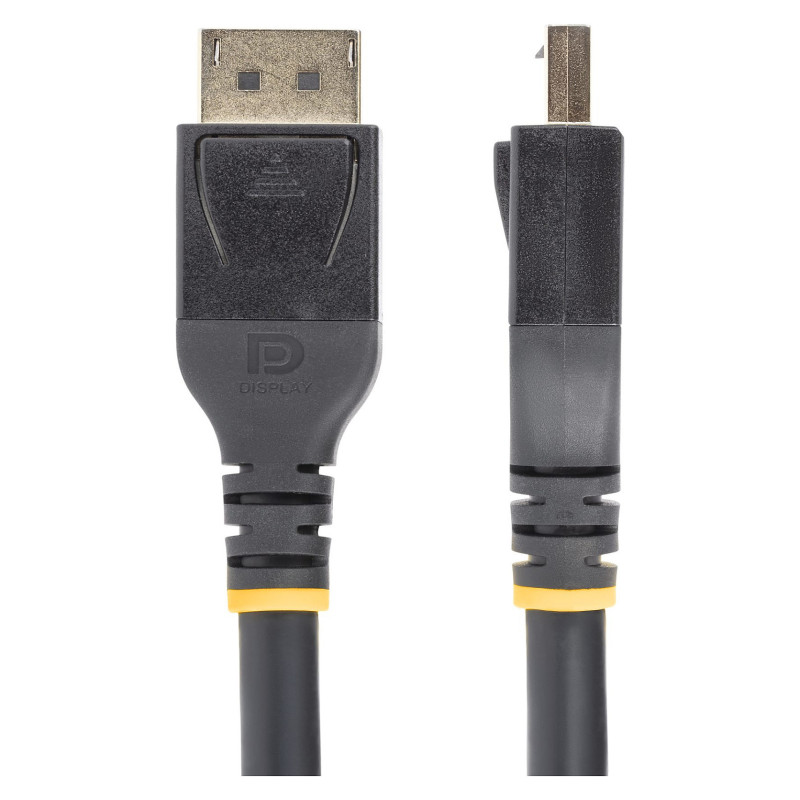

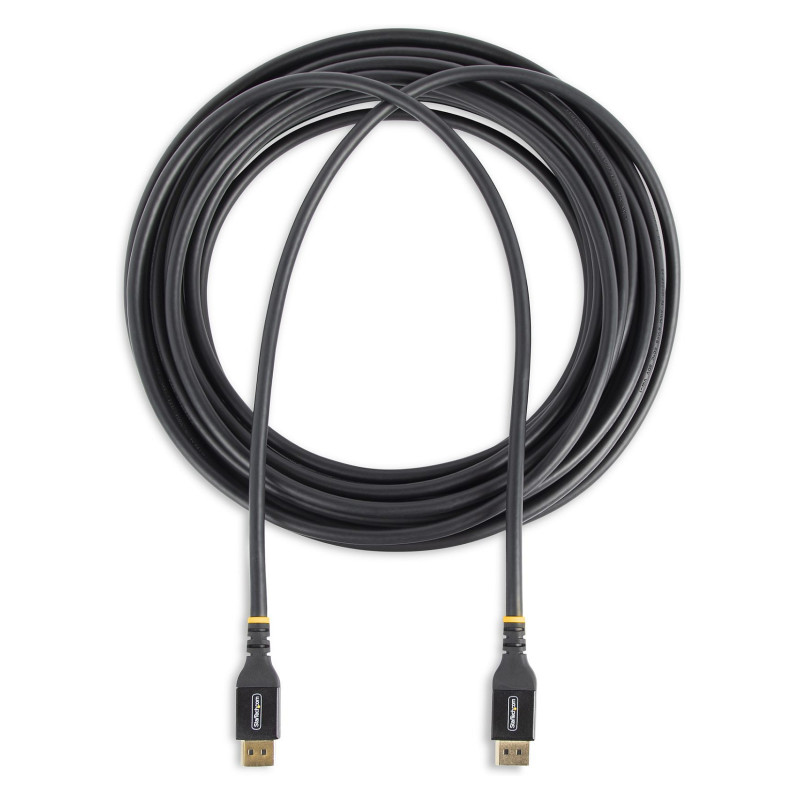

This long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.

Supported DisplayPort 1.4 Features:

This 8K DisplayPort cable supports all DP 1.4 features:

• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display
• HDCP 2.2 support
• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
• High Dynamic Range 10 (HDR10)
• Display Stream Compression 1.2 (DSC 1.2)

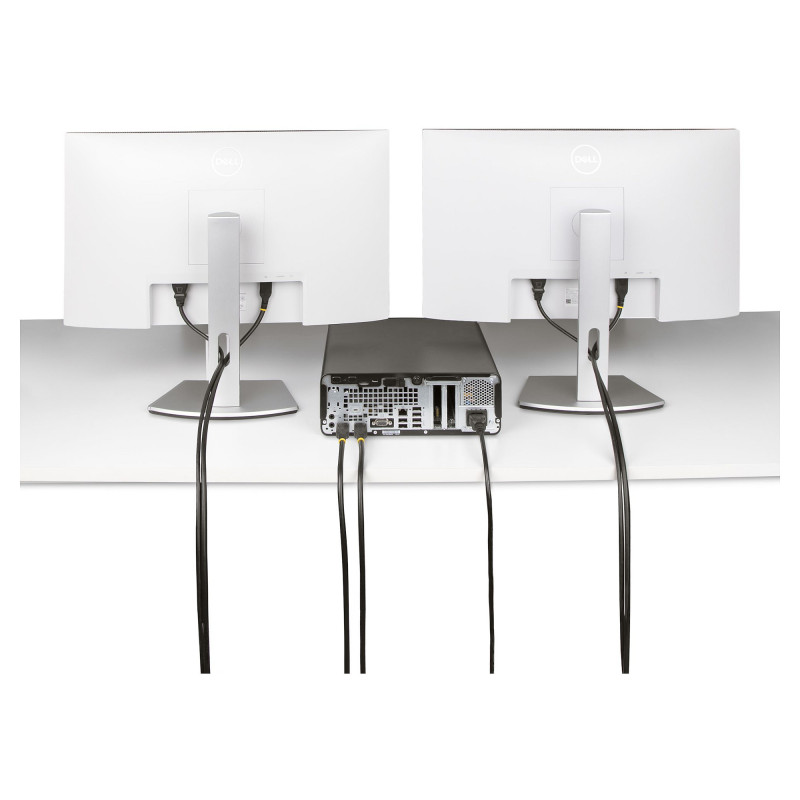

• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versions

The Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 1.4
Maximum resolution: 7680 x 4320 pixels
Supported graphics resolutions: 3840 x 2160, 7680 x 4320
Maximum refresh rate: 144 Hz
Feature: HDCP
HDCP version: 2.2
Feature: Display Stream Compression (DSC)
Display Stream Compression (DSC) version: 1.2
Cable length: 15.3 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Black
Cable material: Copper
Cable shielding: Aluminum mylar foil
Jacket material: Thermoplastic elastomer (TPE)
AWG wire size: 24/28
Data transfer rate: 25.92 Gbit/s
Bandwidth: 32400 MB/s
Feature: HBR3 support
Feature: Multi-Stream Transport (MST)
Fire-resistance rating: VW-1

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 85%

Certificates

Compliance certificates: RoHS

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Cable diameter: 7.5 mm

Packaging data

Package width: 346 mm
Package depth: 286 mm
Package height: 63 mm
Package weight: 1 kg

Logistics data

Master (outer) case width: 411 mm
Master (outer) case length: 341 mm
Master (outer) case height: 283 mm
Products per master (outer) case: 8 pc(s)
