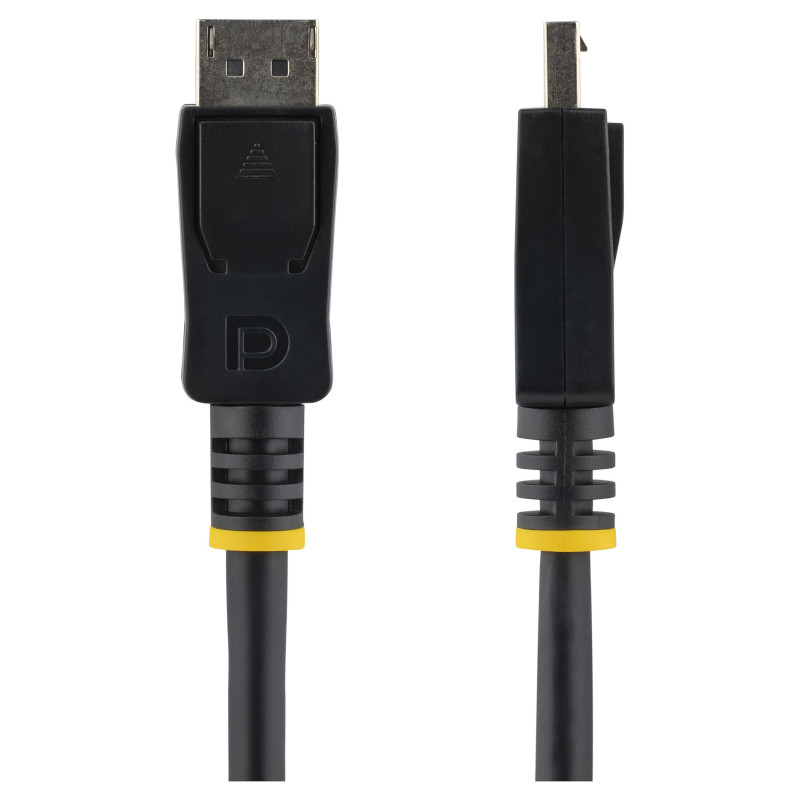

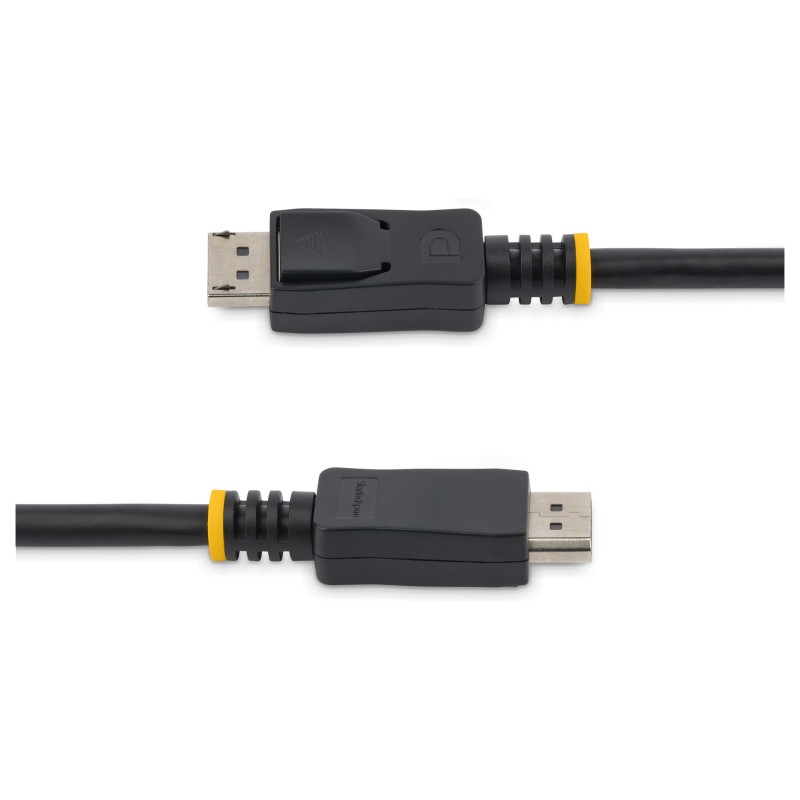

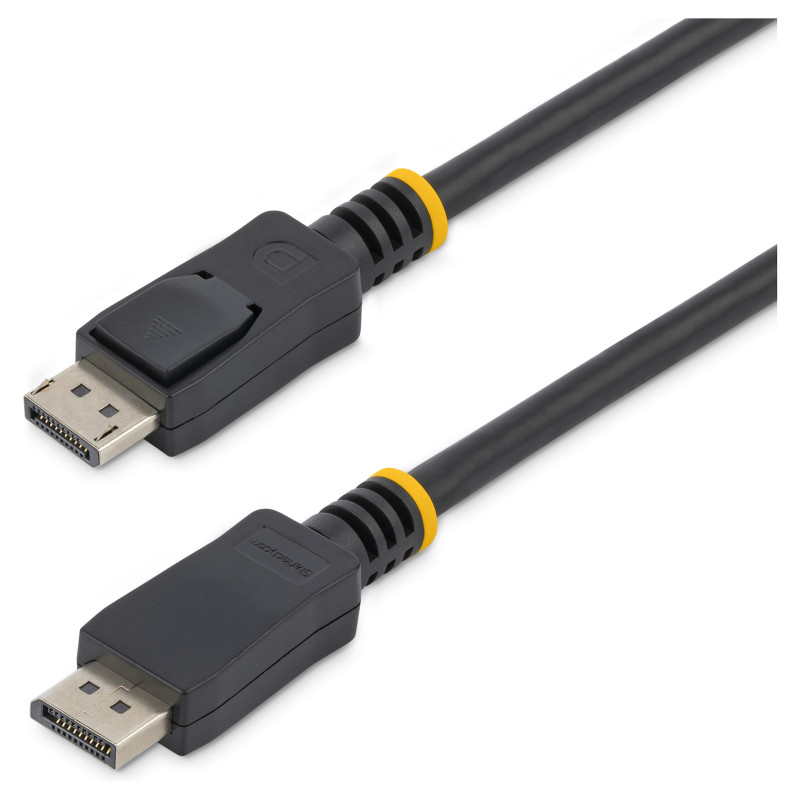

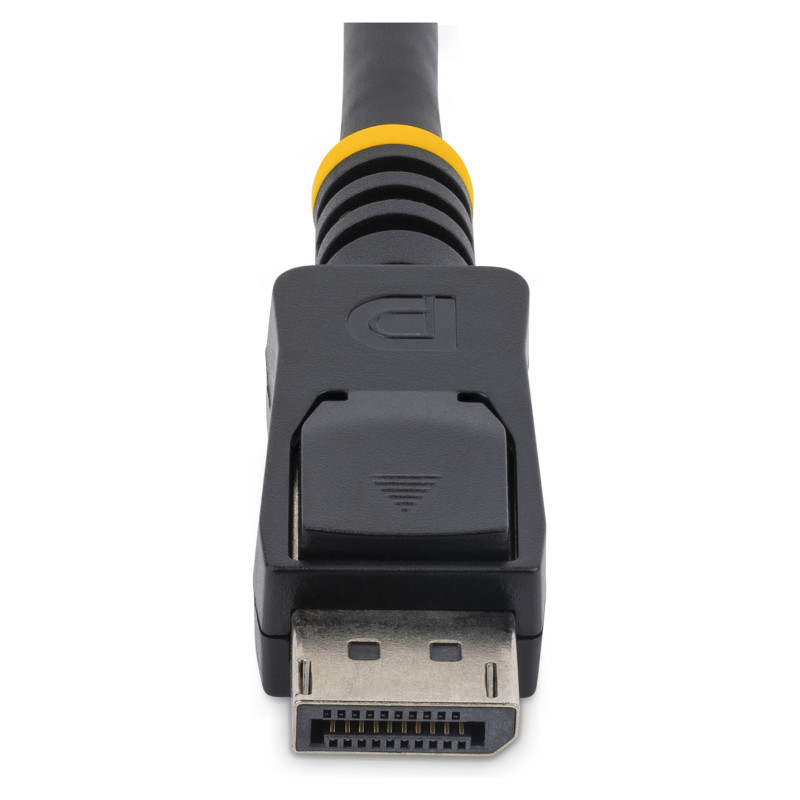

StarTech.com DISPL5M DisplayPort cable

StarTech.com 5m (16.4ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors. Cable length: 5 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS, CE. Cable diameter: 7.3 mm, Weight: 320 g. Package width: 222 mm, Package depth: 201 mm, Package height: 43 mm. Quantity per pack: 1 pc(s)

Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort-equipped devices over longer distances

The DISPL5M DisplayPort™ 1.2 Cable with latches provides a secure connection between your DisplayPort-equipped devices and allows for a connection distance of up to 5-meters between your source and display.

The DP cable is capable of providing higher performance than either HDMI® or dual link DVI with support for high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz and a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

The DISPL5M long DisplayPort cable is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Nickel
DisplayPort version: 1.2
Maximum resolution: 3840 x 2400 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA)
Maximum refresh rate: 60 Hz
Feature: HDCP
Feature: DisplayPort Content Protection (DPCP)
Cable length: 5 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Feature: Latching connectors
Product colour: Black
Cable rating: CMG (CM)
Cable shielding: Aluminum mylar foil
Jacket material: Polyvinyl chloride (PVC)
AWG wire size: 28
Bandwidth: 21600 MB/s
Feature: Plug and Play
Feature: Multi-Stream Transport (MST)
Number of conductors: 19

Certificates

Compliance certificates: RoHS, CE

Weight & dimensions

Cable diameter: 7.3 mm
Weight: 320 g

Packaging data

Package width: 222 mm
Package depth: 201 mm
Package height: 43 mm
Package weight: 320 g

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 510 mm
Master (outer) case length: 362 mm
Master (outer) case height: 286 mm
Products per master (outer) case: 30 pc(s)
