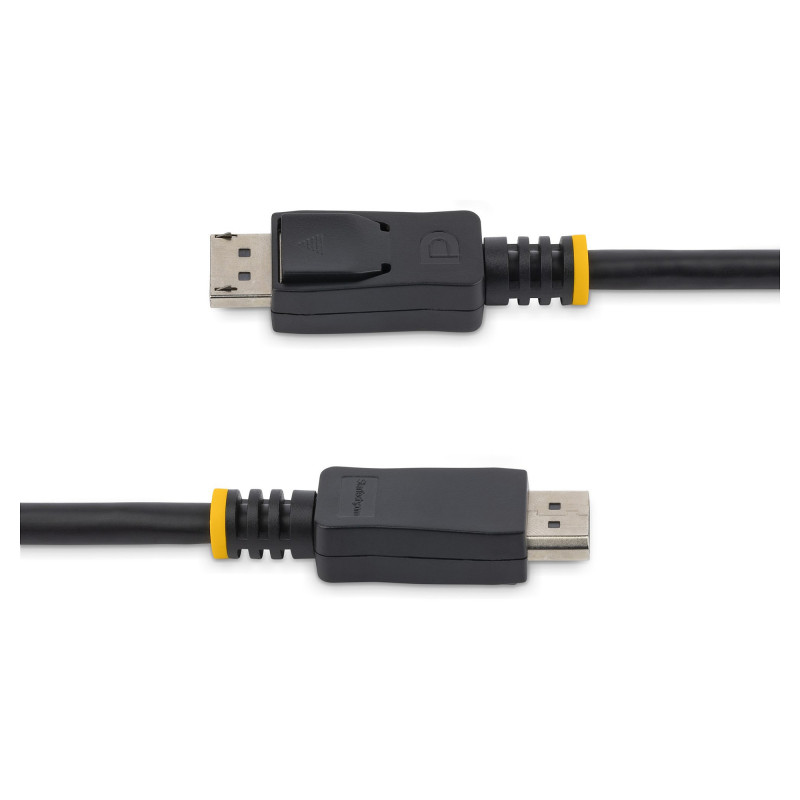

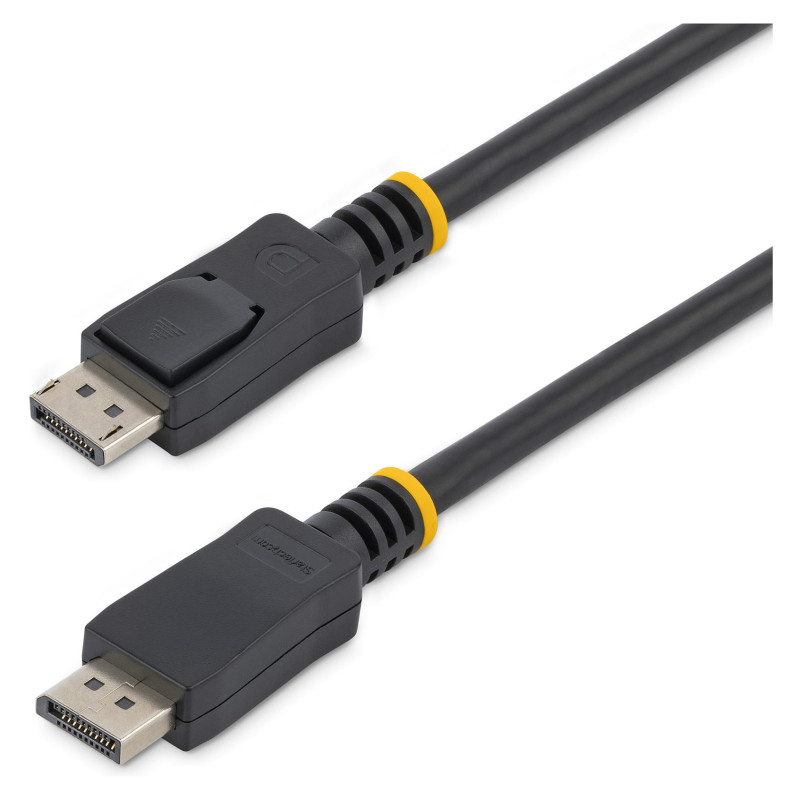

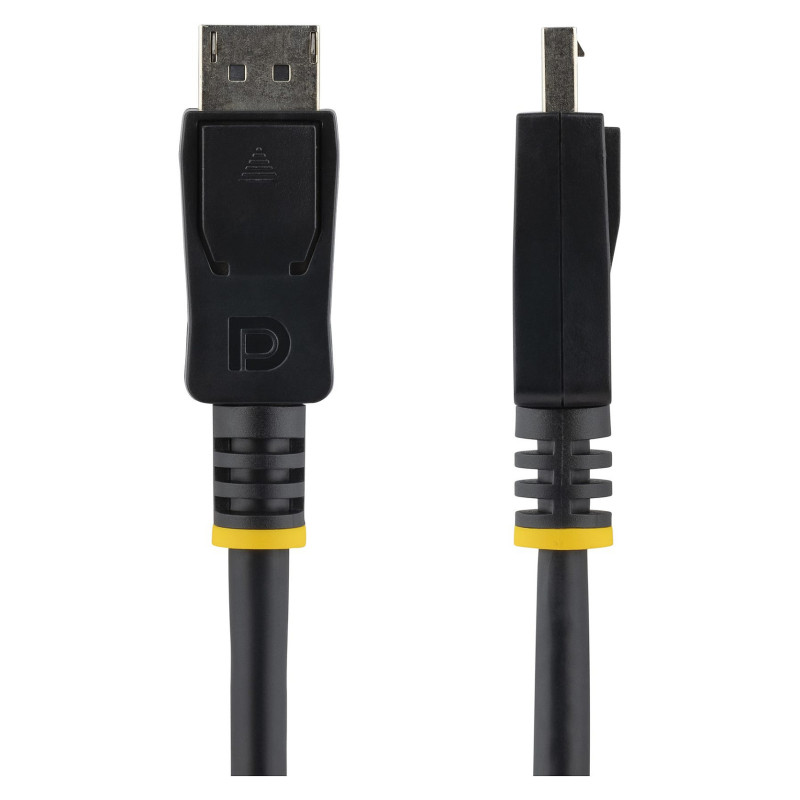

StarTech.com DISPL1M DisplayPort cable

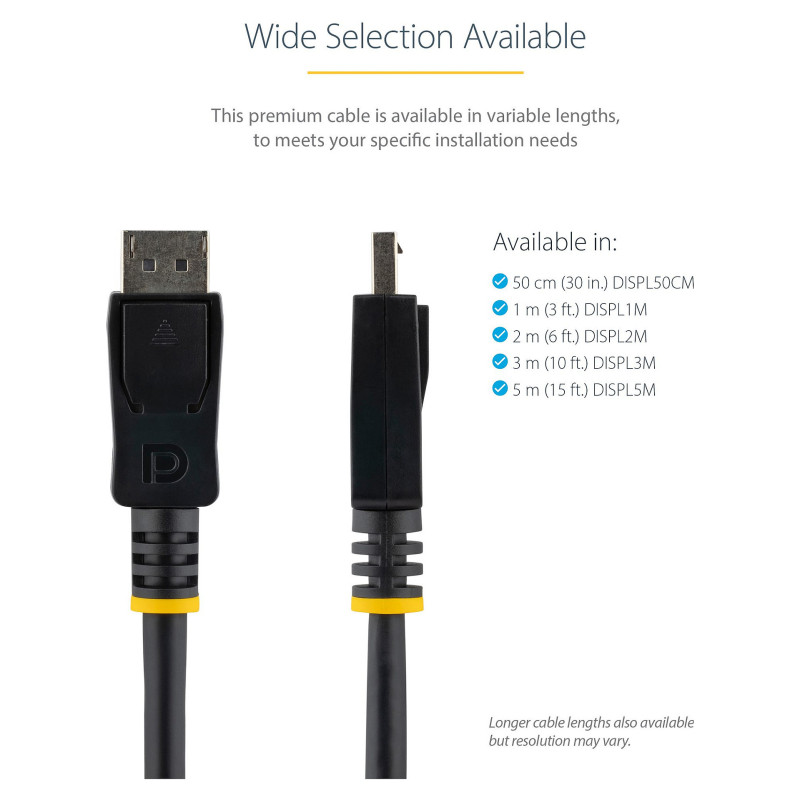

StarTech.com 1m (3.3ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: CE, RoHS. Cable diameter: 7.3 mm, Weight: 85 g. Package width: 126 mm, Package depth: 124 mm, Package height: 30 mm. Quantity per pack: 1 pc(s)

Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort™-equipped devices

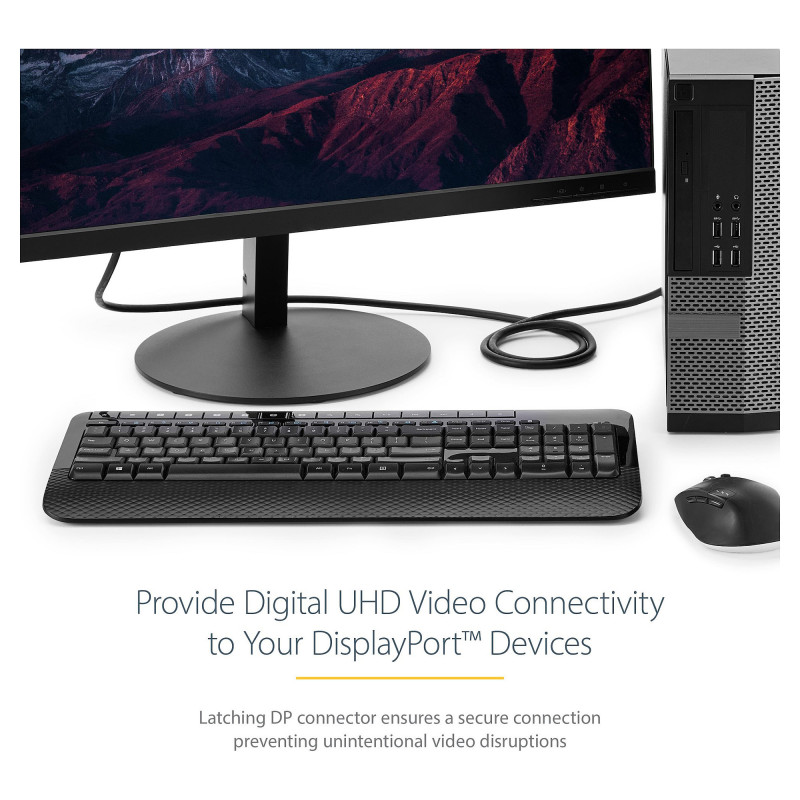

The DISPL1M 1m DisplayPort™ 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI.

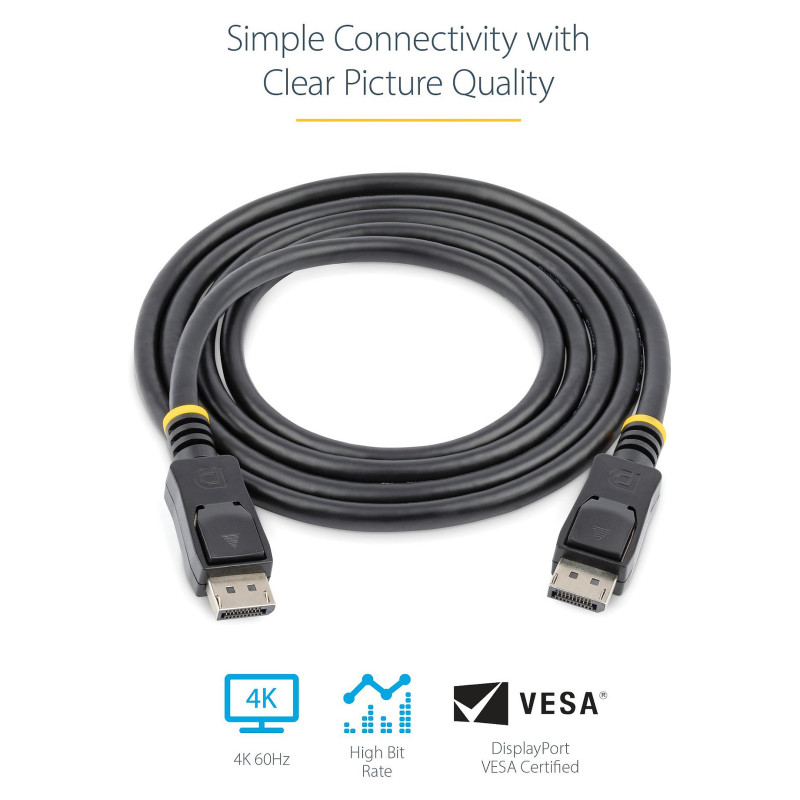

The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

The DISPL1M is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Nickel
DisplayPort version: 1.2
Maximum resolution: 3840 x 2400 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA), 3840 x 2400
Maximum refresh rate: 60 Hz
Feature: HDCP
Feature: DisplayPort Content Protection (DPCP)
Cable length: 1 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male

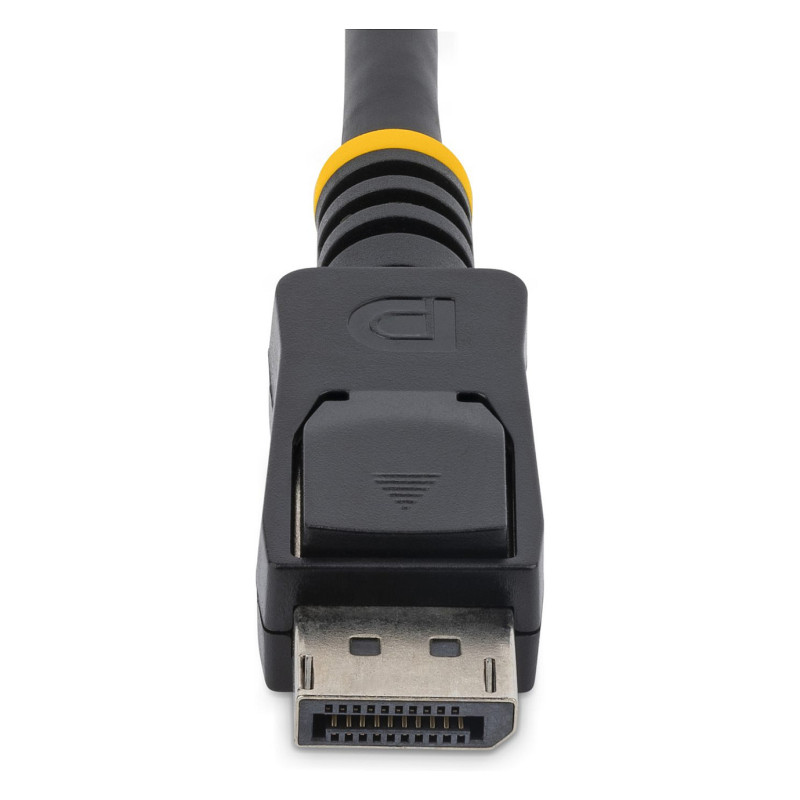

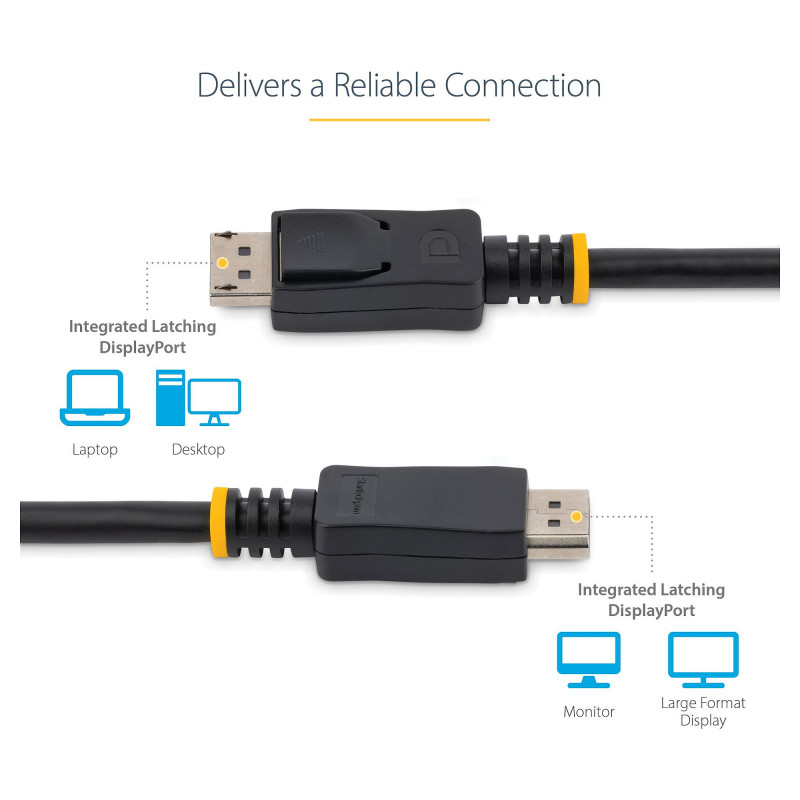

Feature: Latching connectors
Product colour: Black
Cable rating: CMG (CM)
Cable shielding: Aluminum mylar foil
Jacket material: Polyvinyl chloride (PVC)
AWG wire size: 28
Bandwidth: 21600 MB/s
Feature: Plug and Play
Feature: Multi-Stream Transport (MST)
Number of conductors: 19

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

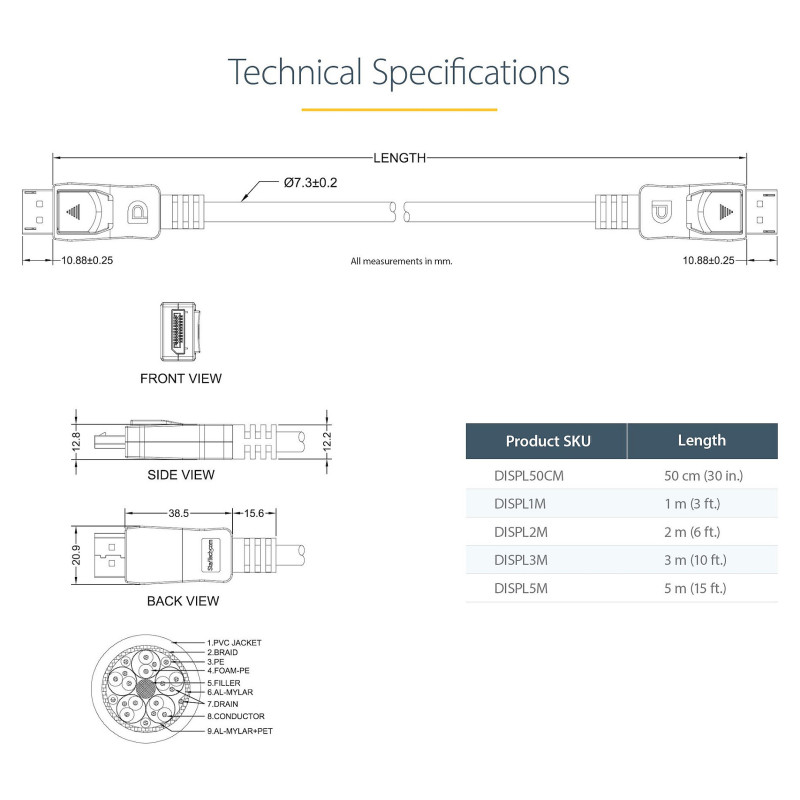

Cable diameter: 7.3 mm
Weight: 85 g

Packaging data

Package width: 126 mm
Package depth: 124 mm
Package height: 30 mm
Package weight: 97 g

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 510 mm
Master (outer) case length: 334 mm
Master (outer) case height: 224 mm
Products per master (outer) case: 80 pc(s)
