StarTech.com CDP2DPMM6B video cable adapter

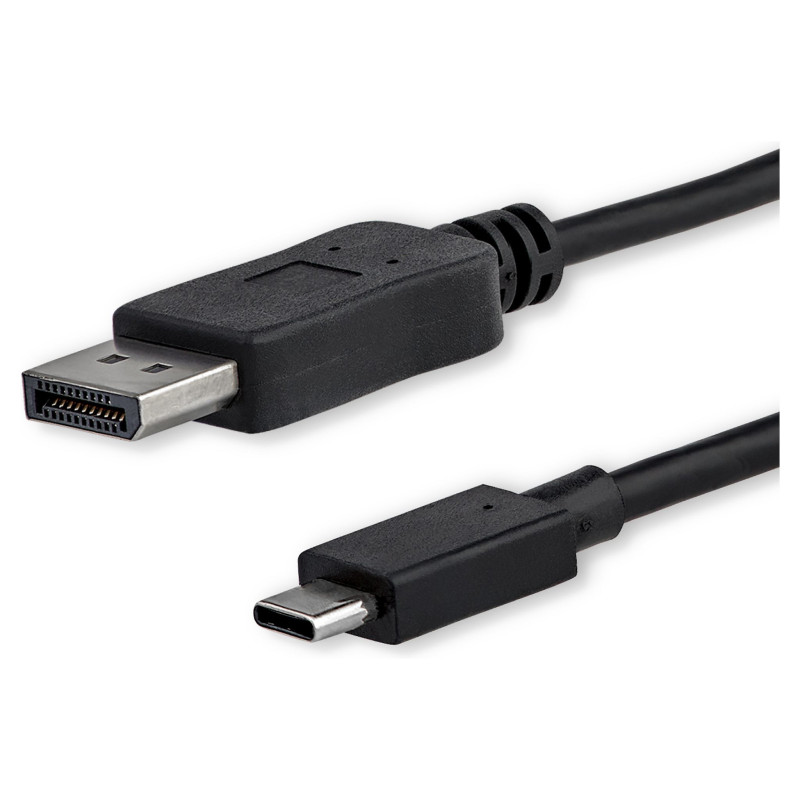

StarTech.com 6ft (1.8m) USB C to DisplayPort 1.2 Cable 4K 60Hz - USB-C to DisplayPort Adapter Cable HBR2 - USB Type-C DP Alt Mode to DP Monitor Video Cable - Works with Thunderbolt - Black. Cable length: 1.8 m, Connector 1: DisplayPort, Connector 2: USB Type-C. Compliance certificates: RoHS, Certification: CE, FCC, REACH. Weight: 49 g, Width: 20 mm, Depth: 1800 mm. Package width: 200 mm, Package depth: 162 mm, Package height: 22 mm. Quantity per pack: 1 pc(s)

USB Type-C™ Video Adapter Cable | Thunderbolt™ 3 Compatible

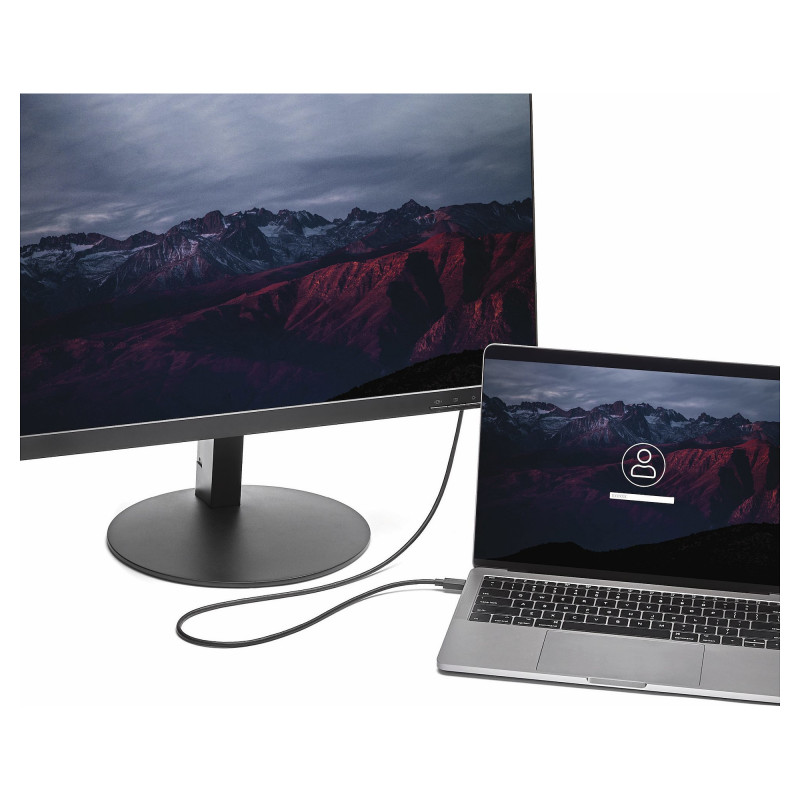

This USB-C to DisplayPort cable lets you connect your Thunderbolt 3 or USB Type-C enabled device to a 4K DisplayPort monitor with just one cable, providing you with a convenient, clutter-free solution.

Astonishing Picture Quality

The USB C to DisplayPort adapter cable lets you harness the video capabilities that are built into your USB-C connection, to deliver the astonishing quality of Ultra HD to your 4K display and supporting resolutions up to 3840 x 2160.

Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other work environments.

Clutter-Free Installation

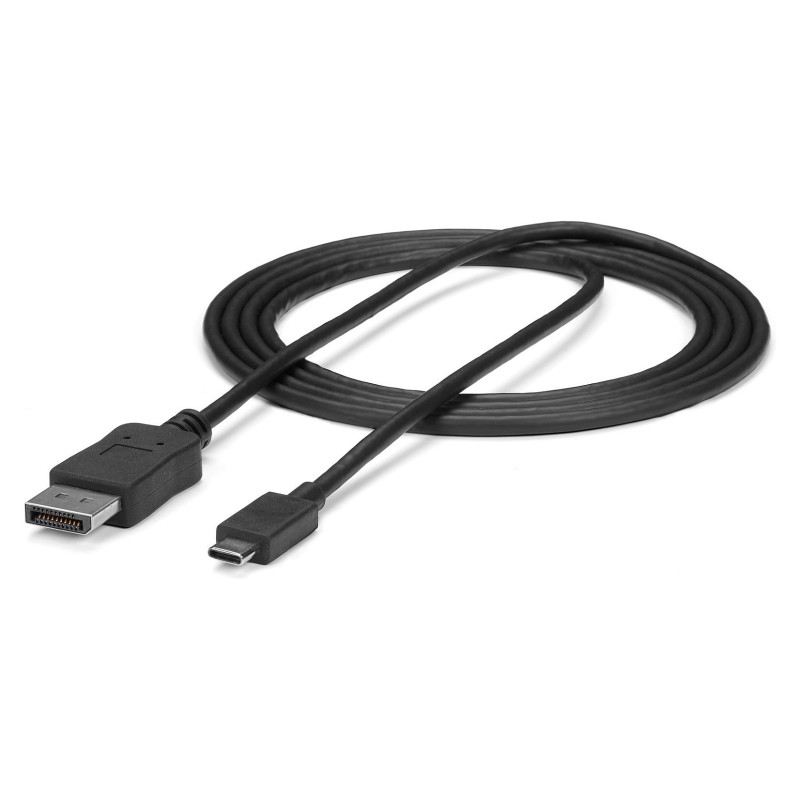

At 6 ft. (1.8 m) in length, this monitor cable eliminates the need for excess adapters and cabling, ensuring a tidy, professional installation. For installations requiring shorter or longer connections we also offer a 9.8 ft. (3 m) (CDP2DPMM3MB, CDP2DPMM3MW) and a 3.3 ft. (1 m) (CDP2DPMM1MB, CDP2DPMM1MW) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.

Hassle-Free Setup

To ensure easy operation and installation, this USB C to DisplayPort cable works with both Windows and Mac computers and allows for plug-and-play installation, removing the need for any additional software or drivers.

CDP2DPMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note: Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Cable length: 1.8 m

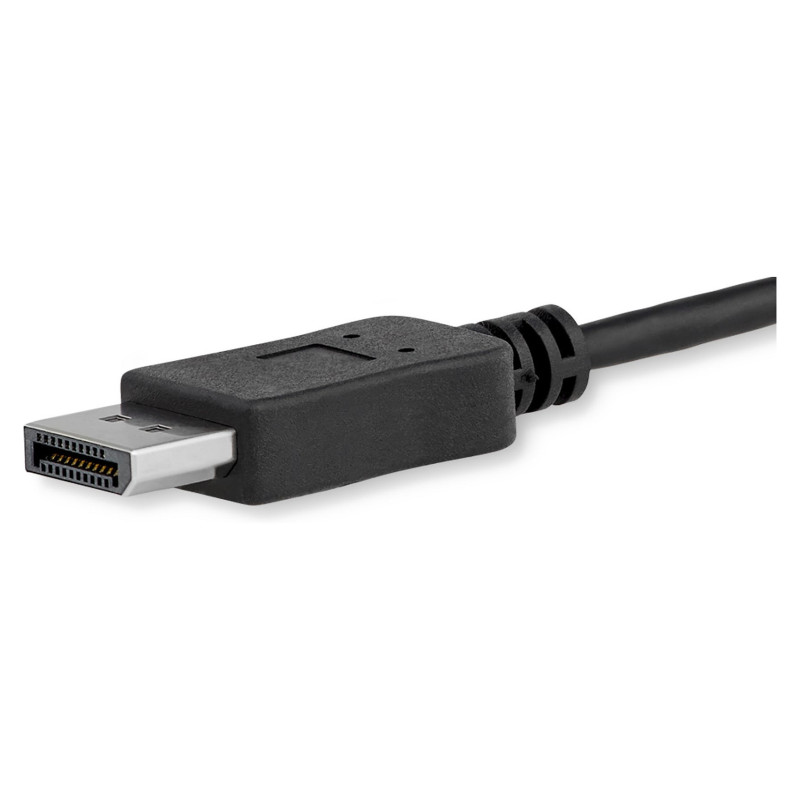

Connector 1: DisplayPort

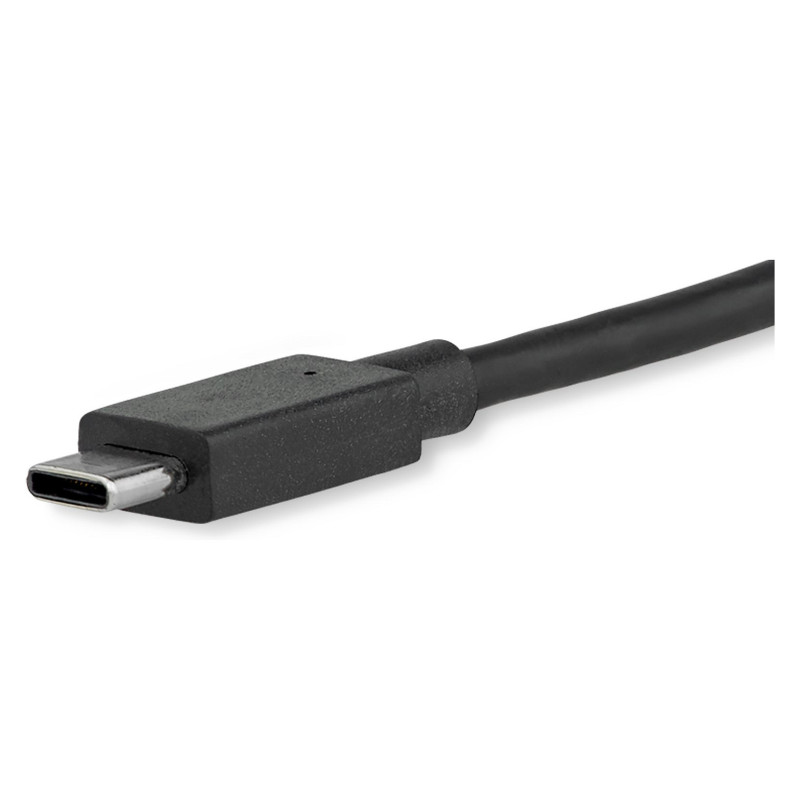

Connector 2: USB Type-C
Connector 1 gender: Male
Connector 2 gender: Male
Feature: HDCP
HDCP version: 1.4/2.2
DisplayPort version: 1.2
Feature: USB Type-C DisplayPort Alternate Mode
Maximum resolution: 3840 x 2160 pixels
Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160
Supported video modes: 720p, 1080p, 2160p
Bandwidth: 21600 MB/s
Maximum refresh rate: 60 Hz
Feature: HBR2 support
Product colour: Black
Chipset: STMicroelectronics - STM32F072CBU6
Supported audio channels: 7.1
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 20 - 70%

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, REACH

Weight & dimensions

Weight: 49 g
Width: 20 mm
Depth: 1800 mm
Height: 10 mm

Packaging data

Package width: 200 mm
Package depth: 162 mm
Package height: 22 mm
Package weight: 58 g

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 512 mm
Master (outer) case length: 341 mm
Master (outer) case height: 228 mm
Products per master (outer) case: 60 pc(s)
