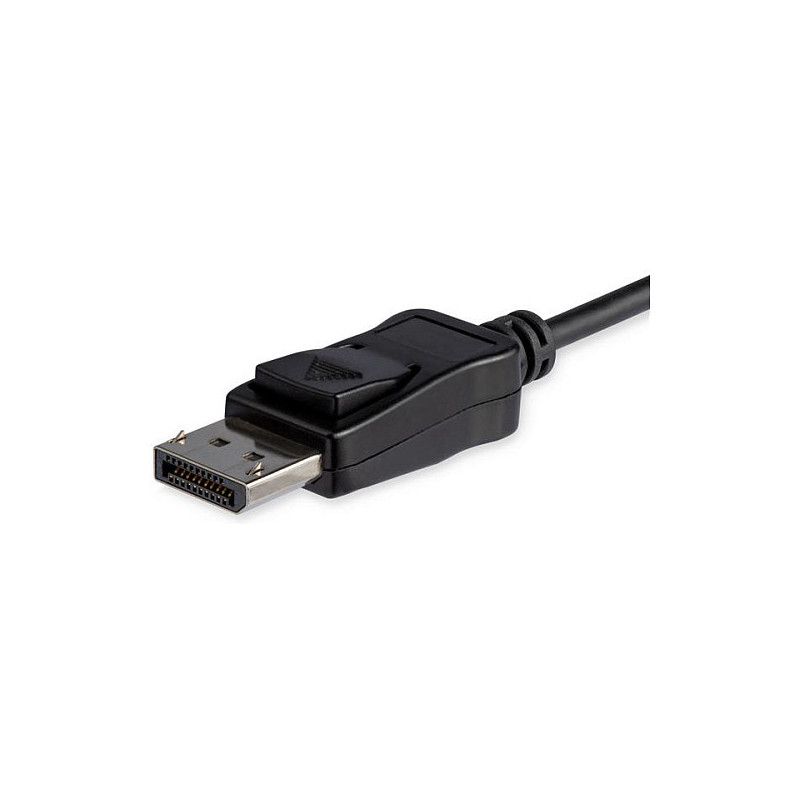

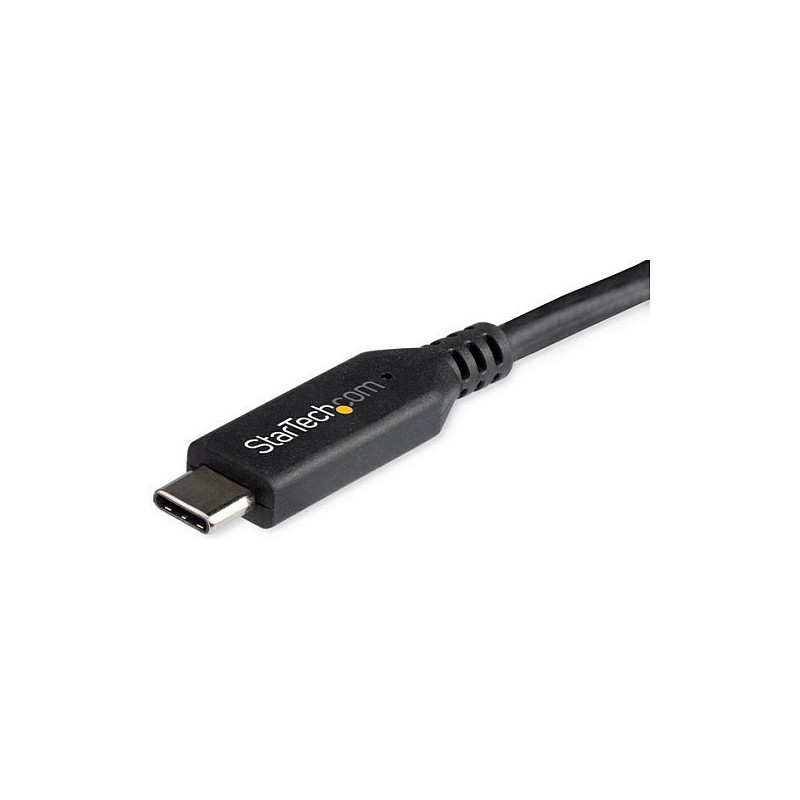

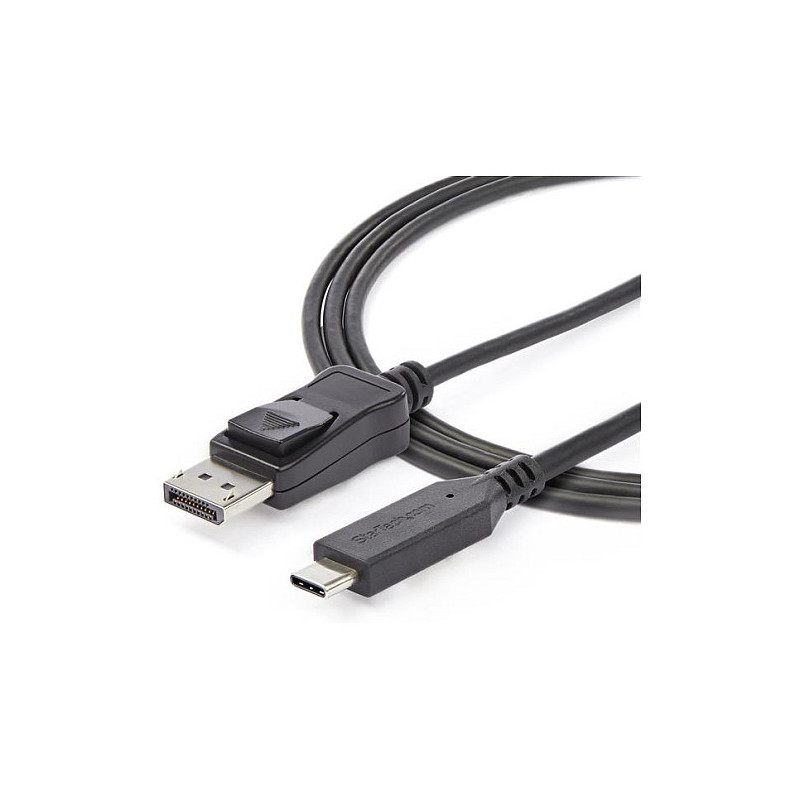

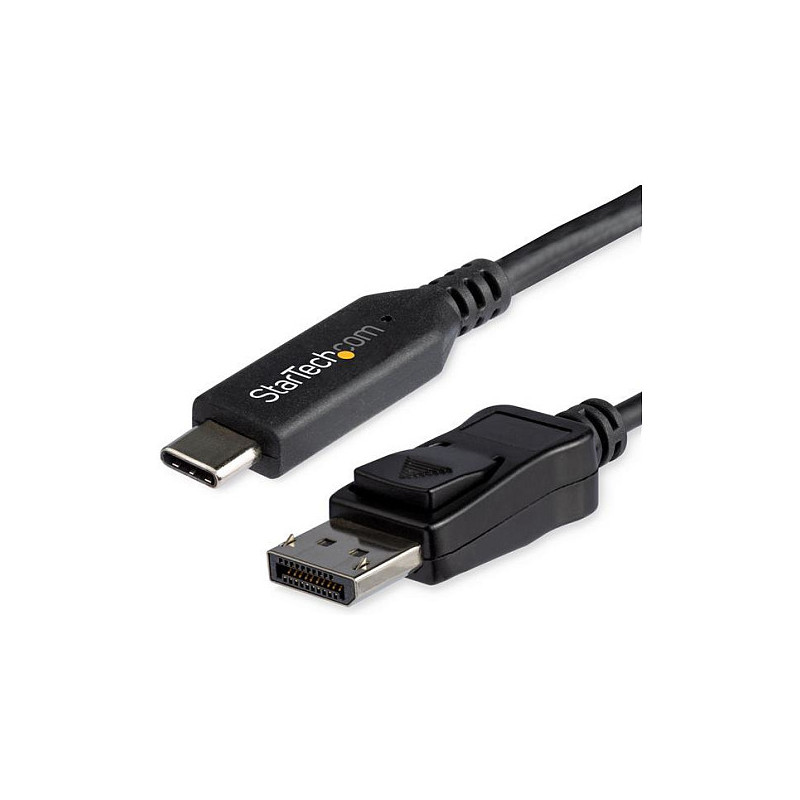

StarTech.com CDP2DP146B video cable adapter

StarTech.com 6ft (1.8m) USB C to DisplayPort 1.4 Cable - 4K/5K/8K USB Type-C to DP 1.4 Alt Mode Video Adapter Converter - HBR3/HDR/DSC - 8K 60Hz DP Monitor Cable for USB-C/Thunderbolt. Cable length: 1.8 m, Connector 1: USB Type-C, Connector 2: DisplayPort. Compliance certificates: RoHS, Certification: CE, FCC, REACH. Weight: 57 g, Width: 200 mm, Depth: 1800 mm. Package width: 157 mm, Package depth: 181 mm, Package height: 27 mm. Quantity per pack: 1 pc(s)
USB-C™ Video Adapter Cable | Thunderbolt™ 3 Compatible | HBR3
This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C device to a DisplayPort monitor with just one cable, providing you with a convenient, clutter-free solution.
Incredible Picture Quality
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320; and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
With cutting-edge picture quality, this cable is ideal for:
• Displaying crisp digital signage walls
• Creating eye-catching visuals for photography and videography
The USB-C to DP cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
At 6 ft. (1.8 m) in length, this DisplayPort adapter cable delivers a direct connection that eliminates excess cabling, ensuring a tidy installation. For installations requiring a shorter length, we also offer a 3.3 ft. (1 m) DisplayPort cable, enabling you to customize your connection needs. Clutter-Free Installation
Hassle-Free Setup
To ensure easy operation, this DisplayPort converter cable supports plug-and-play installation, removing the need for additional software or drivers.
CDP2DP146B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
• Your USB-C device must support DP Alt Mode to work with this adapter cable.
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Cable length: 1.8 m
Connector 1: USB Type-C
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
DisplayPort version: 1.4
Maximum resolution: 7680 x 4320 pixels
Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3860 x 2160, 4096 x 2160, 7680 x 4320
Maximum refresh rate: 60 Hz
Product colour: Black
Chipset: STM32F072CBY6TR
Supported audio channels: 7.1

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 80 - 90%

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, REACH

Weight dimensions

Weight: 57 g
Width: 200 mm
Depth: 1800 mm
Height: 11 mm

Packaging data

Package width: 157 mm
Package depth: 181 mm
Package height: 27 mm
Package weight: 100 g

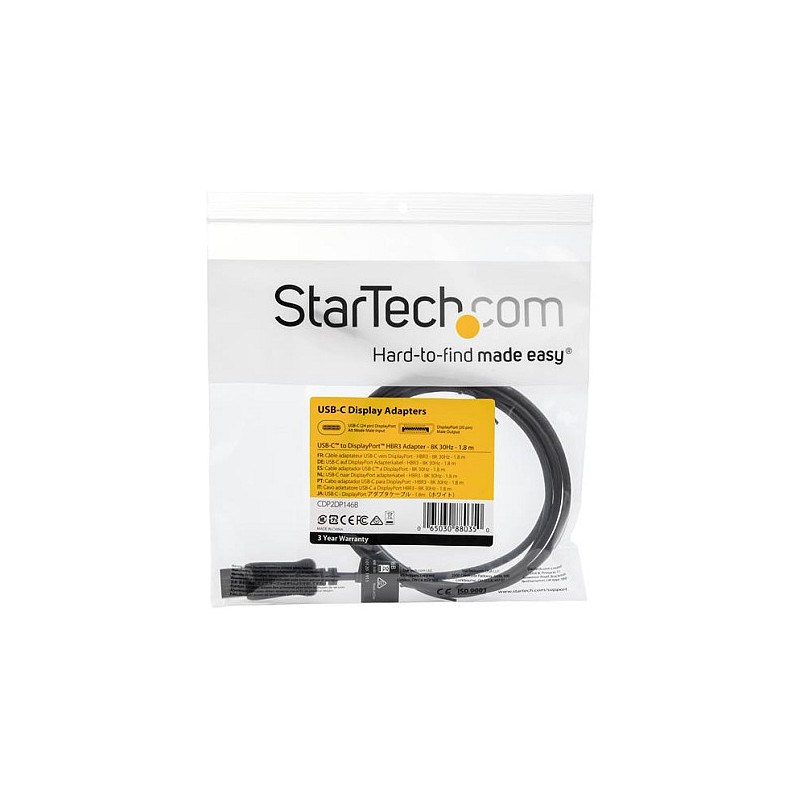

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 507 mm
Master (outer) case length: 343 mm
Master (outer) case height: 232 mm
Products per master (outer) case: 60 pc(s)
