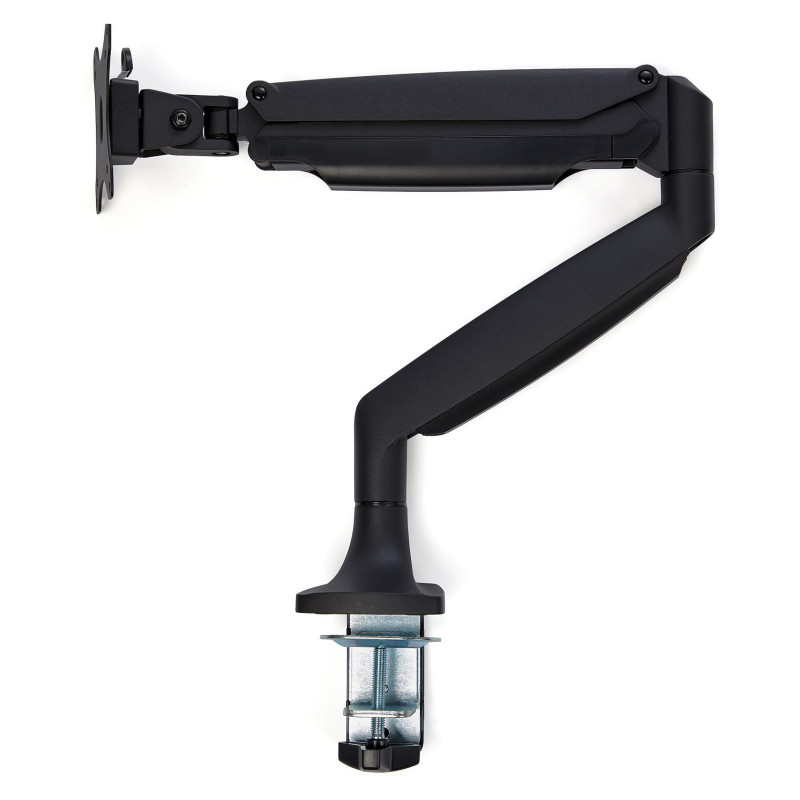

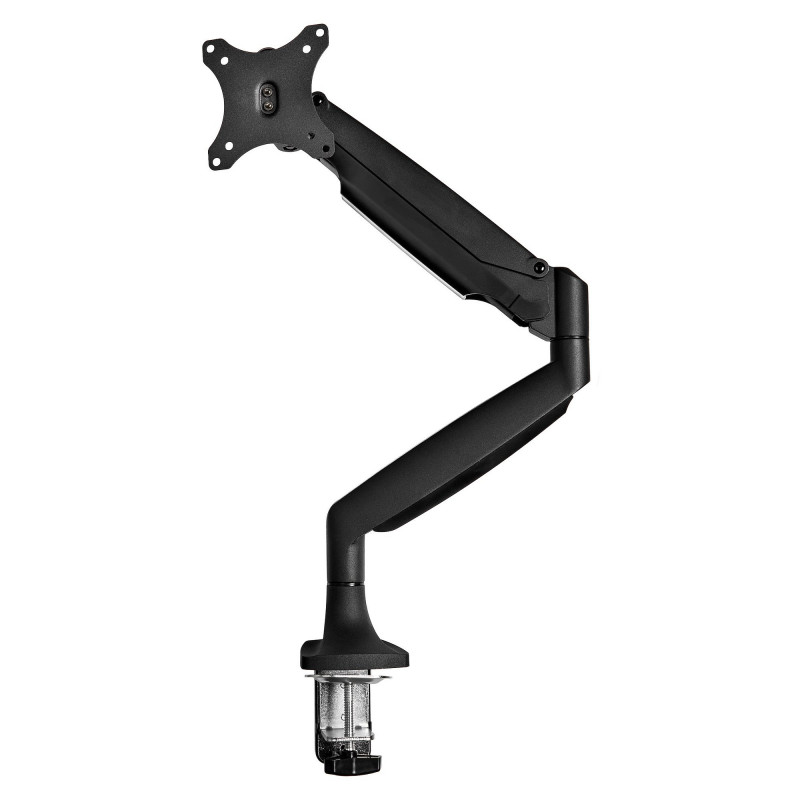

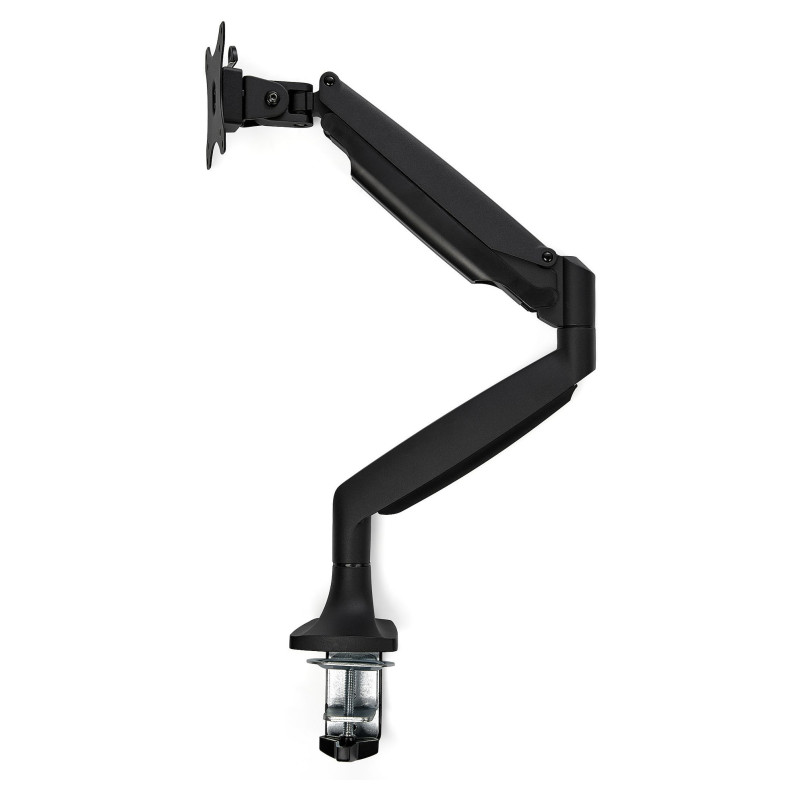

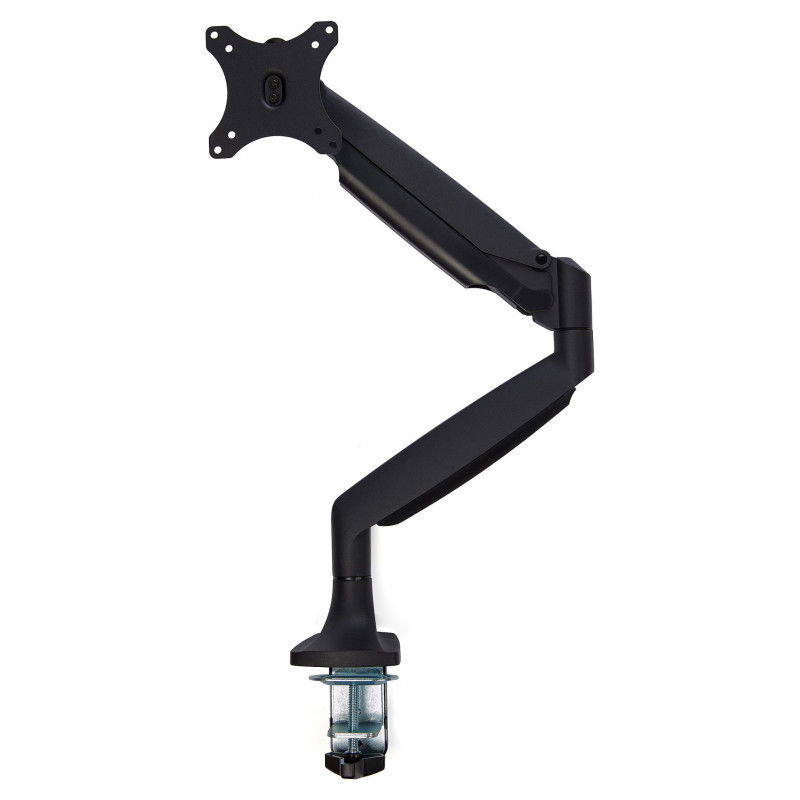

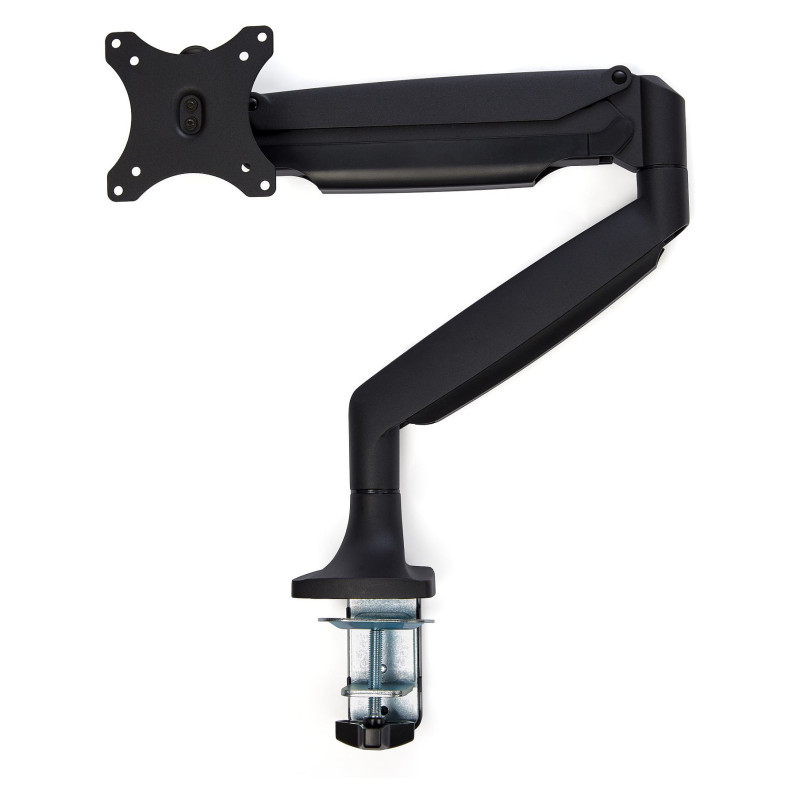

StarTech.com ARMPIVOTHDB monitor mount / stand

StarTech.com Desk Mount Monitor Arm - Heavy Duty Ergonomic VESA Monitor Arm - Single 32" (19.8lb/9kg) Display - Full Motion, Height Adjustable, Articulating - Aluminum - C-Clamp/Grommet- Black. Mounting: Clamp, Maximum weight capacity: 9 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -90 - 90°. Product colour: Black

VESA Monitor Mount | Single Monitor up to 20lb | Articulating

Free up space while creating an ergonomic work environment. This desk-mount monitor arm makes it easy to securely mount your display above your desk or table and adjust the height with one touch. You can mount a display ranging in size from 13" to 32"; and the monitor arm features an attractive black finish that complements your workspace.

Mount Your Monitor to Save Space

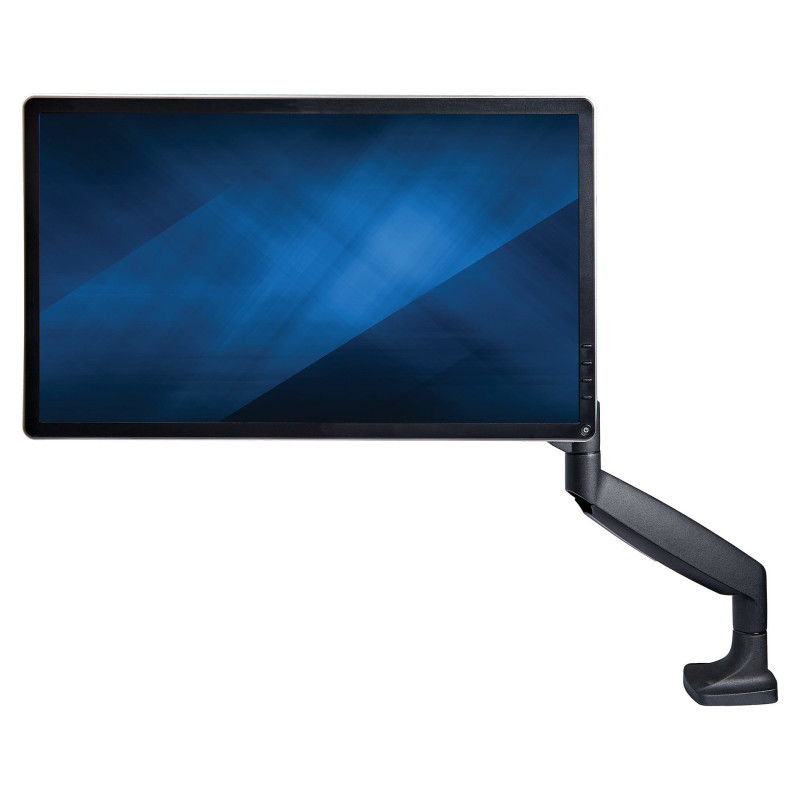

This heavy-duty monitor arm saves space on your work surface by elevating your monitor above your desk or table.

One-Touch Height Adjustment

The monitor-mount arm features a gas-spring cylinder that makes it easy to raise or lower your display, with up to 13.2" (335 mm) of height adjustment. Adjust the tension according to the weight of your monitor, to re-position the monitor height effortlessly.

Adjust Your Monitor for Ideal Viewing

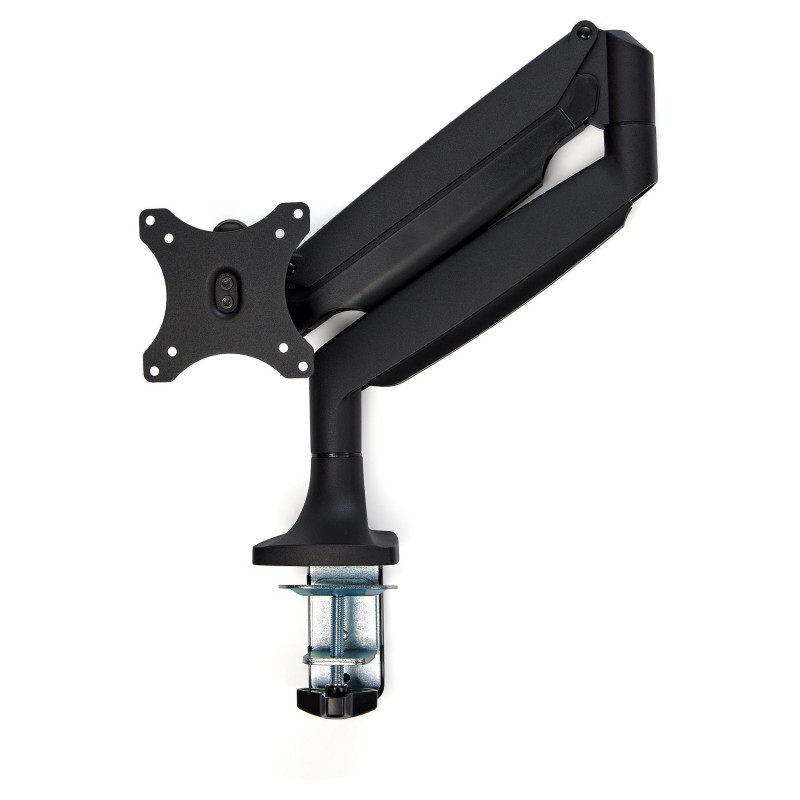

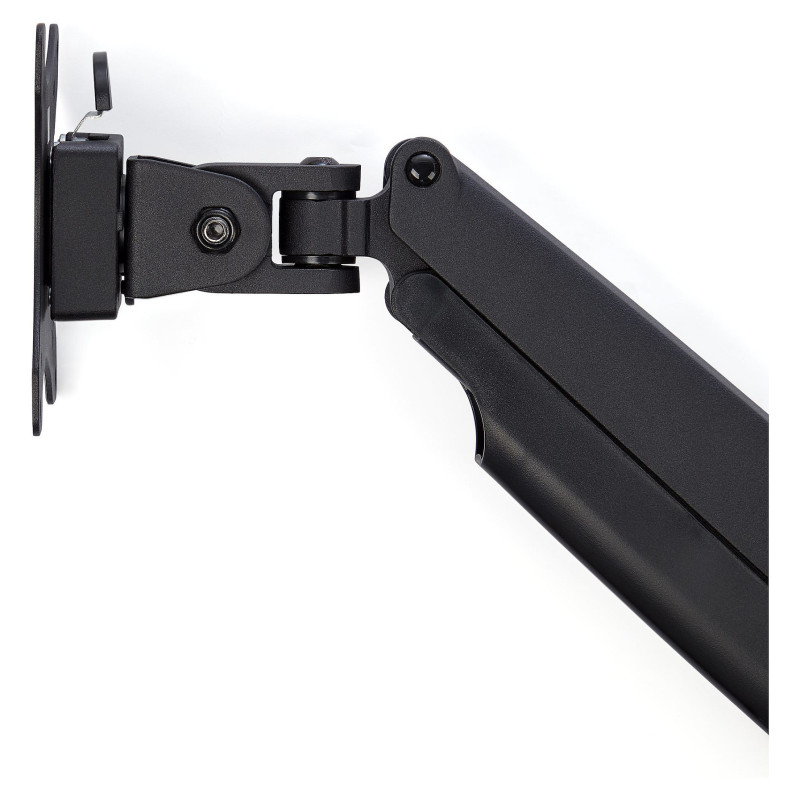

The full-motion articulating monitor arm extends up to 23.8" (605 mm) so it's easy to find the right viewing angle. Swivel or tilt your screen +/-90 degrees for comfortable viewing or rotate it 90 degrees for landscape or portrait viewing.

Easy Installation

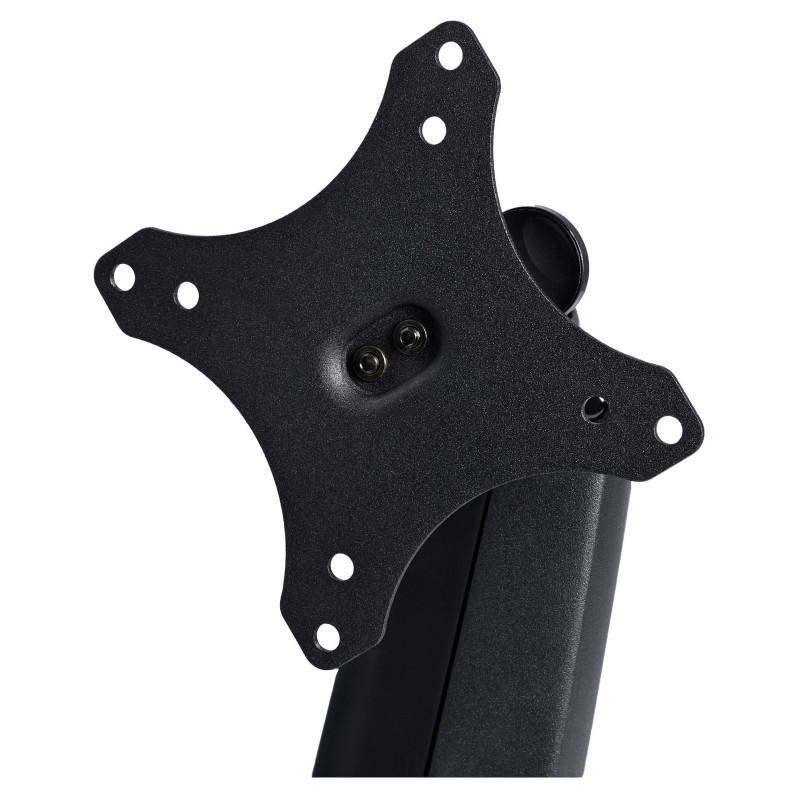

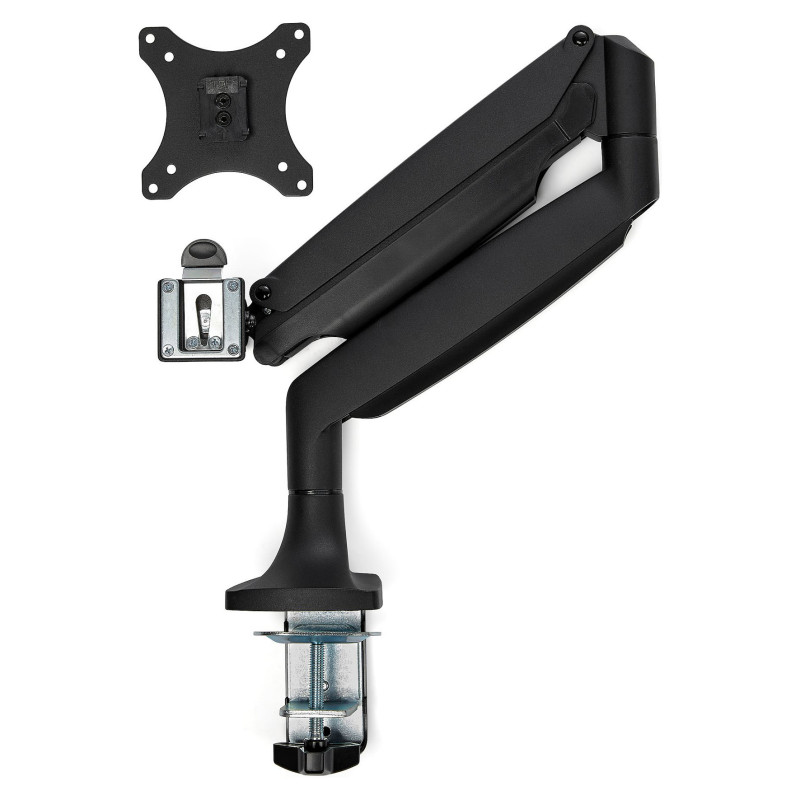

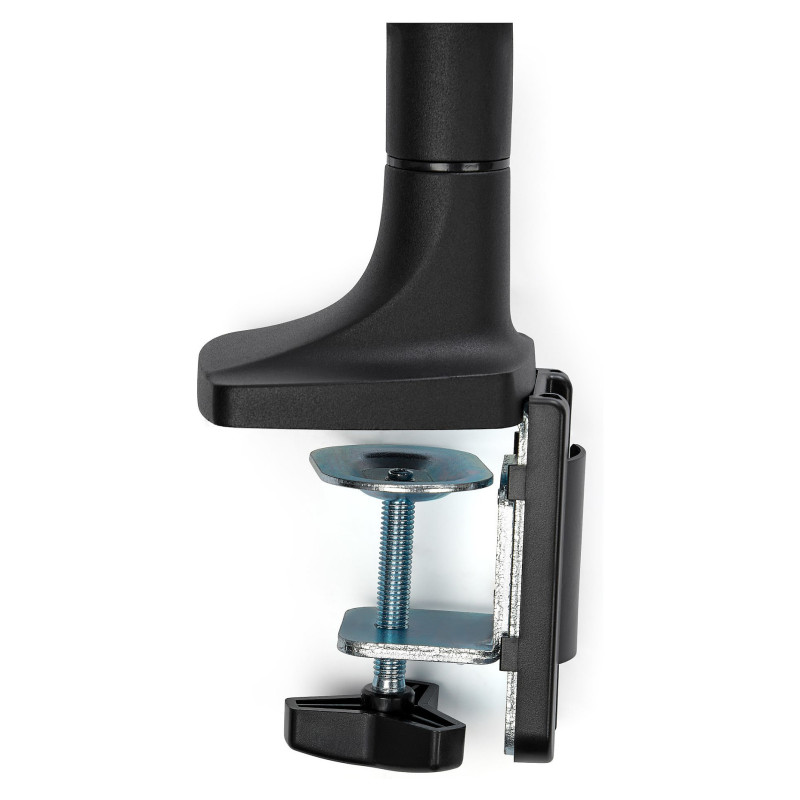

The VESA monitor mount is easy to install (desk C-clamp or grommet mount) and offers built-in cable management. The detachable VESA panel makes it simple to attach or remove your monitor.

ARMPIVOTHDB is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Mounting

Maximum weight capacity: 9 kg
Minimum screen size: 33 cm (13")
Number of displays supported: 1
Maximum screen size: 81.3 cm (32")
Mounting: Clamp
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Desk thickness (min): 1 cm
Desk thickness (max): 8.5 cm

Ergonomics

Feature: Height adjustment
Height adjustment range: 170 - 505 mm
Tilt angle range: -90 - 90°
Swivel angle: 180°
Angle of rotation: 180°
Pivot angle: -180 - 180°
Feature: Cable management
Feature: Rubber feet

Design

Product colour: Black

Weight & dimensions

Width: 100 mm
Depth: 290 mm
Height: 530 mm
Weight: 2.8 kg

Packaging data

Package width: 492 mm
Package depth: 323 mm
Package height: 118 mm
Package weight: 4.1 kg

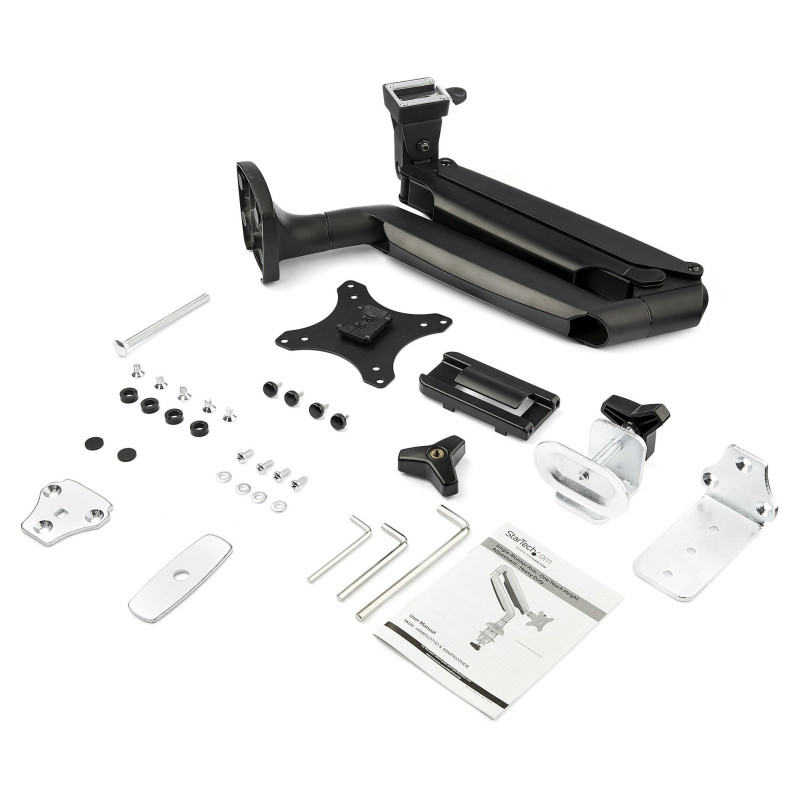

Packaging content

Feature: Wrench included
Wrench type: Hexagonal wrench
Feature: Clamp included
Feature: Mounting brackets included
Feature: Screws included
Number of screws: 15
Number of washers included: 4
Number of spacers included: 4
Feature: Grommet base plate included
Feature: Grommet plate included
Feature: Manual

Other features

Compliance certificates: RoHS
Certification: CE

Logistics data

Master (outer) case width: 512 mm
Master (outer) case length: 355 mm
Master (outer) case height: 486 mm
Products per master (outer) case: 4 pc(s)
Harmonized System (HS) code: 85299097
