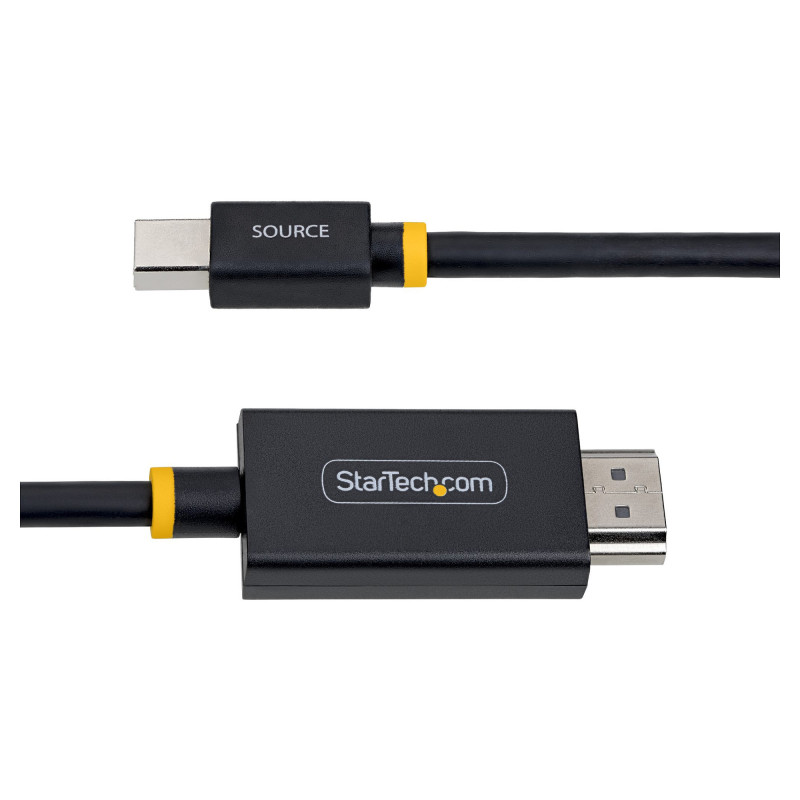

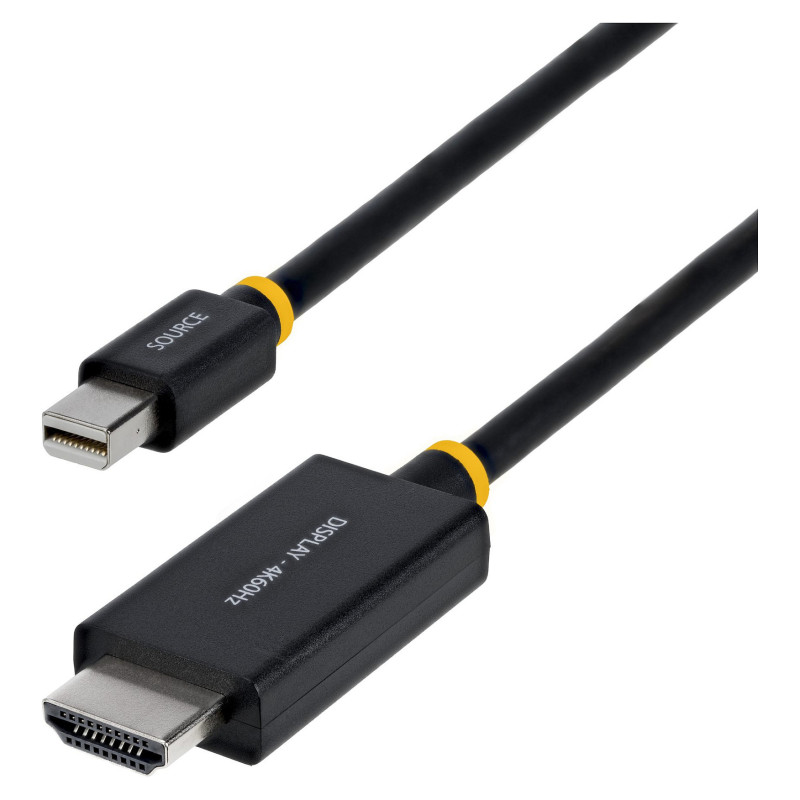

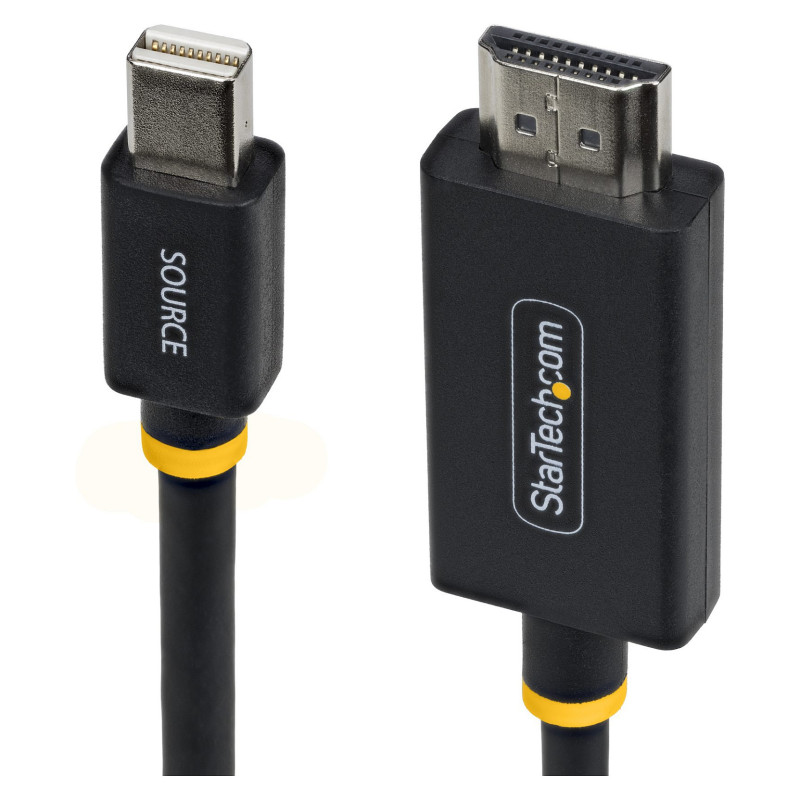

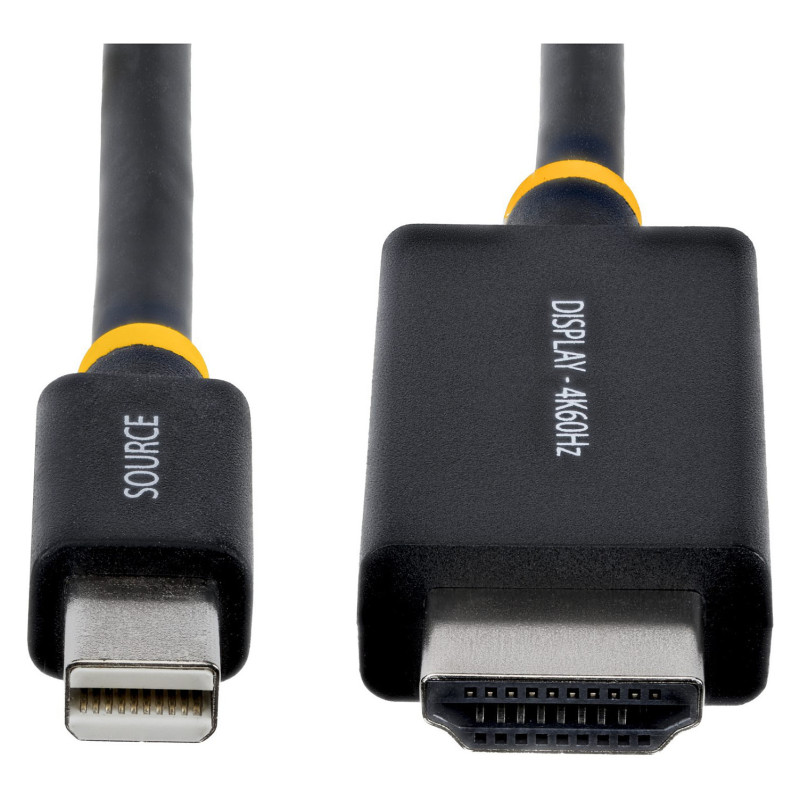

StarTech.com 2M-MDP-HDMI2-4K60 video cable adapter

StarTech.com 2m (6ft) Mini DisplayPort to HDMI Adapter Cable, 4K 60Hz with HBR3/HDCP 2.3/DPCP, MDP to HDMI 2.0, Active Video Converter, Mini DisplayPort Desktop to HDMI Monitor. Cable length: 2 m, Connector 1: Mini DisplayPort, Connector 2: HDMI Type A (Standard). Compliance certificates: RoHS. Cable diameter: 5 mm, Weight: 100 g. Package width: 220 mm, Package depth: 128 mm, Package height: 15 mm. Master (outer) case width: 500 mm, Master (outer) case length: 320 mm, Master (outer) case height: 21 mm

Connect a Mini DisplayPort source to an HDMI display with support for up to 4K 60Hz UHD video

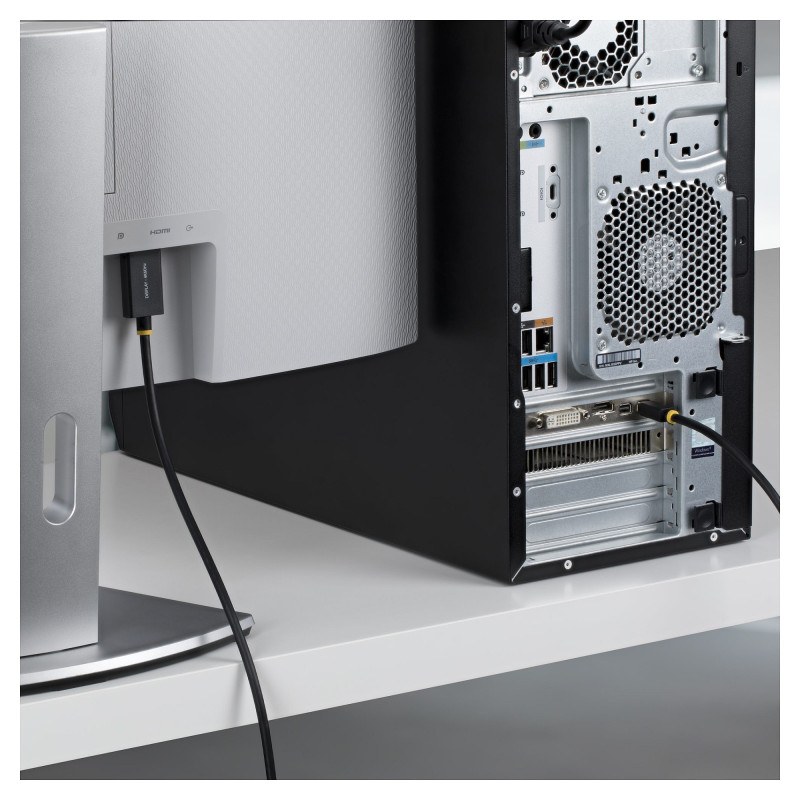

Connect a Mini DisplayPort-enabled desktop to an HDMI UHD monitor, using this 2-meter (6.6-foot) Active Mini DisplayPort to HDMI Adapter Cable.

Seamless 4K 60Hz UHD Video

This active Mini DisplayPort to HDMI adapter cable supports up to 4K 60Hz UHD over HDMI 2.0 with 7.1ch audio, HDCP 2.3 and DPCP content protection. Ensure sharp picture quality with 32Gbps HBR3 bandwidth from the Mini DisplayPort input, delivering full 18Gbps HDMI 2.0 output for consistent UHD video performance.

Universal Compatibility

The mDP To HDMI adapter cord is ideal for workstations and GPUs equipped with a Mini DisplayPort 1.2, 1.4, or 2.1 video ports and HDMI 2.0 displays. An active chipset ensures optimal signaling and universal compatibility across standard mDP and mDP++ ports. Connect a Mini DisplayPort 1.2 source to enable HDMI 2.0 4K 60Hz 4:4:4 chroma, 8-bit color depth output.

Designed and Built for IT Professionals

The integrated adapter cable design minimizes signal loss, reduces clutter, and eliminates the need for external power. This Mini DisplayPort to HDMI cable helps maintain signal integrity and reduce electromagnetic interference (EMI) for reliable long-term performance. Compatible with systems from Dell, HP, Lenovo, and other desktop manufacturers, and backward compatible with 4K 30Hz, 1080p, and lower resolutions.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Cable length: 2 m
Connector 1: Mini DisplayPort
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Male
HDMI version: 2.0
Feature: HDCP
HDCP version: 2.3
DisplayPort version: 2.1
Maximum resolution: 3840 x 2160 pixels
Supported graphics resolutions: 3840 x 2160, 3200 x 1800, 3072 x 1728, 2560 x 1440, 2048 x 1536 (QXGA), 1920 x 1200 (WUXGA), 1920 x 1080 (HD 1080)
Bandwidth: 32000 MB/s
Maximum refresh rate: 144 Hz
Product colour: Black
Chipset: Parade PS176
Jacket material: Thermoplastic elastomer (TPE)
Supported audio channels: 7.1
Converter type: Active video converter

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 85%

Certificates

Compliance certificates: RoHS

Weight & dimensions

Cable diameter: 5 mm
Weight: 100 g

Packaging data

Package width: 220 mm
Package depth: 128 mm
Package height: 15 mm
Package weight: 68 g

Logistics data

Master (outer) case width: 500 mm
Master (outer) case length: 320 mm
Master (outer) case height: 21 mm
Products per master (outer) case: 80 pc(s)
