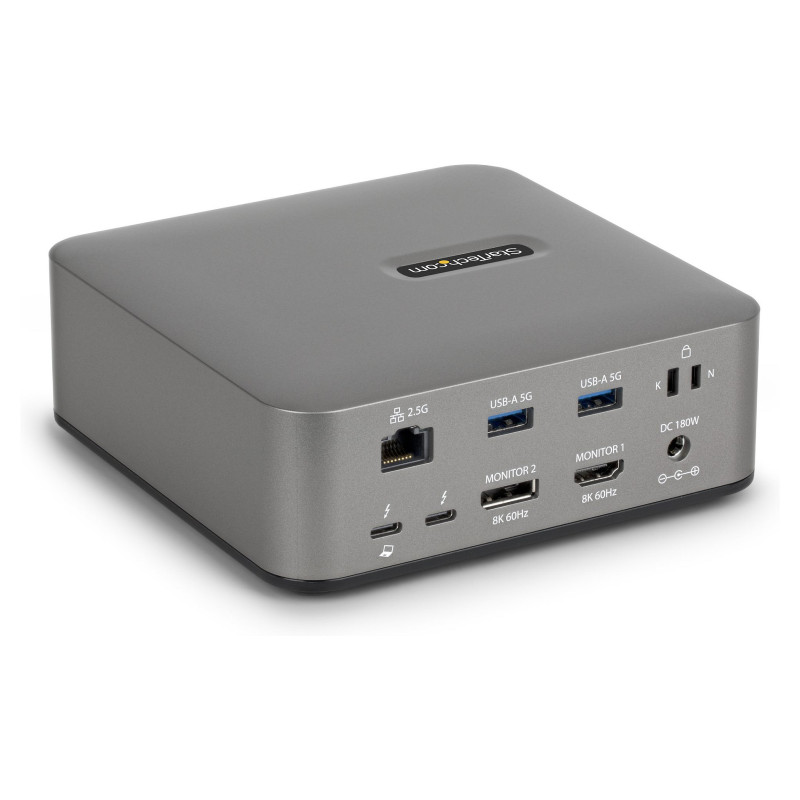

StarTech.com 215UE-TB5USB4DOCK laptop dock / port replicator

StarTech.com Thunderbolt 5 Universal Docking Station, Multi-Display Hub, 8K 60Hz or 4K 144Hz, 120Gbps Bandwidth Boost, 140W PD, 30W Phone Charging, USB 10Gbps, 2.5G LAN. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Networking standards: IEEE 802.3bz. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC, Data transfer rate: 40 Gbit/s. Output voltage: 20 V, Output current: 9 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 15.0 Sequoia

Transform your Thunderbolt 5 or USB4 laptop into a high-resolution, multi-monitor workstation

Simplify your workspace with a high-performance dock that supports Thunderbolt 5, Thunderbolt 4, and USB4 laptops. Supports multiple displays up to triple 4K displays, 140W laptop charging, and 2.5G Ethernet, all through a single connection.

Advanced Display and Charging Capabilities

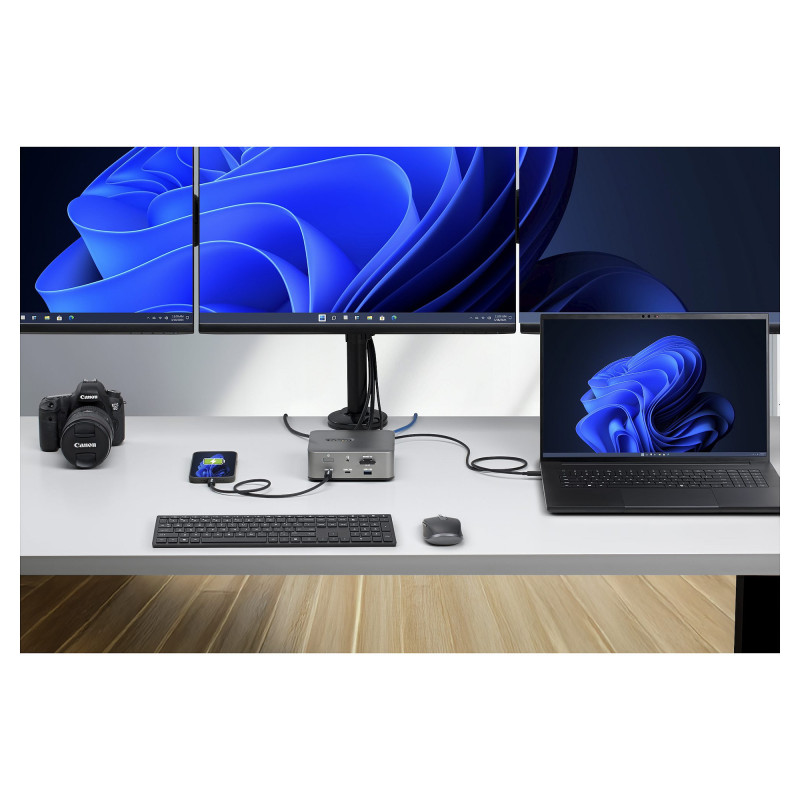

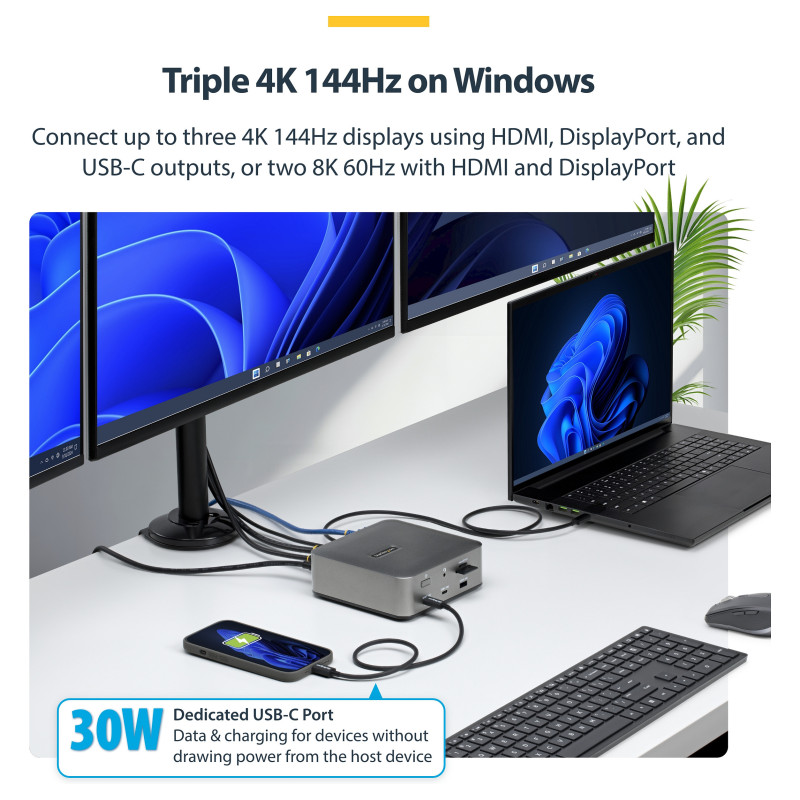

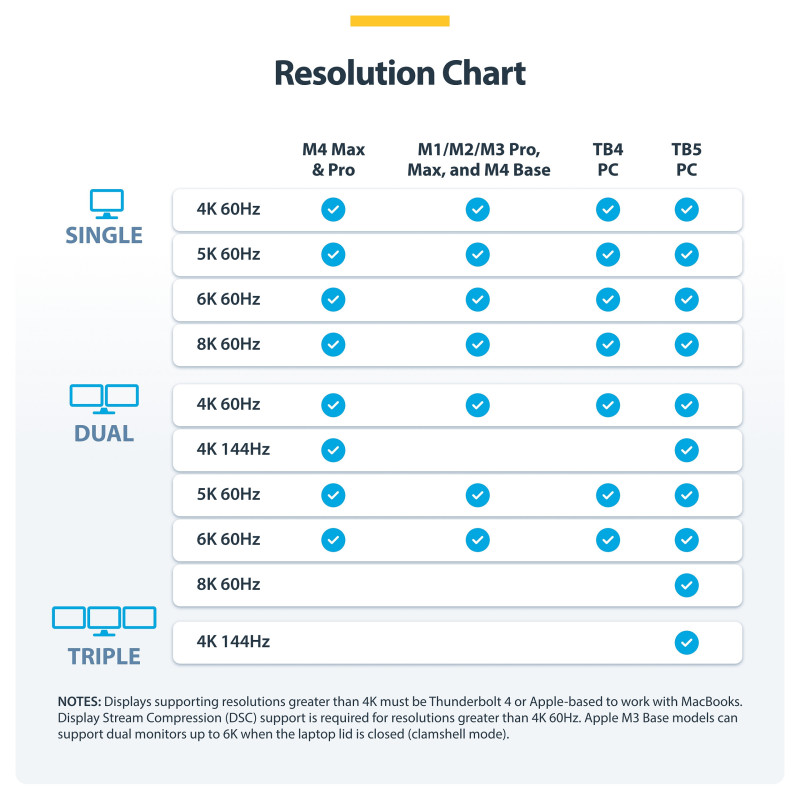

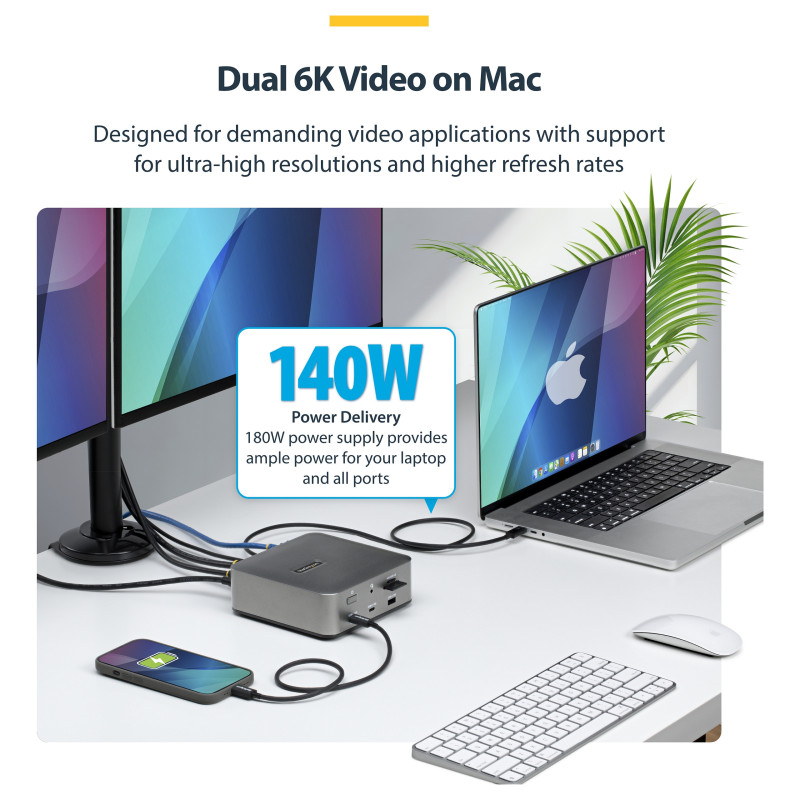

Connect up to three 4K 144Hz displays using a combination of HDMI, DisplayPort, and USB-C outputs or dual 8K 60Hz via HDMI and DisplayPort. The docking station includes an 180W power adapter that can supply up to 140W to charge high-performance laptops such as the MacBook Pro M4. A dedicated 30W USB-C port provides data connectivity and charging for phones or tablets without drawing power from the host computer.

Networking and Compatibility

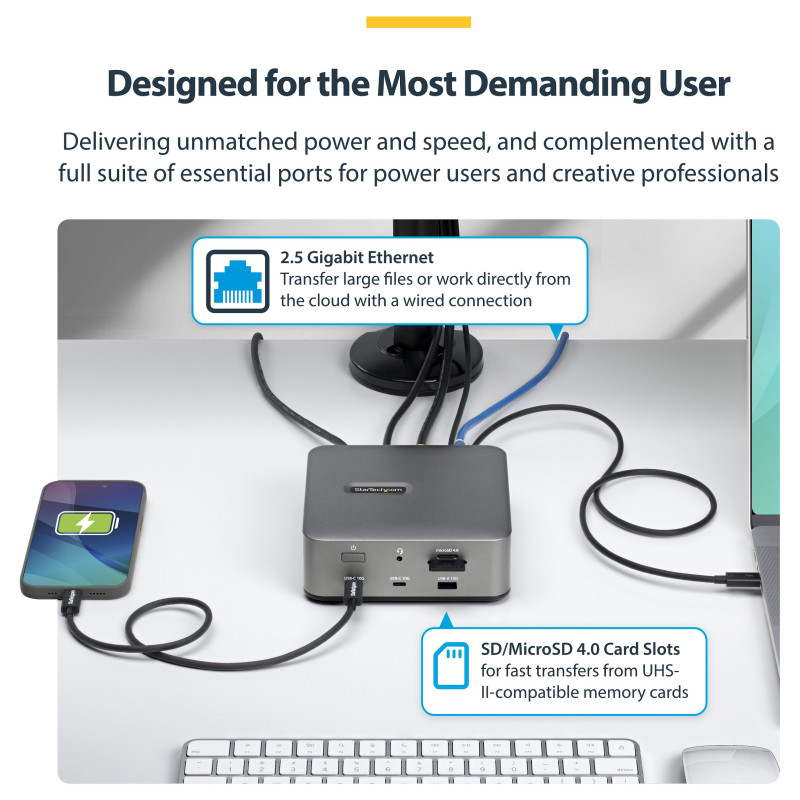

Enjoy faster cloud access, file transfers, and virtual collaboration with the wired 2.5G Ethernet RJ45 port. Driverless dock is compatible out of the box with Windows 11 and macOS 15 / 26 systems that feature Thunderbolt 5, 4, or USB4 connectivity, helping ensure IT-managed deployments stay efficient and consistent.

Secure and High-Functioning Workspace

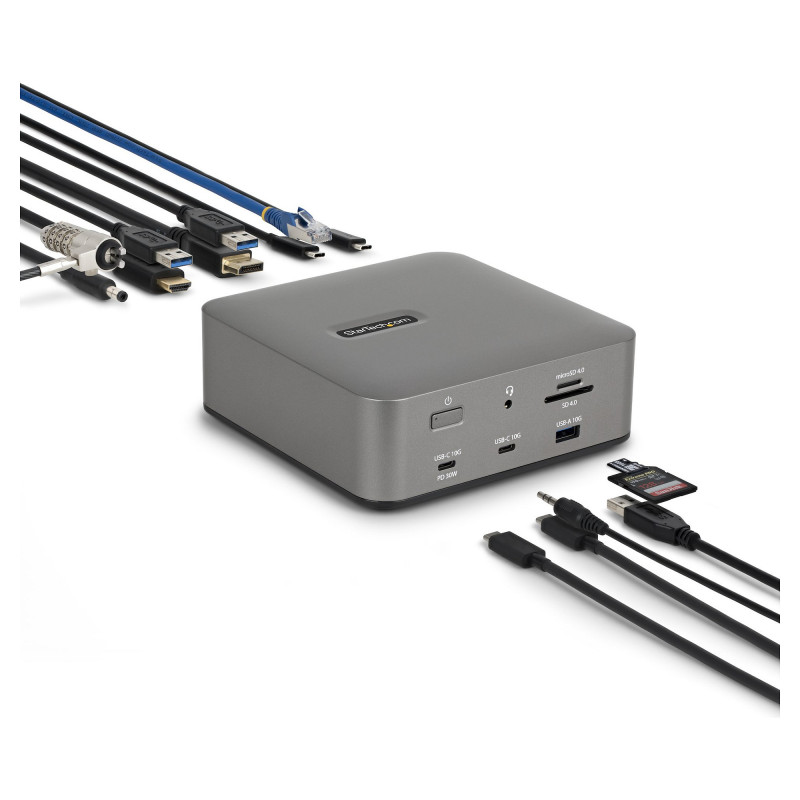

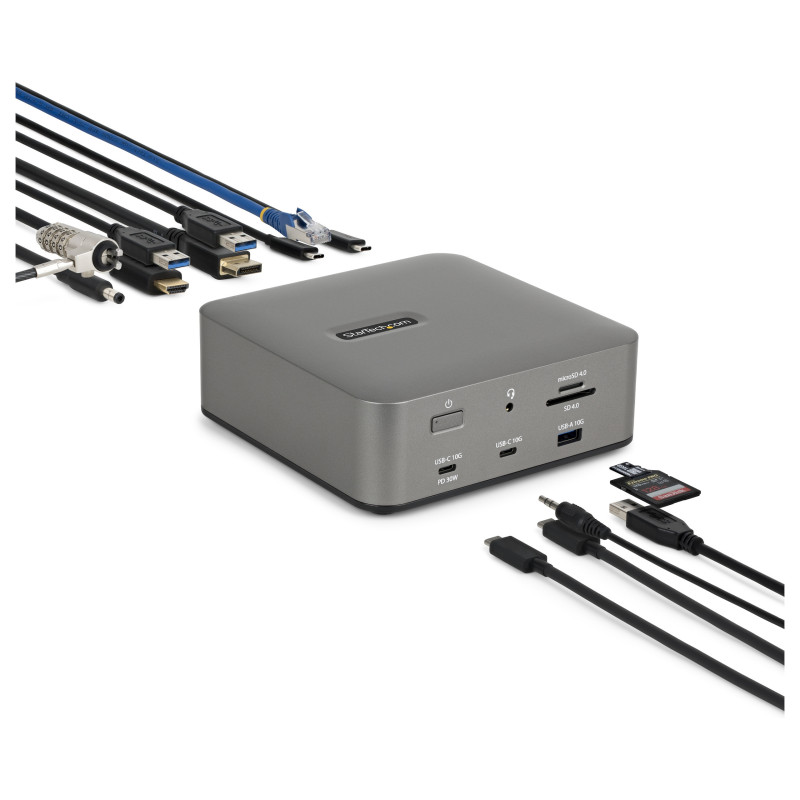

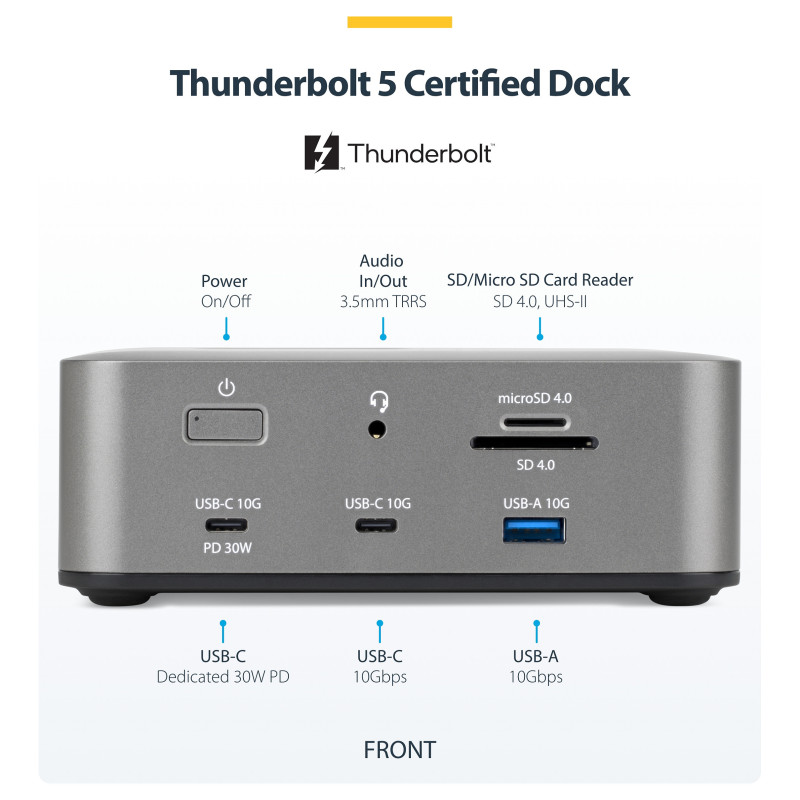

Dual security slots (K-Slot and Nano) let you physically secure the dock helping prevent theft in shared environments or high-traffic workspaces. This dock features built-in SD 4.0 and microSD 4.0 card slots for fast transfers from UHS-II-compatible memory cards. A 3.5mm audio jack supports headsets or speakers for seamless conferencing or media playback.

Enterprise Management Tools

StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features such as MAC address pass-through, Wi-Fi auto-switch, and USB device monitoring, the software helps IT teams streamline deployment and enhance security across diverse setups.

Download the StarTech.com Connectivity Tools to optimize your device setup .

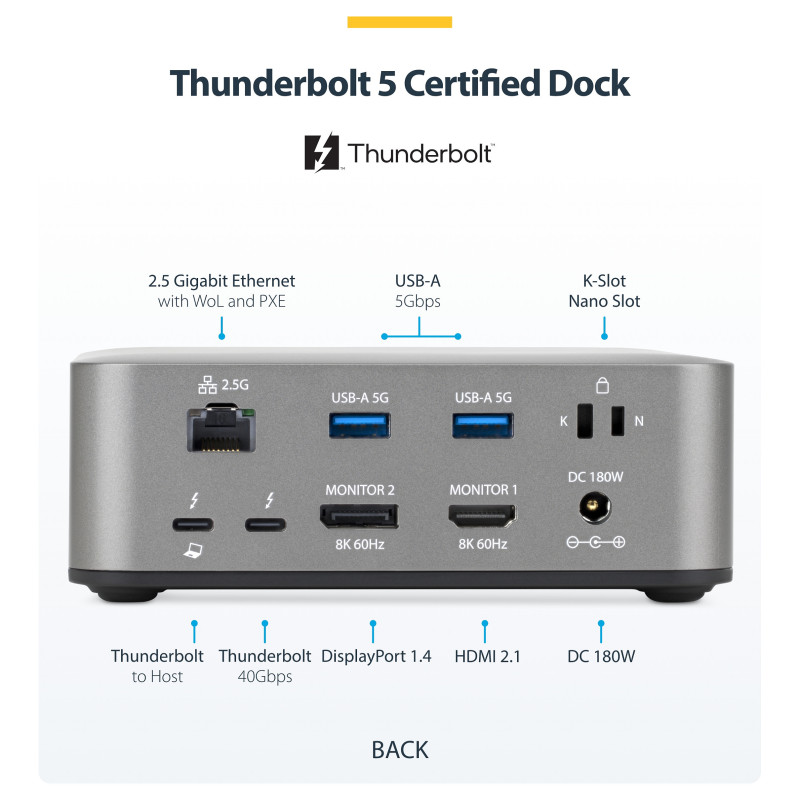

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 140 W
HDMI ports quantity: 1
DisplayPorts quantity: 1
Thunderbolt 5 ports quantity: 1
Feature: Combo headphone/mic port
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wake-on-LAN ready
Networking standards: IEEE 802.3bz
Feature: Full duplex

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate: 40 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 3
Maximum refresh rate: 144 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington, Nano
Product colour: Grey
Feature: On/off switch
LED indicators: Yes
Feature: UASP support
Housing material: Plastic

Power

Output voltage: 20 V
Output current: 9 A

Software

Mac operating systems supported: Mac OS X 15.0 Sequoia

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 50 mm
Weight: 592 g

Packaging data

Package width: 302 mm
Package depth: 169 mm
Package height: 59 mm
Package weight: 1.8 kg

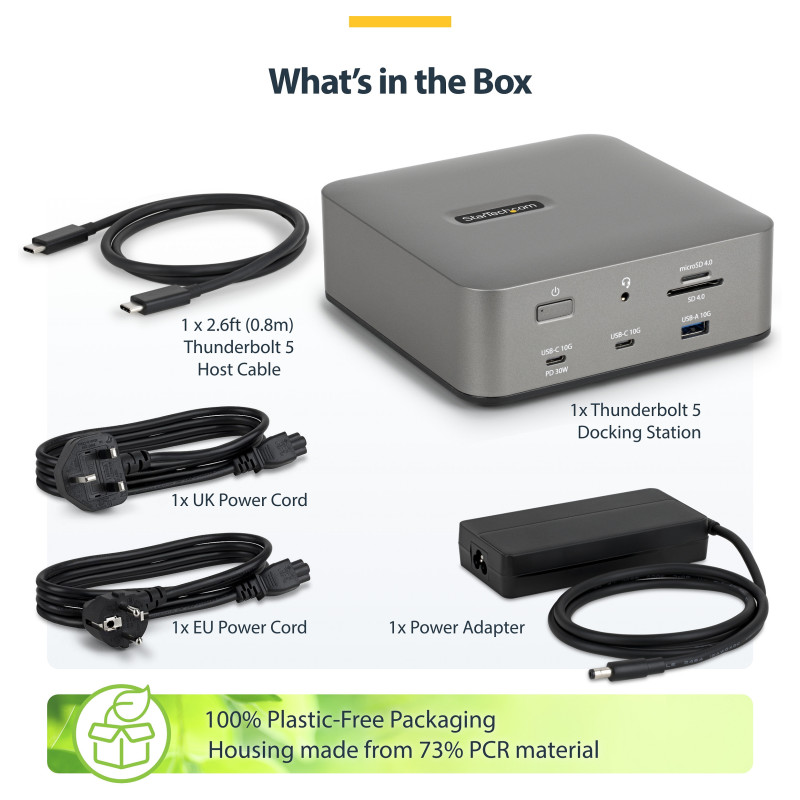

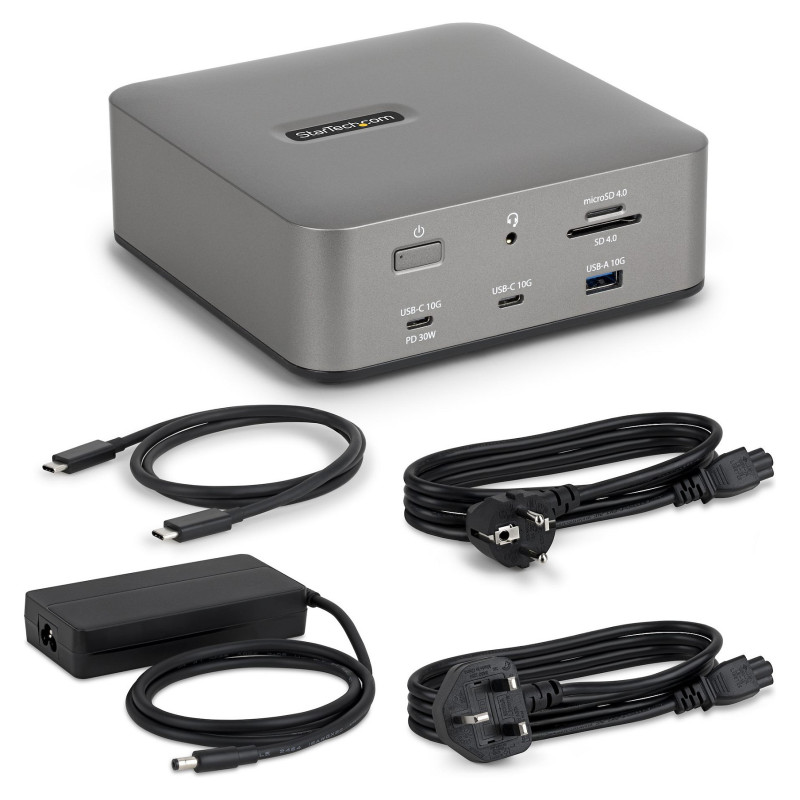

Packaging content

Cables included: Thunderbolt
Feature: AC adapter included
Feature: User guide

Technical details

Compliance certificates: RoHS, Trade Agreements Act (TAA)

Logistics data

Products per master (outer) case: 5 pc(s)
Master (outer) case width: 360 mm
Master (outer) case length: 330 mm
Master (outer) case height: 170 mm
