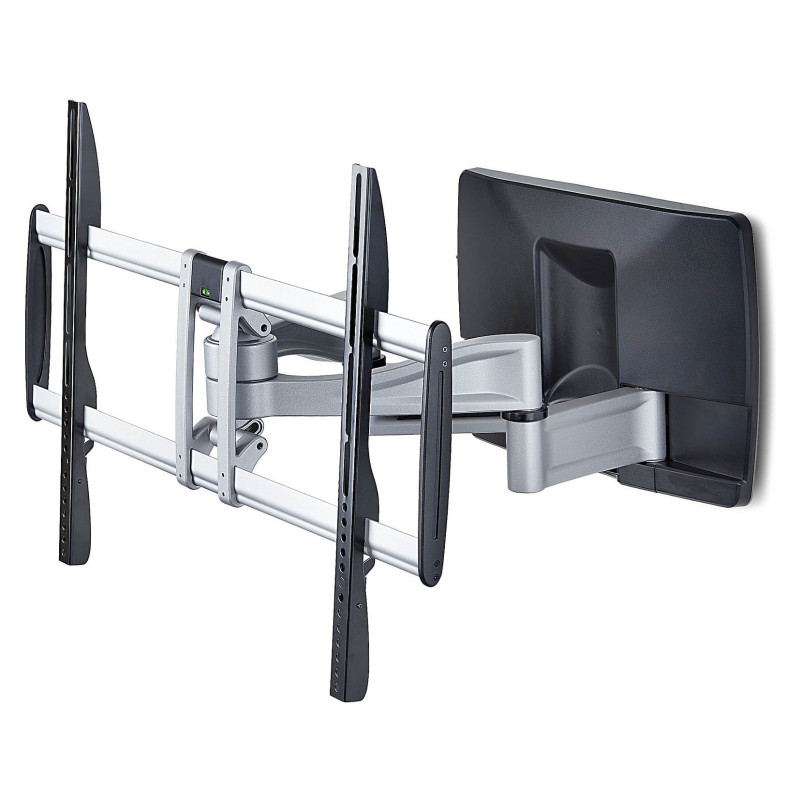

StarTech.com 100AP1-TV-WALL-MOUNT TV mount / stand

StarTech.com Heavy-Duty Articulating TV Wall Mount for up to 100-inch and 187.4lb/85kg Flat Screens, VESA 800x500, Low-Profile Bracket, TAA-Compliant. Maximum weight capacity: 85 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 800 x 500 mm. Tilt angle range: -12 - 2°, Swivel angle range: -60 - 60°, Distance to the wall (min): 10.5 cm, Distance to the wall (max): 55 cm. Product colour: Black

Mount a TV to a wall using this space-saving, low-profile mount with premium finish

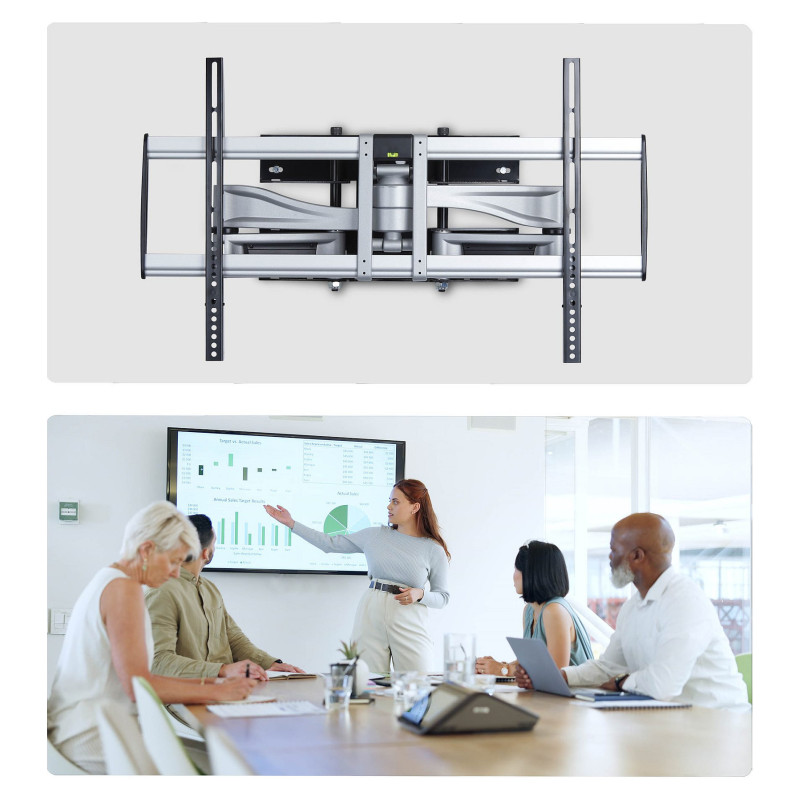

Create a TV mounting solution with this articulating wall mount that supports up to 100-inch and 187.4lb (85kg) televisions. Use in conference rooms, customer-facing applications, and collaborative spaces where durability, precision, and presentation matter.

Heavy-Duty Articulating Television Mount

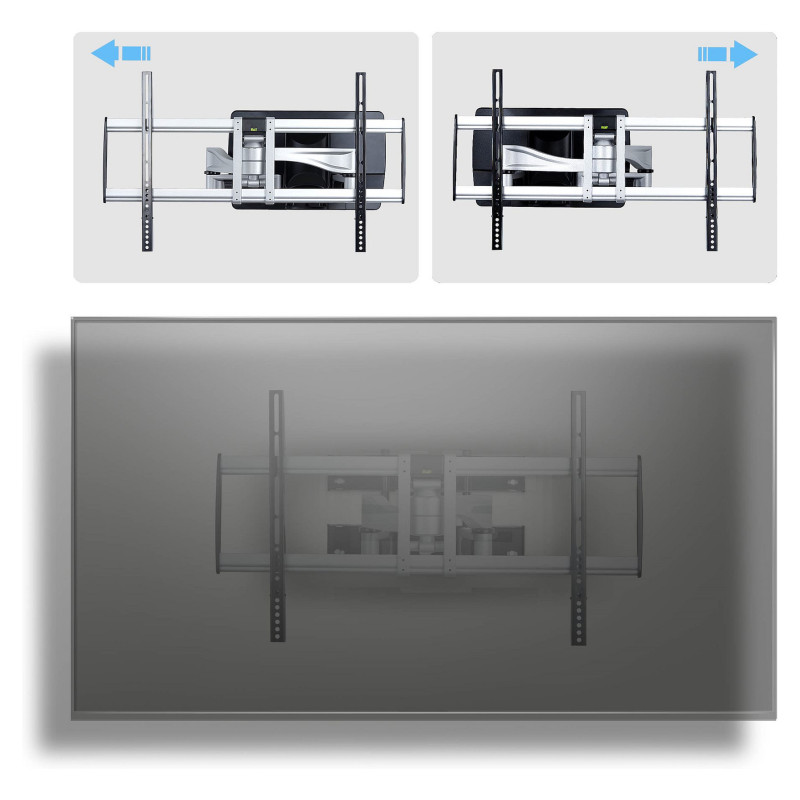

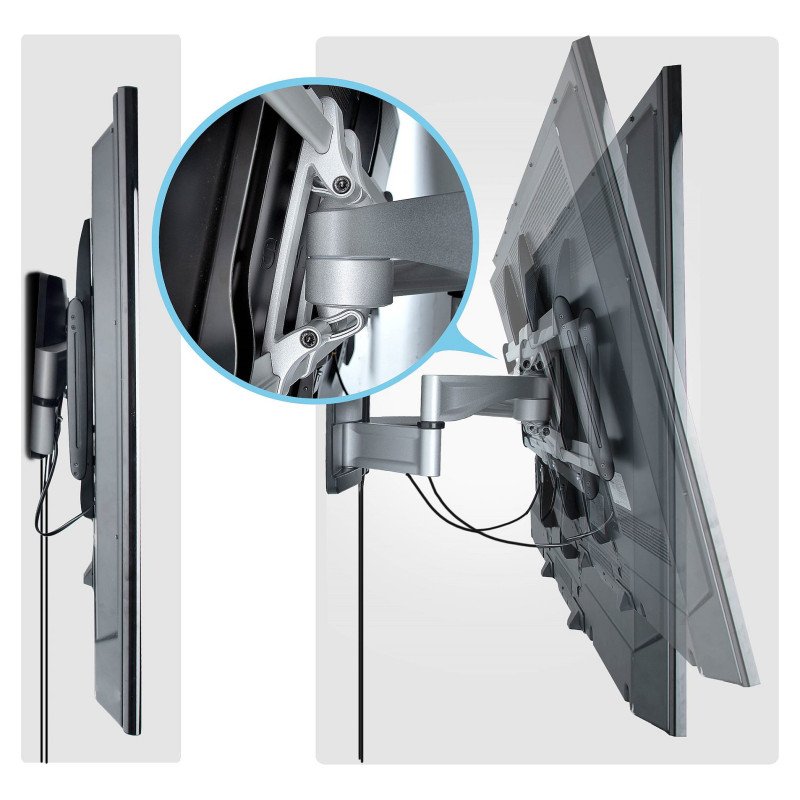

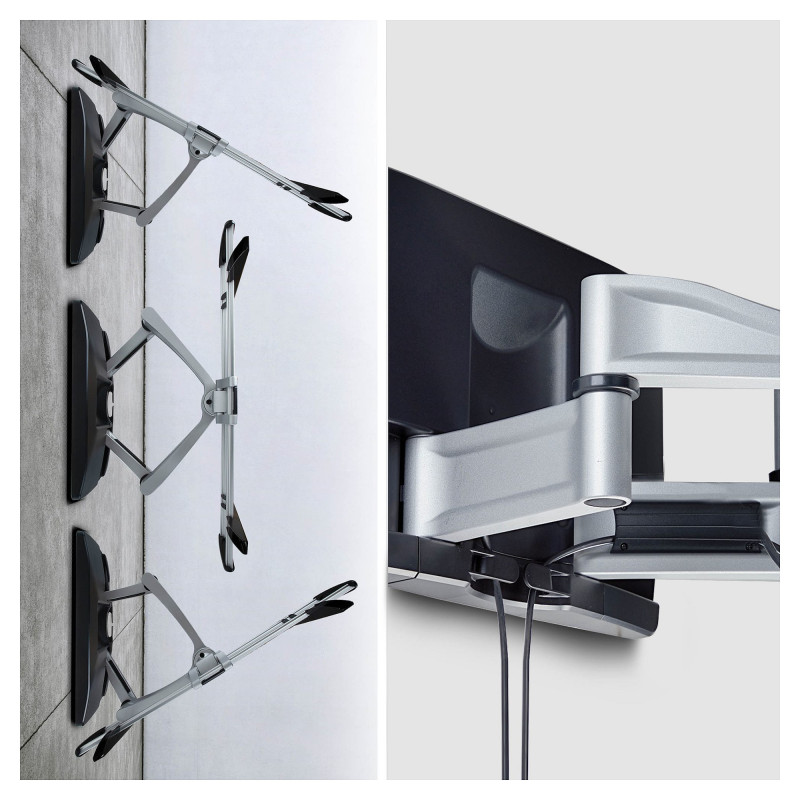

The mount collapses to just 4.1in (10.5cm) from the wall and extends to 21.6 in (55 cm) for easy access behind the TV. Dual-stud mounting (16in spacing) and dual-arm design ensure safe mounting and smooth motion when positioning your display. For perfect screen positioning, you can tilt (+2°/-12°) and swivel (+/-60°) for post-install adjustments to achieve the best viewing angle. The flat screen bracket is TAA-compliant to meet procurement requirements.

Versatile Mounting with a Premium Finish

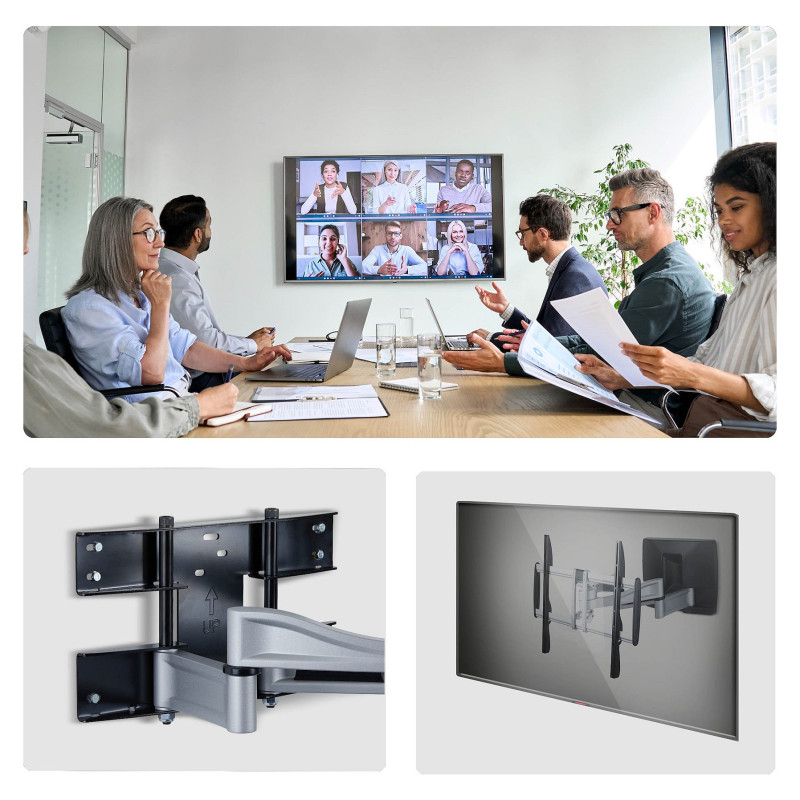

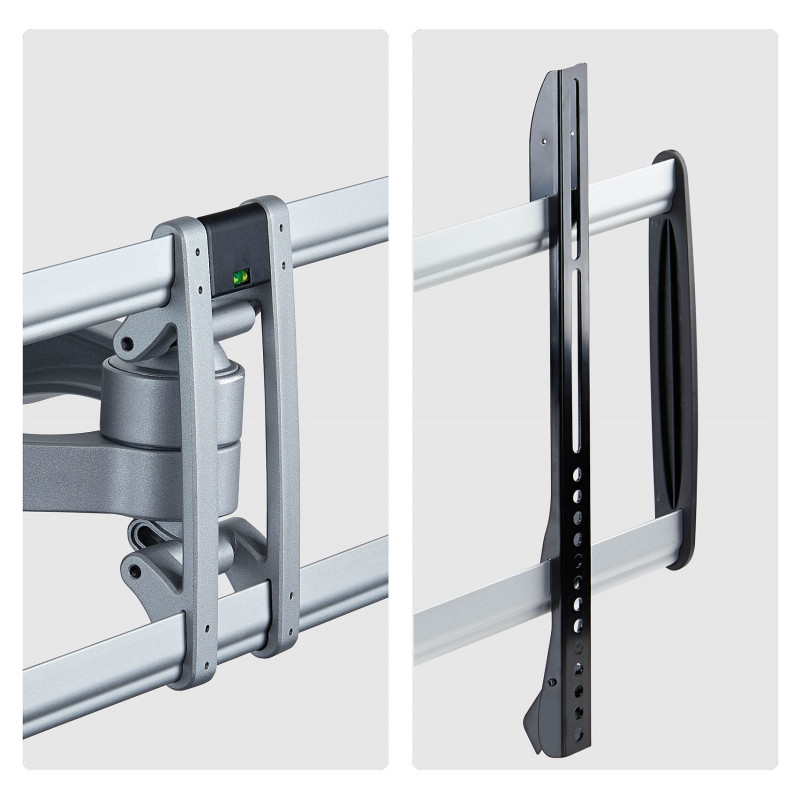

This VESA-compatible wall mount supports patterns up to 800x500mm and includes hardware, spacers, and a wall template for clean installation. It secures to wood studs, brick, or concrete surfaces, offering flexibility across environments. Integrated cable channels keep wires organized, while the silver steel and aluminum frame with decorative covers creates a refined, professional look from any angle.

Mounting

Maximum weight capacity: 85 kg
Minimum screen size: 81.3 cm (32")
Number of displays supported: 1
Maximum weight capacity (per display): 85 kg
Maximum screen size: 2.54 m (100")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 800 x 500 mm
Panel mounting interface: 200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,500 x 300,600 x 300,600 x 400,800 x 400,800 x 500
Mounting type: Wall

Ergonomics

Feature: Tilt adjustment
Tilt angle range: -12 - 2°
Feature: Swivelling
Swivel angle range: -60 - 60°
Feature: Cable management
Distance to the wall (max): 55 cm
Distance to the wall (min): 10.5 cm

Design

Product colour: Black
Housing material: Aluminium, Steel

Technical details

Compliance certificates: Trade Agreements Act (TAA)

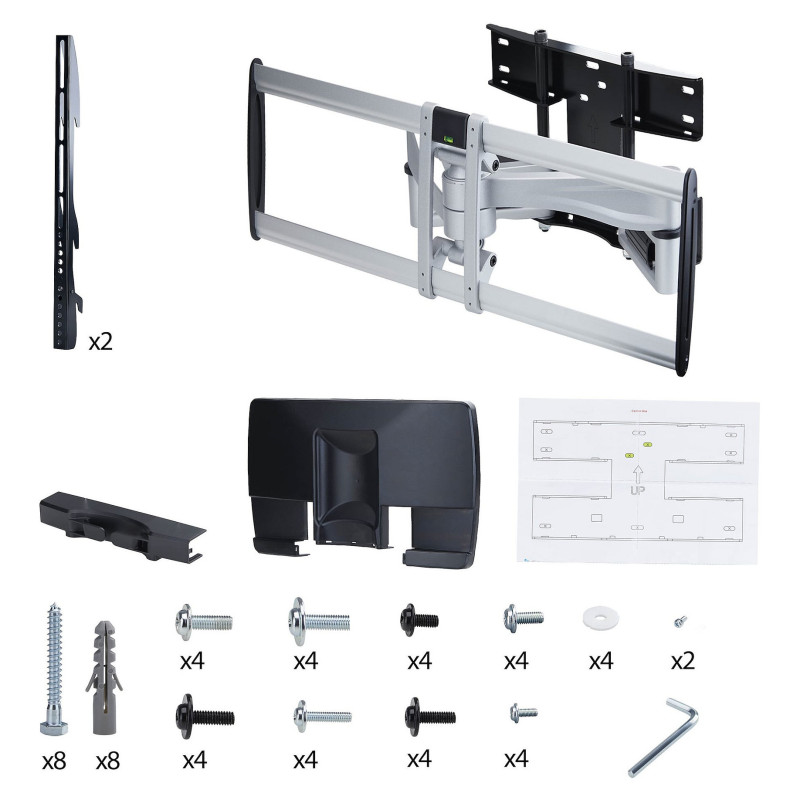

Packaging content

Feature: Wrench included
Wrench type: Hexagonal wrench
Number of washers included: 4
Feature: Screws included
Number of screws: 42
Feature: User guide
Feature: Mounting brackets included

Weight & dimensions

Width: 525 mm
Depth: 870 mm
Height: 550 mm
Weight: 14.2 kg

Packaging data

Package width: 945 mm
Package depth: 386 mm
Package height: 180 mm
Package weight: 16.5 kg

Logistics data

Master (outer) case width: 945 mm
Master (outer) case length: 386 mm
Master (outer) case height: 180 mm
Products per master (outer) case: 1 pc(s)
