ROLINE 17.03.1246 TV mount / stand

ROLINE 17.03.1246. Maximum weight capacity: 70 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -10 - 5°, Swivel angle range: -60 - 60°, Distance to the wall (max): 66 cm. Product colour: Black

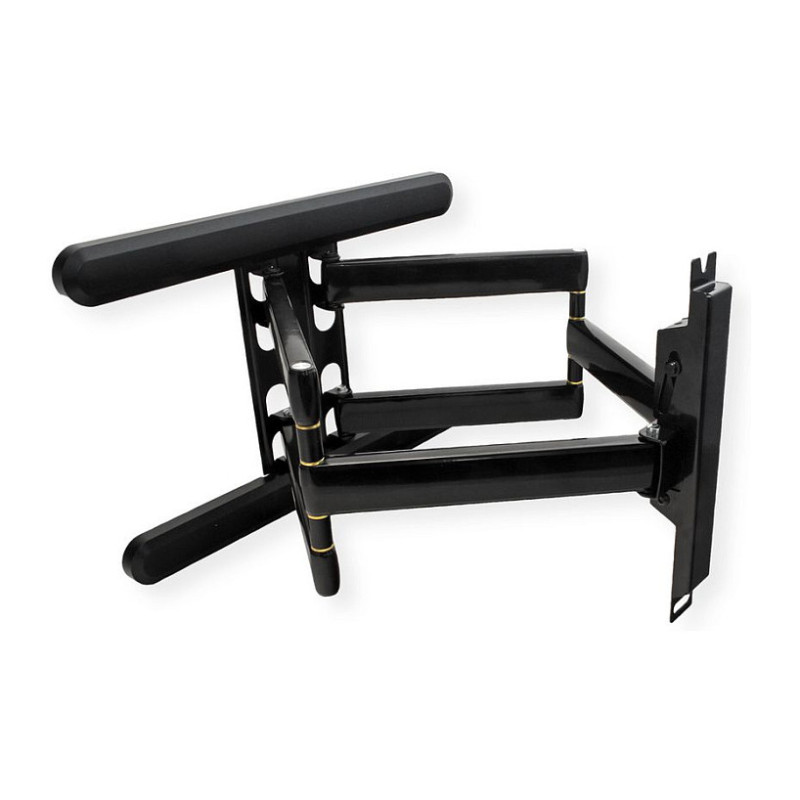

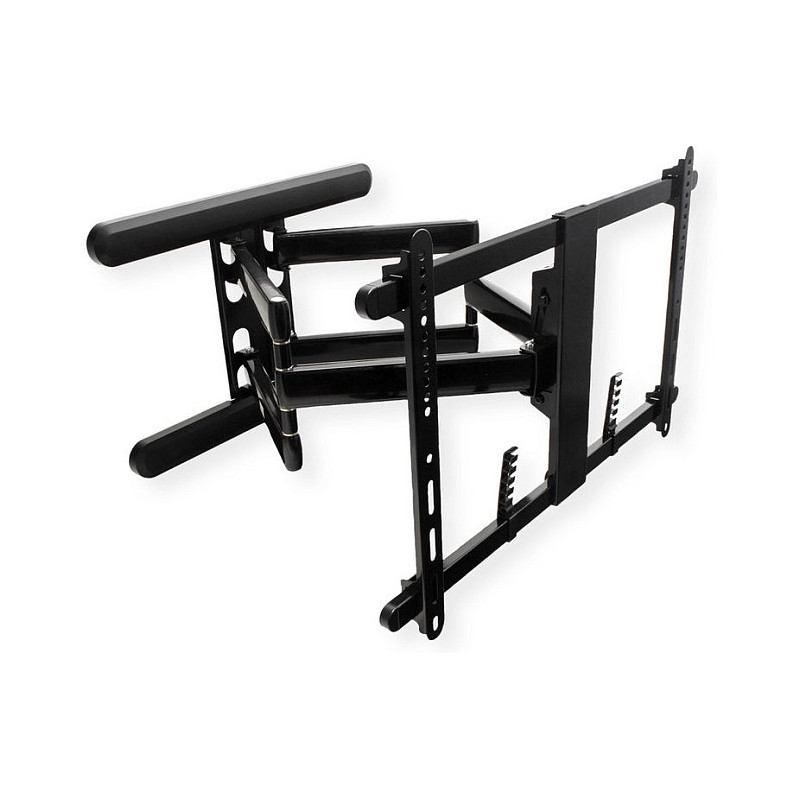

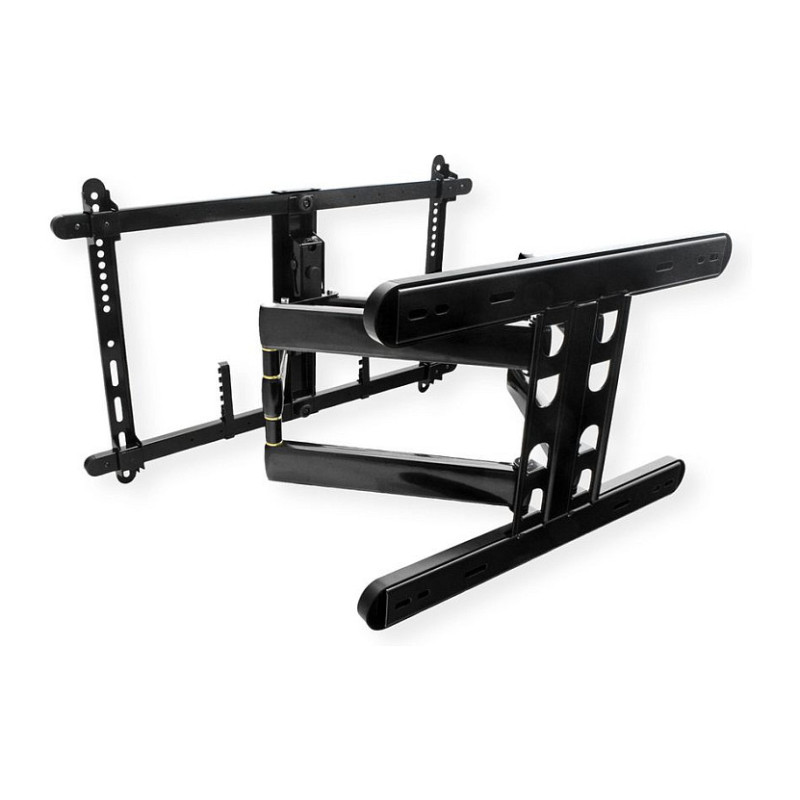

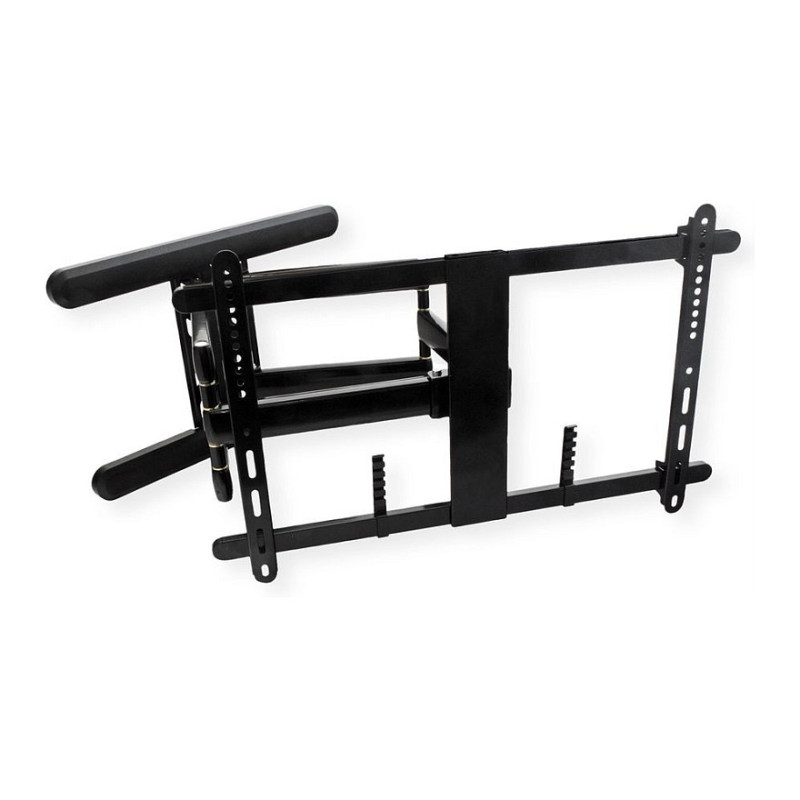

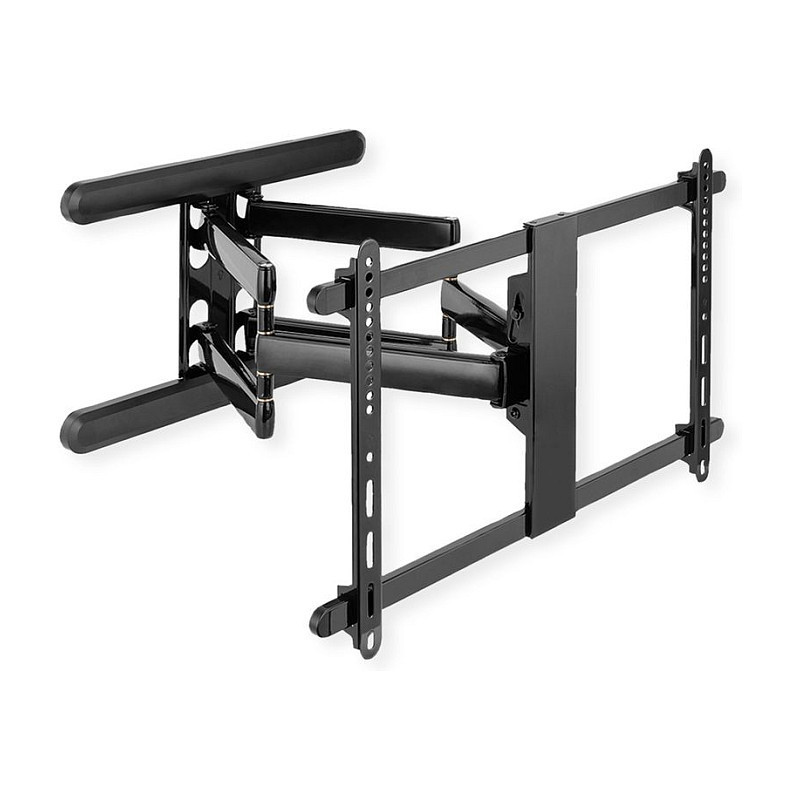

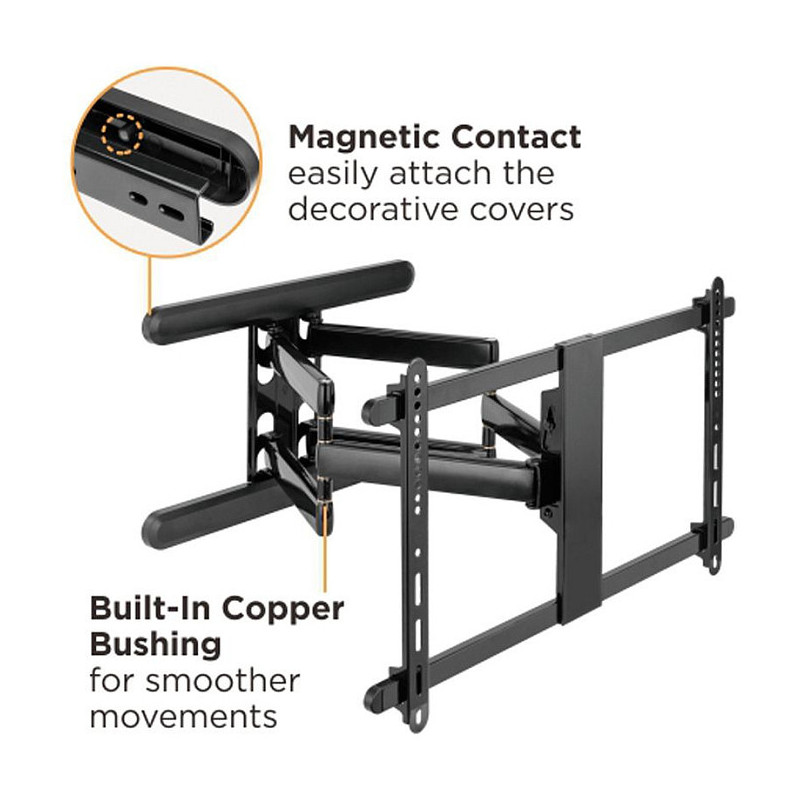

The ROLINE PREMIUM solid wall mount with its elegant design supports TVs up to 70 kg and up to VESA 600x400 and offers a full range of motion to flexibly swivel, tilt and rotate your TV.

Mounting

Maximum weight capacity: 70 kg
Minimum screen size: 94 cm (37")
Number of displays supported: 1
Maximum screen size: 2.03 m (80")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400
Mounting type: Wall

Ergonomics

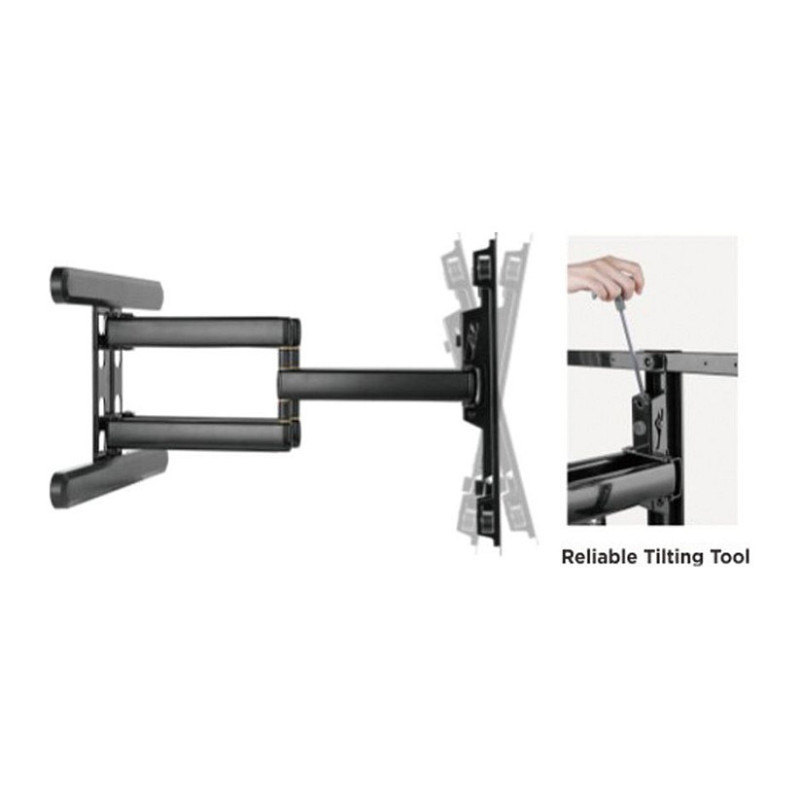

Feature: Tilt adjustment
Tilt angle range: -10 - 5°
Feature: Swivelling
Swivel angle range: -60 - 60°
Feature: Rotating
Distance to the wall (max): 66 cm

Design

Product colour: Black
Housing material: Aluminium, Plastic, Steel

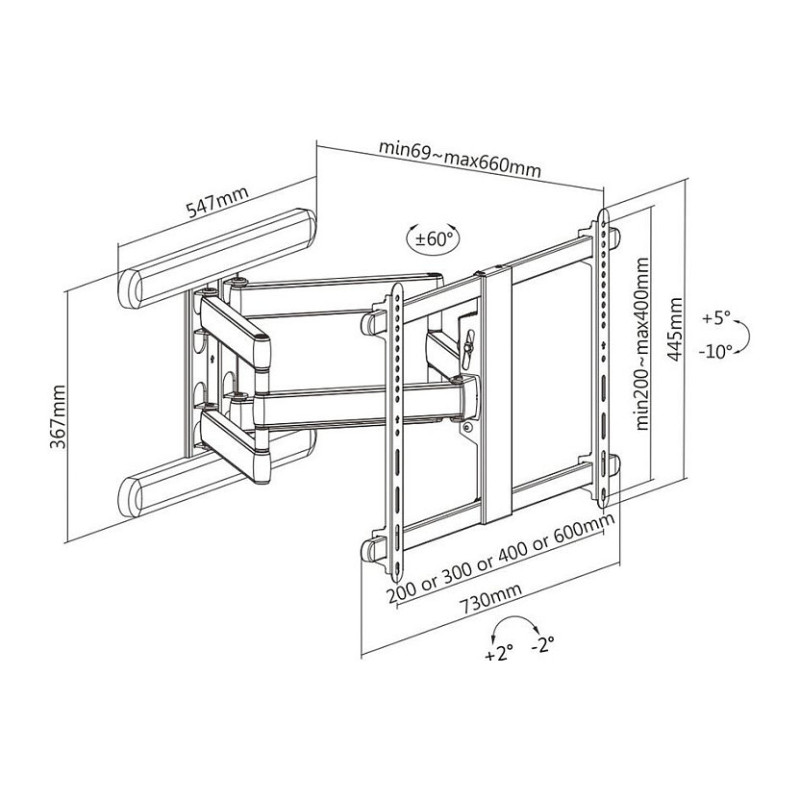

Weight & dimensions

Width: 730 mm
Depth (max): 66 cm
Height: 445 mm
Weight: 12.1 kg
