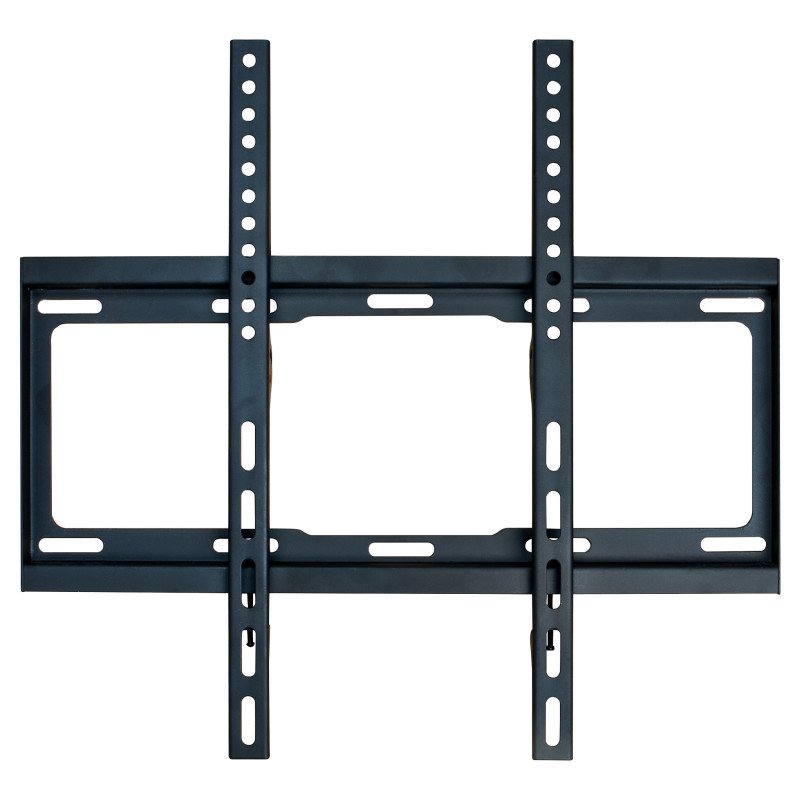

One For All Smart Line WM2411

One For All Smart Line Fixed TV Wall Mount. Maximum weight capacity: 100 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Distance to the wall (min): 2.5 cm, Distance to the wall (max): 2.5 cm. Product colour: Black

This One For All TV Bracket is suitable for Televisions from 32 to 65 inches, and compatible with VESA sizes: 100X100, 200X100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400. VESA is a standard that indicates the distance between the holes in the back of your TV. Please double check the VESA size of your television to assure compatibility. The minimum wall distance is only 25mm. you won't even notice the bracket is there!
All mounting materials are delivered for a quick and straightforward setup. You can also download the handy One For All App that features tools such as spirit level and flash light, enabling a quick and easy installation. Available for iOS and Android. The One For All TV Brackets work with all types of TVs of any brand.

Mounting

Maximum weight capacity: 100 kg
Minimum screen size: 81.3 cm (32")
Number of displays supported: 1
Maximum screen size: 165.1 cm (65")
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 100 x 100,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300
Mounting type: Wall

Ergonomics

Distance to the wall (max): 2.5 cm
Distance to the wall (min): 2.5 cm

Design

Product colour: Black

Technical details

Pallet net length: 1.35 mm
Pallet net weight: 393 g

Weight & dimensions

Width: 25 mm
Depth (min): 20.6 cm
Depth (max): 20.6 cm
Height: 479 mm
Weight: 163 g

Packaging data

Package tare weight: 120 g
Package width: 30 mm
Package depth: 215 mm
Package height: 480 mm
Package weight: 1.35 kg

Logistics data

Master (outer) case width: 200 mm
Master (outer) case length: 230 mm
Master (outer) case height: 500 mm
Master (outer) case gross weight: 8.8 kg
Master (outer) case net weight: 8.1 kg
Products per master (outer) case: 6 pc(s)
Master (outer) case GTIN (EAN/UPC): 8716184064241
Products per pallet: 42 pc(s)
Products per pallet layer: 7 pc(s)
Pallet gross volume: 1.29 dm³
Layers per pallet: 6 pc(s)
Case or master carton weight: 700 kg
