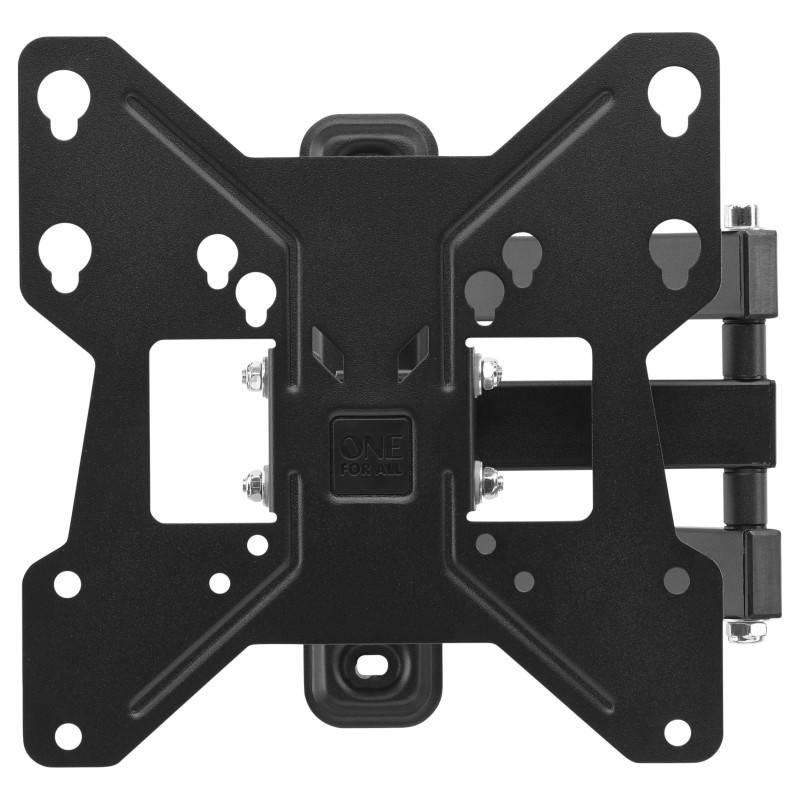

One For All Smart Line WM 2251 TV mount / stand

One For All Smart Line Full-motion TV Wall Mount. Maximum weight capacity: 30 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 109.2 cm (43"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: 0 - 15°, Swivel angle range: 0 - 180°, Distance to the wall (min): 4.9 cm, Distance to the wall (max): 39.3 cm. Product colour: Black

with VESA sizes: 75x75, 100x100, 200x100 and 200x200. VESA is a standard that indicates the distance between the holes in the back of your TV. Please double check the VESA size of your television to assure compatibility. Have the comfort of adjusting the angle of your TV up to 180° horizontally and up to 15° vertically. Perfect to be used in your kitchen and bedrooms.
All mounting materials are delivered for a quick and straightforward setup. You can also download the handy One For All App that features tools such as spirit level and flash light, enabling a quick and easy installation. Available for iOS and Android. The One For All TV Brackets work with all types of TVs of any brand.

Mounting

Maximum weight capacity: 30 kg
Minimum screen size: 33 cm (13")
Number of displays supported: 1
Maximum screen size: 109.2 cm (43")
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 200 x 200 mm
Panel mounting interface: 75 x 75,100 x 100,200 x 100,200 x 200
Mounting type: Wall

Ergonomics

Tilt angle range: 0 - 15°
Swivel angle: 180°
Swivel angle range: 0 - 180°
Turn angle: 180°
Distance to the wall (max): 39.3 cm
Distance to the wall (min): 4.9 cm

Design

Product colour: Black

Technical details

Pallet net length: 1.5 mm
Pallet net weight: 404 g

Packaging content

Feature: Quick installation guide
Feature: Mounting kit

Weight & dimensions

Width: 49 mm
Depth (min): 24 cm
Depth (max): 24 cm
Height: 249 mm
Weight: 1.8 kg

Packaging data

Package tare weight: 130 g
Package width: 63 mm
Package depth: 265 mm
Package height: 245 mm
Package weight: 2 kg

Logistics data

Master (outer) case width: 280 mm
Master (outer) case length: 400 mm
Master (outer) case height: 260 mm
Master (outer) case gross weight: 12.8 kg
Master (outer) case net weight: 12 kg
Products per master (outer) case: 6 pc(s)
Master (outer) case GTIN (EAN/UPC): 8716184064227
Products per pallet: 30 pc(s)
Products per pallet layer: 6 pc(s)
Layers per pallet: 5 pc(s)
Case or master carton weight: 800 kg
