Neomounts WL95-800BL1 signage display mount

Neomounts WL95-800BL1 Videowall wall mount 42-70" - pop-out - max 35 kg. Maximum weight capacity: 35 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 0 - 13 mm. Product colour: Black

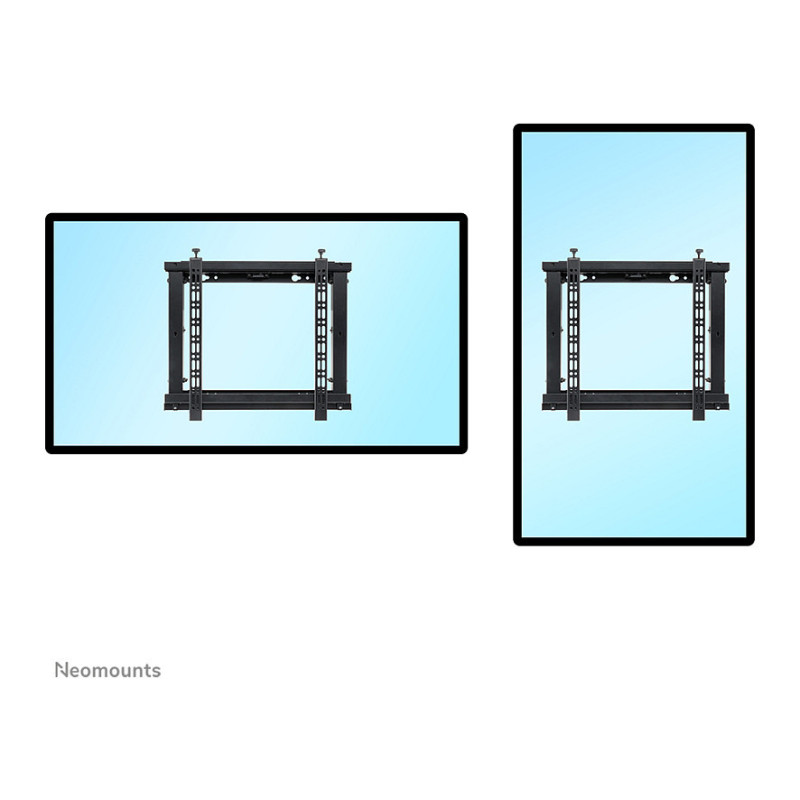

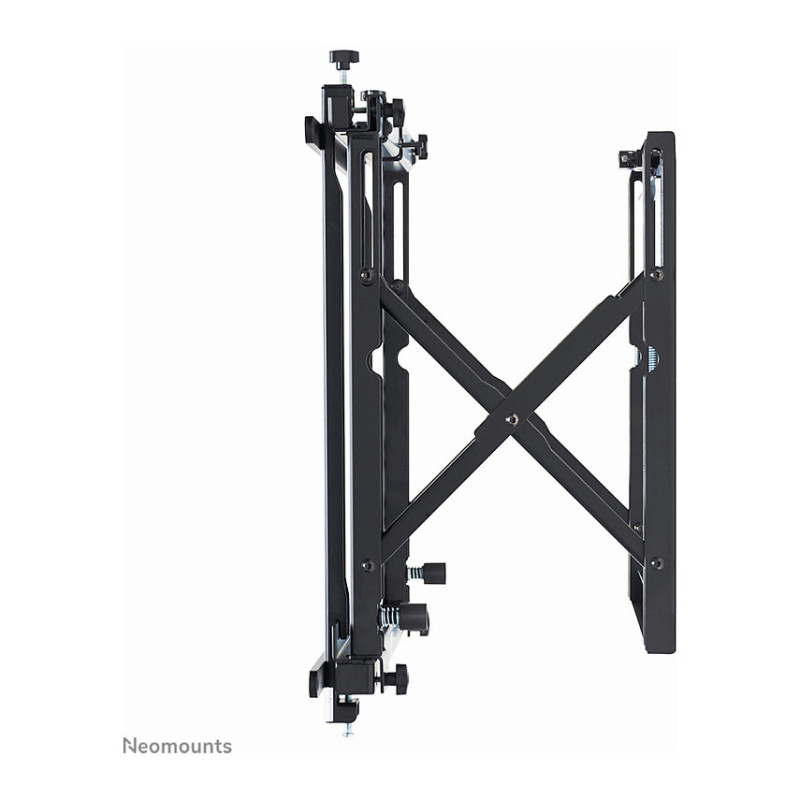

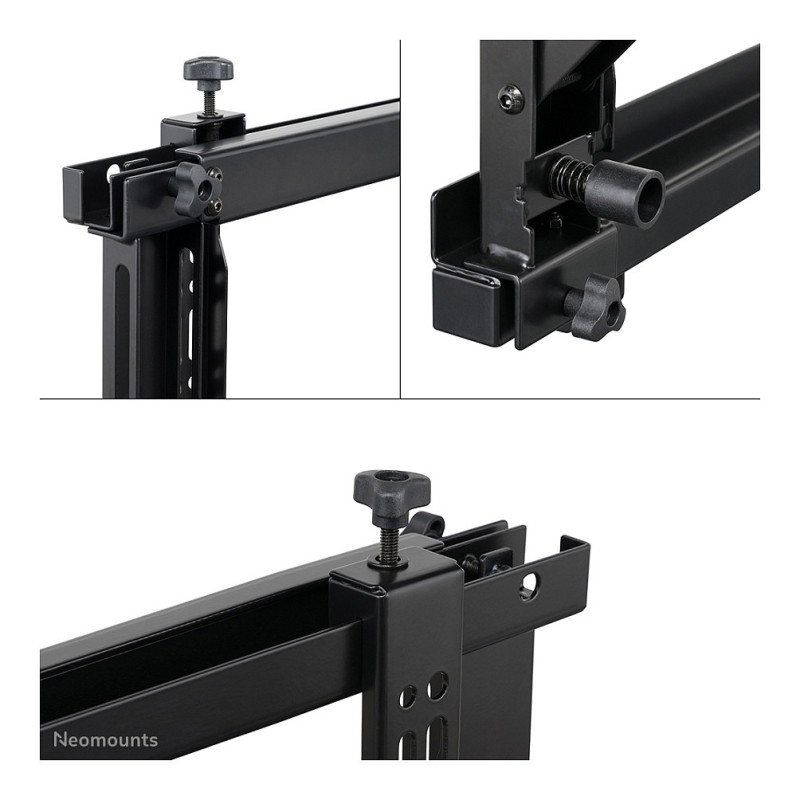

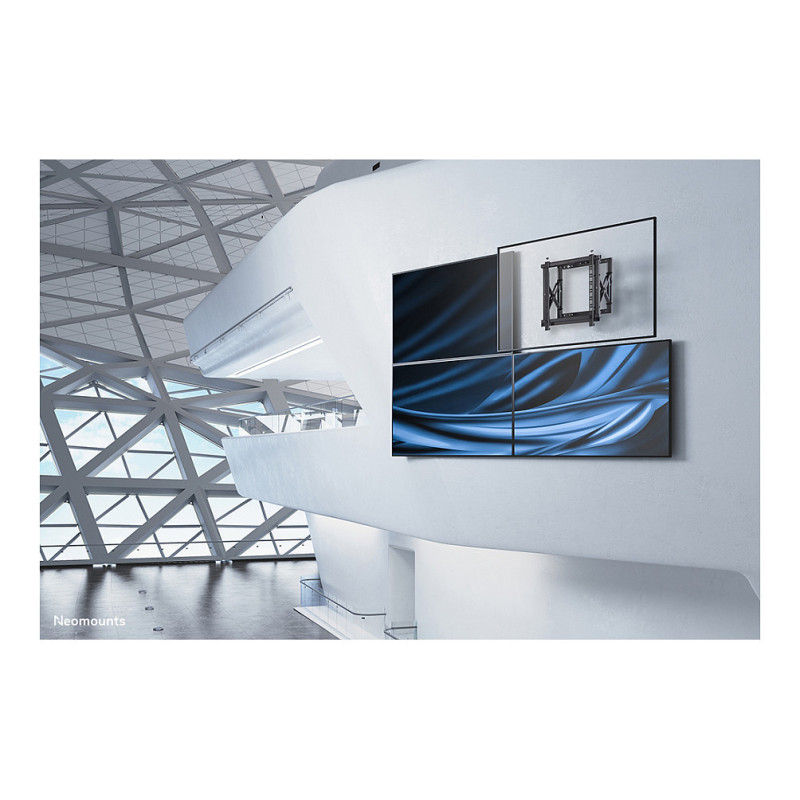

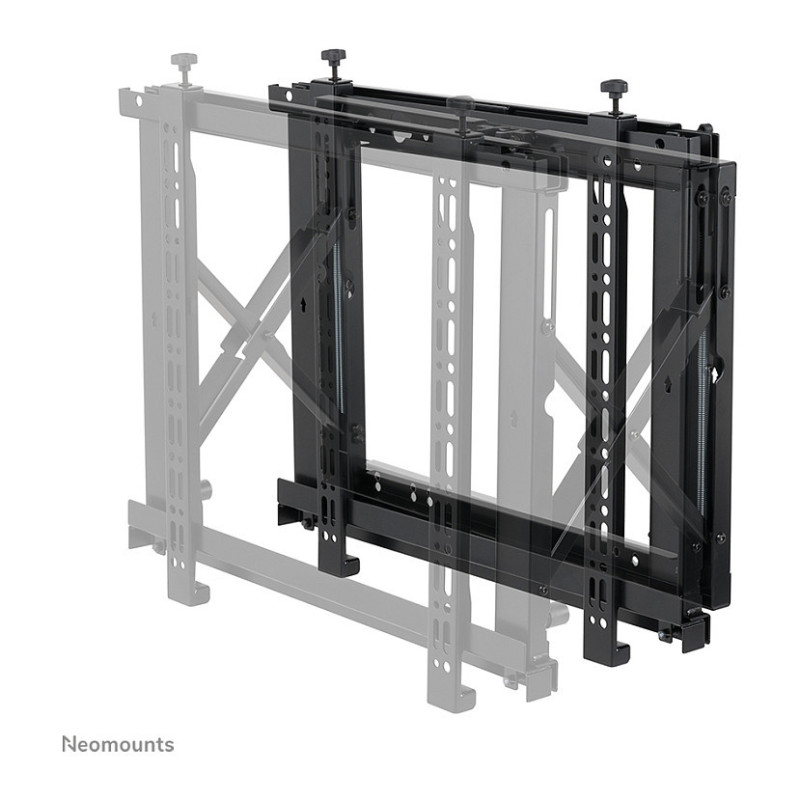

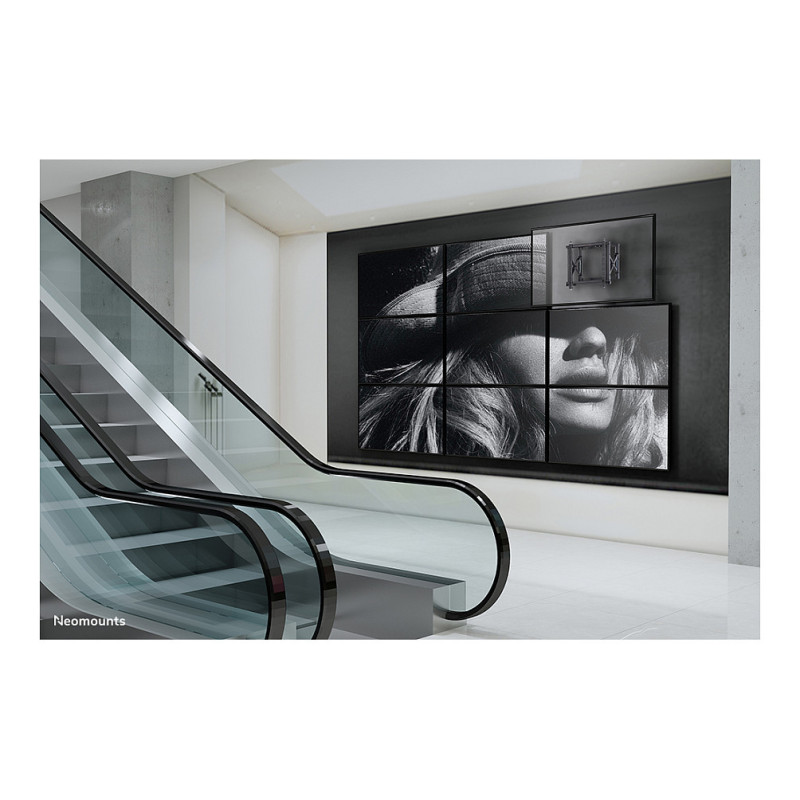

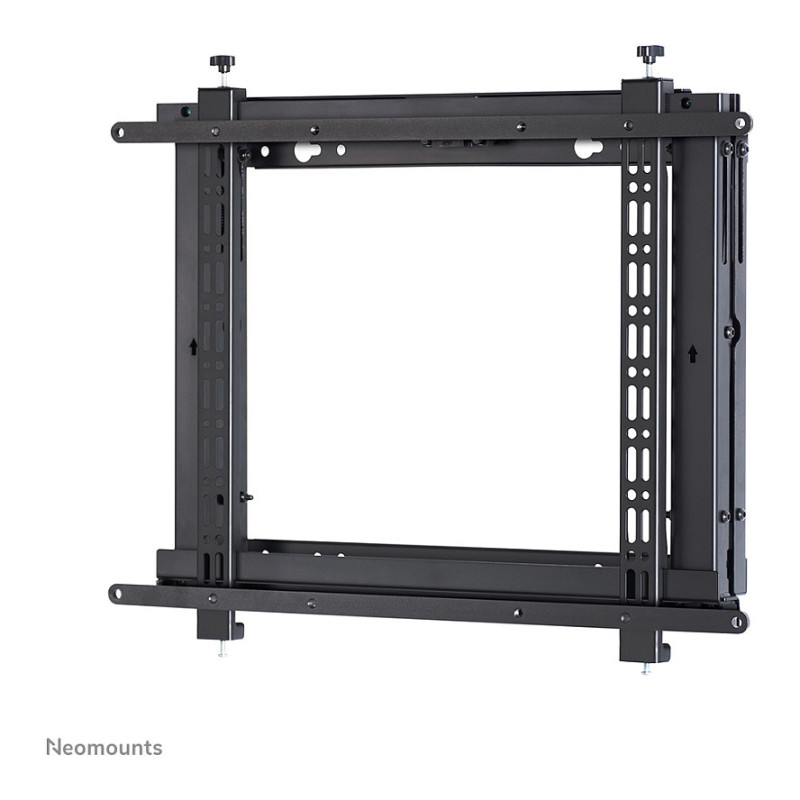

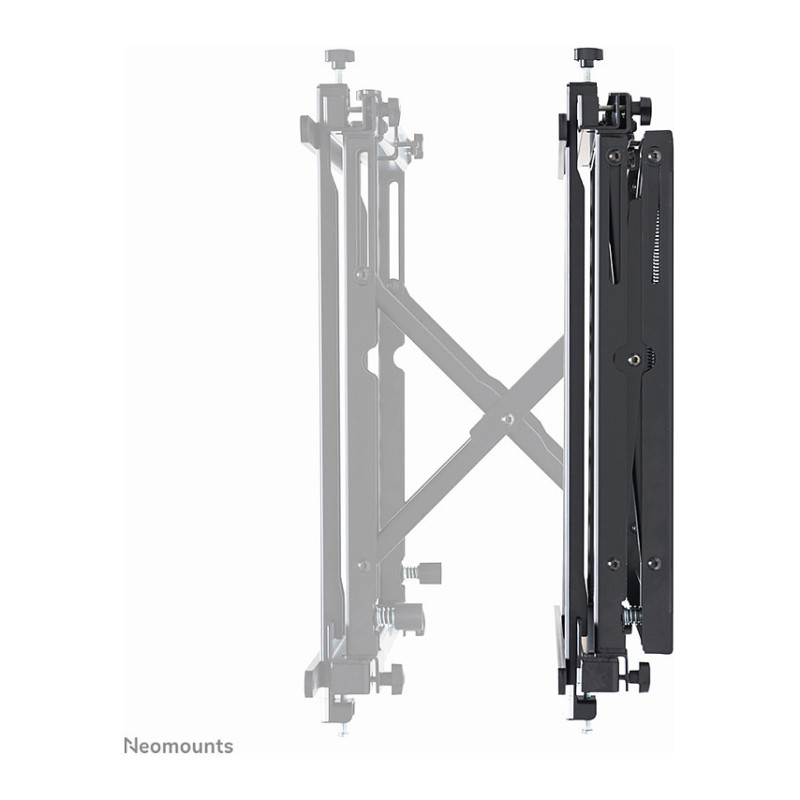

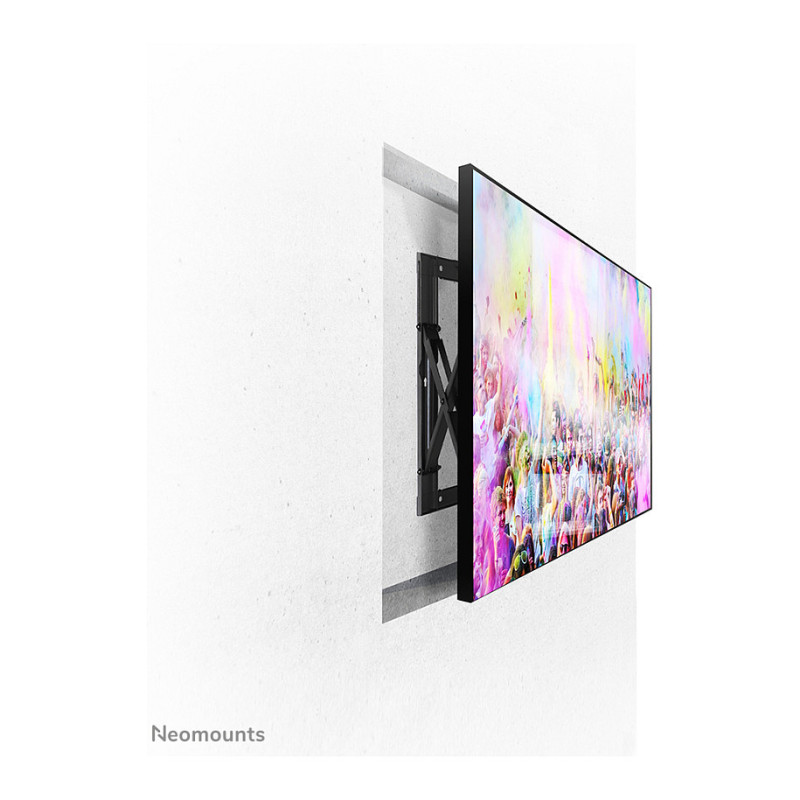

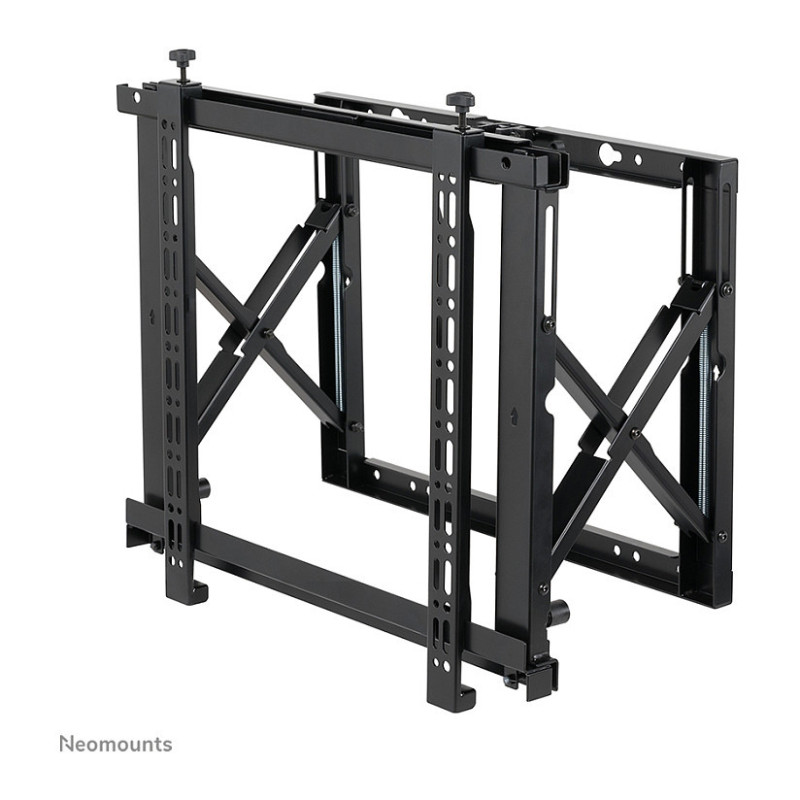

The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70". The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.

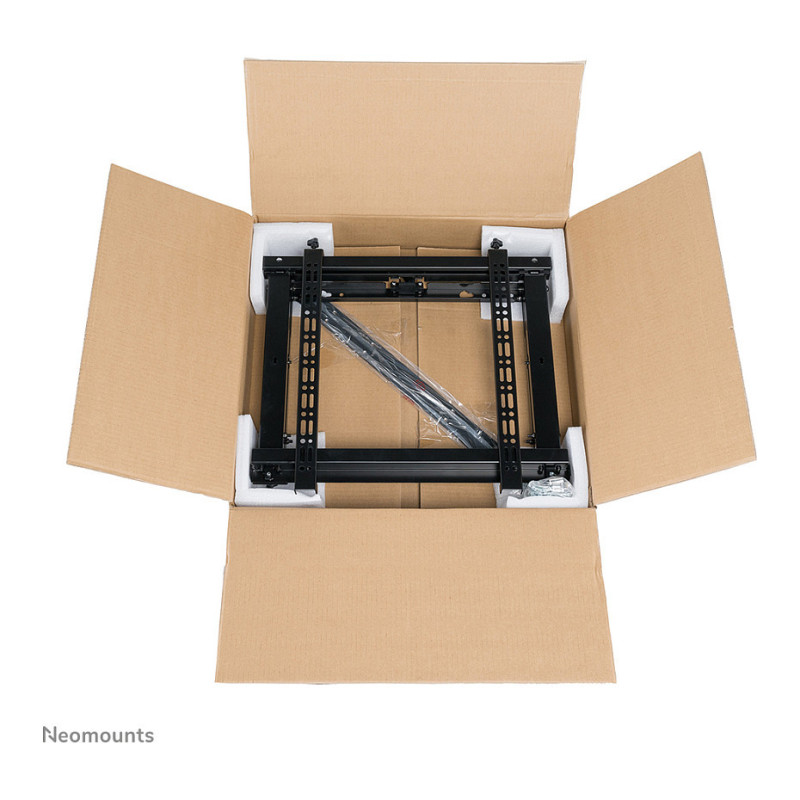

The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.

Mounting

Maximum weight capacity: 35 kg
Minimum screen size: 106.7 cm (42")
Number of displays supported: 1
Maximum weight capacity (per display): 35 kg
Maximum screen size: 177.8 cm (70")
Mounting type: Wall
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400

Ergonomics

Feature: Height adjustment
Height adjustment type: Manual
Height adjustment range: 0 - 13 mm
Feature: Swivelling
Feature: Tilt adjustment
Height adjustment: 1.3 cm
Depth adjustment: 4 mm
Width adjustment: 4 cm
Distance to the wall (min): 7.8 cm
Distance to the wall (max): 26.6 cm

Design

Product colour: Black
Housing material: Steel

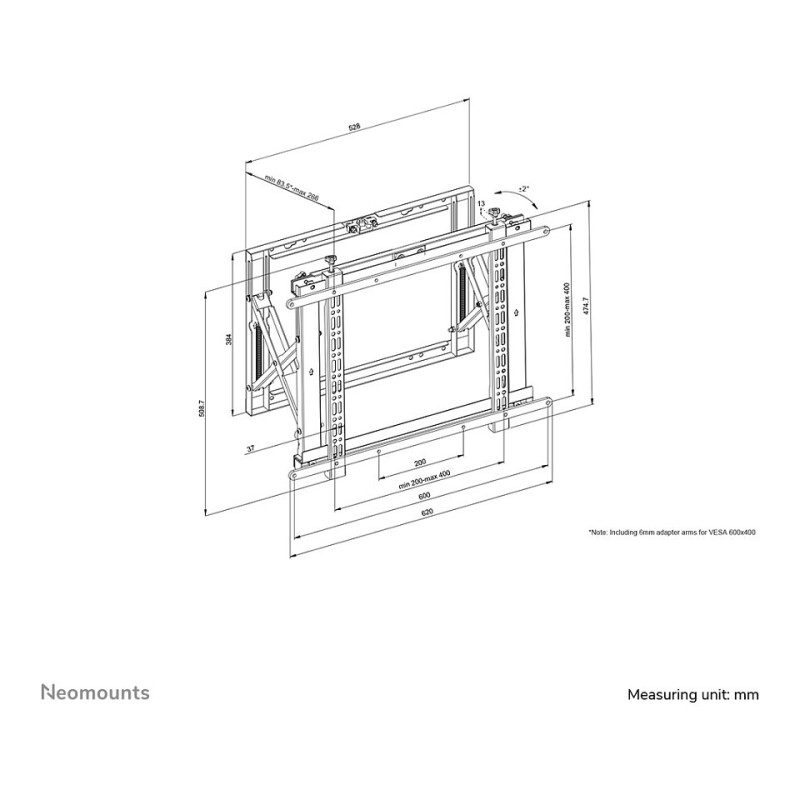

Weight & dimensions

Width: 620 mm
Depth: 84 mm
Height: 510 mm
Weight: 7.72 kg
Width adjustment range: 0 - 40 mm

Packaging data

Package width: 570 mm
Package depth: 110 mm
Package height: 620 mm
Package weight: 9.8 kg
Package type: Box

Technical details

Package net weight: 9.8 kg
Feature: Easy to install
Orientation: Landscape/Portrait
Warranty period: 5 year(s)

Other features

Country of origin: China
Depth adjustment range: 0 - 4 mm

Logistics data

Master (outer) case net weight: 8.5 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 24 pc(s)
Quantity per master (outer) case: 1 pc(s)
Master (outer) case width: 570 mm
Master (outer) case length: 110 mm
Master (outer) case height: 620 mm
Master (outer) case gross weight: 9.8 kg
Products per master (outer) case: 1 pc(s)
