Neomounts WL70-550BL12 TV mount / stand

Neomounts WL70-550BL12 Monitor/TV mount wall 23-42" - gas spring - full motion. Maximum weight capacity: 30 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment range: 0 - 282 mm, Tilt angle range: -15 - 5°, Swivel angle range: 0 - 180°, Angle of rotation: 6°, Distance to the wall (min): 5.9 cm, Distance to the wall (max): 56.3 cm. Product colour: Black

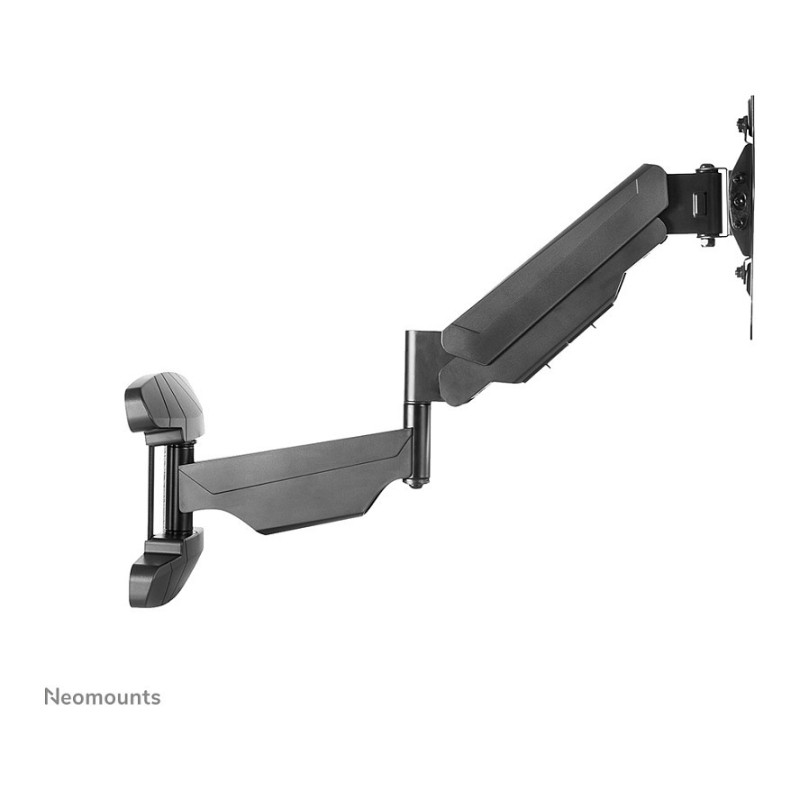

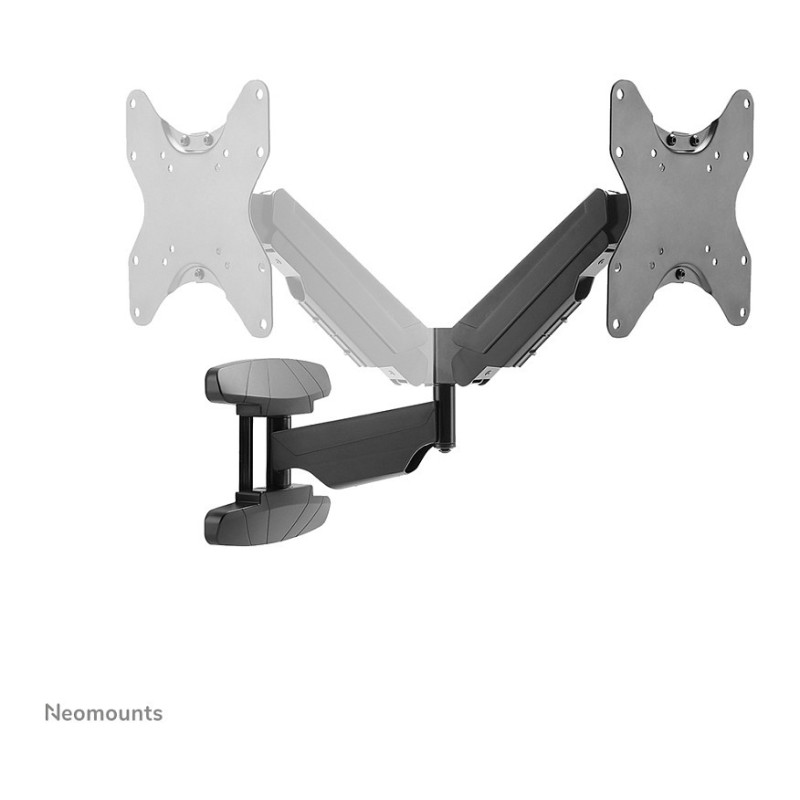

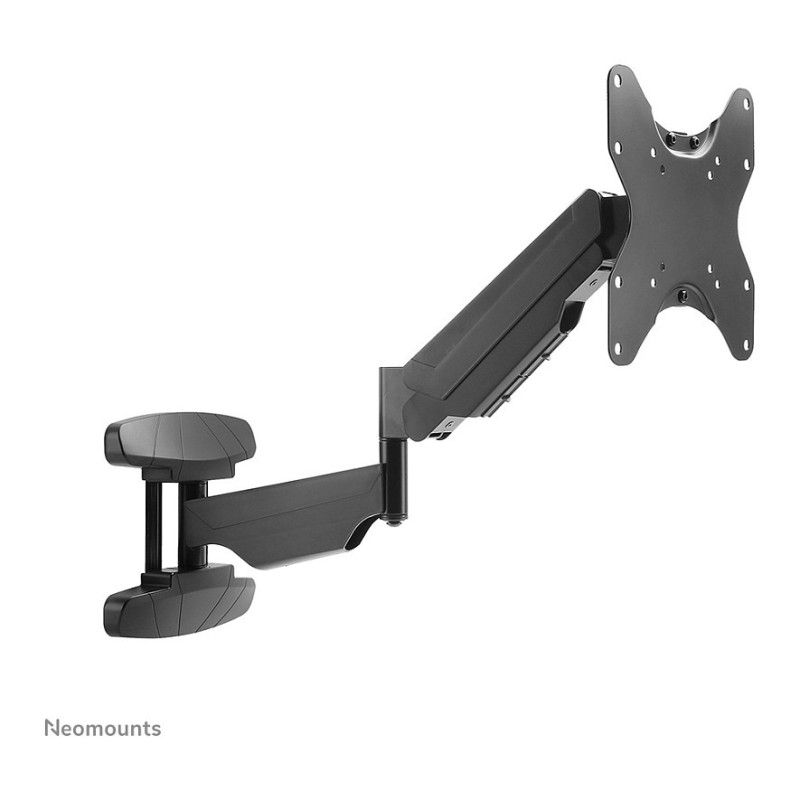

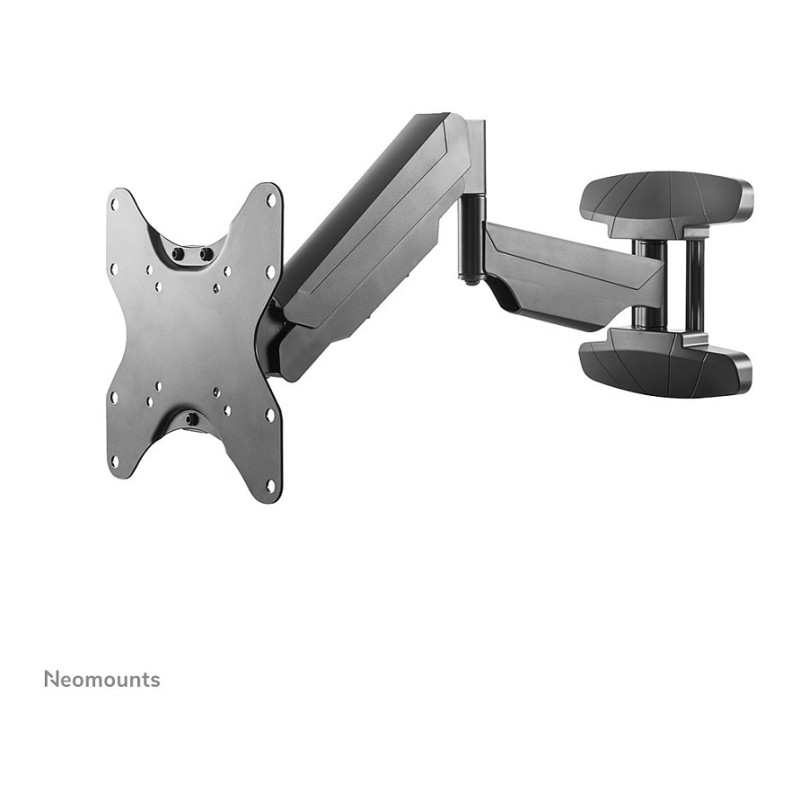

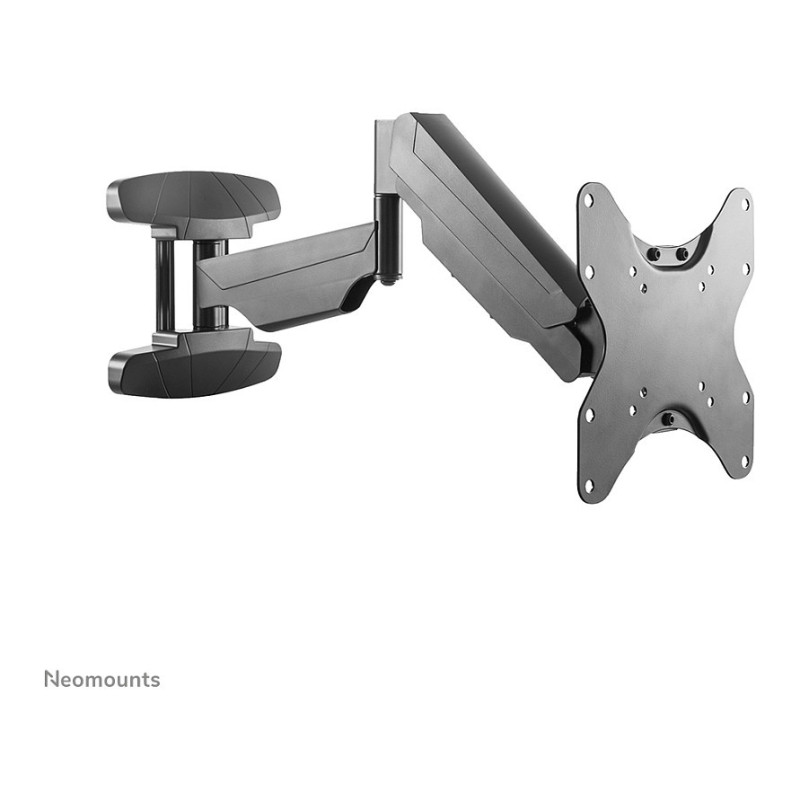

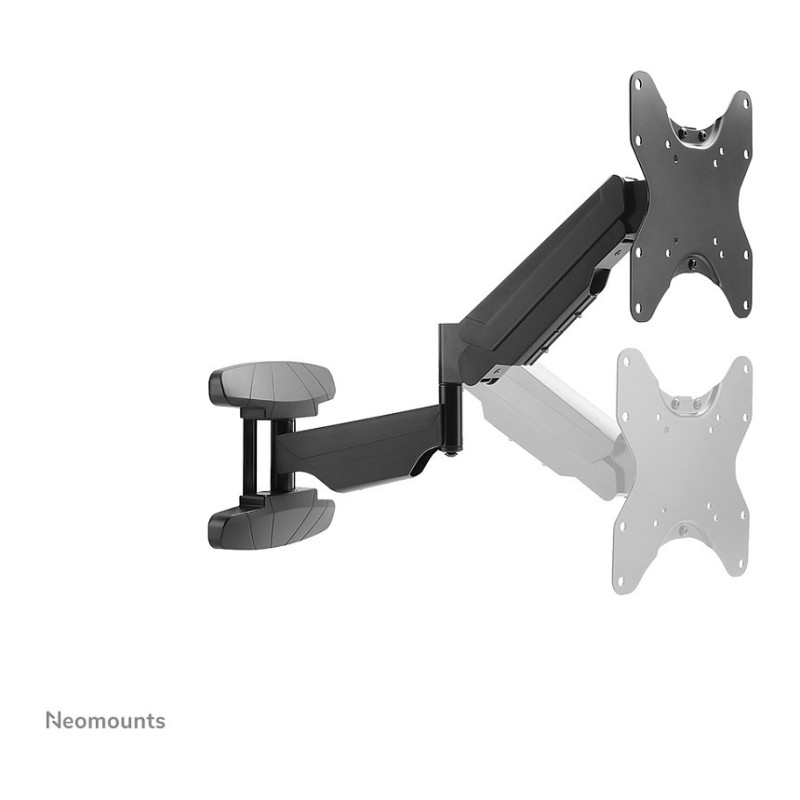

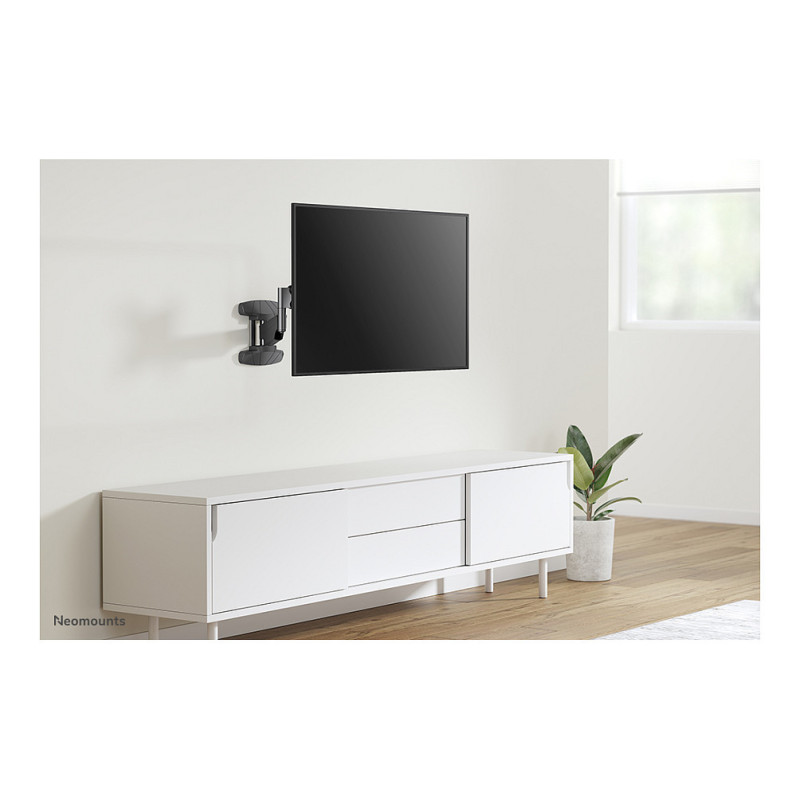

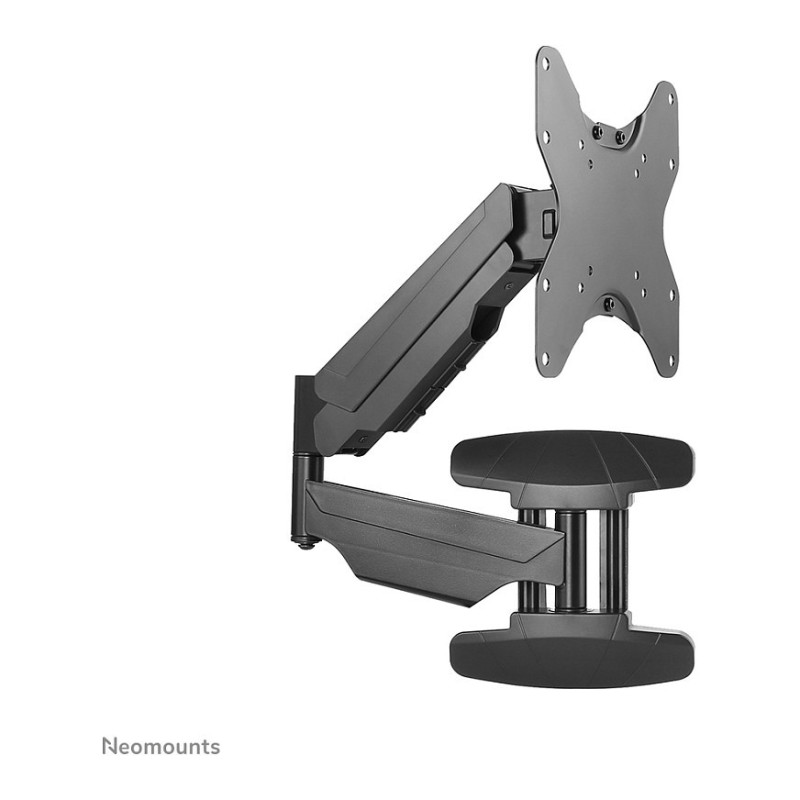

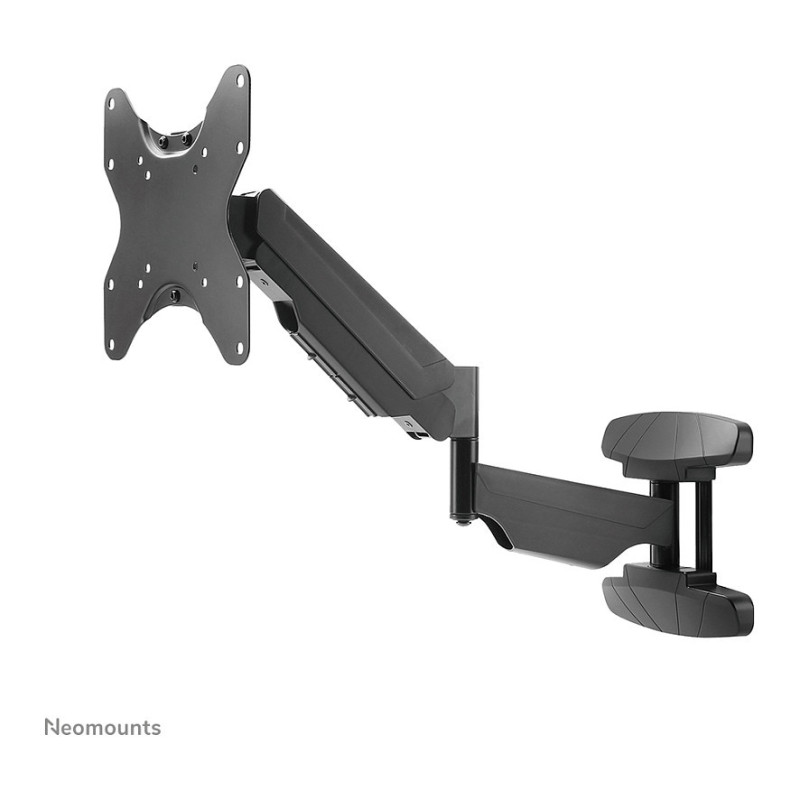

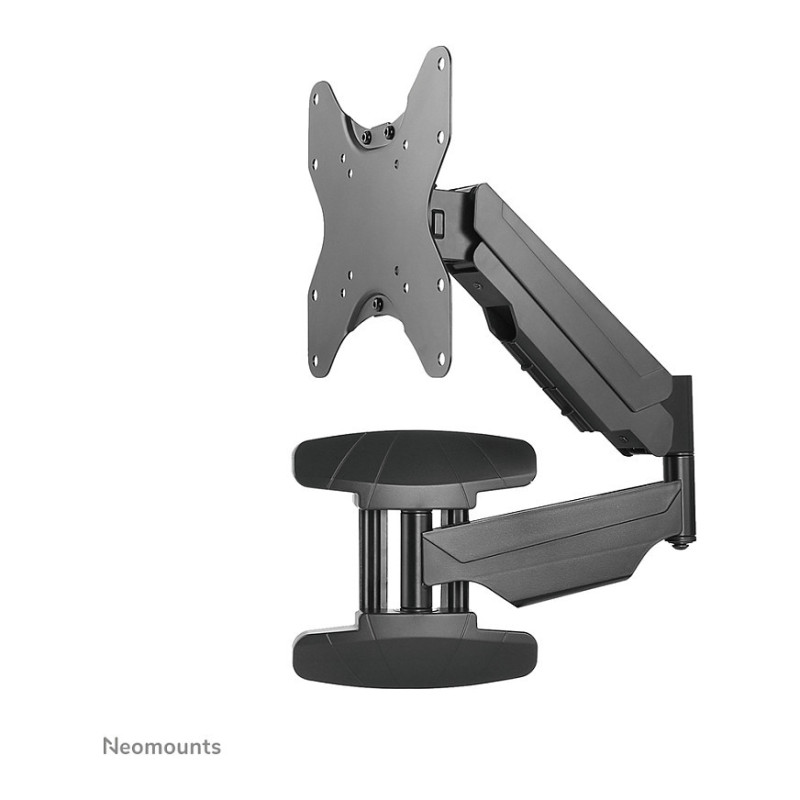

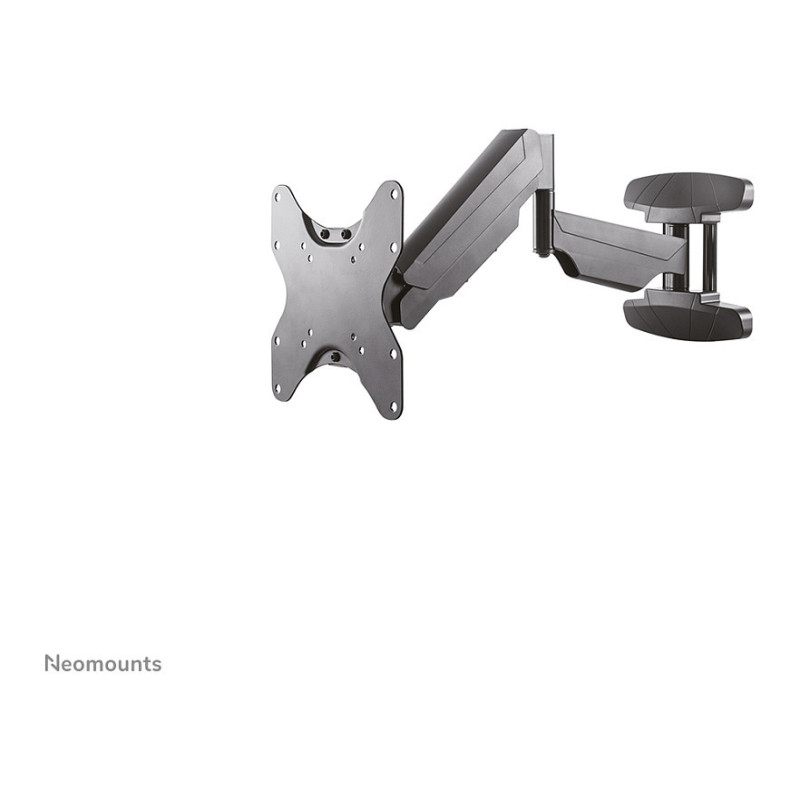

The Neomounts WL70-550BL12 is a full motion wall mount for flat screens up to 42" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

The WL70-550BL12 has a depth of 5,9-56,3 cm and is suitable for screens that meet VESA hole pattern 75x75 to 200x200 mm.

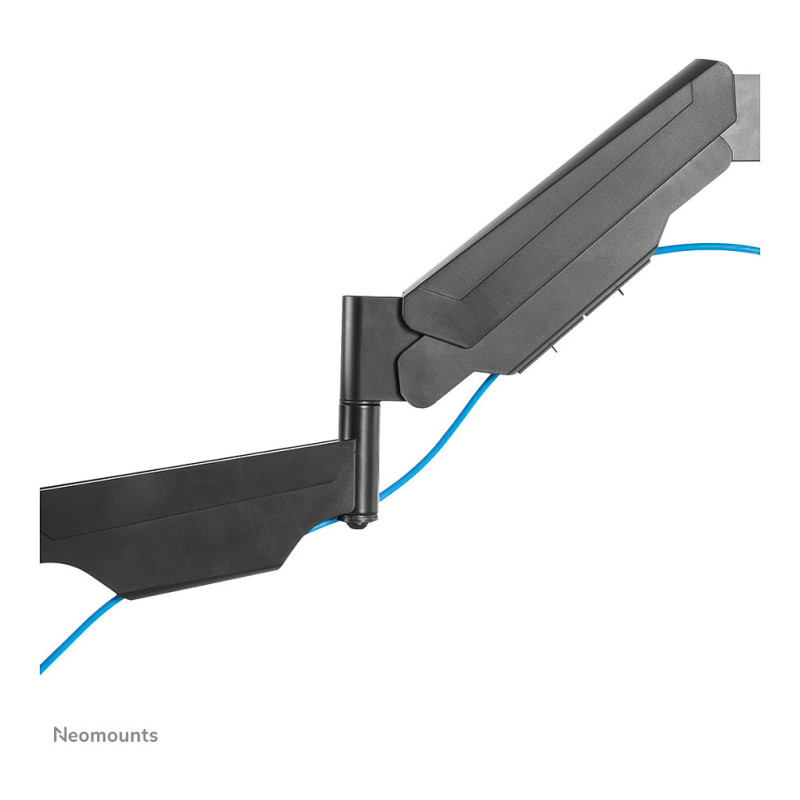

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.

Mounting

Maximum weight capacity: 30 kg
Minimum screen size: 58.4 cm (23")
Number of displays supported: 1
Maximum weight capacity (per display): 30 kg
Maximum screen size: 106.7 cm (42")
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 200 x 200 mm
Panel mounting interface: 100 x 100,200 x 100,200 x 200,75 x 75
Mounting type: Wall

Ergonomics

Feature: Height adjustment
Height adjustment type: Gas spring
Height adjustment range: 0 - 282 mm
Feature: Tilt adjustment

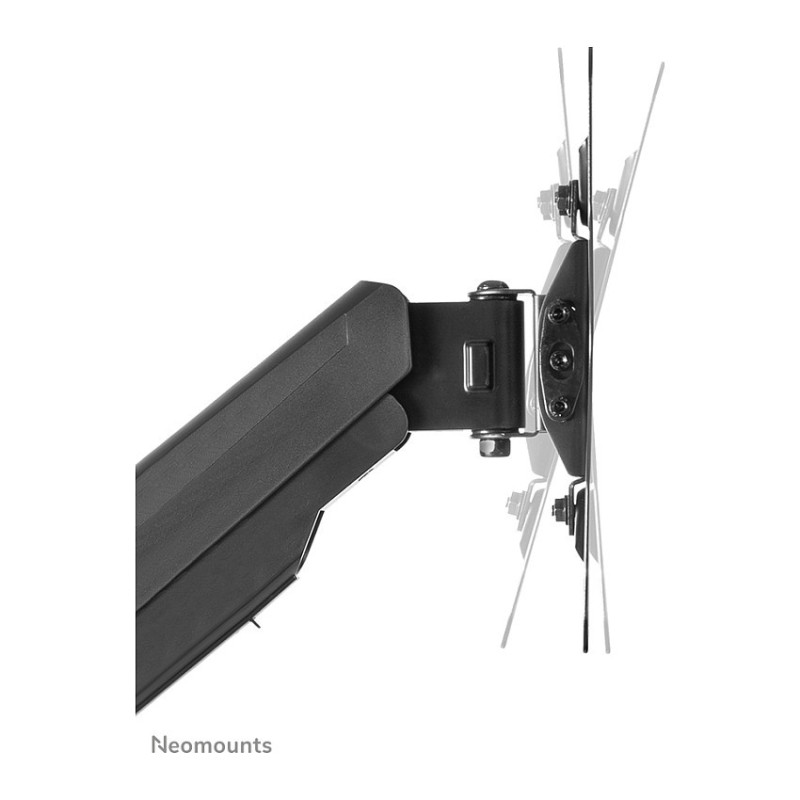

Tilt angle range: -15 - 5°
Feature: Swivelling
Swivel angle: 180°
Swivel angle range: 0 - 180°
Feature: Rotating
Angle of rotation: 6°
Pivot angle: -3 - 3°
Feature: Cable management
Distance to the wall (max): 56.3 cm
Distance to the wall (min): 5.9 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Package net weight: 4.8 kg
Quantity per pack: 1 pc(s)

Weight & dimensions

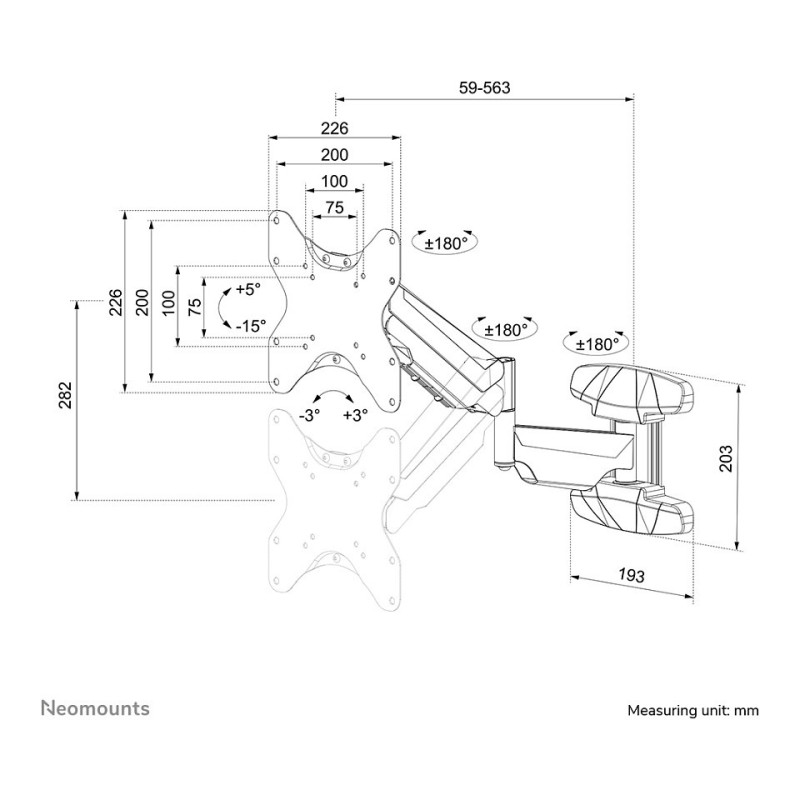

Width: 226 mm
Depth: 563 mm
Depth (max): 56.3 cm
Height: 327 mm
Weight: 3.9 kg

Packaging data

Package width: 365 mm
Package depth: 505 mm
Package height: 75 mm
Package weight: 4.8 kg

Logistics data

Master (outer) case width: 380 mm
Master (outer) case length: 520 mm
Master (outer) case height: 245 mm
Master (outer) case gross weight: 15.5 kg
Master (outer) case net weight: 11.7 kg
Products per master (outer) case: 3 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 72 pc(s)

Other features

Mounting: Screws
Minimum weight: 5 kg
