Neomounts WL40S-850BL12 TV mount / stand

Neomounts WL40S-850BL12 TV mount wall 32-55" - full motion - fast installation. Maximum weight capacity: 40 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: -2 - 12°, Swivel angle range: 0 - 60°, Angle of rotation: 6°, Distance to the wall (min): 4.7 cm, Distance to the wall (max): 55.5 cm. Product colour: Black

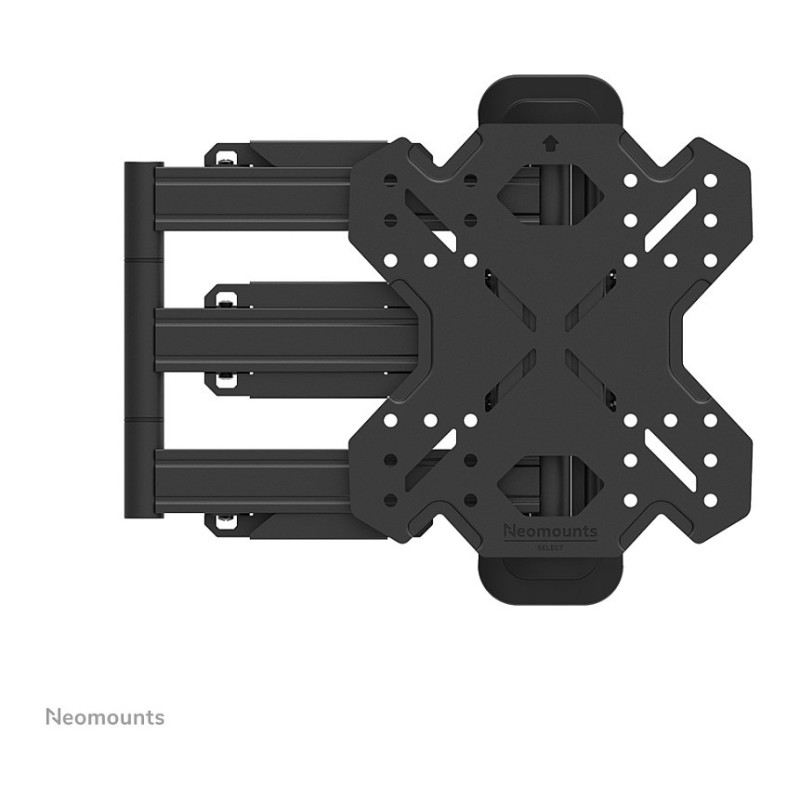

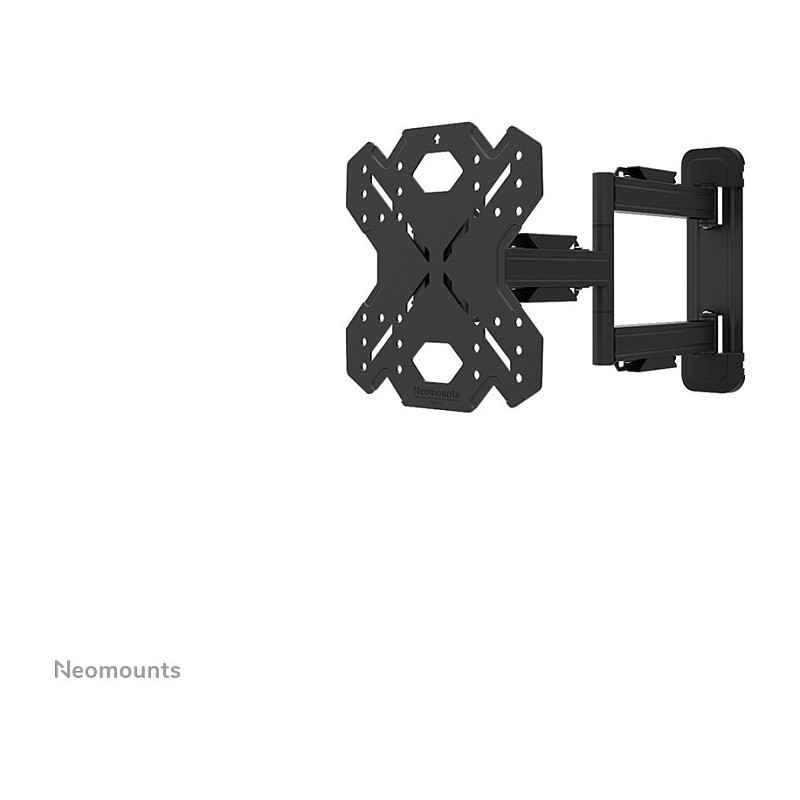

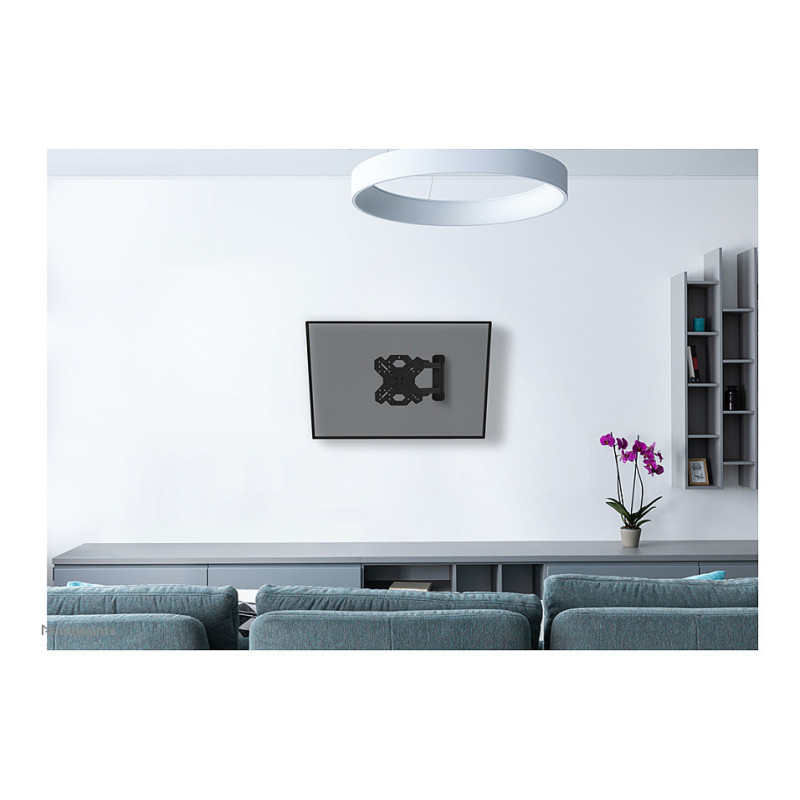

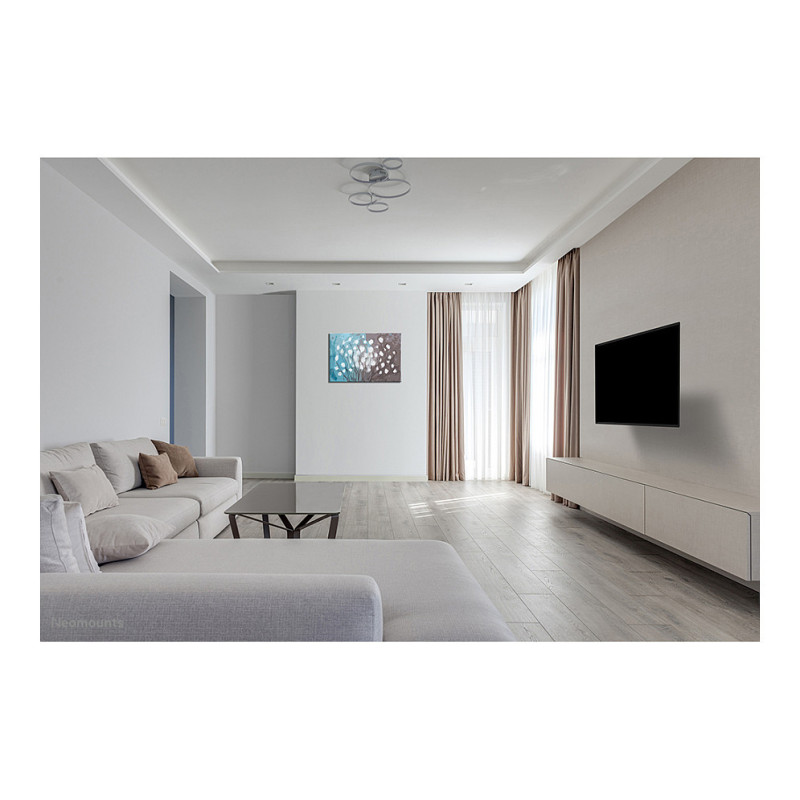

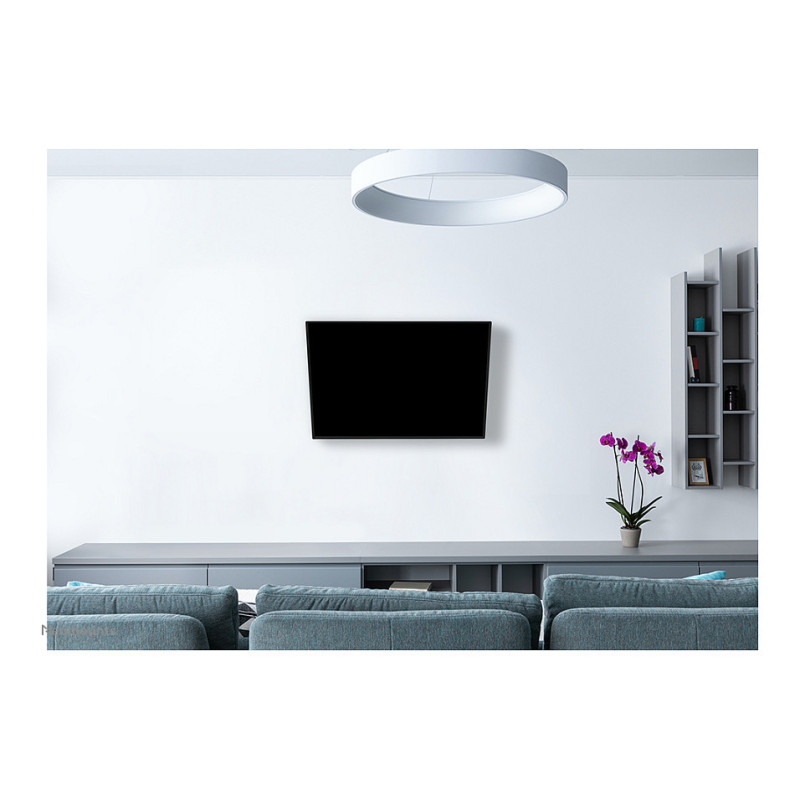

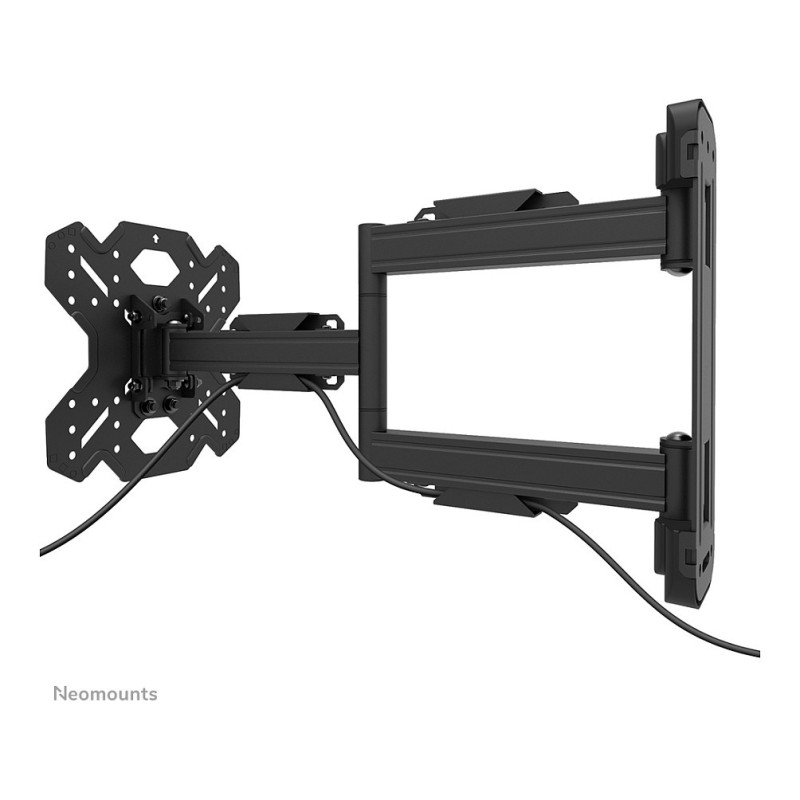

The Neomounts WL40S-850BL12 LEVEL is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (60°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

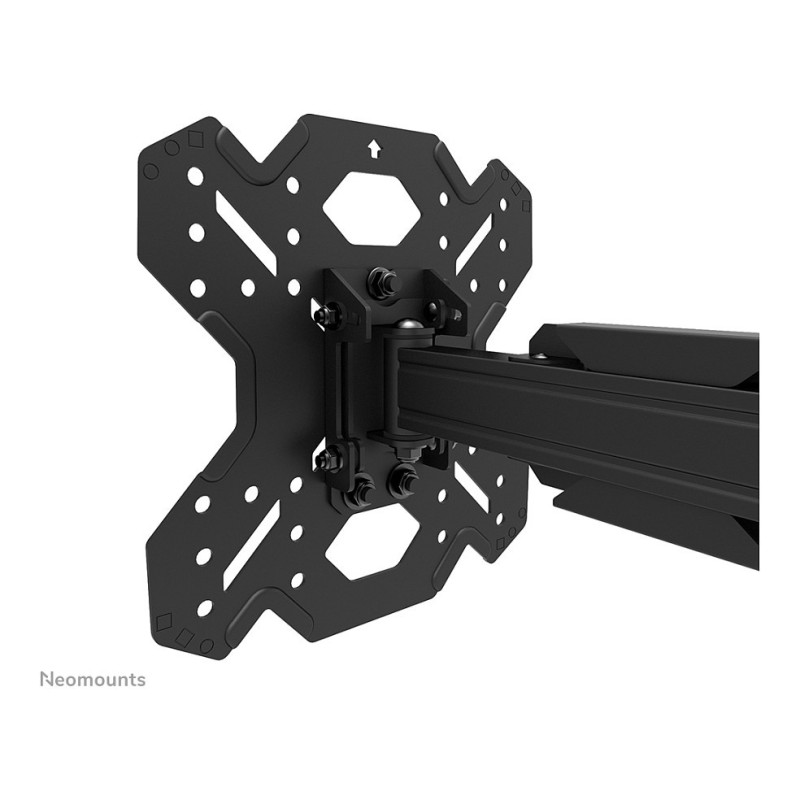

The LEVEL-850 wall mount has a depth of 4,7-55,5 cm and is suitable for screens that meet VESA hole pattern 100x100 to 200x200mm.

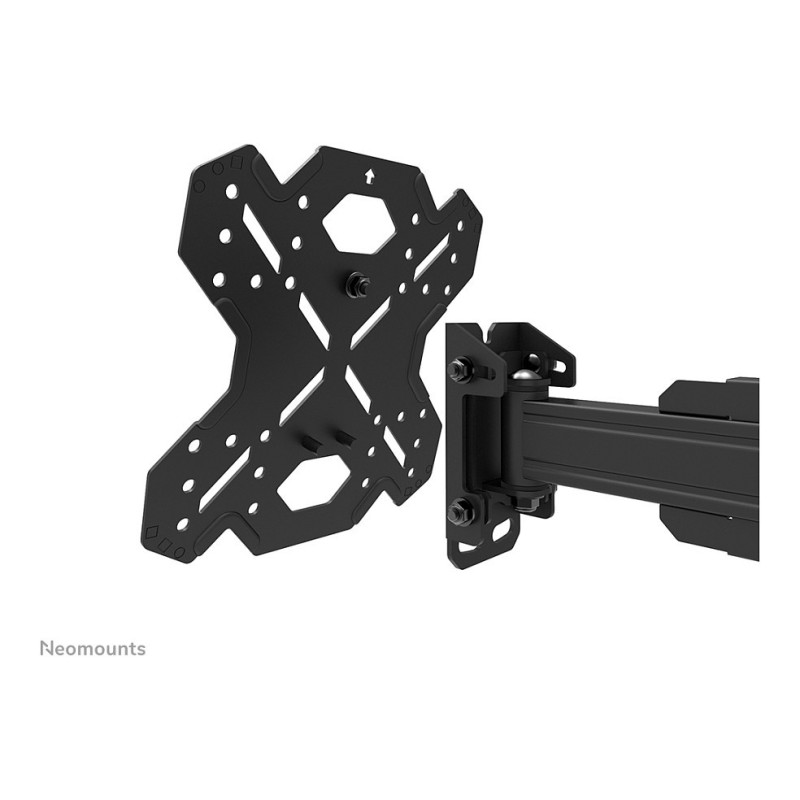

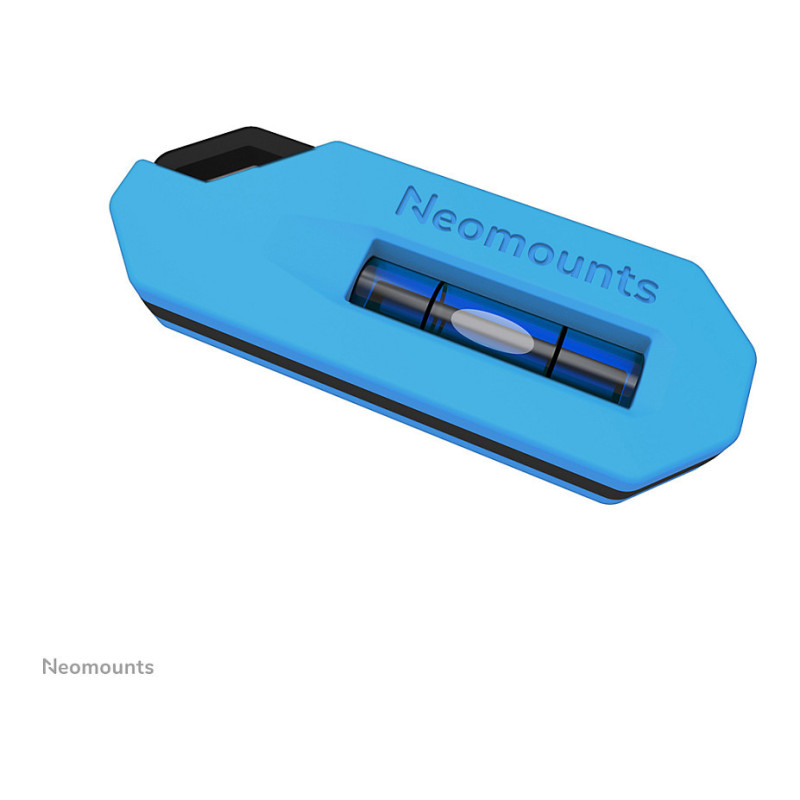

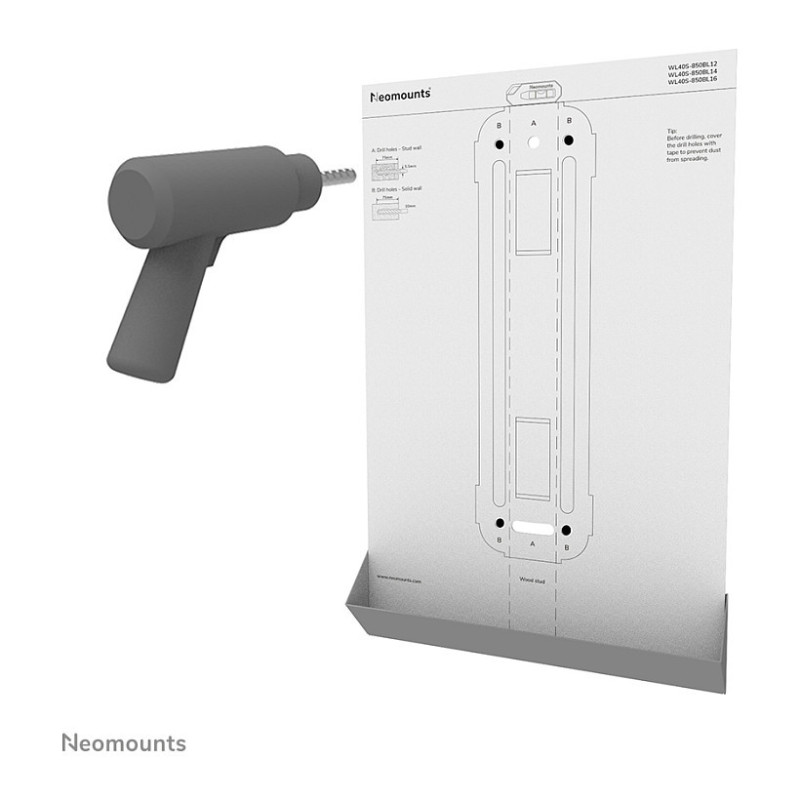

The WL40S-850BL12 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.

Mounting

Maximum weight capacity: 40 kg
Minimum screen size: 81.3 cm (32")
Number of displays supported: 1
Maximum weight capacity (per display): 40 kg
Maximum screen size: 139.7 cm (55")

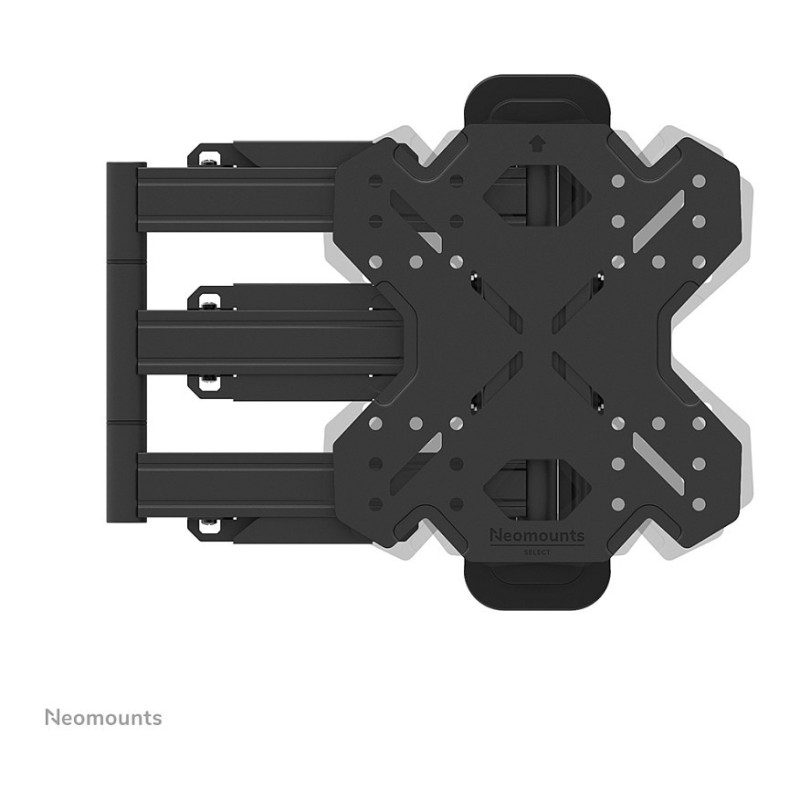

Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 200 x 200 mm

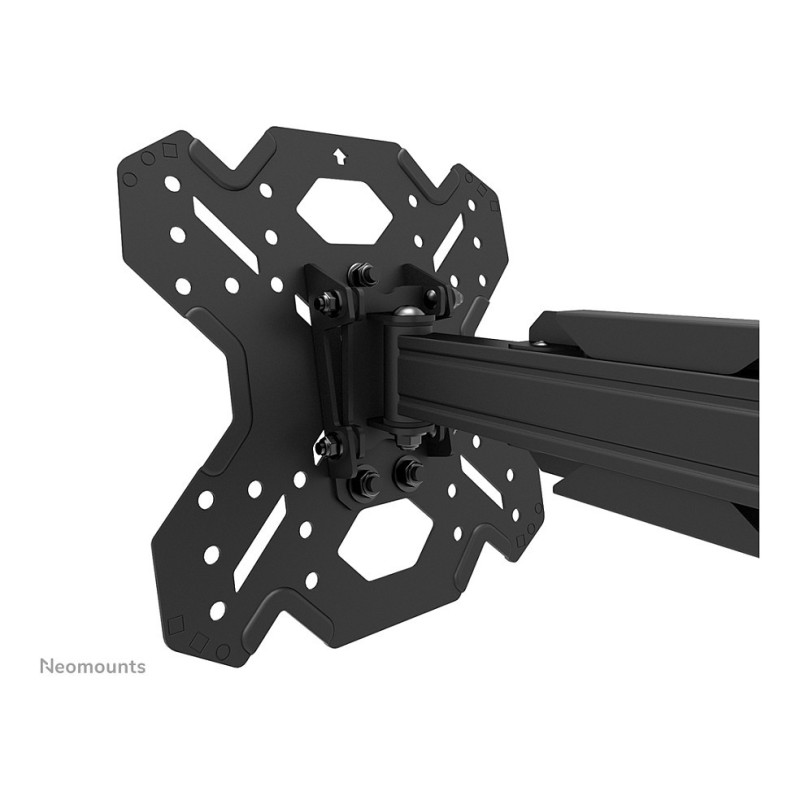

Panel mounting interface: 100 x 200,100 x 100,100 x 150,200 x 100,200 x 200
Mounting type: Wall

Ergonomics

Feature: Tilt adjustment
Tilt angle range: -2 - 12°
Feature: Swivelling
Swivel angle: 60°
Swivel angle range: 0 - 60°
Feature: Rotating
Angle of rotation: 6°
Pivot angle: -3 - 3°
Feature: Cable management

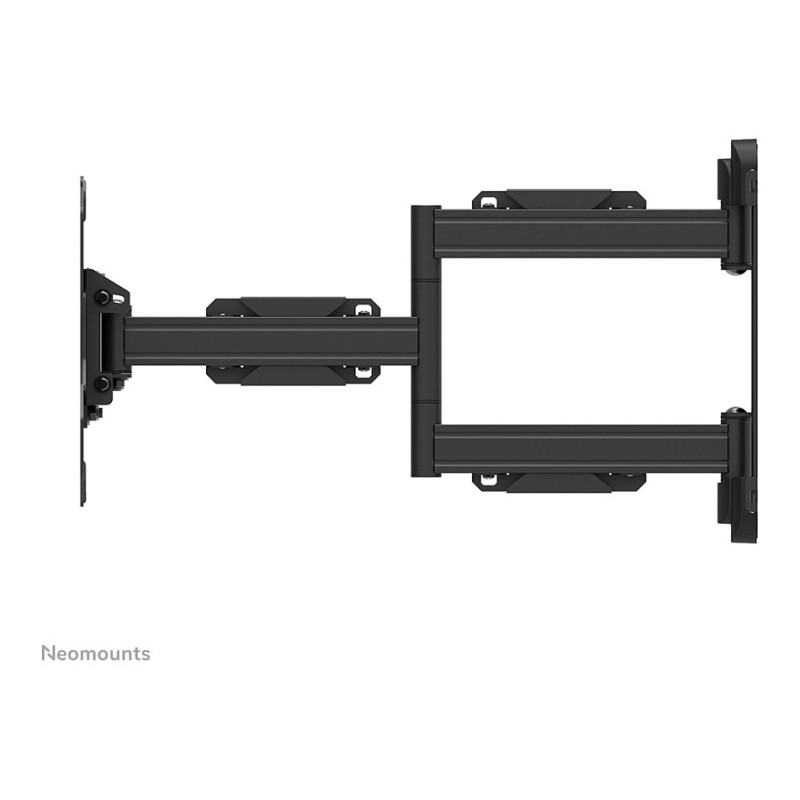

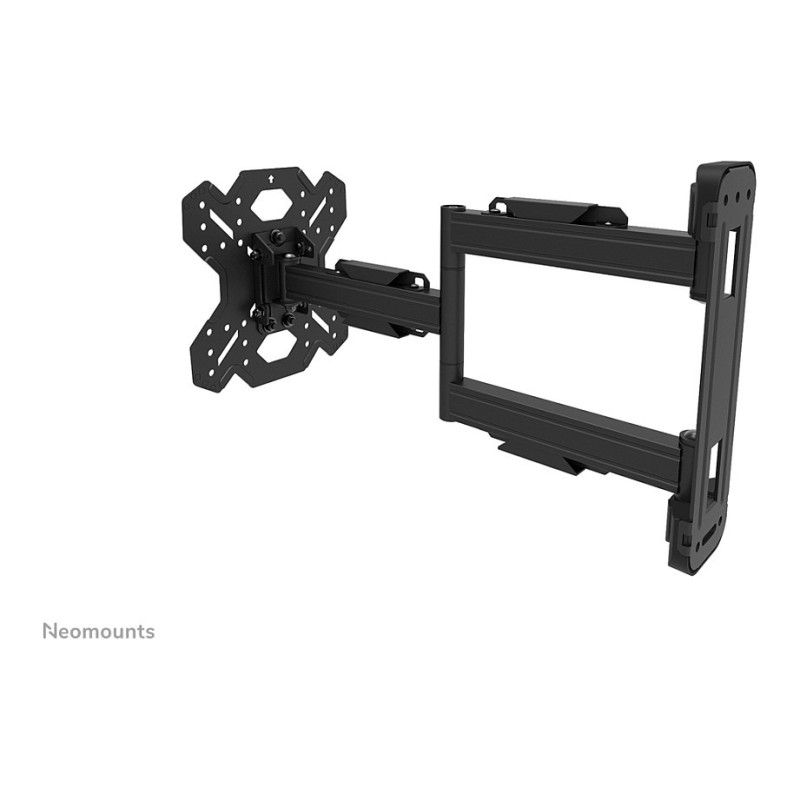

Type: Full motion
Distance to the wall (max): 55.5 cm

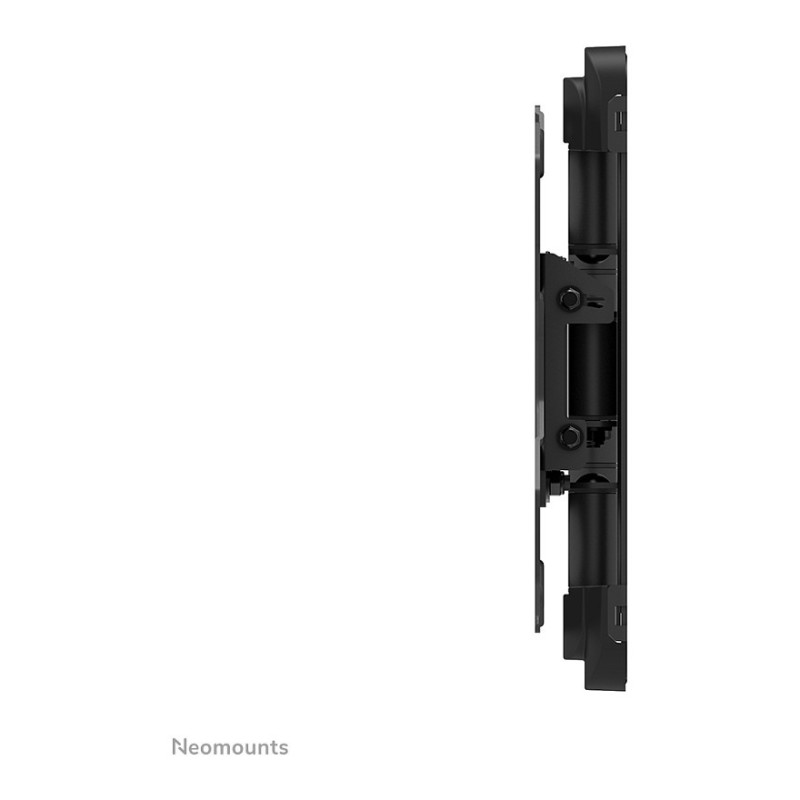

Distance to the wall (min): 4.7 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Package net weight: 6.1 kg
Quantity per pack: 1 pc(s)
Lockable: Not lockable

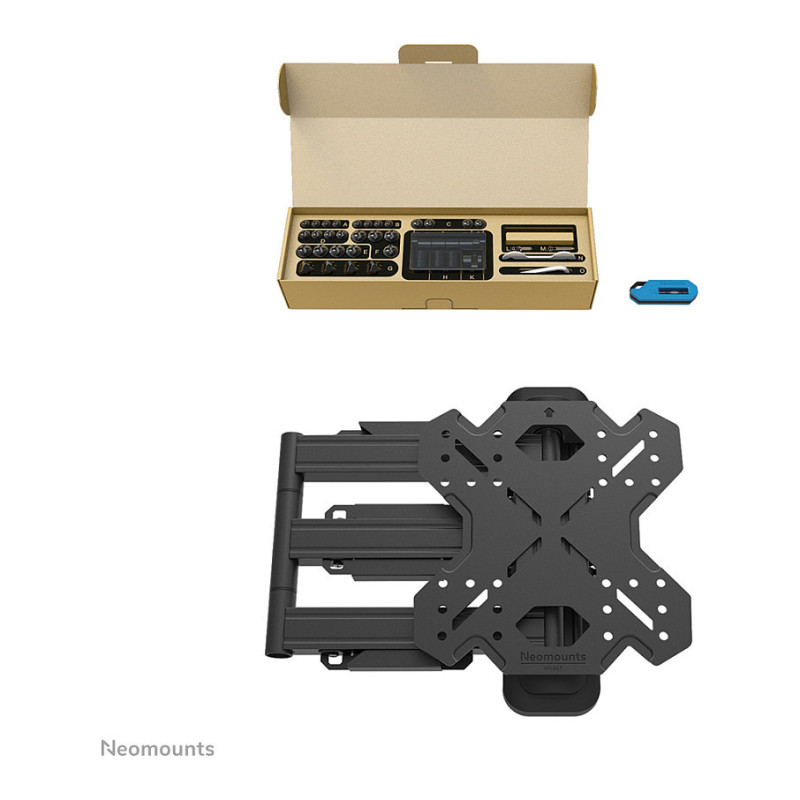

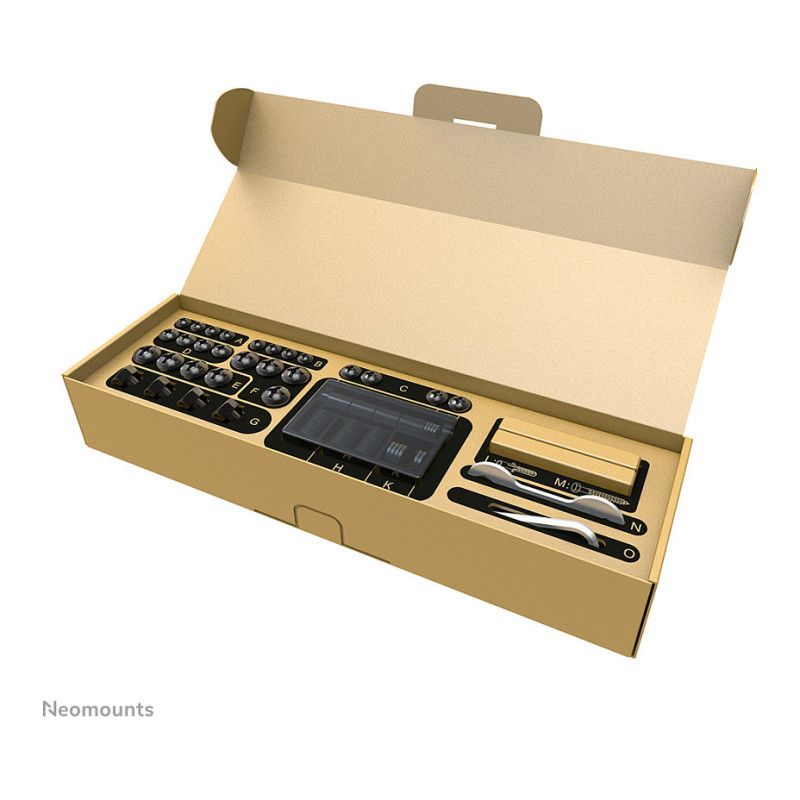

Packaging content

Feature: Mounting kit
Number of wrenches included: 1
Feature: Hex key included

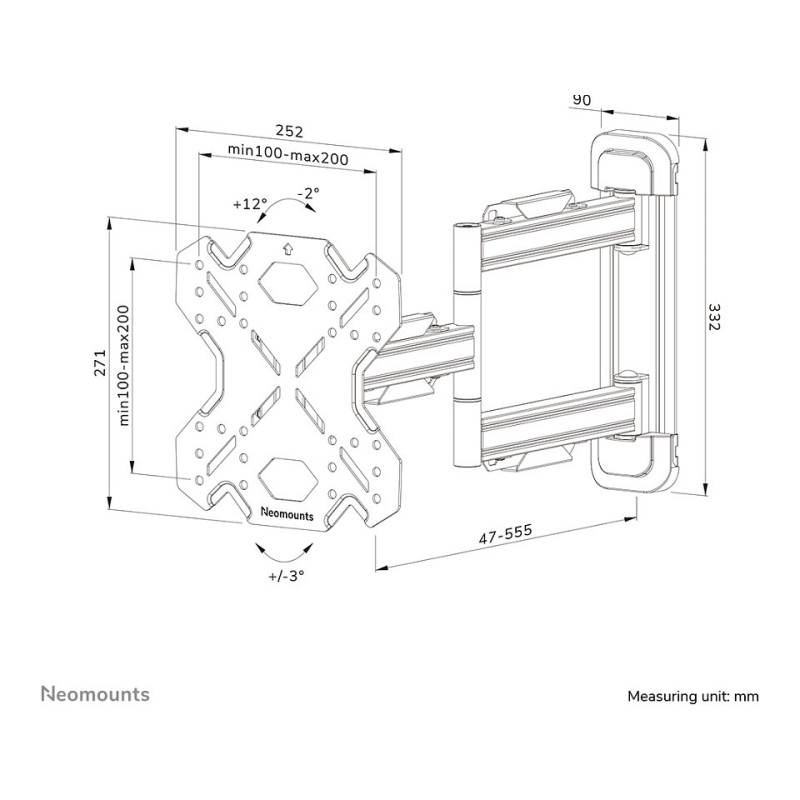

Weight & dimensions

Width: 252 mm
Depth: 47 mm
Depth (max): 4.7 cm
Height: 271 mm
Weight: 5 kg

Packaging data

Package width: 433 mm
Package depth: 342 mm
Package height: 62 mm
Package weight: 6.1 kg

Logistics data

Master (outer) case width: 453 mm
Master (outer) case length: 204 mm
Master (outer) case height: 362 mm
Master (outer) case gross weight: 18.8 kg
Master (outer) case net weight: 15.7 kg
Products per master (outer) case: 3 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 90 pc(s)
