Neomounts WL40-550BL18 TV mount / stand

Neomounts WL40-550BL18 TV mount wall 43-75" - full motion - easy install. Maximum weight capacity: 45 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 800 x 400 mm. Tilt angle range: -3 - 15°, Swivel angle range: 0 - 54°, Angle of rotation: 6°, Distance to the wall (min): 5.5 cm, Distance to the wall (max): 71 cm. Product colour: Black

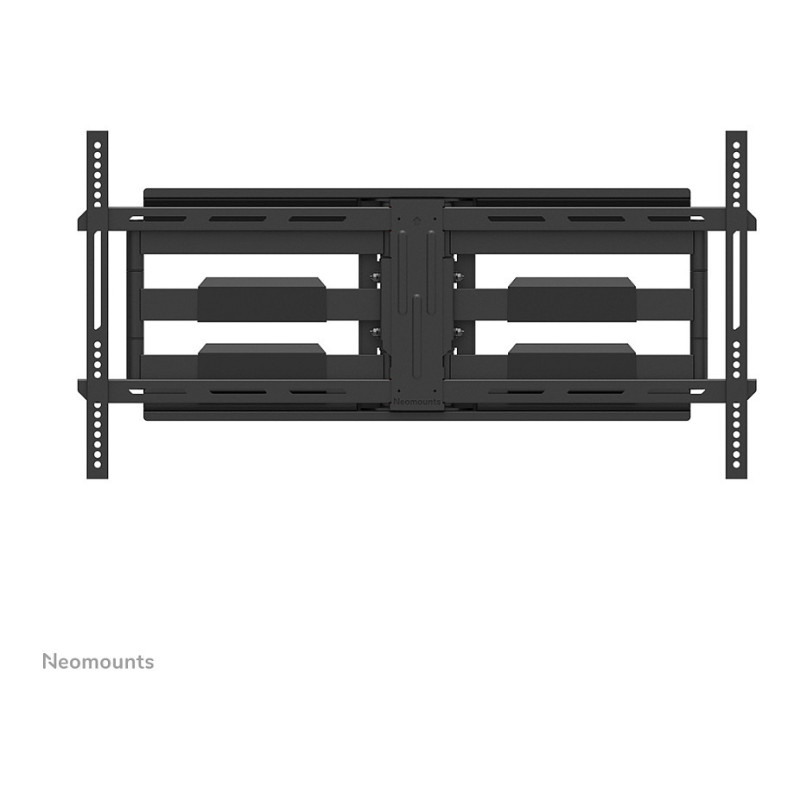

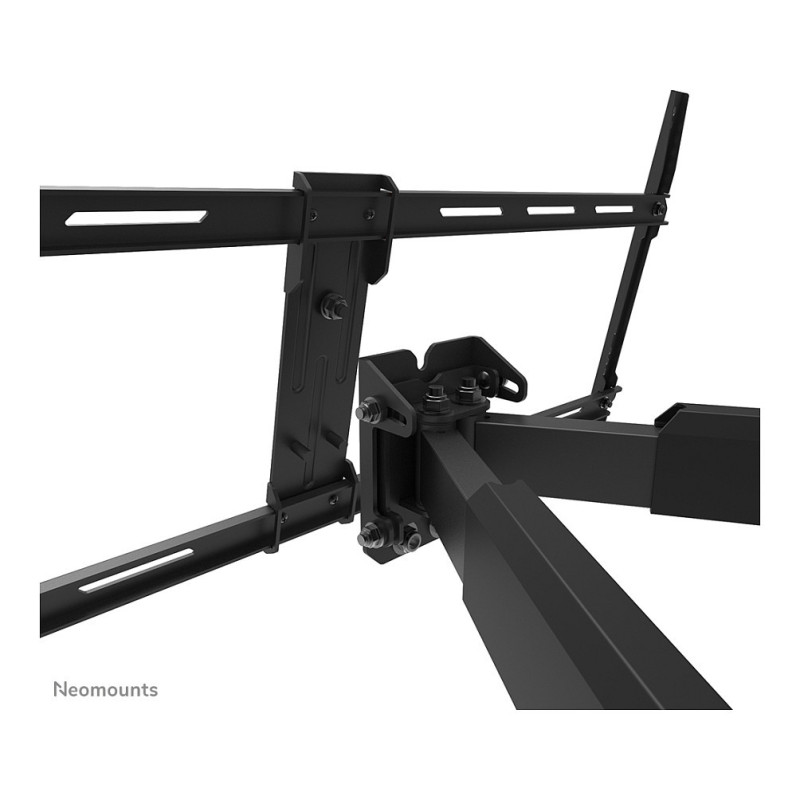

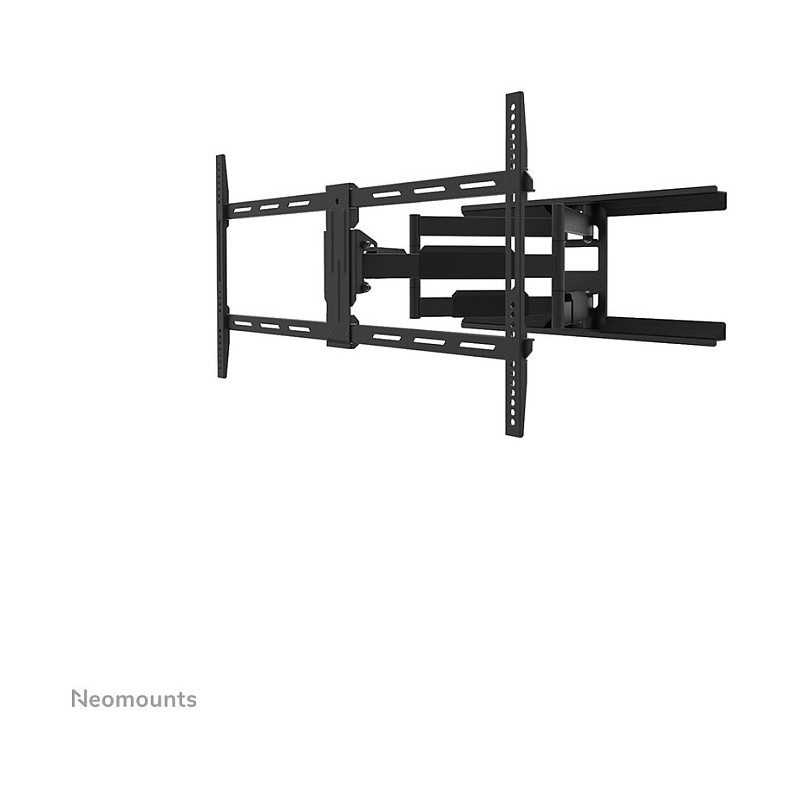

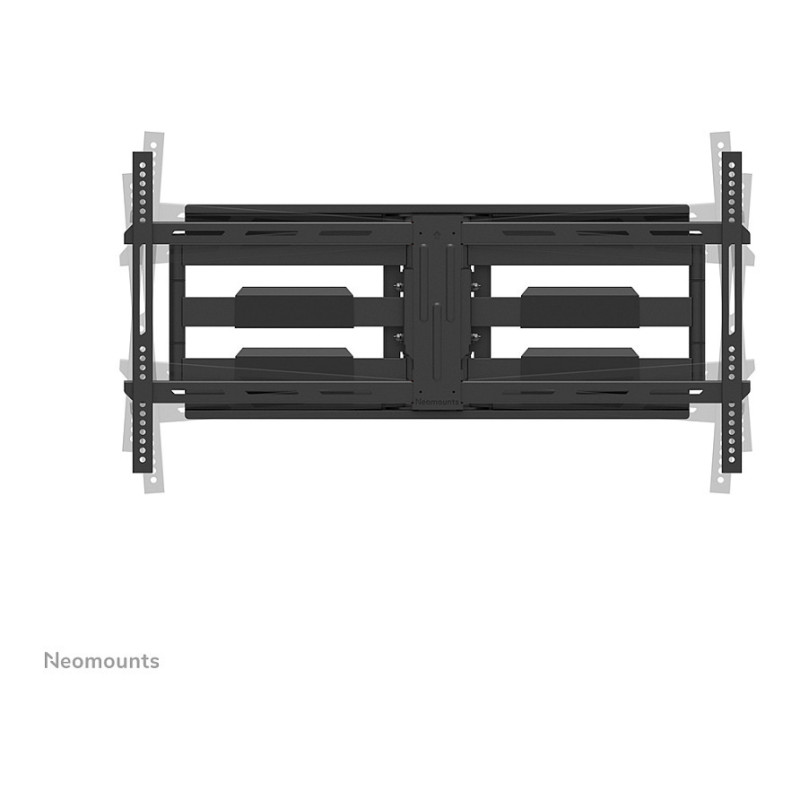

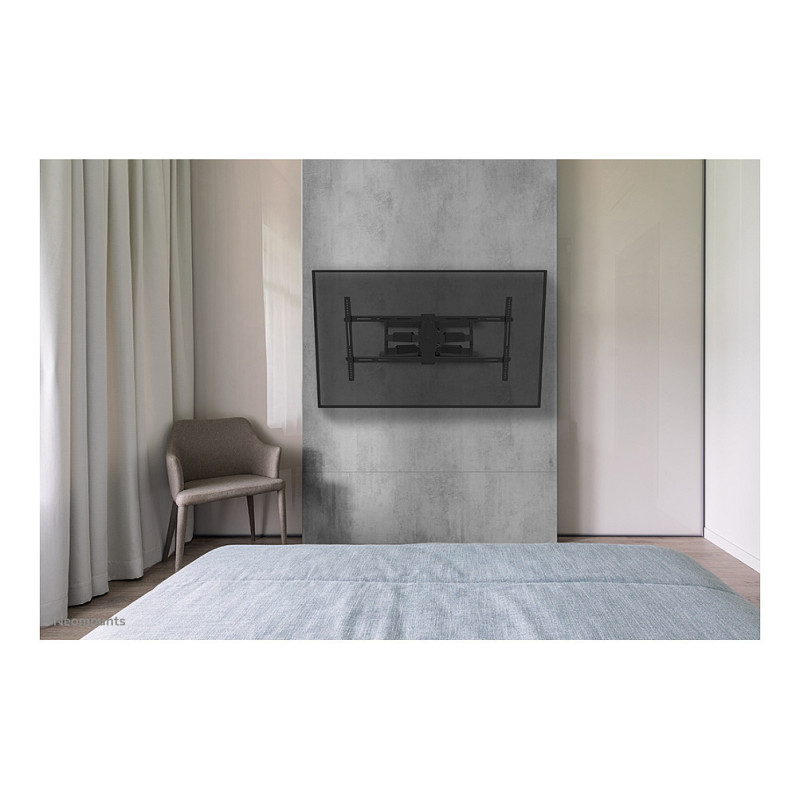

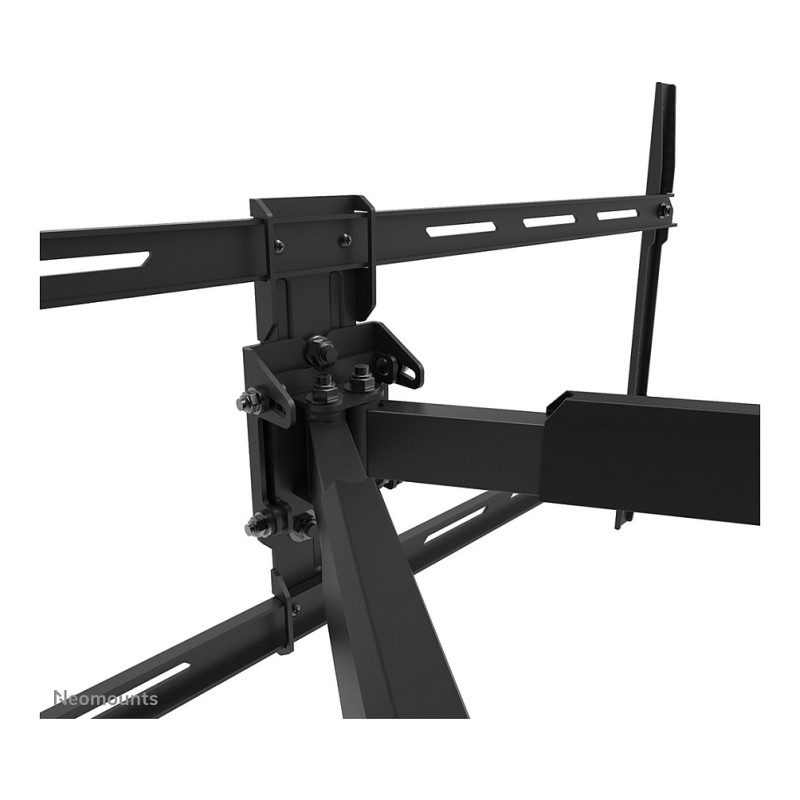

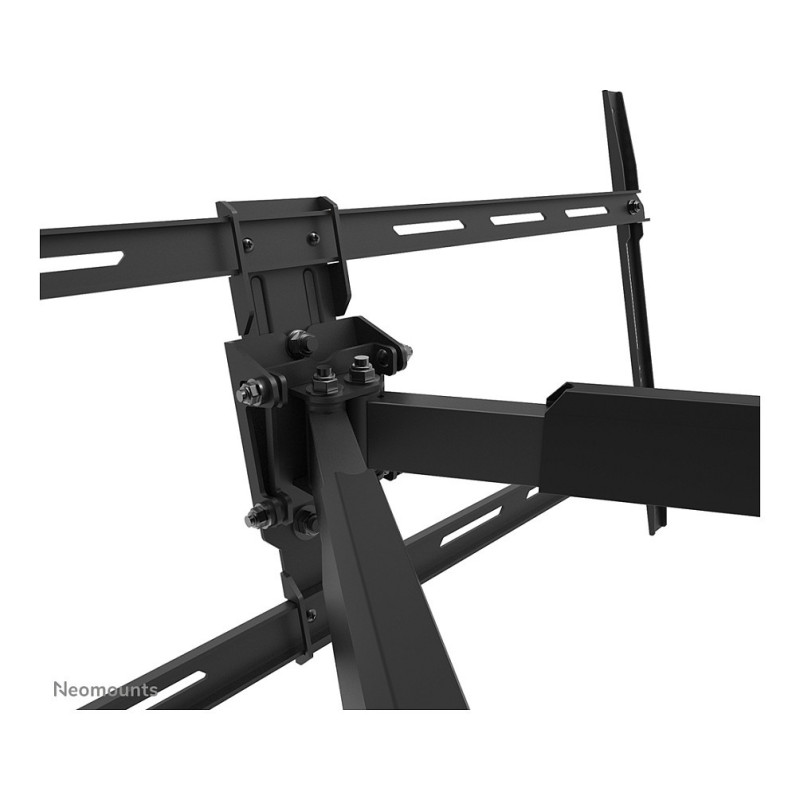

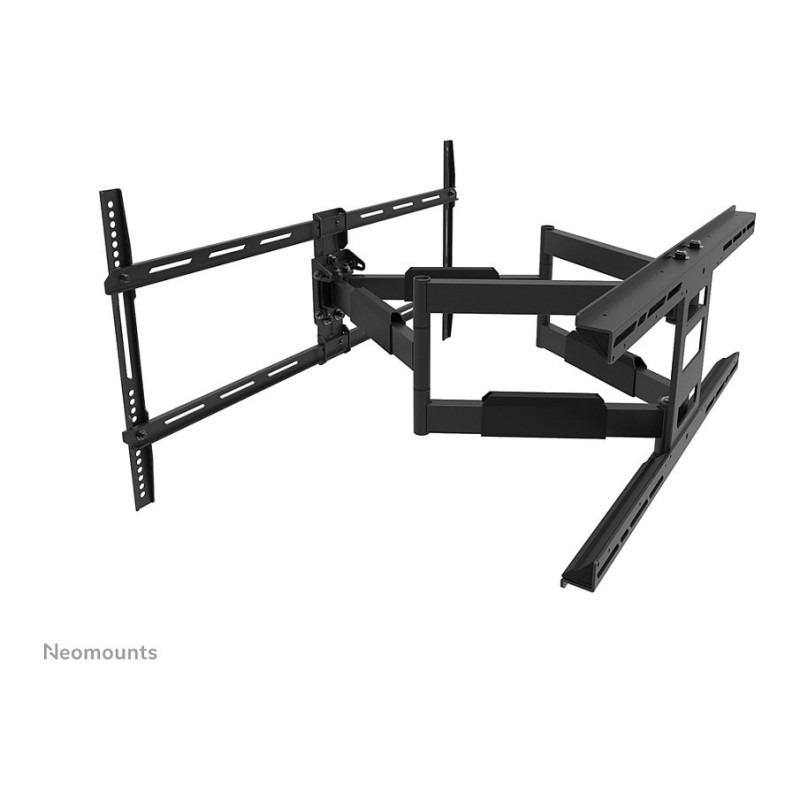

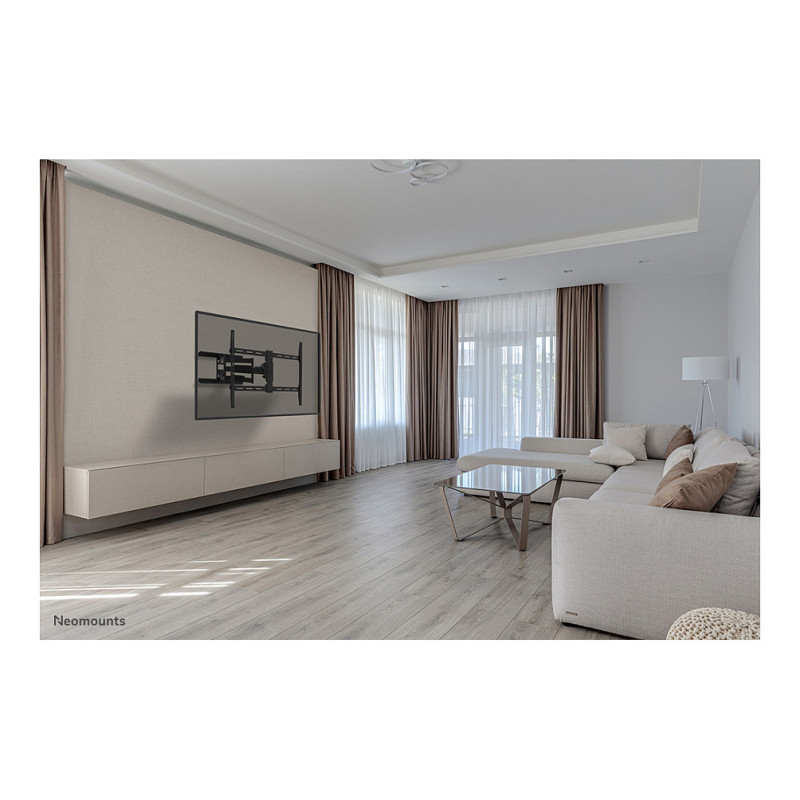

The Neomounts WL40-550BL18 LEVEL is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

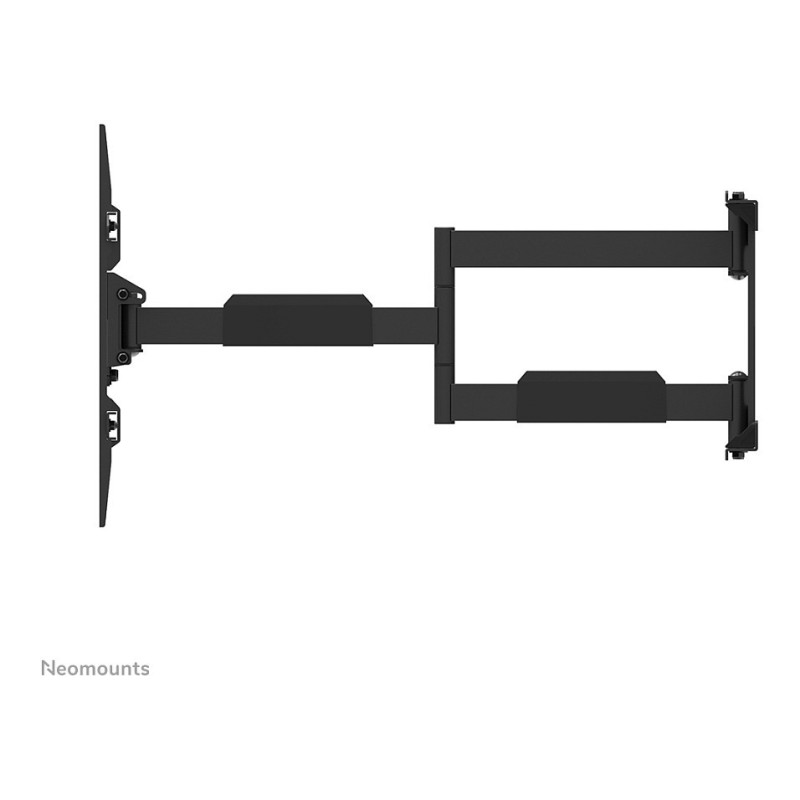

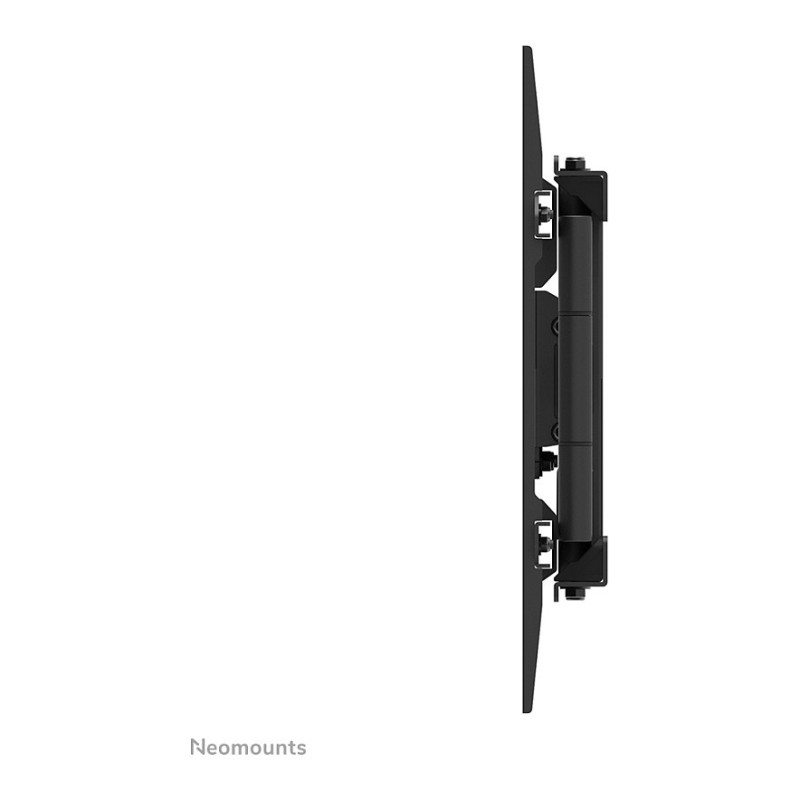

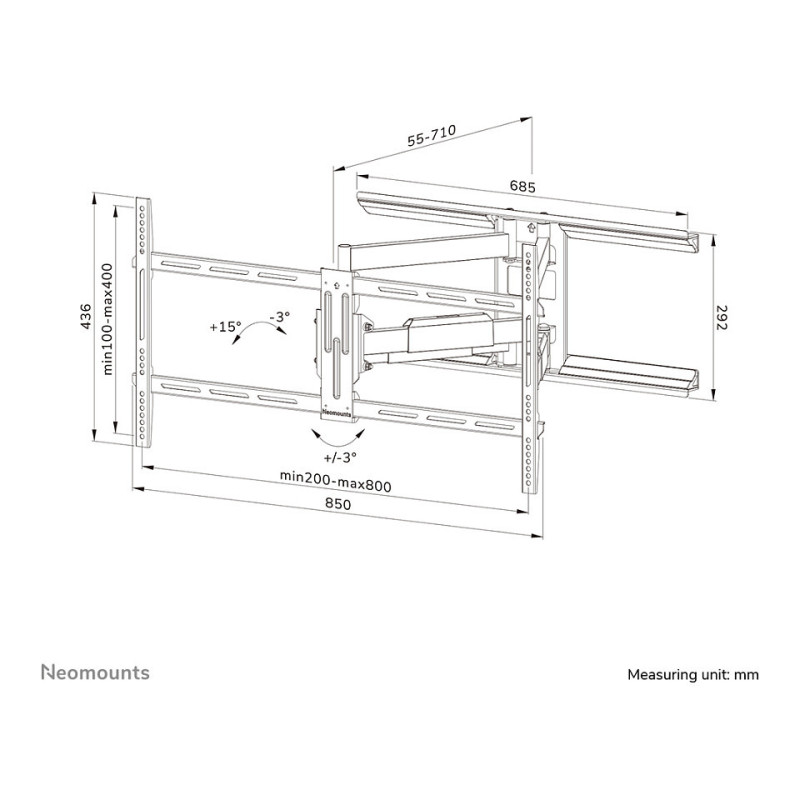

The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm.

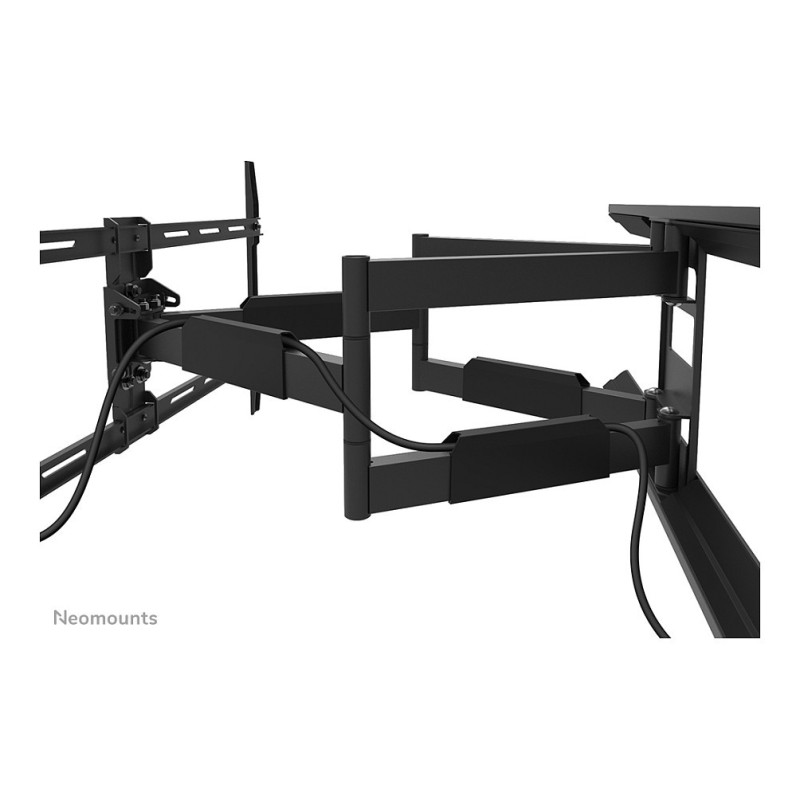

The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.

Mounting

Maximum weight capacity: 45 kg
Minimum screen size: 109.2 cm (43")
Number of displays supported: 1
Maximum weight capacity (per display): 45 kg
Maximum screen size: 190.5 cm (75")
Minimum VESA mount: 200 x 100 mm
Maximum VESA mount: 800 x 400 mm
Mounting type: Wall

Ergonomics

Feature: Tilt adjustment
Tilt angle range: -3 - 15°
Feature: Swivelling
Swivel angle: 54°
Swivel angle range: 0 - 54°
Feature: Rotating
Angle of rotation: 6°
Pivot angle: -3 - 3°
Feature: Cable management
Type: Full motion
Distance to the wall (max): 71 cm
Distance to the wall (min): 5.5 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Package net weight: 11.7 kg
Quantity per pack: 1 pc(s)
Lockable: Not lockable

Packaging content

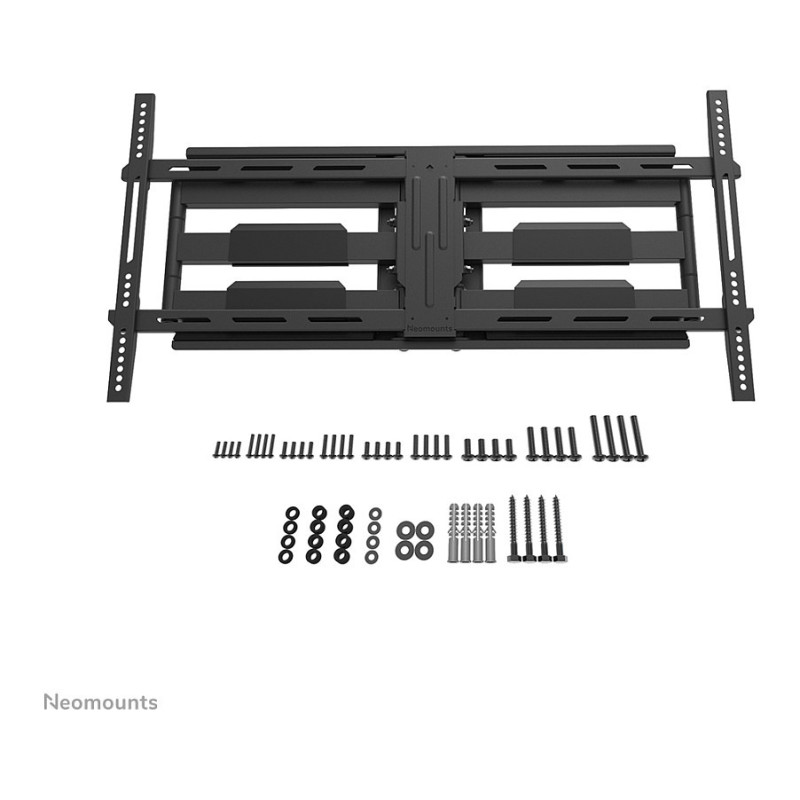

Feature: Mounting kit

Weight & dimensions

Width: 850 mm
Depth: 55 mm
Depth (max): 5.5 cm
Height: 436 mm
Weight: 9.9 kg

Packaging data

Package width: 882 mm
Package depth: 340 mm
Package height: 65 mm
Package weight: 11.7 kg

Logistics data

Master (outer) case width: 902 mm
Master (outer) case length: 145 mm
Master (outer) case height: 360 mm
Master (outer) case gross weight: 24 kg
Master (outer) case net weight: 22.1 kg
Products per master (outer) case: 2 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 40 pc(s)
