Neomounts WL40-550BL16 TV mount / stand

Neomounts WL40-550BL16 TV mount wall 40-65" - full motion - easy install. Maximum weight capacity: 40 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -2 - 12°, Swivel angle range: -45 - 45°, Angle of rotation: 6°, Distance to the wall (min): 5.3 cm, Distance to the wall (max): 49 cm. Product colour: Black

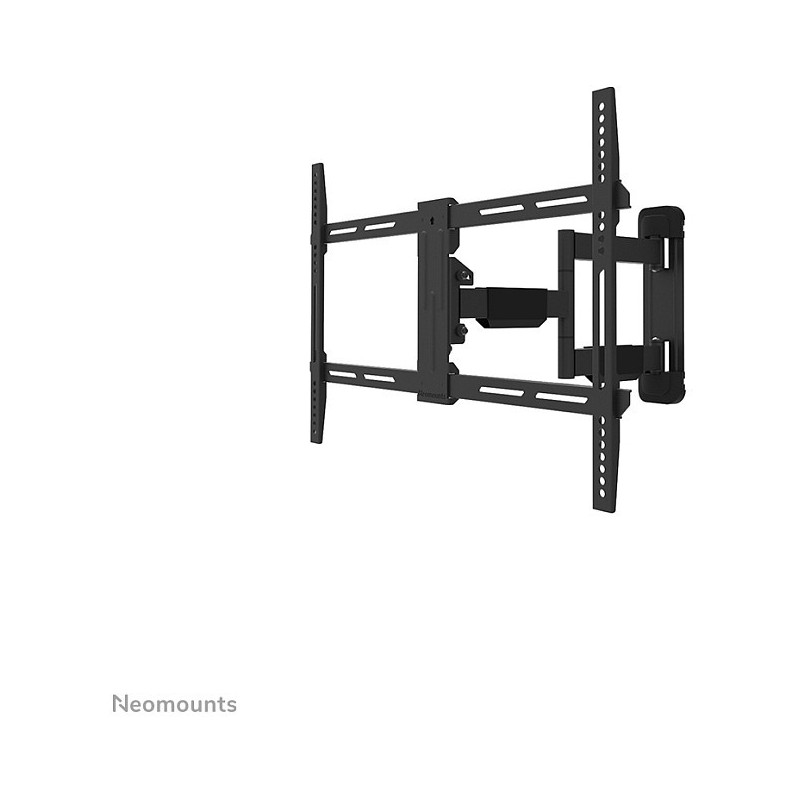

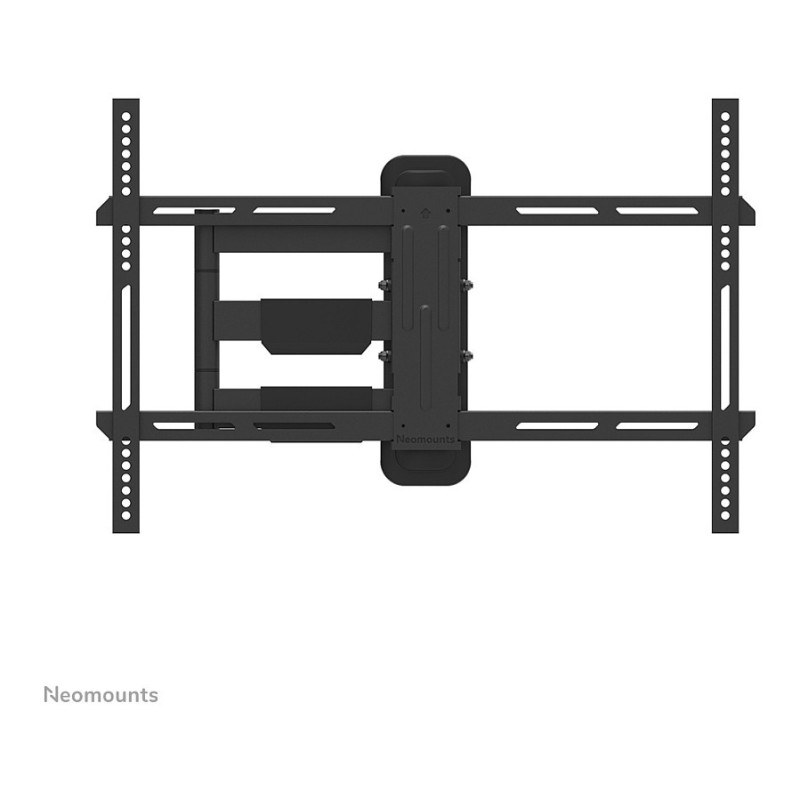

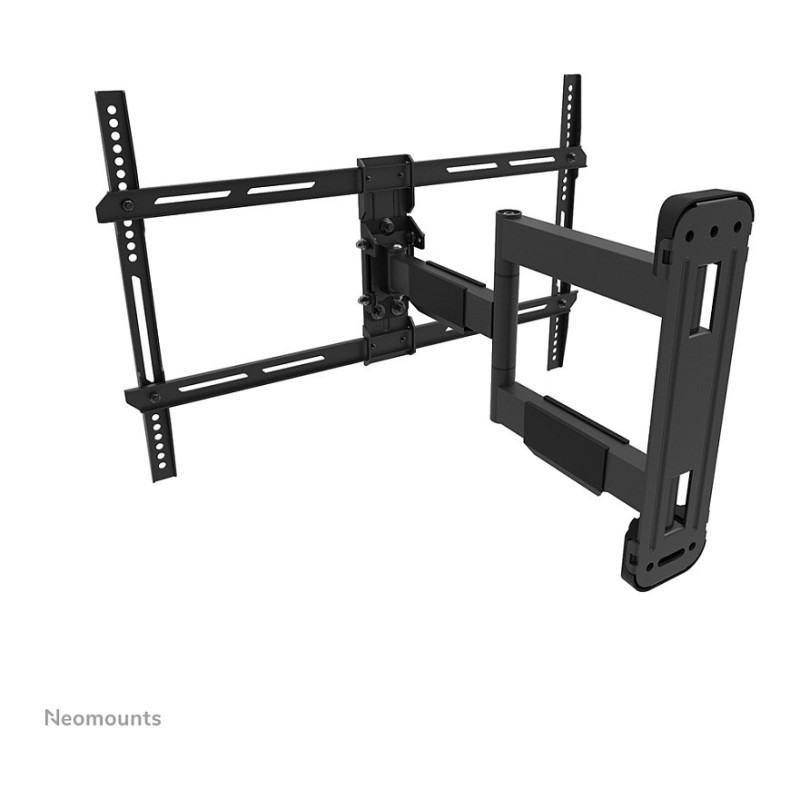

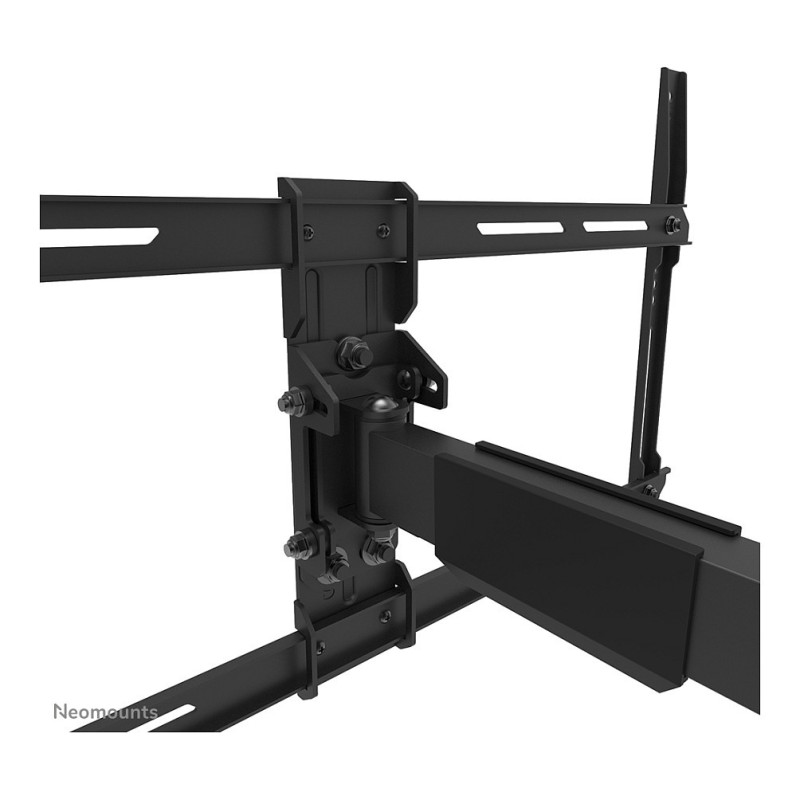

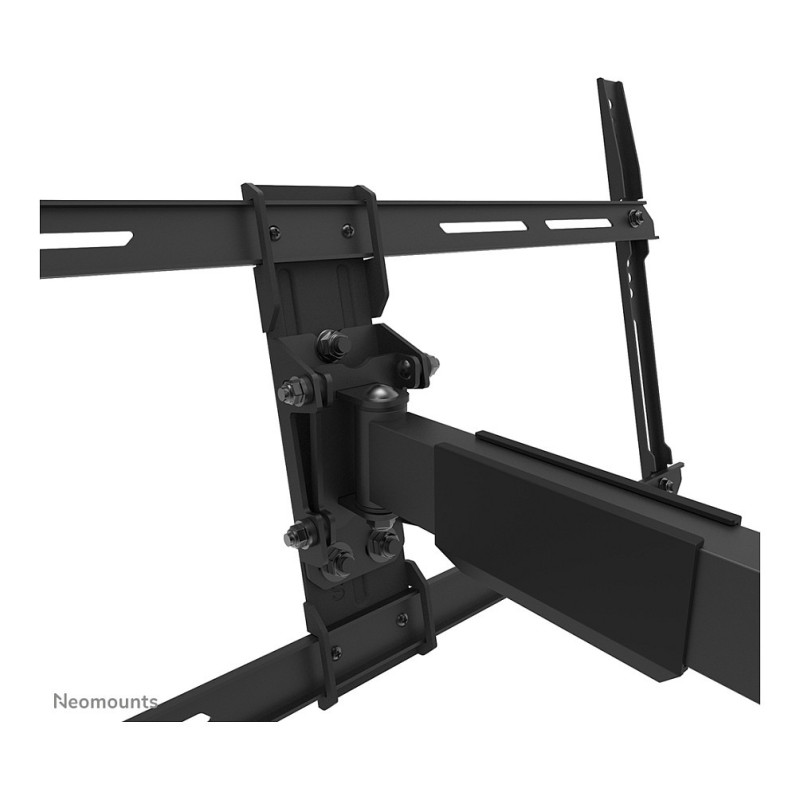

The Neomounts WL40-550BL16 LEVEL is a full motion wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (+45°/-45°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

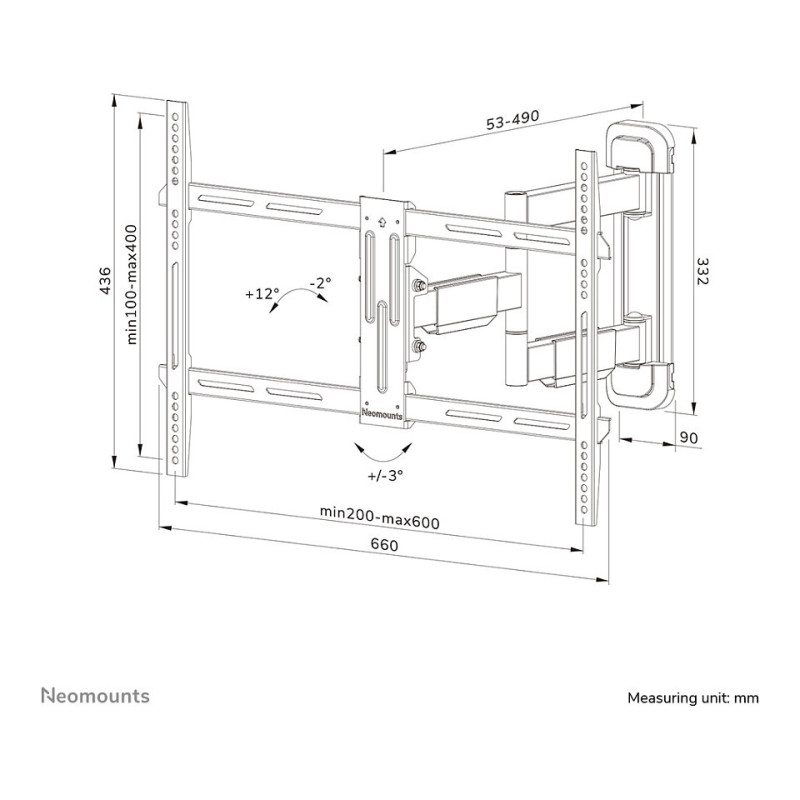

The LEVEL-550 wall mount has a depth of 5,3-49 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm.

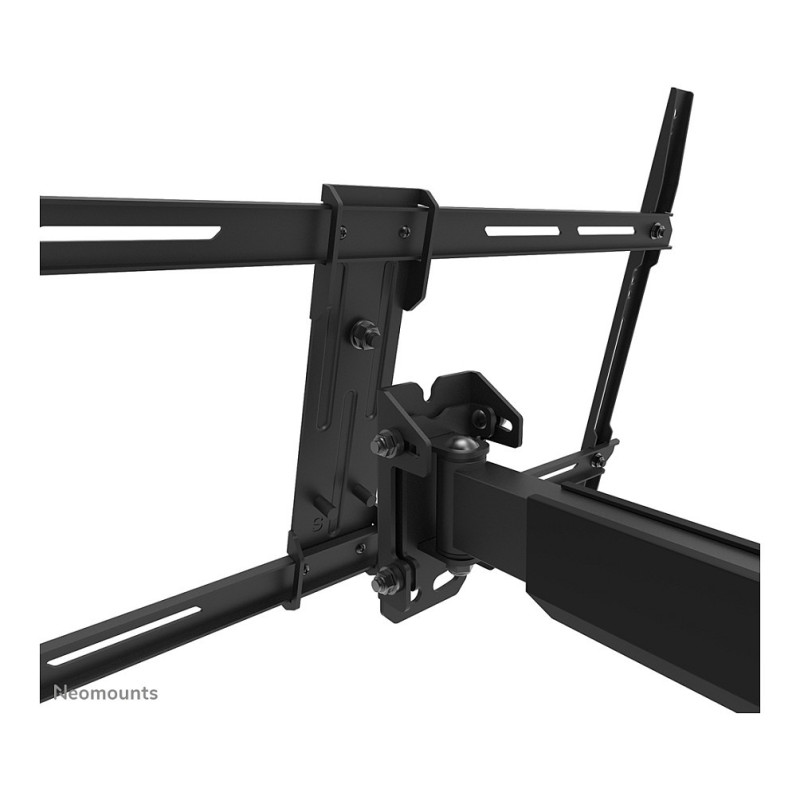

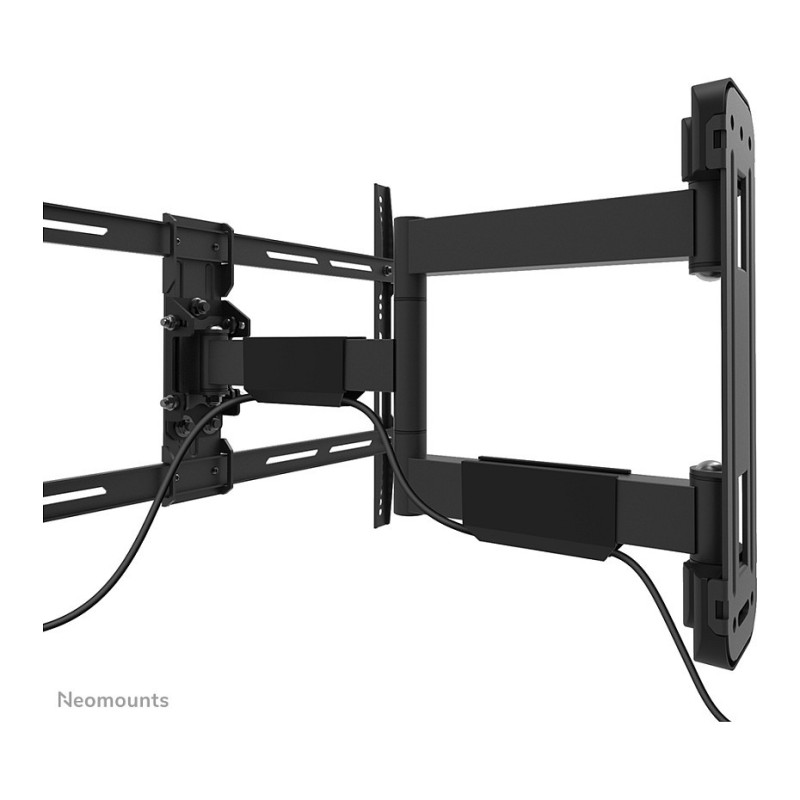

The WL40-550BL16 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.

Mounting

Maximum weight capacity: 40 kg
Minimum screen size: 101.6 cm (40")
Number of displays supported: 1
Maximum weight capacity (per display): 40 kg
Maximum screen size: 165.1 cm (65")
Minimum VESA mount: 200 x 100 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,440 x 400,600 x 300,600 x 200,600 x 400
Mounting type: Wall

Ergonomics

Feature: Tilt adjustment
Tilt angle range: -2 - 12°
Feature: Swivelling
Swivel angle: 40°
Swivel angle range: -45 - 45°

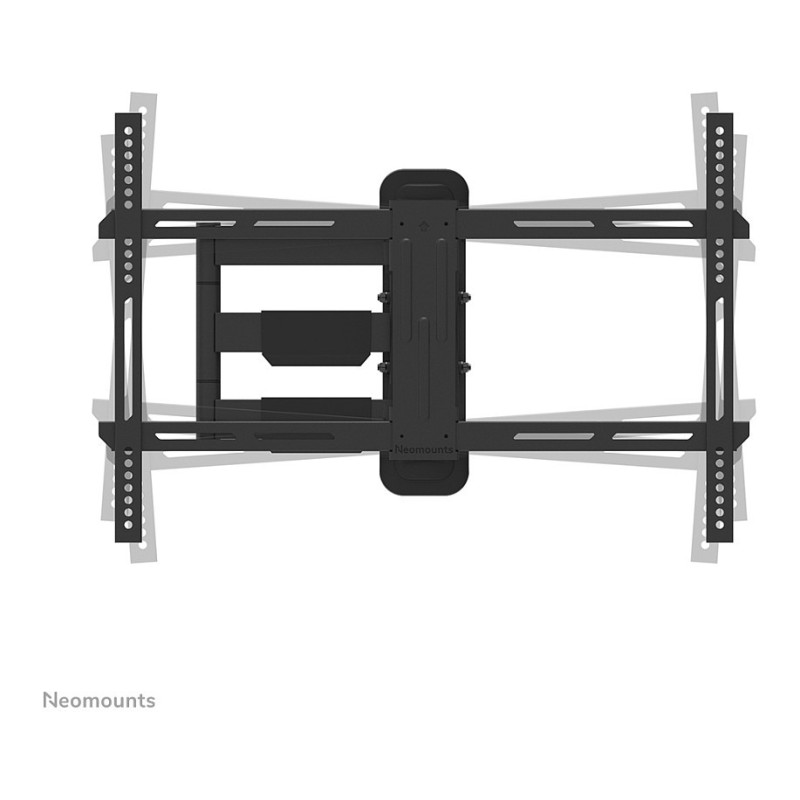

Feature: Rotating
Angle of rotation: 6°
Pivot angle: -3 - 3°
Feature: Cable management

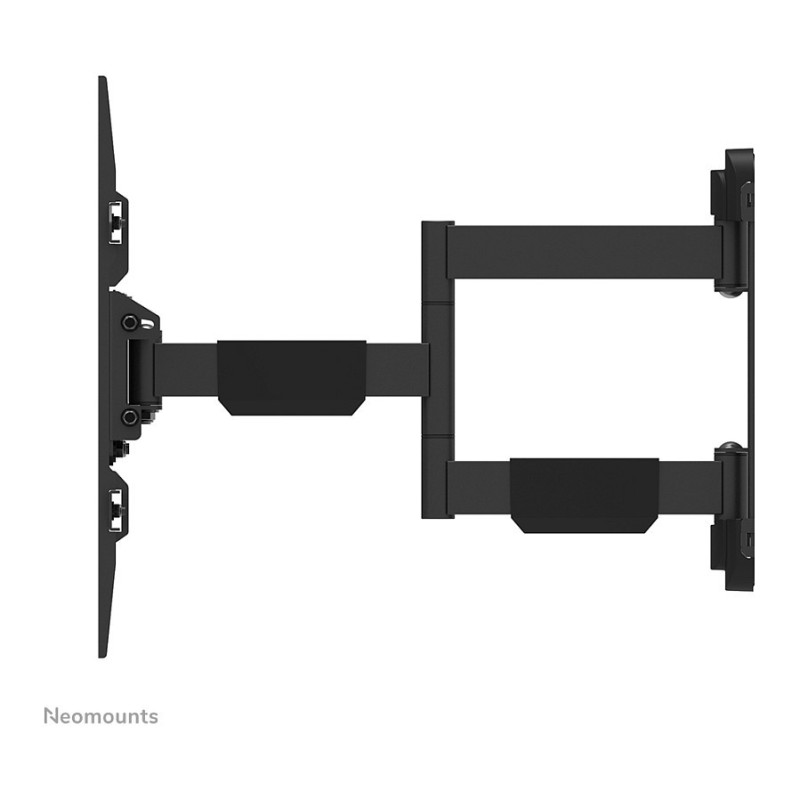

Type: Full motion
Distance to the wall (max): 49 cm
Distance to the wall (min): 5.3 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Package net weight: 6.6 kg
Quantity per pack: 1 pc(s)
Lockable: Not lockable

Packaging content

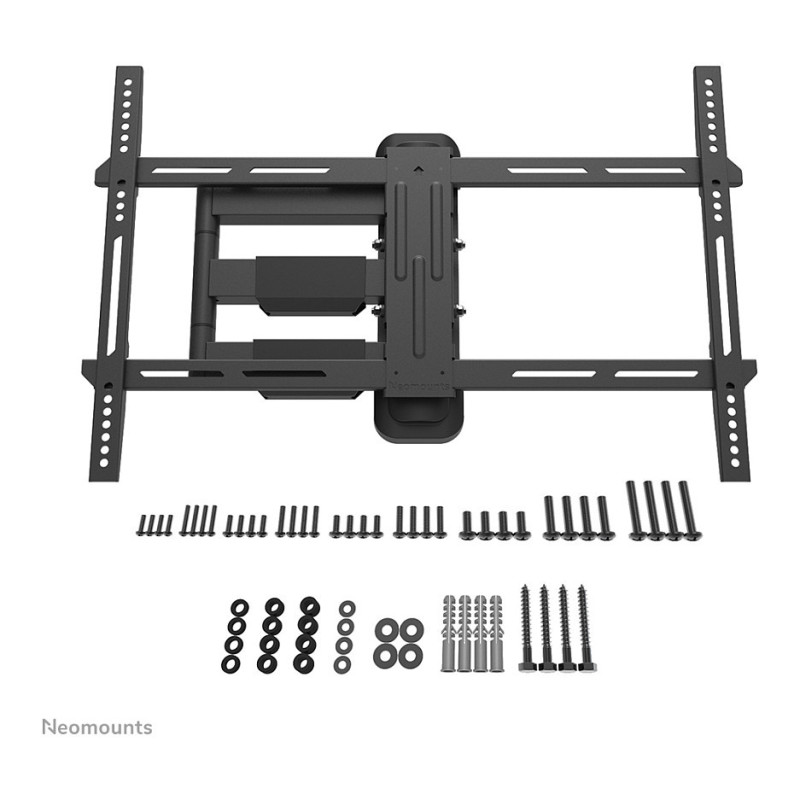

Feature: Mounting kit

Weight & dimensions

Width: 660 mm
Depth: 53 mm
Depth (max): 5.3 cm
Height: 436 mm
Weight: 5 kg

Packaging data

Package width: 684 mm
Package depth: 323 mm
Package height: 56 mm
Package weight: 6.6 kg

Logistics data

Master (outer) case width: 704 mm
Master (outer) case length: 185 mm
Master (outer) case height: 343 mm
Master (outer) case gross weight: 20.4 kg
Master (outer) case net weight: 18 kg
Products per master (outer) case: 3 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 72 pc(s)
