Neomounts WL40-540BL12 TV mount / stand

Neomounts WL40-540BL12 TV mount wall 32-55" - full motion - easy install. Maximum weight capacity: 35 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: -2 - 12°, Swivel angle range: 0 - 30°, Angle of rotation: 6°, Distance to the wall (min): 4.6 cm, Distance to the wall (max): 30.8 cm. Product colour: Black

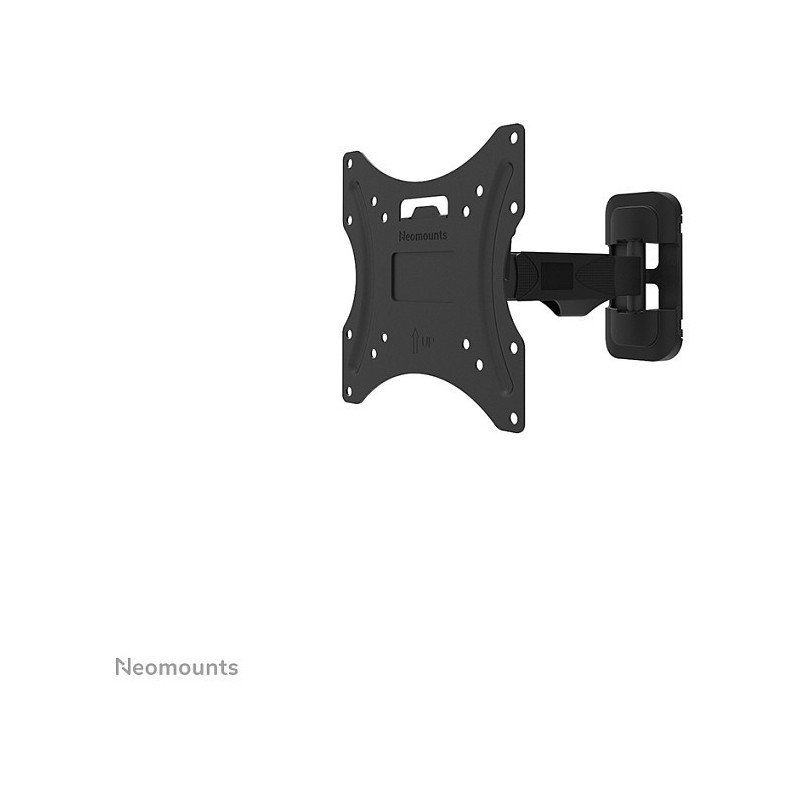

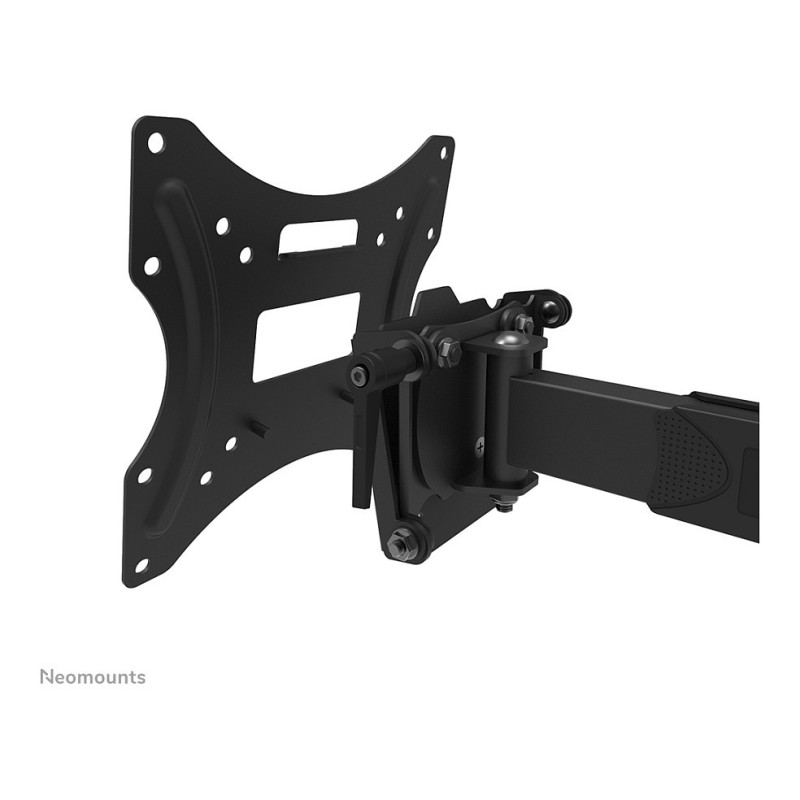

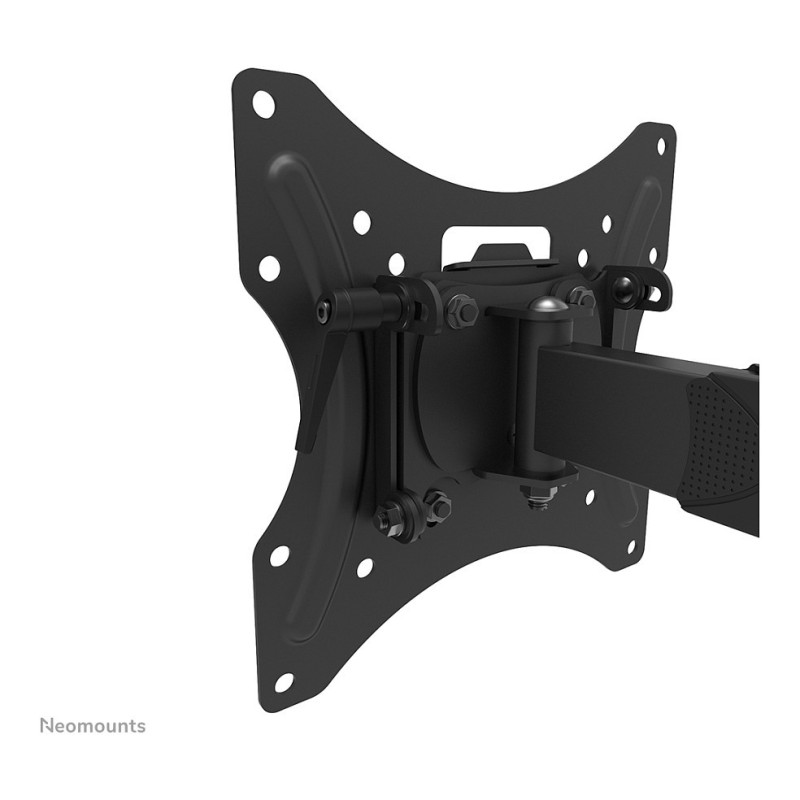

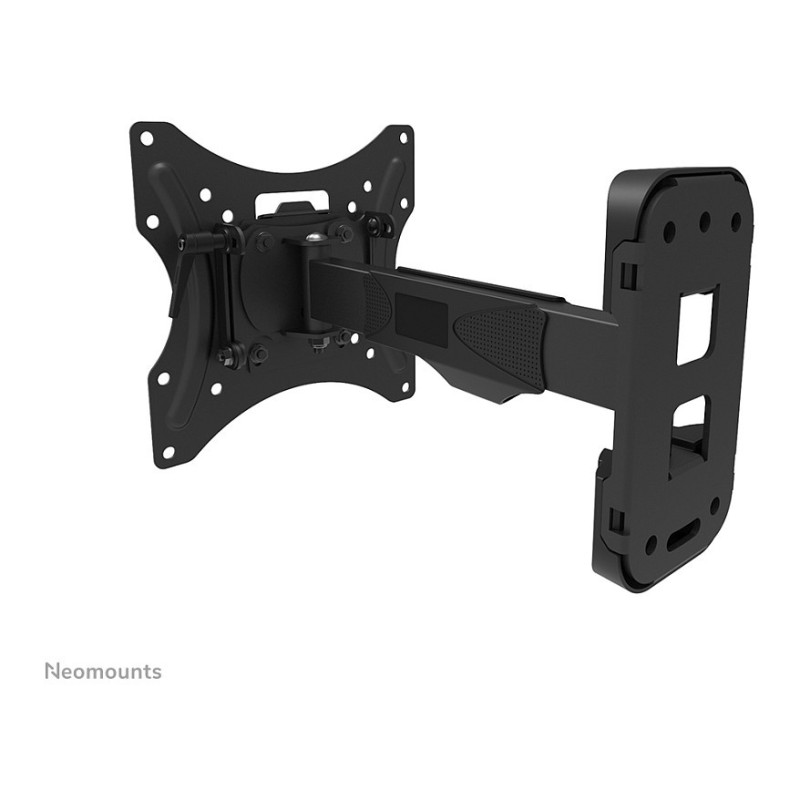

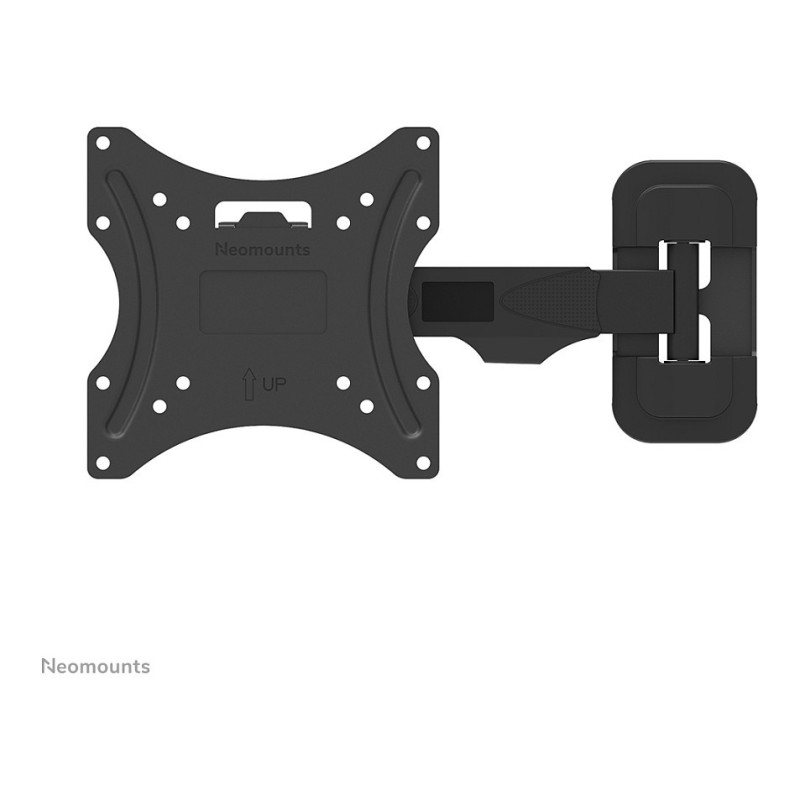

The Neomounts WL40-540BL12 LEVEL is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 35 kg. The versatile tilt (14°) and swivel (30°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

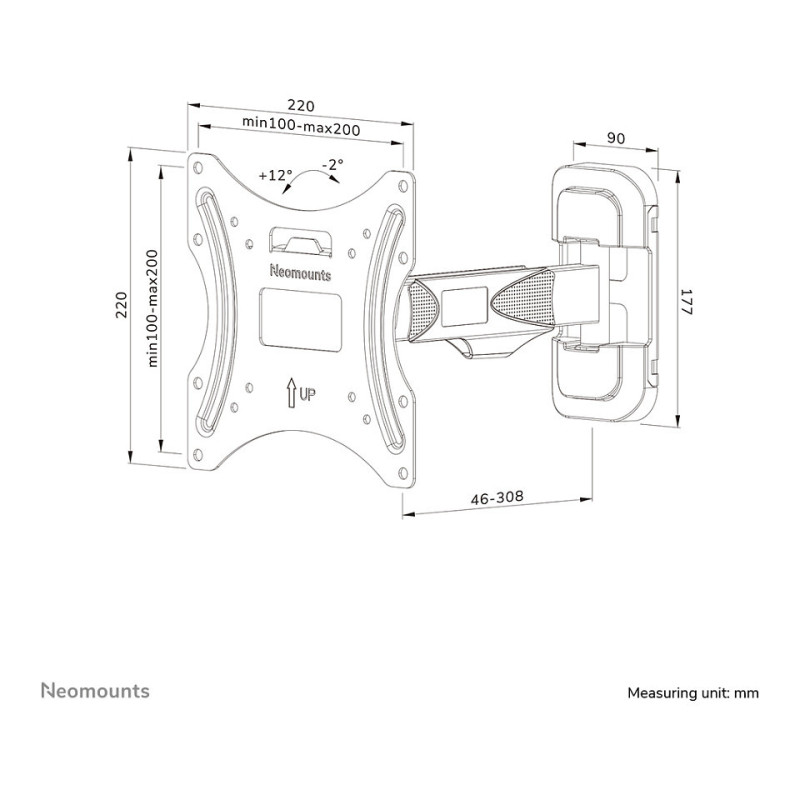

The LEVEL-550 wall mount has a depth of 4,6-30,8 cm and is suitable for screens that meet VESA hole pattern 100x100 to 200x200 mm.

The WL40-540BL12 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.

Mounting

Maximum weight capacity: 35 kg
Minimum screen size: 81.3 cm (32")
Number of displays supported: 1
Maximum weight capacity (per display): 35 kg
Maximum screen size: 139.7 cm (55")
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 200 x 200 mm
Panel mounting interface: 100 x 100,200 x 100,200 x 200
Mounting type: Wall

Ergonomics

Feature: Tilt adjustment
Tilt angle range: -2 - 12°
Feature: Swivelling
Swivel angle: 30°
Swivel angle range: 0 - 30°
Feature: Rotating
Angle of rotation: 6°

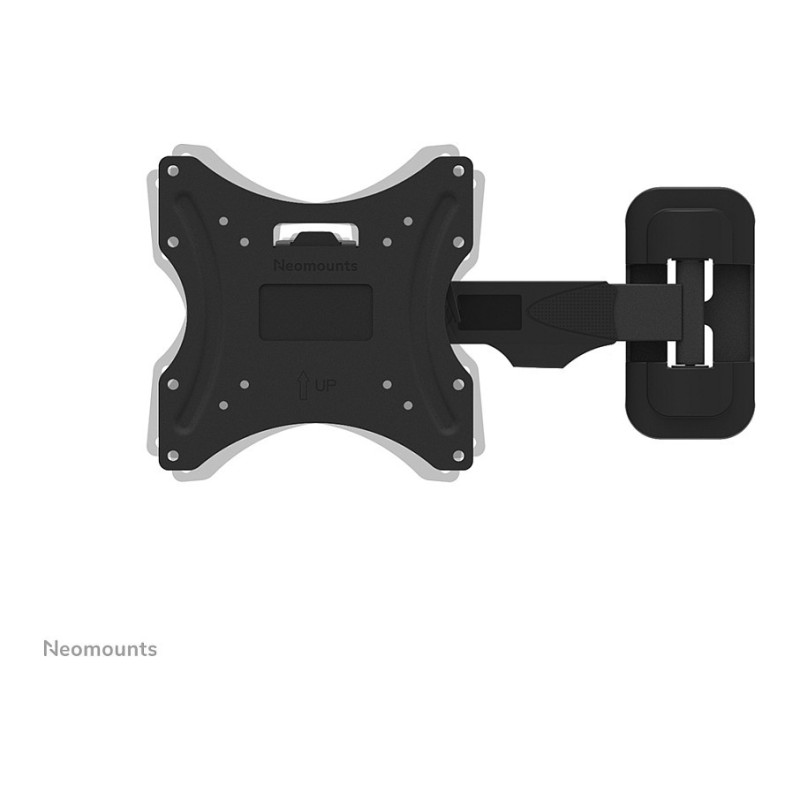

Pivot angle: -3 - 3°

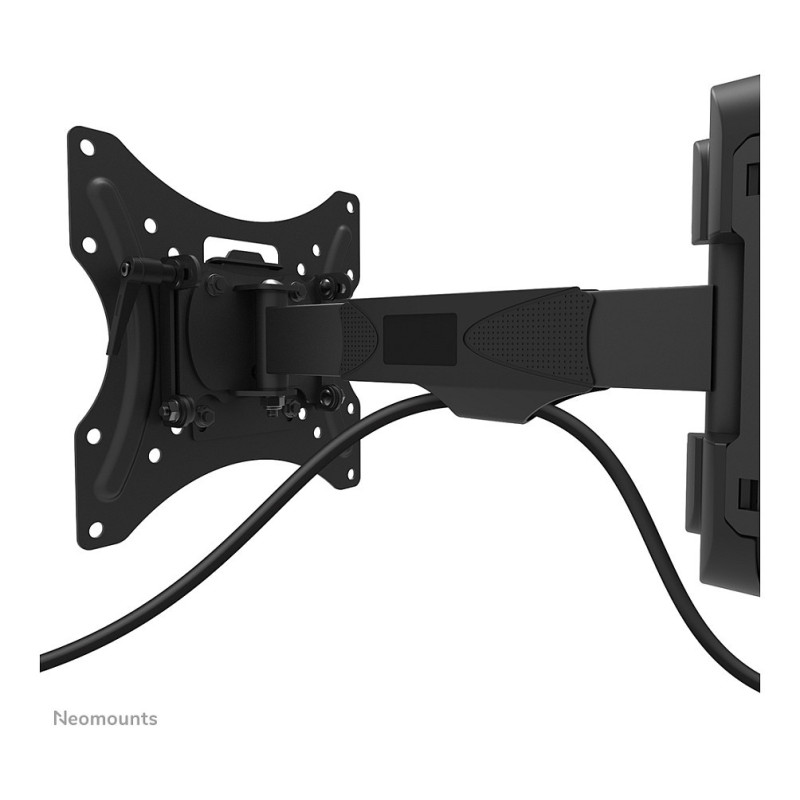

Feature: Cable management
Type: Full motion
Distance to the wall (max): 30.8 cm

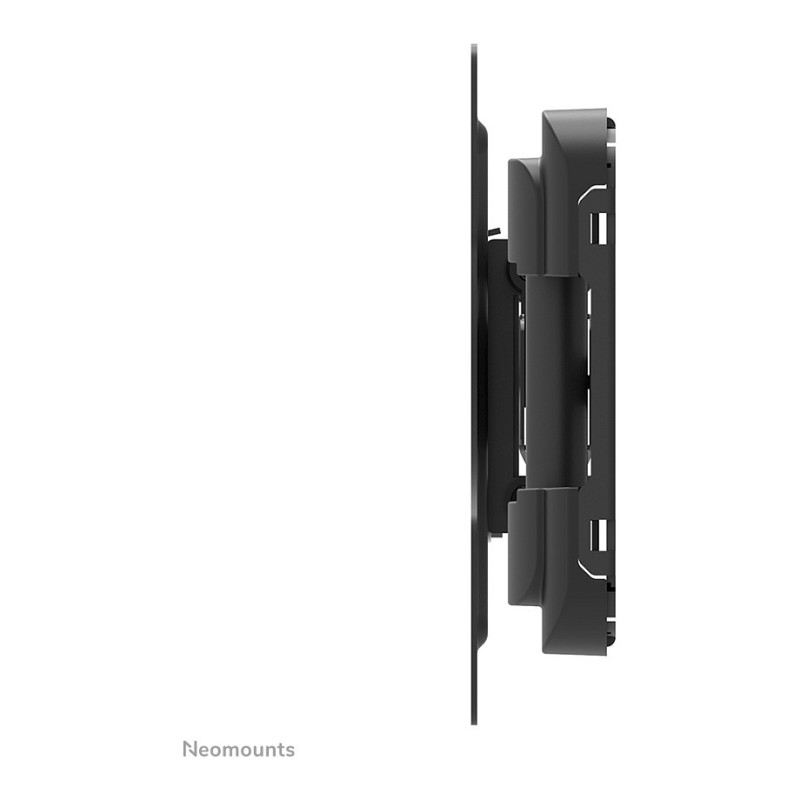

Distance to the wall (min): 4.6 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Package net weight: 3.1 kg
Quantity per pack: 1 pc(s)
Lockable: Not lockable

Packaging content

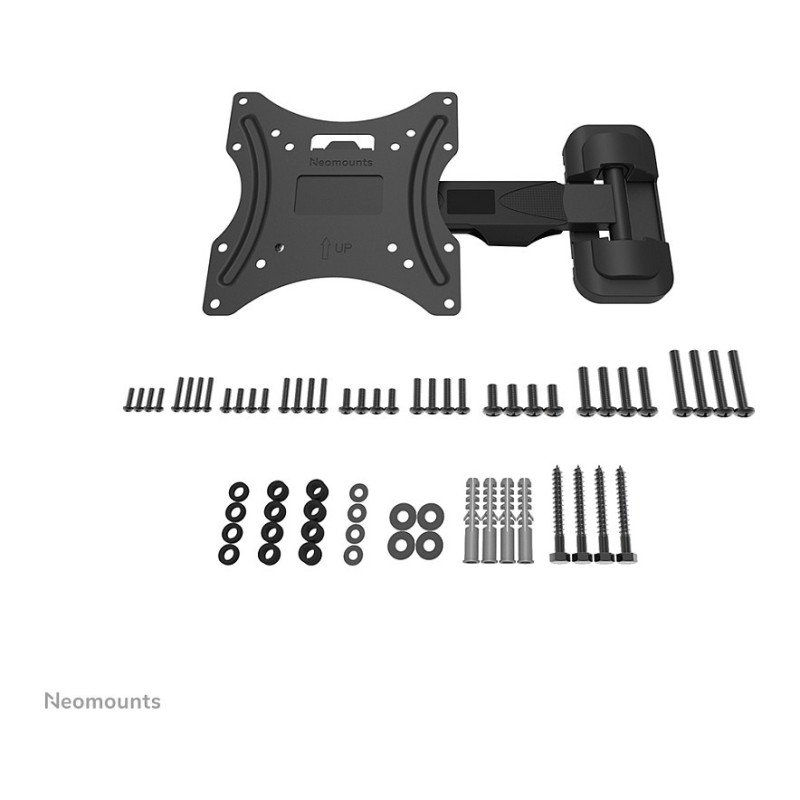

Feature: Mounting kit

Weight & dimensions

Width: 220 mm
Depth: 46 mm
Depth (max): 4.6 cm
Height: 220 mm
Weight: 2.25 kg

Packaging data

Package width: 442 mm
Package depth: 229 mm
Package height: 56 mm
Package weight: 3.1 kg

Logistics data

Master (outer) case width: 462 mm
Master (outer) case length: 300 mm
Master (outer) case height: 250 mm
Master (outer) case gross weight: 16 kg
Master (outer) case net weight: 14.4 kg
Products per master (outer) case: 5 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 150 pc(s)
