Neomounts WL35-750BL18 TV mount / stand

Neomounts WL35-750BL18 Heavy duty wall mount 55-98" - tilt - lockable - fast installation - TÜV. Maximum weight capacity: 125 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.49 m (98"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment range: 0 - 10 mm, Tilt angle range: -15 - 15°, Distance to the wall (max): 9.3 cm. Product colour: Black

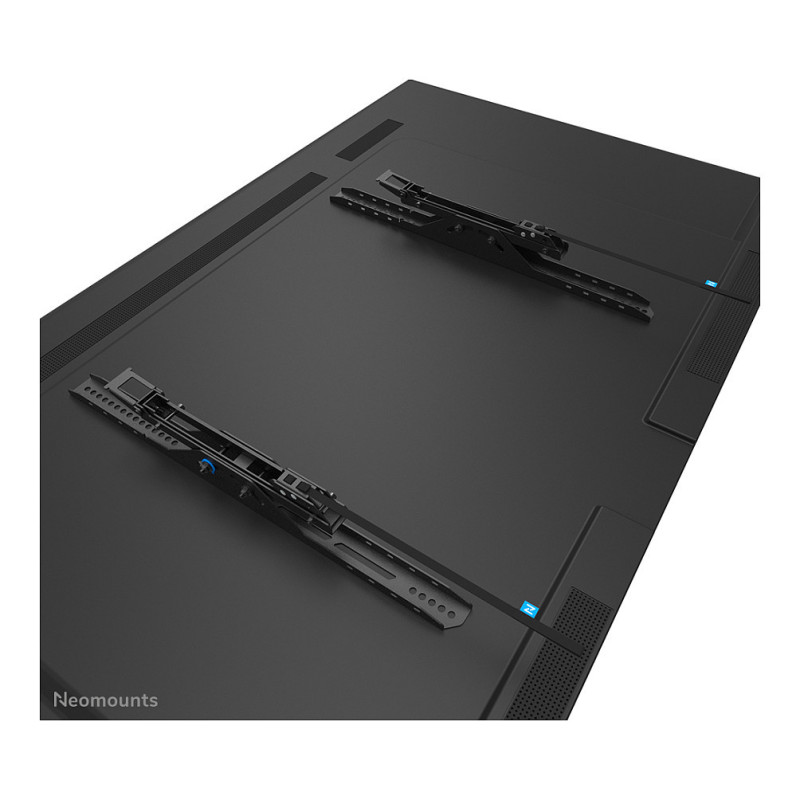

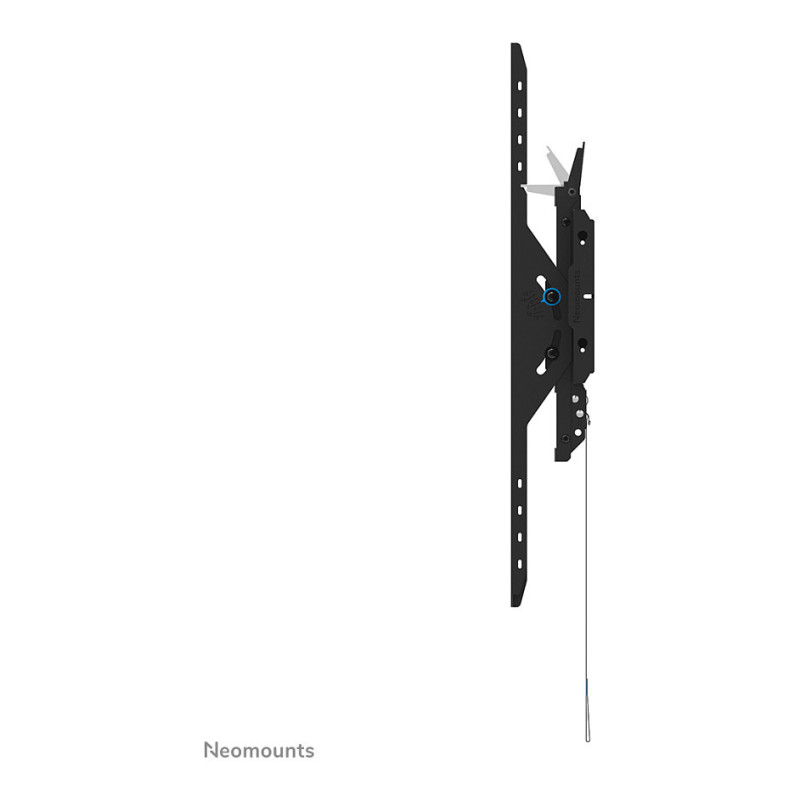

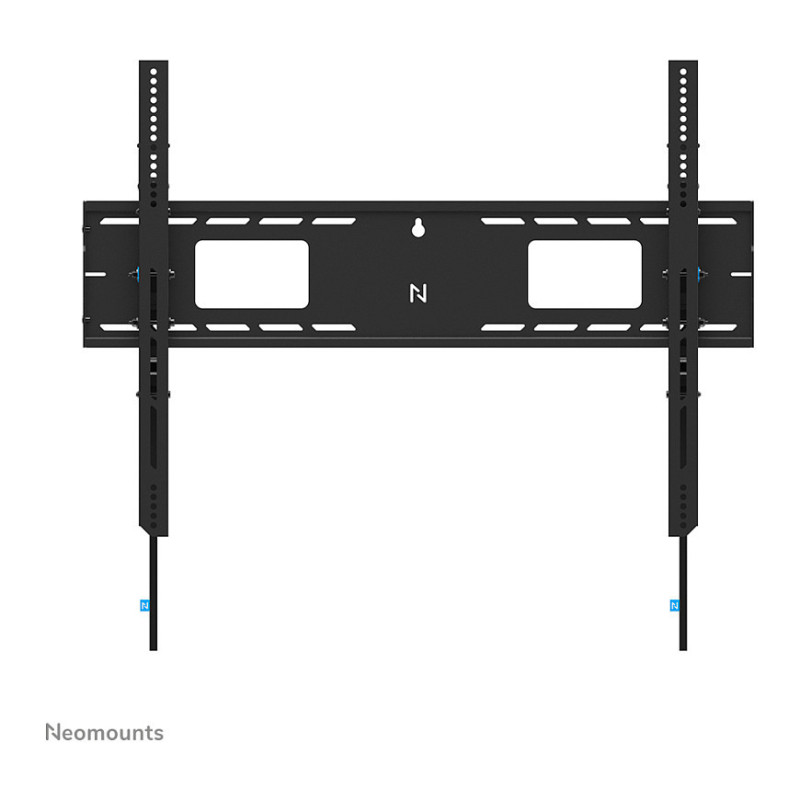

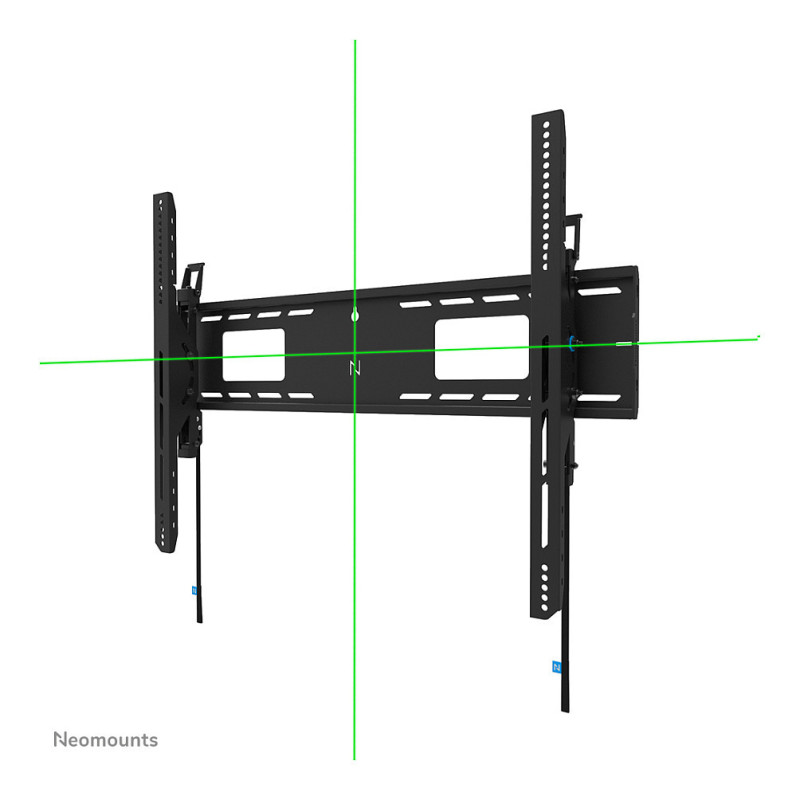

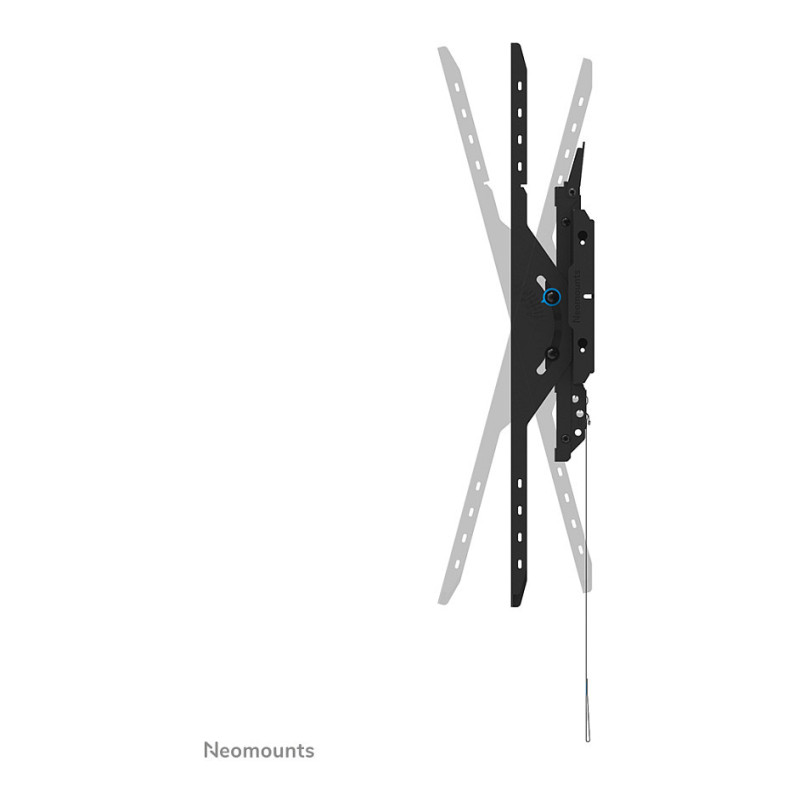

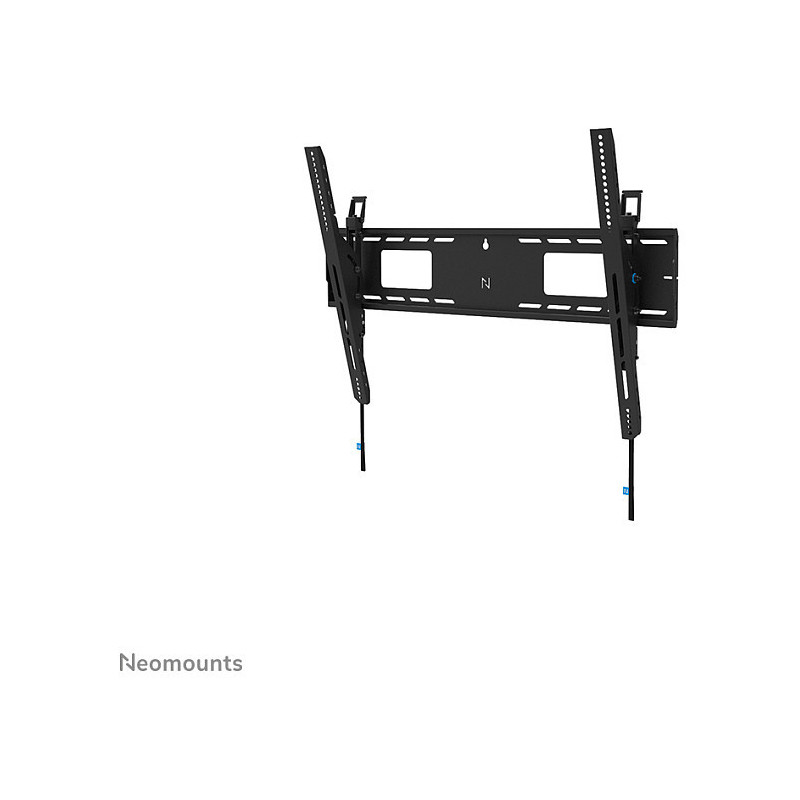

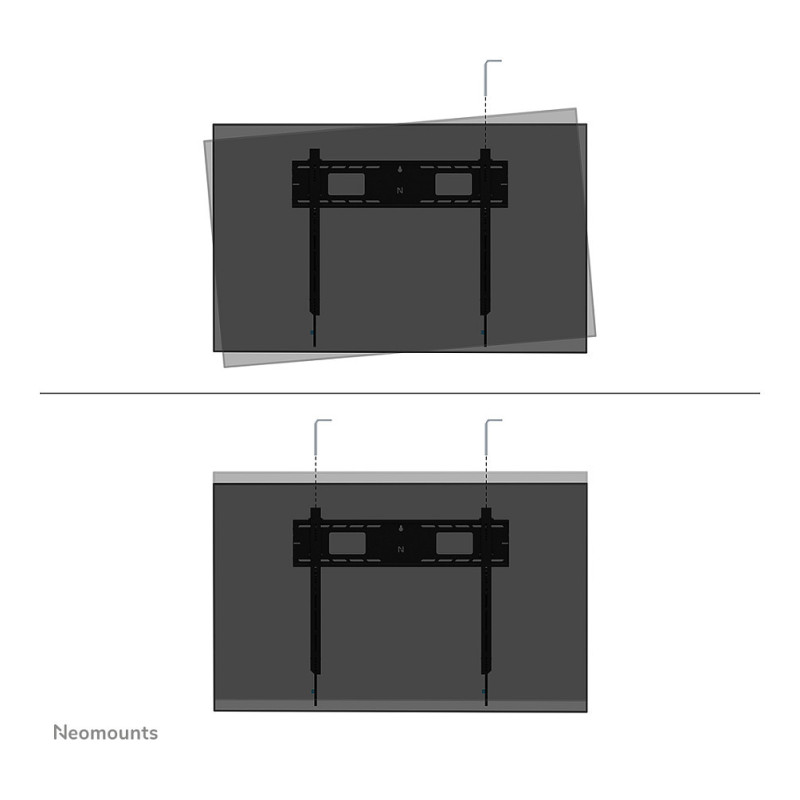

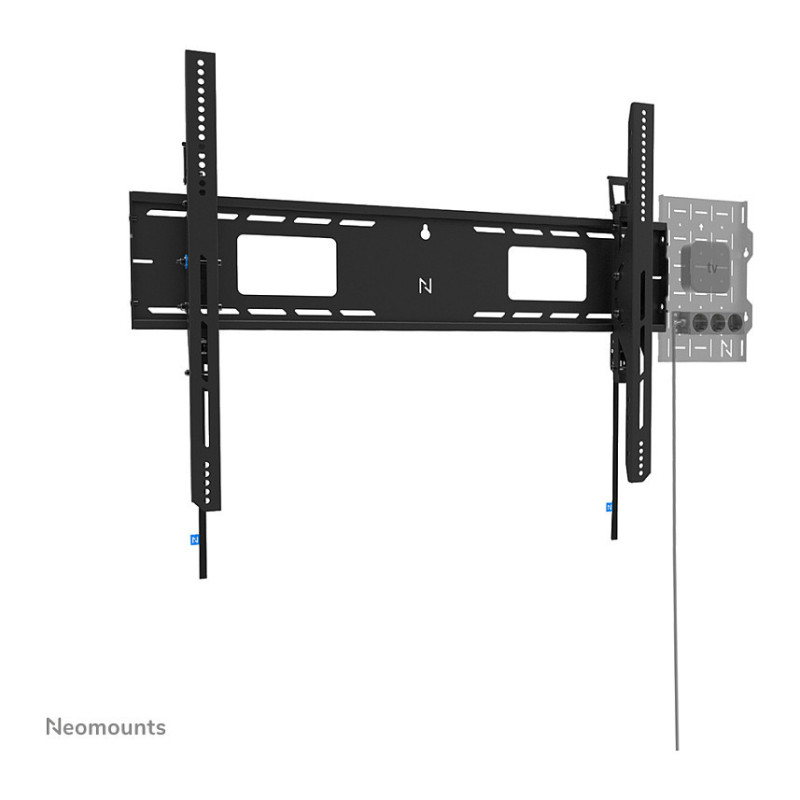

The Neomounts WL35-750BL18 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

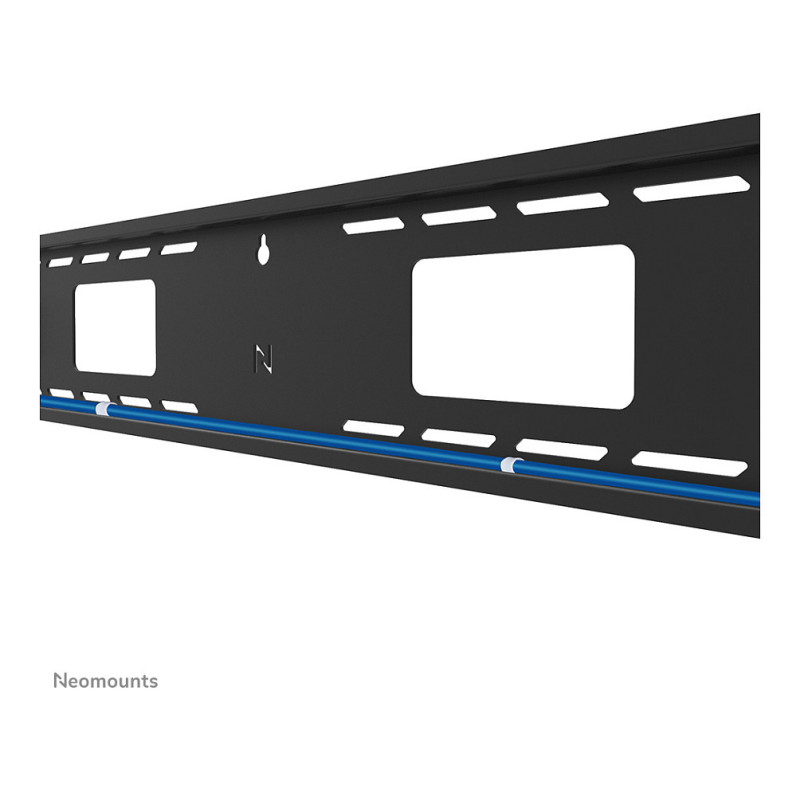

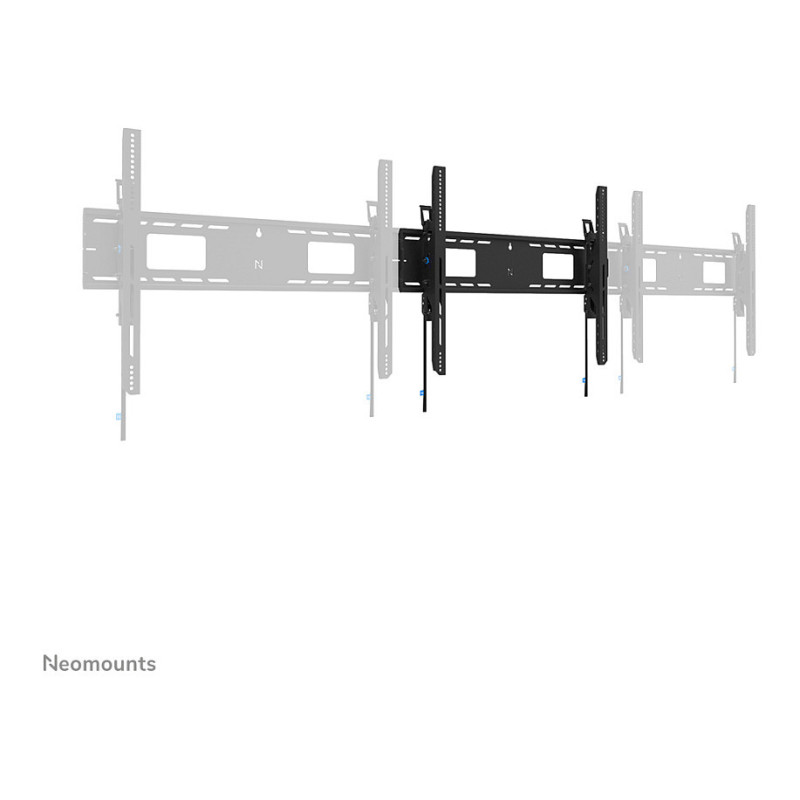

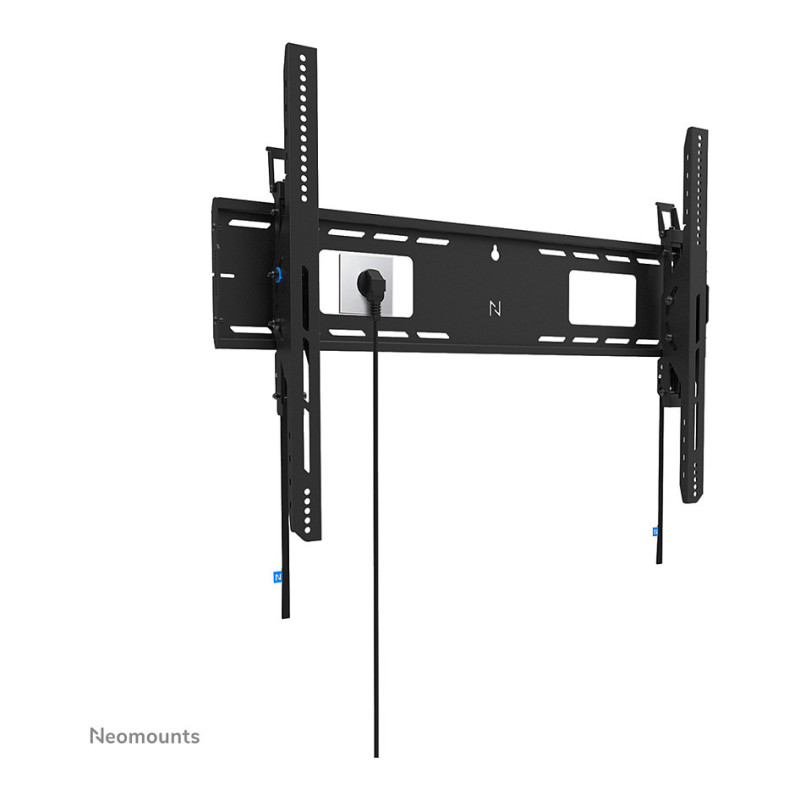

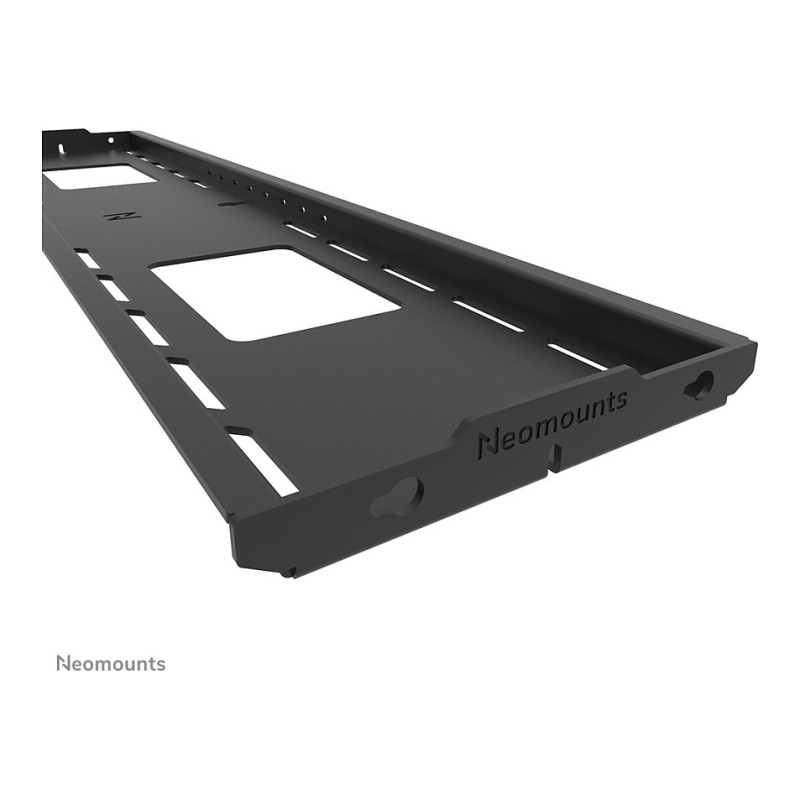

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

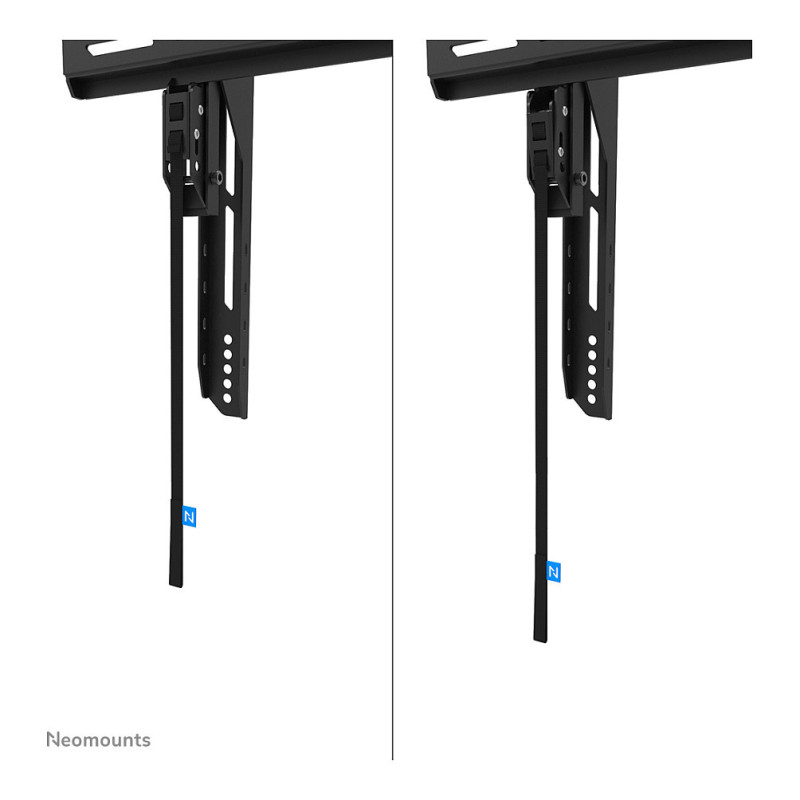

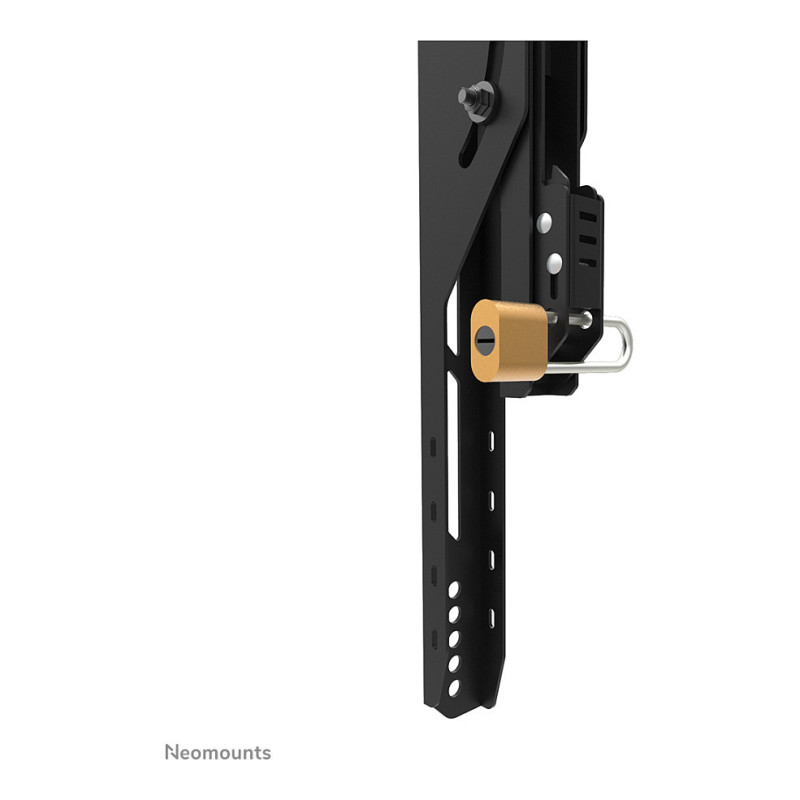

The WL35-750BL18 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.

Mounting

Maximum weight capacity: 125 kg
Minimum screen size: 139.7 cm (55")
Number of displays supported: 1
Maximum weight capacity (per display): 125 kg
Maximum screen size: 2.49 m (98")
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 800 x 600 mm
Mounting type: Wall

Ergonomics

Feature: Height adjustment
Height adjustment range: 0 - 10 mm
Feature: Tilt adjustment
Tilt angle range: -15 - 15°
Feature: Cable management
Distance to the wall (max): 9.3 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Lockable: Padlock not included

Weight & dimensions

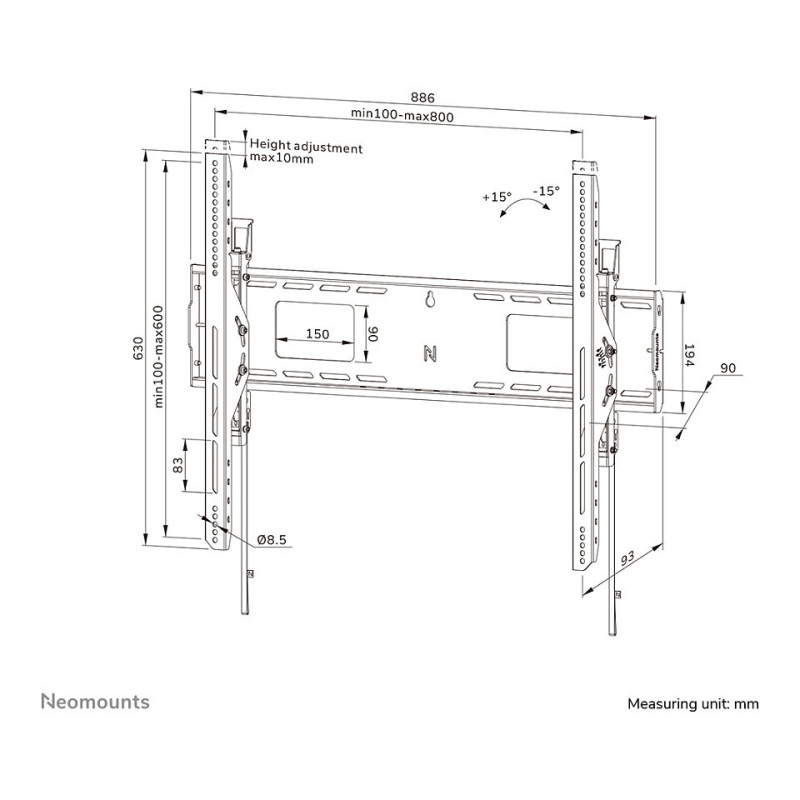

Width: 886 mm
Depth: 93 mm
Depth (max): 9.3 cm
Height: 684 mm
Weight: 6.8 kg

Packaging data

Package width: 928 mm
Package depth: 102 mm
Package height: 209 mm
Package weight: 8.4 kg

Logistics data

Master (outer) case width: 946 mm
Master (outer) case length: 227 mm
Master (outer) case height: 324 mm
Master (outer) case gross weight: 26.3 kg
Master (outer) case net weight: 20.4 kg
Products per master (outer) case: 3 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 39 pc(s)
