Neomounts WL35-350BL12 TV mount / stand

Neomounts WL35-350BL12 TV mount wall 24-55" - tiltable - lockable - easy install. Maximum weight capacity: 25 kg, Minimum screen size: 61 cm (24"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 50 x 50 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: -2 - 10°, Distance to the wall (max): 4.6 cm. Product colour: Black

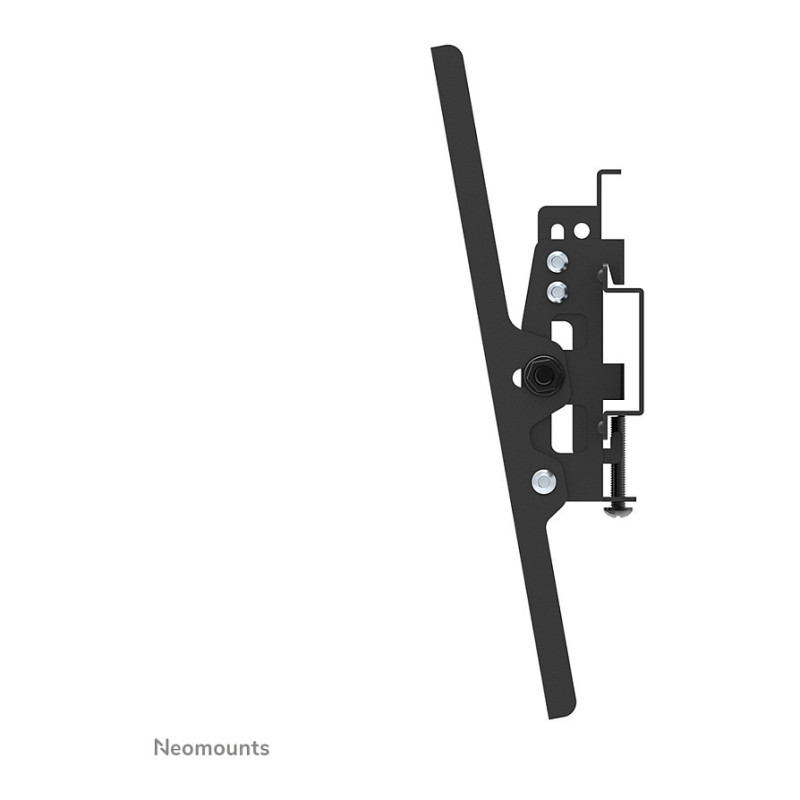

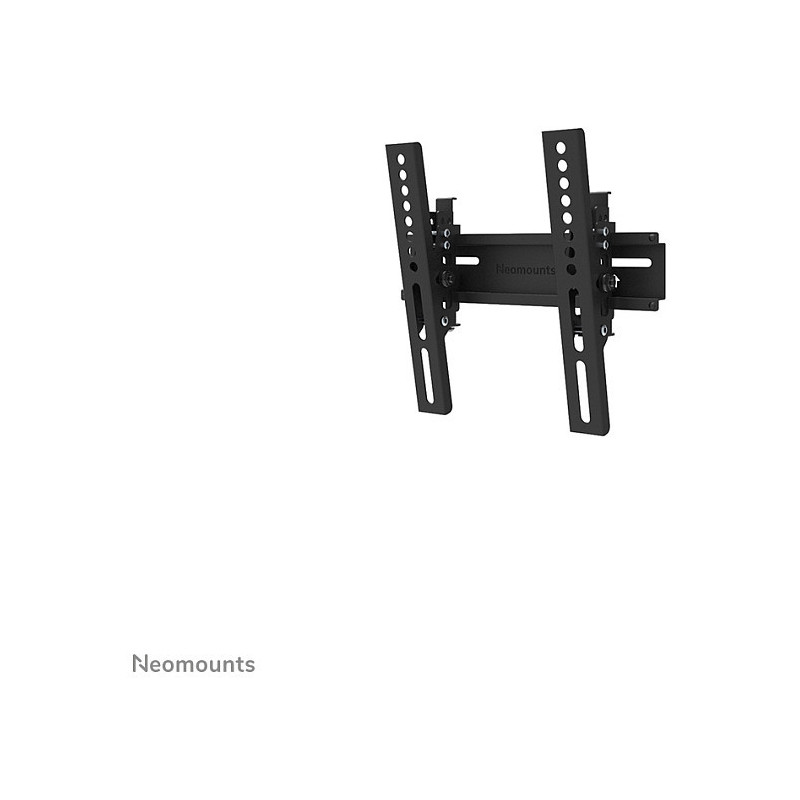

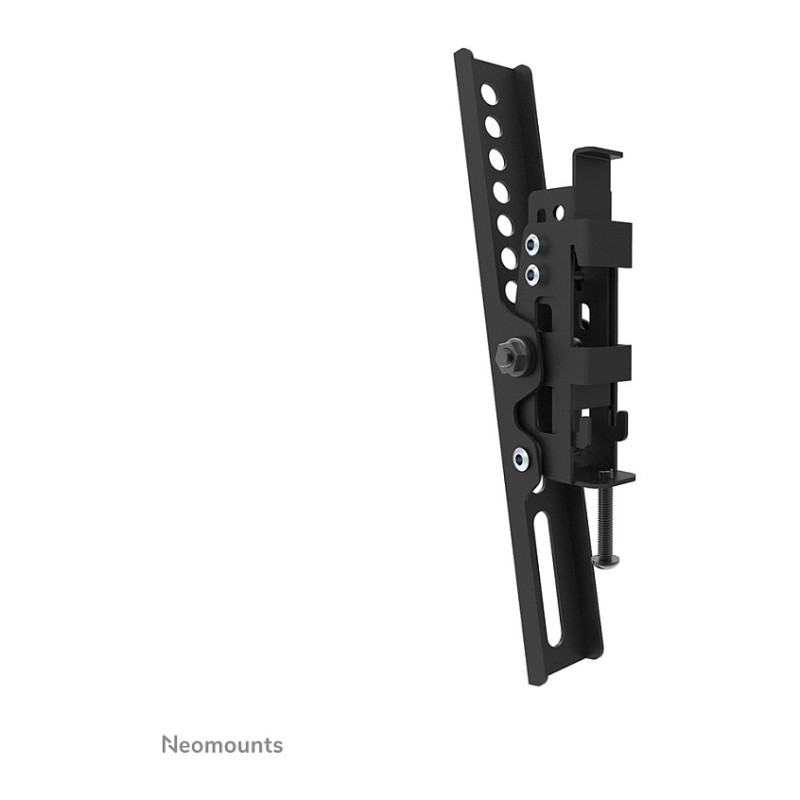

The Neomounts WL35-350BL12 is a tiltable wall mount for flat screens up to 55" with a maximum weight capacity of 25 kg. The versatile tilt technology (12°), allows you to create the optimum viewing angle.

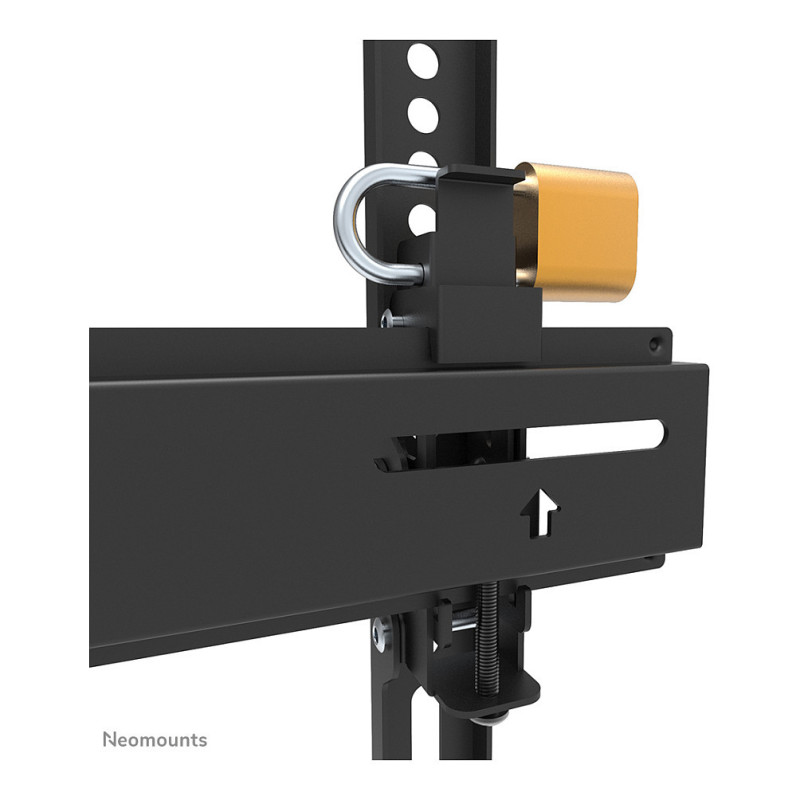

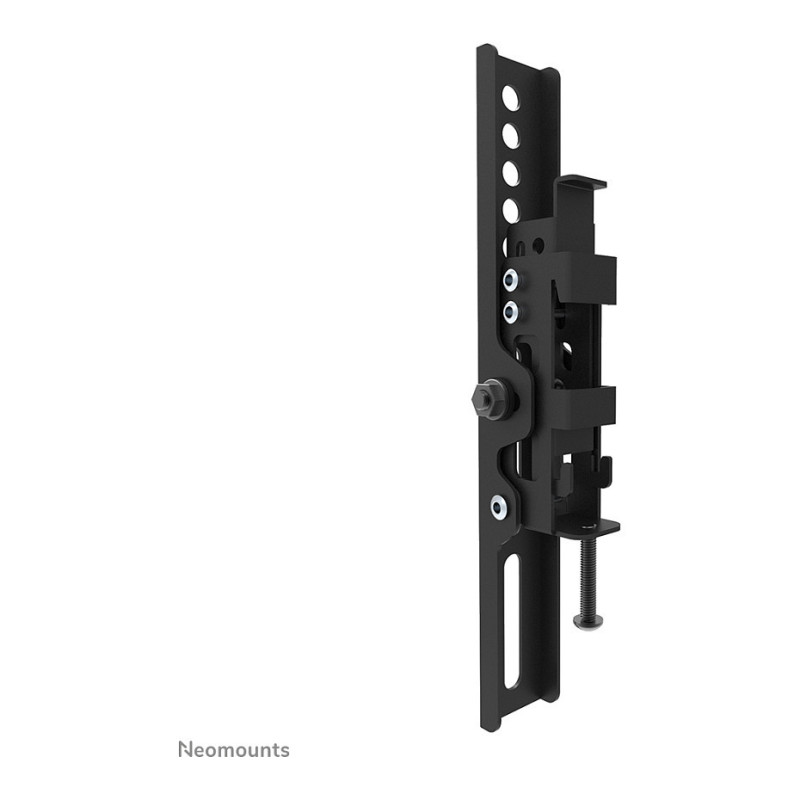

The WL30-350BL12 has a depth of 4,6 cm and is suitable for screens that meet VESA hole pattern 50x50 to 200x200 mm. It is possible to lock the individual brackets of the mount using a padlock (not included).

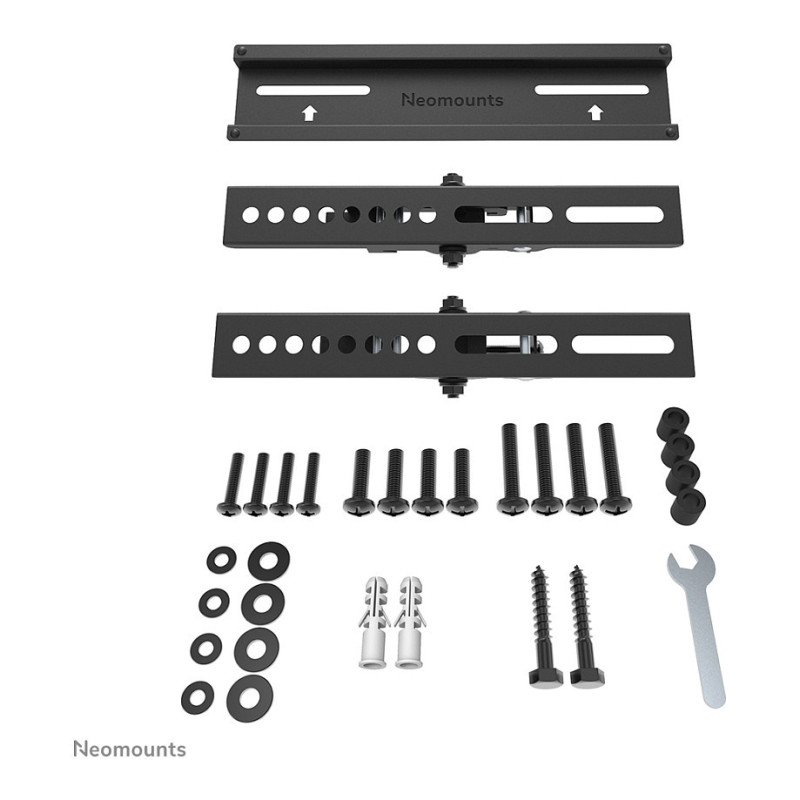

A practical bolt bag is included in the packaging, for quick and easy installation.

Mounting

Maximum weight capacity: 25 kg
Minimum screen size: 61 cm (24")
Number of displays supported: 1
Maximum weight capacity (per display): 25 kg
Maximum screen size: 139.7 cm (55")
Minimum VESA mount: 50 x 50 mm
Maximum VESA mount: 200 x 200 mm
Panel mounting interface: 100 x 200,100 x 100,100 x 150,100 x 75,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,50 x 50,75 x 75,75 x 100,75 x 200
Mounting type: Wall

Ergonomics

Feature: Tilt adjustment
Tilt angle range: -2 - 10°
Distance to the wall (max): 4.6 cm

Design

Product colour: Black
Housing material: Steel
Feature: Accepts padlock

Technical details

Country of origin: China
Package net weight: 1 kg
Warranty period: 5 year(s)
Lockable: Padlock not included

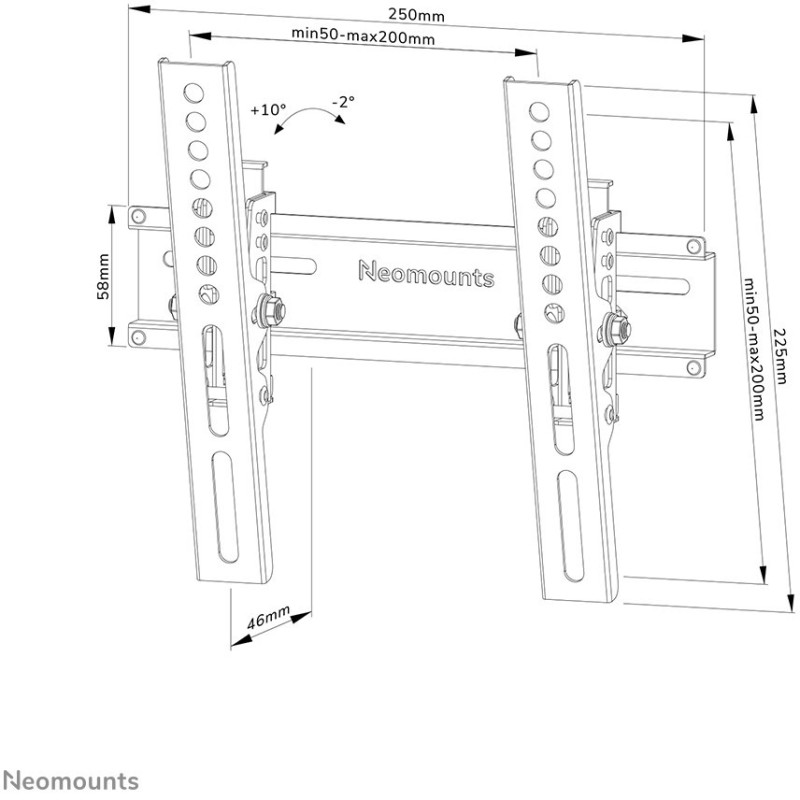

Weight & dimensions

Width: 250 mm
Depth: 46 mm
Depth (max): 4.6 cm
Height: 225 mm
Weight: 650 g
Packaging data
Package width: 63 mm
Package depth: 55 mm
Package height: 360 mm
Package weight: 1 kg

Logistics data

Master (outer) case width: 236 mm
Master (outer) case length: 210 mm
Master (outer) case height: 380 mm
Master (outer) case gross weight: 11.7 kg
Master (outer) case net weight: 7.8 kg
Products per master (outer) case: 12 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 720 pc(s)
