Neomounts WL30S-950BL19 TV mount / stand

Neomounts WL30S-950BL19 Heavy duty wall mount 55-115" - fixed - lockable - landscape and portrait. Maximum weight capacity: 160 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.92 m (115"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 1500 x 900 mm. Height adjustment range: 0 - 20 mm, Angle of rotation: 6°, Distance to the wall (max): 6.7 cm. Product colour: Black

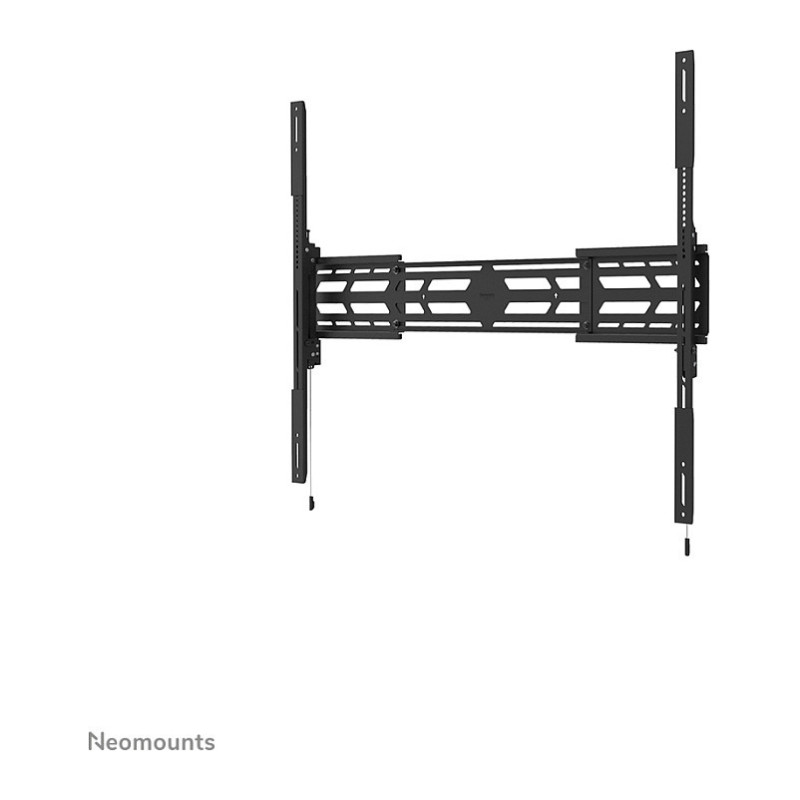

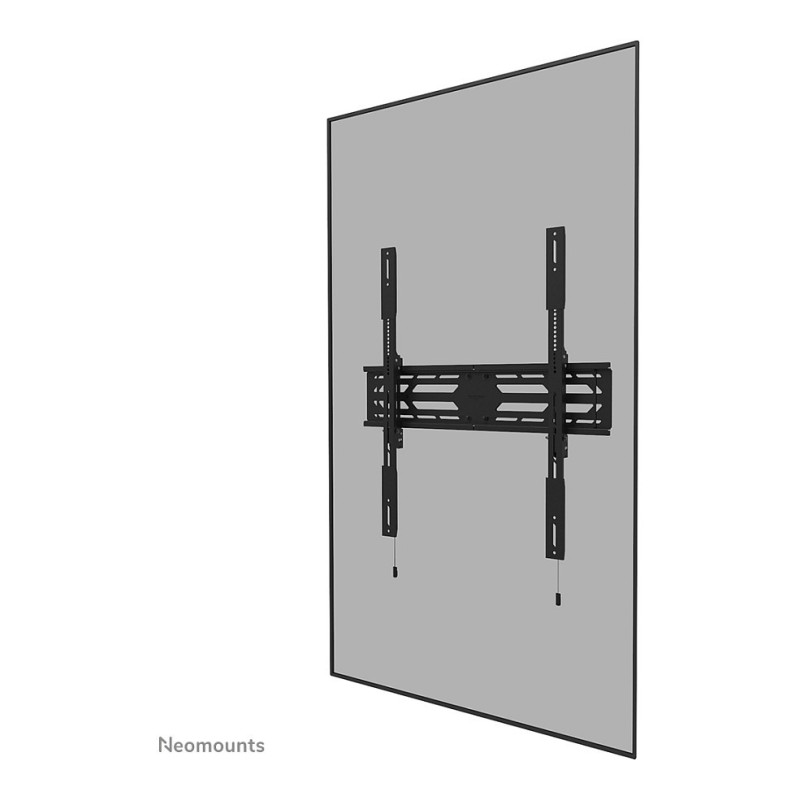

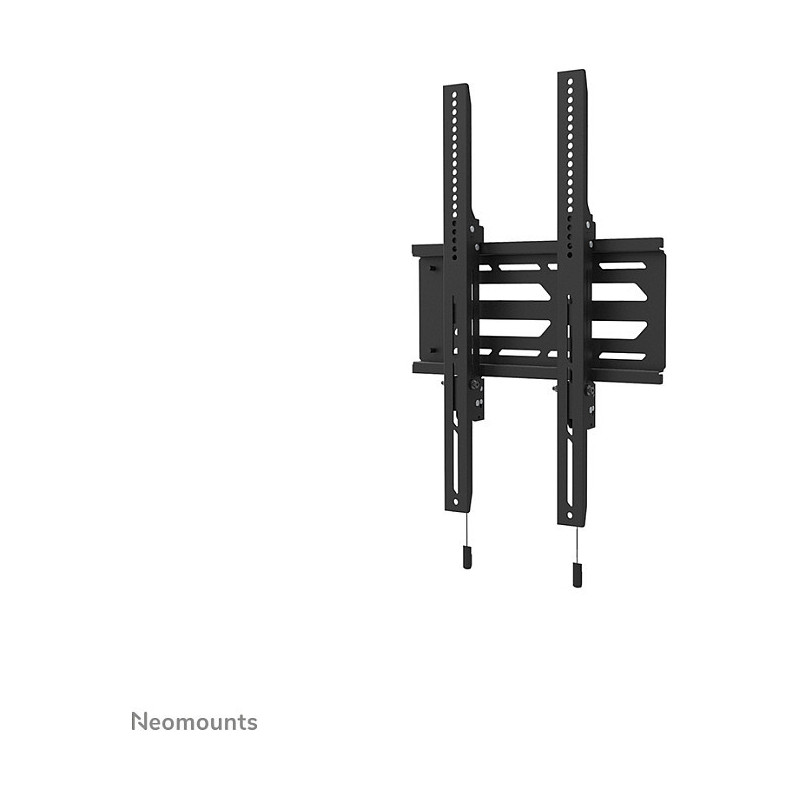

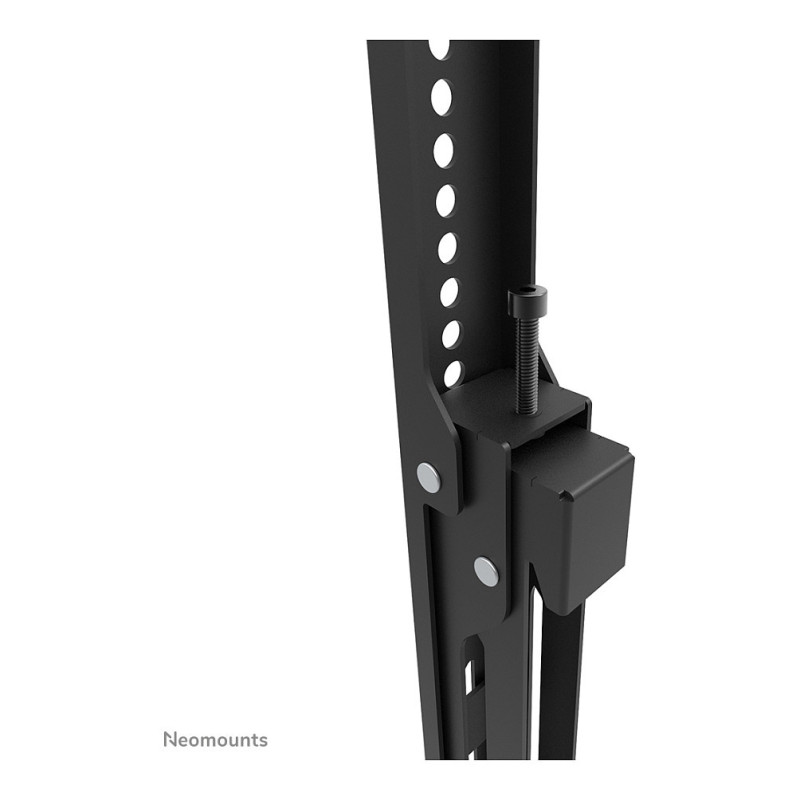

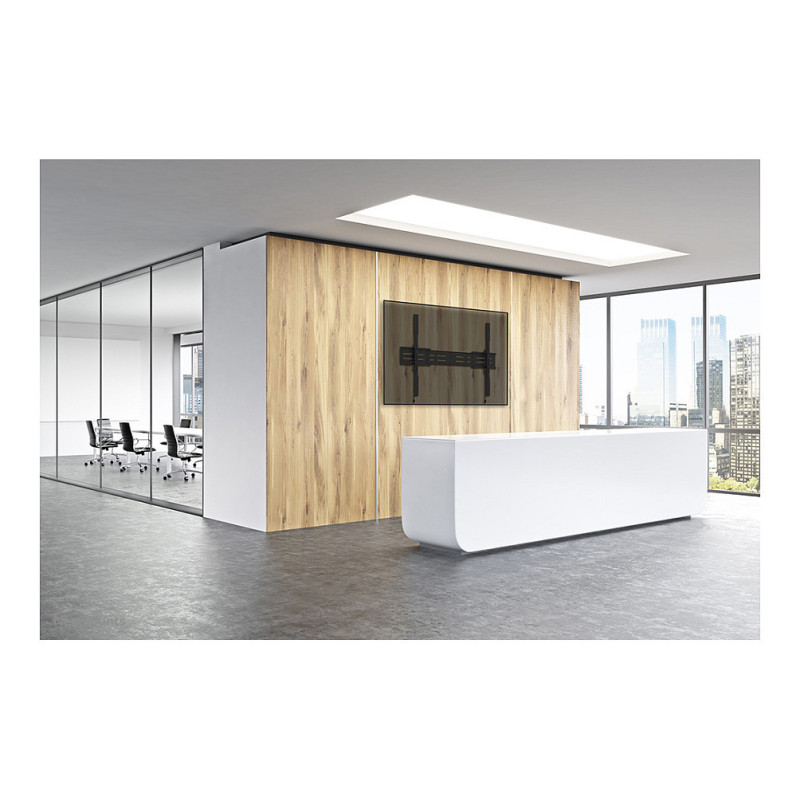

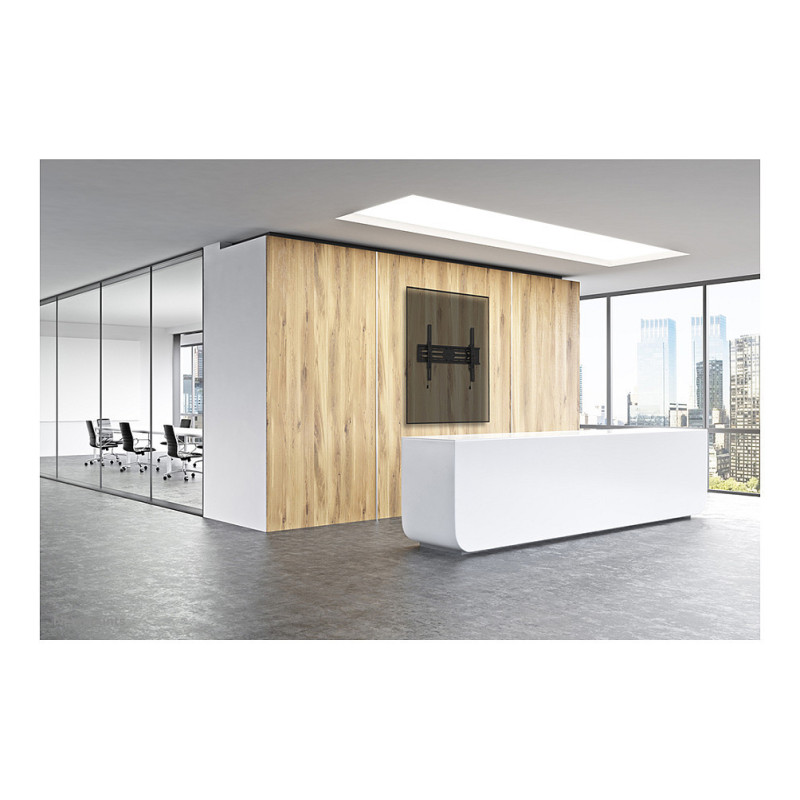

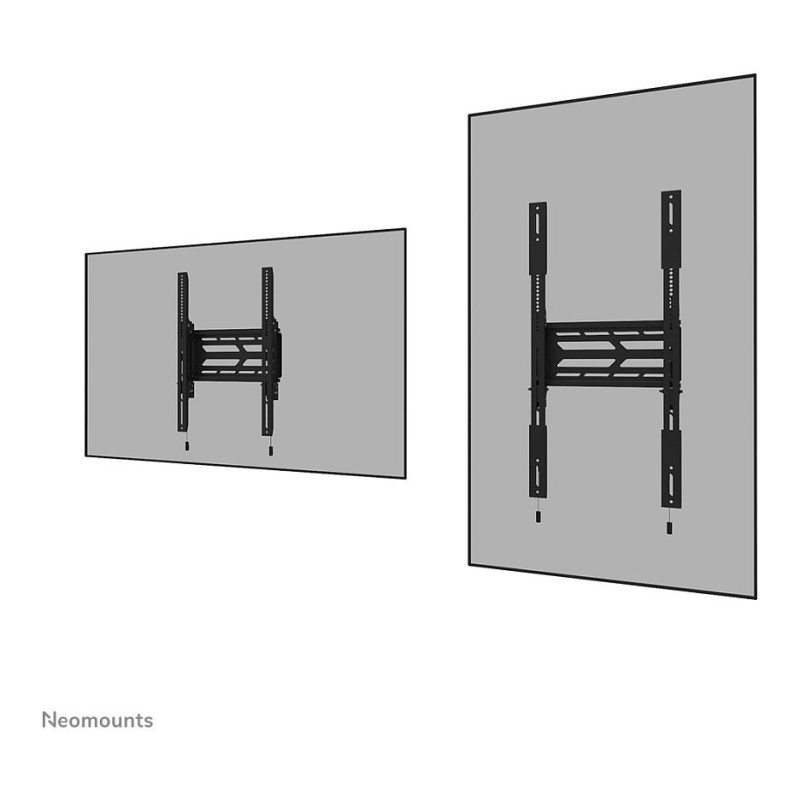

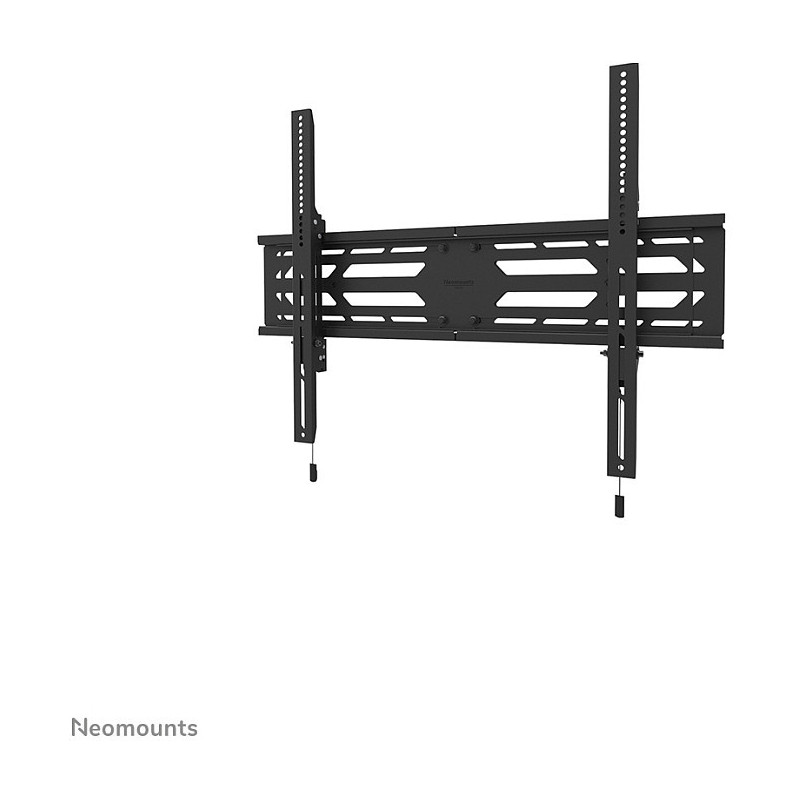

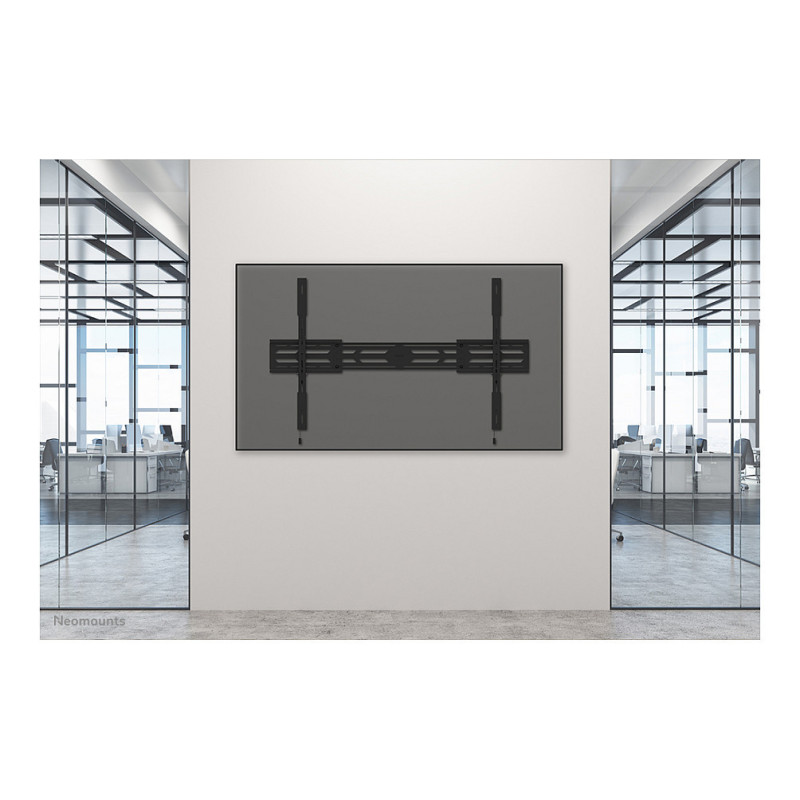

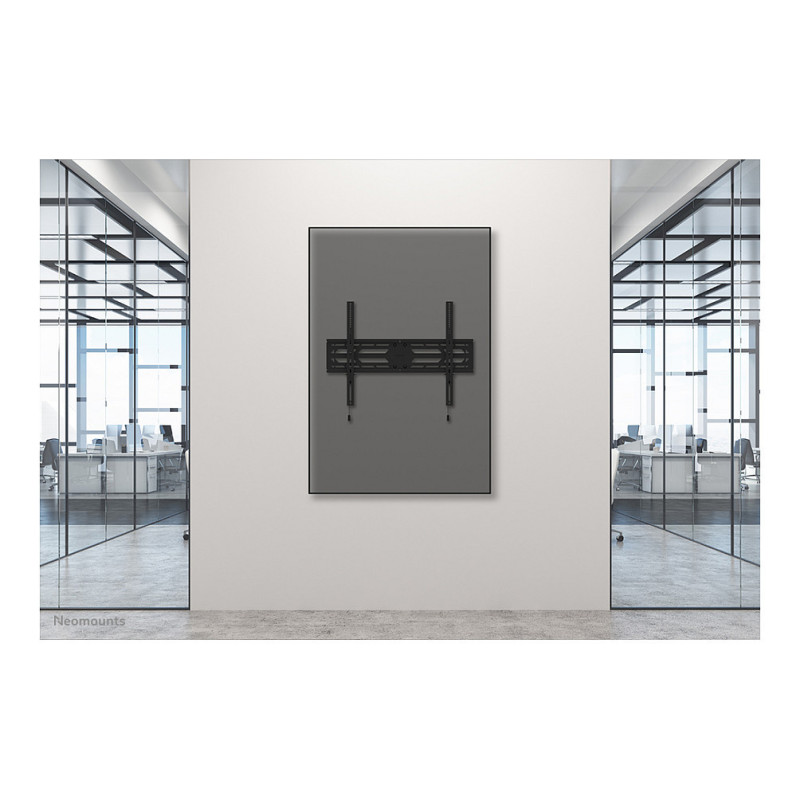

The Neomounts WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 115" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

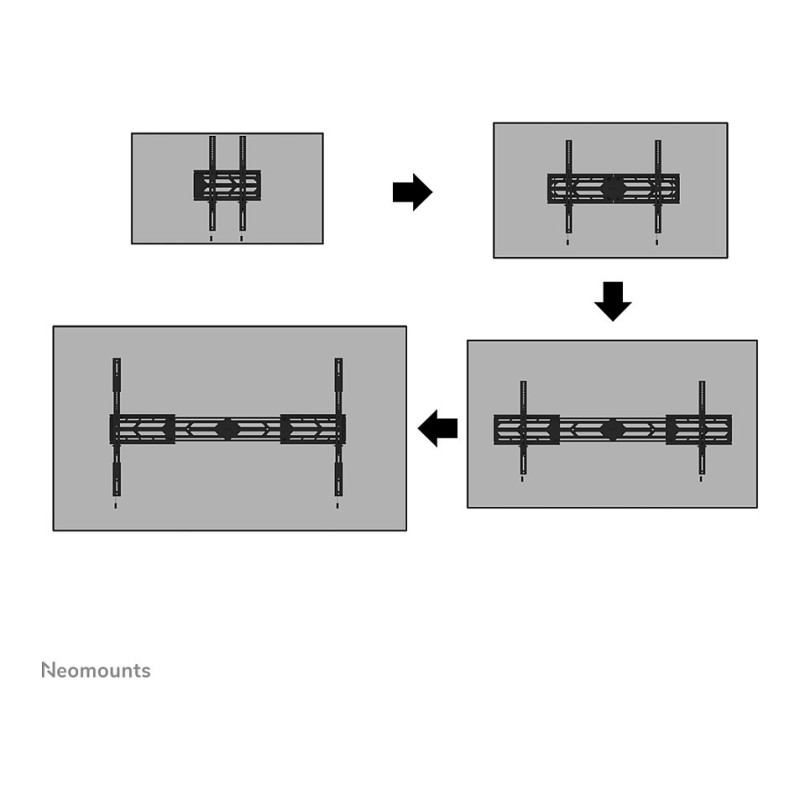

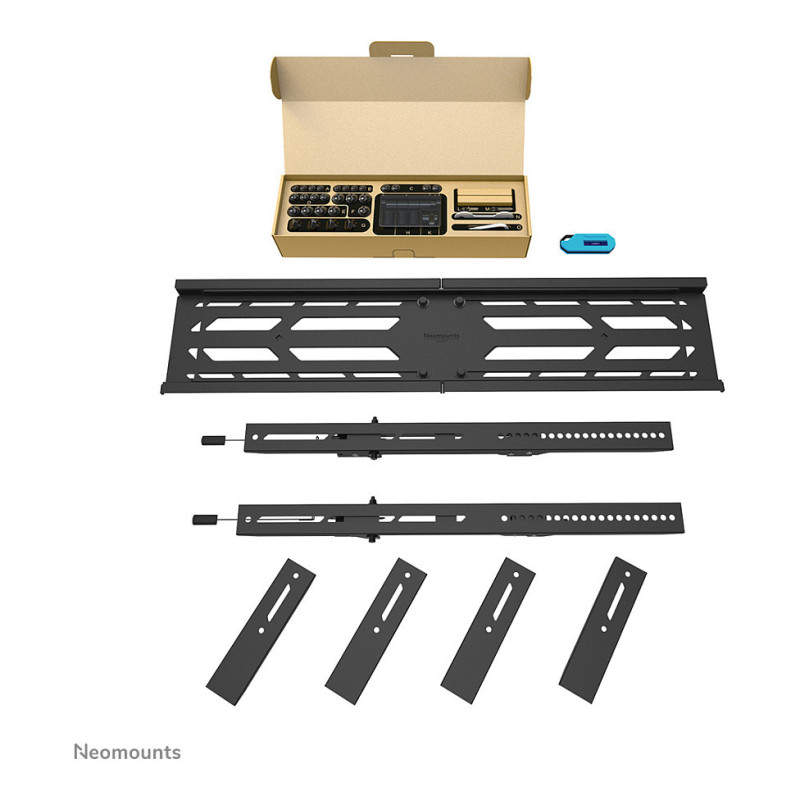

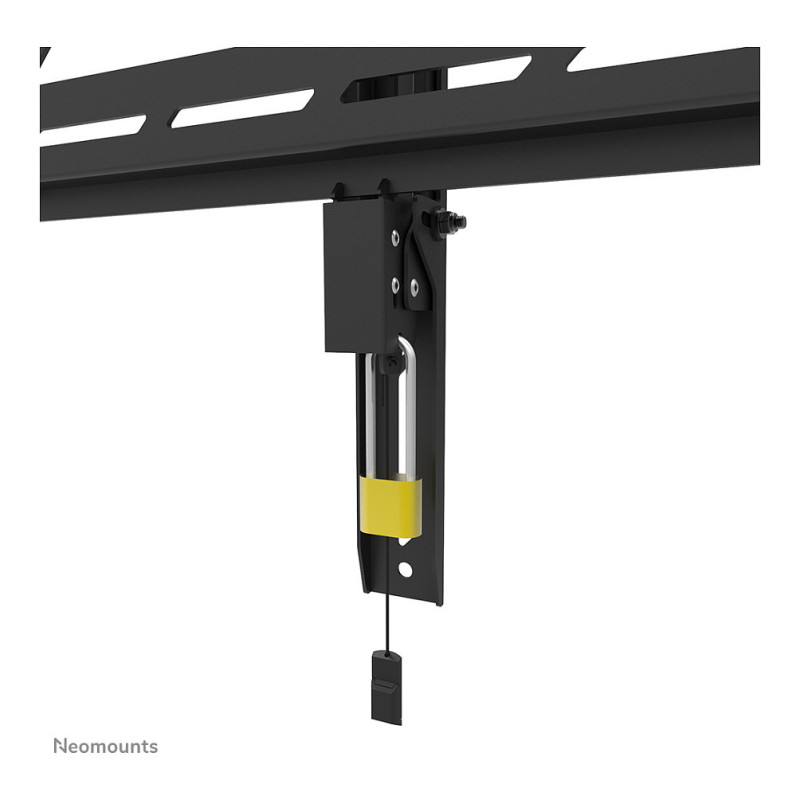

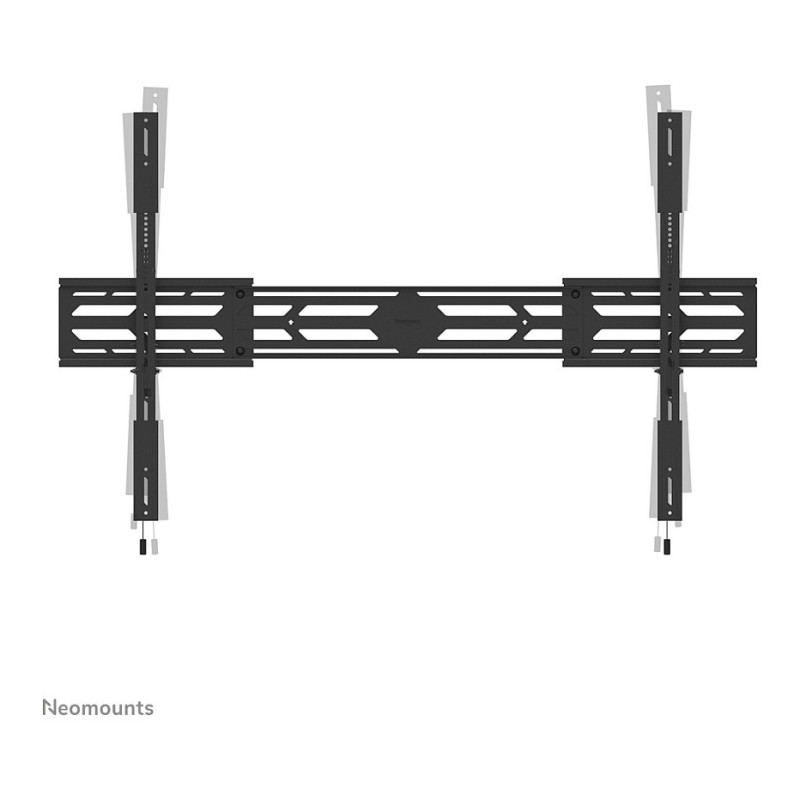

The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 115". It is possible to lock the mount using a padlock (not included).

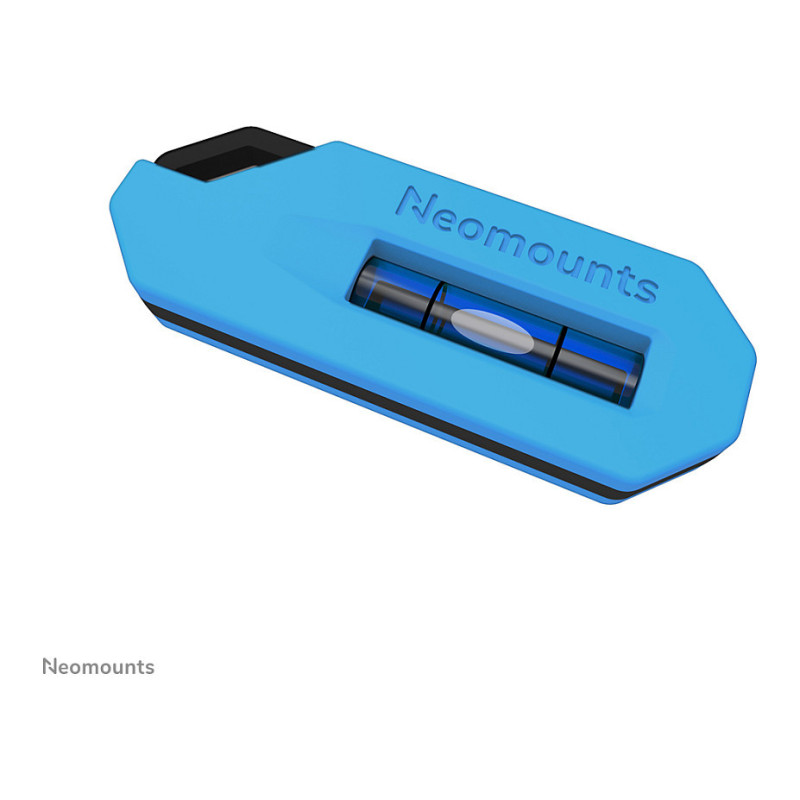

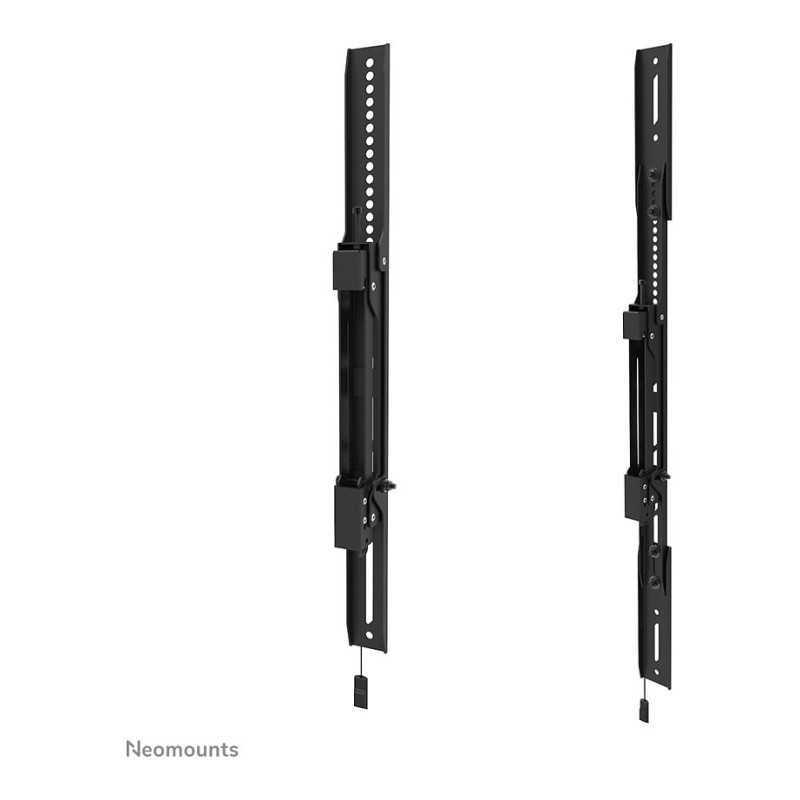

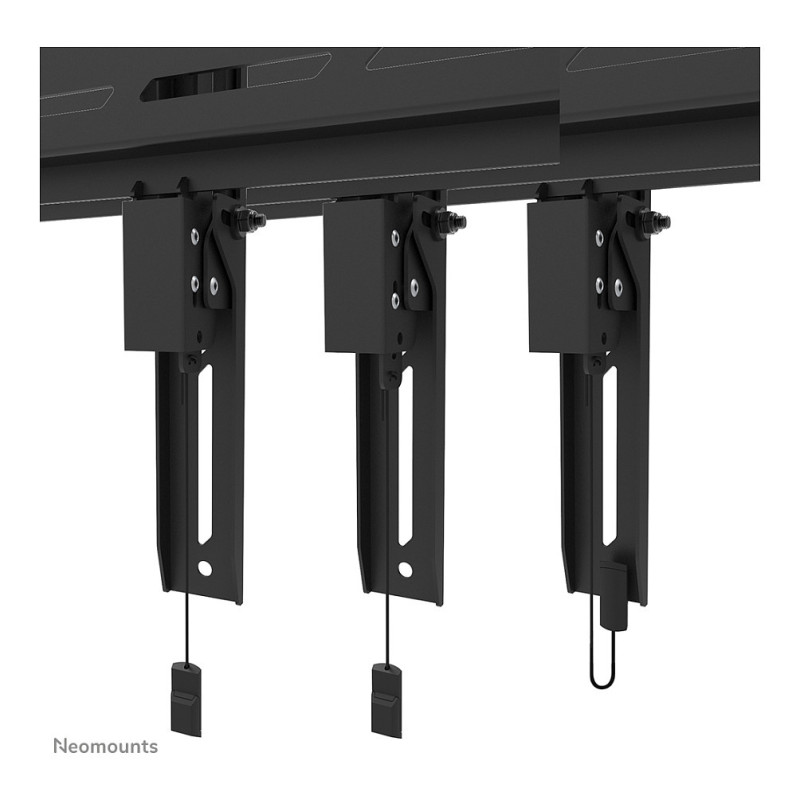

The mount features a nifty magnetic pull release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.

Mounting

Maximum weight capacity: 160 kg
Minimum screen size: 139.7 cm (55")
Number of displays supported: 1
Maximum weight capacity (per display): 160 kg
Maximum screen size: 2.92 m (115")
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 1500 x 900 mm
Mounting type: Wall

Ergonomics

Feature: Height adjustment
Height adjustment range: 0 - 20 mm
Angle of rotation: 6°
Pivot angle: -3 - 3°
Distance to the wall (max): 6.7 cm

Design

Product colour: Black
Housing material: Steel
Feature: Accepts padlock

Technical details

Country of origin: China
Package net weight: 11.7 kg
Orientation: Landscape/Portrait
Warranty period: 5 year(s)
Lockable: Security screw included

Weight dimensions

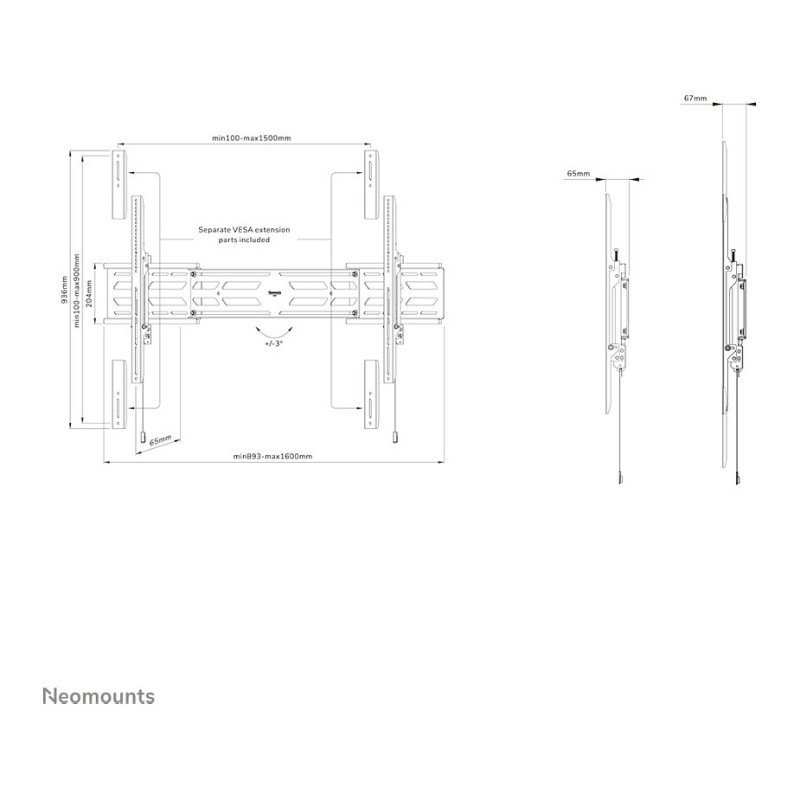

Width: 1600 mm
Depth: 67 mm
Depth (max): 6.7 cm
Height: 936 mm
Weight: 10.2 kg

Packaging data

Package width: 222 mm
Package depth: 98 mm
Package height: 918 mm
Package weight: 11.7 kg

Logistics data

Master (outer) case width: 211 mm
Master (outer) case length: 242 mm
Master (outer) case height: 938 mm
Master (outer) case gross weight: 23.9 kg
Master (outer) case net weight: 20.3 kg
Products per master (outer) case: 2 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 30 pc(s)

Other features

Width adjustment range: 893 - 1600 mm
