Neomounts WL30S-850BL12 TV mount / stand

Neomounts WL30S-850BL12 TV mount wall 24-65" - fixed - lockable - fast installation. Maximum weight capacity: 40 kg, Minimum screen size: 61 cm (24"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 50 x 50 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment range: 0 - 20 mm, Distance to the wall (max): 3.3 cm. Product colour: Black

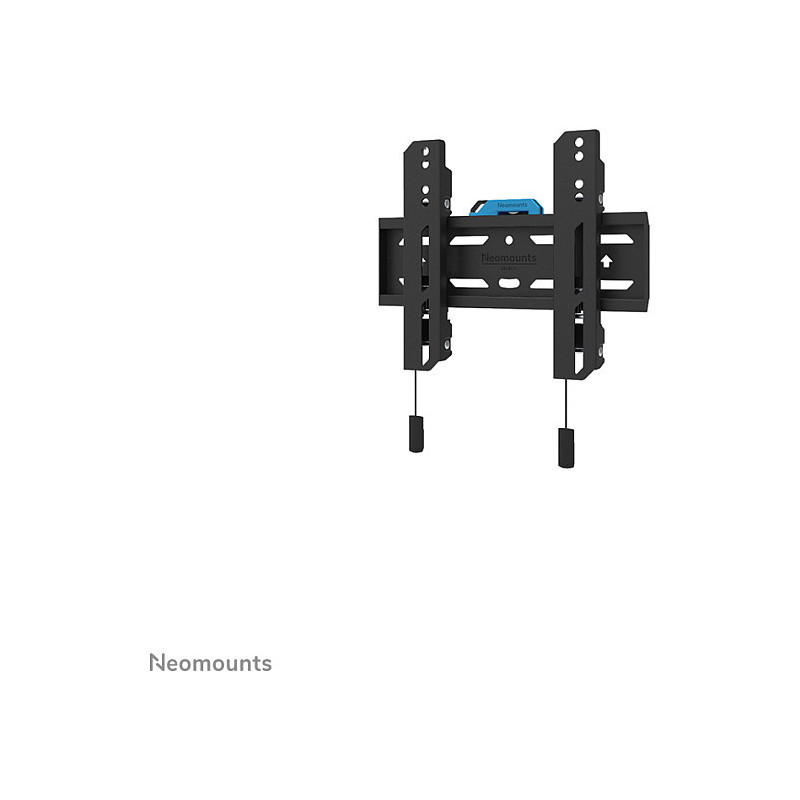

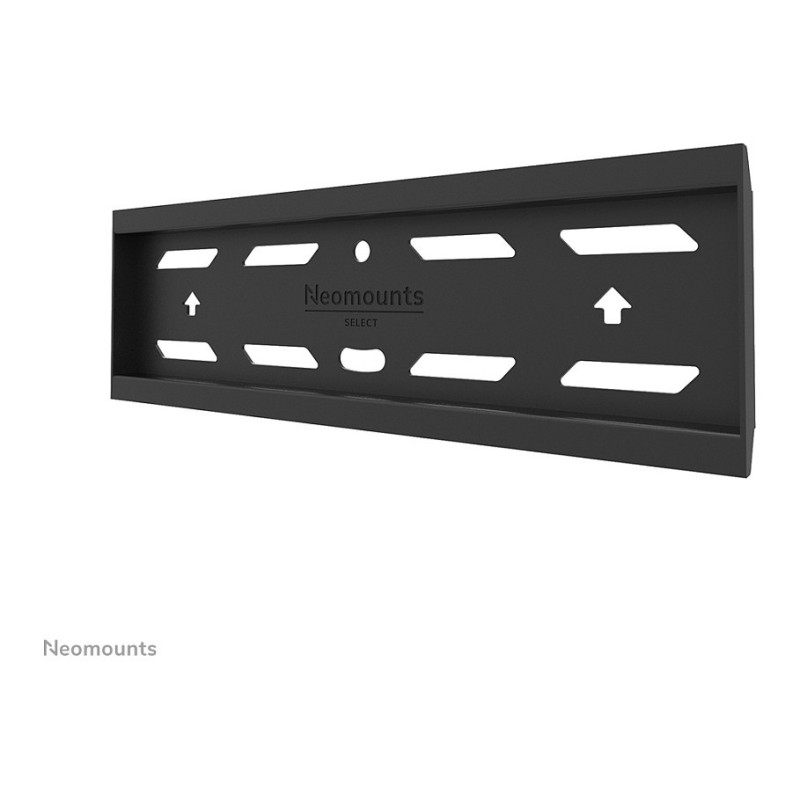

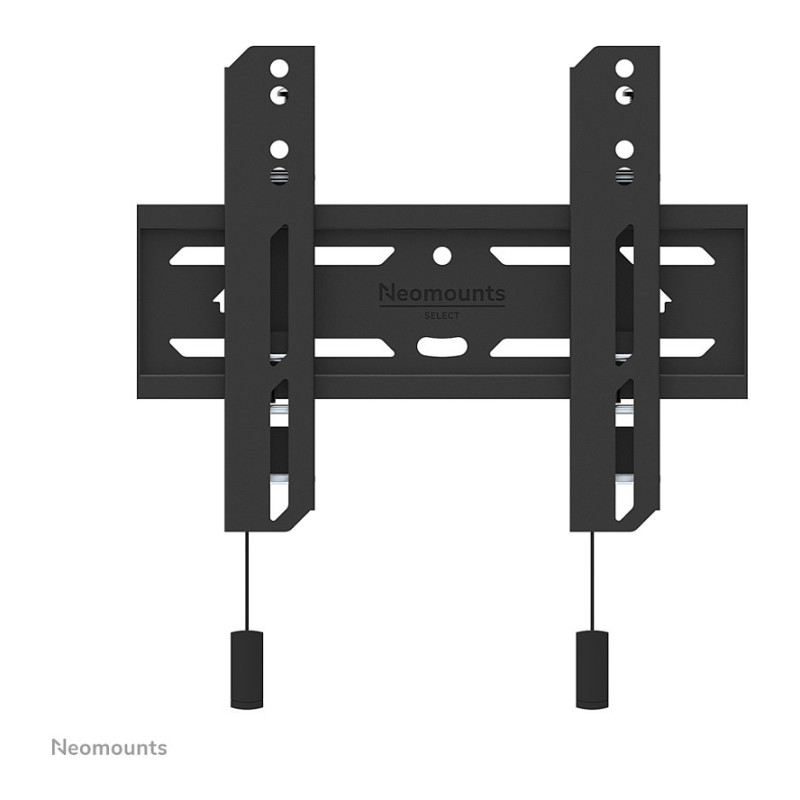

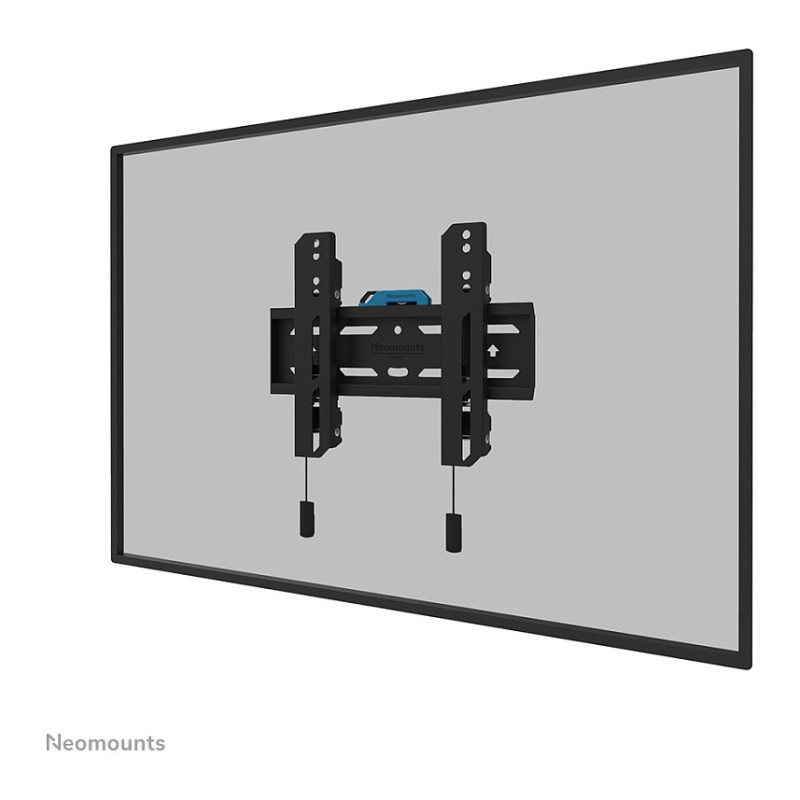

The Neomounts WL30S-850BL12 LEVEL is a fixed wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg. Height and level adjustment is available for the perfect installation.

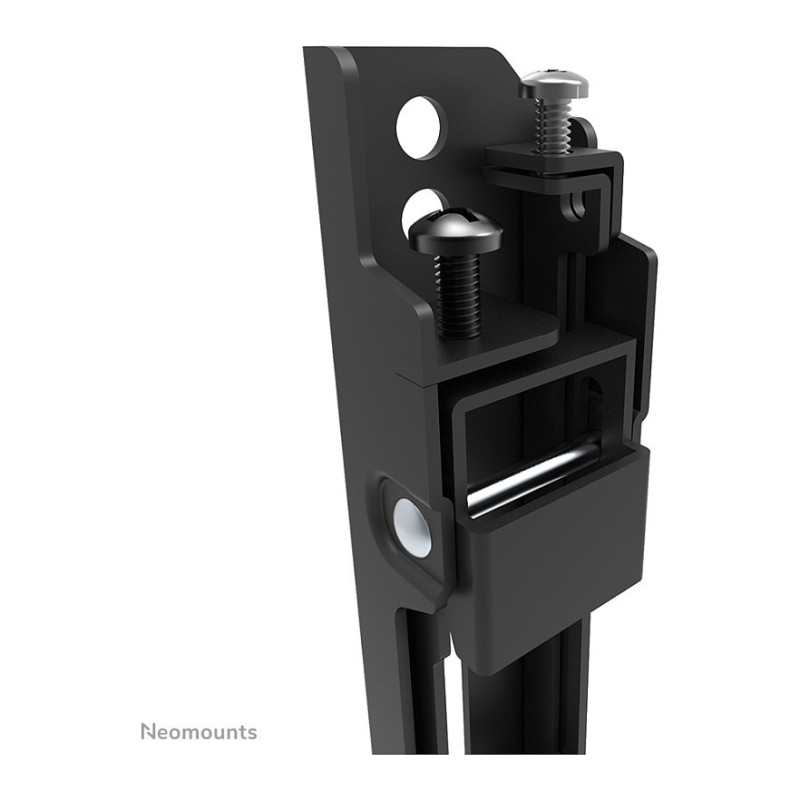

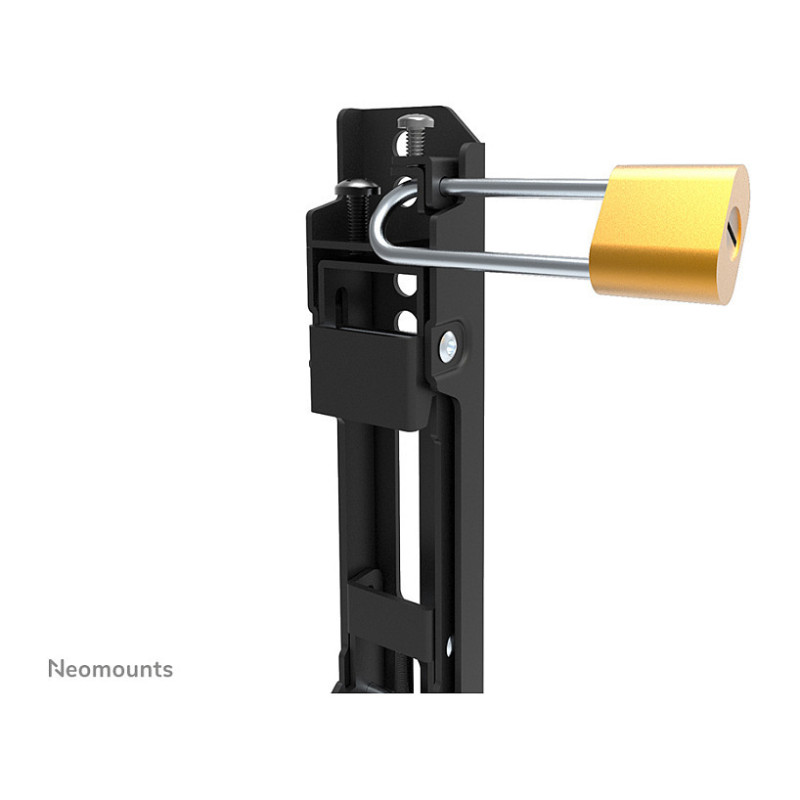

The LEVEL-850 wall mount has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 50x50 to 200x200mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included).

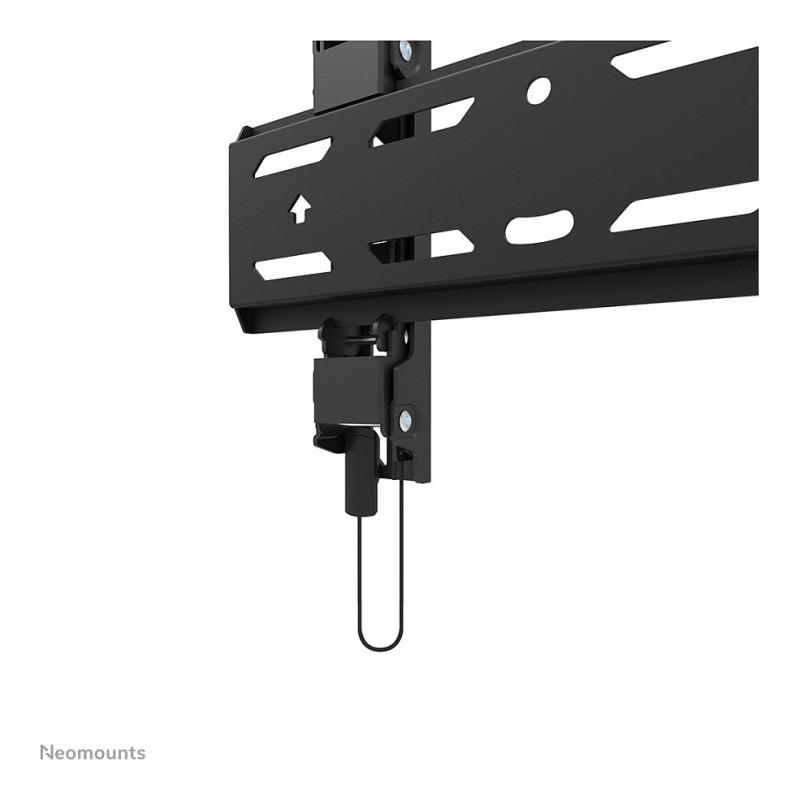

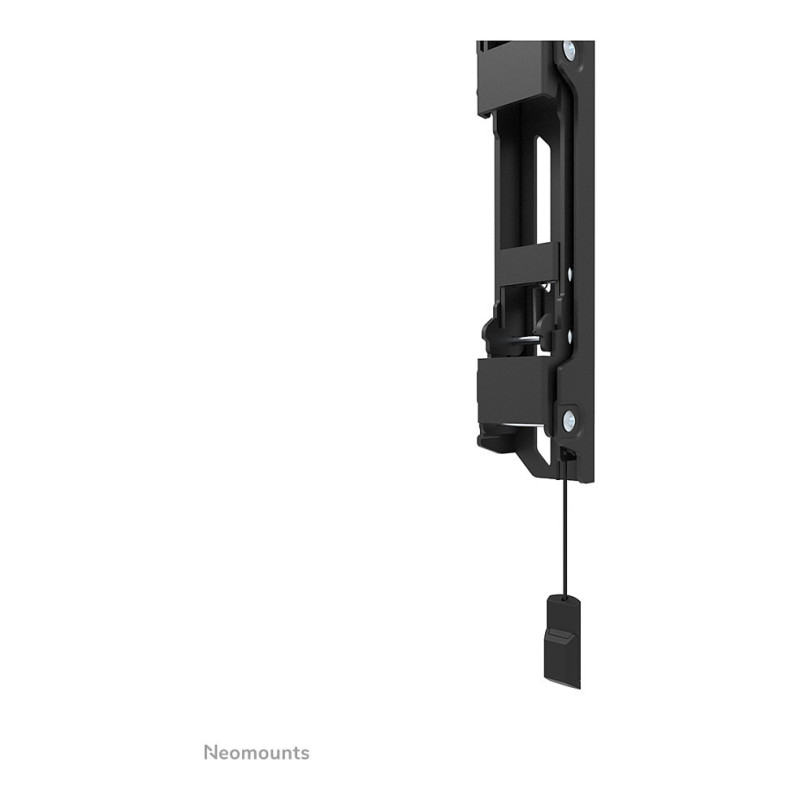

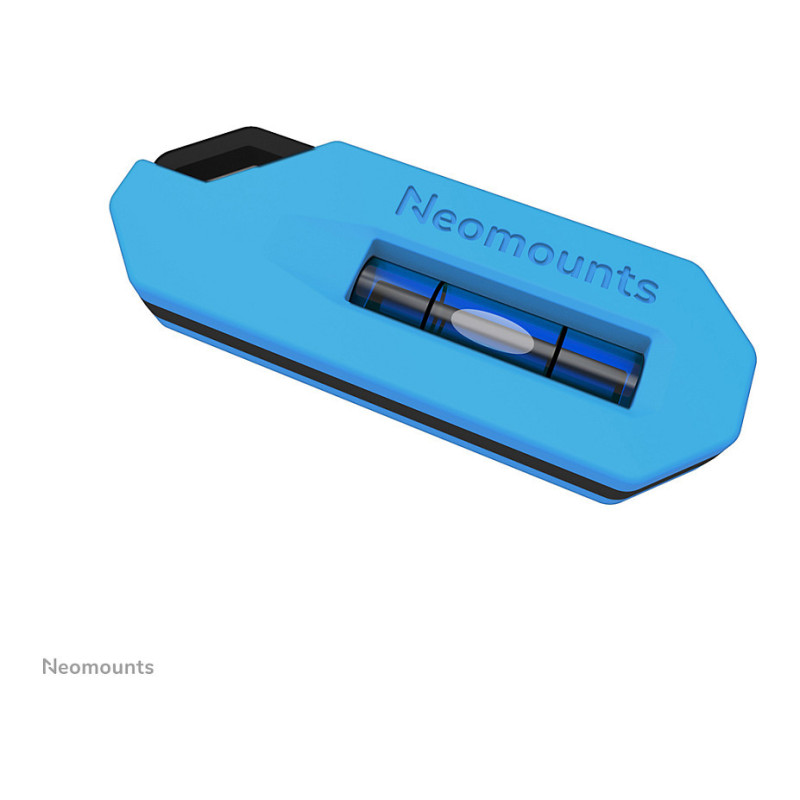

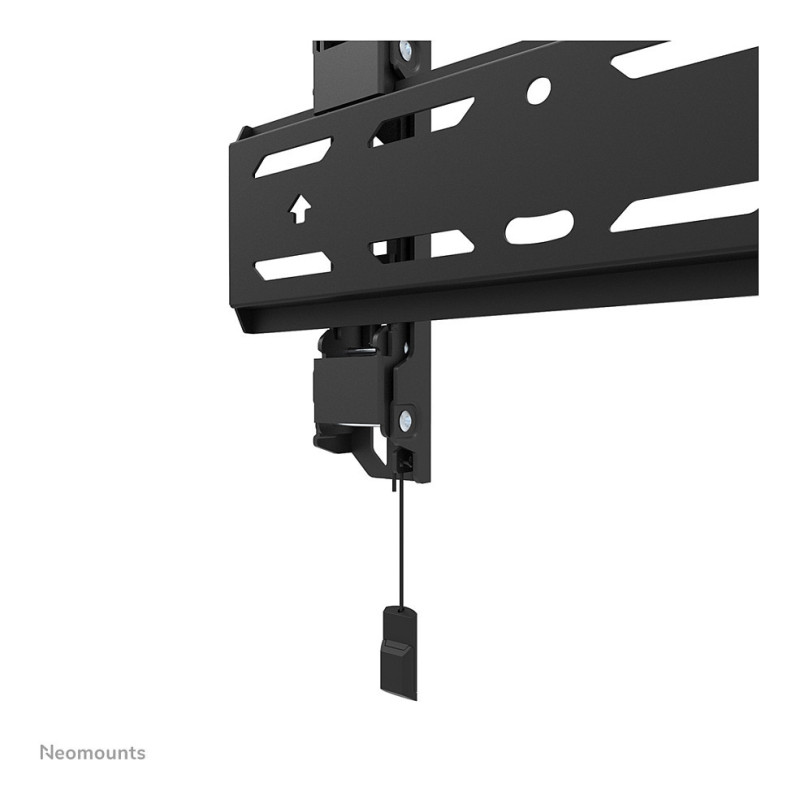

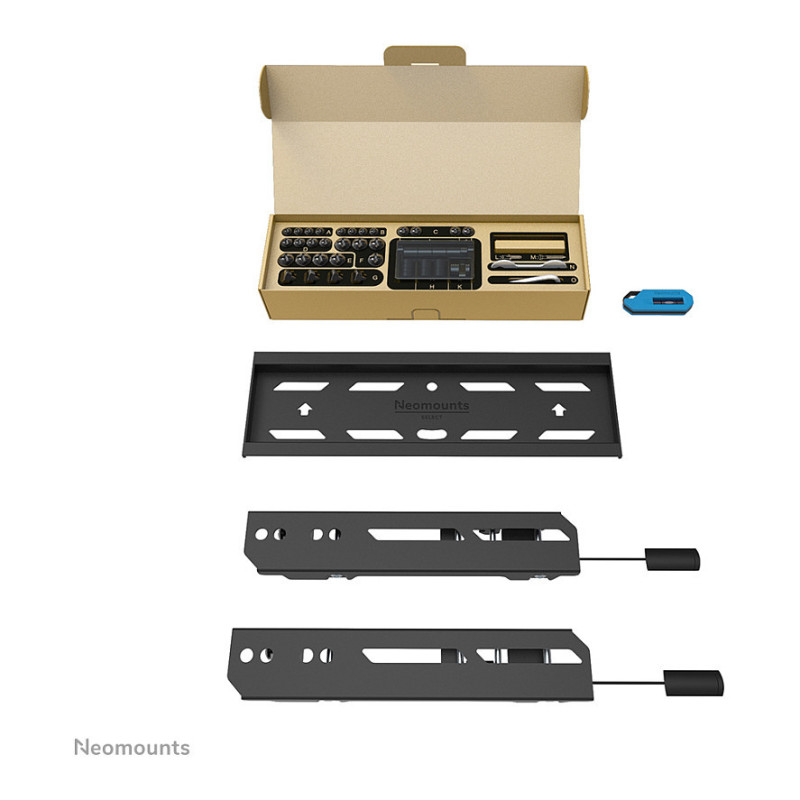

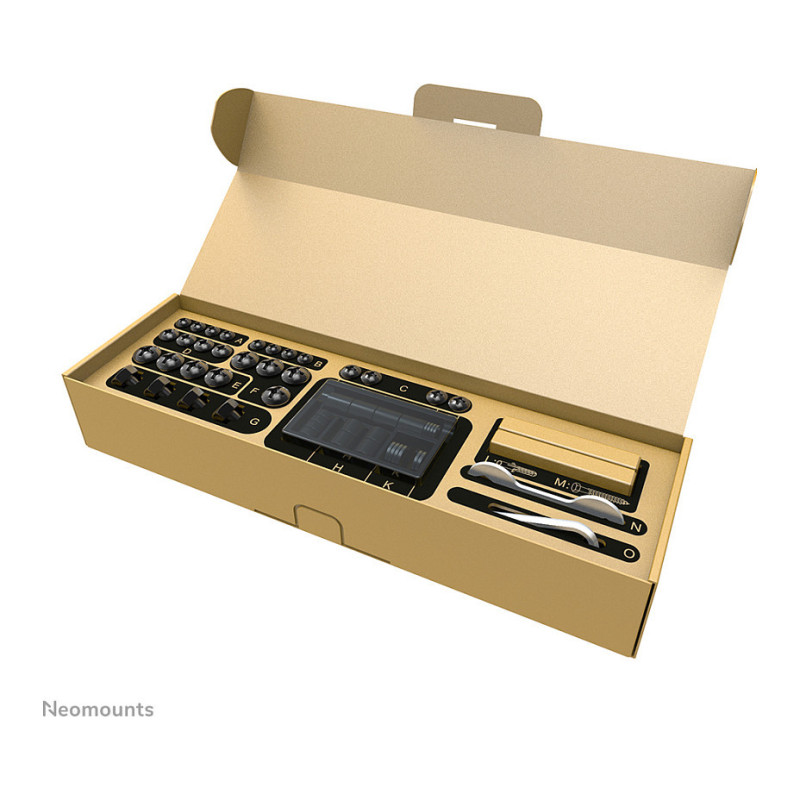

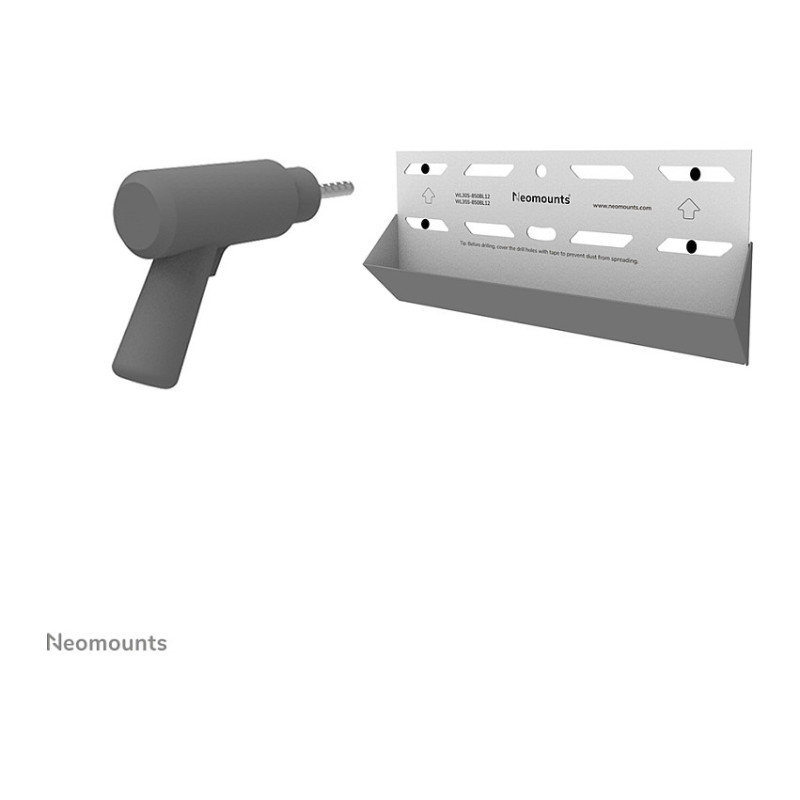

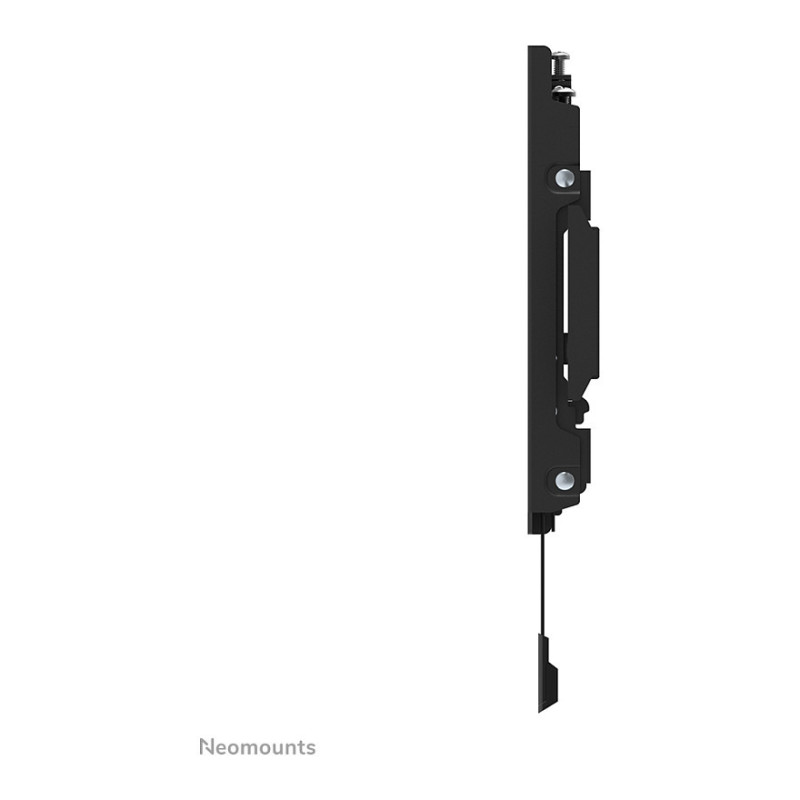

The WL30S-850BL12 features a nifty magnetic pull release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.

Mounting

Maximum weight capacity: 40 kg
Minimum screen size: 61 cm (24")
Number of displays supported: 1
Maximum weight capacity (per display): 40 kg
Maximum screen size: 165.1 cm (65")
Minimum VESA mount: 50 x 50 mm
Maximum VESA mount: 200 x 200 mm
Panel mounting interface: 100 x 200,100 x 100,100 x 150,100 x 75,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,50 x 50,75 x 75,75 x 100,75 x 200
Mounting type: Wall

Ergonomics

Height adjustment: Yes
Height adjustment range: 0 - 20 mm
Type: Fixed
Distance to the wall (max): 3.3 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Package net weight: 1.8 kg
Lockable: Security screw included

Weight dimensions

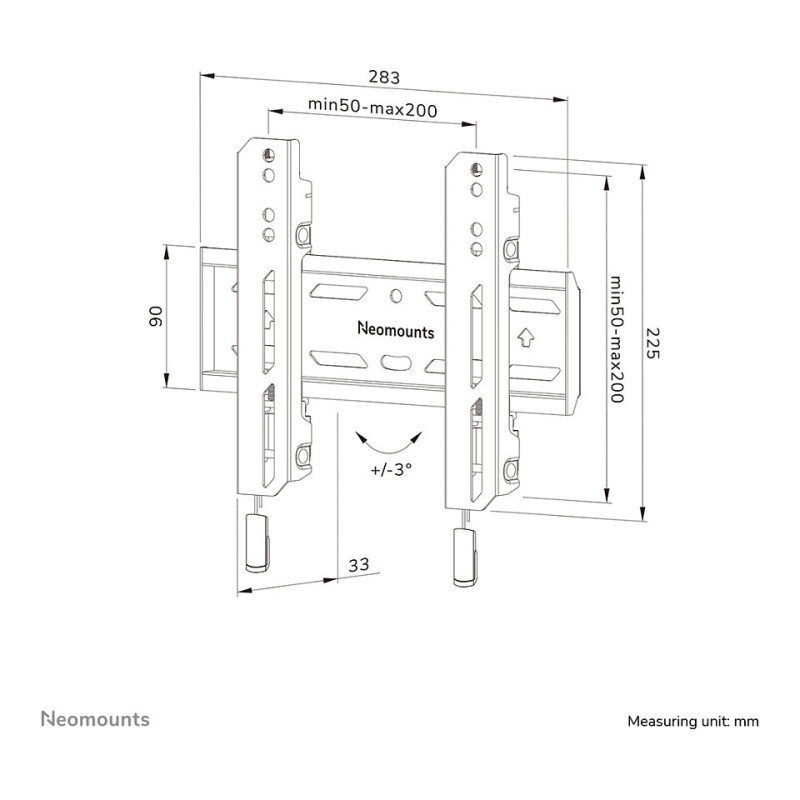

Width: 283 mm
Depth: 33 mm
Depth (max): 3.3 cm
Height: 225 mm
Weight: 1.2 kg

Packaging data

Package width: 500 mm
Package depth: 158 mm
Package height: 74 mm
Package weight: 1.8 kg

Logistics data

Master (outer) case width: 520 mm
Master (outer) case length: 240 mm
Master (outer) case height: 343 mm
Master (outer) case gross weight: 11.4 kg
Master (outer) case net weight: 7.7 kg
Products per master (outer) case: 6 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 144 pc(s)
