Neomounts WL30-750BL14 TV mount / stand

Neomounts WL30-750BL14 Heavy duty wall mount 42-75" - fixed - lockable - fast installation - TÜV. Maximum weight capacity: 100 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Height adjustment range: 0 - 10 mm, Distance to the wall (max): 4.2 cm. Product colour: Black

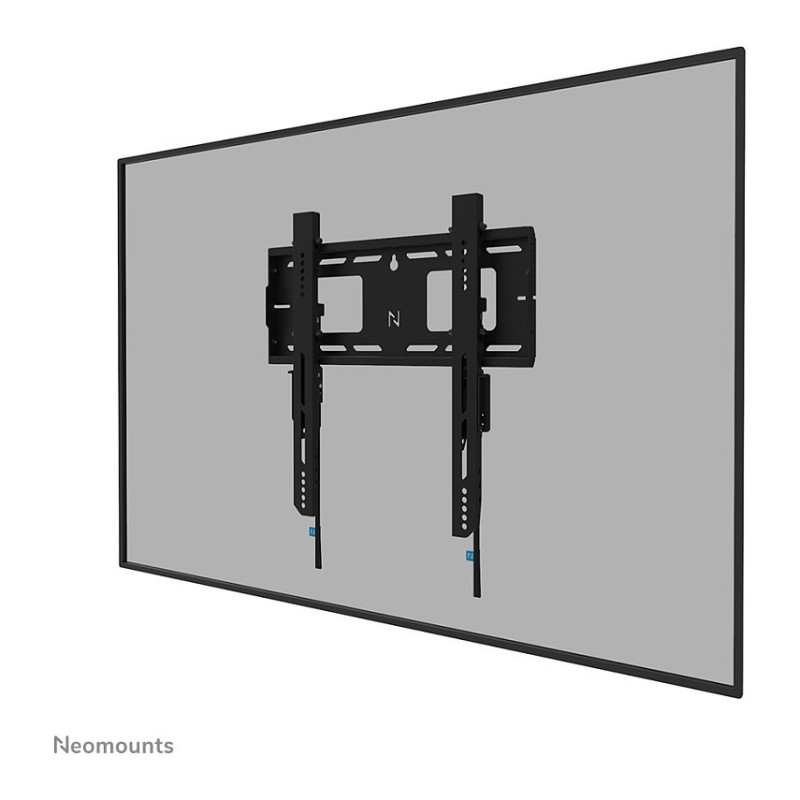

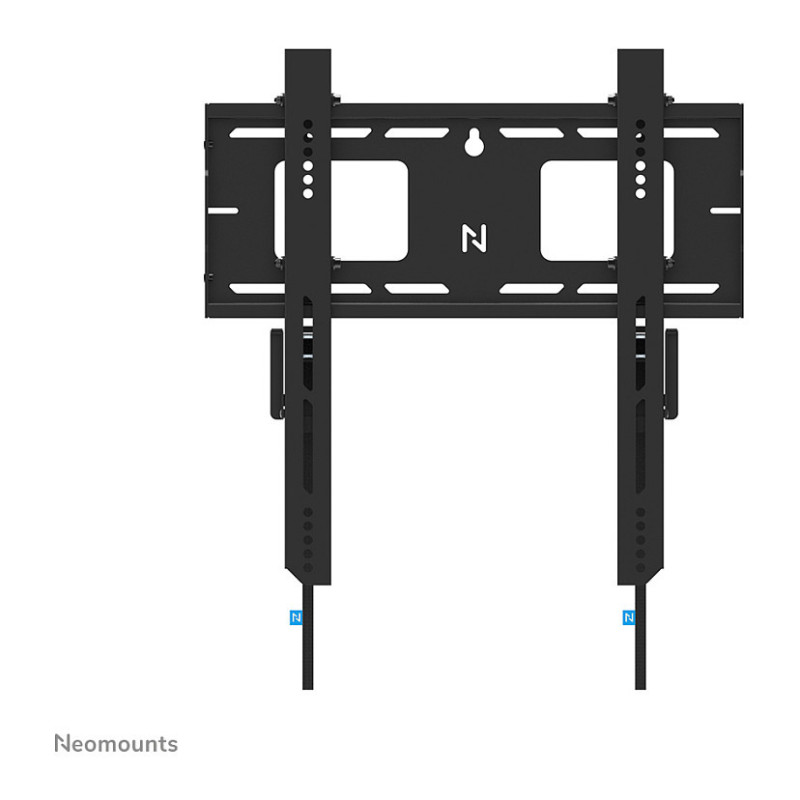

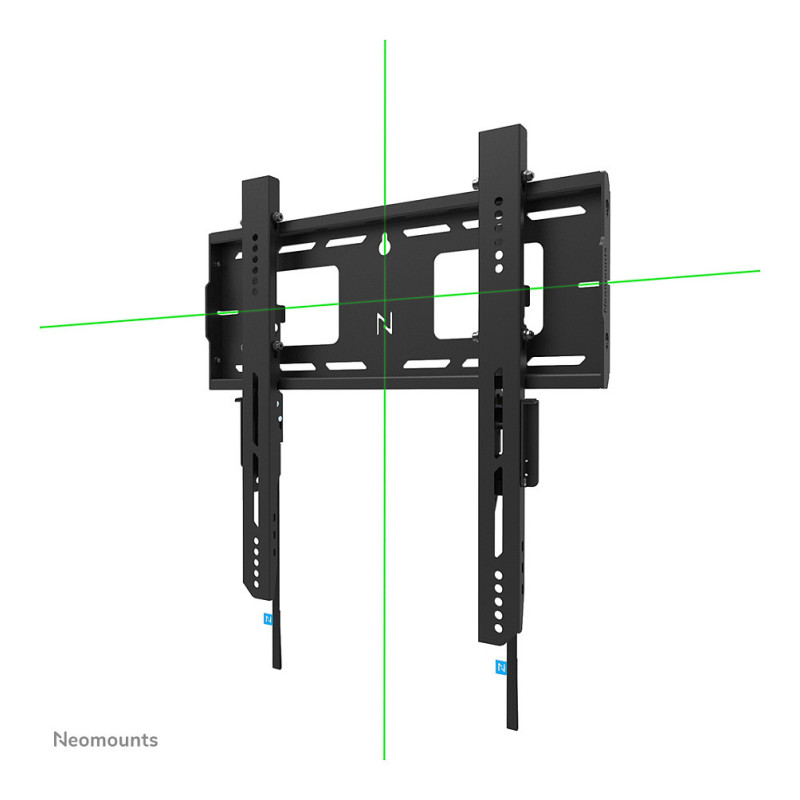

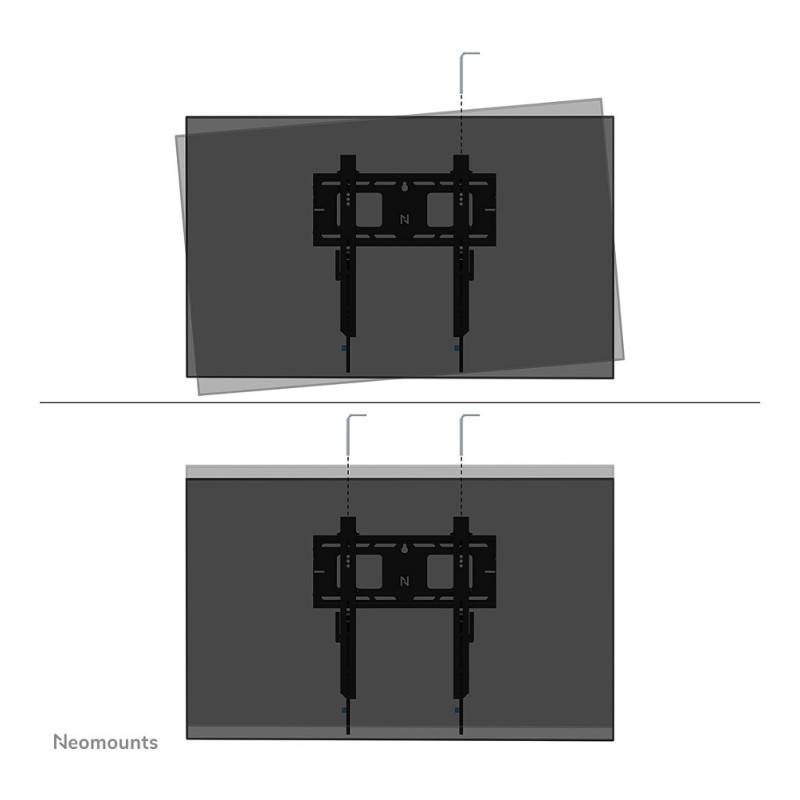

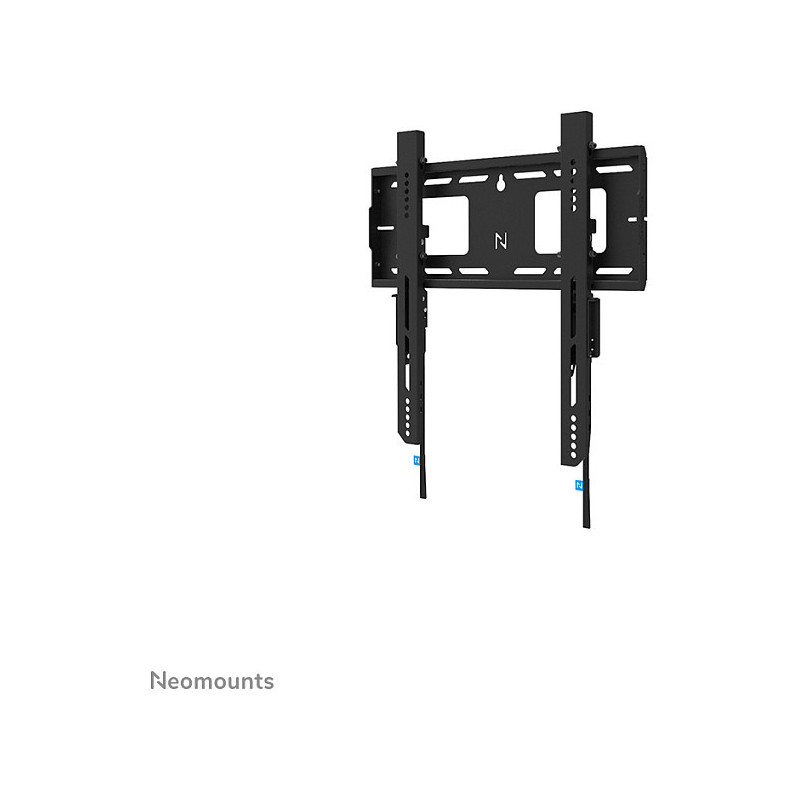

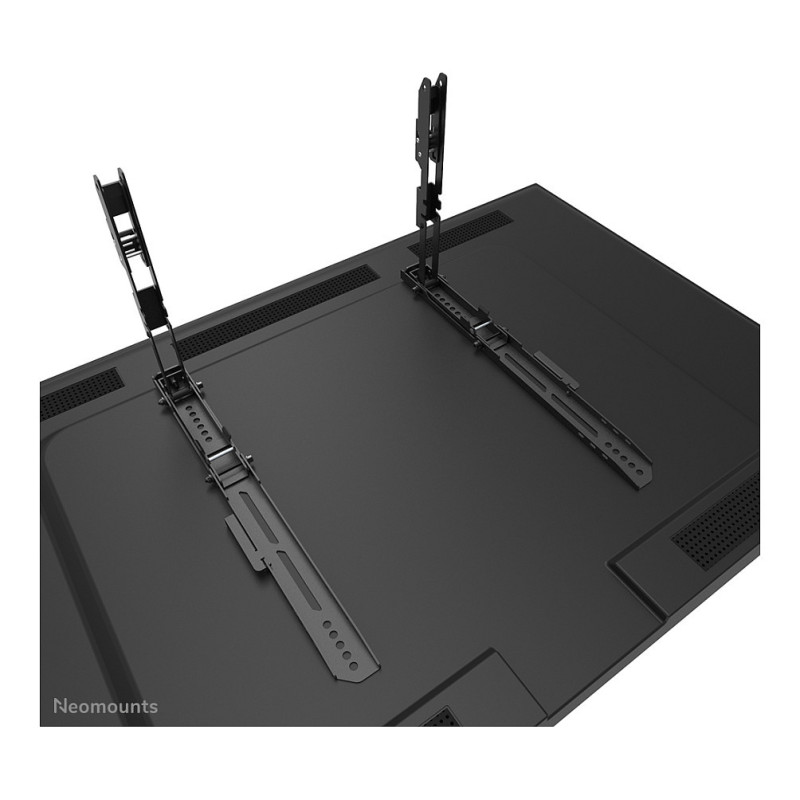

The Neomounts WL30-750BL14 LEVEL is the ultimate solution for securely mounting an interactive or heavy weight display up to 75" with a maximum capacity of 100 kg. This heavy-duty wall mount features a high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The wall mount is designed to provide the sturdiest and most stable touch screen experience. The brackets of the WL30-750BL14 feature depth adjustable wall supports on the lower brackets for better weight distribution and maximum stability. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

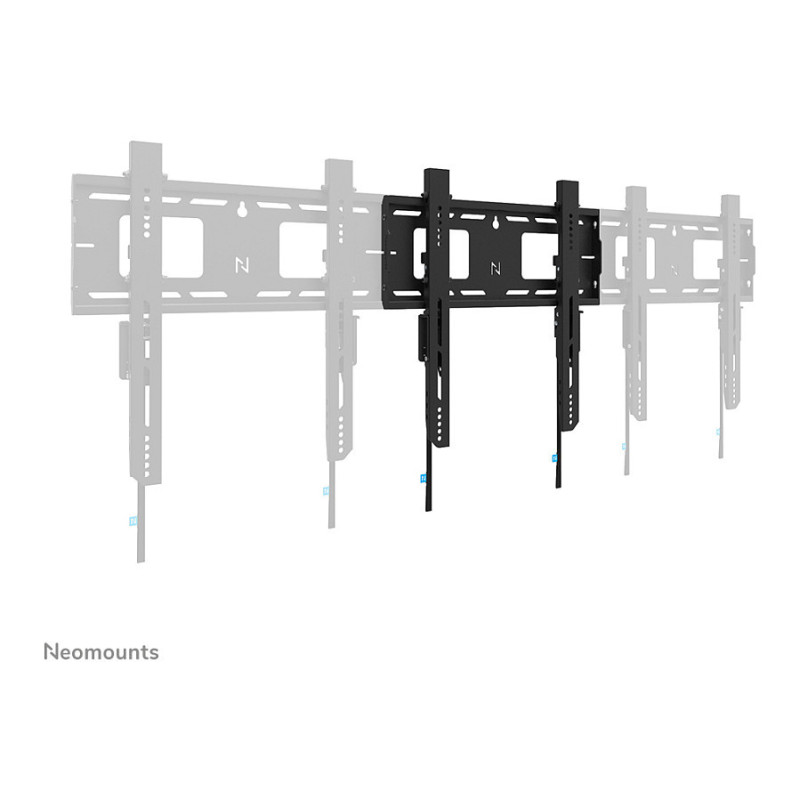

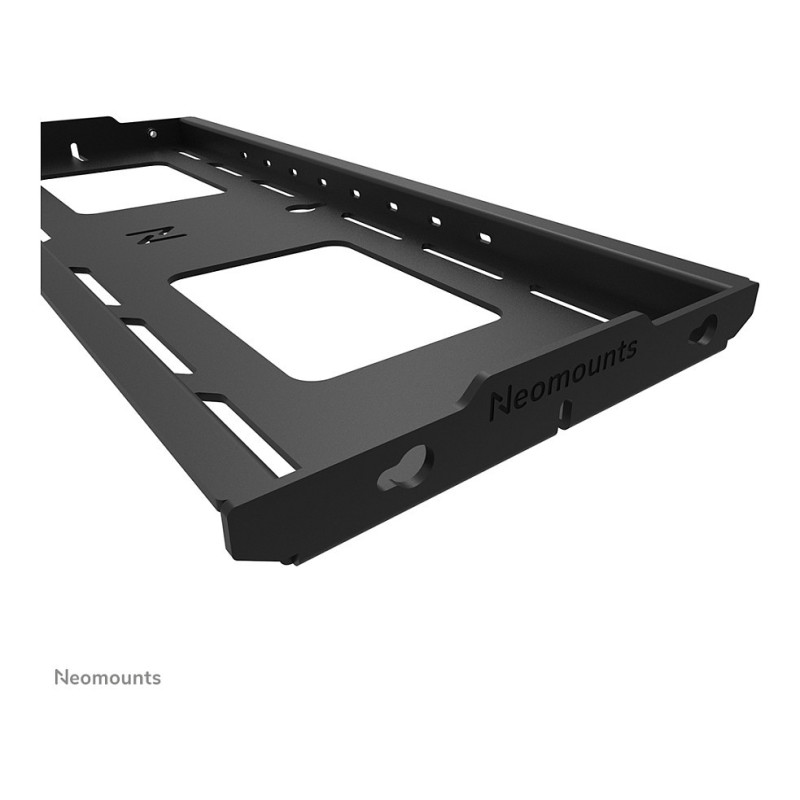

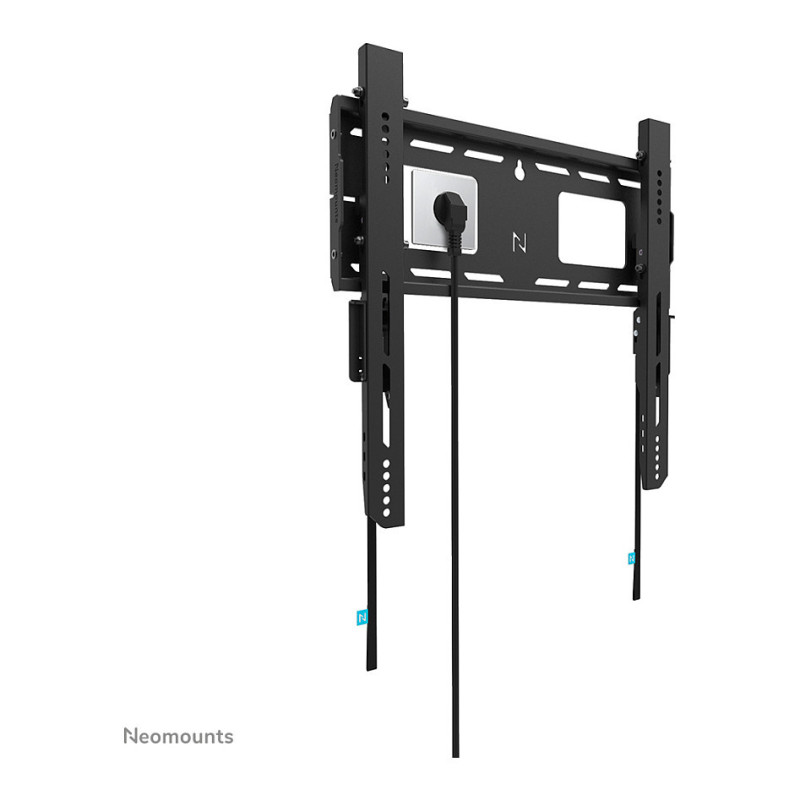

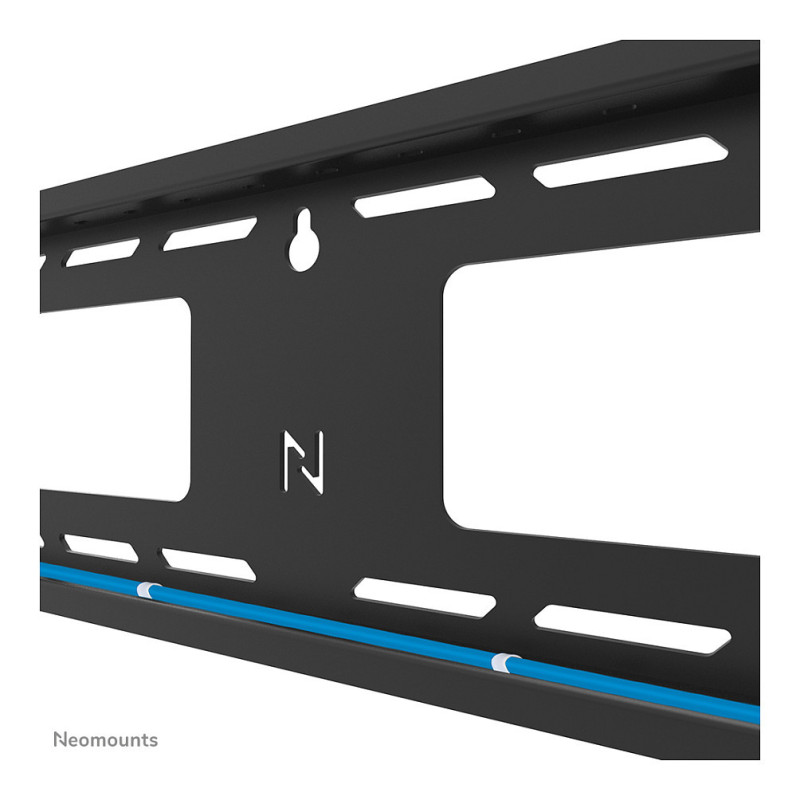

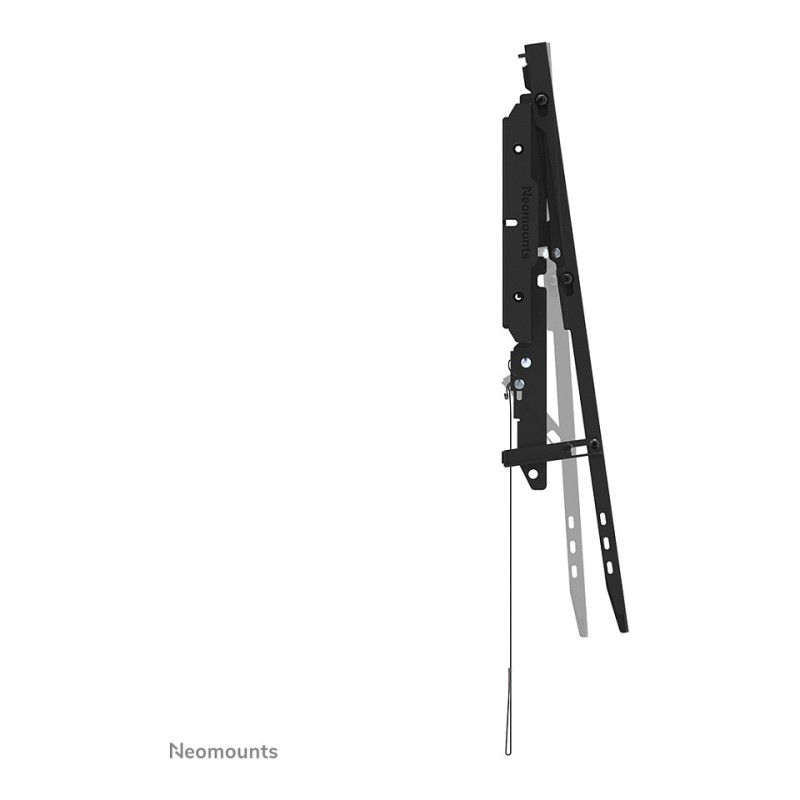

The LEVEL-750 wall mount has a profile depth of 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

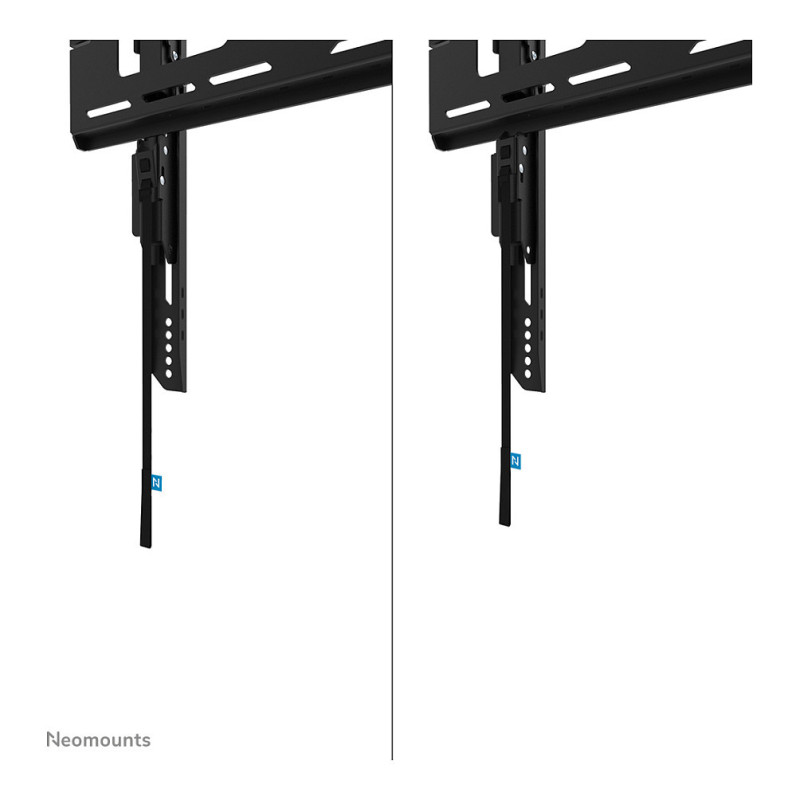

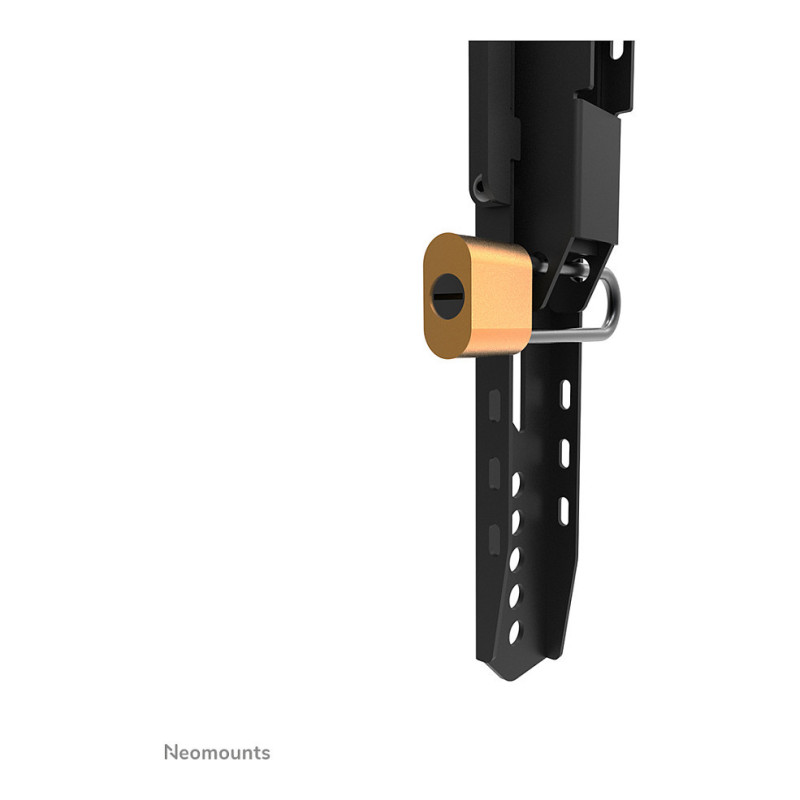

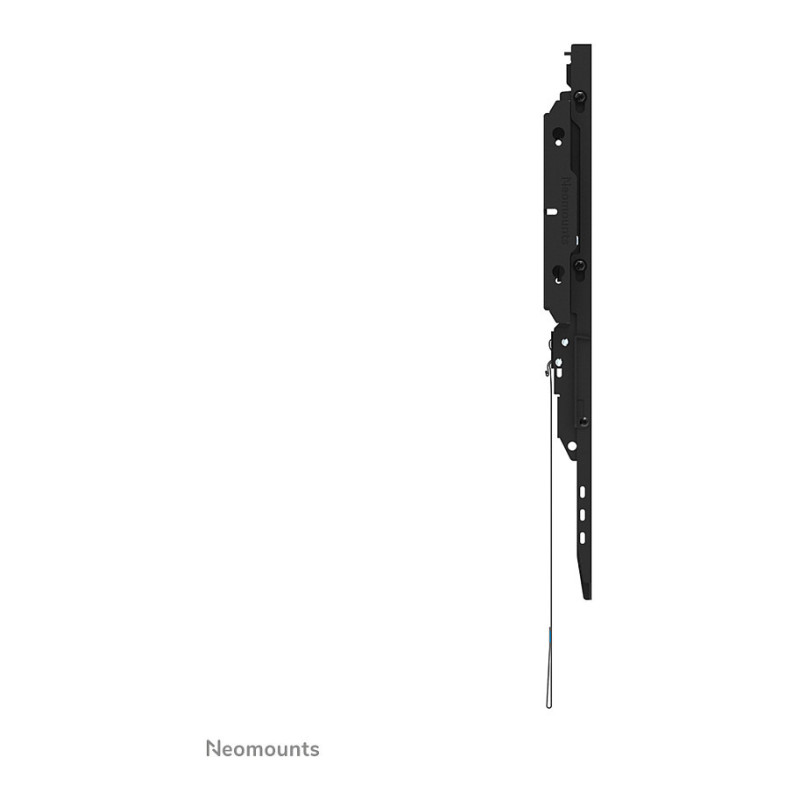

The WL30-750BL14 includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.

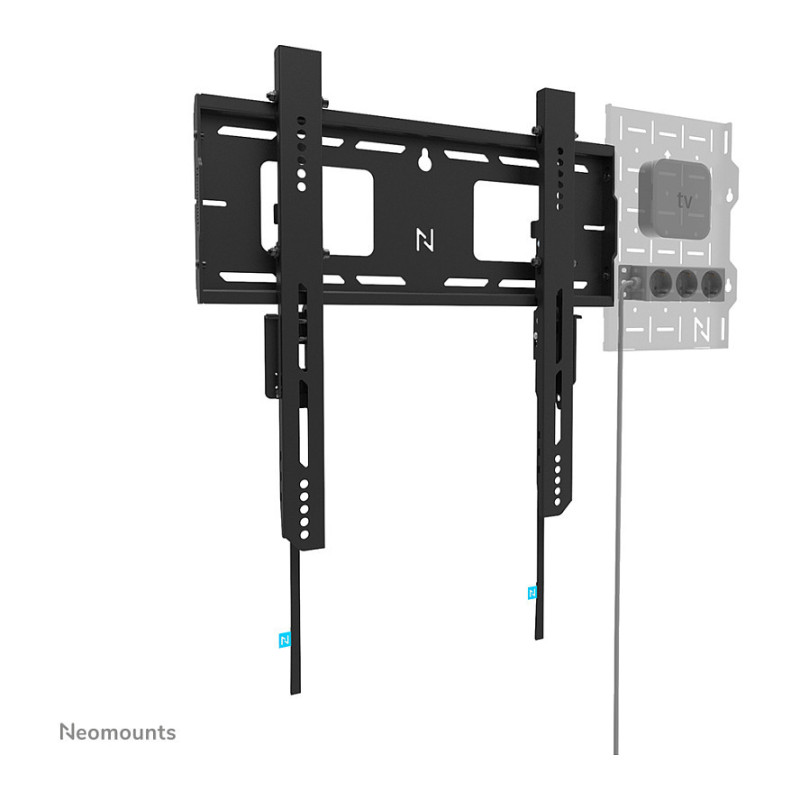

For simple and effective storage, an optionally available AV-rack can be installed to the left or right side of the mount.

Mounting

Maximum weight capacity: 100 kg
Minimum screen size: 106.7 cm (42")
Number of displays supported: 1
Maximum weight capacity (per display): 100 kg
Maximum screen size: 190.5 cm (75")
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 400 x 400 mm
Mounting type: Wall

Ergonomics

Feature: Height adjustment
Height adjustment range: 0 - 10 mm
Feature: Cable management
Type: Fixed
Distance to the wall (max): 4.2 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Lockable: Padlock not included

Weight & dimensions

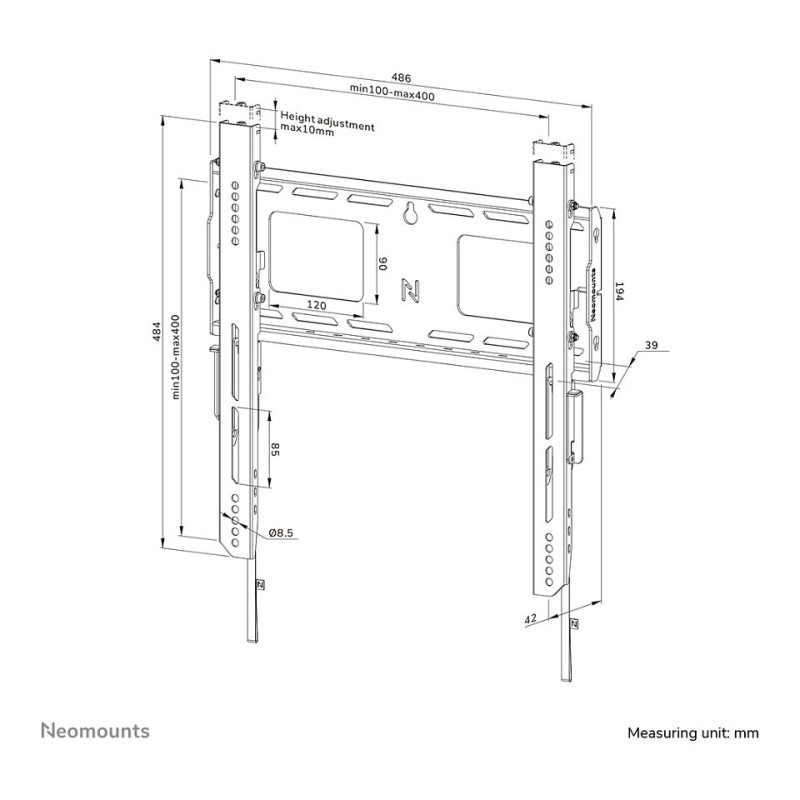

Width: 486 mm
Depth: 42 mm
Depth (max): 4.2 cm
Height: 488 mm
Weight: 3.9 kg

Packaging data

Package width: 533 mm
Package depth: 82 mm
Package height: 209 mm
Package weight: 5 kg

Logistics data

Master (outer) case width: 551 mm
Master (outer) case length: 227 mm
Master (outer) case height: 347 mm
Master (outer) case gross weight: 20.5 kg
Master (outer) case net weight: 15.6 kg
Products per master (outer) case: 4 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 104 pc(s)
