Neomounts WL30-550BL12 TV mount / stand

Neomounts WL30-550BL12 TV mount wall 24-65" - ultra-flat - easy install. Maximum weight capacity: 40 kg, Minimum screen size: 61 cm (24"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 50 x 50 mm, Maximum VESA mount: 200 x 200 mm. Distance to the wall (max): 2.3 cm. Product colour: Black

The Neomounts WL30-550BL12 LEVEL is a fixed wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg.

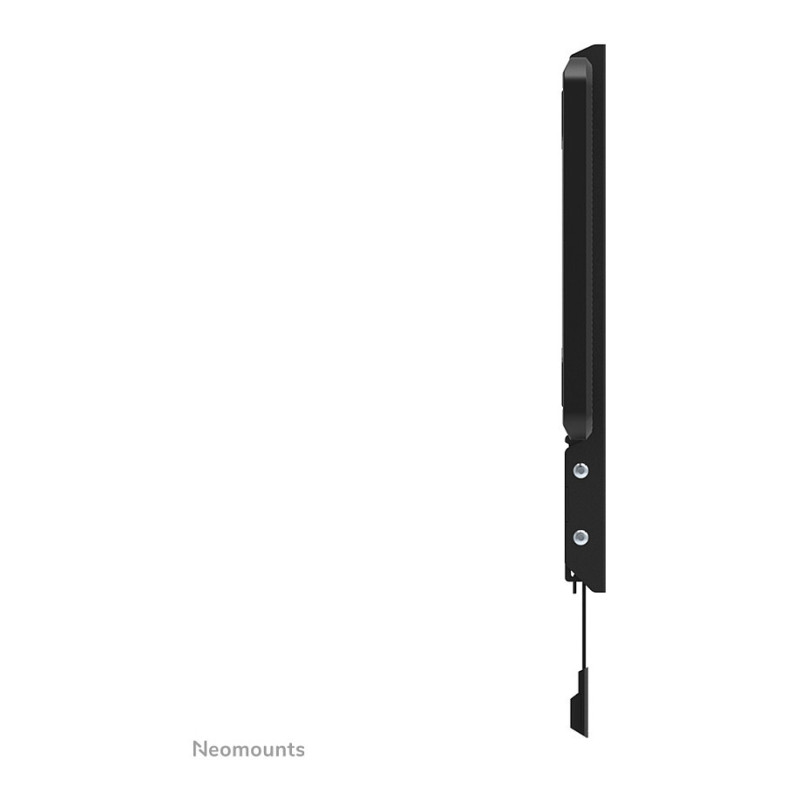

The LEVEL-550 wall mount is ultra-flat with a depth of 2,3 cm and is suitable for screens that meet VESA hole pattern 50x50 to 200x200mm.

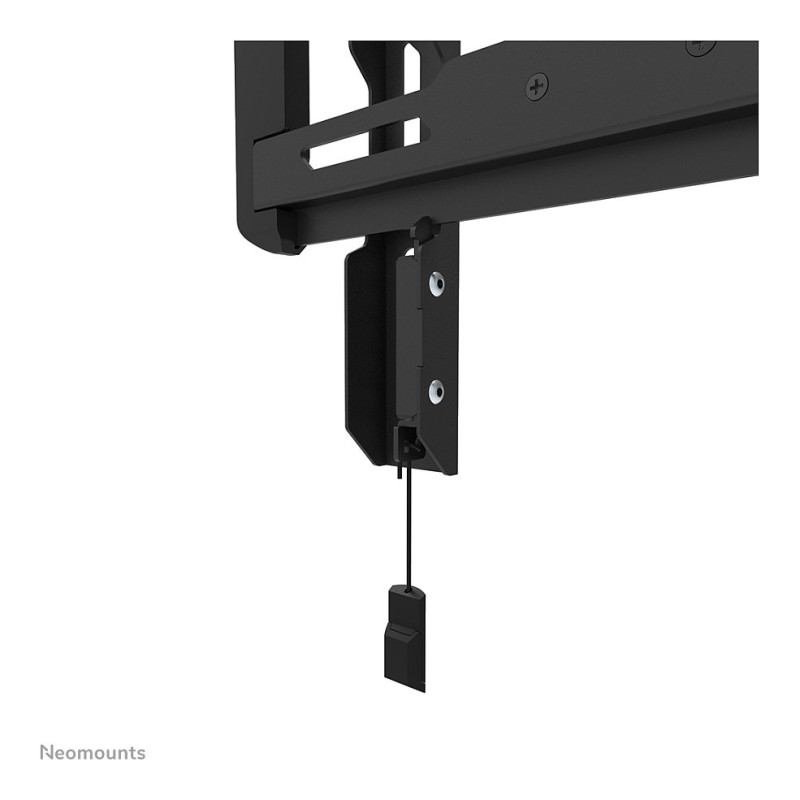

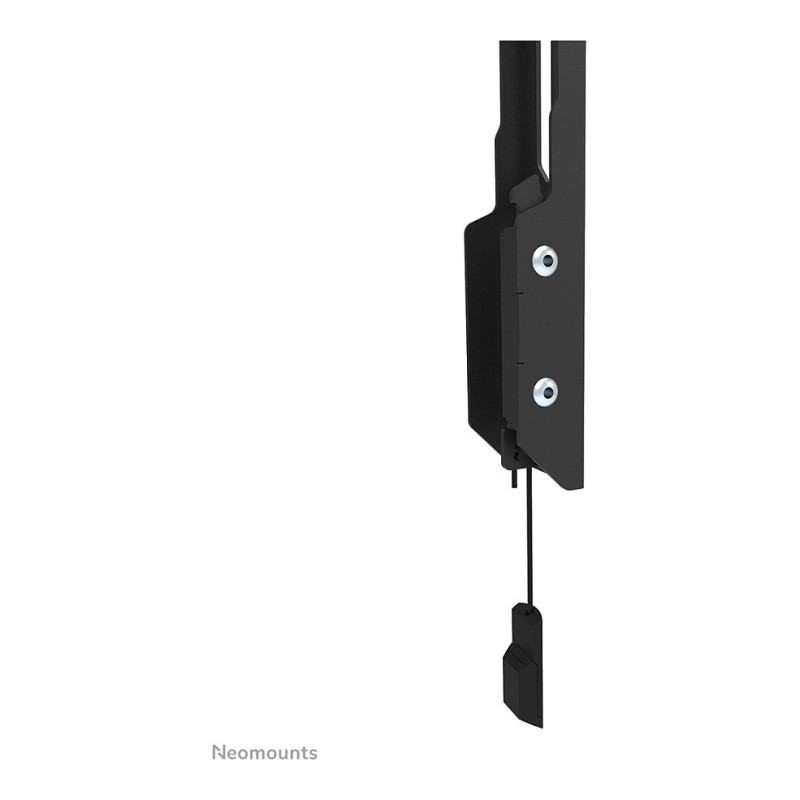

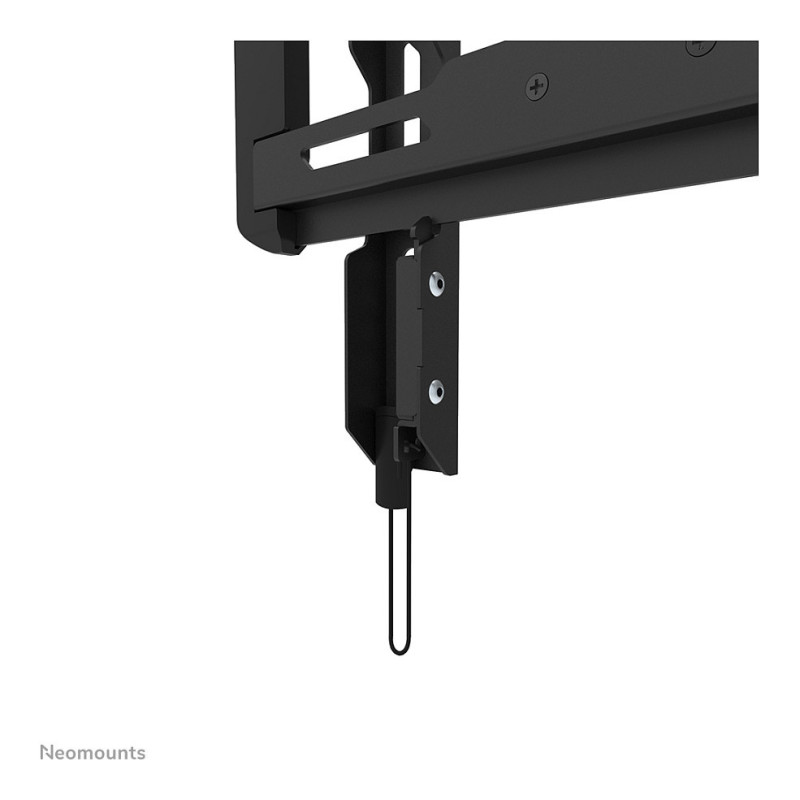

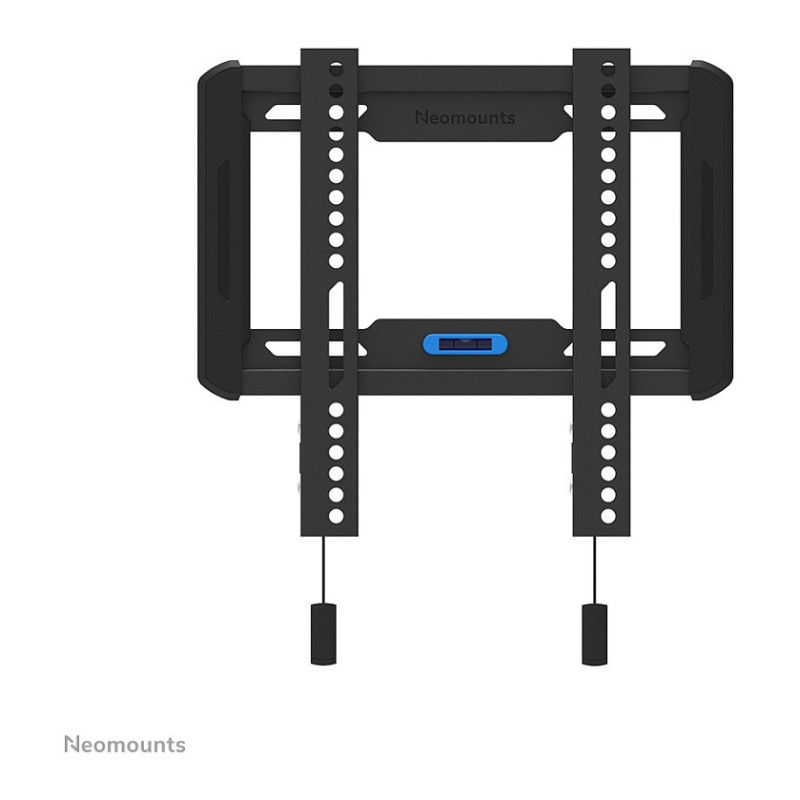

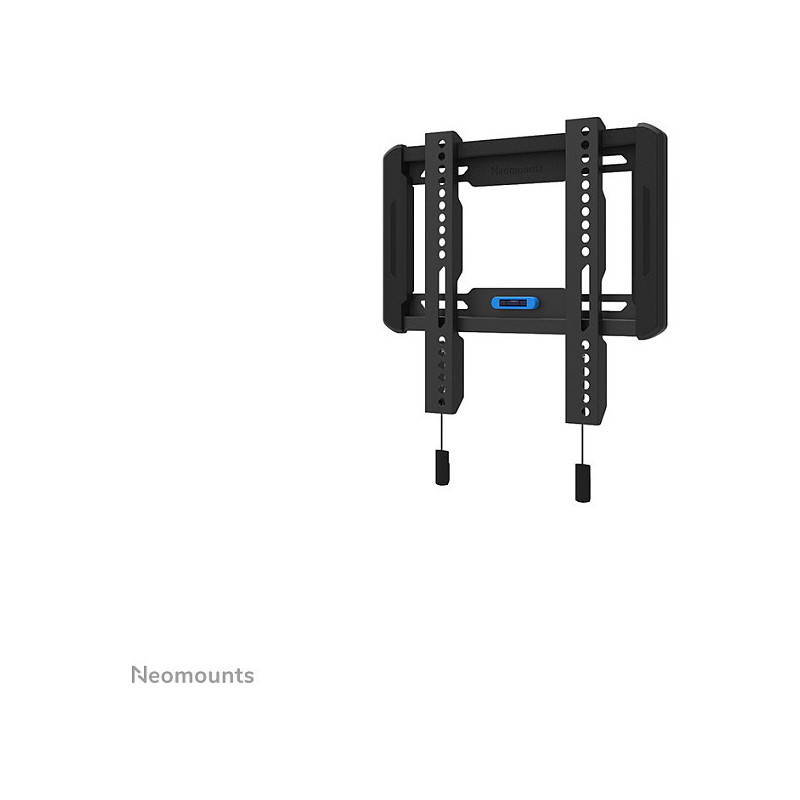

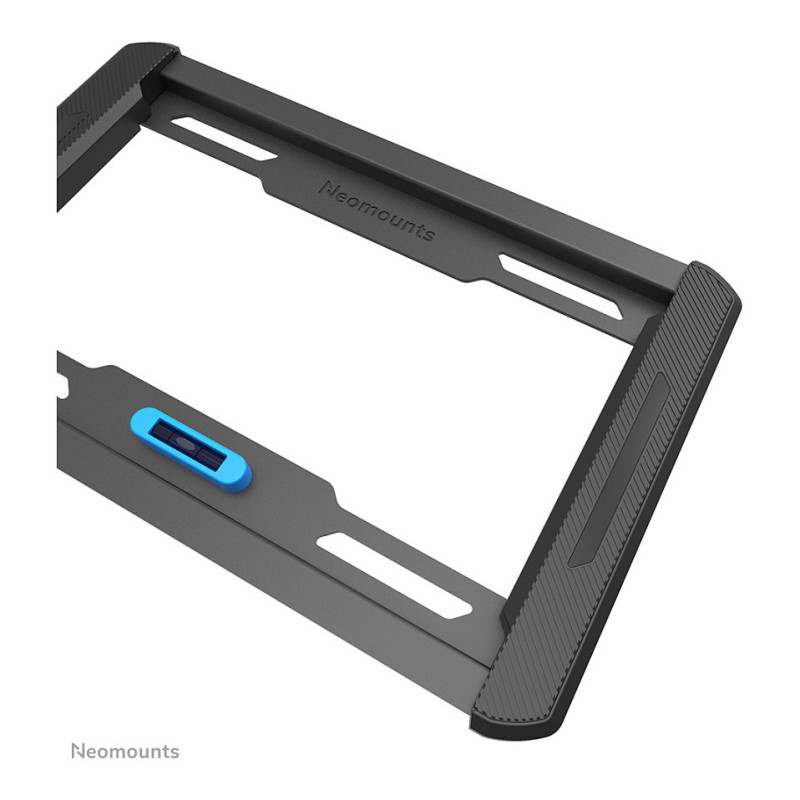

The WL30-550BL12 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.

Mounting

Maximum weight capacity: 40 kg
Minimum screen size: 61 cm (24")
Number of displays supported: 1
Maximum weight capacity (per display): 40 kg
Maximum screen size: 165.1 cm (65")
Minimum VESA mount: 50 x 50 mm
Maximum VESA mount: 200 x 200 mm
Panel mounting interface: 100 x 200,100 x 100,100 x 150,100 x 75,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,50 x 50,75 x 75,75 x 100,75 x 200
Mounting type: Wall

Ergonomics

Type: Fixed
Distance to the wall (max): 2.3 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Package net weight: 1.4 kg
Lockable: Not lockable

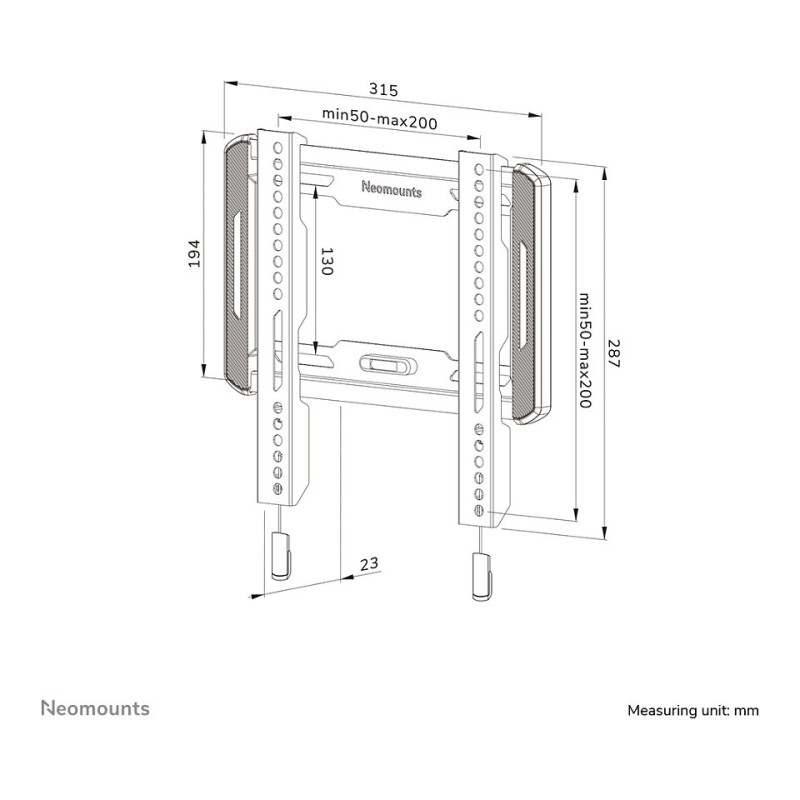

Weight & dimensions

Width: 315 mm
Depth: 23 mm
Depth (max): 2.3 cm
Height: 287 mm
Weight: 950 g

Packaging data

Package width: 335 mm
Package depth: 247 mm
Package height: 28 mm
Package weight: 1.4 kg

Logistics data

Master (outer) case width: 353 mm
Master (outer) case length: 300 mm
Master (outer) case height: 267 mm
Master (outer) case gross weight: 14.5 kg
Master (outer) case net weight: 10 kg
Products per master (outer) case: 10 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 300 pc(s)
