Neomounts NMPRO-WMB3 signage display mount

Neomounts NMPRO-WMB3 Menuboard wall mount 32-55" - tiltable. Minimum screen size: 81.3 cm (32"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 0 - 440 mm, Tilt angle range: 0 - 21°. Product colour: Black

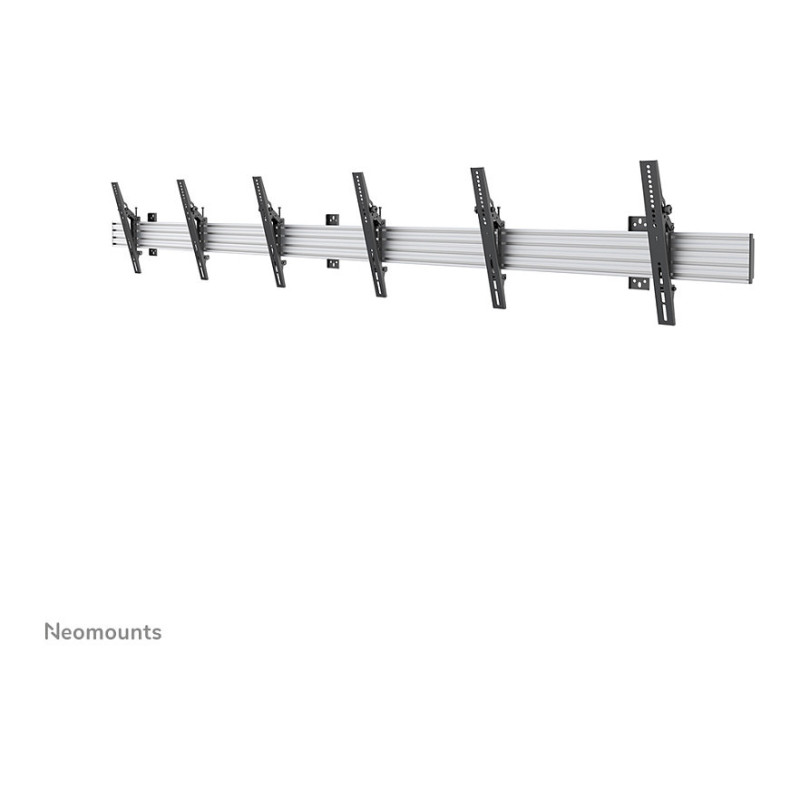

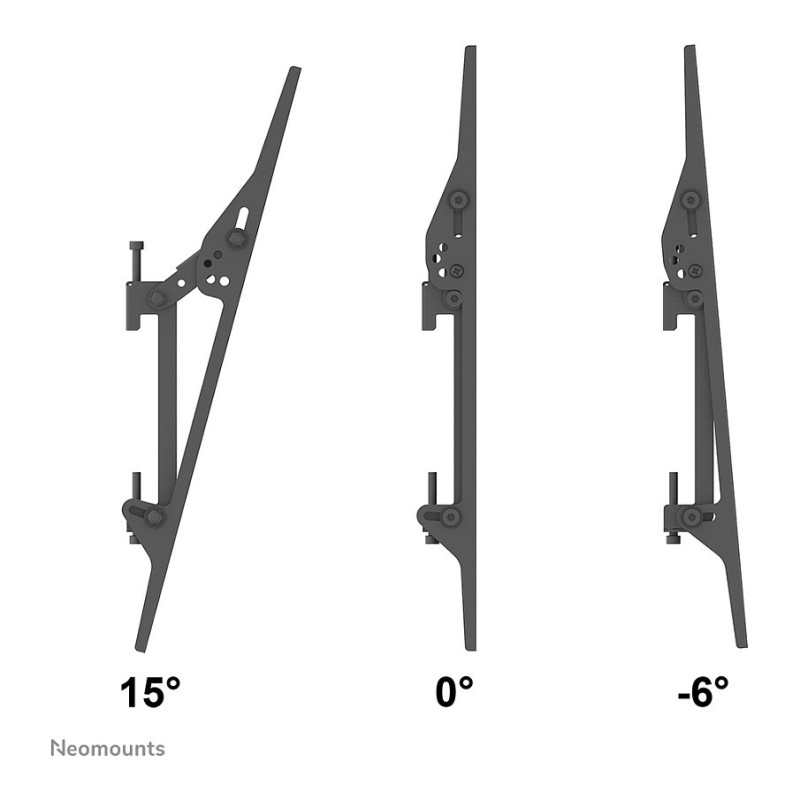

The Neomounts Pro menuboard wall mount, model NMPRO-WMB3, is a tiltable wall mount for three flat screens up to 55"/65". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. The Neomounts Pro tilt (0°/-6°/+15°) technology allows the mount to change to the best suitable viewing angle.

Neomounts Pro NMPRO WMB-series is suitable for 1 to 4 screens. The weight capacity of this product is 30 kg each screen. The wall mount is suitable for screens that meet VESA 100x100 to 400x400mm (65") or VESA 100x100 to 600x400mm (55"). Depth of this mount is 5,6 centimetres.

* All installation material is included with the product.

Mounting

Minimum screen size: 81.3 cm (32")
Number of displays supported: 3
Maximum weight capacity (per display): 30 kg
Maximum screen size: 139.7 cm (55")
Mounting type: Wall
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 600 x 400 mm

Ergonomics

Height adjustment range: 0 - 440 mm
Tilt angle range: 0 - 21°
Feature: Cable management
Feature: Tilt adjustment
Tilt angle: 21°
Height adjustment: 44 cm
Depth adjustment: 6 cm
Width adjustment: 3.49 m

Design

Type: Fixed floor stand
Product colour: Black
Housing material: Aluminium

Weight & dimensions

Depth: 60 mm
Height: 44 mm
Weight: 15.8 kg
Width adjustment range: 0 - 3490 mm

Packaging data

Package width: 190 mm
Package depth: 170 mm
Package height: 1120 mm
Package weight: 16.8 kg

Technical details

Package net weight: 16.8 kg

Other features

Country of origin: China
Depth adjustment range: 0 - 60 mm

Logistics data

Master (outer) case net weight: 16.8 kg
Harmonized System (HS) code: 7616991099
Products per pallet (EU): 32 pc(s)
Quantity per master (outer) case: 1 pc(s)
Master (outer) case width: 190 mm
Master (outer) case length: 170 mm
Master (outer) case height: 1120 mm
Master (outer) case gross weight: 16.8 kg
Products per master (outer) case: 1 pc(s)
