Neomounts NM-D775DXBLACK monitor mount / stand

Neomounts NM-D775DXBLACK Monitor arm 10-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -10 - 10°. Product colour: Black

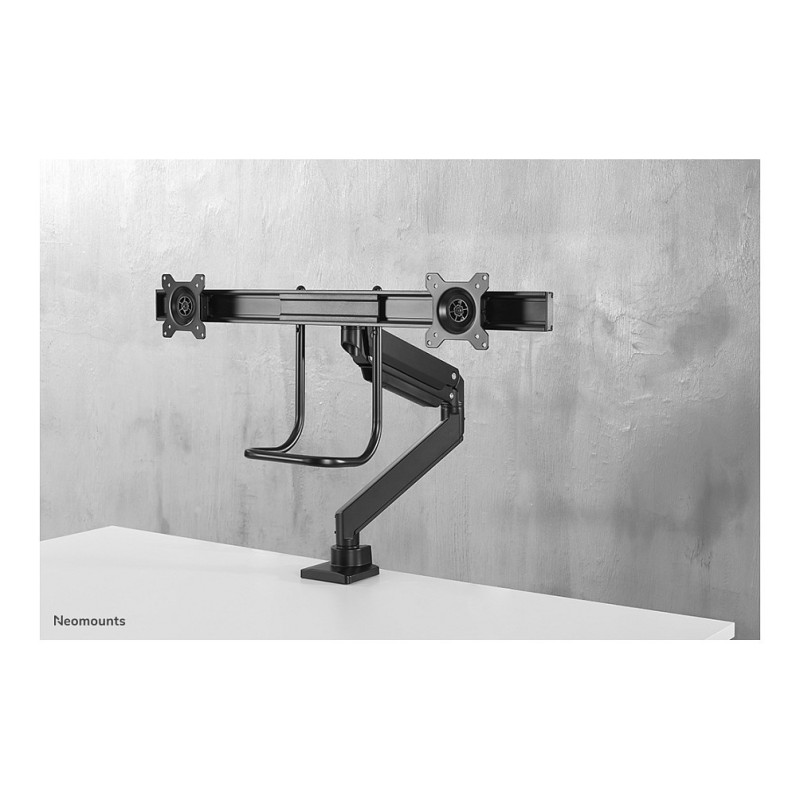

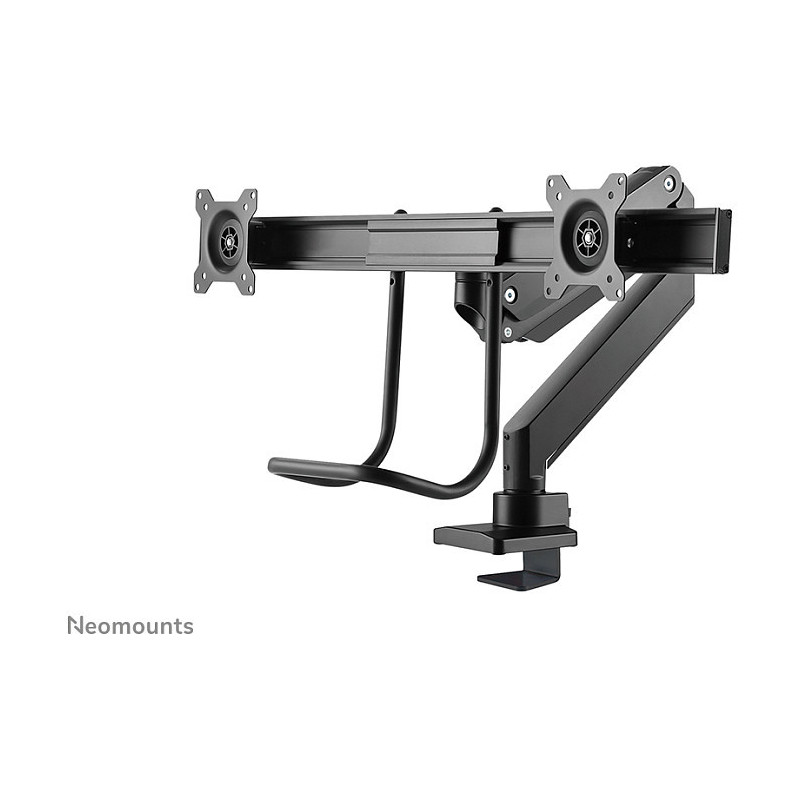

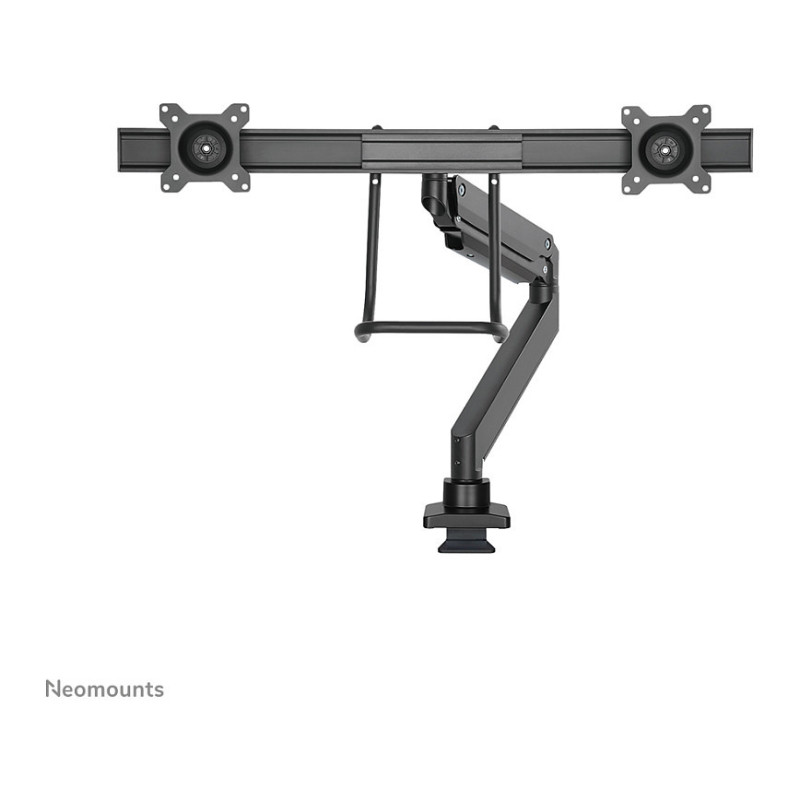

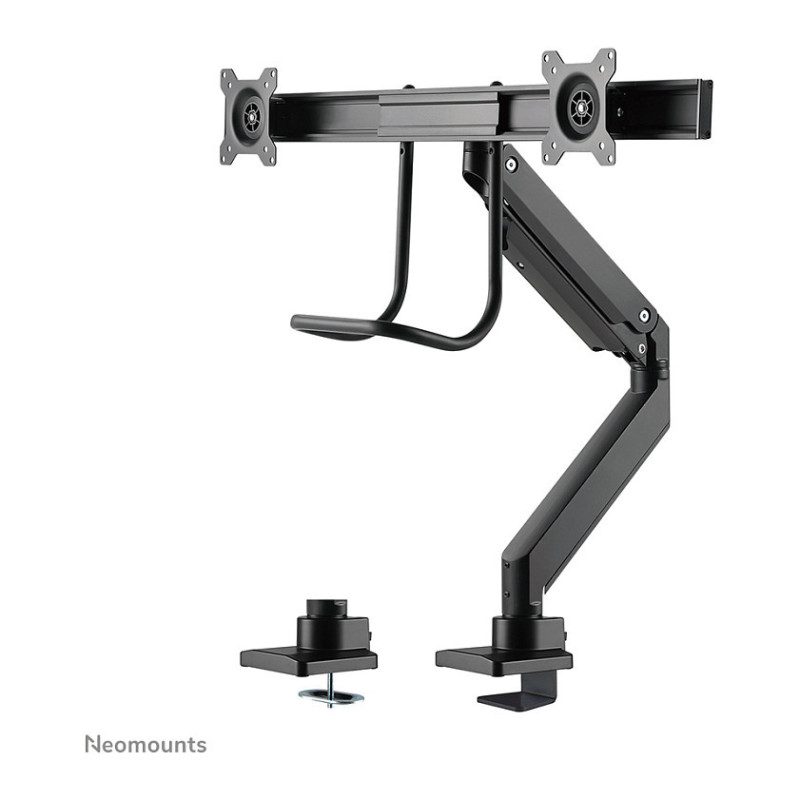

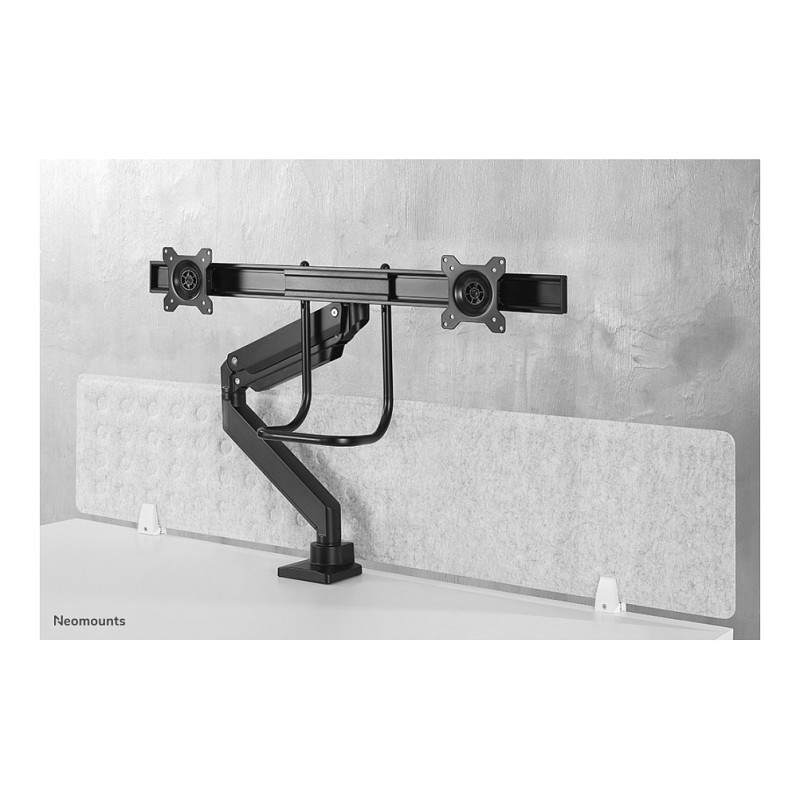

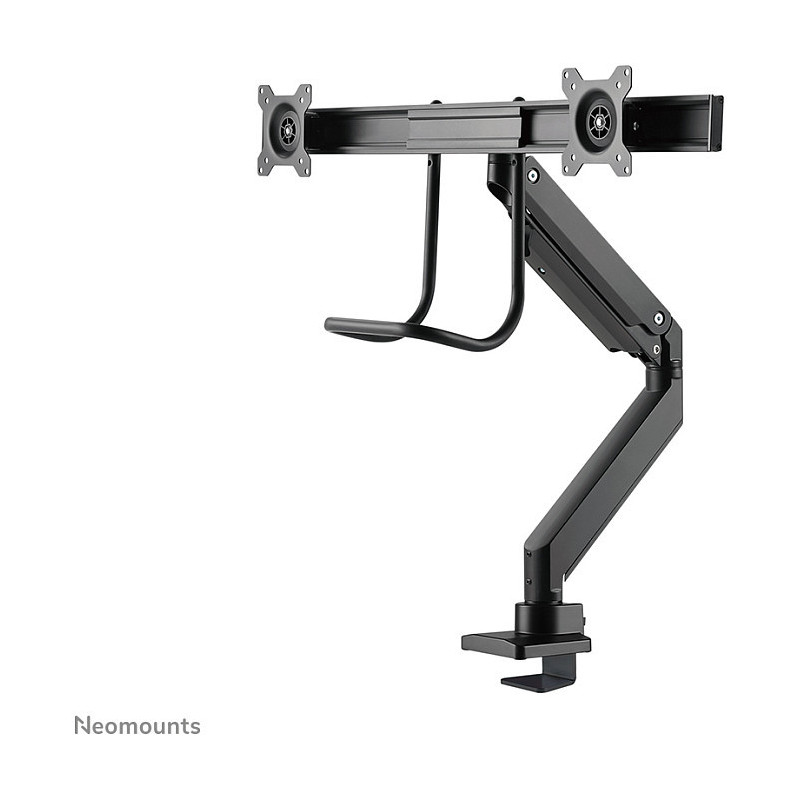

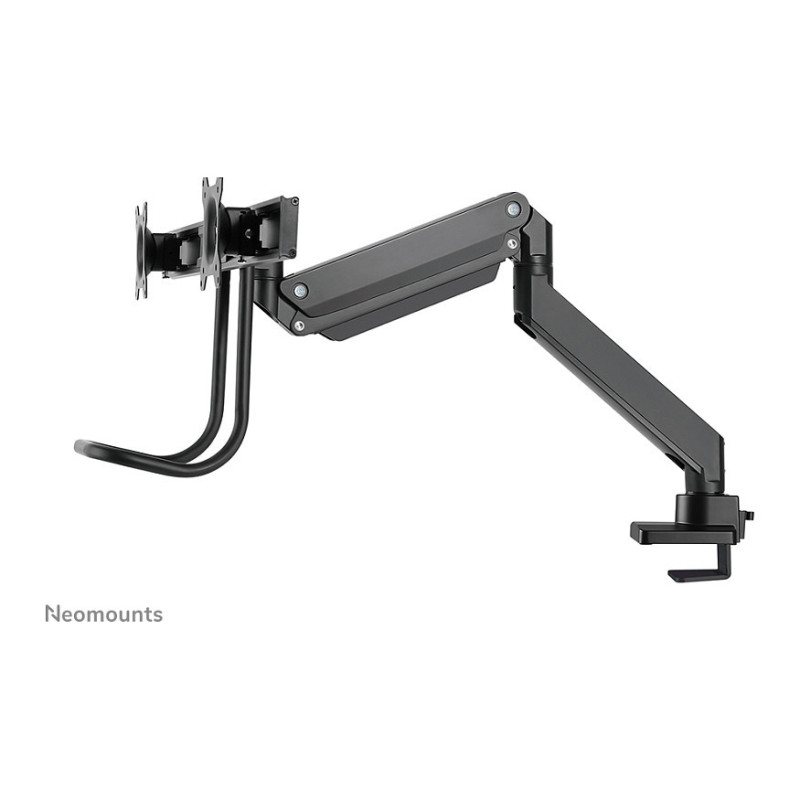

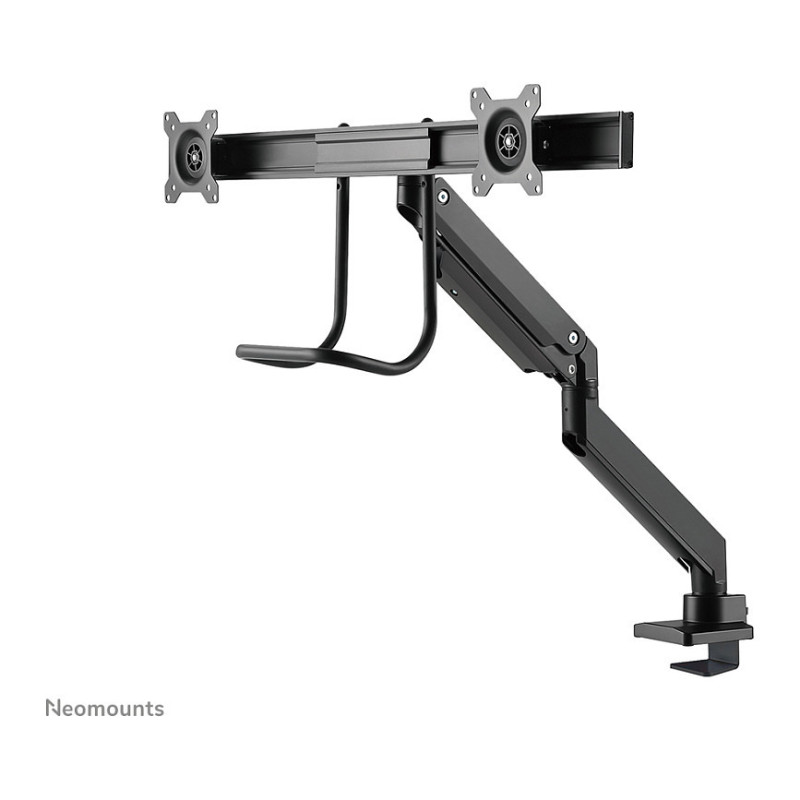

The Neomounts NM-D775DXBLACK is a tilt-, swivel and rotatable desk mount with crossbar and handle for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

Neomounts' unique tilt (20°), rotate (360°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.

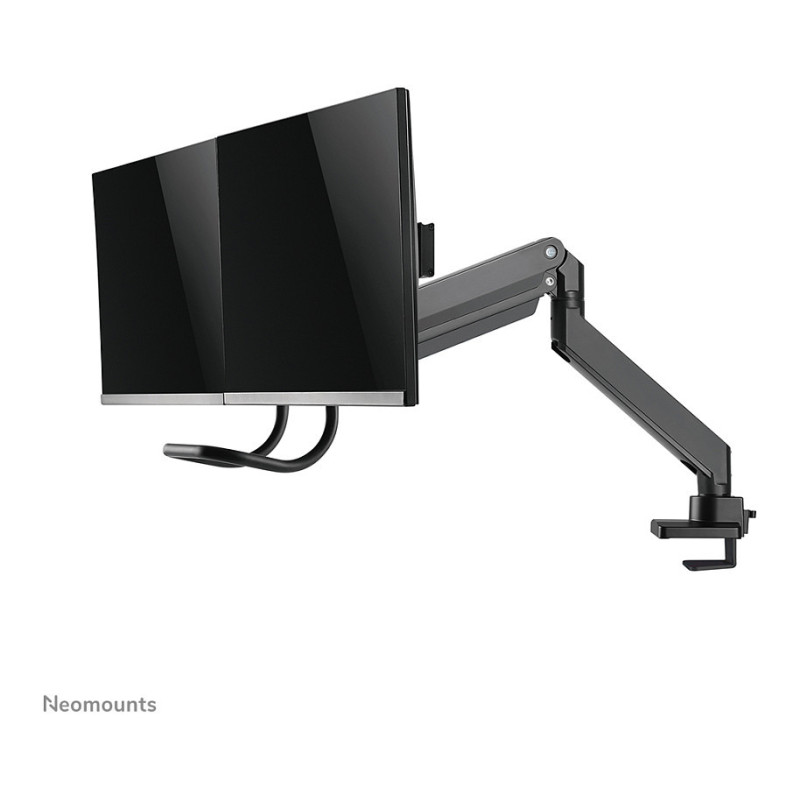

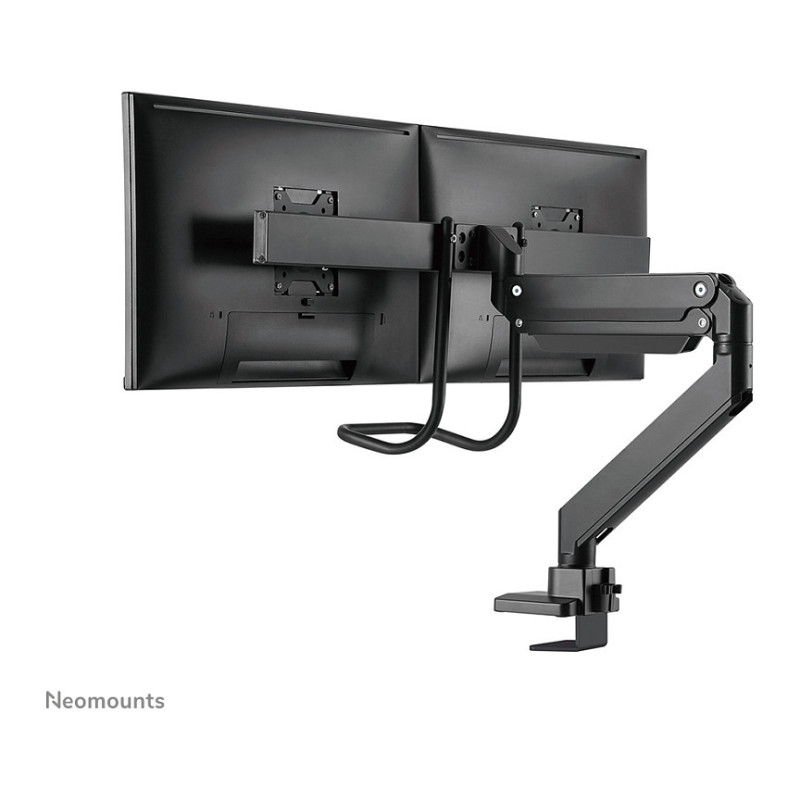

Neomounts NM-D775DXBLACK with handle has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 1 to 16 kg (max. 8 kg each screen). The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

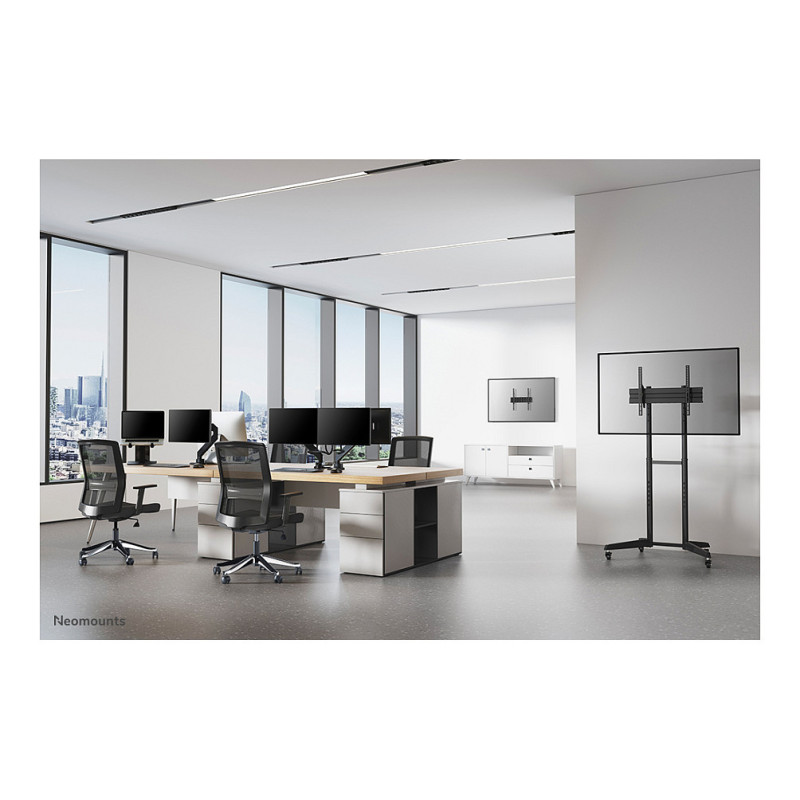

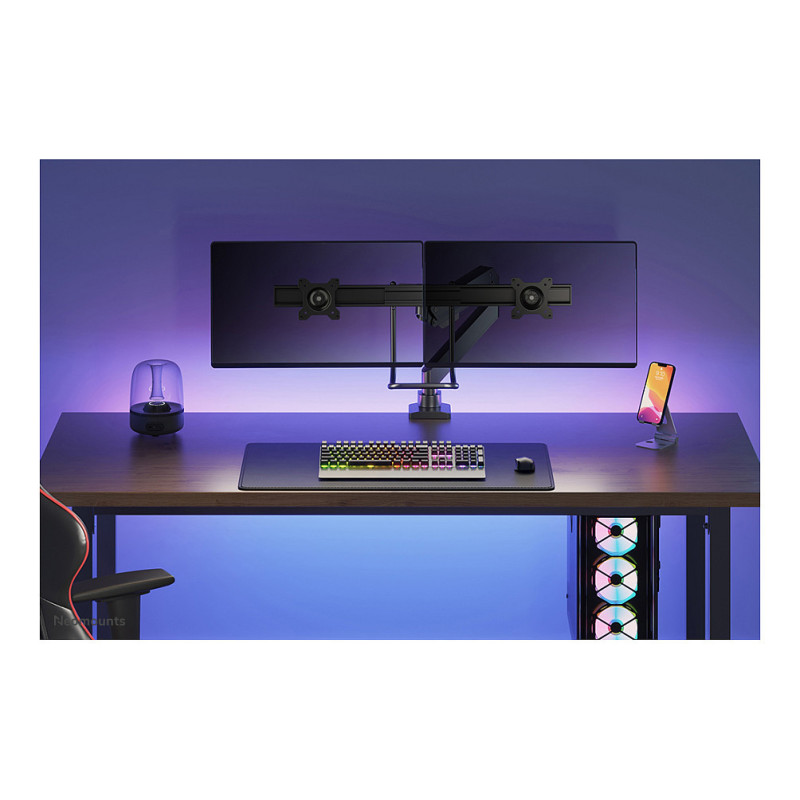

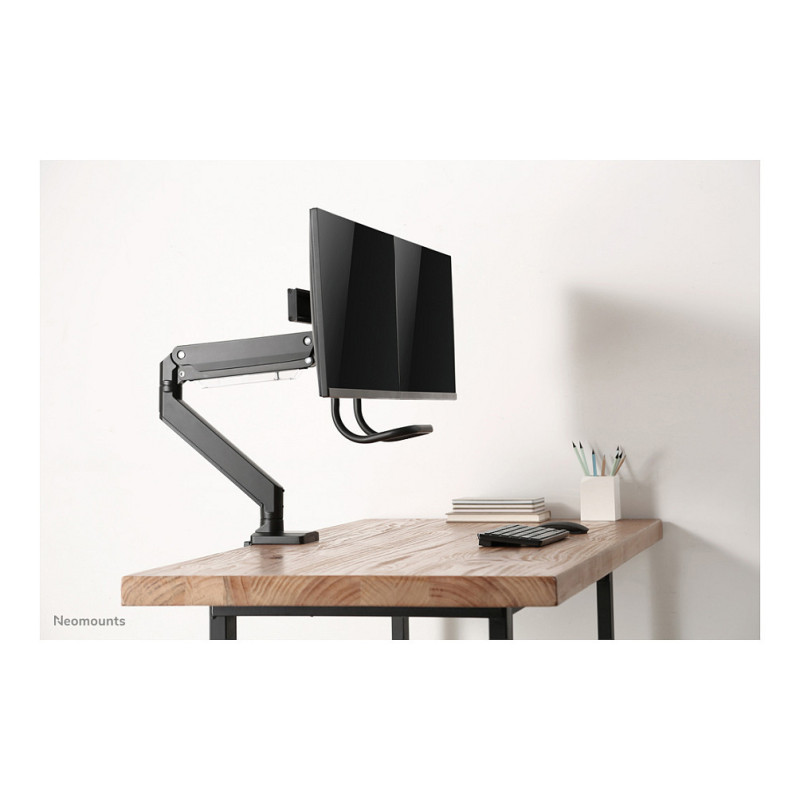

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Mounting

Maximum weight capacity: 8 kg
Minimum screen size: 25.4 cm (10")
Number of displays supported: 2
Maximum weight capacity (per display): 8 kg
Maximum screen size: 81.3 cm (32")

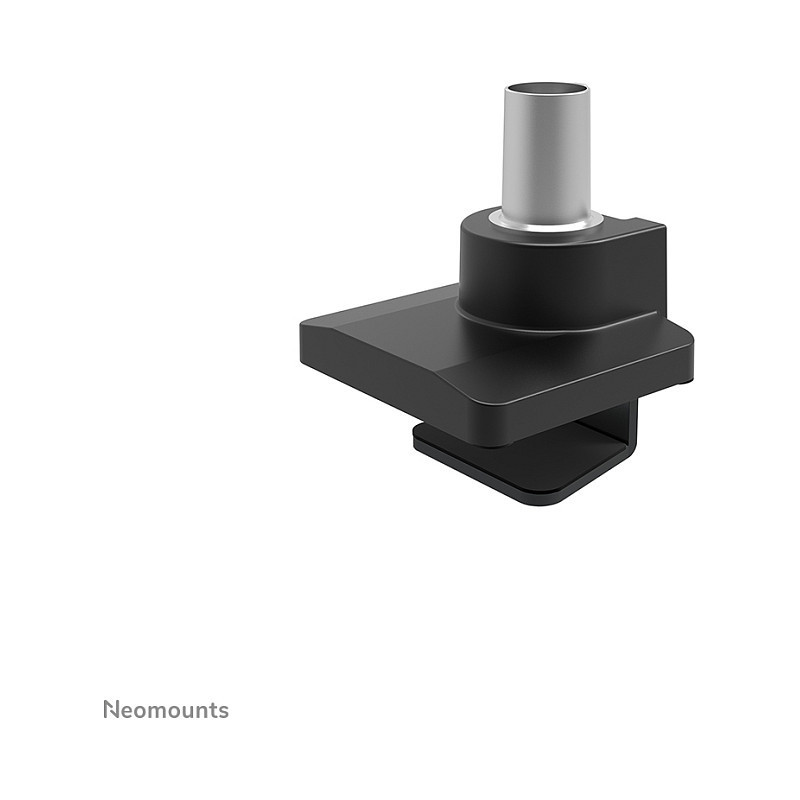

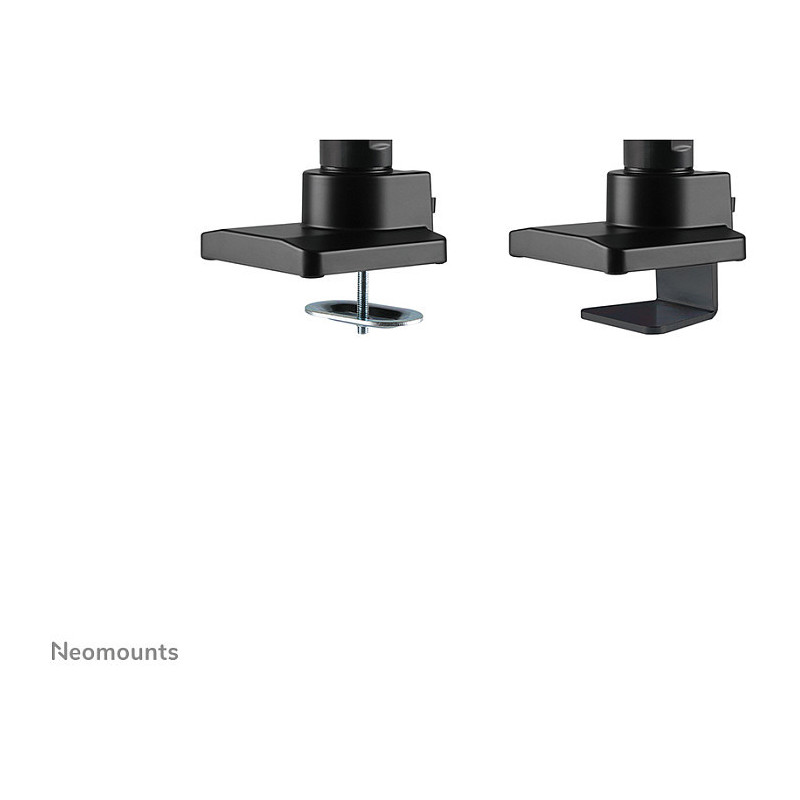

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 4.5 cm

Ergonomics

Feature: Height adjustment
Height adjustment type: Gas spring

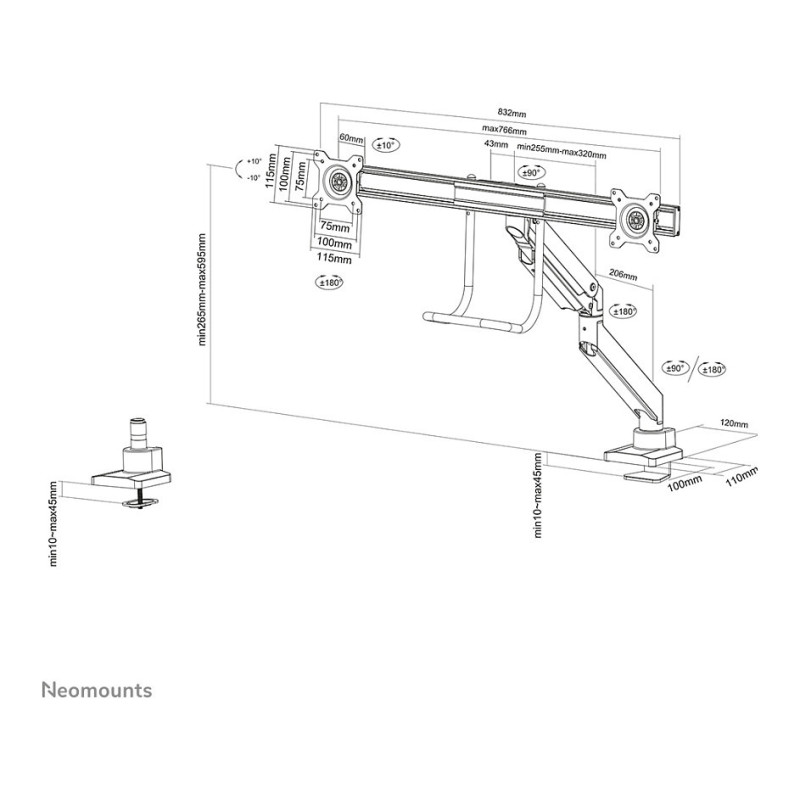

Height adjustment range: 270 - 600 mm
Depth adjustment range: 0 - 630 mm
Feature: Tilt adjustment
Tilt angle range: -10 - 10°
Feature: Swivelling
Swivel angle: 360°
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 - 180°
Feature: Cable management

Design

Housing material: Steel
Product colour: Black

Weight & dimensions

Height: 600 mm
Weight: 5.92 kg

Packaging data

Package width: 225 mm
Package depth: 150 mm
Package height: 895 mm
Package net weight: 8.95 kg
Package weight: 9 kg

Other features

Minimum weight: 1 kg

Logistics data

Master (outer) case width: 910 mm
Master (outer) case length: 470 mm
Master (outer) case height: 170 mm
Master (outer) case gross weight: 9 kg
Products per master (outer) case: 2 pc(s)
Country of origin: China
Master (outer) case net weight: 9 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 22 pc(s)
