Neomounts LED-VW1000BLACK signage display mount

Neomounts LED-VW1000BLACK Videowall wall mount 40-75" - pull-out - max 50 kg. Maximum weight capacity: 50 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Product colour: Black

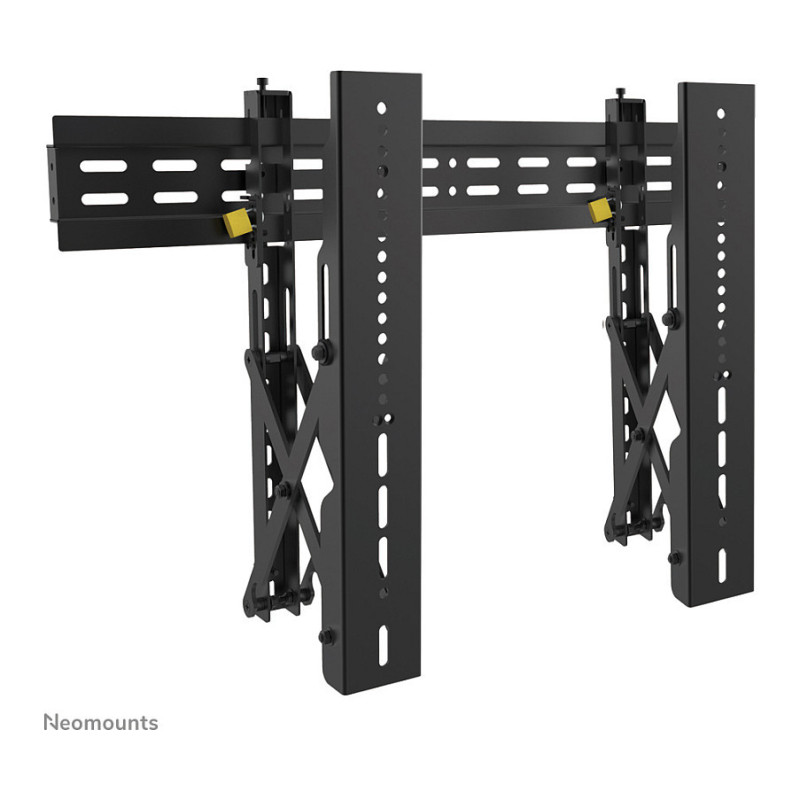

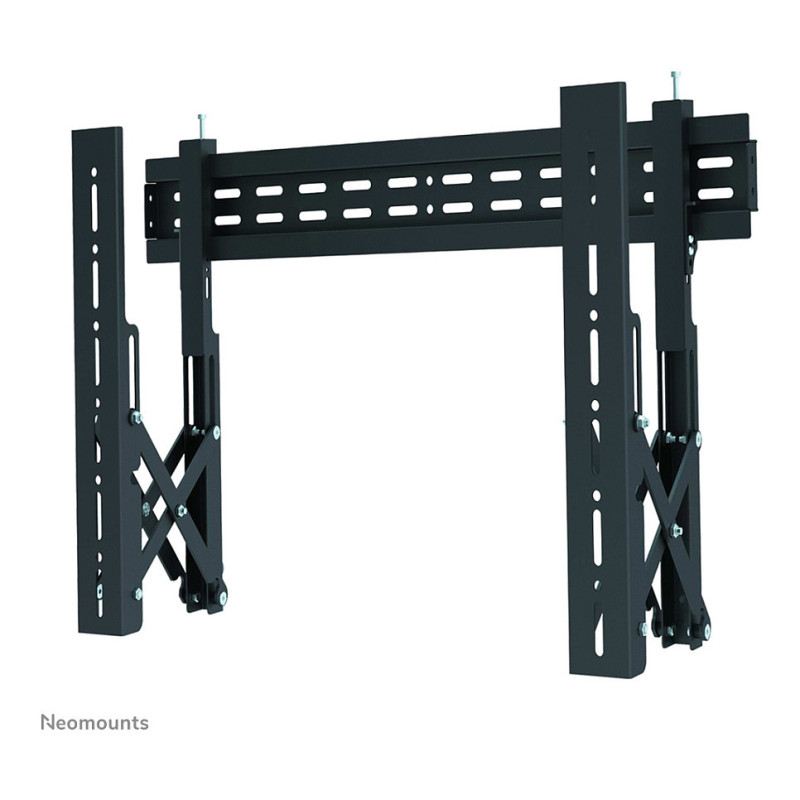

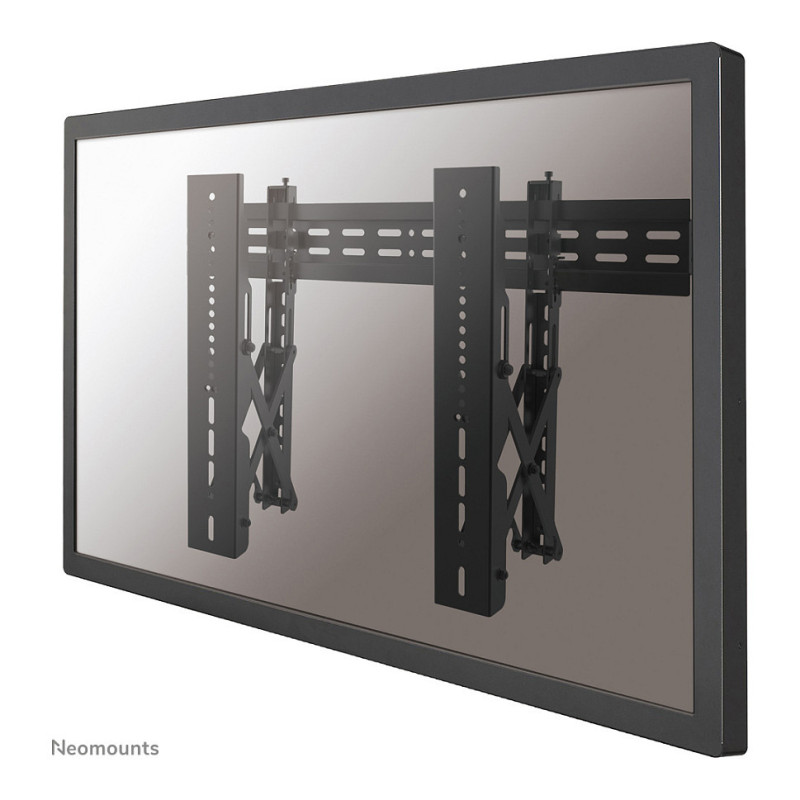

The Neomounts wall mount, model LED-VW1000BLACK is a fixed wall mount for flat screens up to 75". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 5,6 to 21,5 centimetres. This wall mount is specially made to be used in video walls. The screen easily can be pulled out.

Neomounts LED-VW1000BLACK is suitable for flat screens up to 75". The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.

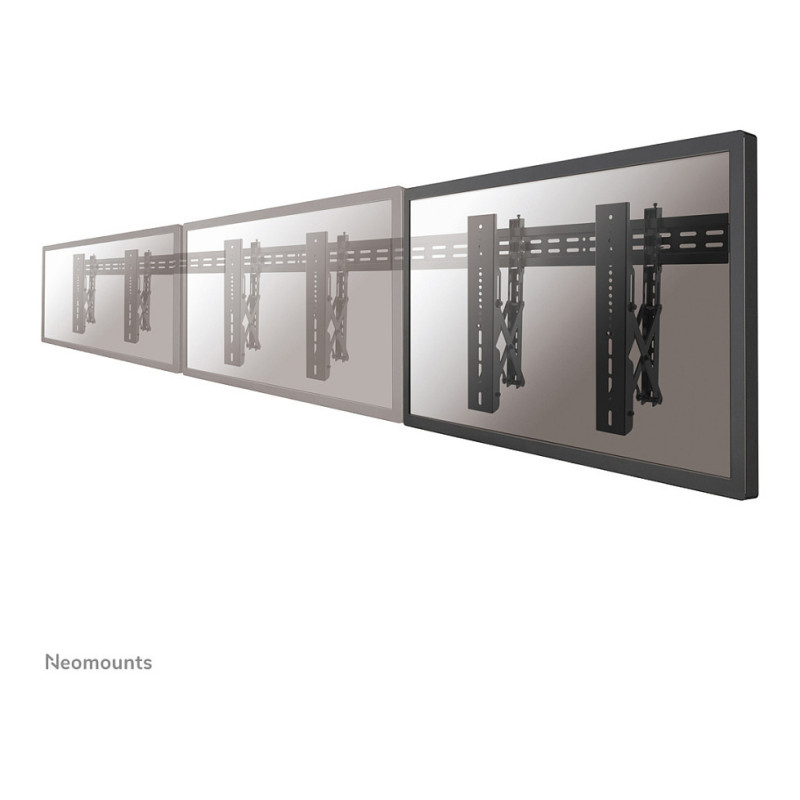

Create a clean design videowall presentation with the Neomounts LED-VW1000BLACK videowall mount solution!

Mounting

Maximum weight capacity: 50 kg
Minimum screen size: 101.6 cm (40")
Number of displays supported: 1
Maximum weight capacity (per display): 50 kg
Maximum screen size: 190.5 cm (75")
Mounting type: Wall
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400

Ergonomics

Distance to the wall (min): 5.6 cm
Distance to the wall (max): 21.5 cm

Design

Type: Fixed floor stand
Product colour: Black
Housing material: Steel
Feature: Accepts padlock

Weight & dimensions

Weight: 7.8 kg

Packaging data

Package width: 112 mm
Package depth: 115 mm
Package height: 980 mm
Package weight: 9.2 kg

Technical details

Package net weight: 9.19 kg

Other features

Country of origin: China

Logistics data

Master (outer) case net weight: 27.6 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 48 pc(s)
Quantity per master (outer) case: 3 pc(s)
Master (outer) case width: 1010 mm
Master (outer) case length: 360 mm
Master (outer) case height: 140 mm
Master (outer) case gross weight: 27.6 kg
Products per master (outer) case: 3 pc(s)
