Neomounts FPMA-D860DBLACK monitor mount / stand

Neomounts FPMA-D860DBLACK Monitor arm 10-27". Mounting: Clamp/Grommet, Maximum weight capacity: 7 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -10 - 10°, Tilt angle range: -10 - 10°. Product colour: Black

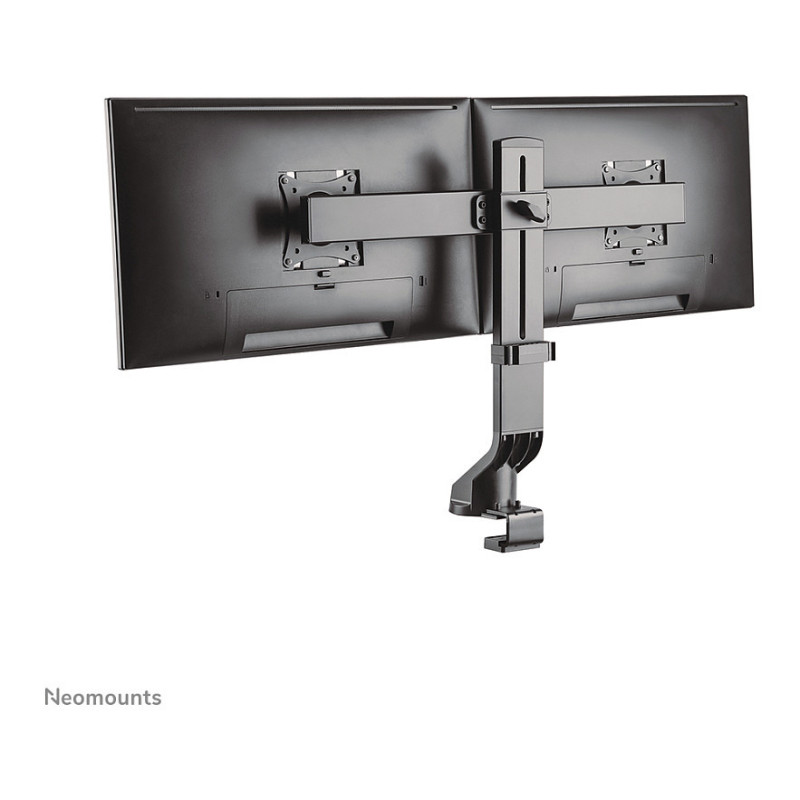

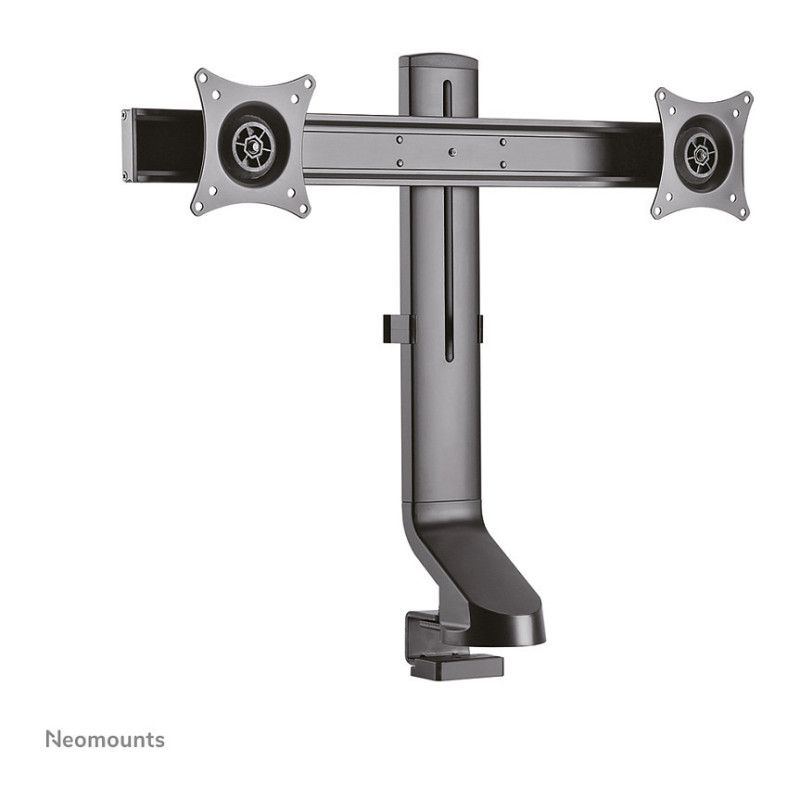

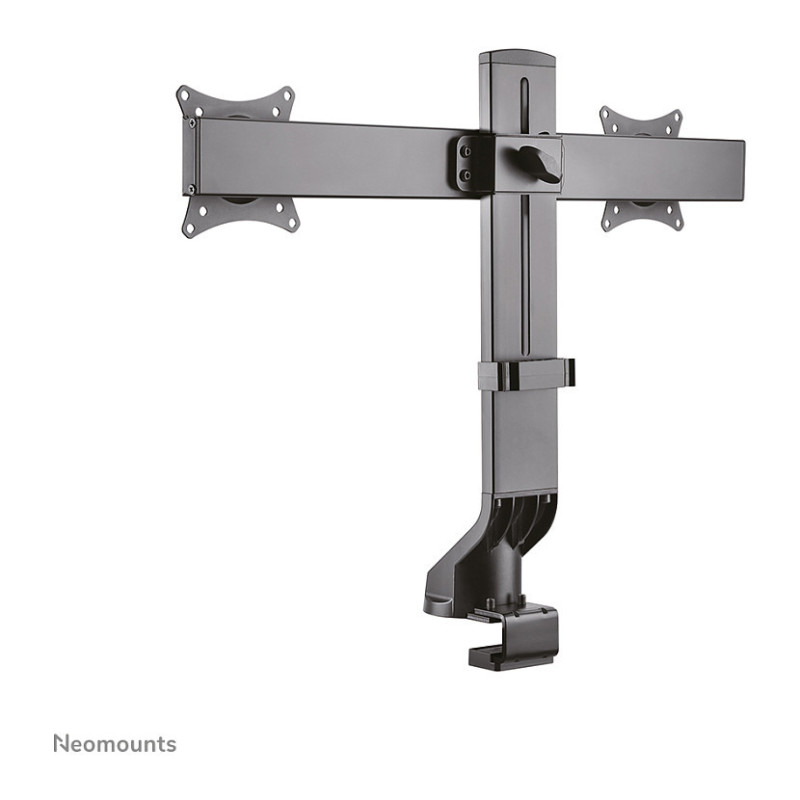

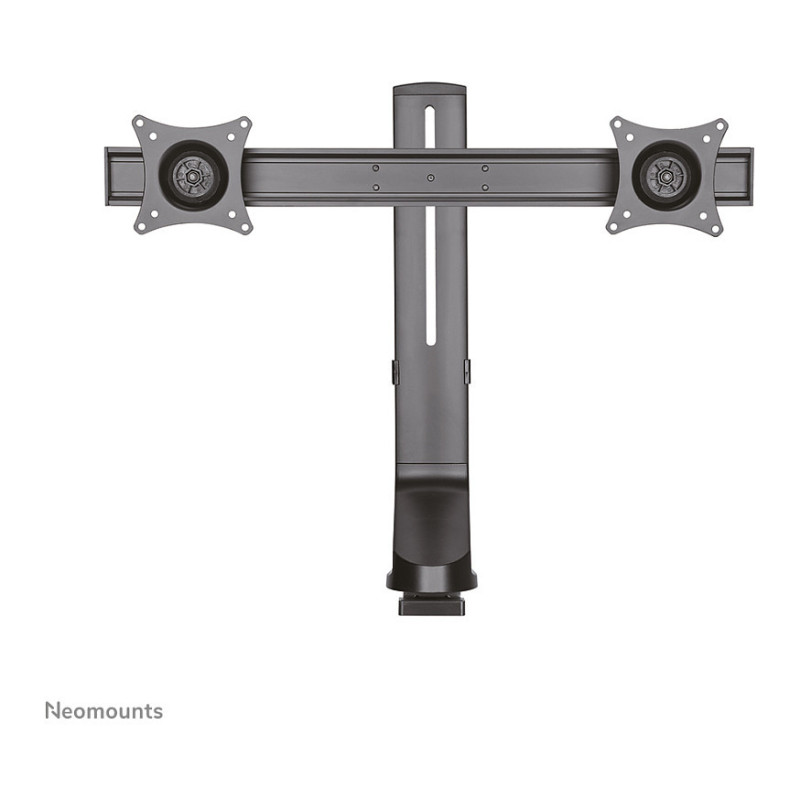

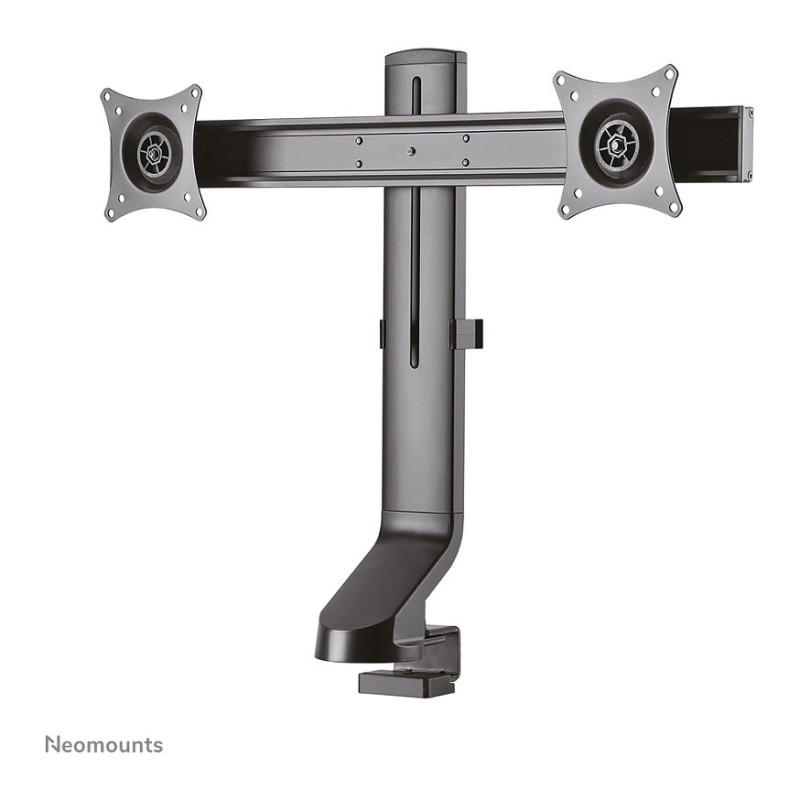

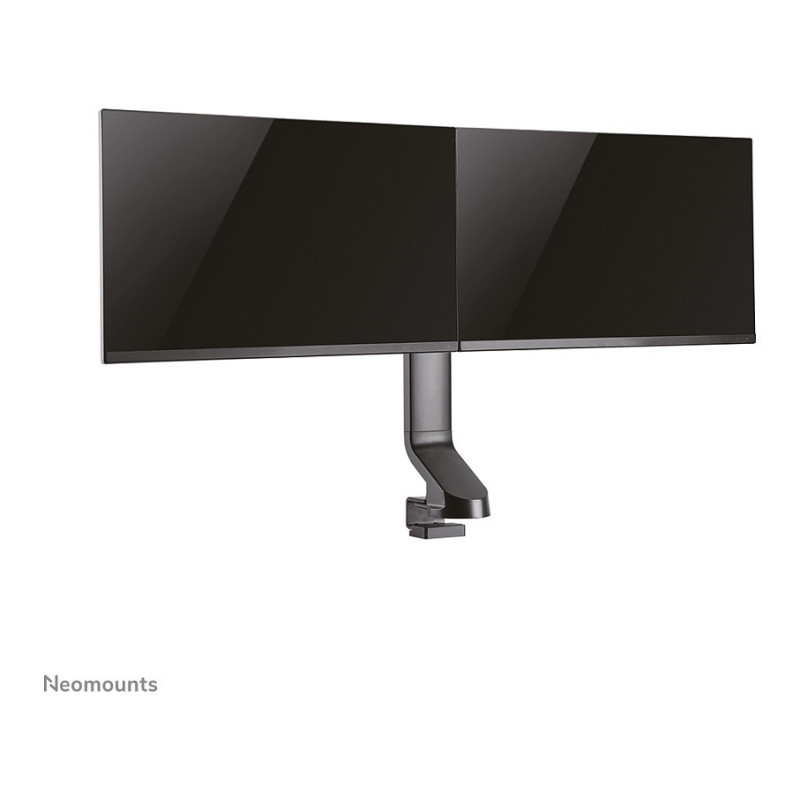

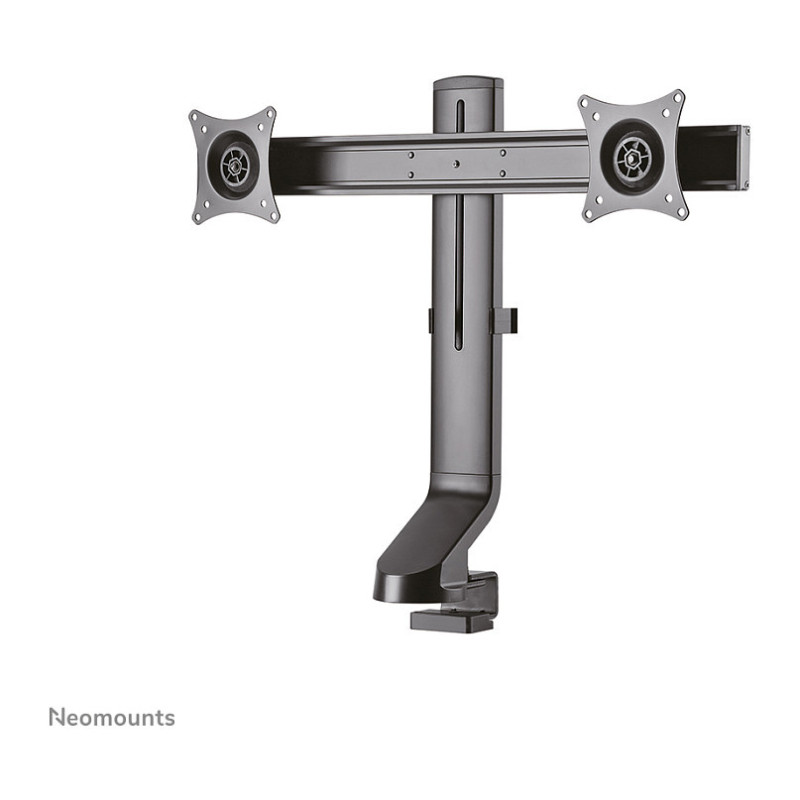

The Neomounts desk mount, model FPMA-D860DBLACK is a tilt-, swivel and rotatable desk mount for two flat screens up to 27". This mount is a great choice for space saving placement on desks.

Neomounts versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 24 to 47 centimetres. Depth 5 centimetres.

Neomounts FPMA-D860DBLACK has one pivot point and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 7 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

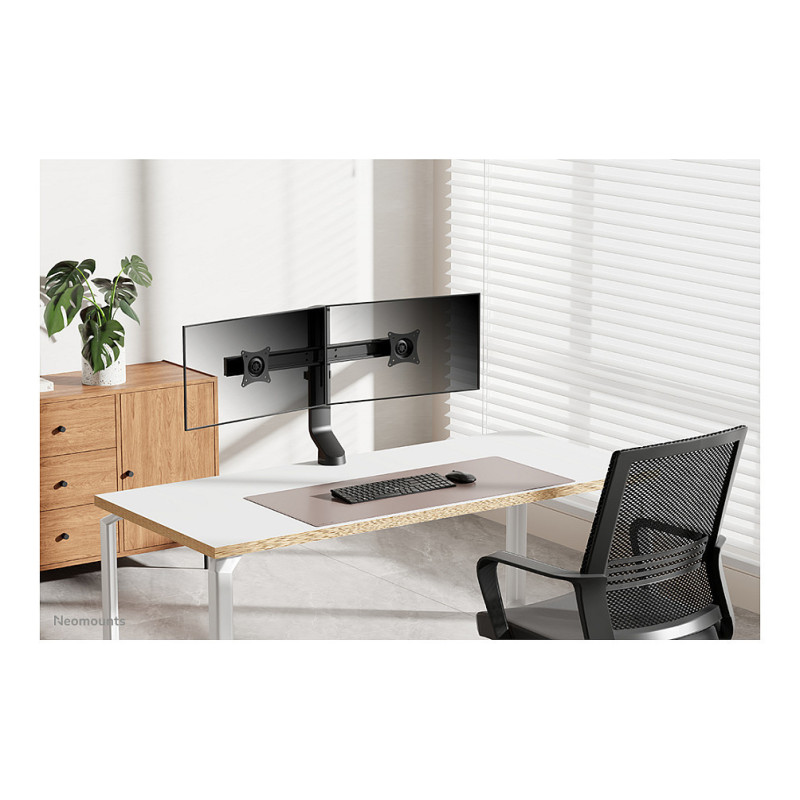

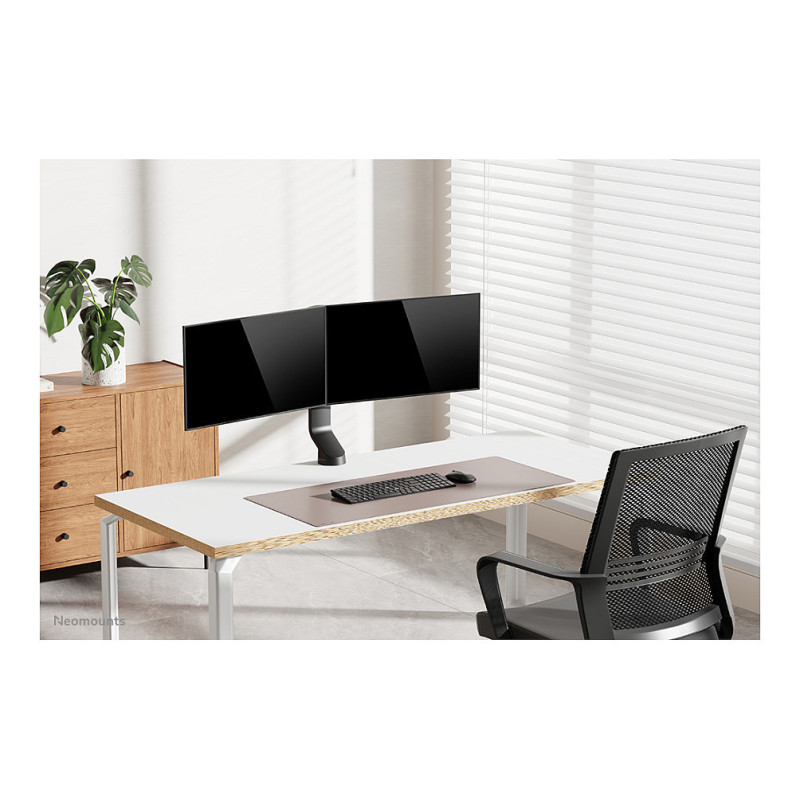

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Mounting

Maximum weight capacity: 7 kg
Minimum screen size: 25.4 cm (10")
Number of displays supported: 2
Maximum weight capacity (per display): 7 kg
Maximum screen size: 68.6 cm (27")

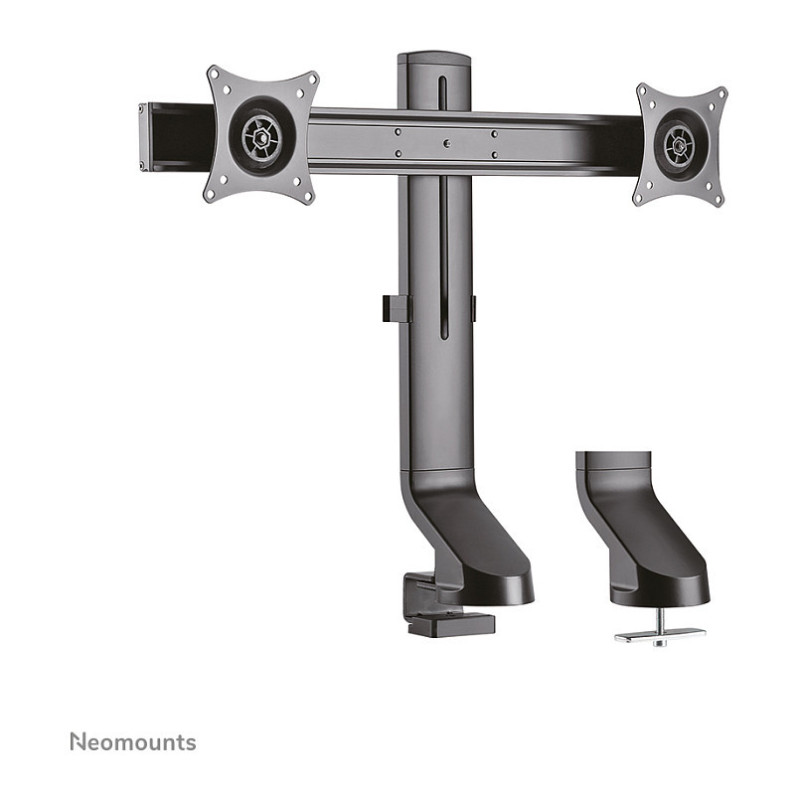

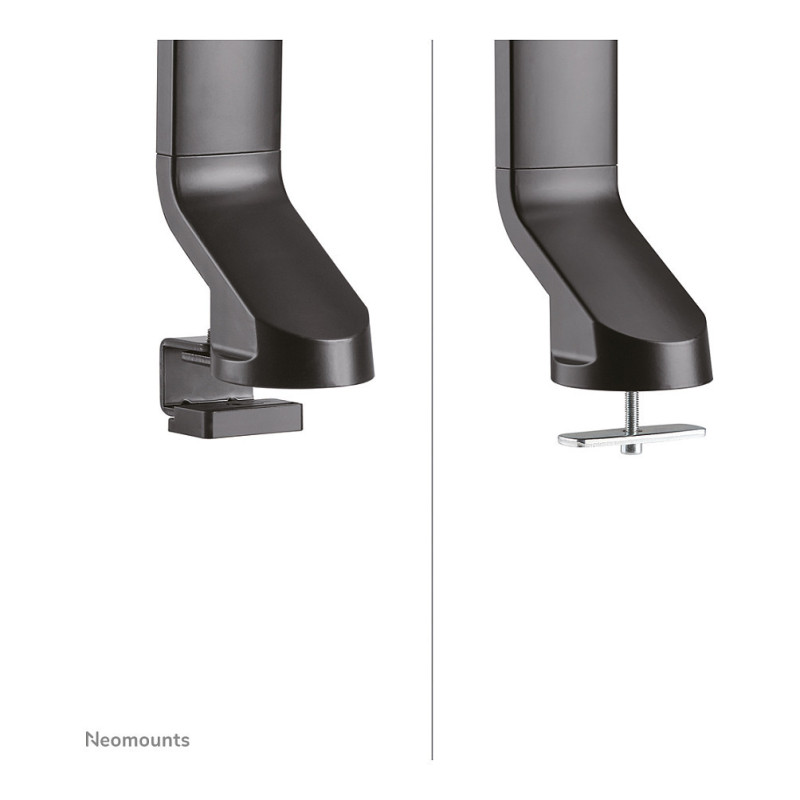

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (max): 2.5 cm

Ergonomics

Feature: Height adjustment
Height adjustment type: Manual
Height adjustment range: 240 - 470 mm
Depth adjustment range: 0 - 50 mm

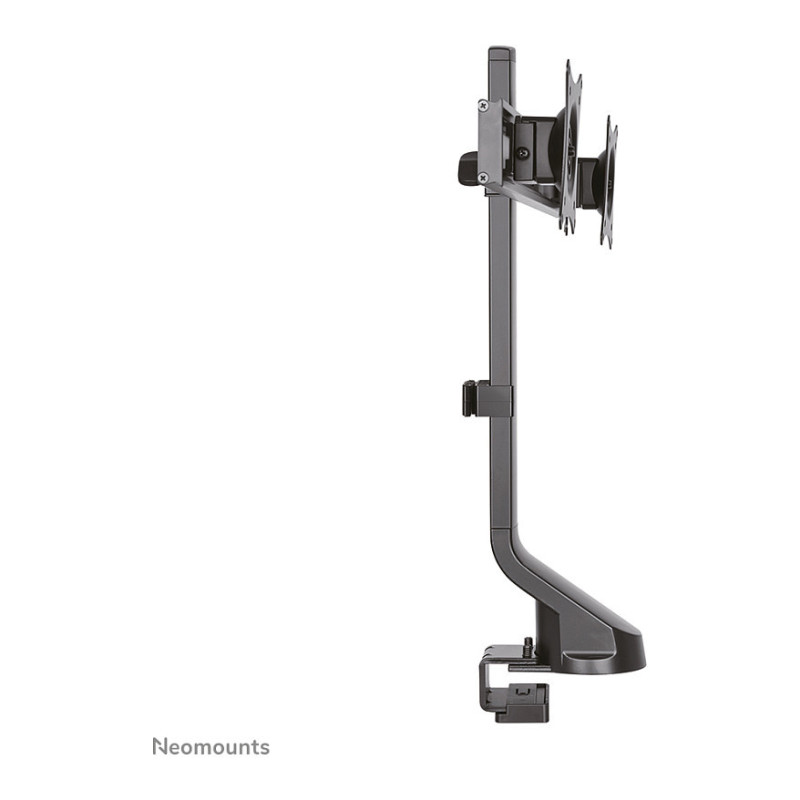

Feature: Tilt adjustment
Tilt angle range: -10 - 10°
Feature: Swivelling
Swivel angle: 20°
Swivel angle range: -10 - 10°
Feature: Rotating

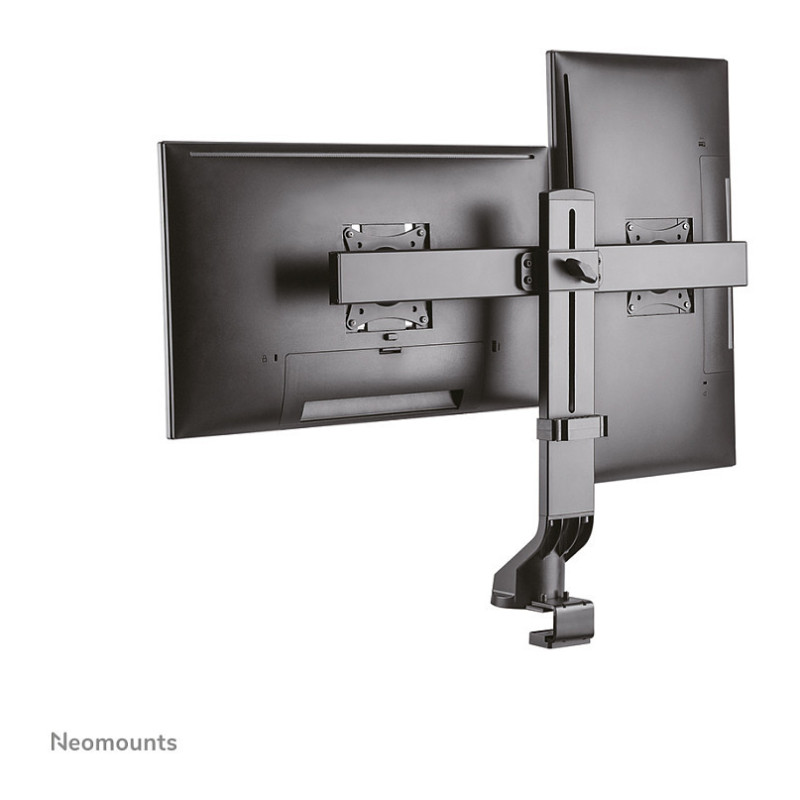

Angle of rotation: 360°
Pivot angle: -180 - 180°
Number of pivot points: 1

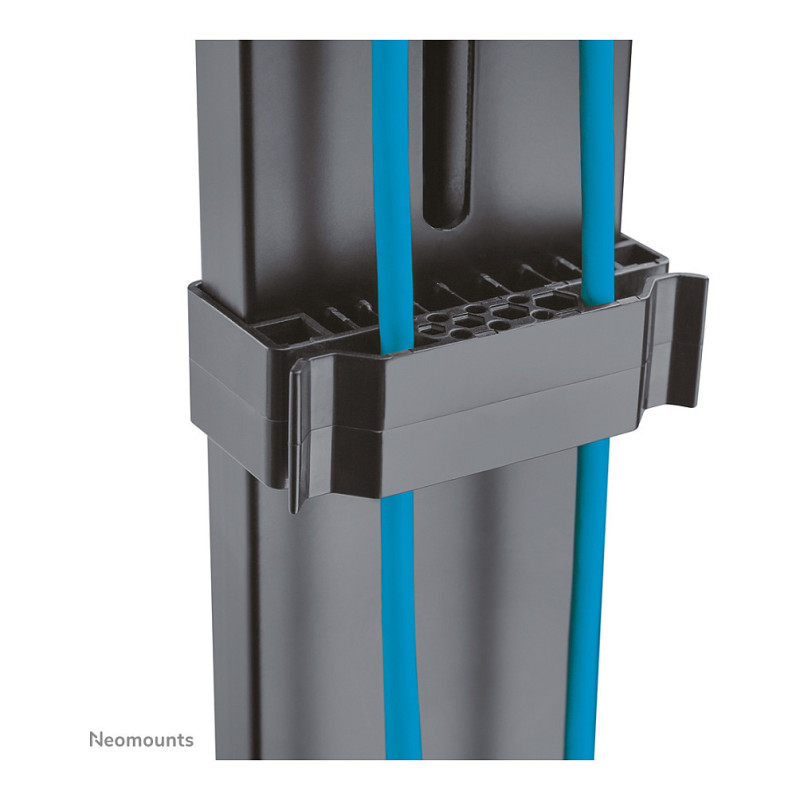

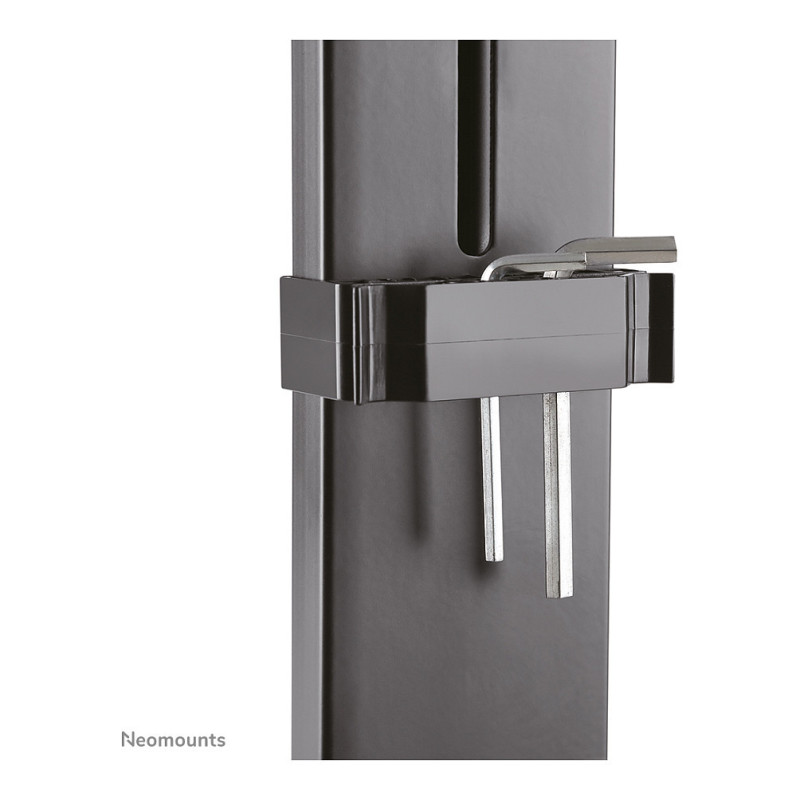

Feature: Cable management

Design

Housing material: Aluminium
Product colour: Black

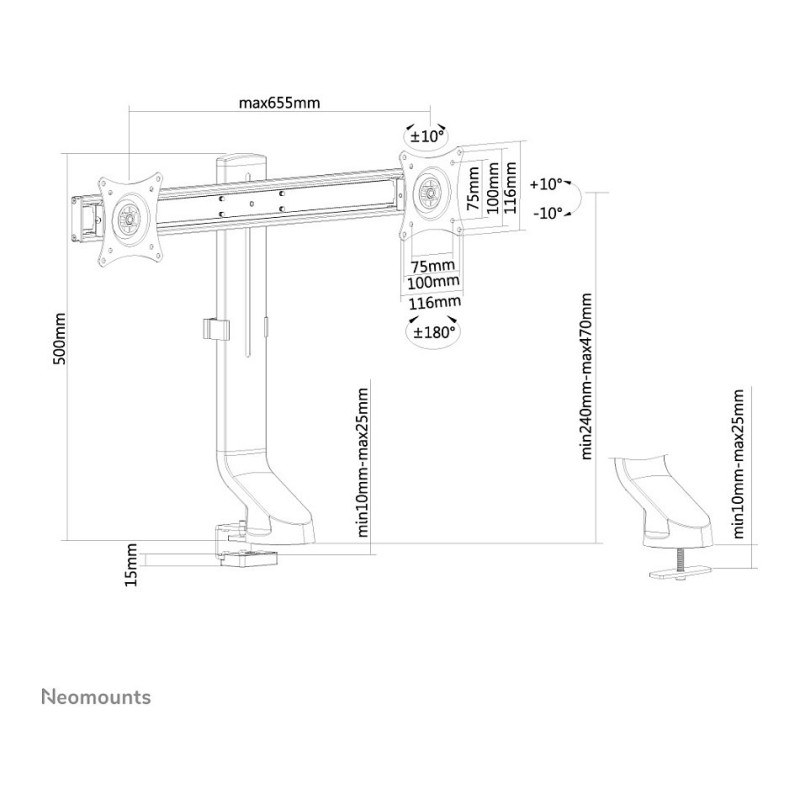

Weight & dimensions

Depth: 50 mm
Height: 470 mm
Weight: 3.21 kg

Packaging data

Package width: 145 mm
Package depth: 90 mm
Package height: 745 mm
Package weight: 3.8 kg

Logistics data

Master (outer) case width: 540 mm
Master (outer) case length: 320 mm
Master (outer) case height: 445 mm
Master (outer) case gross weight: 12.5 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Master (outer) case net weight: 10 kg
Harmonized System (HS) code: 7616991099
Products per pallet (EU): 88 pc(s)
