Neomounts FPMA-D700D4 monitor mount / stand

Neomounts FPMA-D700D4 Monitor arm 19-30". Mounting: Clamp, Maximum weight capacity: 8 kg, Minimum screen size: 48.3 cm (19"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 180°. Product colour: Black

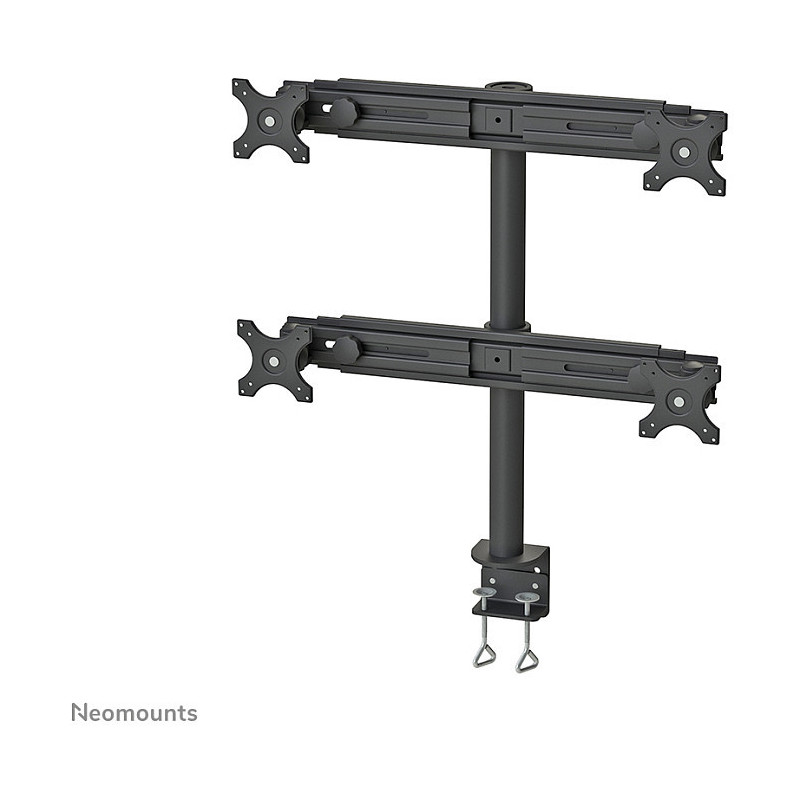

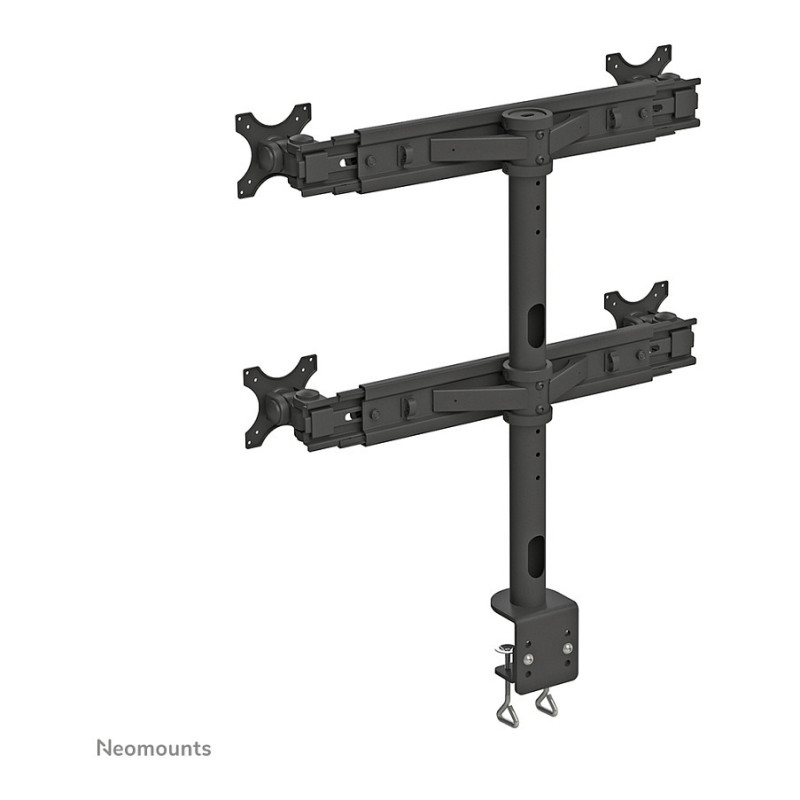

The Neomounts desk mount, model FPMA-D700D4 is a tilt-, swivel and rotatable desk mount for 4 flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp.

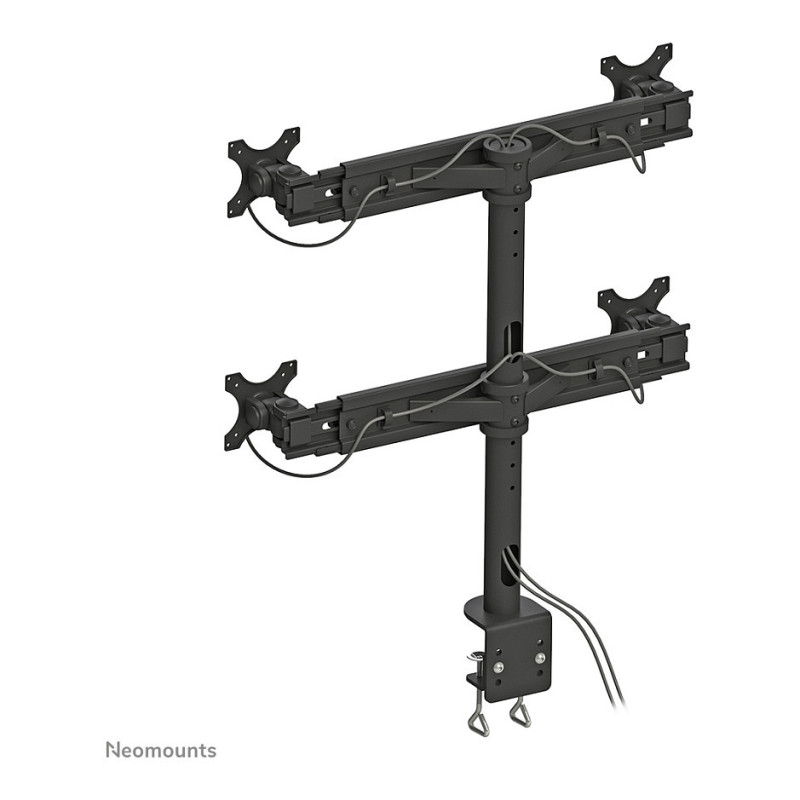

Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 70 centimetres. Depth 15 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D700D4 has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Mounting

Maximum weight capacity: 8 kg
Minimum screen size: 48.3 cm (19")
Number of displays supported: 4
Maximum weight capacity (per display): 8 kg
Maximum screen size: 76.2 cm (30")

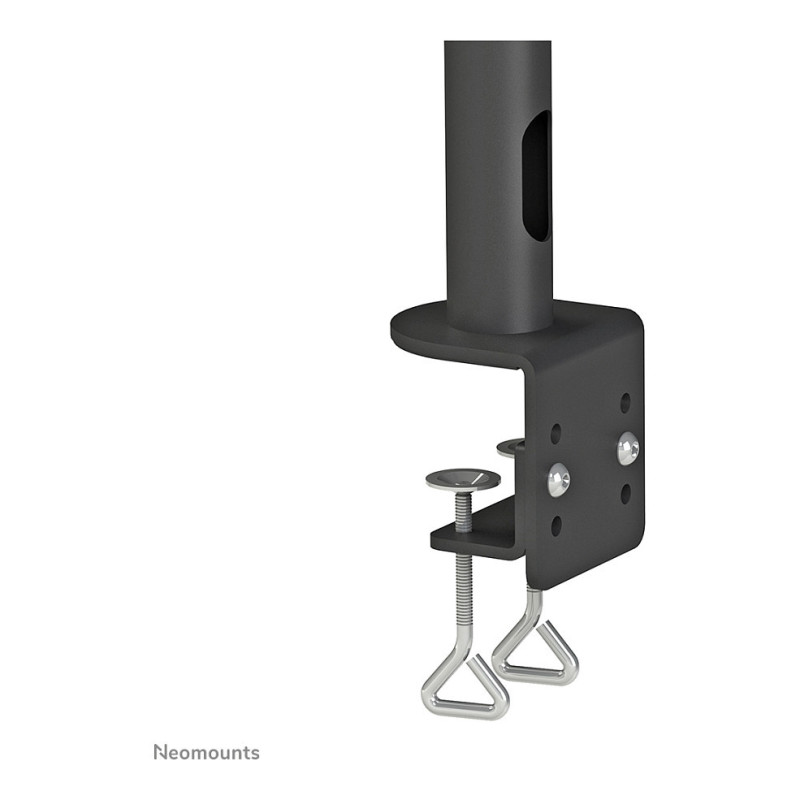

Mounting: Clamp
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (max): 9 cm

Ergonomics

Feature: Height adjustment
Height adjustment type: Manual
Height adjustment range: 220 - 700 mm
Depth adjustment range: 0 - 150 mm
Feature: Tilt adjustment
Tilt angle range: 0 - 180°
Feature: Swivelling
Swivel angle: 180°
Swivel angle range: 0 - 180°
Feature: Rotating
Angle of rotation: 360°

Design

Housing material: Steel
Product colour: Black

Weight & dimensions

Width: 830 mm
Depth: 150 mm
Height: 700 mm
Weight: 13.9 kg

Packaging data

Package width: 830 mm
Package depth: 555 mm
Package height: 180 mm
Package weight: 12.6 kg

Other features

Width adjustment range: 520 - 830 mm

Logistics data

Master (outer) case width: 830 mm
Master (outer) case length: 555 mm
Master (outer) case height: 180 mm
Master (outer) case gross weight: 14.2 kg
Products per master (outer) case: 1 pc(s)
Country of origin: Taiwan
Master (outer) case net weight: 12.6 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 14 pc(s)
