Neomounts FPMA-C400BLACK TV mount / stand

Neomounts FPMA-C400BLACK Monitor/TV mount ceiling 32-60" - h 64-104 cm. Maximum weight capacity: 35 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 152.4 cm (60"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 640 - 1040 mm, Tilt angle range: 0 - 25°, Swivel angle range: 0 - 60°. Product colour: Black

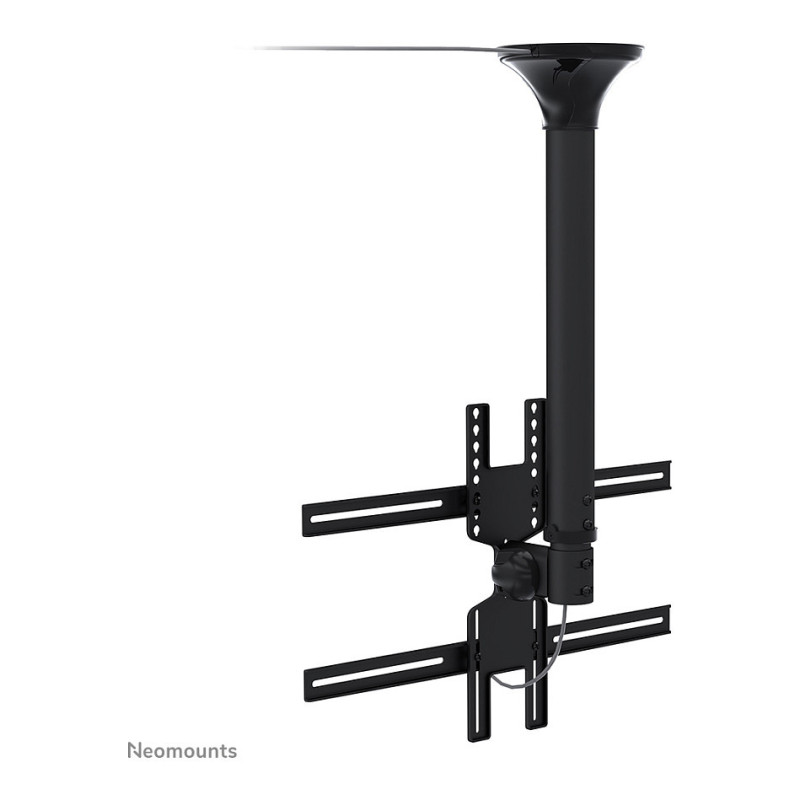

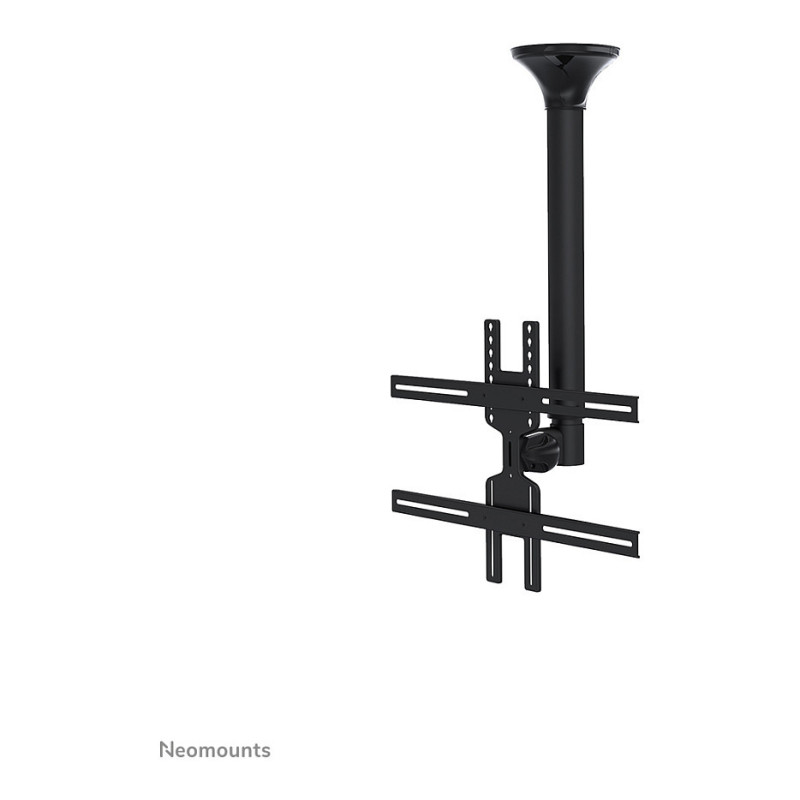

The Neomounts ceiling mount, model FPMA-C400BLACK is a tilt- and swivel ceiling mount for flat screens up to 60". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

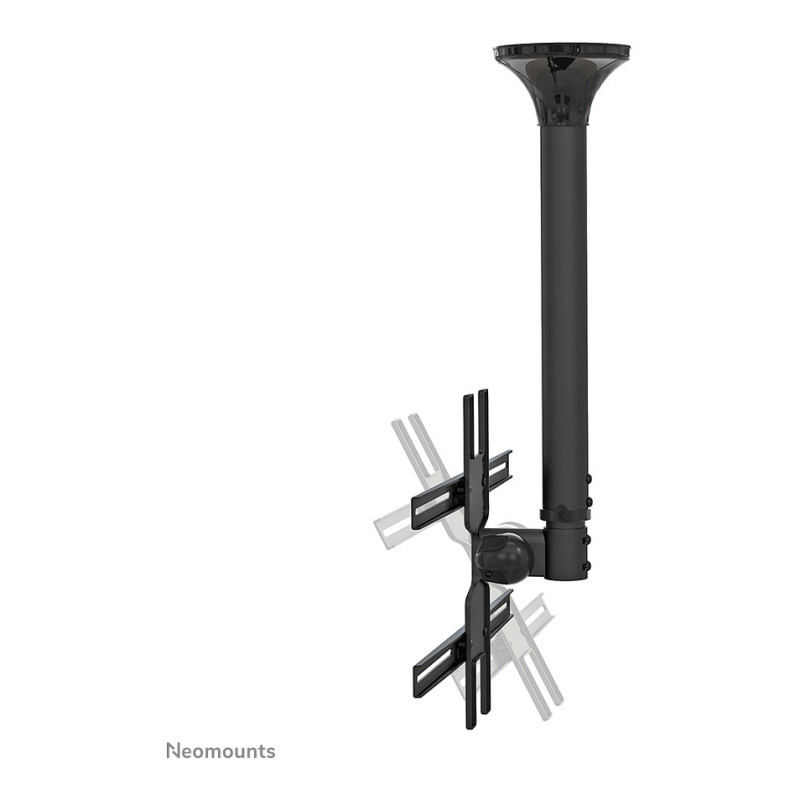

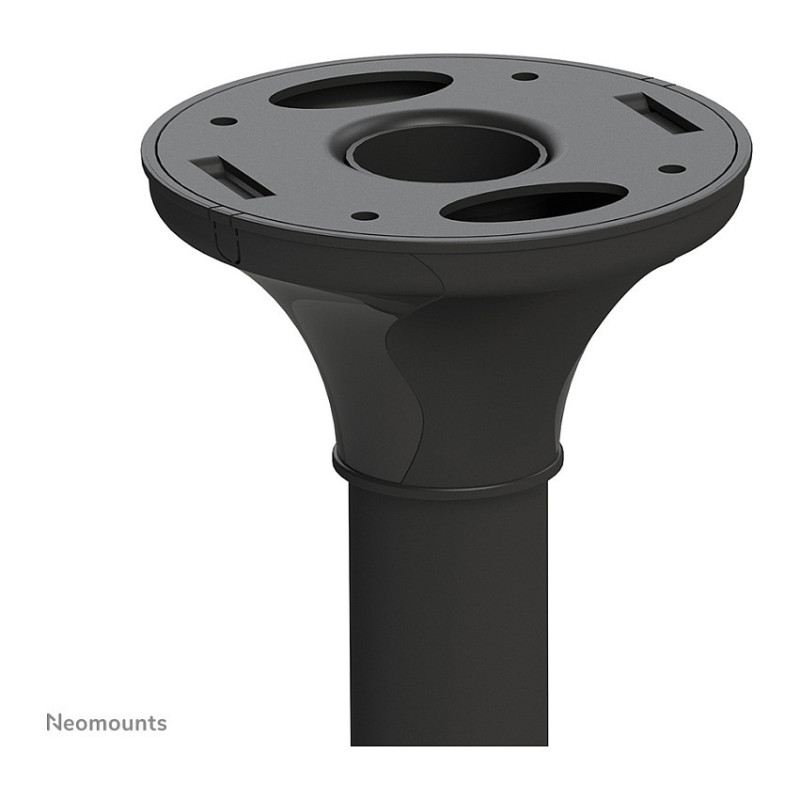

Neomounts versatile tilt (25°) and swivel (60°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

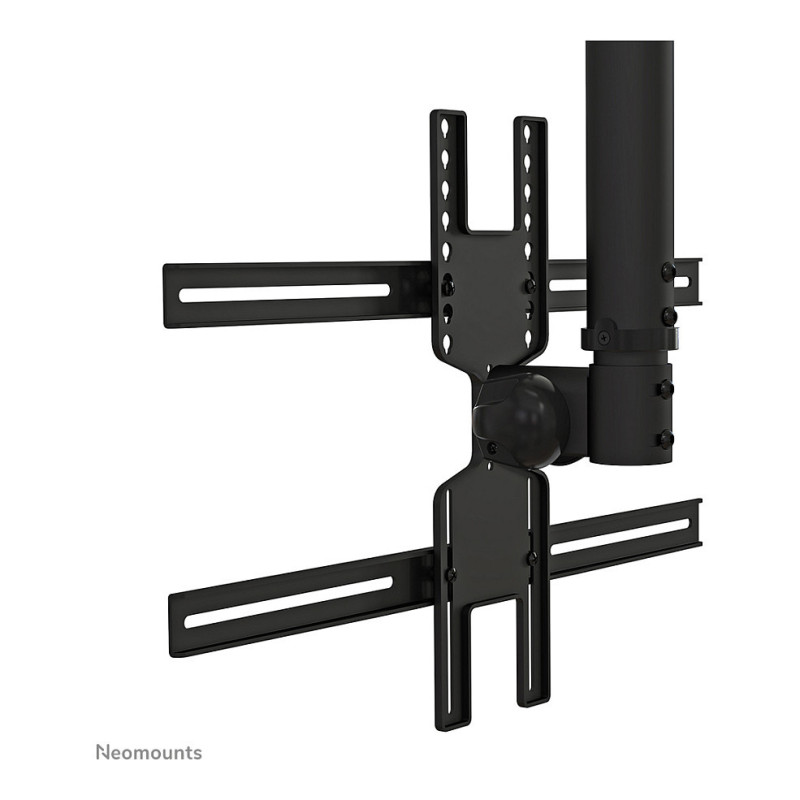

Neomounts FPMA-C400BLACK has two pivot points and is suitable for screens up to 60" (152 cm). The weight capacity of this product is 35 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.

All installation material is included with the product.

Mounting

Maximum weight capacity: 35 kg
Minimum screen size: 81.3 cm (32")
Number of displays supported: 1
Maximum weight capacity (per display): 35 kg
Maximum screen size: 152.4 cm (60")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400
Mounting type: Ceiling

Ergonomics

Feature: Height adjustment
Height adjustment type: Manual

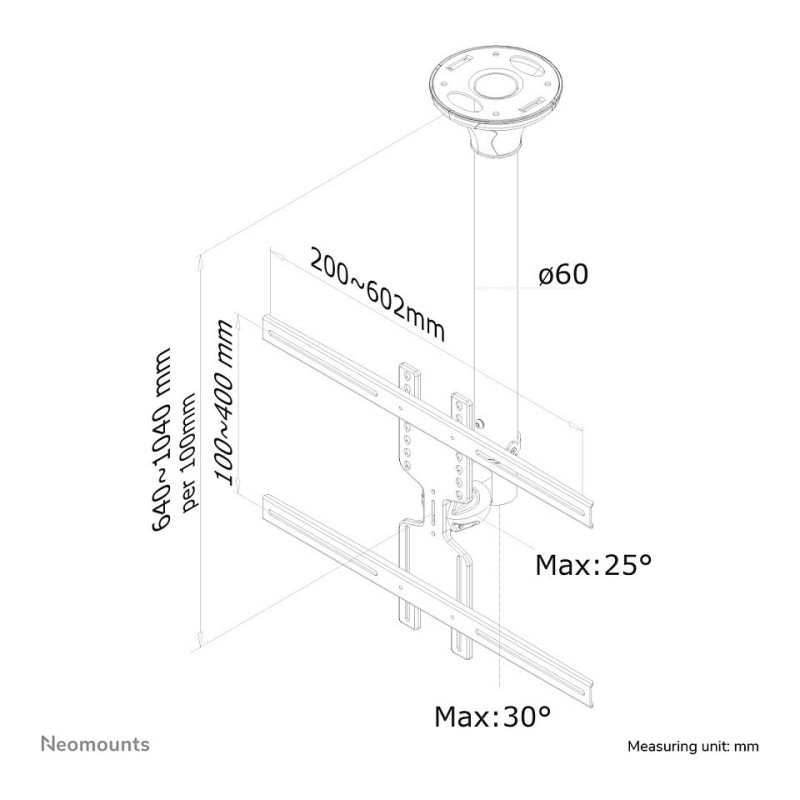

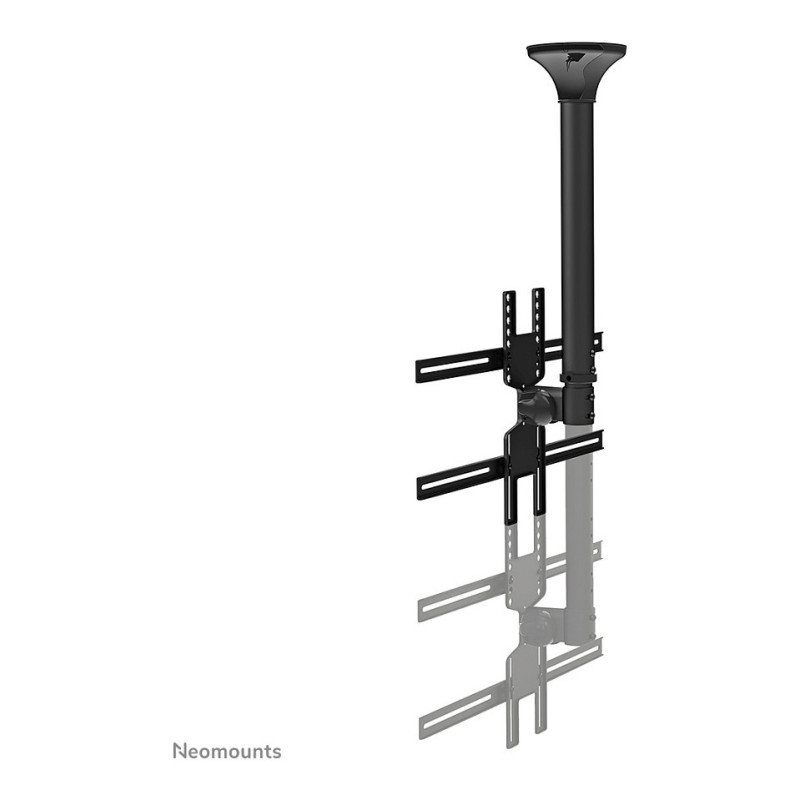

Height adjustment range: 640 - 1040 mm
Feature: Tilt adjustment
Tilt angle range: 0 - 25°

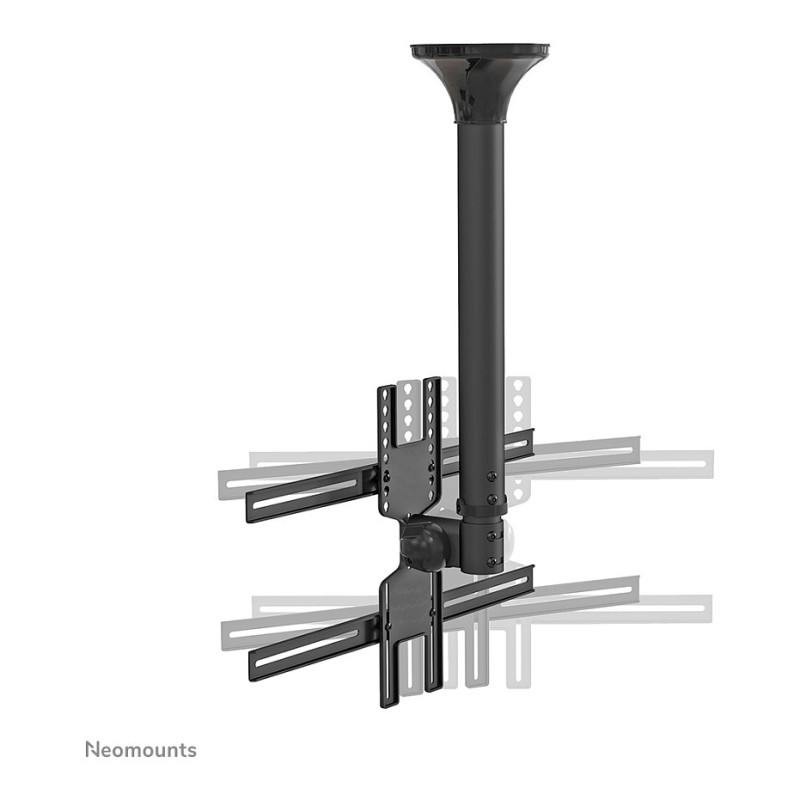

Feature: Swivelling
Swivel angle: 60°
Swivel angle range: 0 - 60°
Tilt angle: 25°

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: Taiwan
Package net weight: 4.82 kg

Weight & dimensions

Depth: 80 mm
Height: 1040 mm
Weight: 7.7 kg

Packaging data

Package width: 725 mm
Package depth: 200 mm
Package height: 220 mm
Package weight: 4.8 kg

Logistics data

Master (outer) case width: 725 mm
Master (outer) case length: 200 mm
Master (outer) case height: 220 mm
Master (outer) case gross weight: 8.7 kg
Master (outer) case net weight: 8.1 kg
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 48 pc(s)

Other features

Feature: Adjustable
Depth adjustment range: 0 - 80 mm
