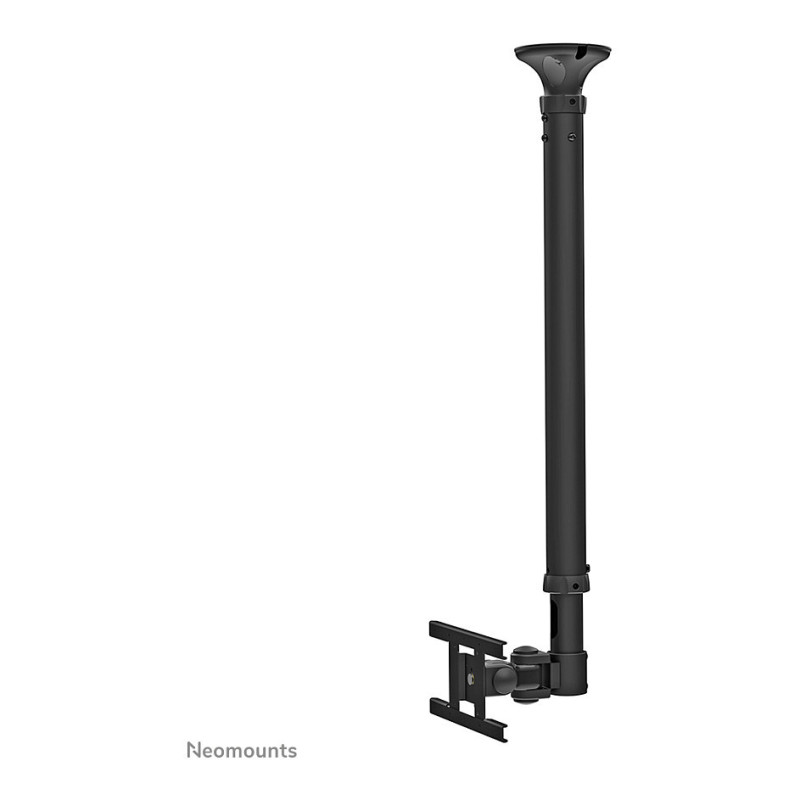

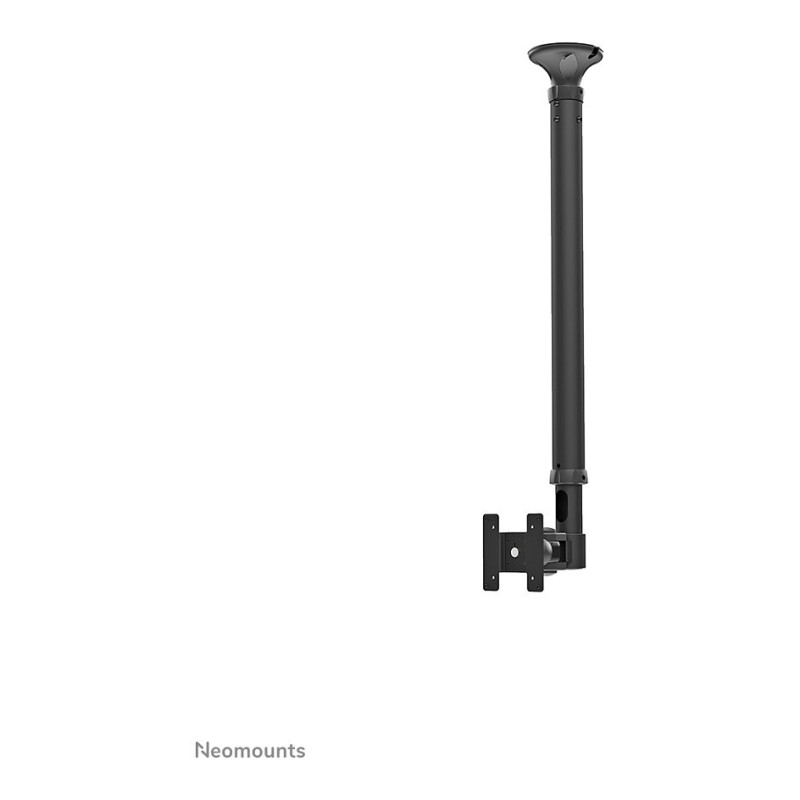

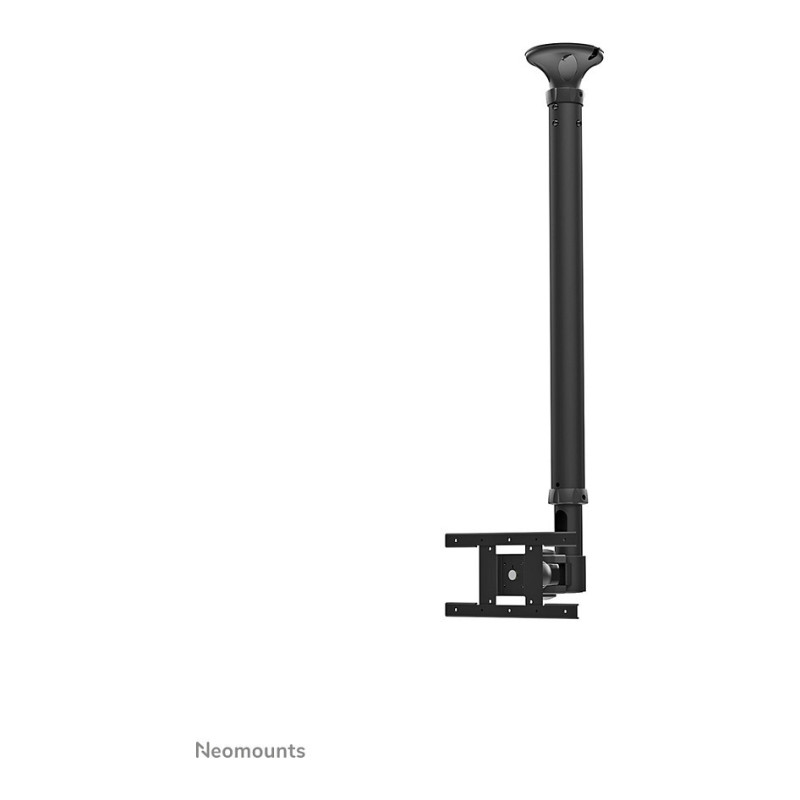

Neomounts FPMA-C100 TV mount / stand

Neomounts FPMA-C100 Monitor/TV mount ceiling 10-30" - h 79-129 cm. Maximum weight capacity: 12 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 100 mm. Height adjustment range: 790 - 1290 mm, Tilt angle range: 0 - 180°, Swivel angle range: 0 - 180°, Angle of rotation: 360°. Product colour: Black
The Neomounts ceiling mount, model FPMA-C100 is a tilt- and swivel ceiling mount for flat screens up to 30". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

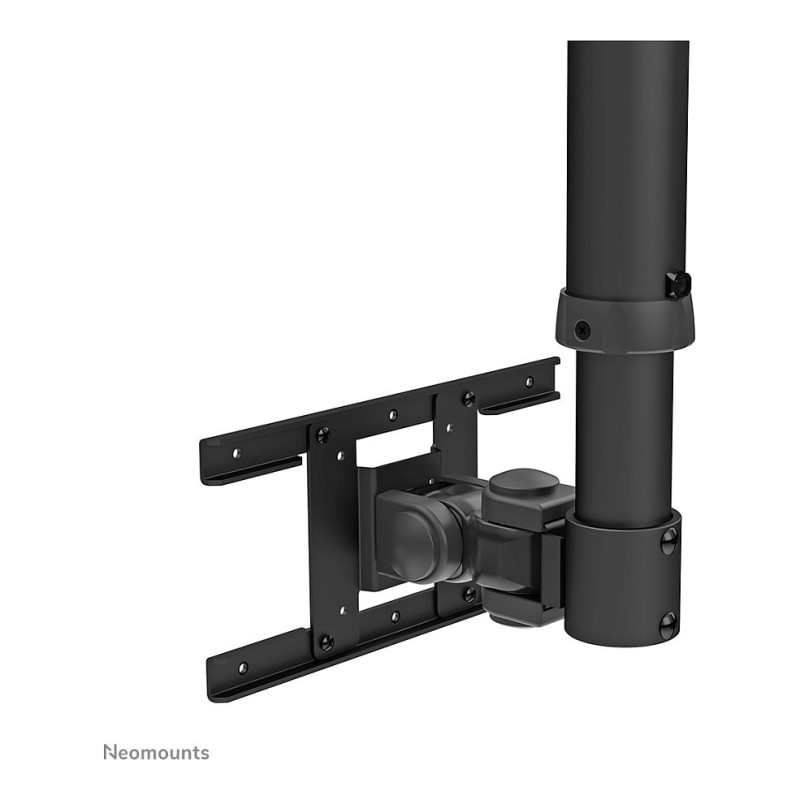

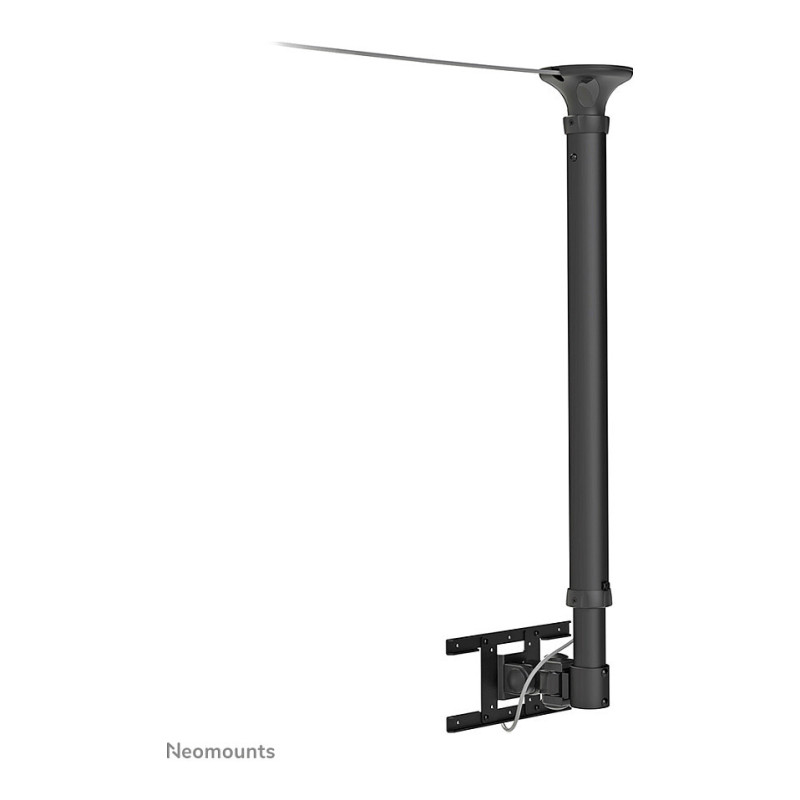

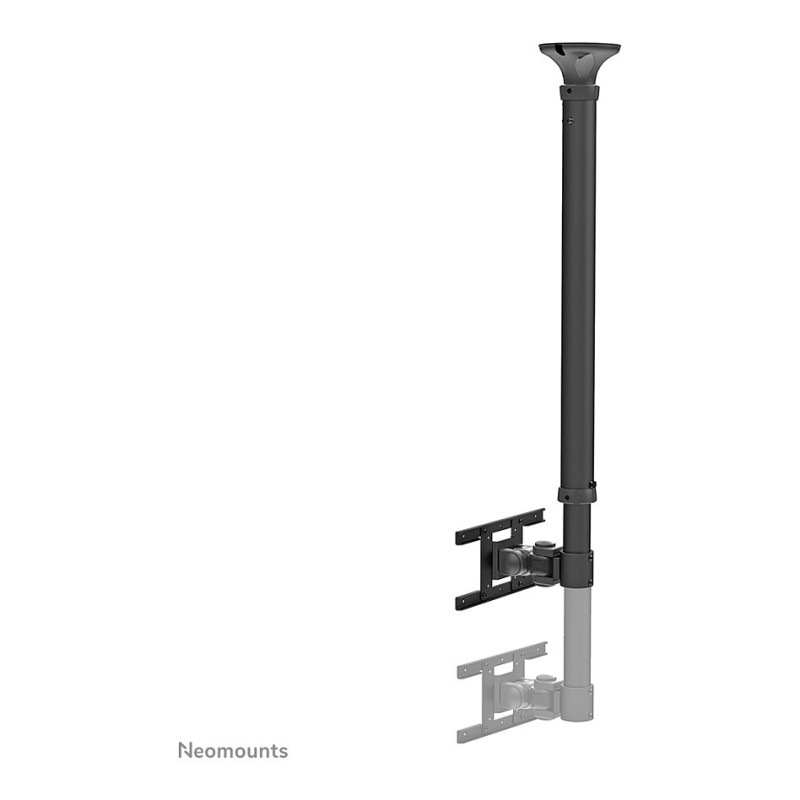

Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 79 to 129 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.
Neomounts FPMA-C100 has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 12 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.

Mounting

Maximum weight capacity: 12 kg
Minimum screen size: 25.4 cm (10")
Number of displays supported: 1
Maximum weight capacity (per display): 12 kg
Maximum screen size: 76.2 cm (30")
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 200 x 100 mm
Panel mounting interface: 100 x 200,100 x 100,75 x 75
Mounting type: Ceiling

Ergonomics

Height adjustment type: Manual

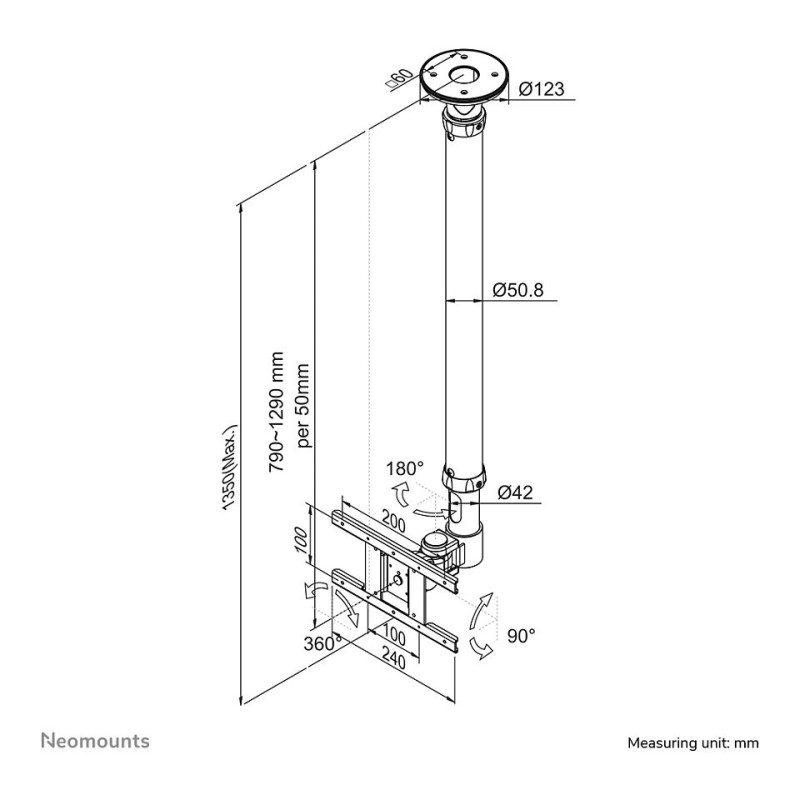

Height adjustment range: 790 - 1290 mm
Feature: Tilt adjustment
Tilt angle range: 0 - 180°
Feature: Swivelling
Swivel angle: 180°
Swivel angle range: 0 - 180°
Feature: Rotating
Angle of rotation: 360°
Tilt angle: 180°

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: Taiwan

Weight dimensions

Depth: 90 mm
Height: 1290 mm
Weight: 4.32 kg

Packaging data

Package width: 858 mm
Package depth: 152 mm
Package height: 188 mm
Package weight: 4.5 kg

Logistics data

Master (outer) case width: 880 mm
Master (outer) case length: 495 mm
Master (outer) case height: 175 mm
Master (outer) case gross weight: 16.2 kg
Master (outer) case net weight: 14.6 kg
Products per master (outer) case: 3 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 45 pc(s)

Other features

Depth adjustment range: 0 - 90 mm
