Neomounts FPMA-C050BLACK TV mount / stand

Neomounts FPMA-C050BLACK Monitor/TV mount ceiling 10-30" - h 60-85 cm. Maximum weight capacity: 20 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 50 x 50 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment range: 600 - 850 mm, Tilt angle range: 0 - 40°, Swivel angle range: 0 - 180°. Product colour: Black

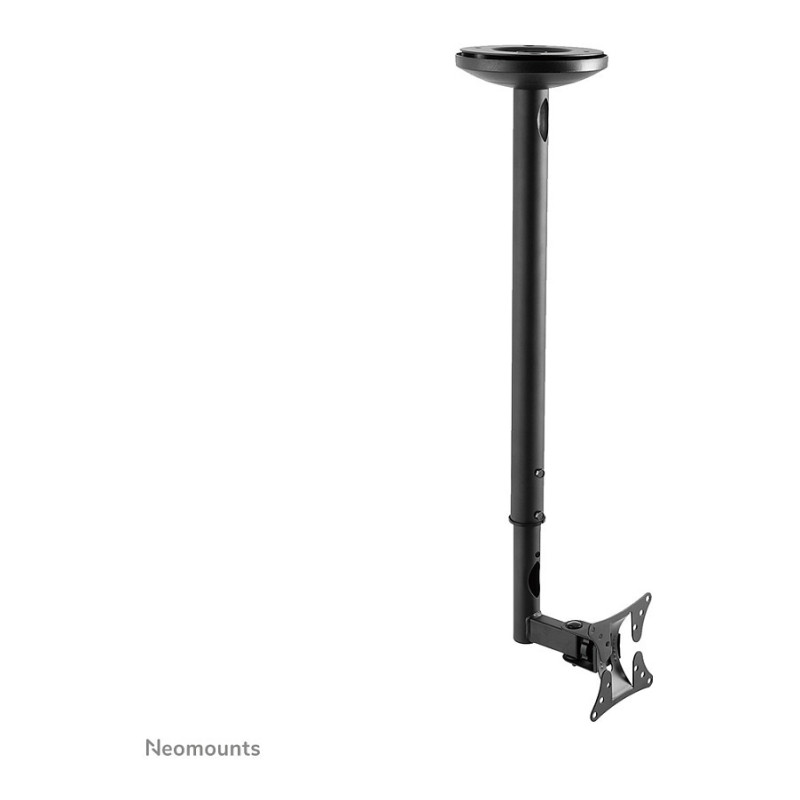

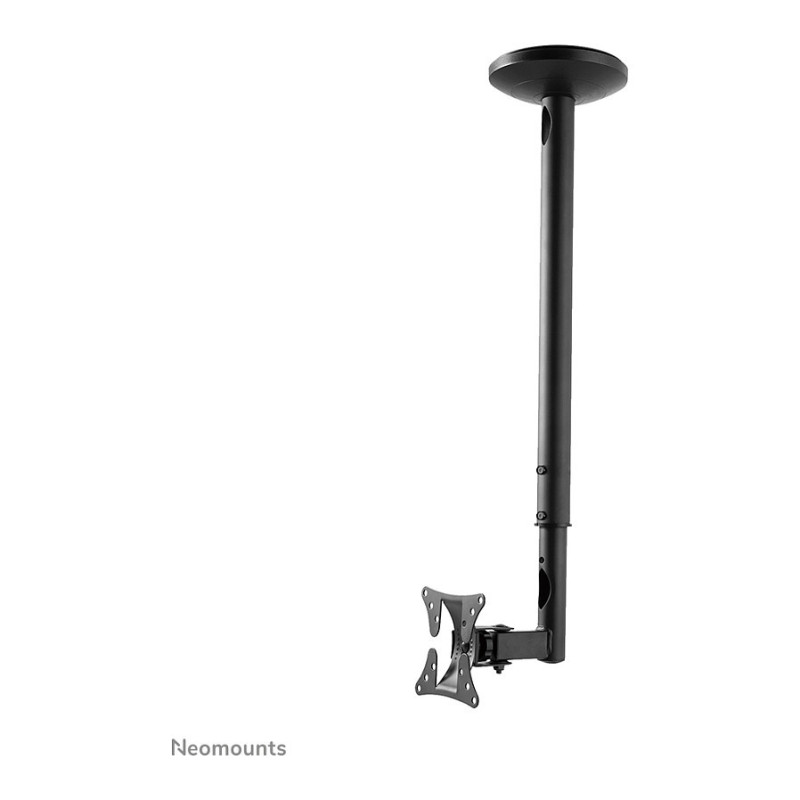

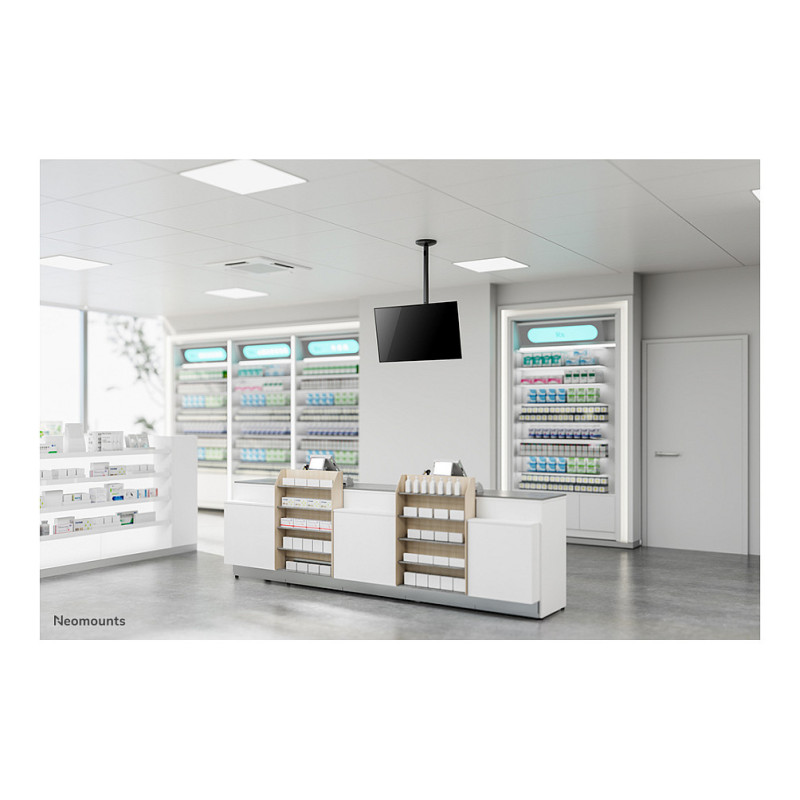

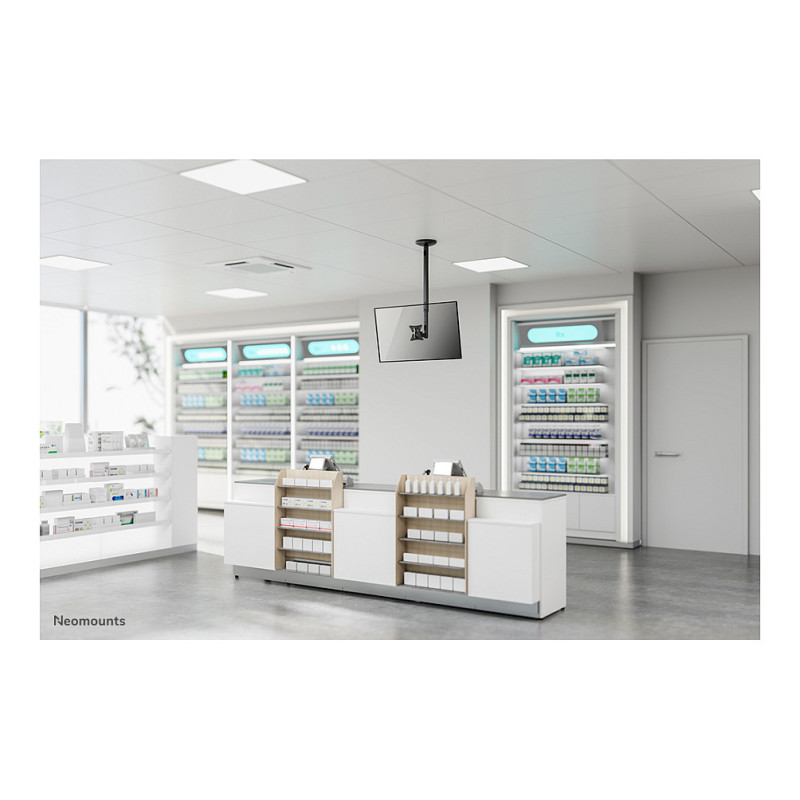

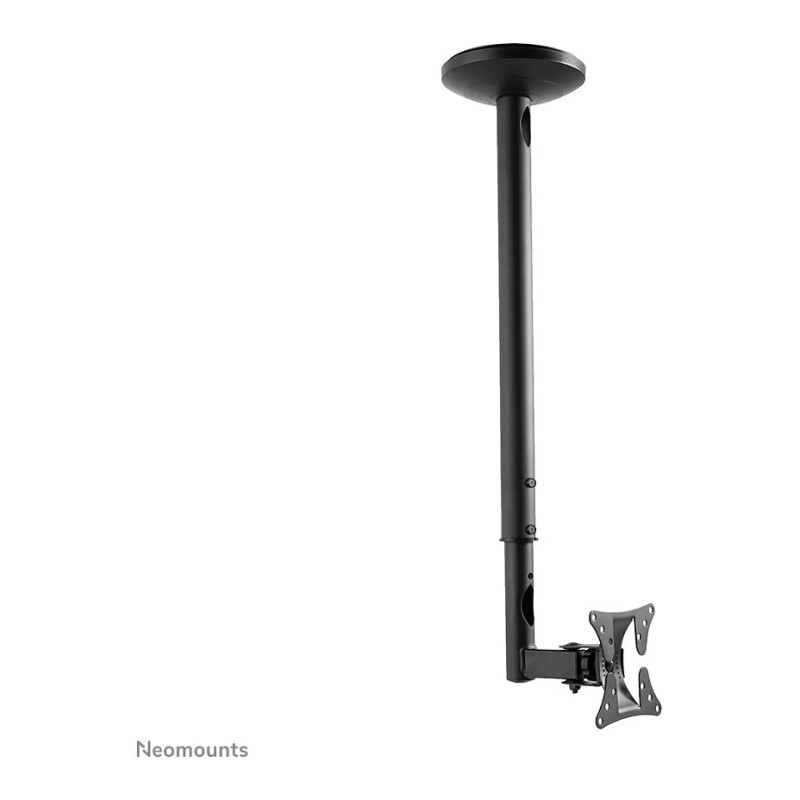

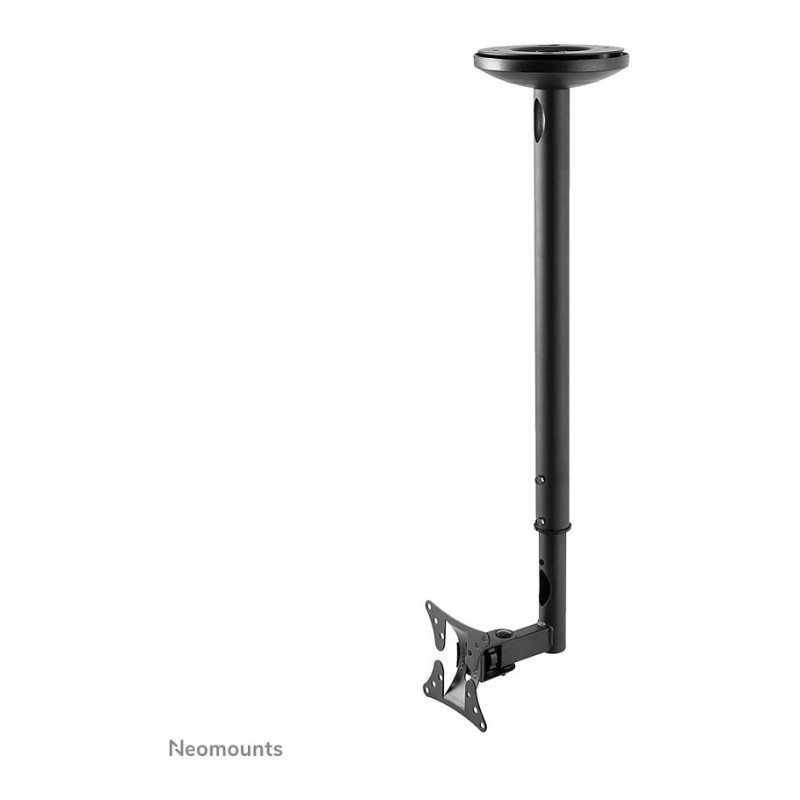

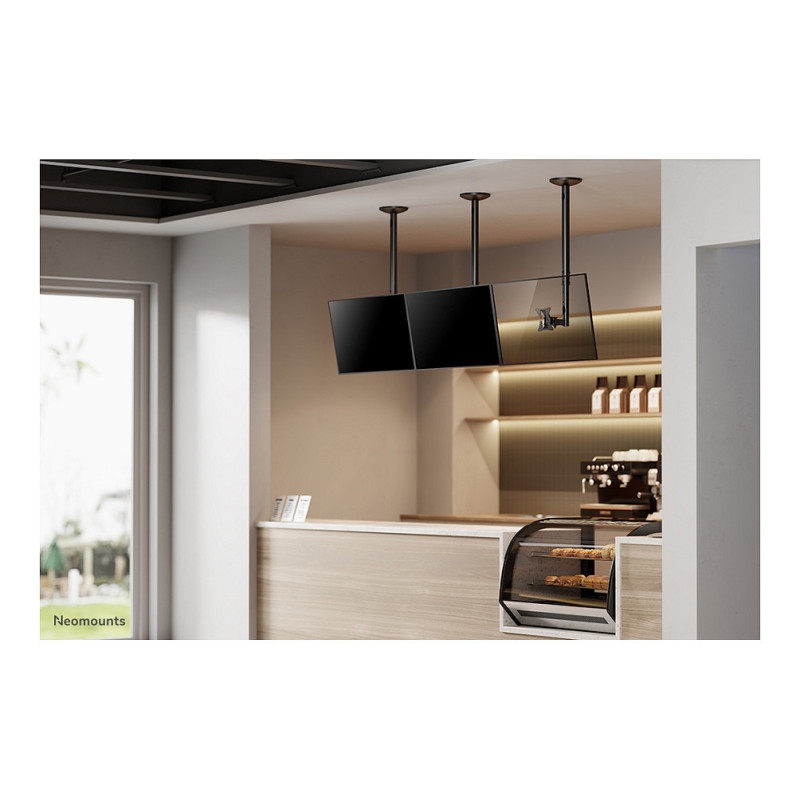

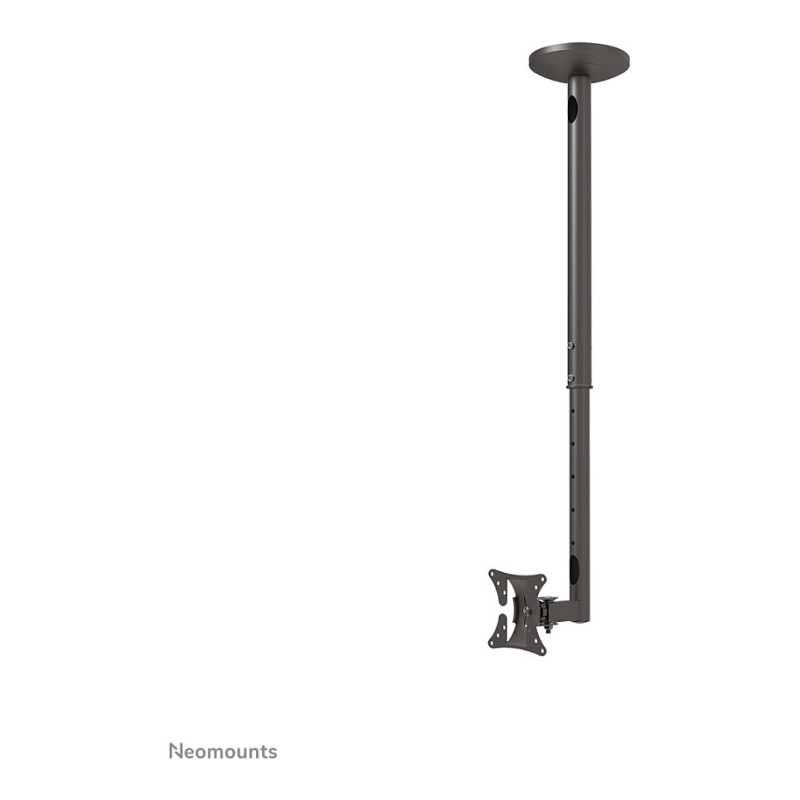

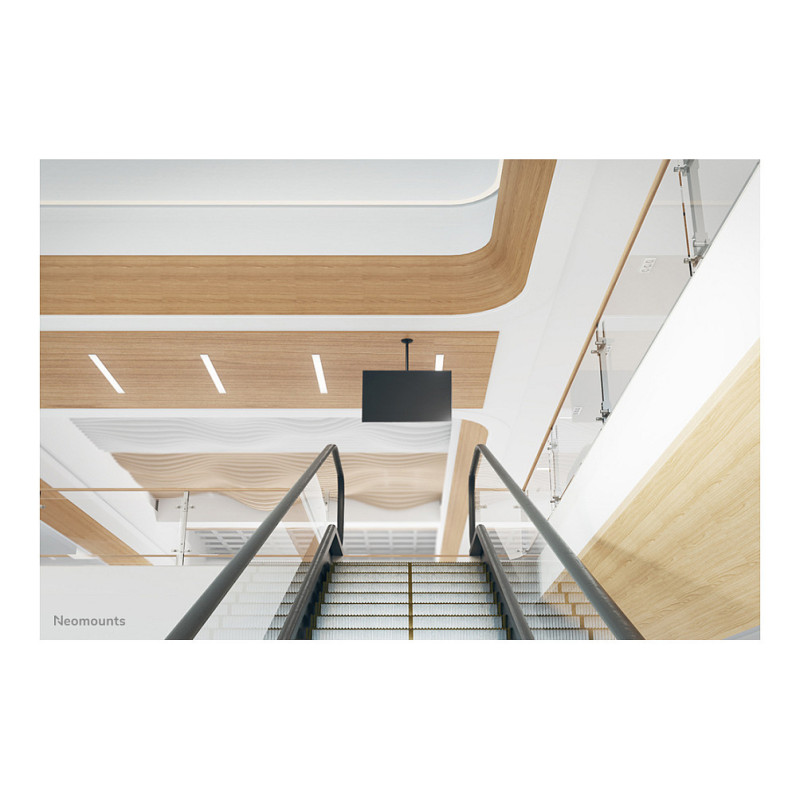

The Neomounts ceiling mount, model FPMA-C050BLACK is a tilt- and swivel ceiling mount for flat screens up to 30". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

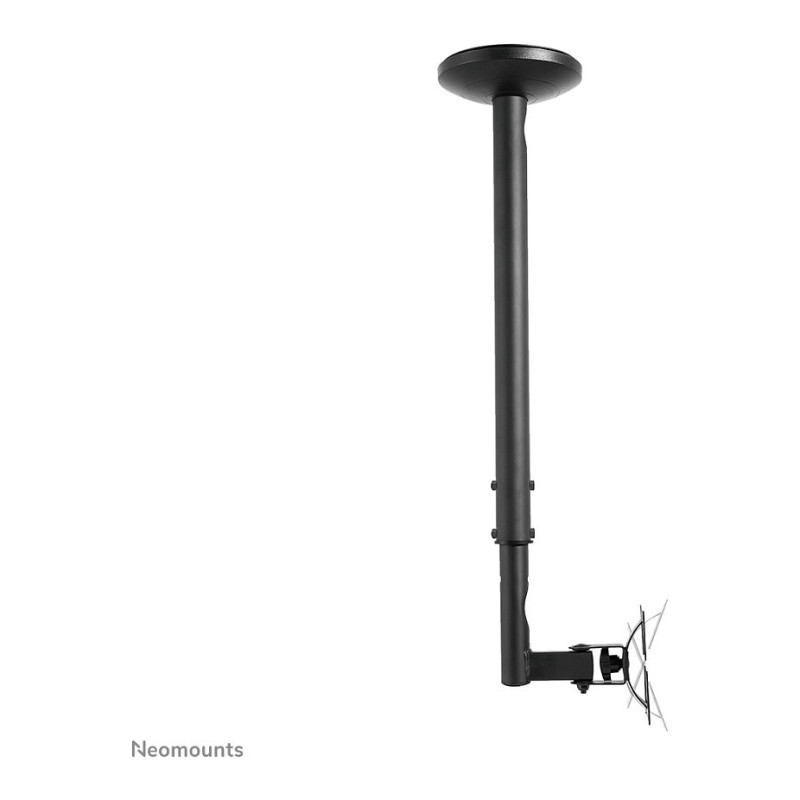

Neomounts versatile tilt (40°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 50 to 85 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

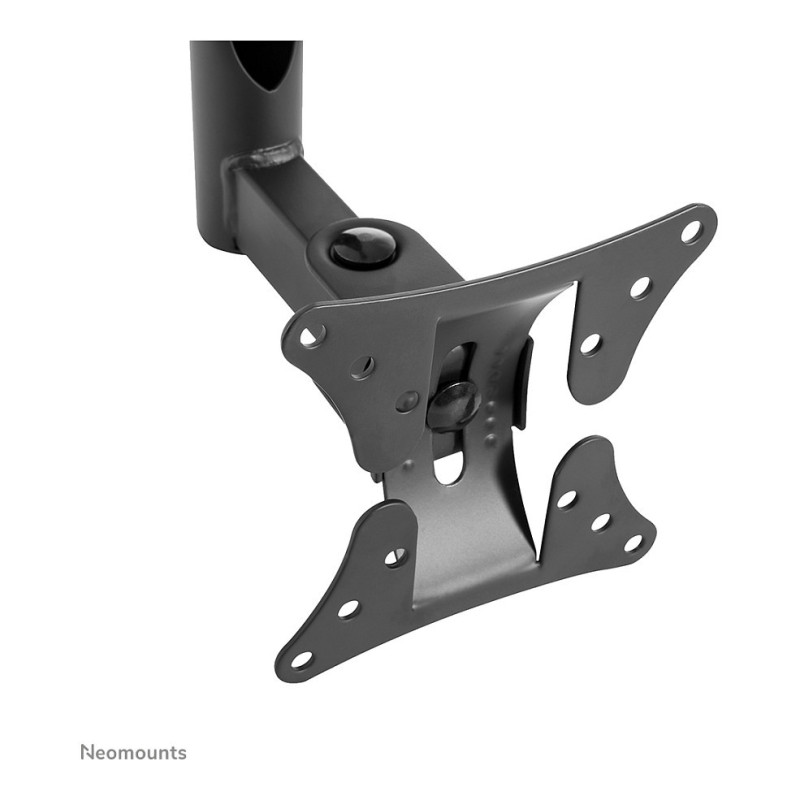

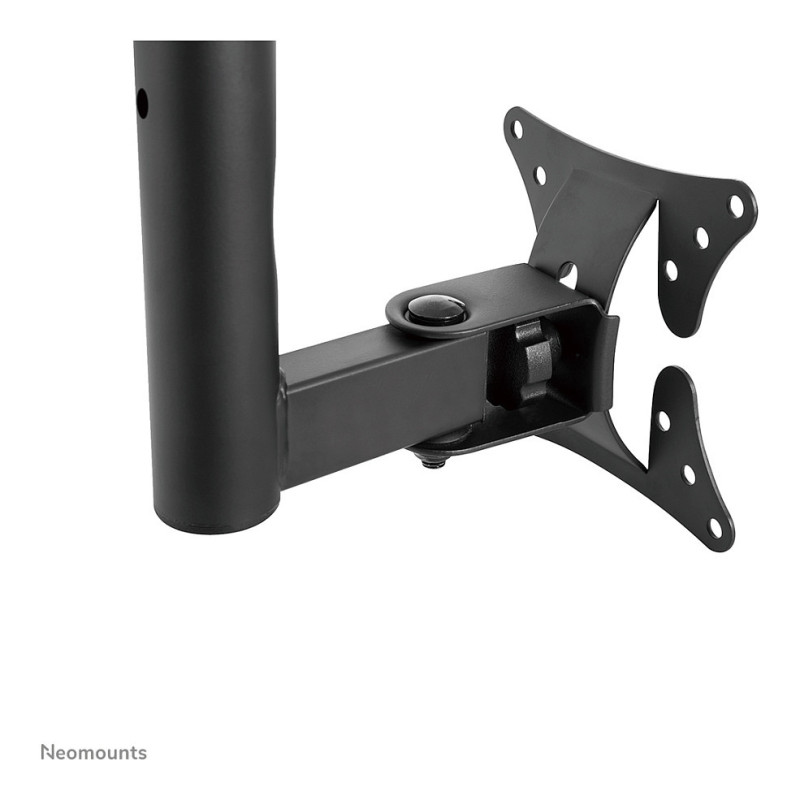

Neomounts FPMA-C050BLACK has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 50x50 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

All installation material is included with the product.

Mounting

Maximum weight capacity: 20 kg
Minimum screen size: 25.4 cm (10")
Number of displays supported: 1
Maximum weight capacity (per display): 20 kg
Maximum screen size: 76.2 cm (30")
Minimum VESA mount: 50 x 50 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,50 x 50,75 x 75
Mounting type: Ceiling

Ergonomics

Feature: Height adjustment
Height adjustment type: Manual

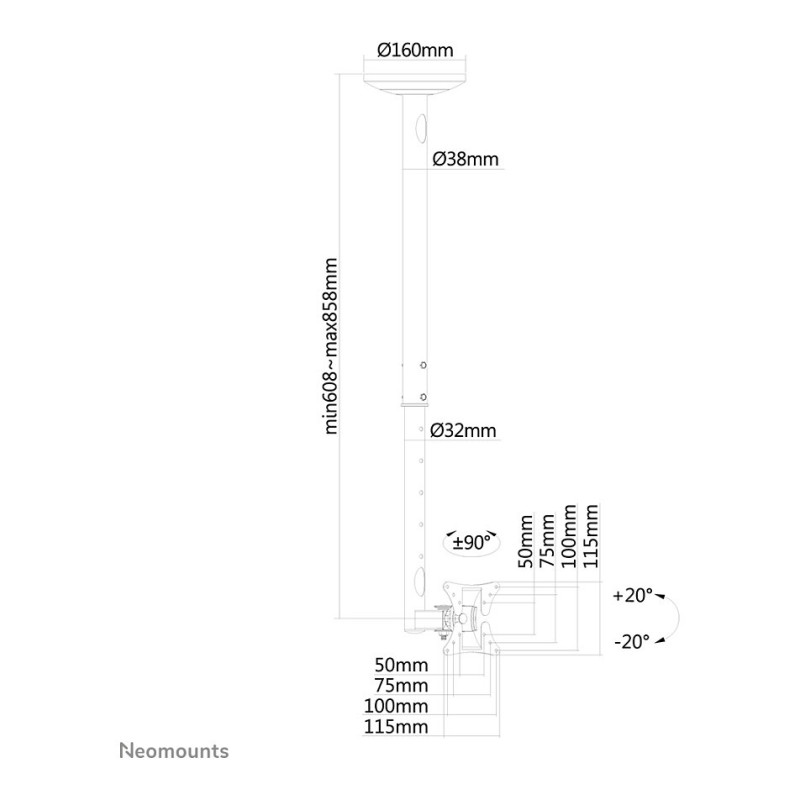

Height adjustment range: 600 - 850 mm
Feature: Tilt adjustment
Tilt angle range: 0 - 40°
Feature: Swivelling
Swivel angle: 180°
Swivel angle range: 0 - 180°
Tilt angle: 40°

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Package net weight: 1.54 kg

Weight & dimensions

Depth: 130 mm
Height: 850 mm
Weight: 1.54 kg

Packaging data

Package width: 250 mm
Package depth: 60 mm
Package height: 530 mm
Package weight: 1.5 kg

Logistics data

Master (outer) case width: 545 mm
Master (outer) case length: 320 mm
Master (outer) case height: 270 mm
Master (outer) case gross weight: 10.5 kg
Master (outer) case net weight: 7.7 kg
Products per master (outer) case: 5 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 120 pc(s)

Other features

Depth adjustment range: 0 - 130 mm
