Neomounts DS75-450BL2 monitor mount / stand

Neomounts DS75-450BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -10 - 10°. Product colour: Black

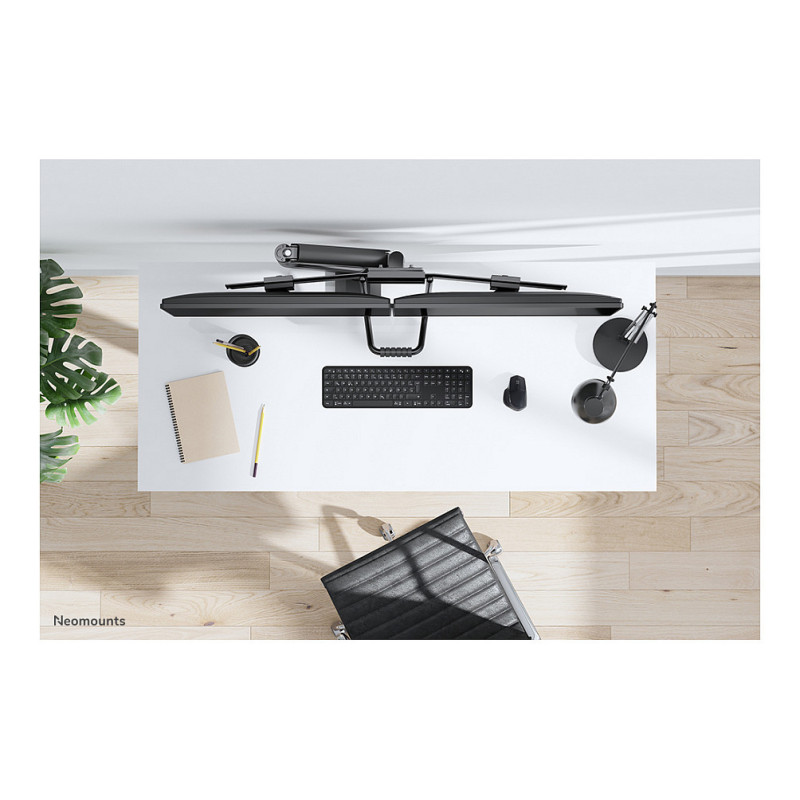

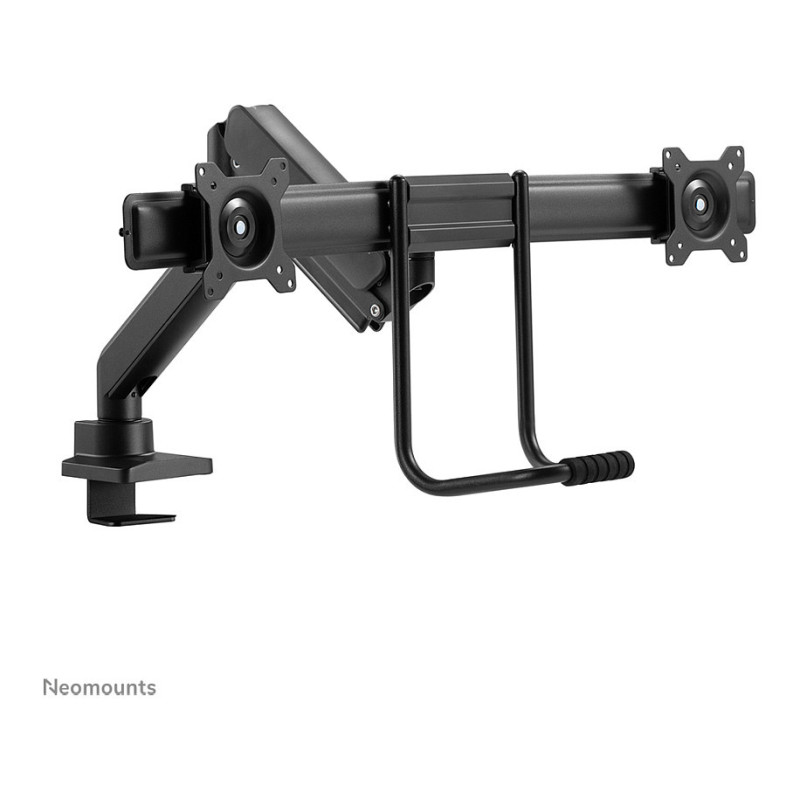

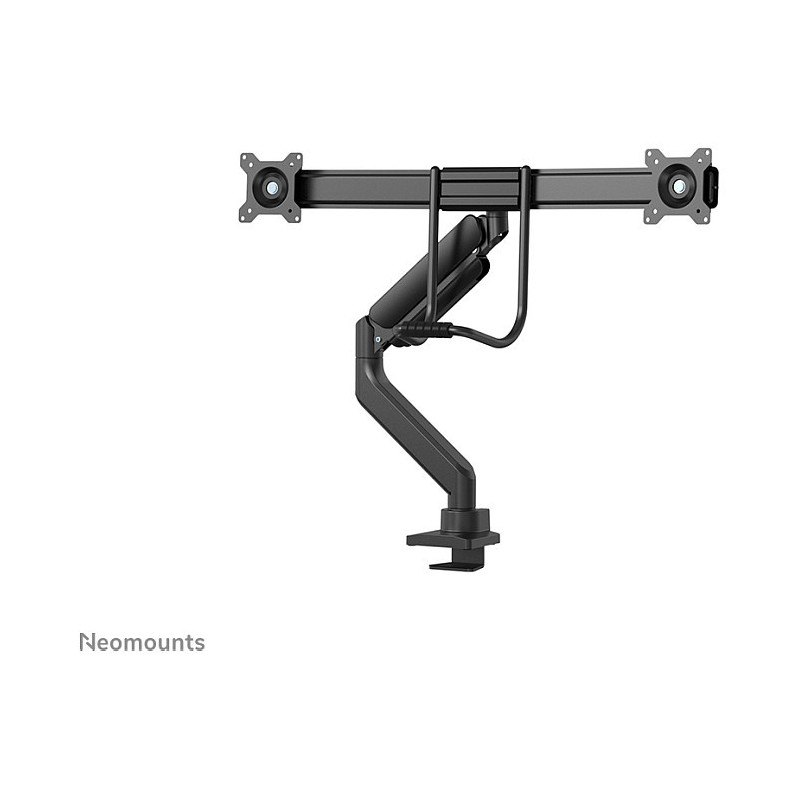

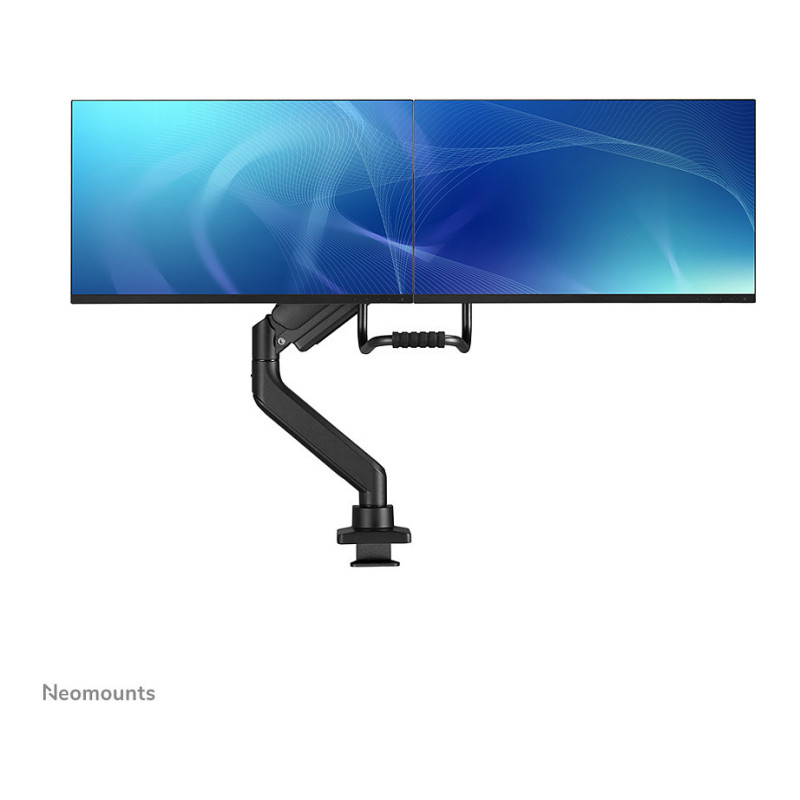

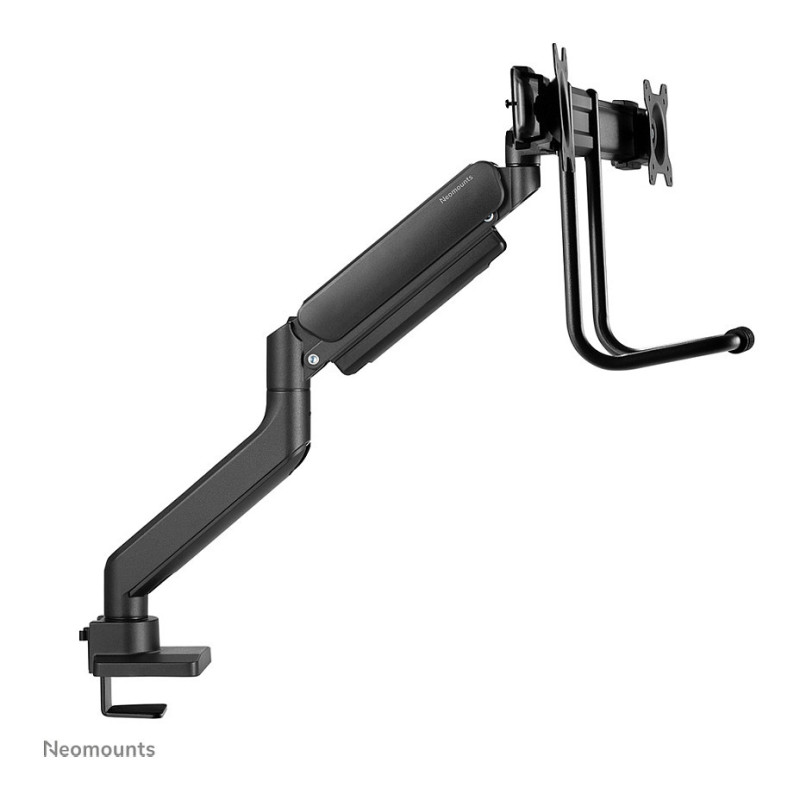

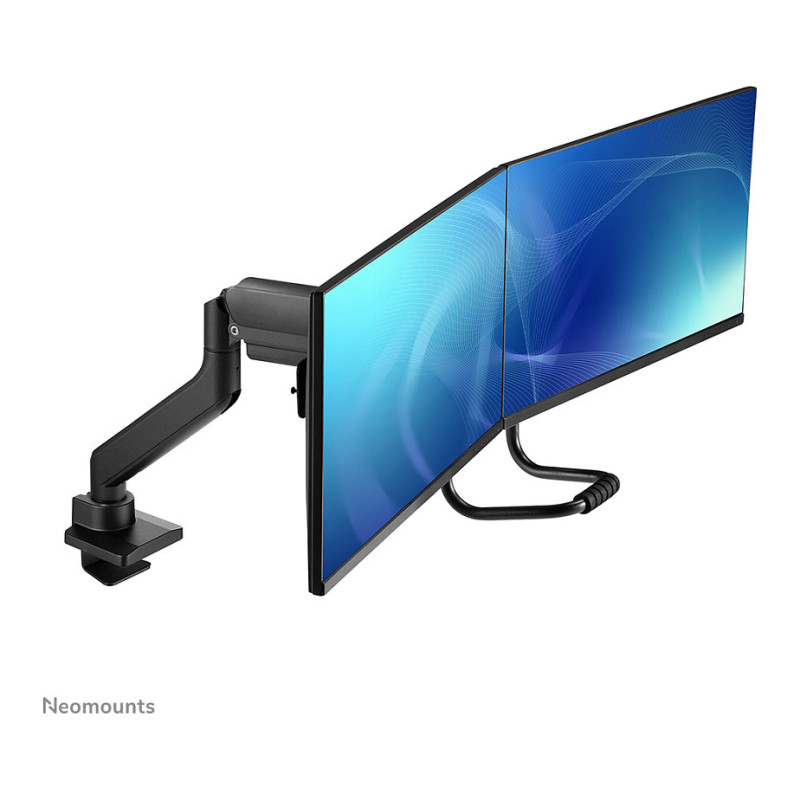

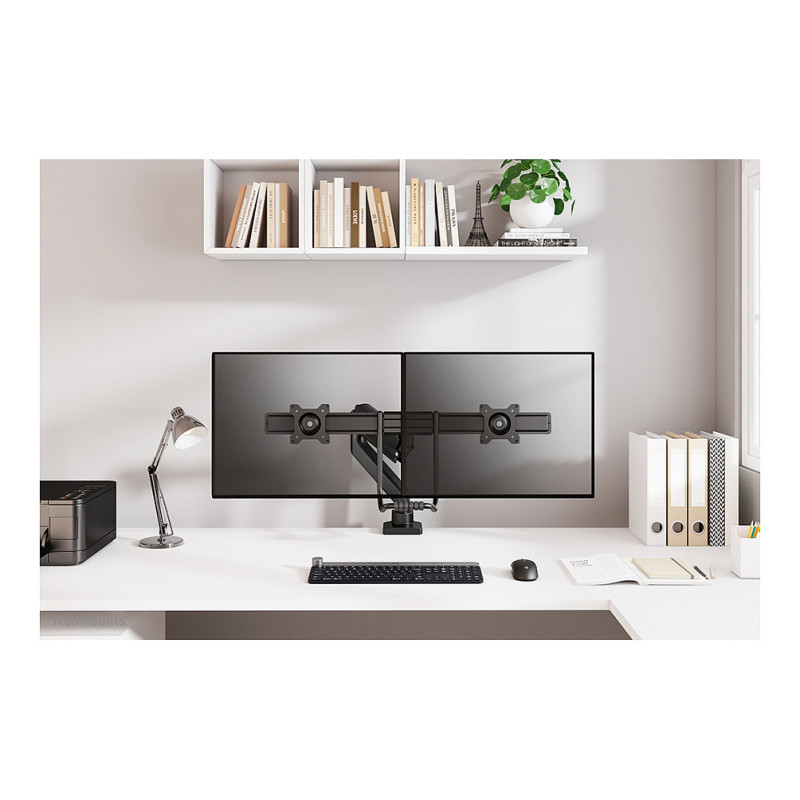

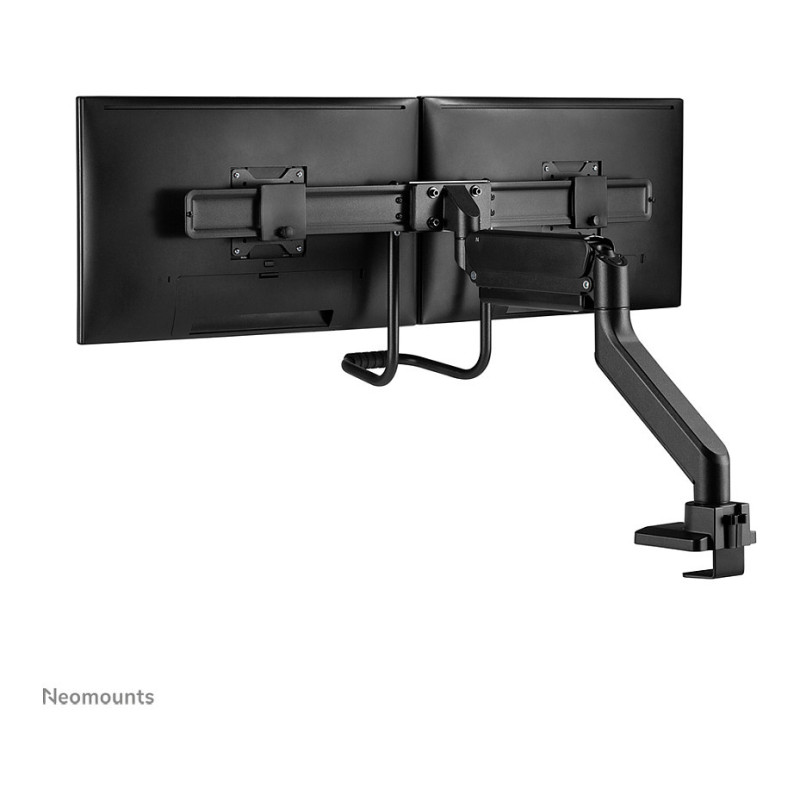

The Neomounts DS75-450BL2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (29,1-56 cm) and depth adjustment (14,3-55,3 cm), to create the perfect working position.

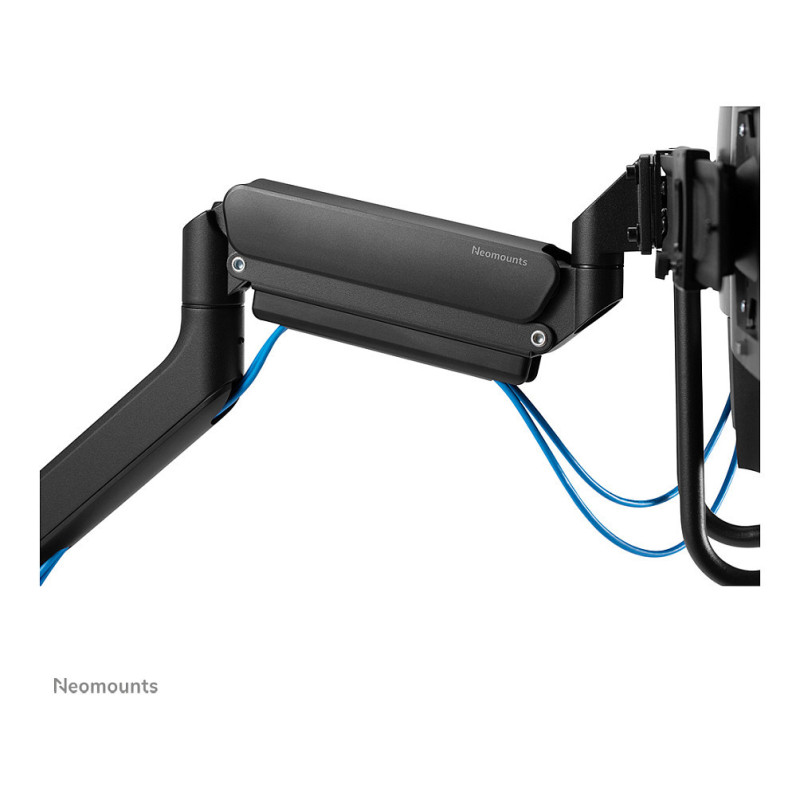

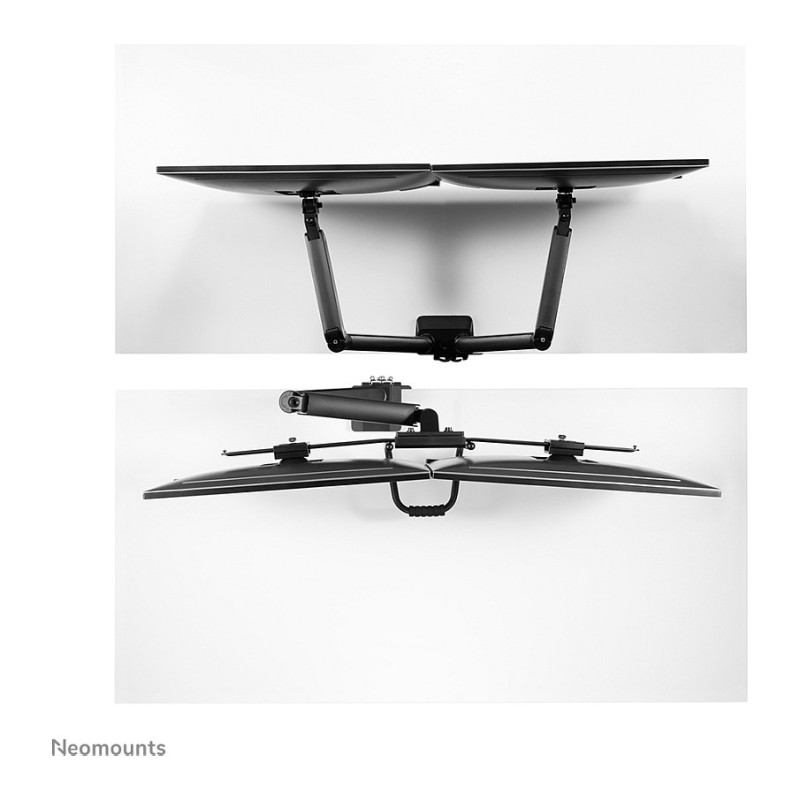

The DS75-450BL2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

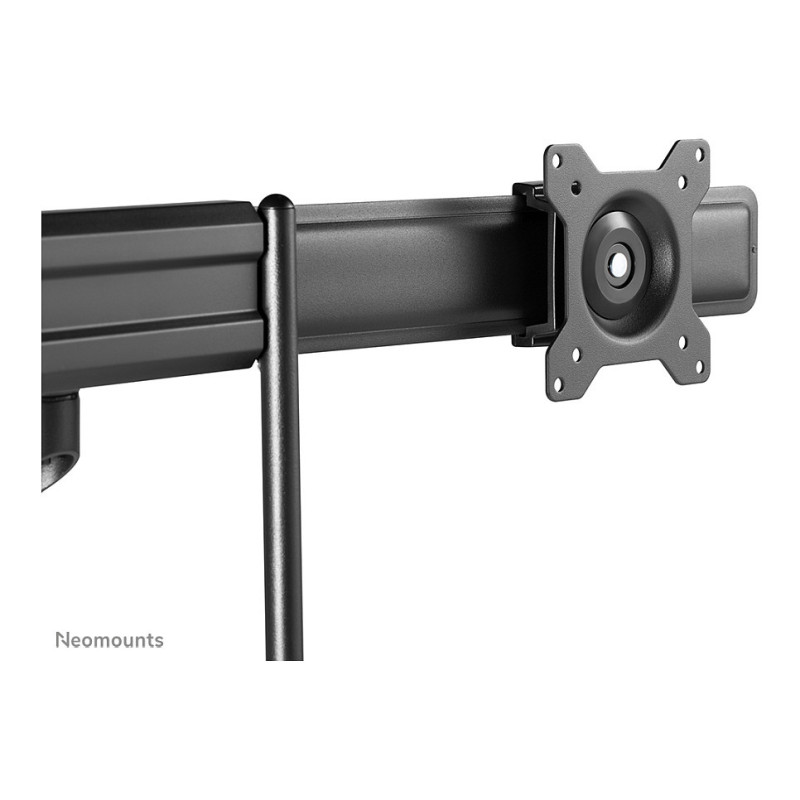

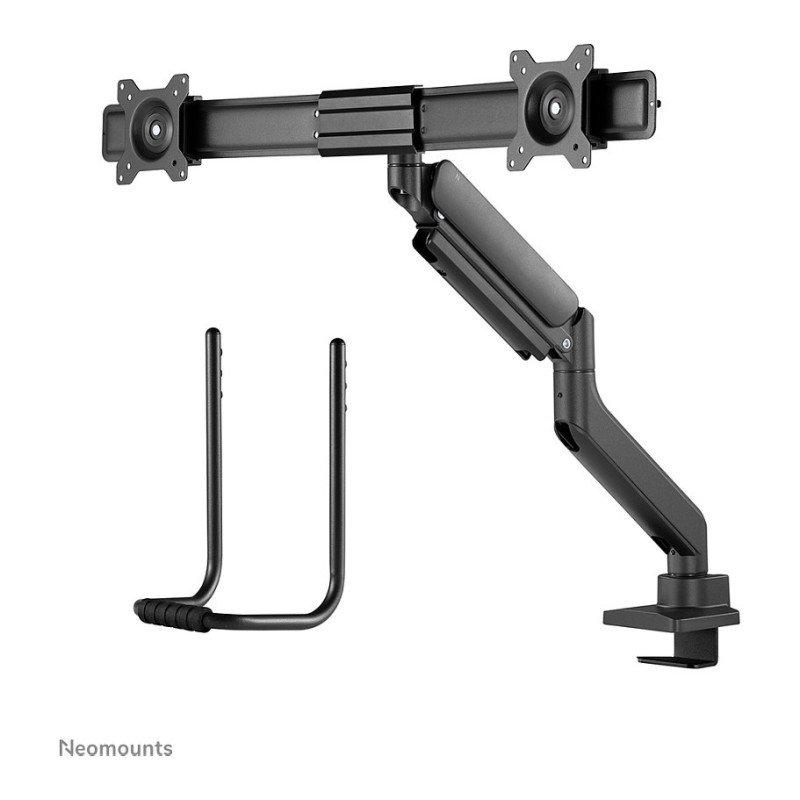

The DS75-450BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.

For wall installation, the AWL75-450WH wall adapter is optionally available.

Mounting

Maximum weight capacity: 8 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 2
Maximum weight capacity (per display): 8 kg
Maximum screen size: 81.3 cm (32")
Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 4.5 cm

Ergonomics

Feature: Height adjustment

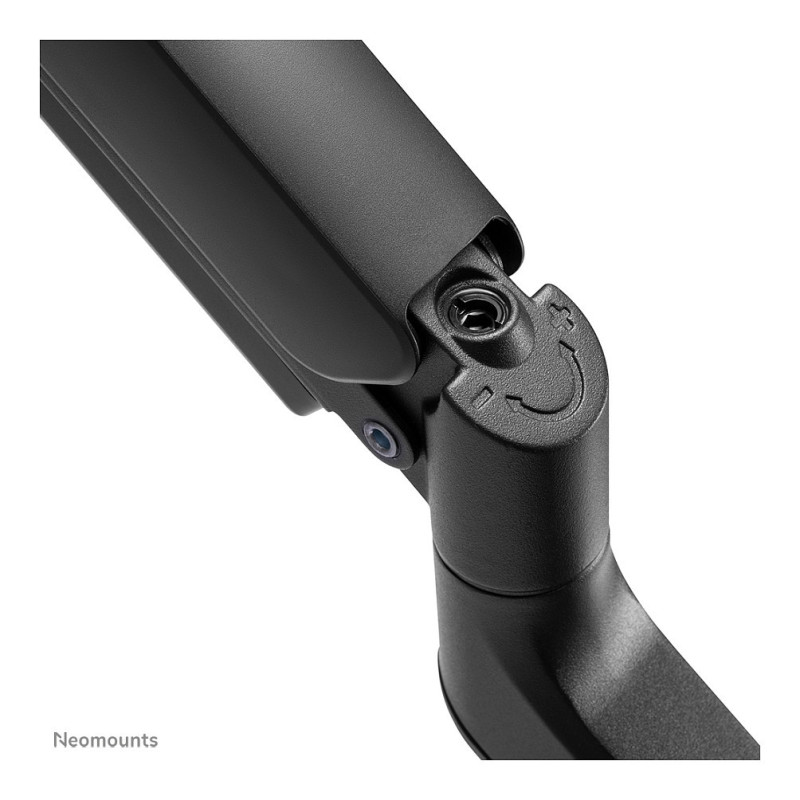

Height adjustment type: Gas spring
Height adjustment range: 291 - 560 mm
Feature: Adjustable depth
Depth adjustment range: 143 - 553 mm
Width adjustment: 99 cm
Feature: Tilt adjustment
Tilt angle range: -10 - 10°
Feature: Swivelling
Swivel angle: 20°
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 - 180°

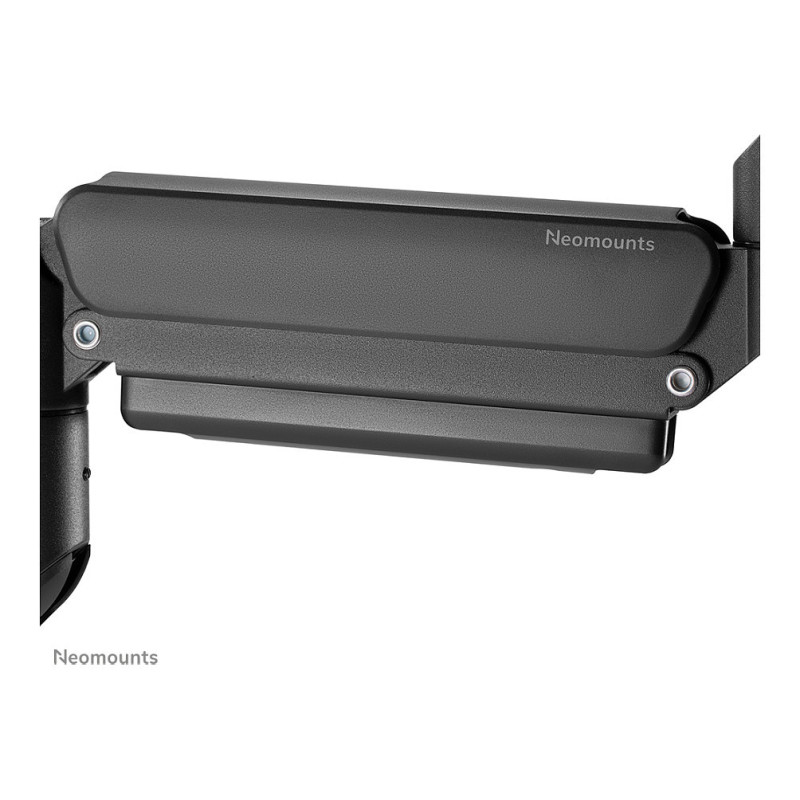

Feature: Cable management

Design

Housing material: Steel
Product colour: Black

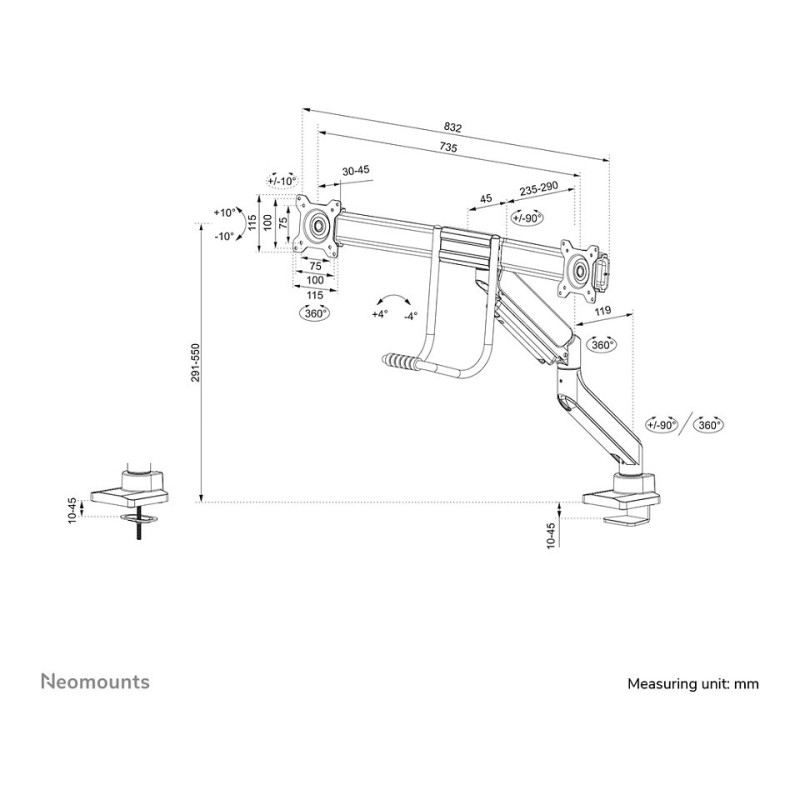

Weight & dimensions

Width: 761 mm
Depth: 115 mm
Height: 646 mm
Weight: 6.4 kg

Packaging data

Package width: 320 mm
Package depth: 152 mm
Package height: 445 mm
Package net weight: 7.9 kg
Package weight: 7.9 kg

Packaging content

Feature: Mounting kit

Other features

Minimum weight: 1 kg
Width adjustment range: 0 - 990 mm
Warranty period: 5 year(s)

Logistics data

Master (outer) case width: 335 mm
Master (outer) case length: 325 mm
Master (outer) case height: 460 mm
Master (outer) case gross weight: 15.9 kg
Products per master (outer) case: 2 pc(s)
Country of origin: China
Master (outer) case net weight: 14.3 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 40 pc(s)
