Neomounts DS70S-950BL2 monitor mount / stand

Neomounts DS70S-950BL2 Monitor arm 17-35" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 88.9 cm (35"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -90 - 90°. Product colour: Black

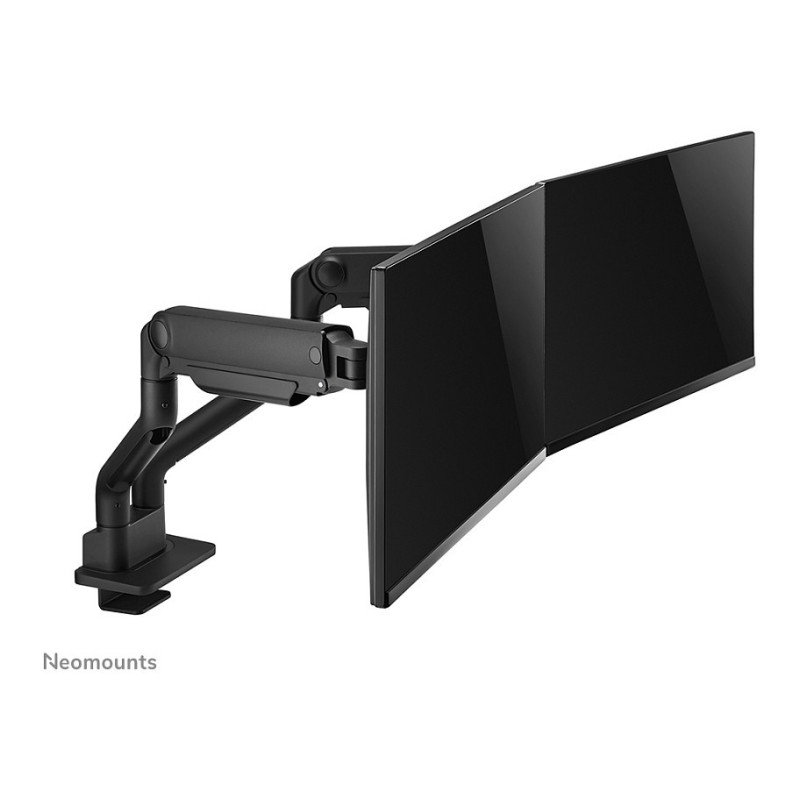

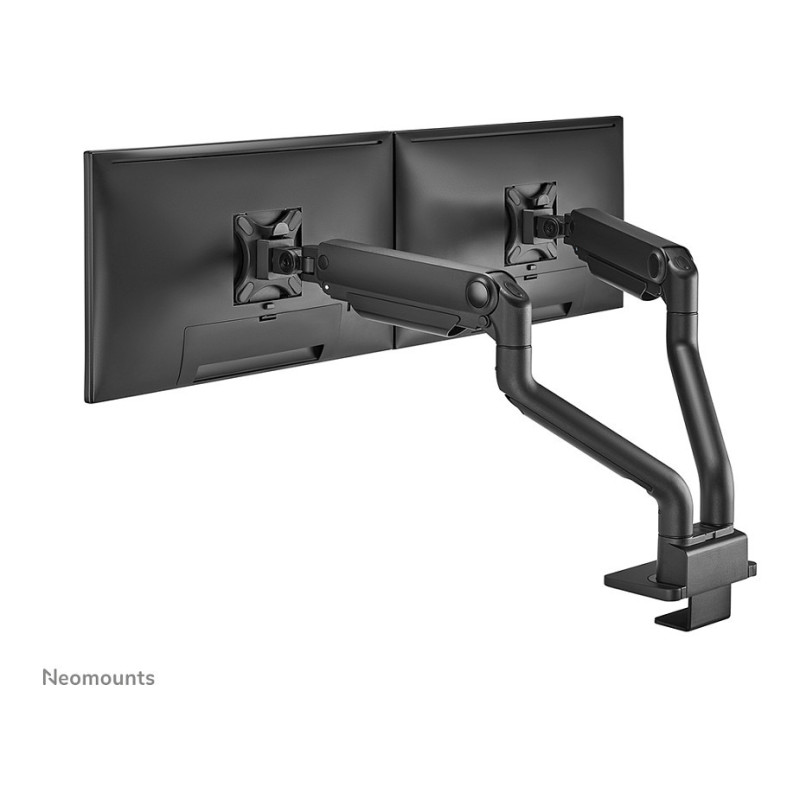

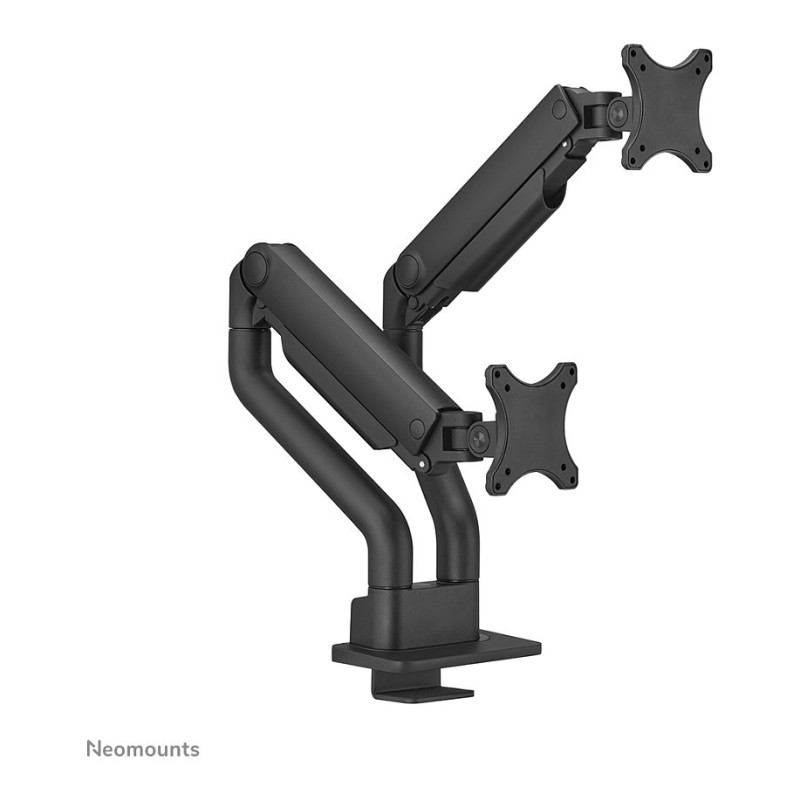

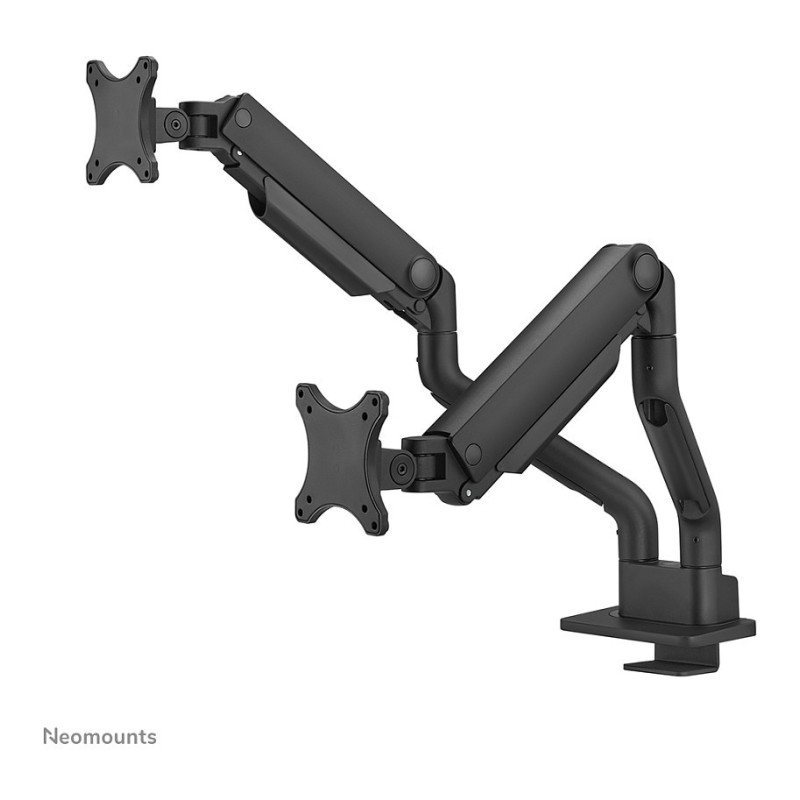

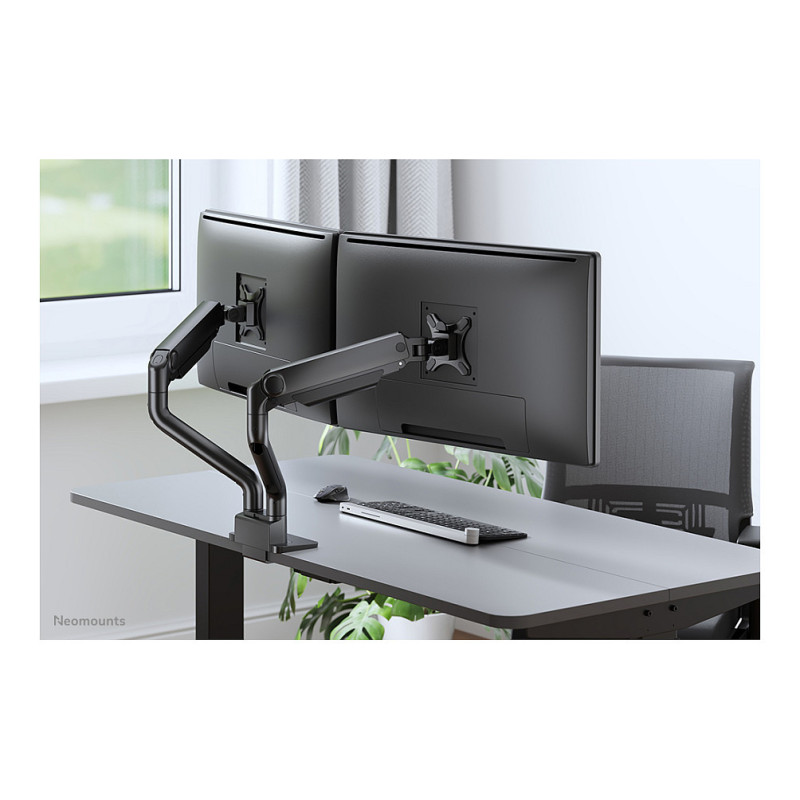

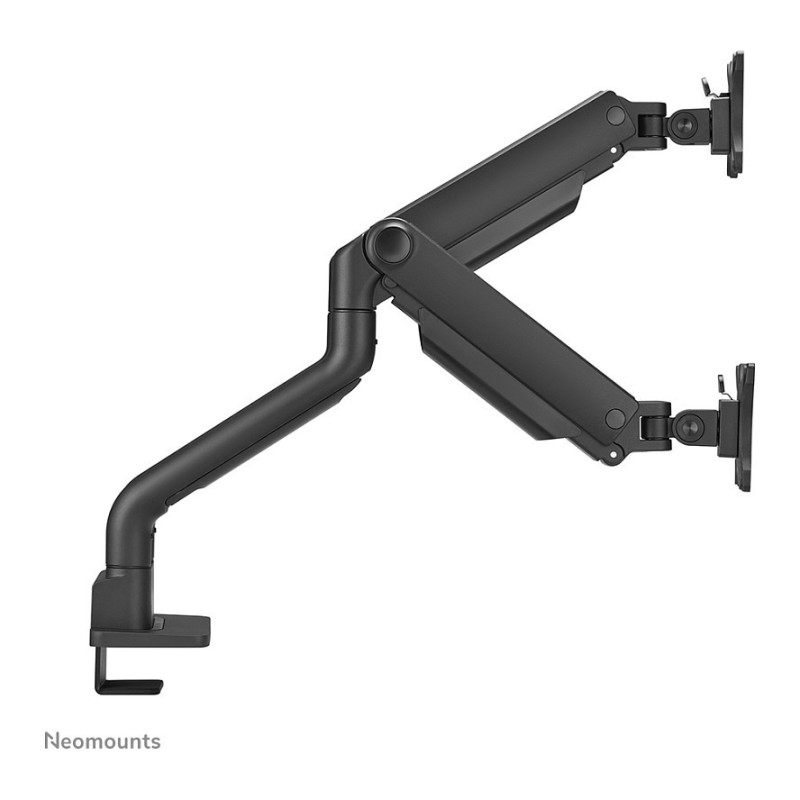

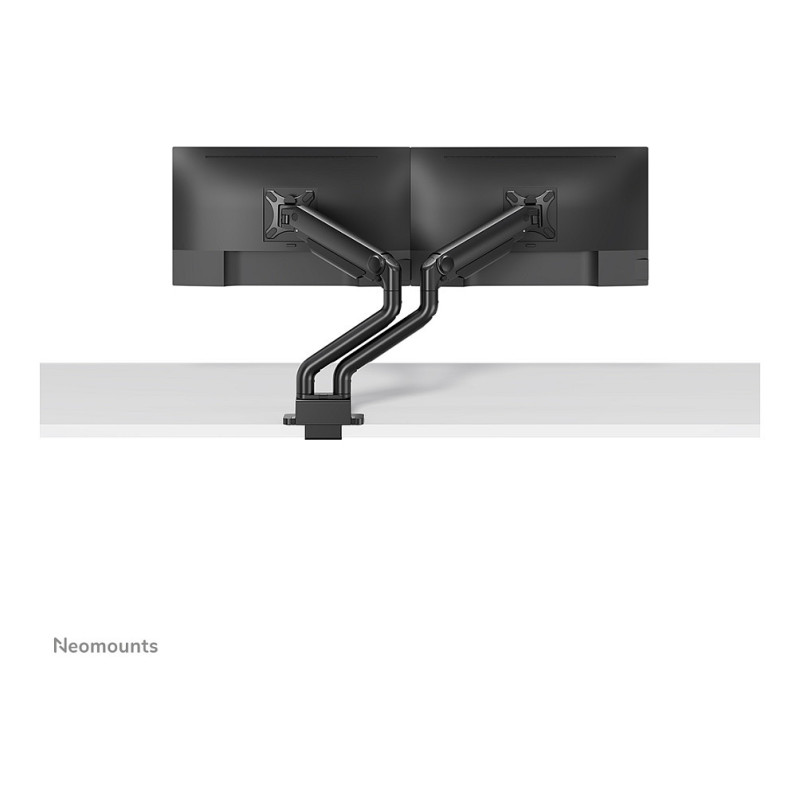

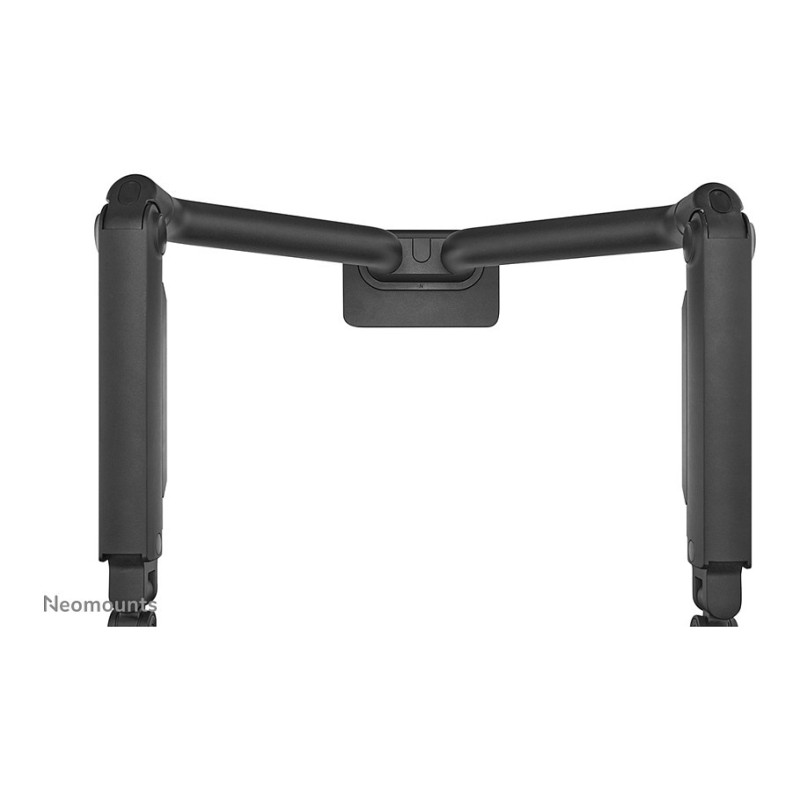

The Neomounts DS70S-950BL2 NEXT One is a full motion desk mount for two screens up to 35". The DS70S-950BL2 is a true all-in one solutions for small to large displays. The NEXT One features a strengthened head to support a higher maximum weight up to 18 kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20,2-52,2 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

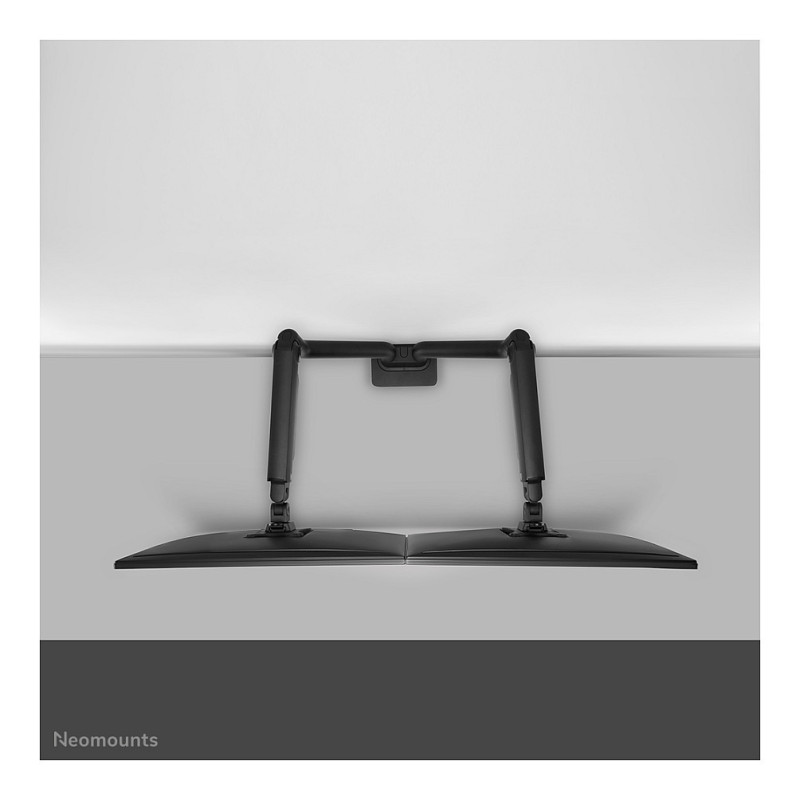

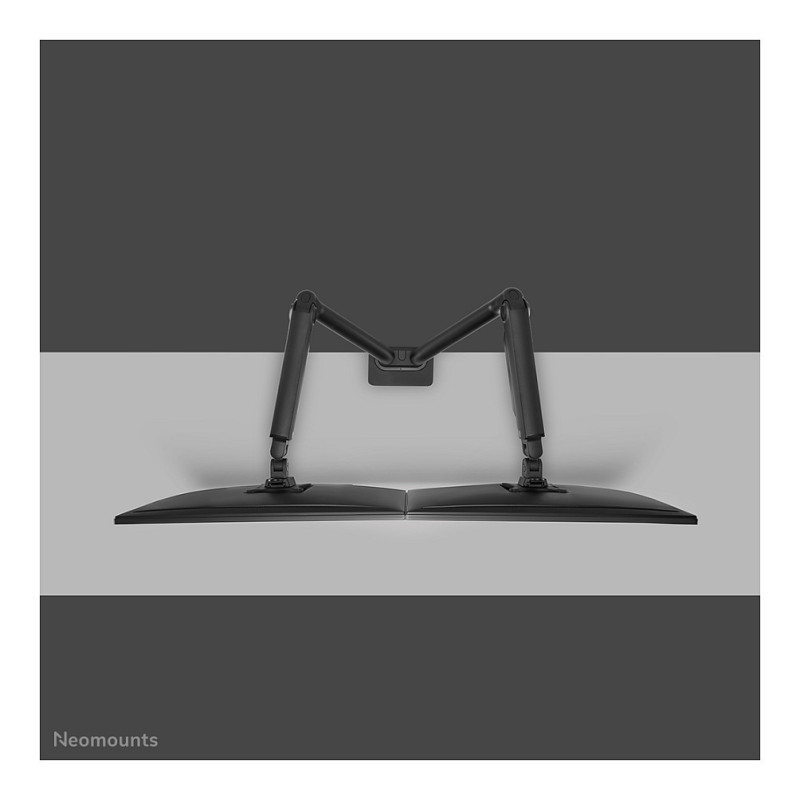

The DS70S-950BL2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

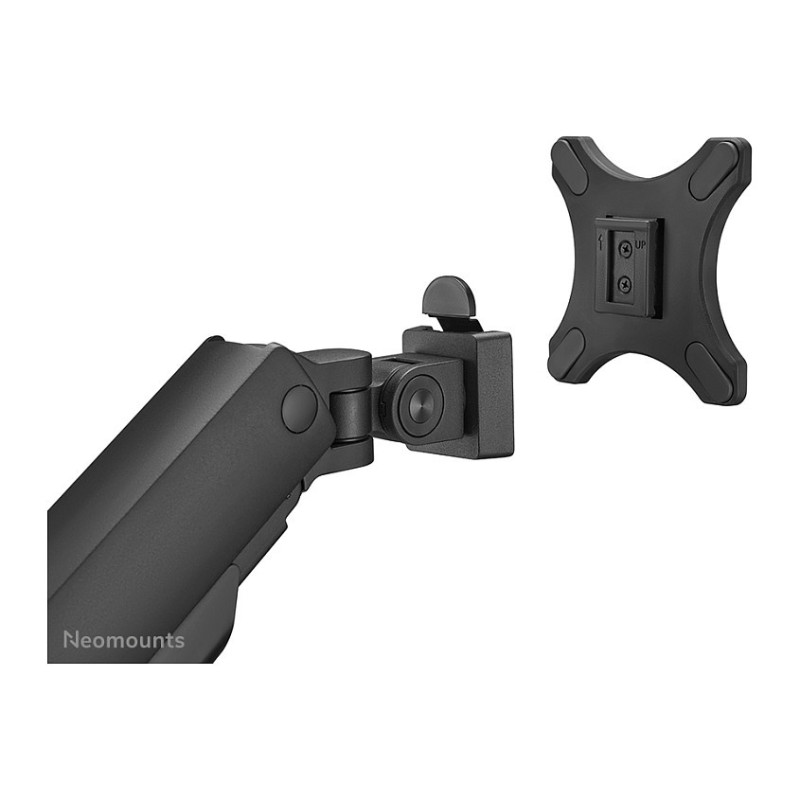

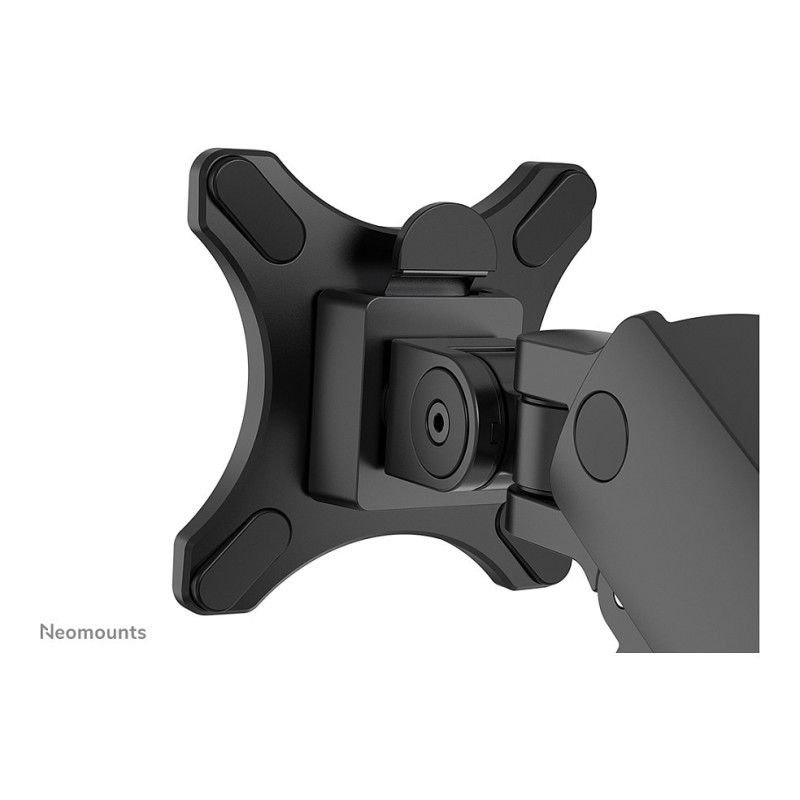

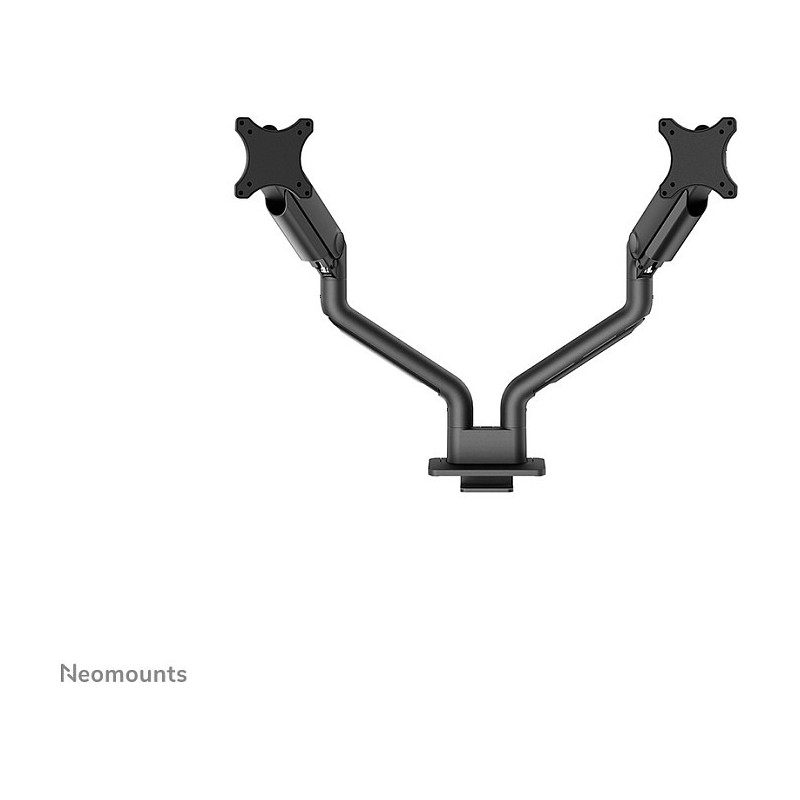

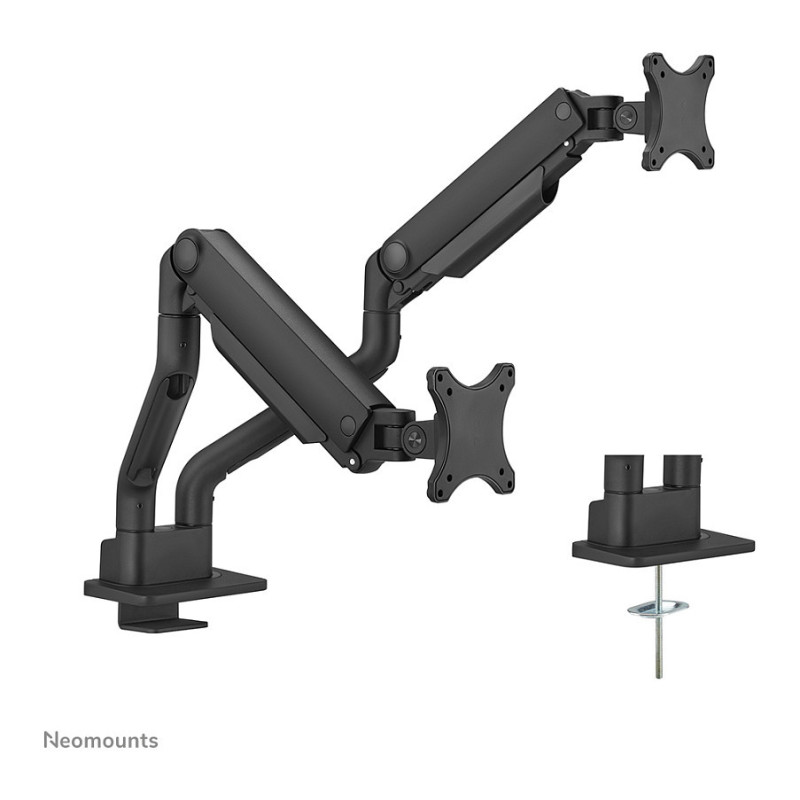

The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

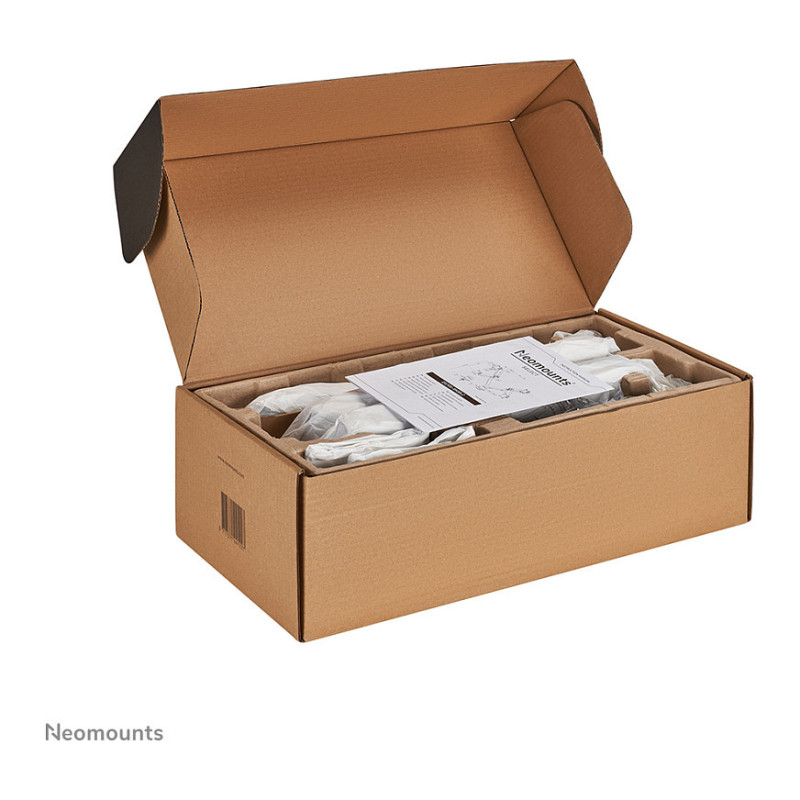

The packaging of the DS70S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.

Mounting

Maximum weight capacity: 18 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 2
Maximum weight capacity (per display): 18 kg
Maximum weight capacity (per curved/ultra-wide display): 15 kg
Maximum screen size: 88.9 cm (35")

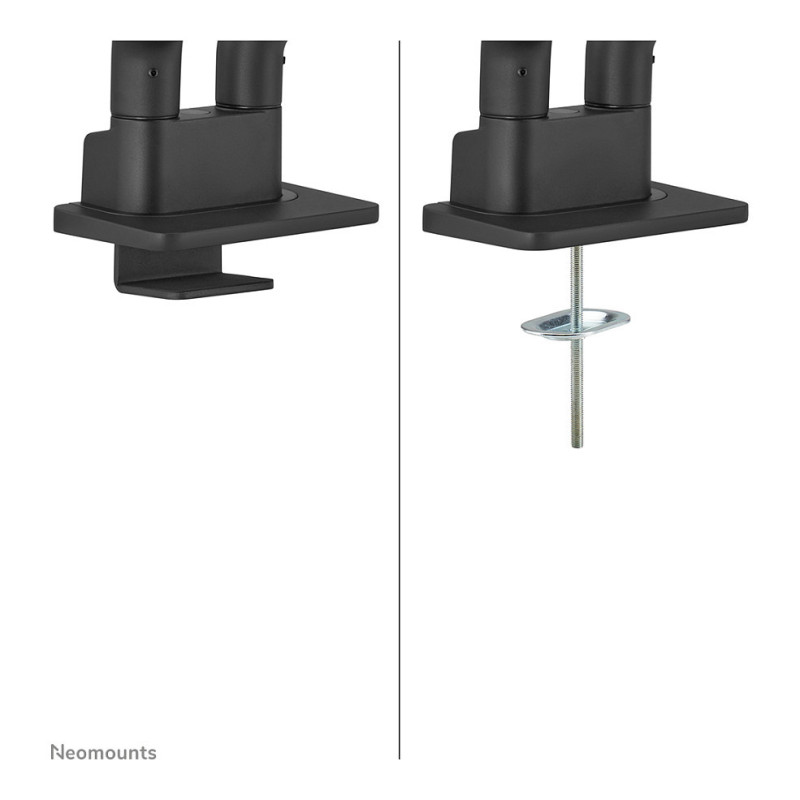

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 5.5 cm
Clamp mount desk thickness (max): 5 cm
Grommet mount desk thickness (max): 5.5 cm
Distance to the wall (min): 11.9 cm
Distance to the wall (max): 65.6 cm

Ergonomics

Feature: Height adjustment

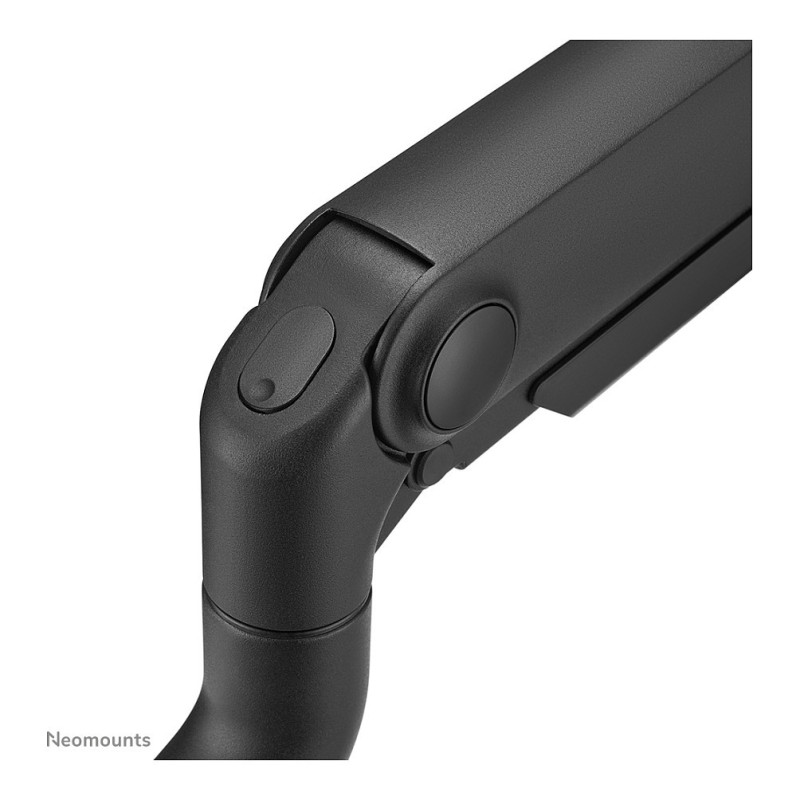

Height adjustment type: Gas spring

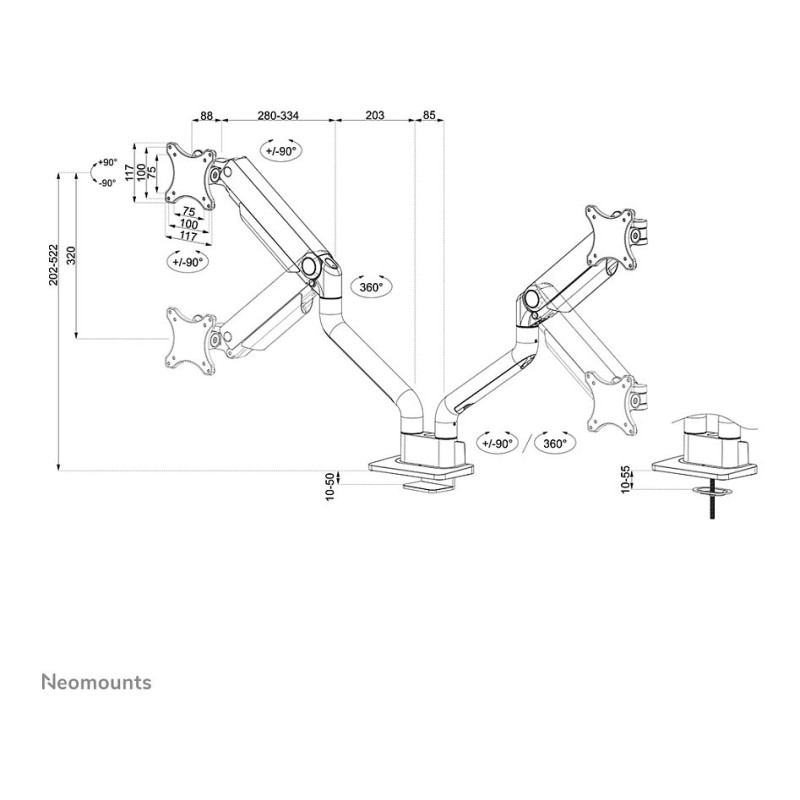

Height adjustment range: 202 - 522 mm
Feature: Adjustable depth
Depth adjustment range: 88 - 625 mm
Width adjustment: 115.9 cm
Feature: Tilt adjustment
Tilt angle range: -90 - 90°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 - 180°
Number of arms: 2
Feature: Cable management

Design

Housing material: Aluminium
Product colour: Black
Feature: Easy to install

Weight & dimensions

Width: 186 mm
Depth: 656 mm
Height: 579 mm
Weight: 6.98 kg

Packaging data

Package width: 410 mm
Package depth: 124 mm
Package height: 496 mm
Package net weight: 7.8 kg
Package weight: 7.8 kg
Package type: Box

Other features

Minimum weight: 1 kg
Width adjustment range: 0 - 1159 mm
Warranty period: 10 year(s)

Logistics data

Master (outer) case width: 260 mm
Master (outer) case length: 320 mm
Master (outer) case height: 505 mm
Master (outer) case gross weight: 16.2 kg
Products per master (outer) case: 2 pc(s)
Country of origin: China
Master (outer) case net weight: 13.9 kg
Harmonized System (HS) code: 7616991099
Products per pallet (EU): 48 pc(s)
