Neomounts DS70S-950BL1 Monitor desk mount, 17 - 49 inch, 15 kg, 75x75 / 100x100 mm, Black
Product reference: 3-8717371441210

Neomounts DS70S-950BL1 Monitor desk mount, 17 - 49 inch, 15 kg, 75x75/ 100x100 mm, Black

Neomounts DS70S-950BL1 Monitor desk mount, 17 - 49 inch, 15 kg, 75x75 / 100x100 mm, Black

Product reference: 3-8717371441210

Neomounts DS70S-950BL1 Monitor desk mount, 17 - 49 inch, 15 kg, 75x75/ 100x100 mm, Black

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
229,10
231,41 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

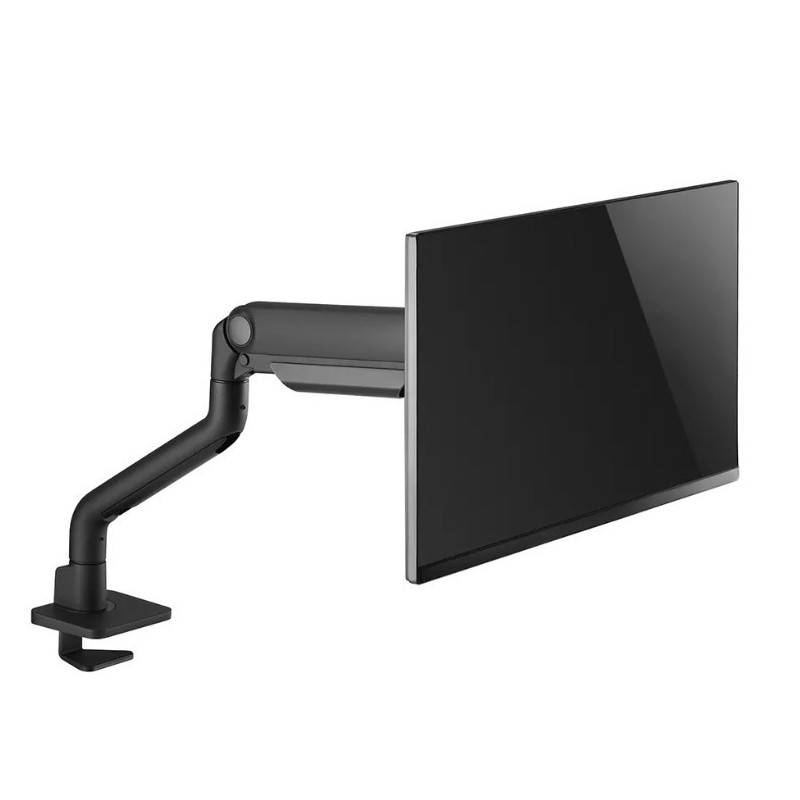

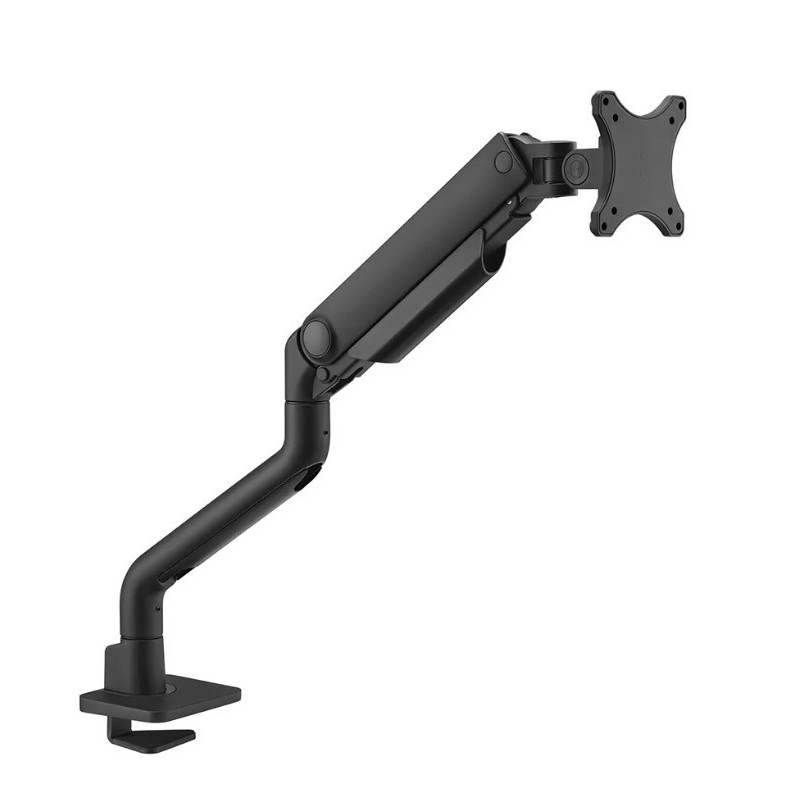

The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

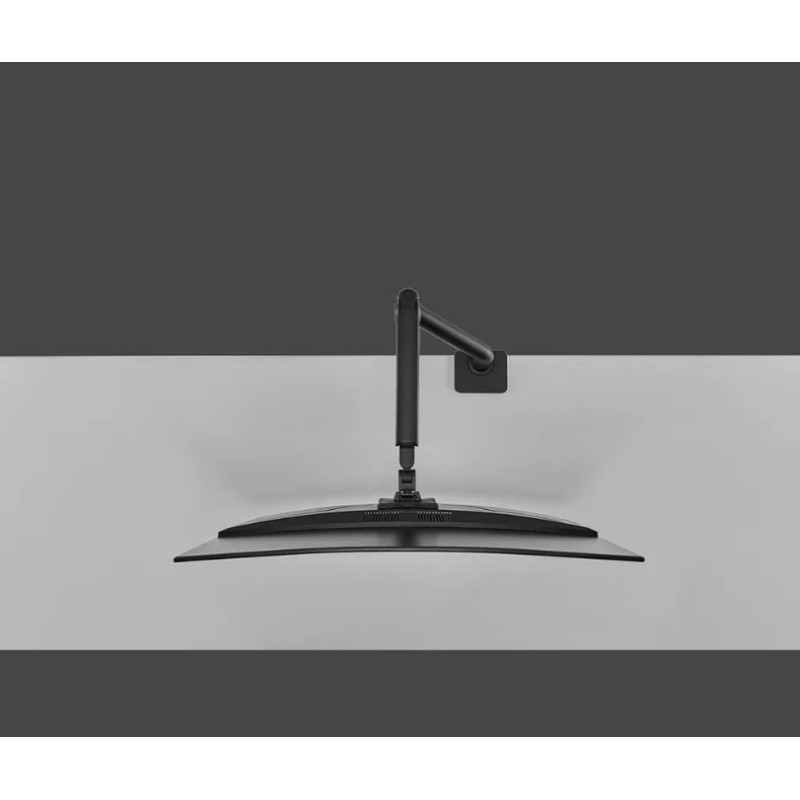

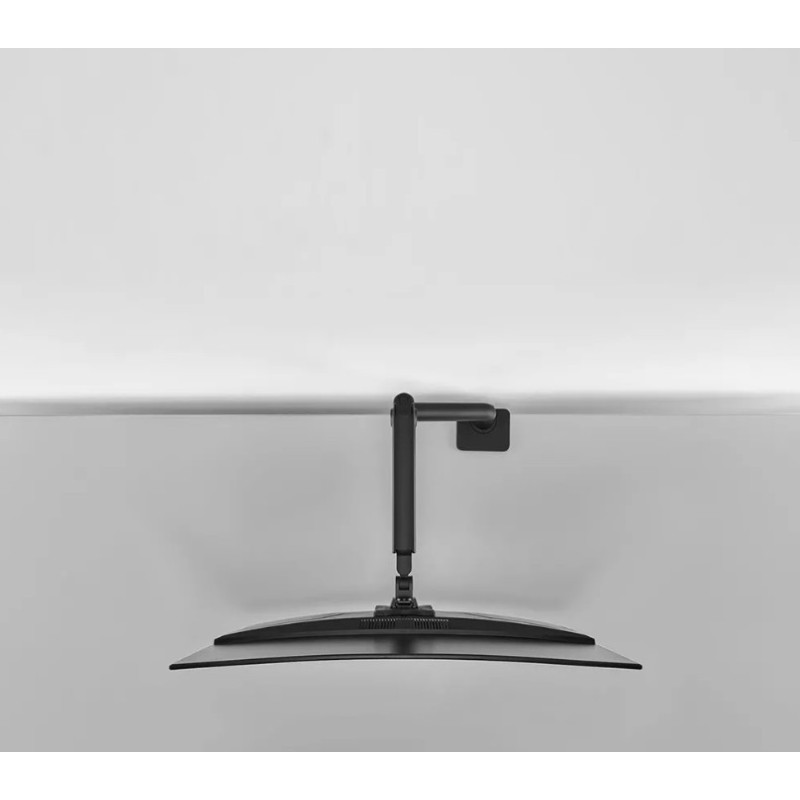

The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.


Summary: Neomounts DS70S-950BL1 Monitor arm 17-49" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -90 - 90°. Product colour: Black
Vendor Homepage: https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70S-950BL1
Category Code: MAS
CnCode: 83021000
Unit Box Height: 0.14
Unit Box Length: 0.48
Unit Box Width: 0.17
Clamp mount desk thickness (max): 50mm
Desk thickness (max): 55mm
Desk thickness (min): 10mm
Distance to the wall (max): 656mm
Distance to the wall (min): 119mm
Grommet mount desk thickness (max): 55mm
Maximum screen size: 49"
Maximum VESA mount: 100 x 100mm
Maximum weight capacity: 18kg
Maximum weight capacity (per curved/ultra-wide display): 15kg
Maximum weight capacity (per display): 18kg
Minimum screen size: 17"
Minimum VESA mount: 75 x 75mm
Mounting: Clamp/Grommet
Mounting type: Desk
Number of displays supported: 1
Panel mounting interface: 100 x 100/75 x 75mm
Adjustable depth: Yes
Angle of rotation: 360°
Cable management: Yes
Depth adjustment range: 88 - 625mm
Height adjustment: Yes
Height adjustment range: 200 - 520mm
Height adjustment type: Gas spring
Number of arms: 1
Pivot angle: -180 - 180°
Rotating: Yes
Swivel angle range: -90 - 90°
Swivelling: Yes
Tilt adjustment: Yes
Tilt angle range: -90 - 90°
Width adjustment: 1074mm
Easy to install: Yes
Housing material: Aluminium
Product colour: Black
Depth: 656mm
Height: 579mm
Weight: 3720g
Width: 135mm
Package depth: 122mm
Package height: 423mm
Package net weight: 4300g
Package type: Box
Package weight: 4300g
Package width: 333mm
Minimum weight: 1kg
Warranty period: 10year(s)
Width adjustment range: 0 - 1074mm
Country of origin: China
Harmonized System (HS) code: 7616991099
Master (outer) case gross weight: 17900g
Master (outer) case height: 490mm
Master (outer) case length: 290mm
Master (outer) case net weight: 14900g
Master (outer) case width: 355mm
Products per master (outer) case: 4pc(s)
Products per pallet (EU): 80pc(s)
Model: DS70S-950BL1
Units per Shipping Box: 4
Unit Calculated Volume: 0.0131m³
Unit Calculated Weight: 4.5kg
