Neomounts DS70-810BL2 monitor mount / stand

Neomounts DS70-810BL2 Monitor arm 17-32" - gas spring - space saving - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black

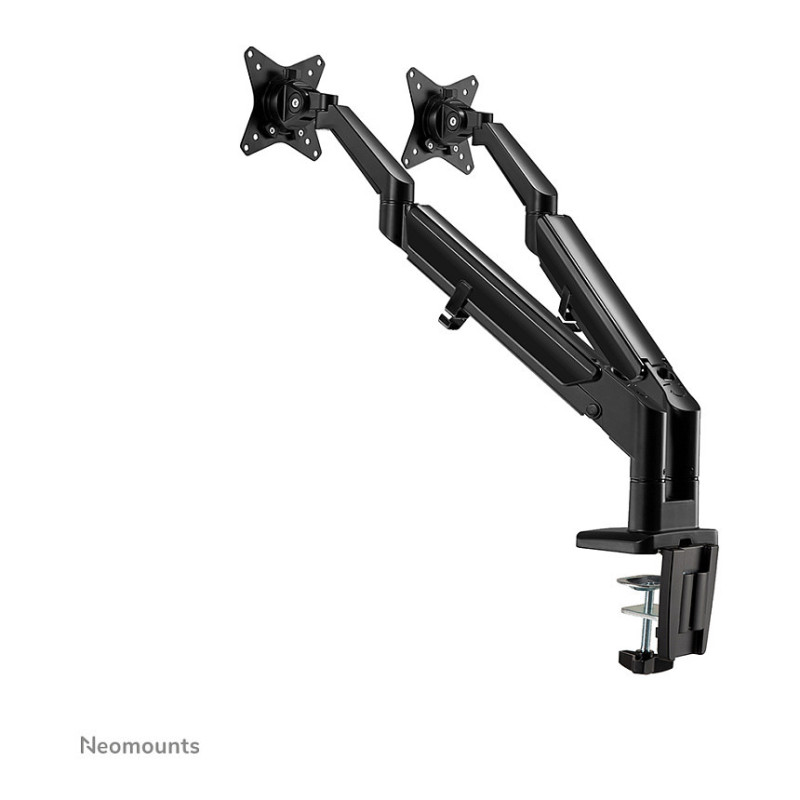

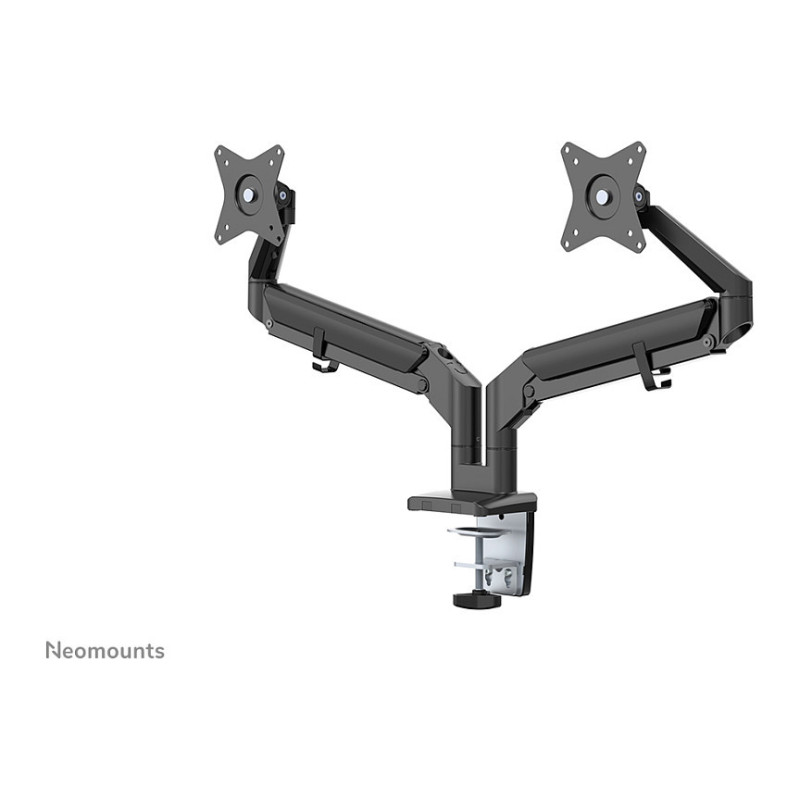

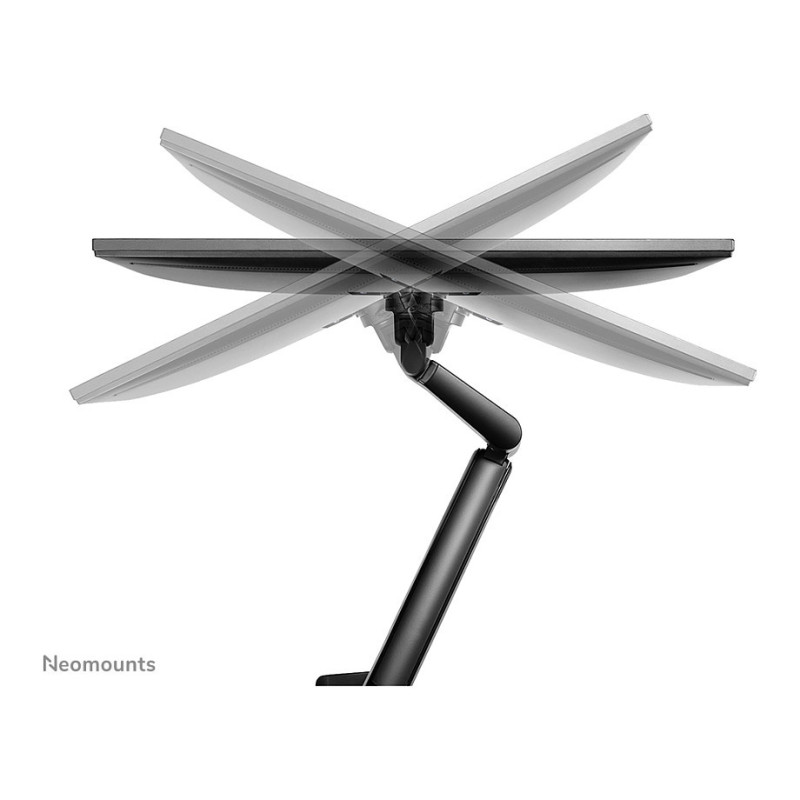

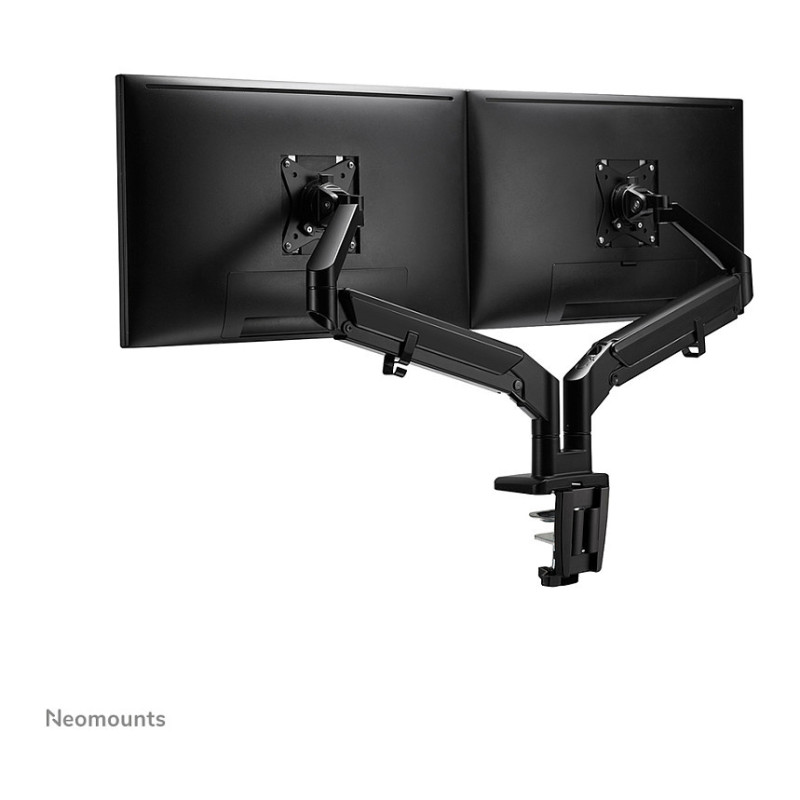

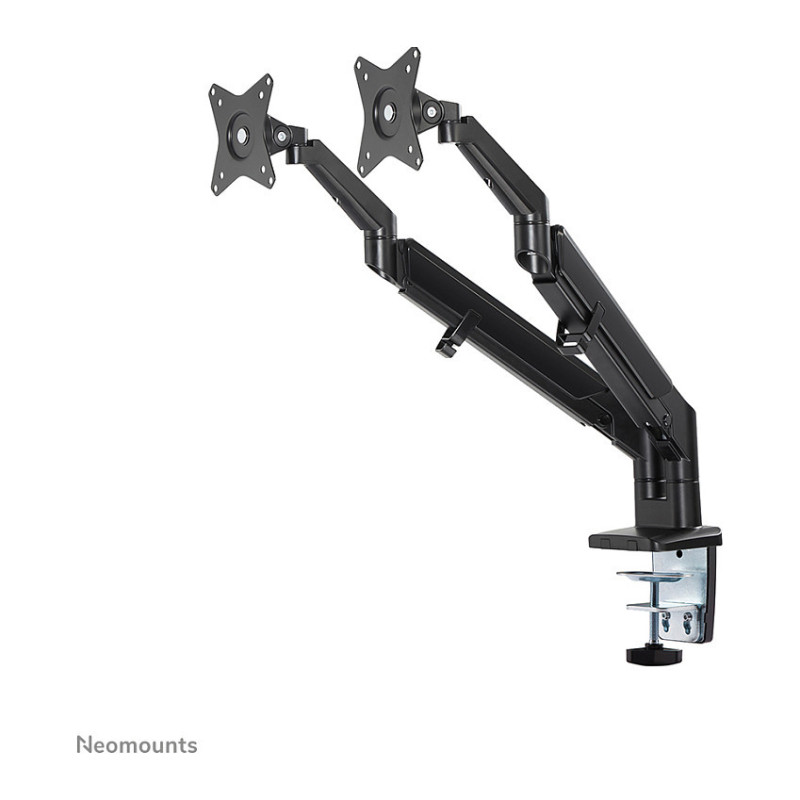

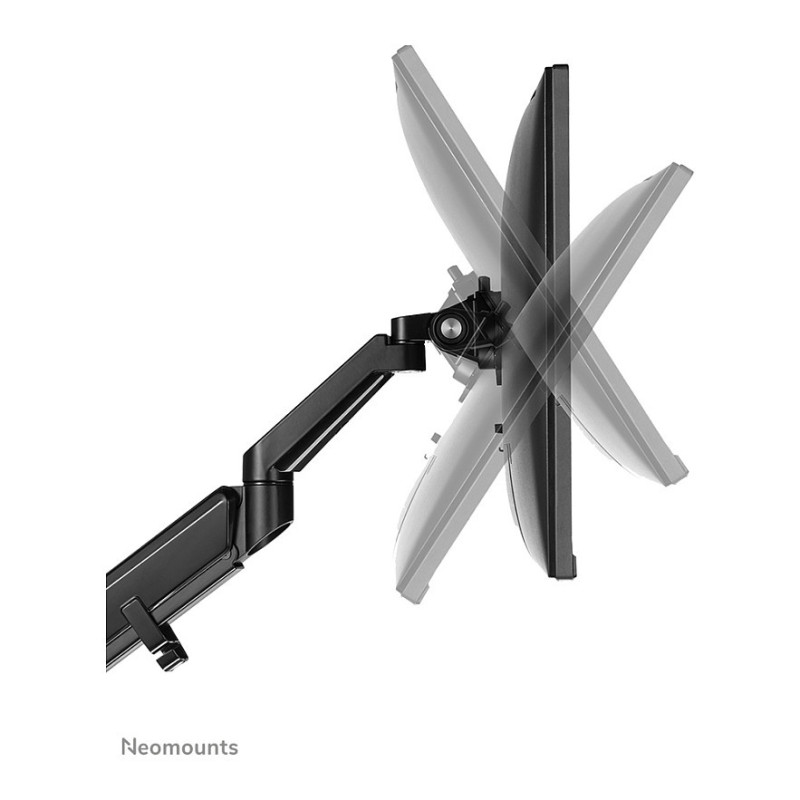

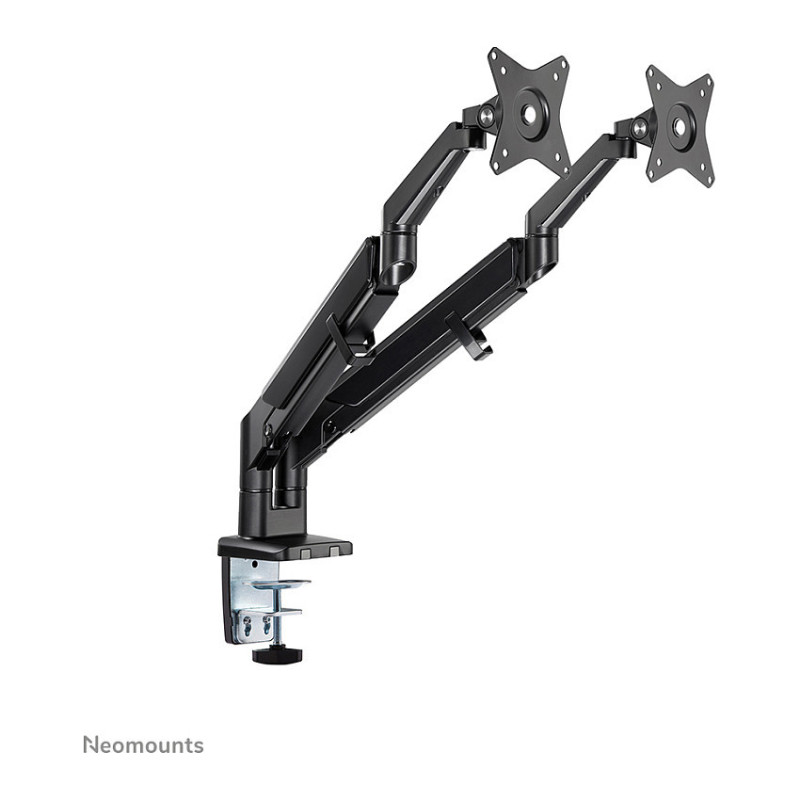

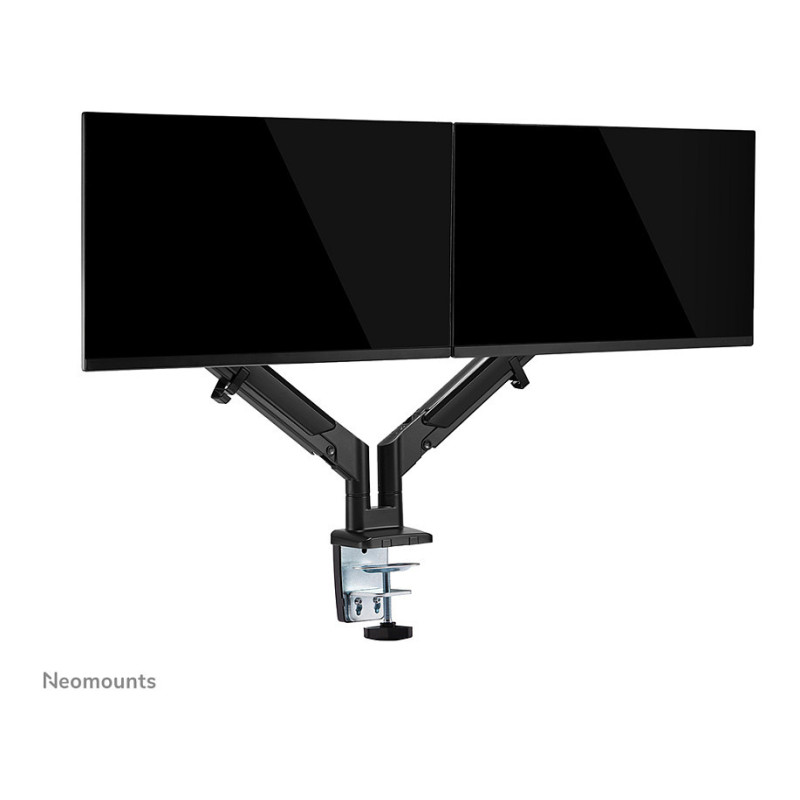

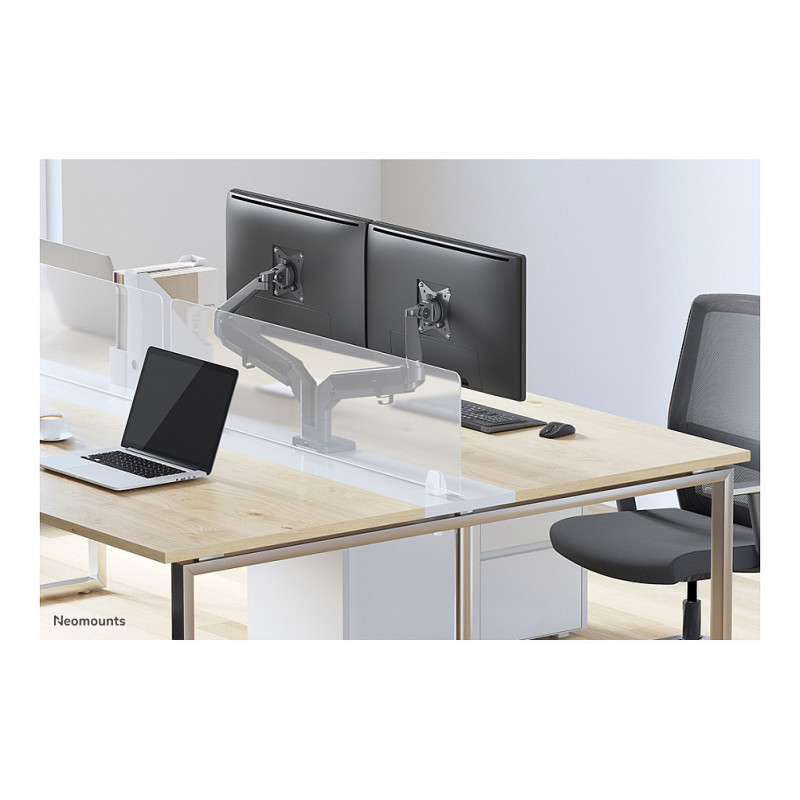

The Neomounts DS70-810BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.

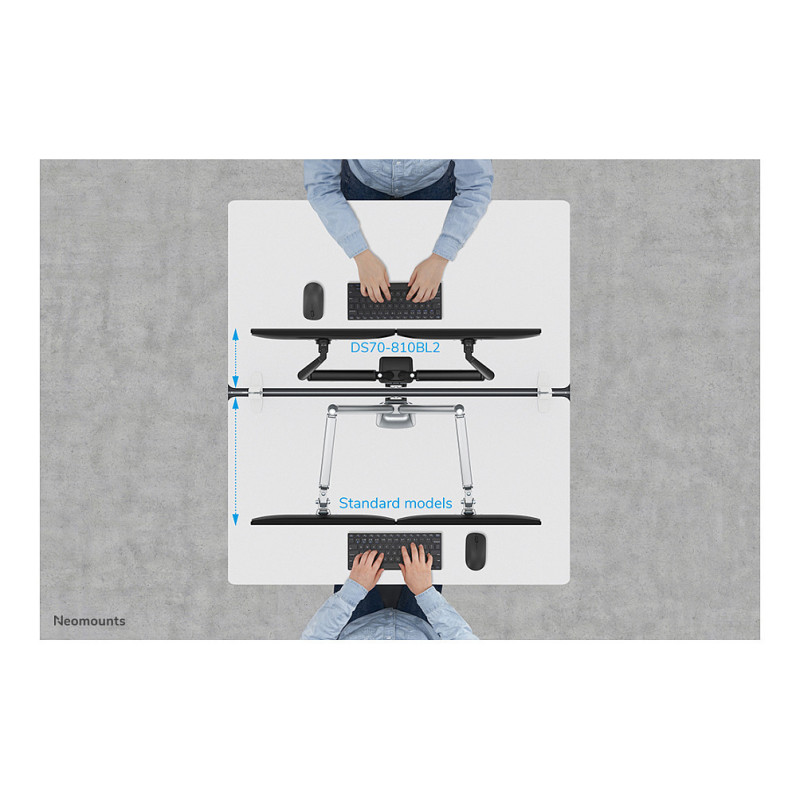

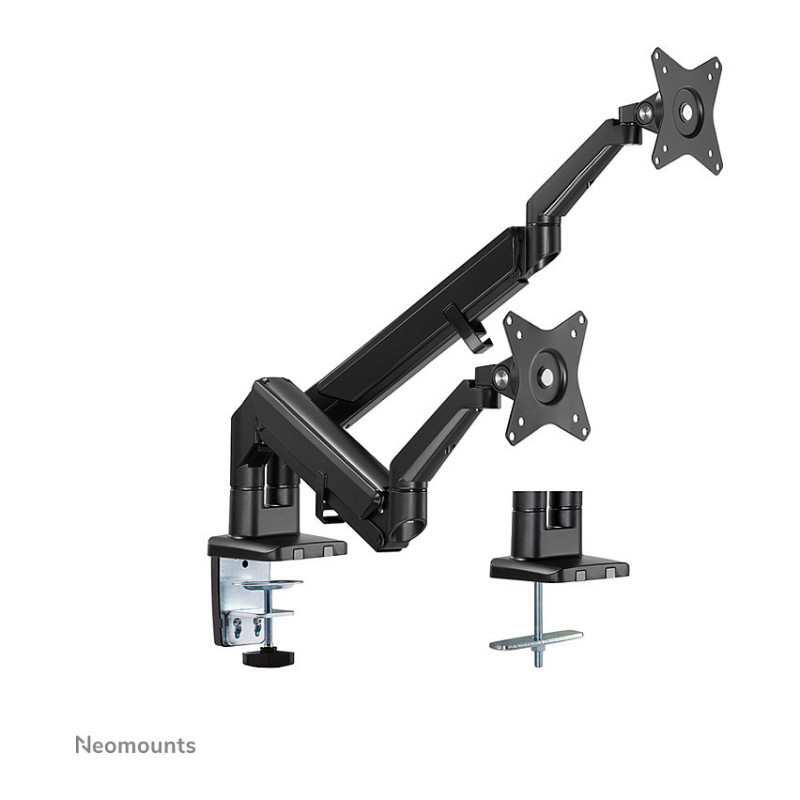

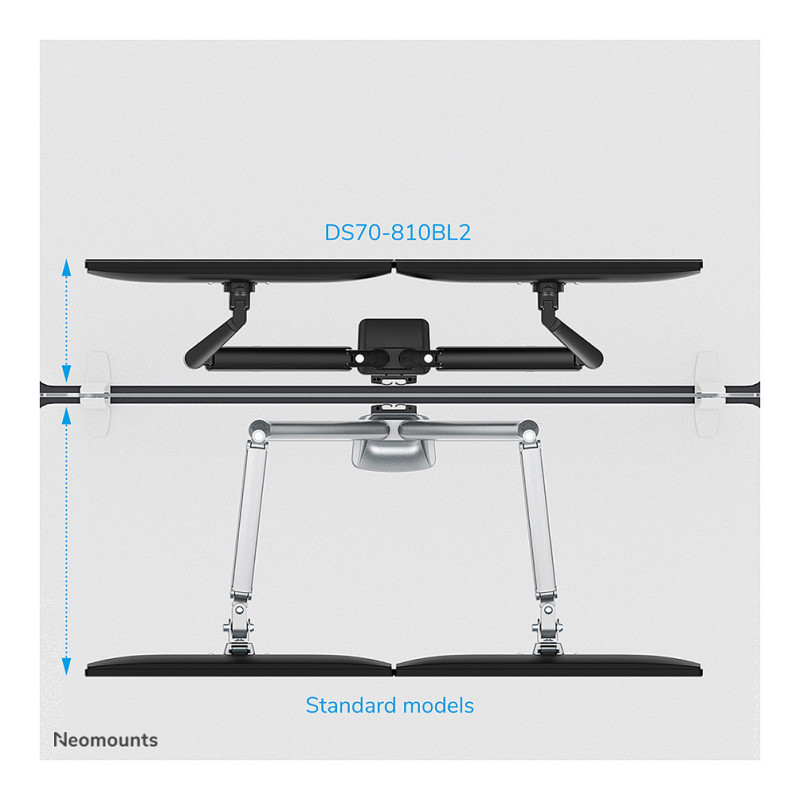

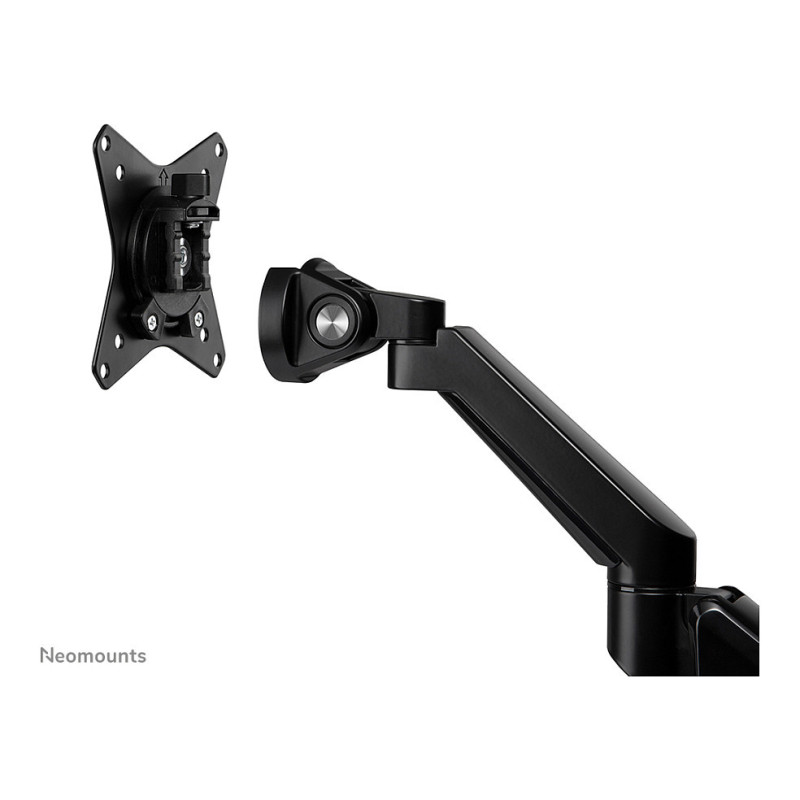

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.

Mounting

Maximum weight capacity: 9 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 2
Maximum weight capacity (per display): 9 kg
Maximum screen size: 81.3 cm (32")

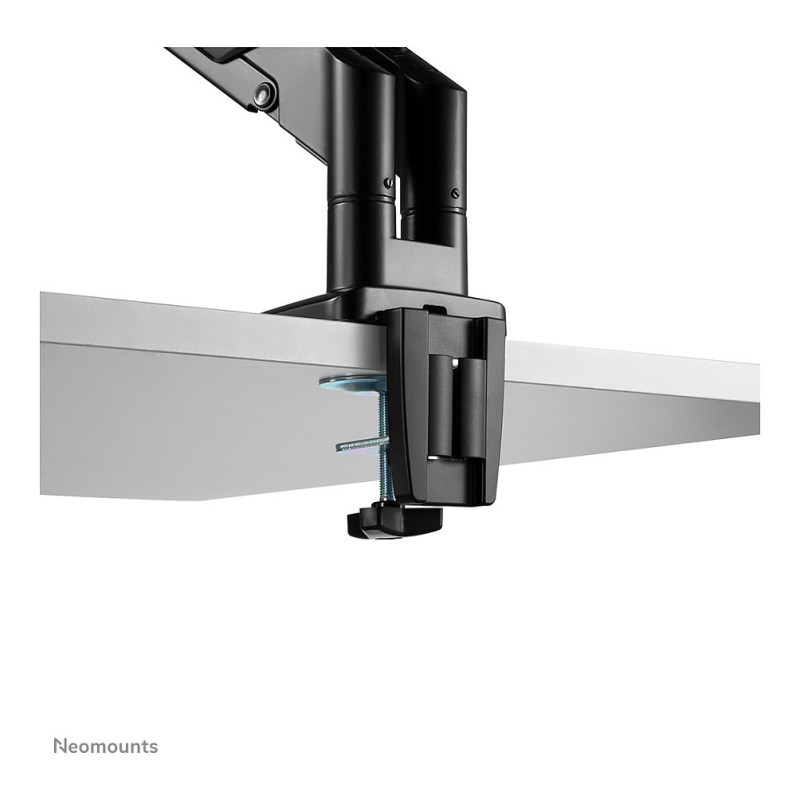

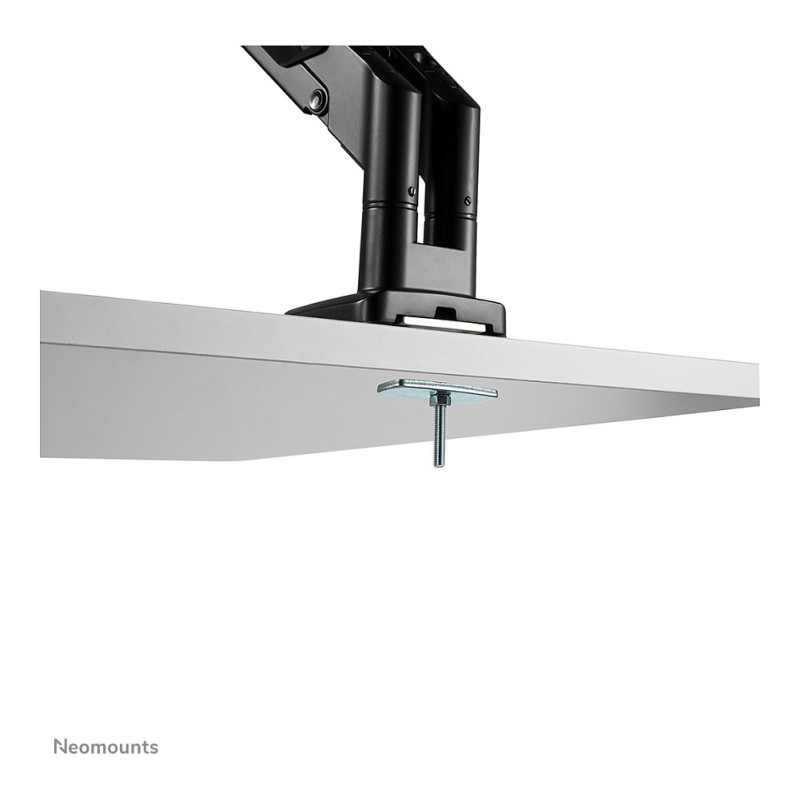

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 8.5 cm

Ergonomics

Feature: Height adjustment

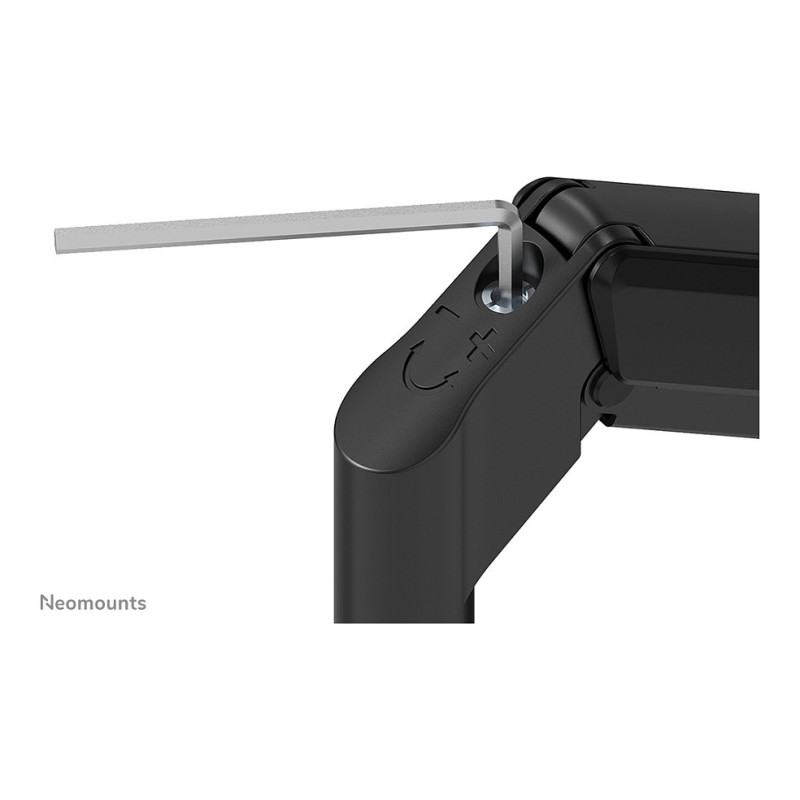

Height adjustment type: Gas spring

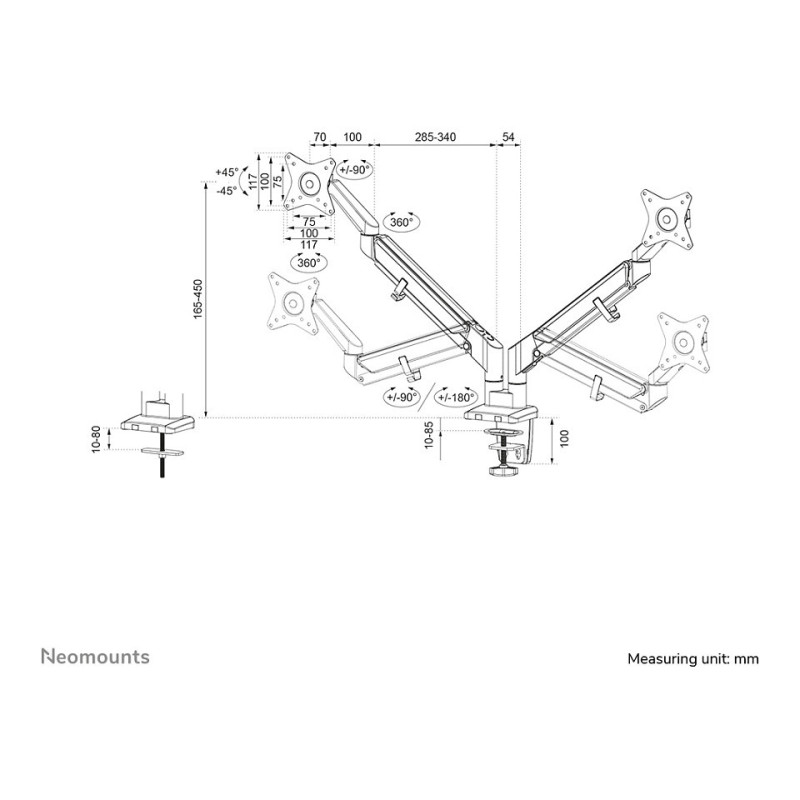

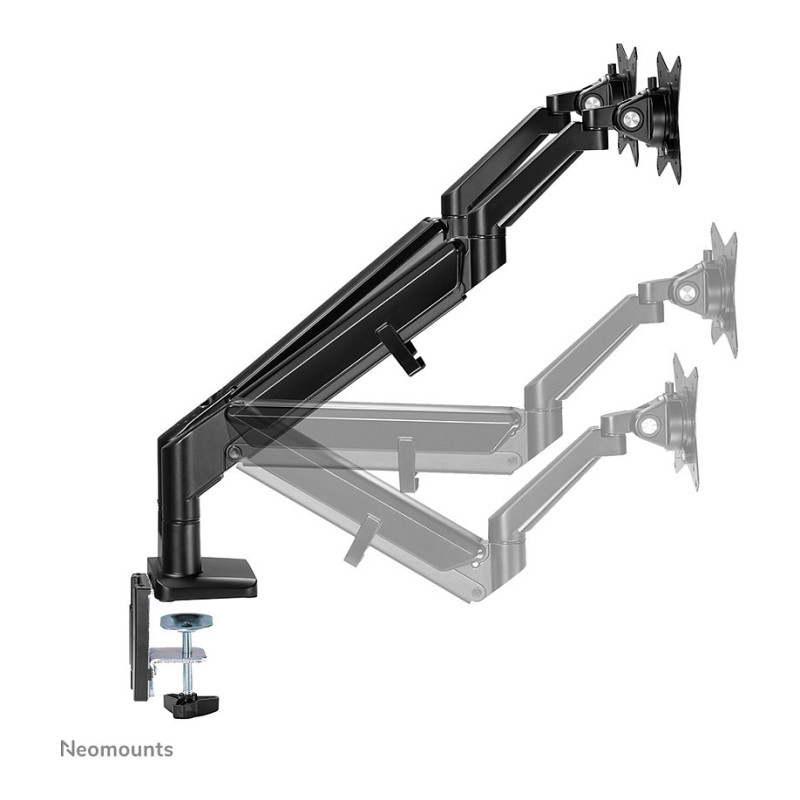

Height adjustment range: 265 - 550 mm
Feature: Adjustable depth
Depth adjustment range: 0 - 490 mm
Feature: Tilt adjustment
Tilt angle range: -45 - 45°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 - 180°

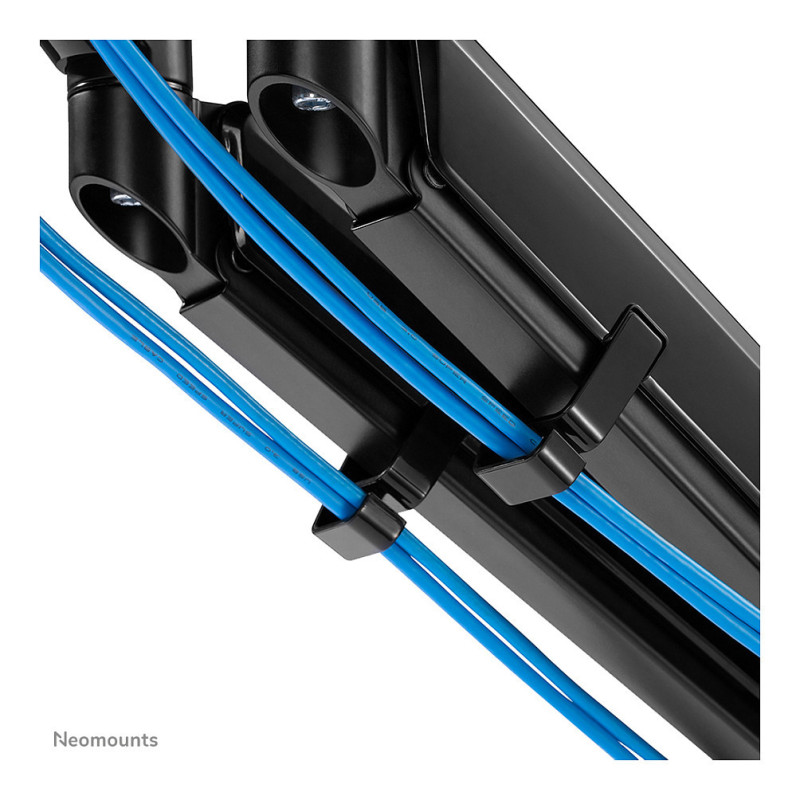

Feature: Cable management

Design

Housing material: Steel
Product colour: Black
Orientation: Landscape/Portrait

Weight & dimensions

Width: 117 mm
Depth: 555 mm
Height: 615 mm
Weight: 5.2 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 265 mm
Package depth: 142 mm
Package height: 395 mm
Package net weight: 6 kg
Package weight: 6 kg

Other features

Minimum weight: 1 kg
Width adjustment range: 0 - 1070 mm

Logistics data

Master (outer) case width: 550 mm
Master (outer) case length: 410 mm
Master (outer) case height: 305 mm
Master (outer) case gross weight: 24.6 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Master (outer) case net weight: 21 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 72 pc(s)
