Neomounts DS70-810BL2 Desk Mount ultra flat, clamp / grommet, Dual-mount, 17 - 32 inch
Product reference: 3-8717371449223

Neomounts DS70-810BL2 Desk Mount ultra flat, clamp/grommet, Dual-mount, 17 - 32 inch

Neomounts DS70-810BL2 Desk Mount ultra flat, clamp / grommet, Dual-mount, 17 - 32 inch

Product reference: 3-8717371449223

Neomounts DS70-810BL2 Desk Mount ultra flat, clamp/grommet, Dual-mount, 17 - 32 inch

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
200,82
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

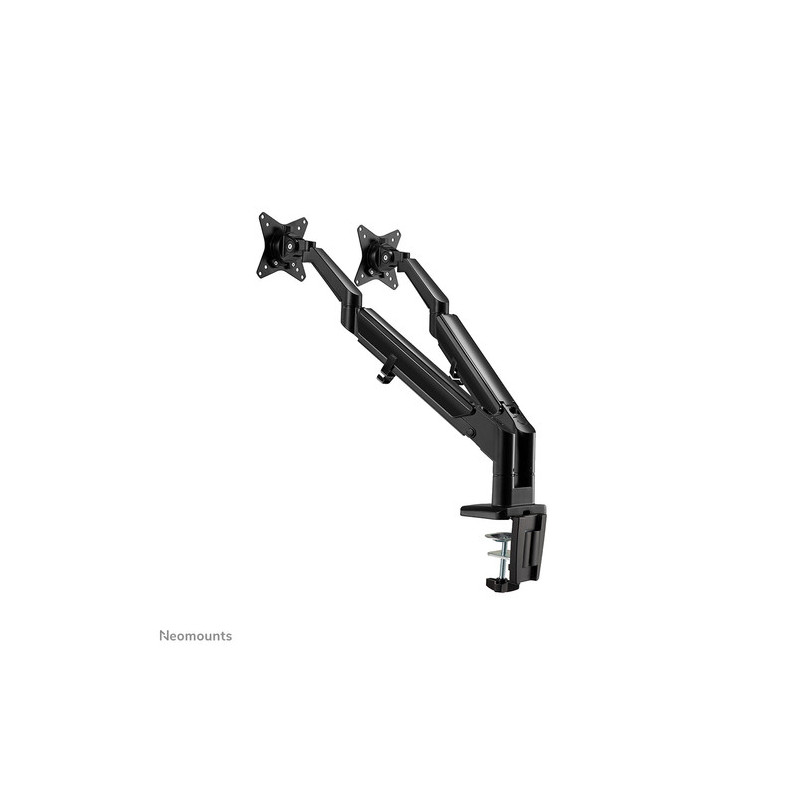

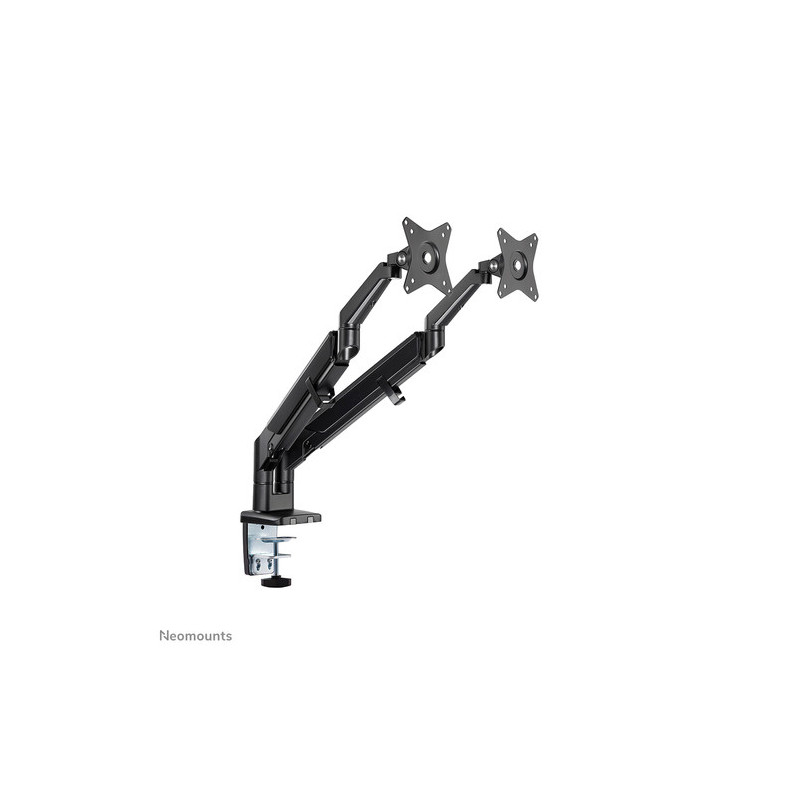

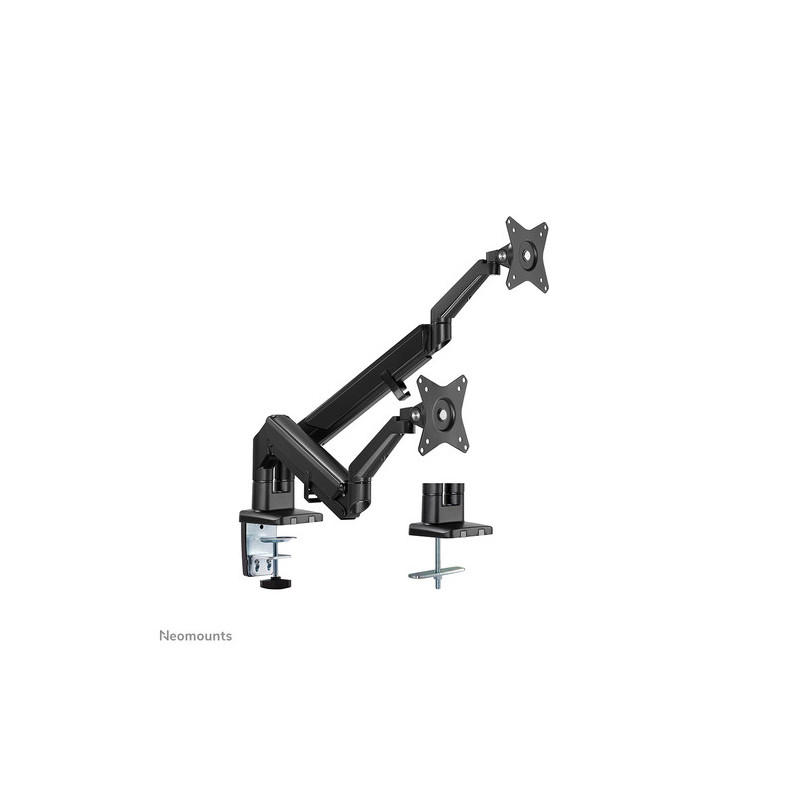

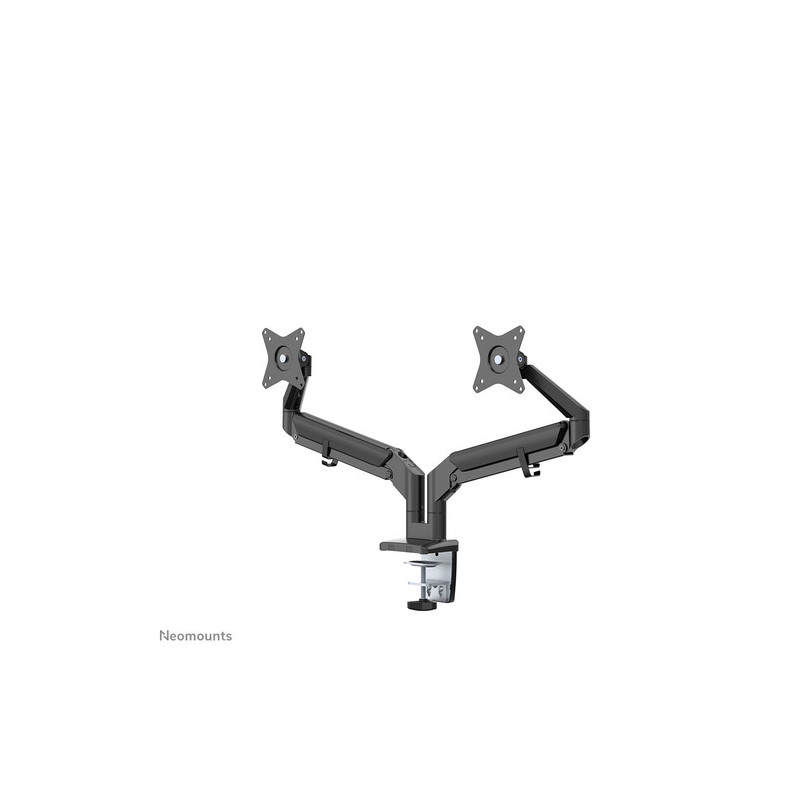

The Neomounts DS70-810BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.


Summary: Neomounts DS70-810BL2 Monitor arm 17-32" - gas spring - space saving - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black
Vendor Homepage: https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-810BL2
Category Code: MAS
CnCode: 83021000
Unit Box Height: 0.26
Unit Box Length: 0.4
Unit Box Width: 0.15
Desk thickness (max): 85mm
Desk thickness (min): 10mm
Maximum screen size: 32"
Maximum VESA mount: 100 x 100mm
Maximum weight capacity: 9kg
Maximum weight capacity (per display): 9kg
Minimum screen size: 17"
Minimum VESA mount: 75 x 75mm
Mounting: Clamp/Grommet
Mounting type: Desk
Number of displays supported: 2
Panel mounting interface: 100 x 100/75 x 75mm
Adjustable depth: Yes
Angle of rotation: 360°
Cable management: Yes
Depth adjustment range: 0 - 490mm
Height adjustment: Yes
Height adjustment range: 265 - 550mm
Height adjustment type: Gas spring
Pivot angle: -180 - 180°
Rotating: Yes
Swivel angle range: -90 - 90°
Swivelling: Yes
Tilt adjustment: Yes
Tilt angle range: -45 - 45°
Housing material: Steel
Orientation: Landscape/Portrait
Product colour: Black
Depth: 555mm
Height: 615mm
Weight: 5200g
Width: 117mm
Package depth: 142mm
Package height: 395mm
Package net weight: 6000g
Package weight: 6000g
Package width: 265mm
Quantity per pack: 1pc(s)
Minimum weight: 1kg
Width adjustment range: 0 - 1070mm
Country of origin: China
Harmonized System (HS) code: 7326909890
Master (outer) case gross weight: 24600g
Master (outer) case height: 305mm
Master (outer) case length: 410mm
Master (outer) case net weight: 21000g
Master (outer) case width: 550mm
Products per master (outer) case: 4pc(s)
Products per pallet (EU): 72pc(s)
Units per Pallet: 0
Units per Shipping Box: 4
Unit Calculated Volume: 0.01425m³
Unit Calculated Weight: 6.15kg
