Neomounts DS70-750BL2 monitor mount / stand

Neomounts DS70-750BL2 Monitor arm 17-27" - gas spring. Mounting: Clamp/Grommet, Maximum weight capacity: 7 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black

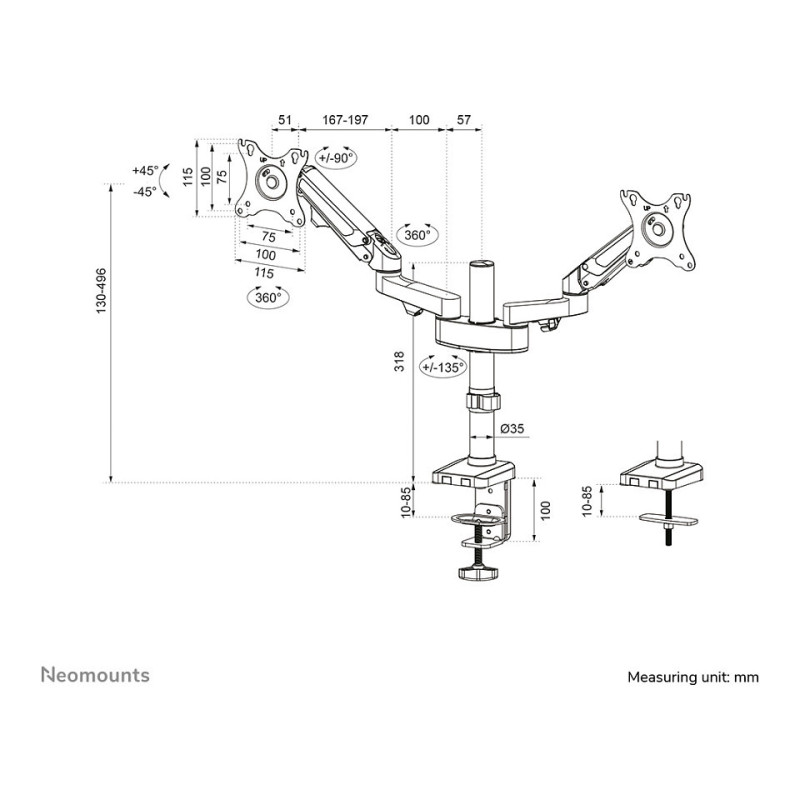

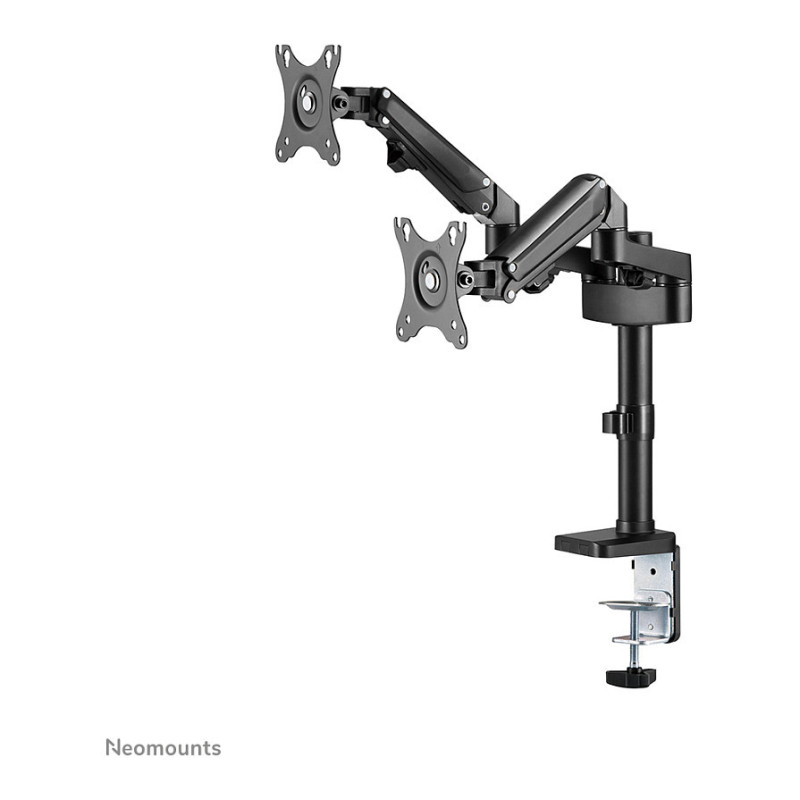

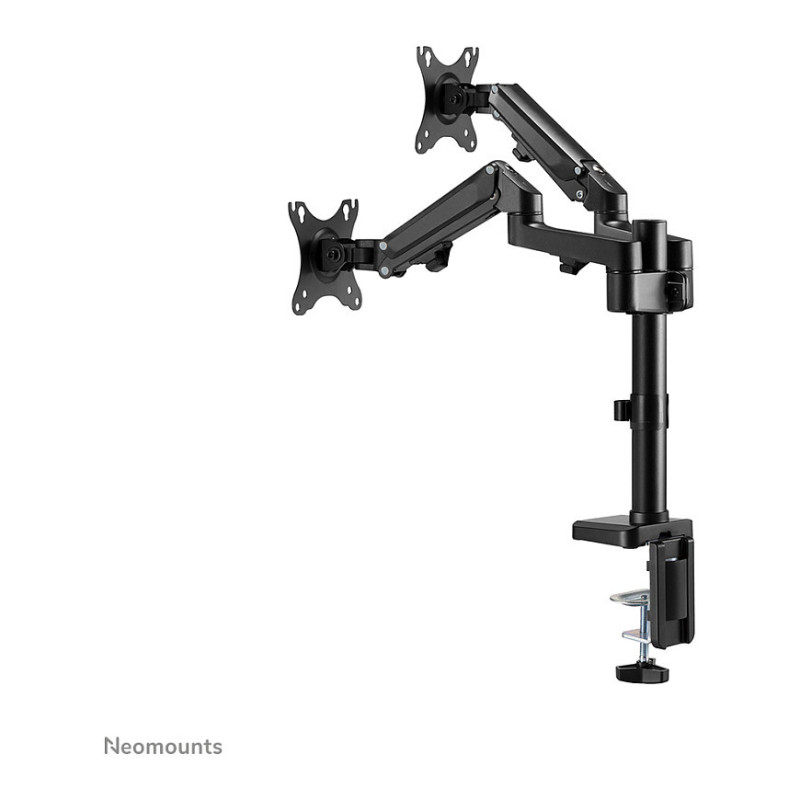

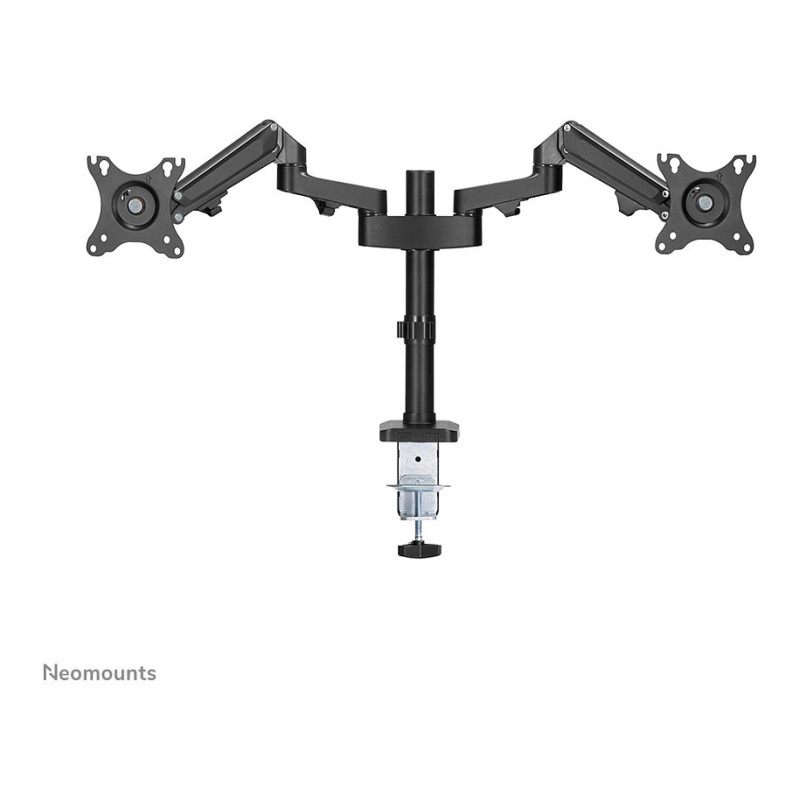

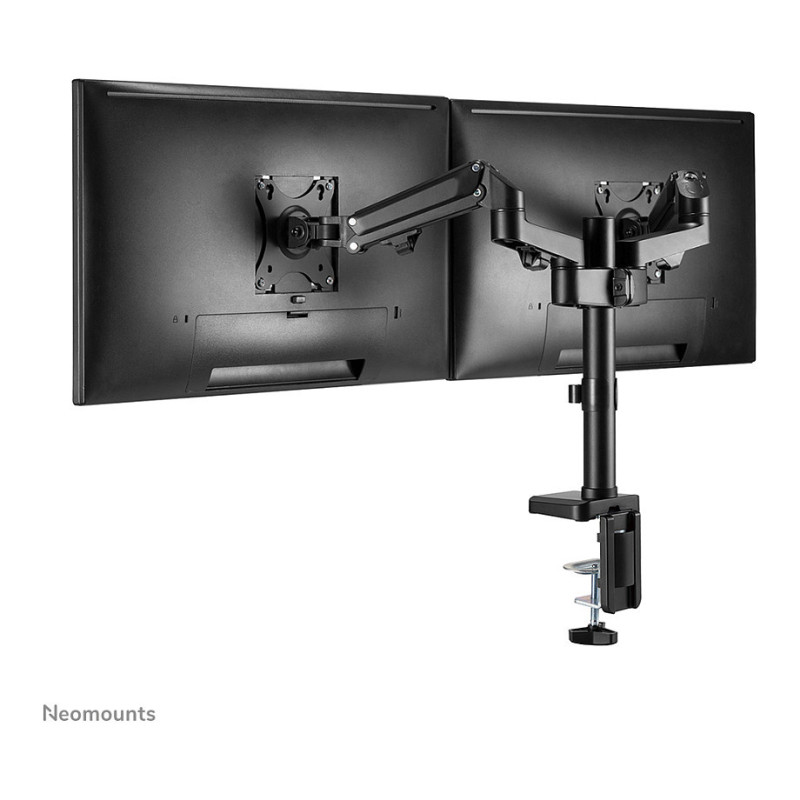

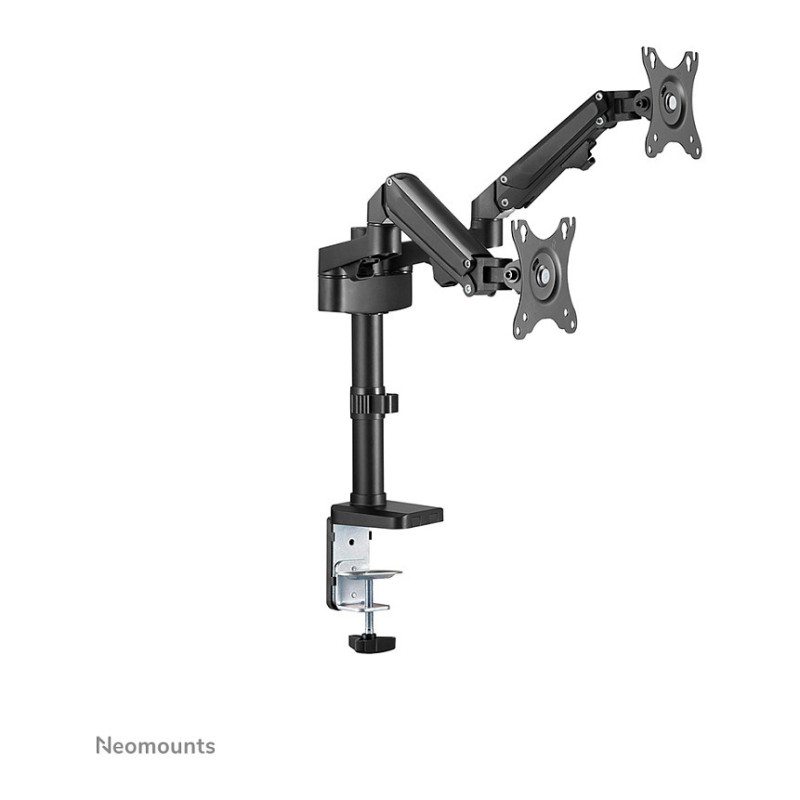

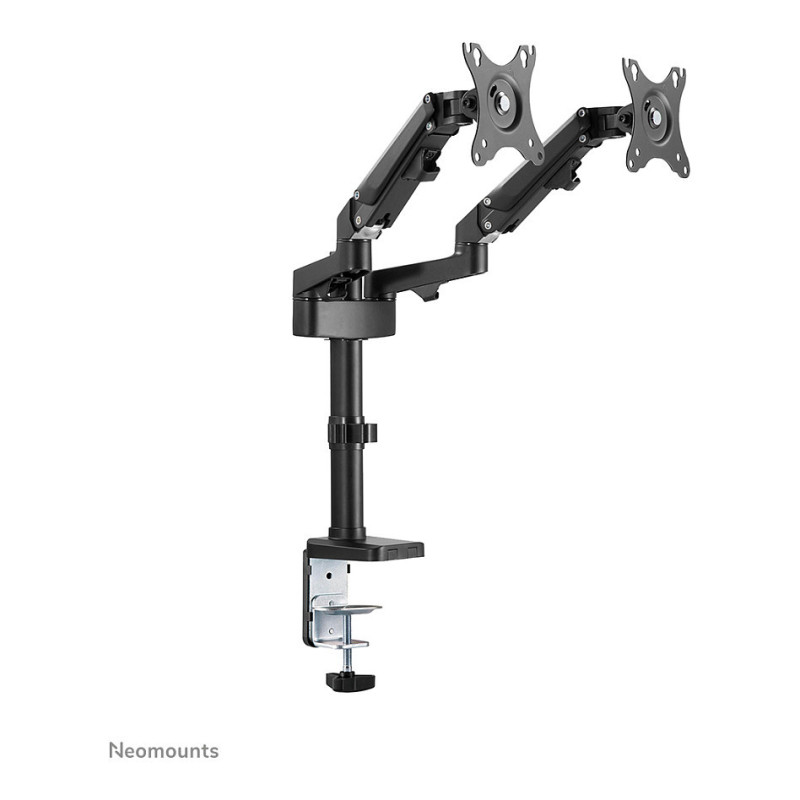

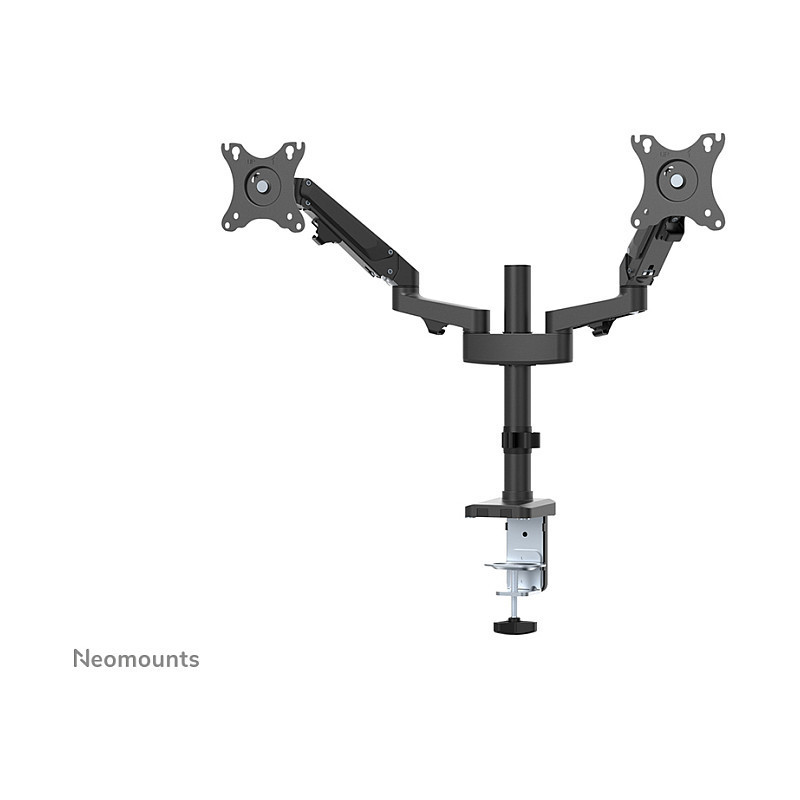

The Neomounts DS70-750BL2 is a full motion desk mount for two flat screens up to 27" with a maximum weight capacity of 7 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position.

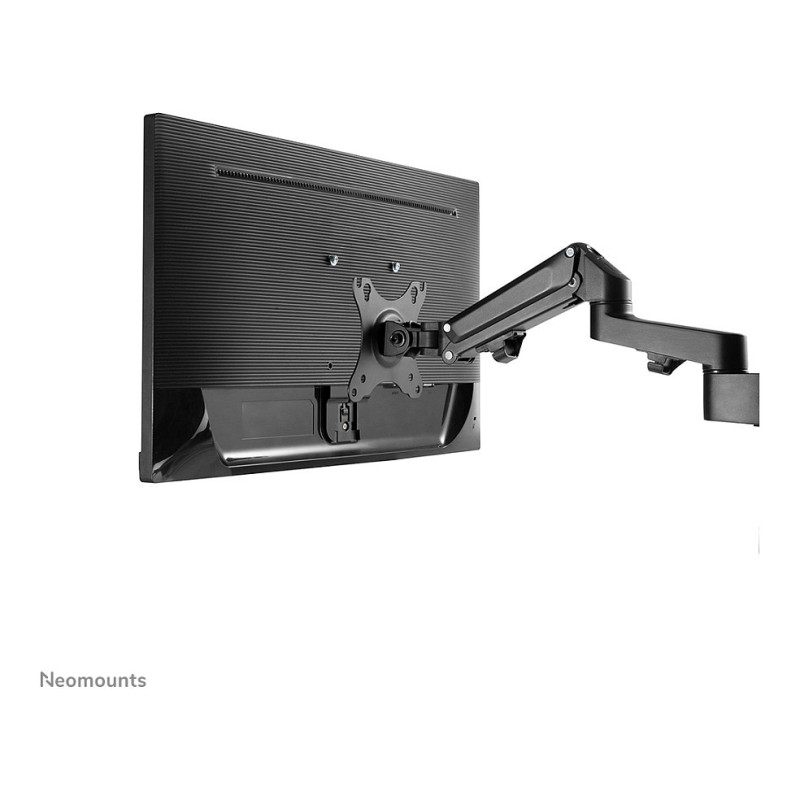

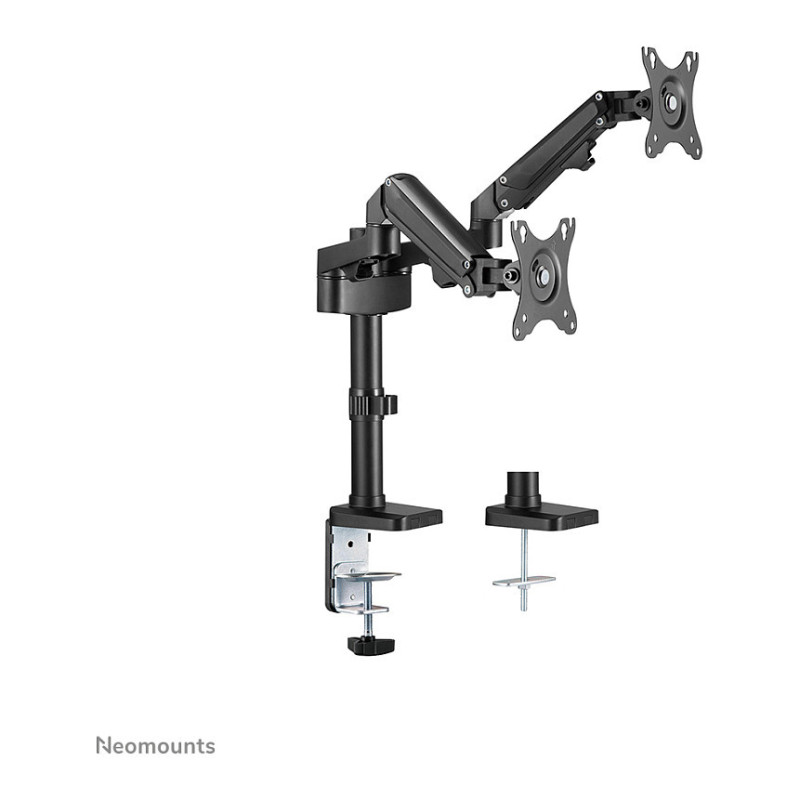

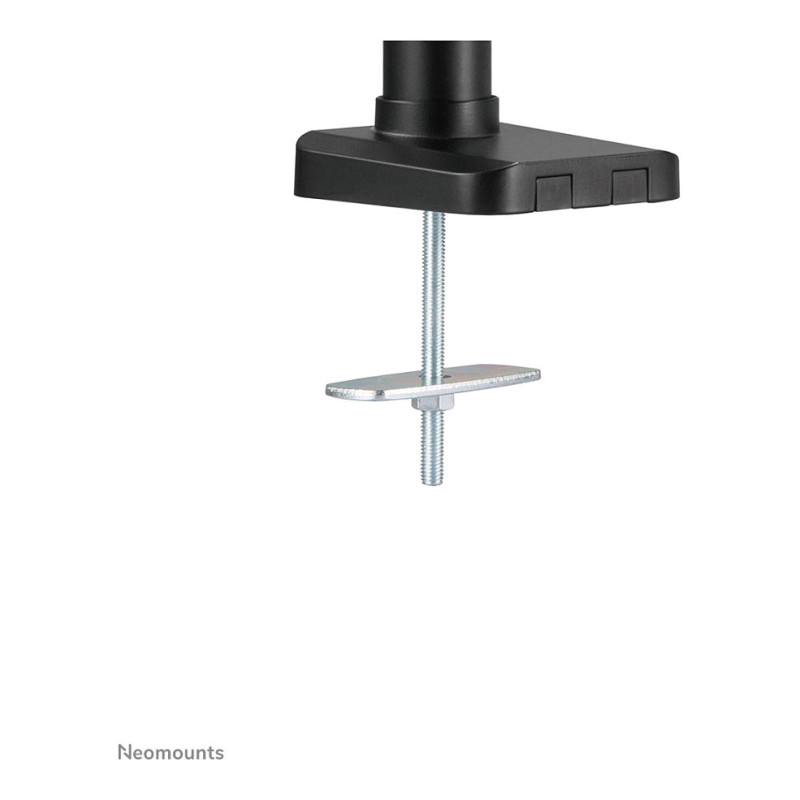

The DS70-750BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.

Mounting

Maximum weight capacity: 7 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 2
Maximum weight capacity (per display): 7 kg
Maximum screen size: 68.6 cm (27")

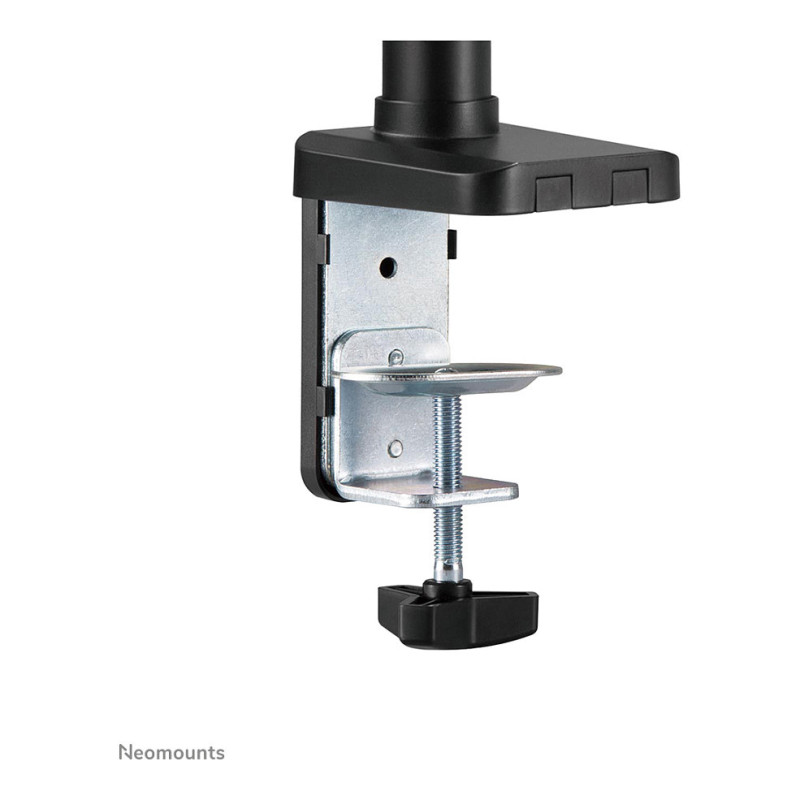

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 8.5 cm

Ergonomics

Feature: Height adjustment
Height adjustment type: Gas spring
Height adjustment range: 73 - 481 mm
Feature: Adjustable depth
Depth adjustment range: 0 - 378 mm
Feature: Tilt adjustment
Tilt angle range: -45 - 45°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 - 180°

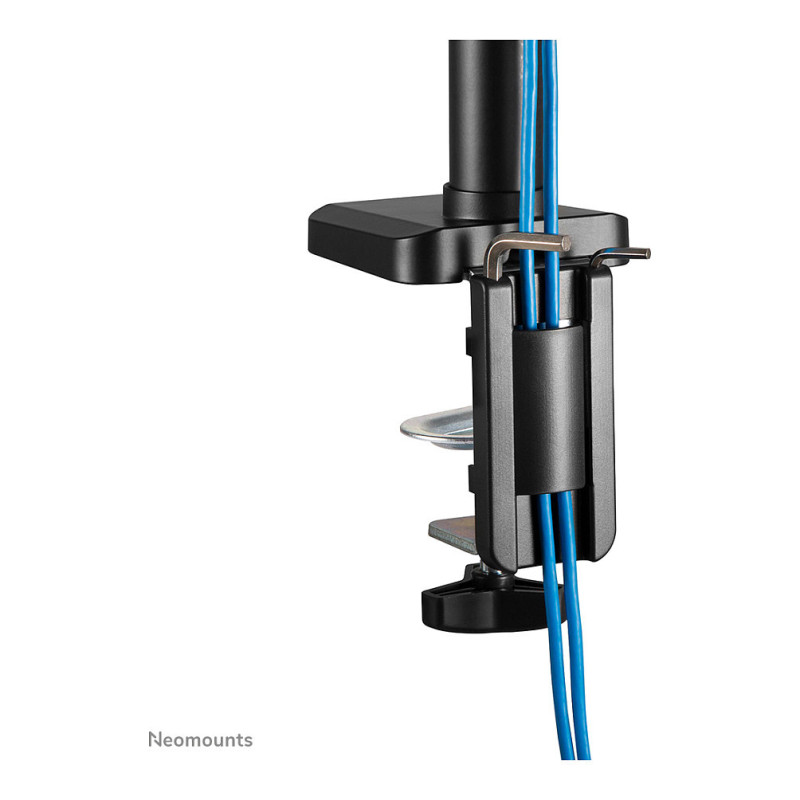

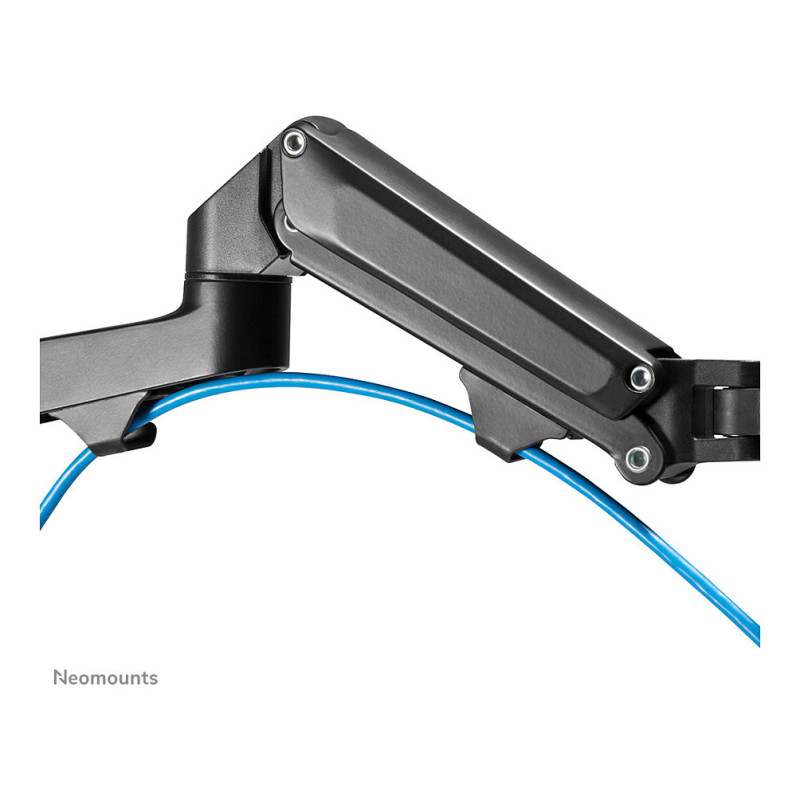

Feature: Cable management

Design

Housing material: Steel
Product colour: Black

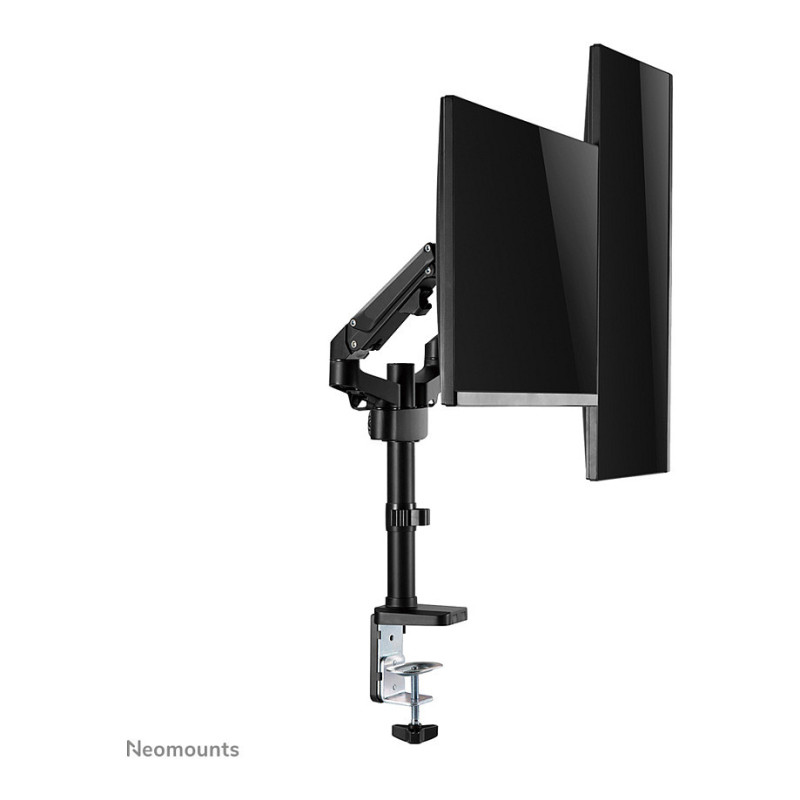

Orientation: Landscape/Portrait

Weight & dimensions

Width: 825 mm
Depth: 440 mm
Height: 679 mm
Weight: 3.6 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 266 mm
Package depth: 132 mm
Package height: 425 mm
Package net weight: 4.4 kg
Package weight: 4.4 kg

Other features

Minimum weight: 2 kg
Width adjustment range: 0 - 825 mm

Logistics data

Master (outer) case width: 440 mm
Master (outer) case length: 280 mm
Master (outer) case height: 550 mm
Master (outer) case gross weight: 18.2 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Master (outer) case net weight: 14.4 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 64 pc(s)
