Neomounts DS70-700BL2 monitor mount / stand

Neomounts DS70-700BL2 Monitor arm 17-27" - gas spring. Mounting: Clamp, Maximum weight capacity: 7 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 90°. Product colour: Black

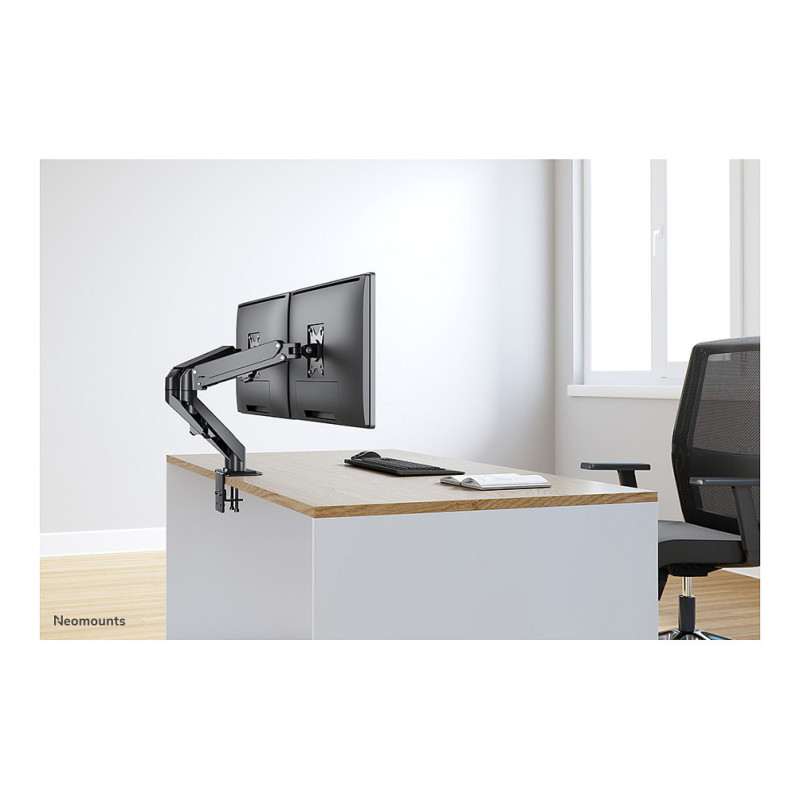

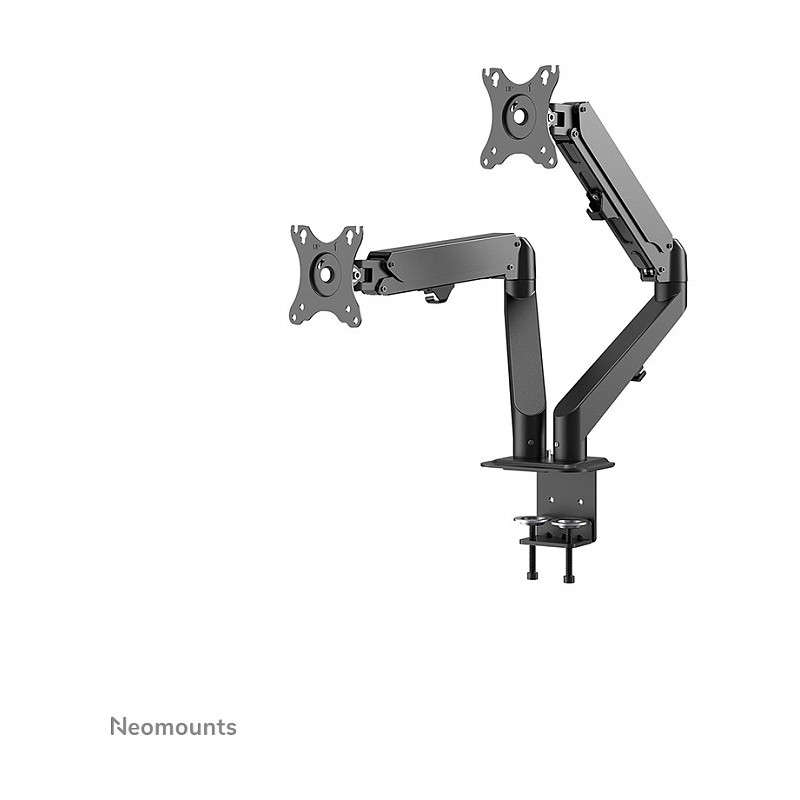

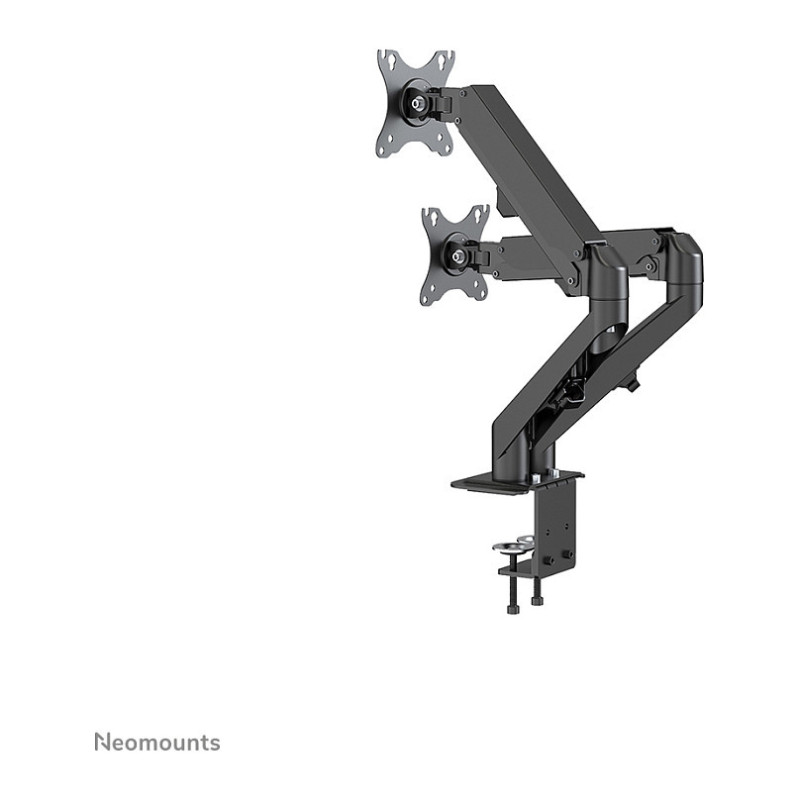

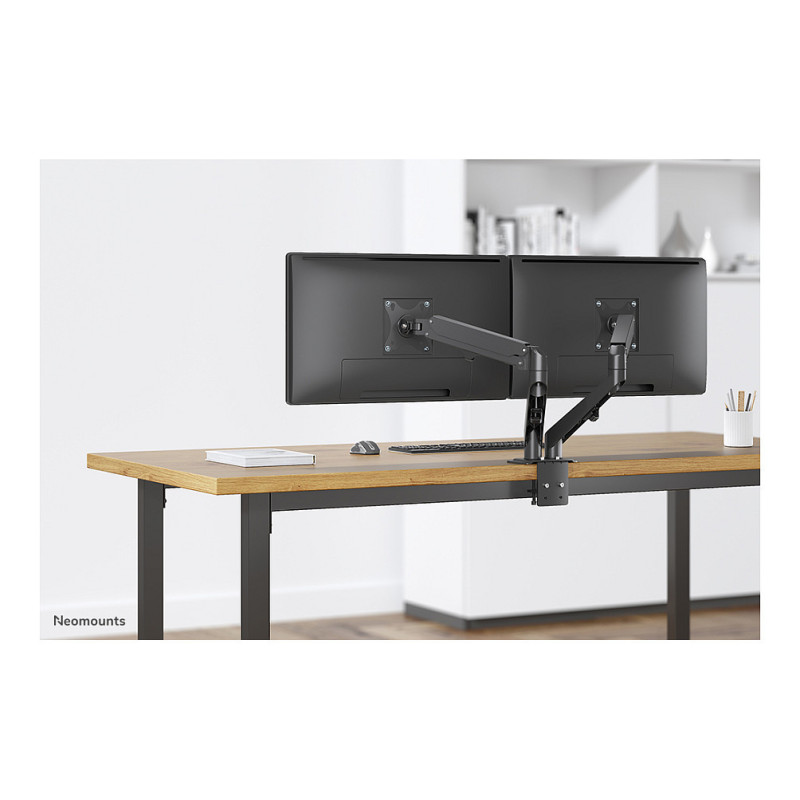

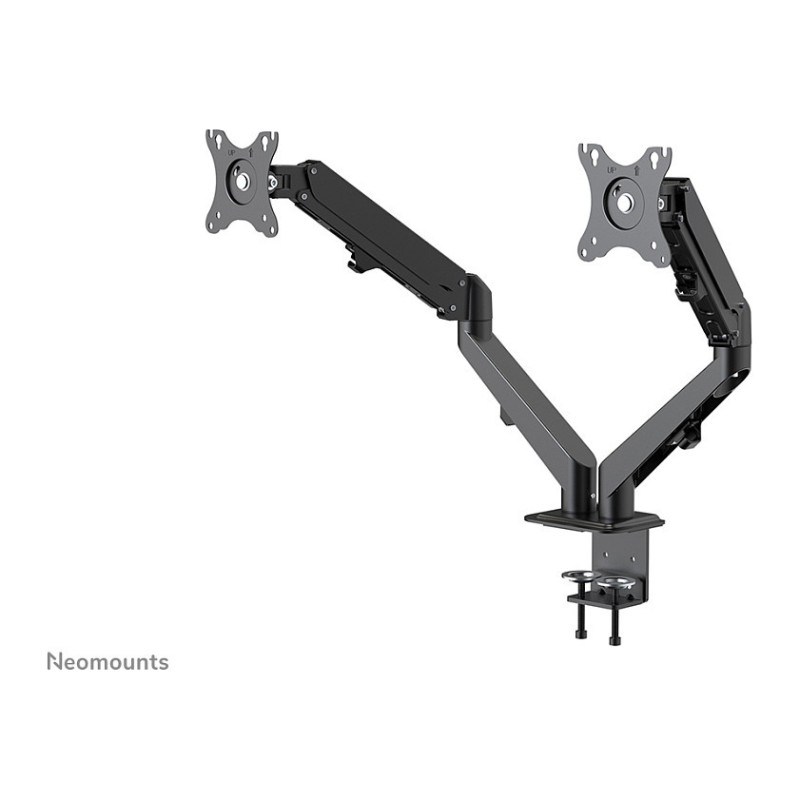

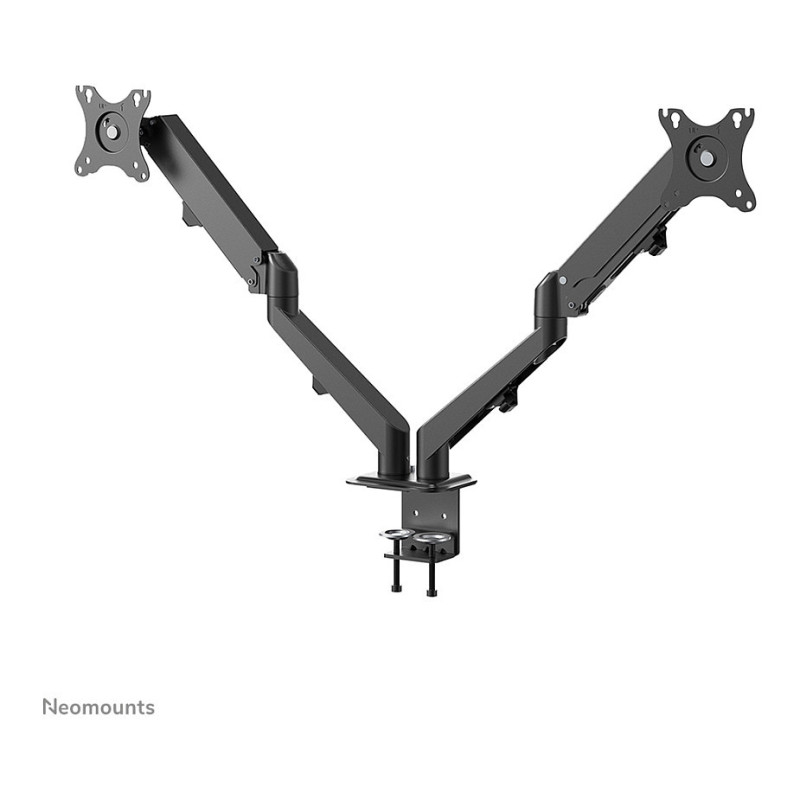

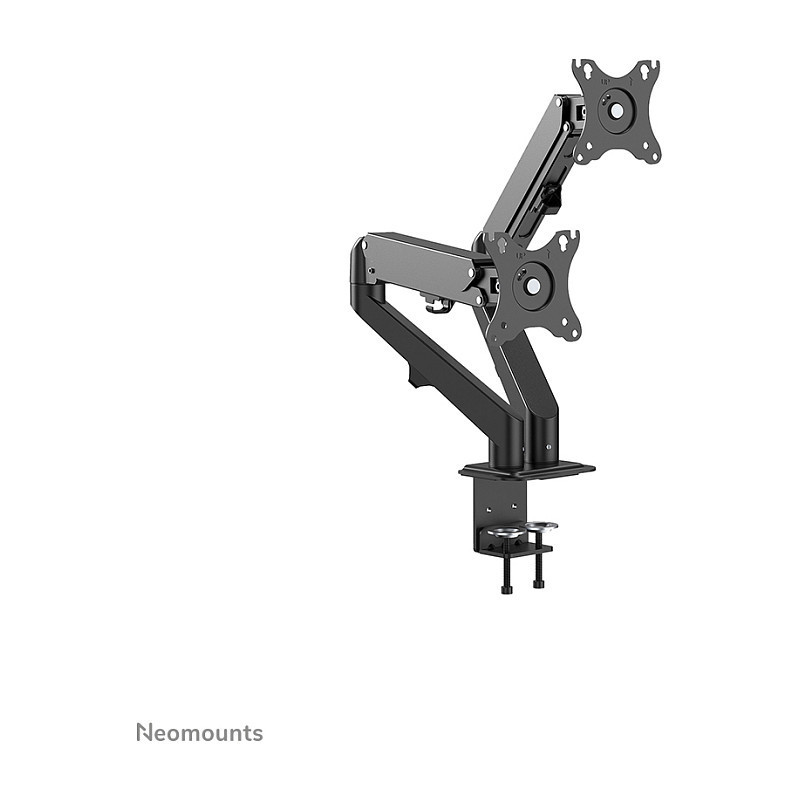

The Neomounts DS70-700BL2 is a full motion desk mount for two flat screens up to 27" with a maximum weight capacity of 7 kg per screen. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (15,2-40,2 cm) and depth adjustment (0-48 cm), to create the perfect working position.

The DS70-700BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates.

Mounting

Maximum weight capacity: 7 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 2
Maximum weight capacity (per display): 7 kg
Maximum screen size: 68.6 cm (27")
Mounting: Clamp
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 8 cm

Ergonomics

Feature: Height adjustment

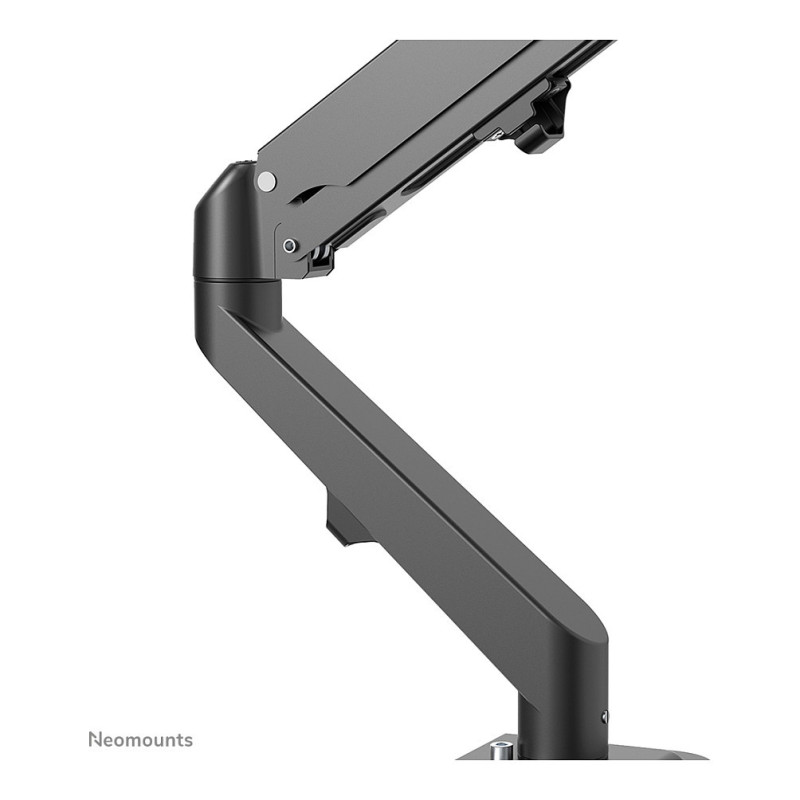

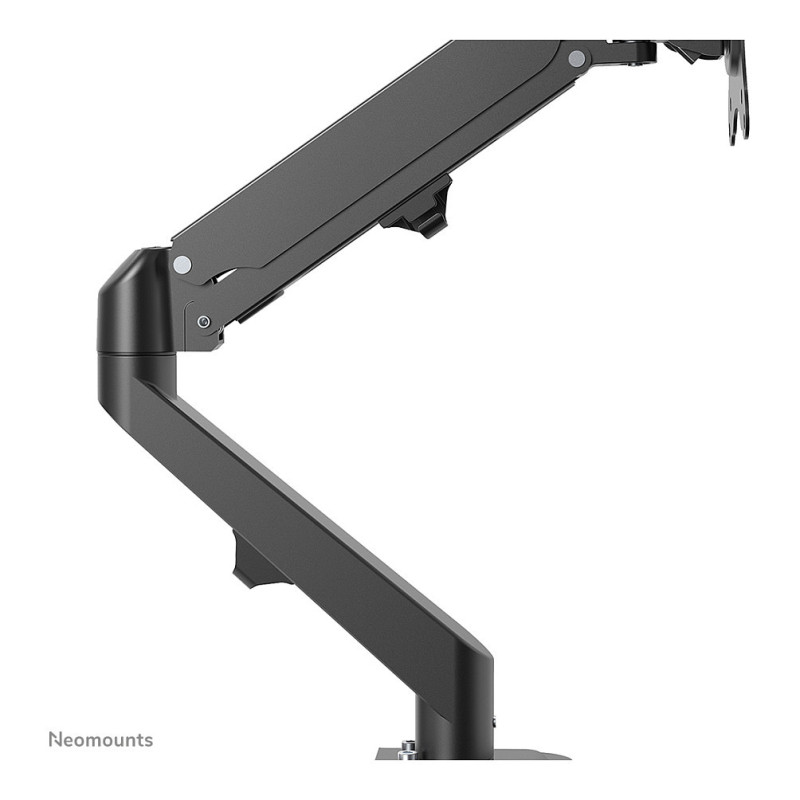

Height adjustment type: Gas spring

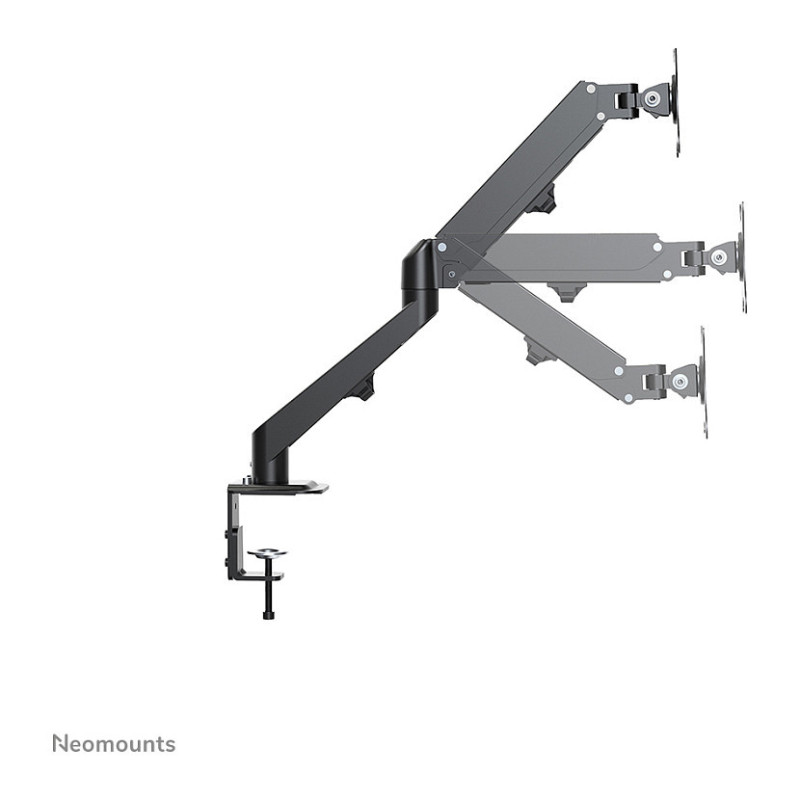

Height adjustment range: 152 - 402 mm
Feature: Adjustable depth
Depth adjustment range: 0 - 480 mm
Width adjustment: 105.6 cm
Feature: Tilt adjustment
Tilt angle range: -45 - 90°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 - 180°

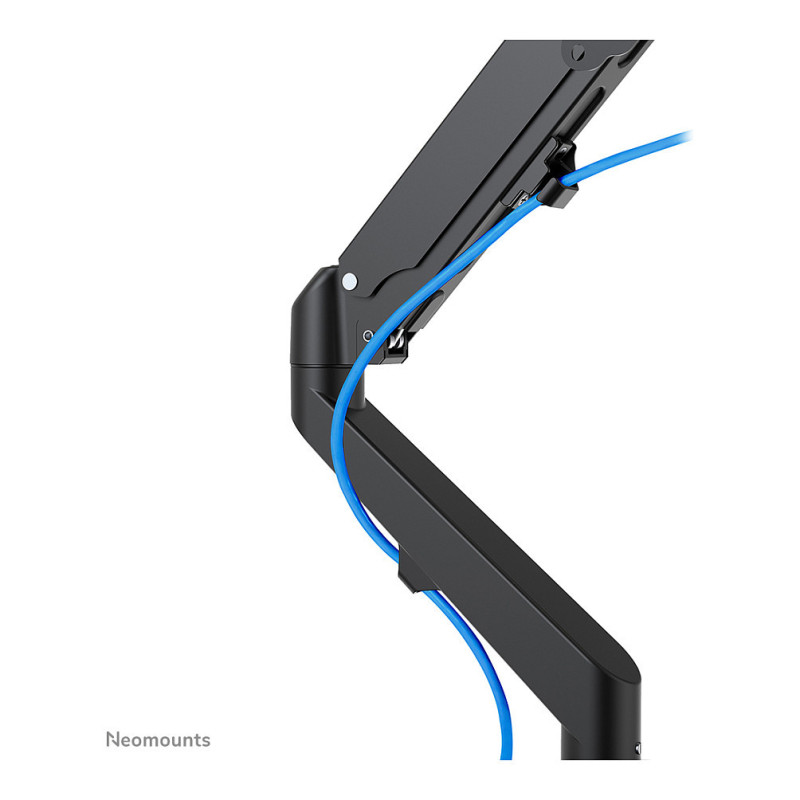

Feature: Cable management

Design

Housing material: Steel
Product colour: Black
Orientation: Landscape/Portrait

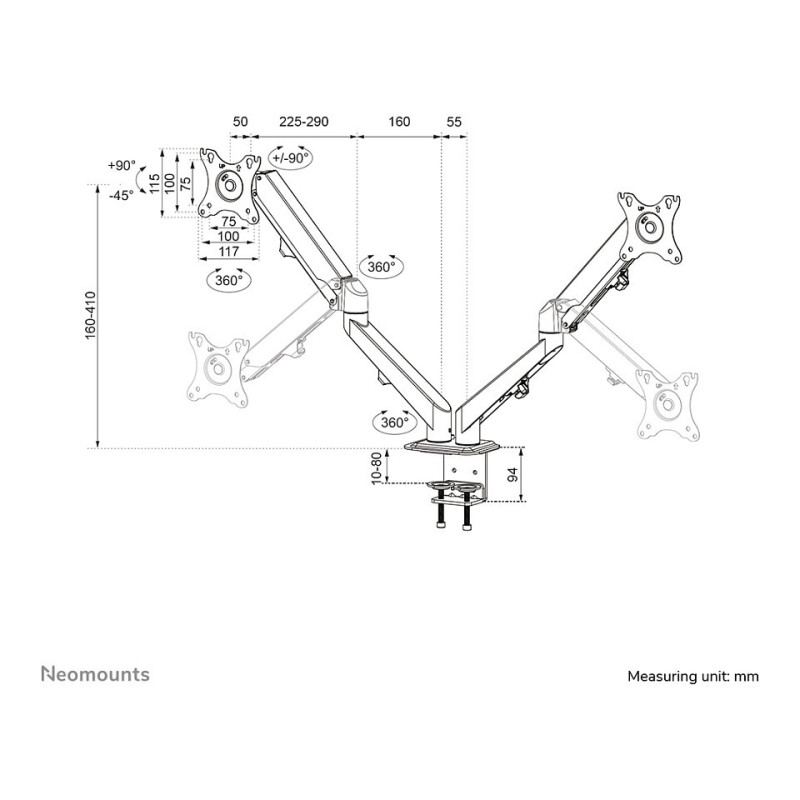

Weight & dimensions

Width: 117 mm
Depth: 542 mm
Height: 566 mm
Weight: 3.95 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 405 mm
Package depth: 270 mm
Package height: 132 mm
Package net weight: 4.6 kg
Package weight: 4.6 kg

Other features

Minimum weight: 2 kg
Width adjustment range: 0 - 1056 mm

Logistics data

Master (outer) case width: 405 mm
Master (outer) case length: 270 mm
Master (outer) case height: 132 mm
Master (outer) case gross weight: 4.6 kg
Products per master (outer) case: 1 pc(s)
Country of origin: China
Master (outer) case net weight: 3.9 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 90 pc(s)
