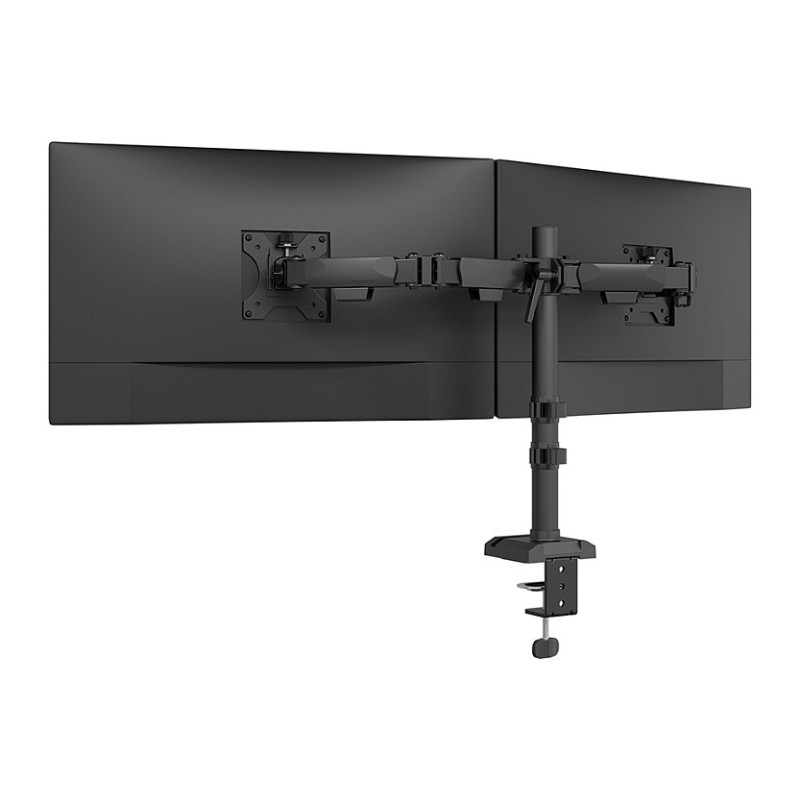

Neomounts DS60-600BL2 monitor mount / stand

Neomounts DS60-600BL2 Monitor arm 10-32" - Quick-fix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black

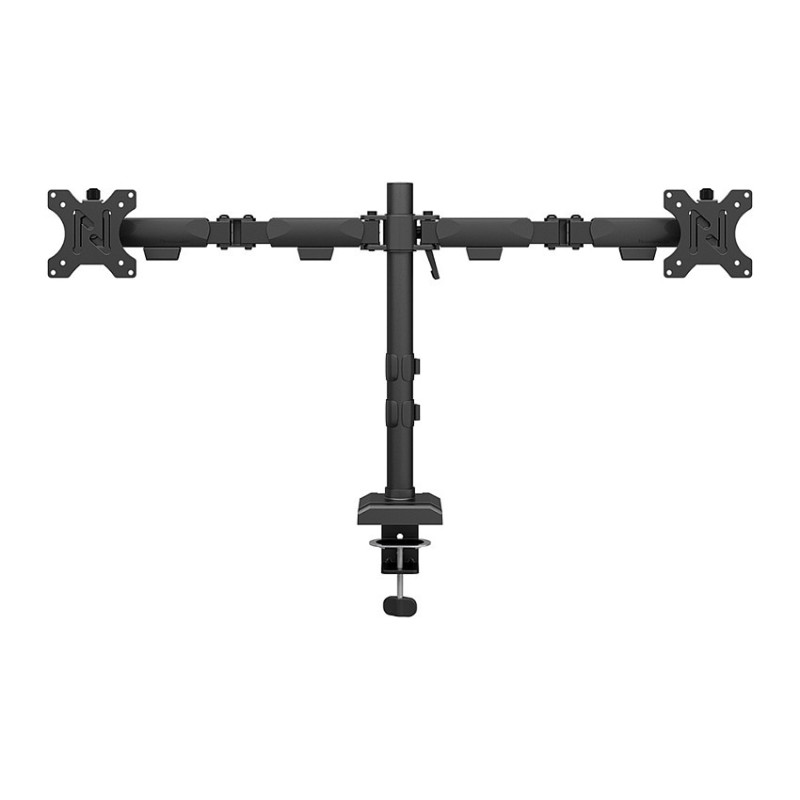

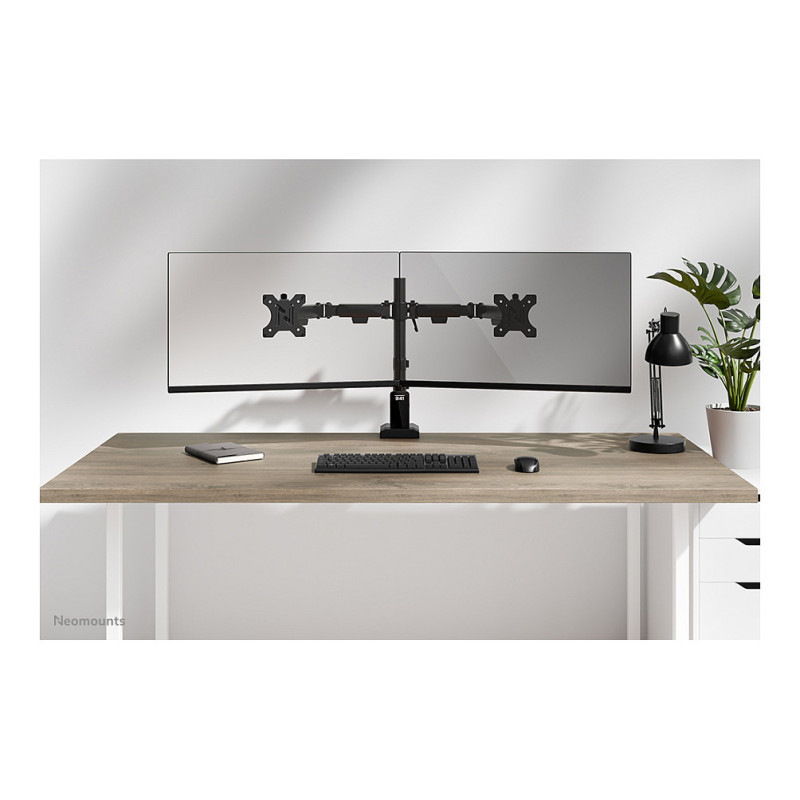

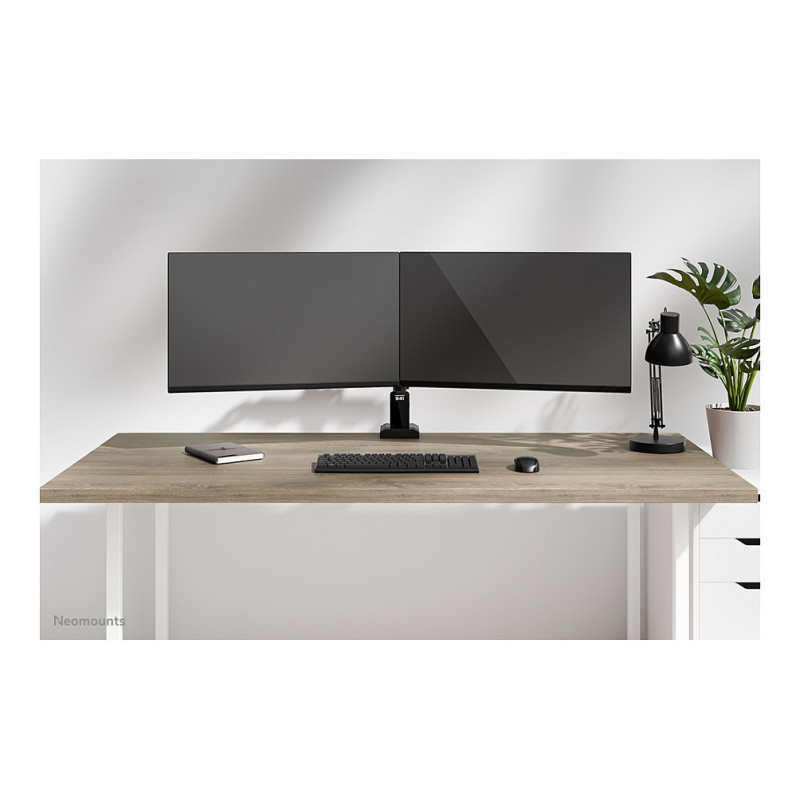

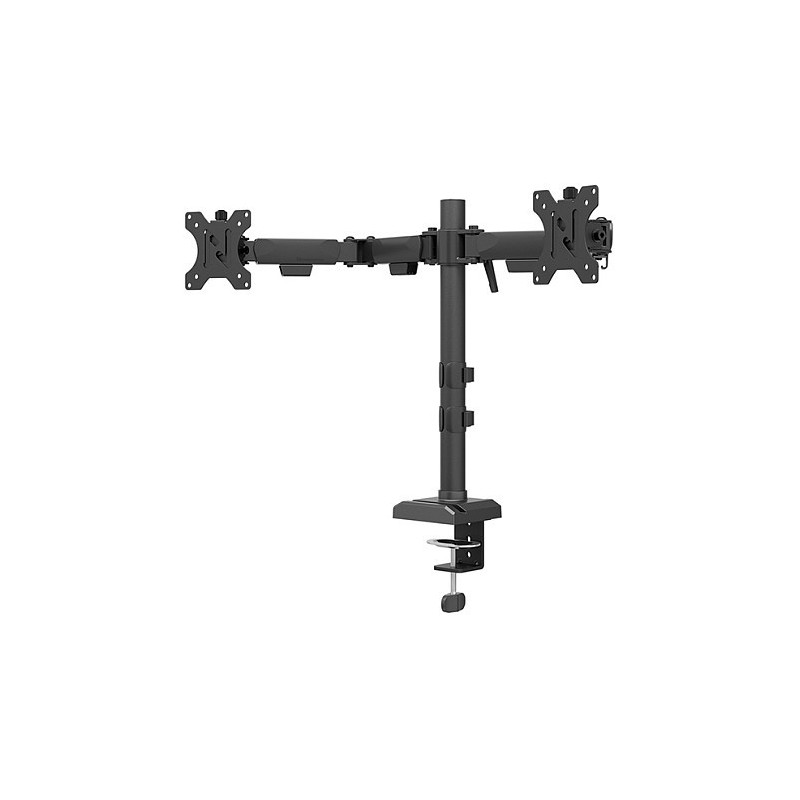

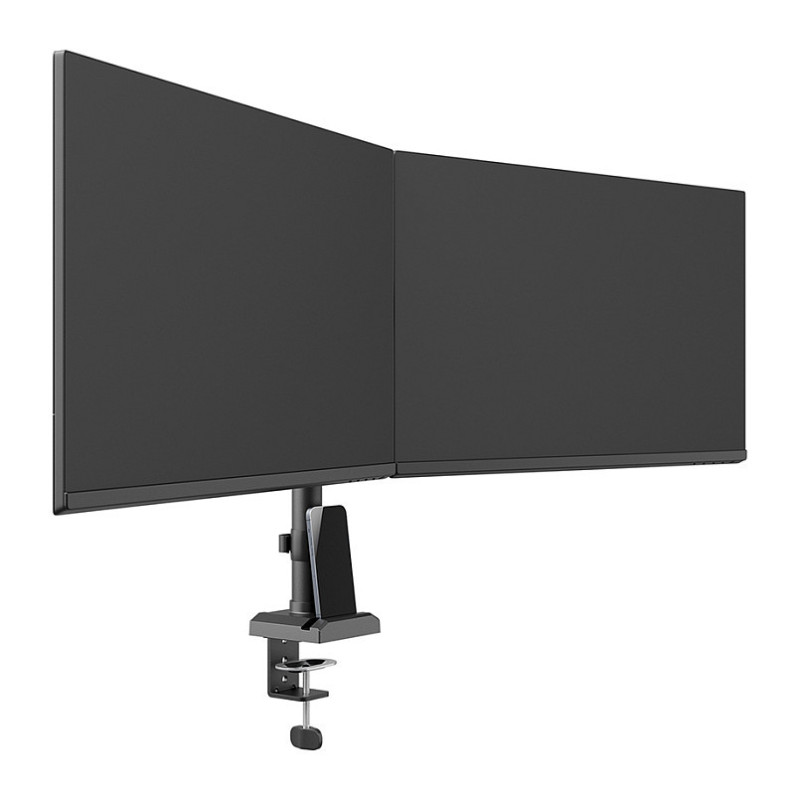

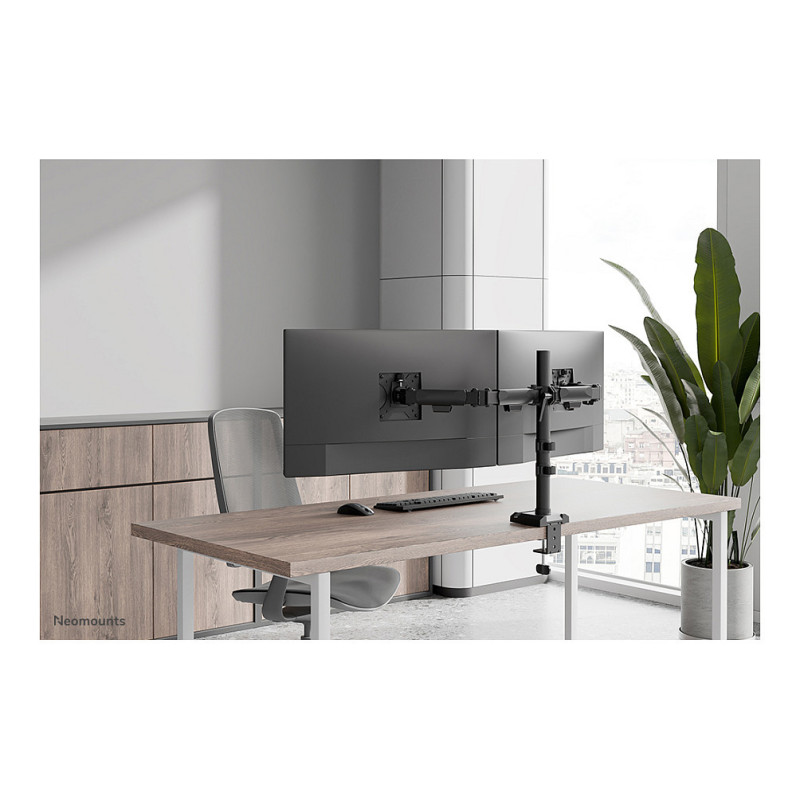

The Neomounts DS60-600BL2 NERO monitor arm is the perfect choice for those looking for a sturdy and versatile solution for two monitors up to 32" with a weight capacity of 8 kg per screen. This full motion monitor arm offers maximum flexibility thanks to its versatile tilt (90°), rotate (360°) and swivel (180°) technology, enabling you to always find the optimal viewing angle for an ergonomic working posture.

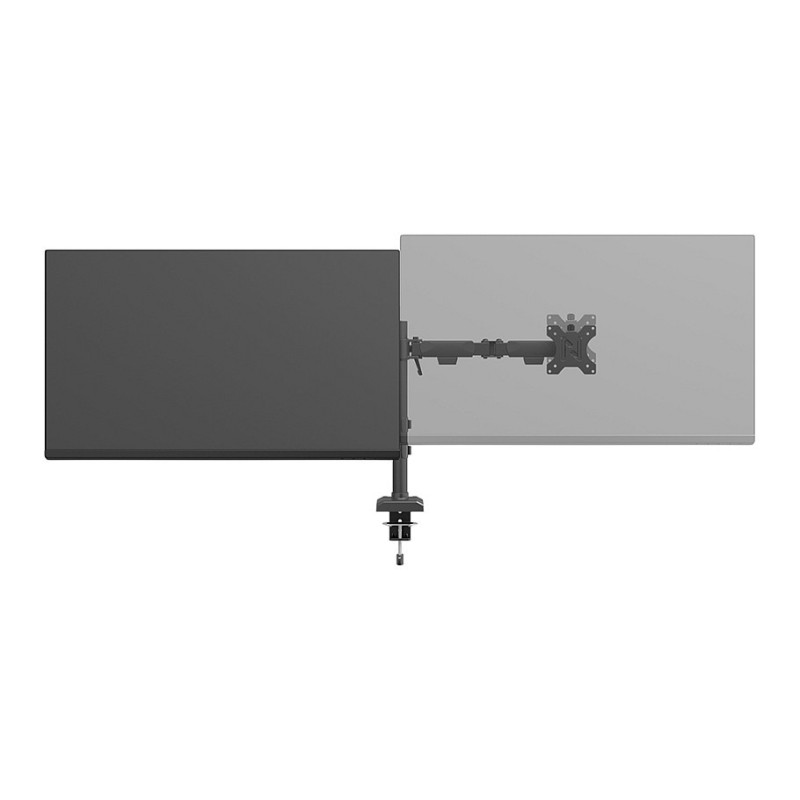

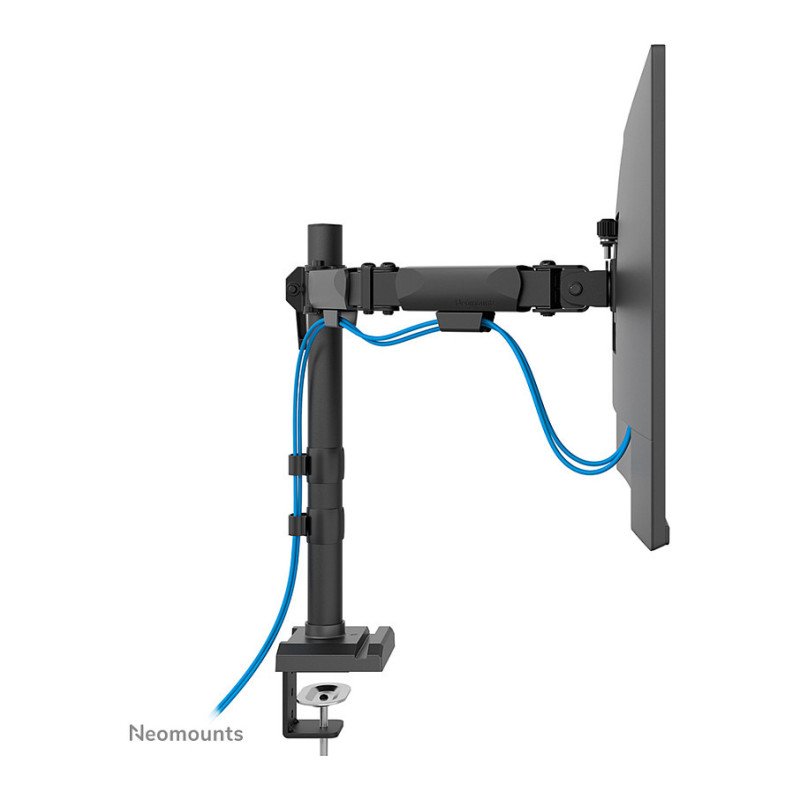

The NERO desk mount features manual height and depth adjustment, allowing you to adjust your workspace completely to your liking. In addition, the clever 180° stop mechanism prevents the mount from making contact with the wall or separation panel when installed near it. The welded base guarantees optimal stability and sturdiness. The practical cable management system ensures neat routing of cables. In addition, the base of the DS60-600BL2 provides a convenient space to place a phone, for a tidy desk.

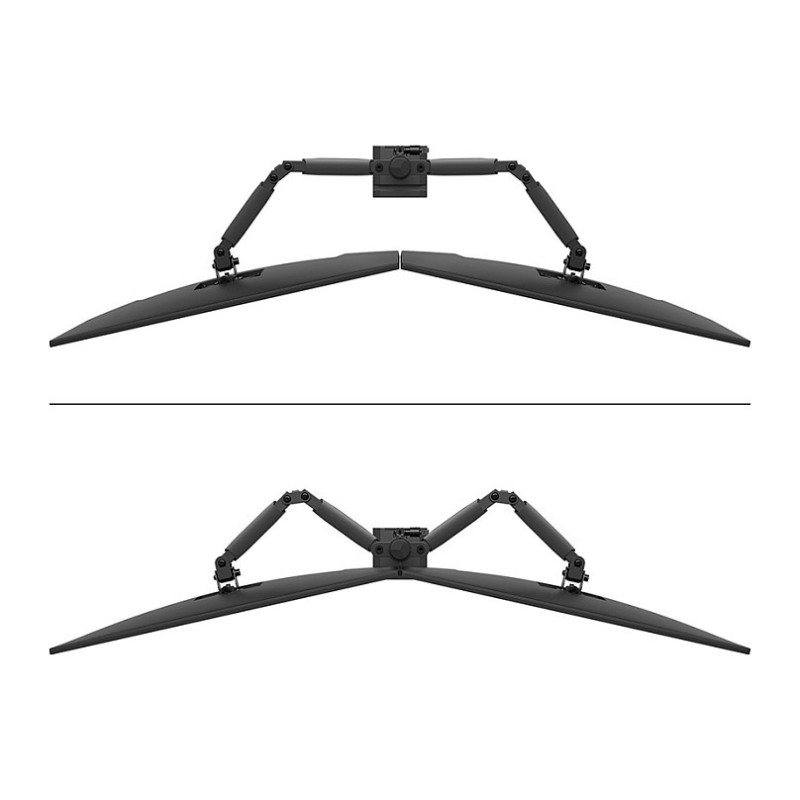

The DS60-600BL2 is suitable for screens that meet pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. For a seamless connection of the screens, the micro-adjustment function can be used.

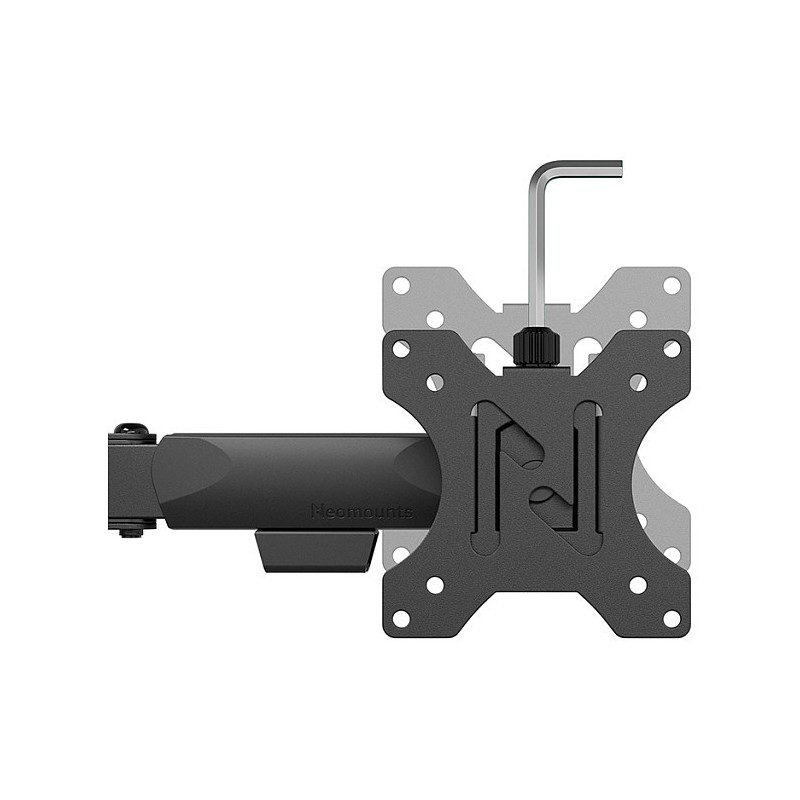

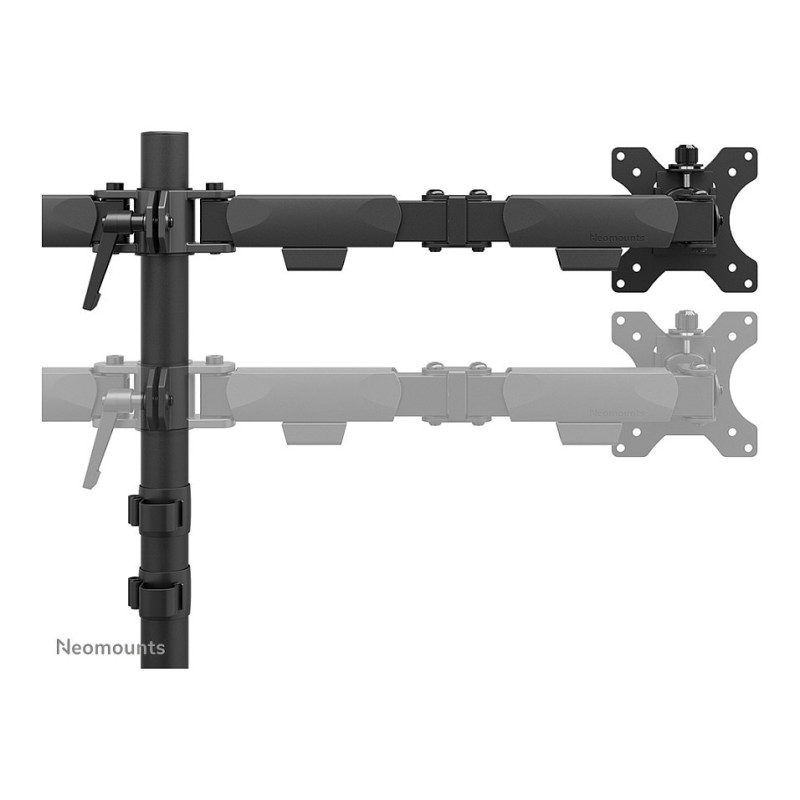

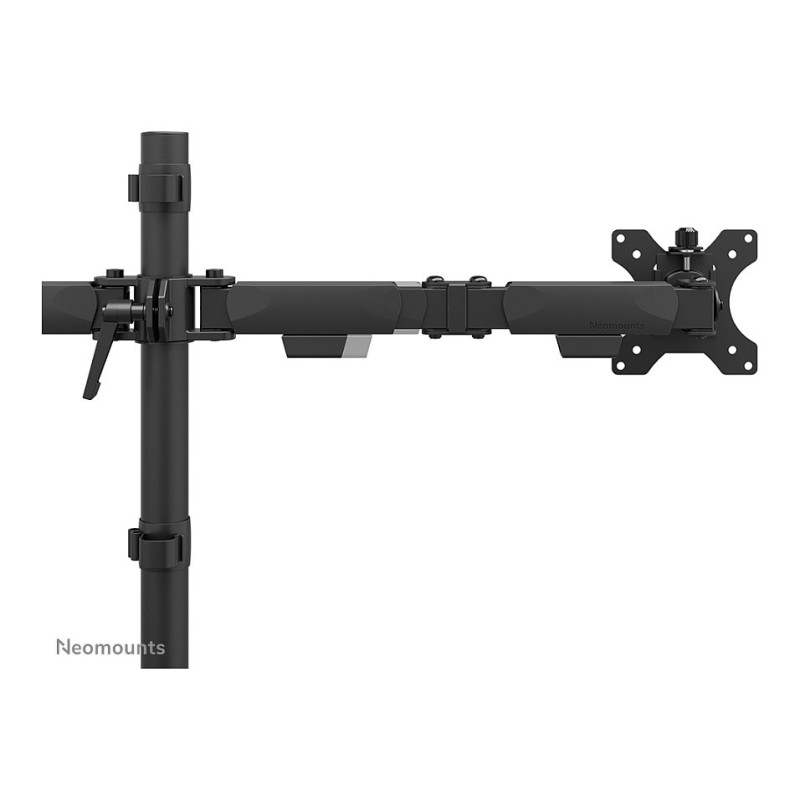

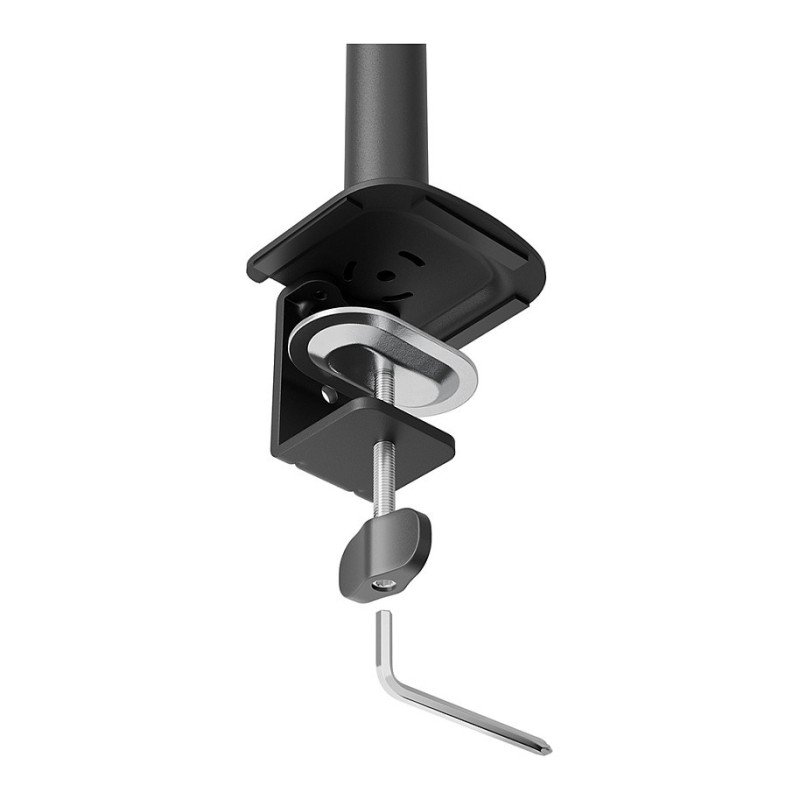

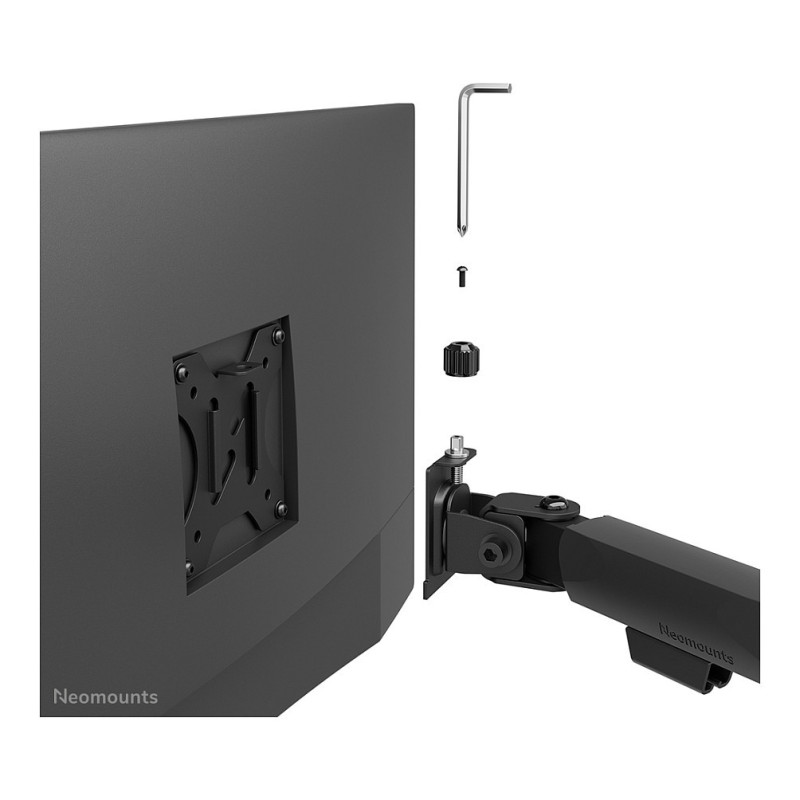

Installation of the NERO is quick and easy. The Easy-release system makes it easy to attach or detach the screen. Additionally, fixing the clamp to the desk only takes a few actions and, in addition to manual installation, can also be installed using an Allen key or drill for even faster installation. The NERO monitor arm's quick-span lever also allows for easy adjustment of the arm's height without additional tools.
With sustainability in mind, the packaging of the NERO monitor arms is 100% plastic-free and made entirely of recyclable cardboard and paper.

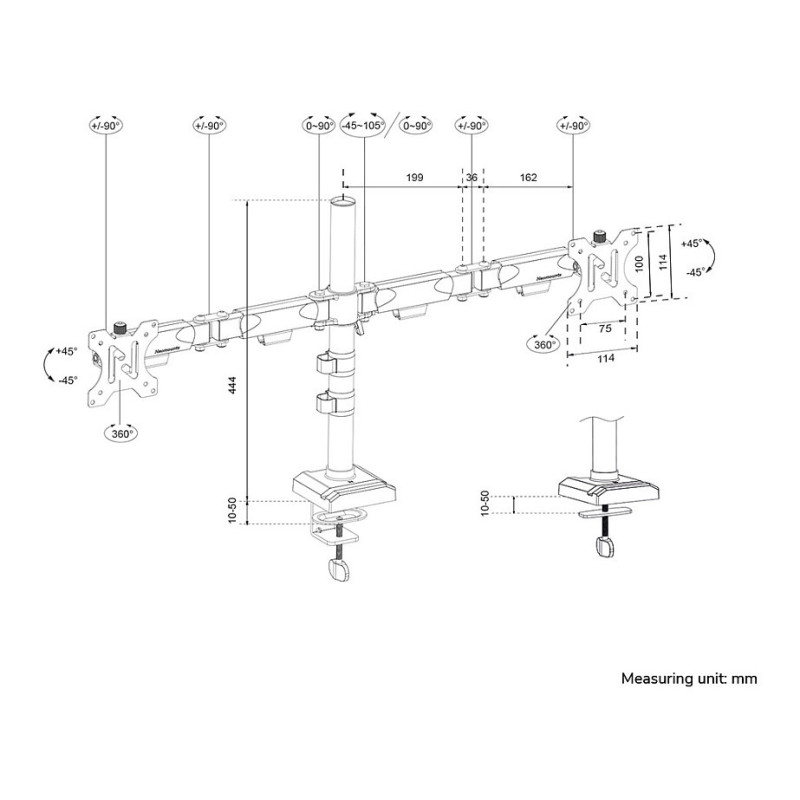

Mounting

Maximum weight capacity: 8 kg
Minimum screen size: 25.4 cm (10")
Number of displays supported: 2
Maximum weight capacity (per display): 8 kg
Maximum screen size: 81.3 cm (32")

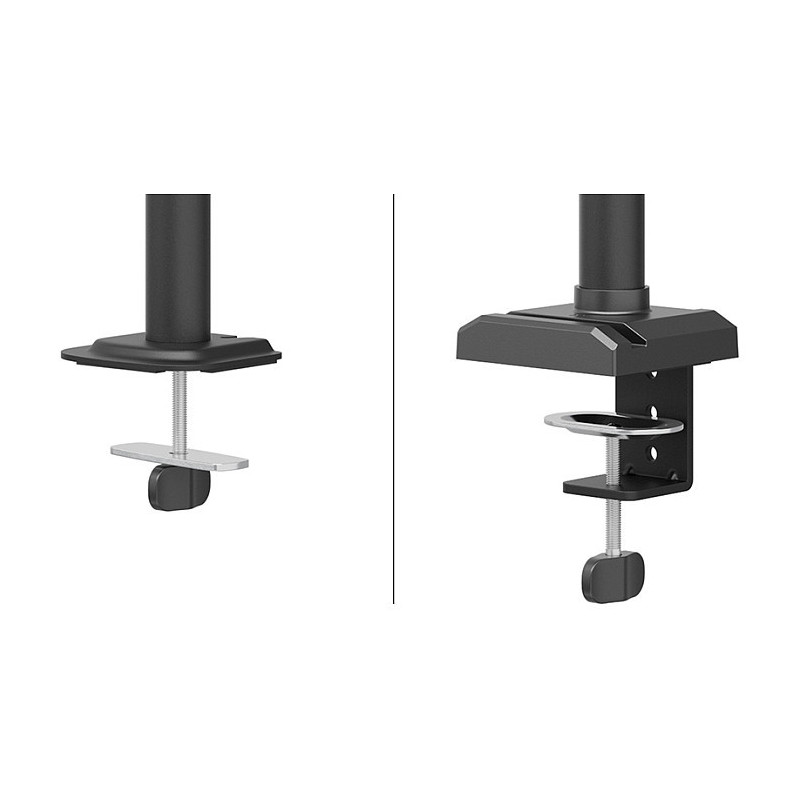

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 5 cm
Clamp mount desk thickness (max): 5 cm
Grommet mount desk thickness (max): 5 cm
Distance to the wall (min): 9.9 cm
Distance to the wall (max): 45.9 cm

Ergonomics

Feature: Height adjustment

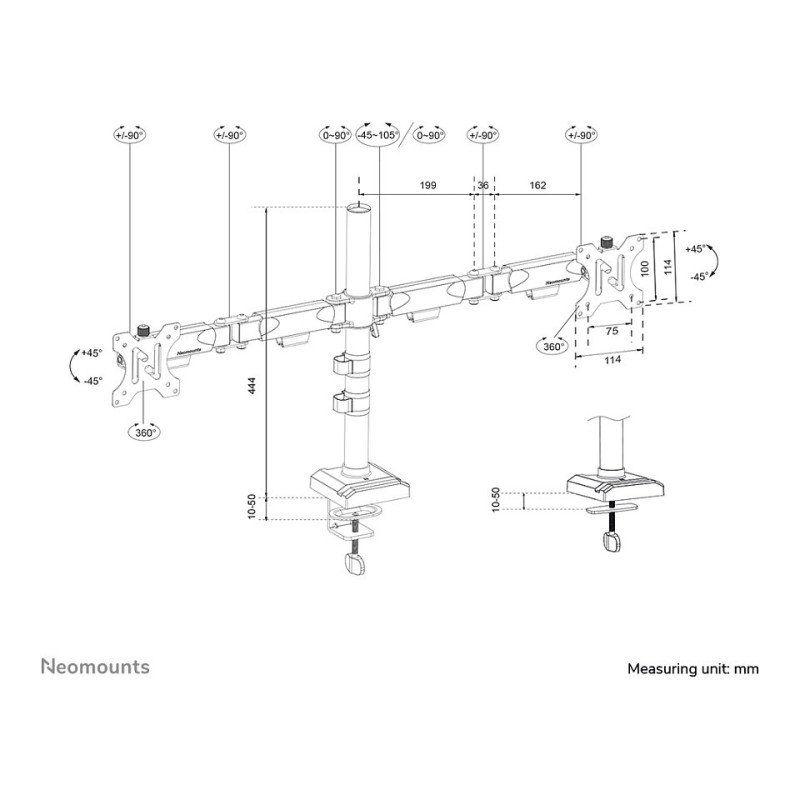

Height adjustment range: 140 - 400 mm
Feature: Adjustable depth
Depth adjustment range: 99 - 459 mm
Width adjustment: 39.7 cm
Feature: Tilt adjustment
Tilt angle range: -45 - 45°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 - 180°
Feature: Cable management

Design

Housing material: Steel
Product colour: Black

Weight dimensions

Width: 908 mm
Depth: 105 mm
Height: 450 mm
Weight: 3.74 kg

Packaging data

Package width: 287 mm
Package depth: 116 mm
Package height: 505 mm
Package weight: 4.2 kg

Other features

Width adjustment range: 0 - 397 mm
Warranty period: 5 year(s)

Logistics data

Master (outer) case width: 520 mm
Master (outer) case length: 305 mm
Master (outer) case height: 385 mm
Master (outer) case gross weight: 13.2 kg
Products per master (outer) case: 3 pc(s)
Country of origin: China
Master (outer) case net weight: 12.5 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 66 pc(s)
