Neomounts DS60-425BL2 monitor mount / stand

Neomounts DS60-425BL2 Monitor arm 17-27" - space saving. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -30 - 90°. Product colour: Black

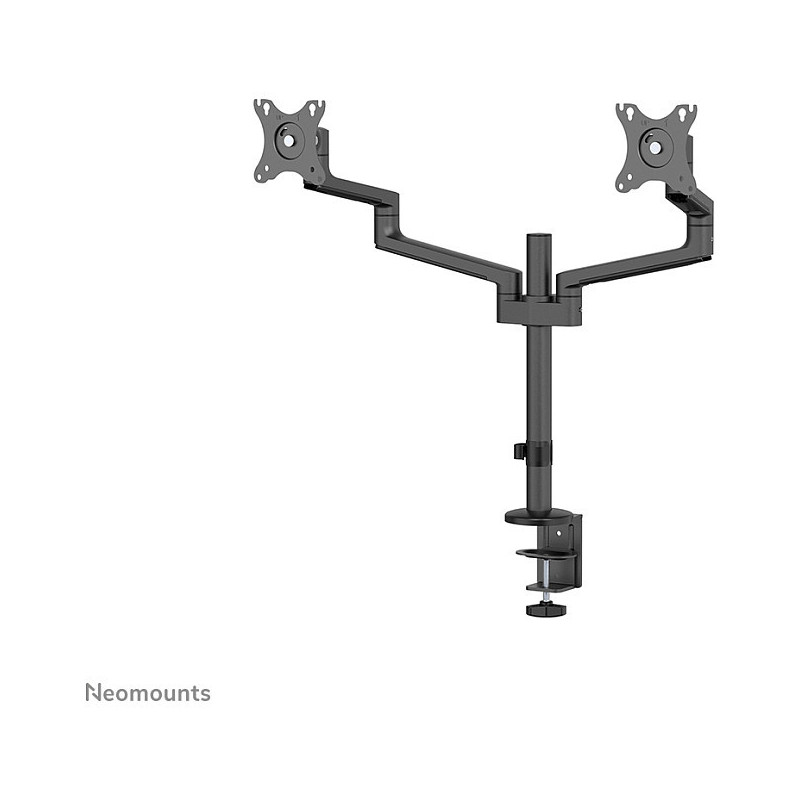

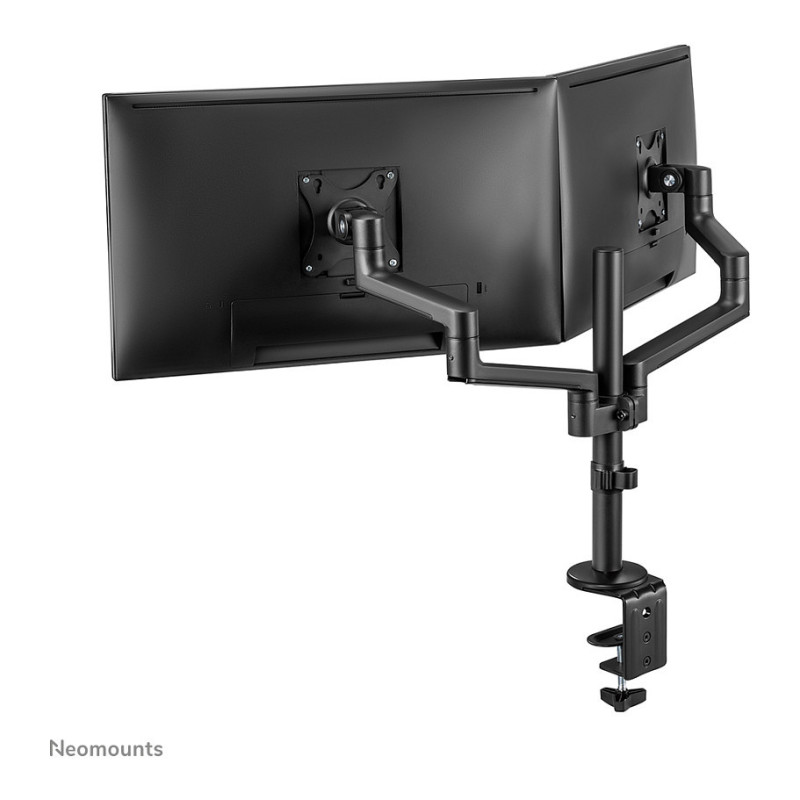

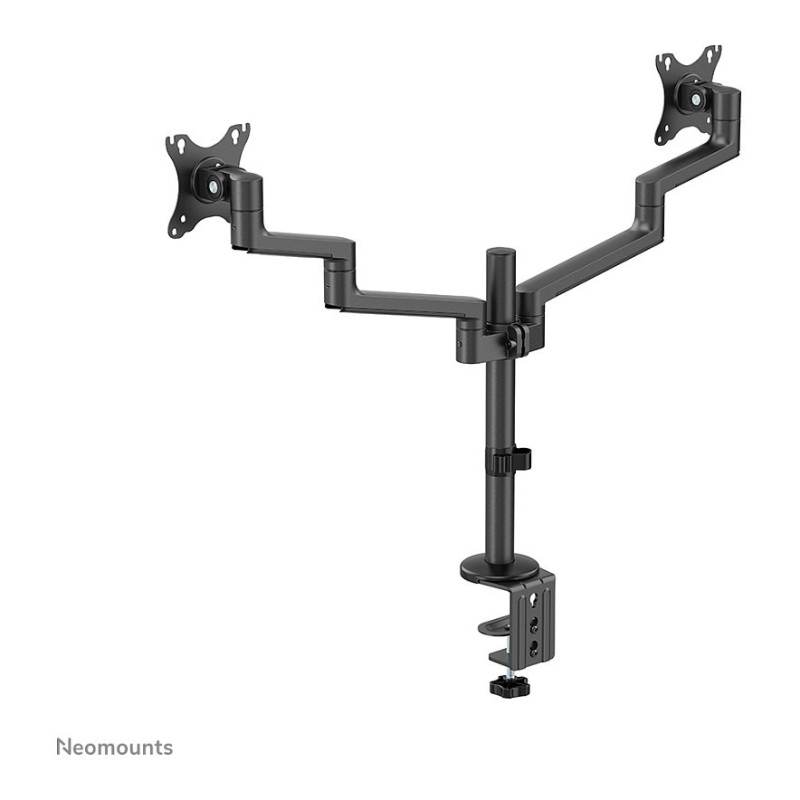

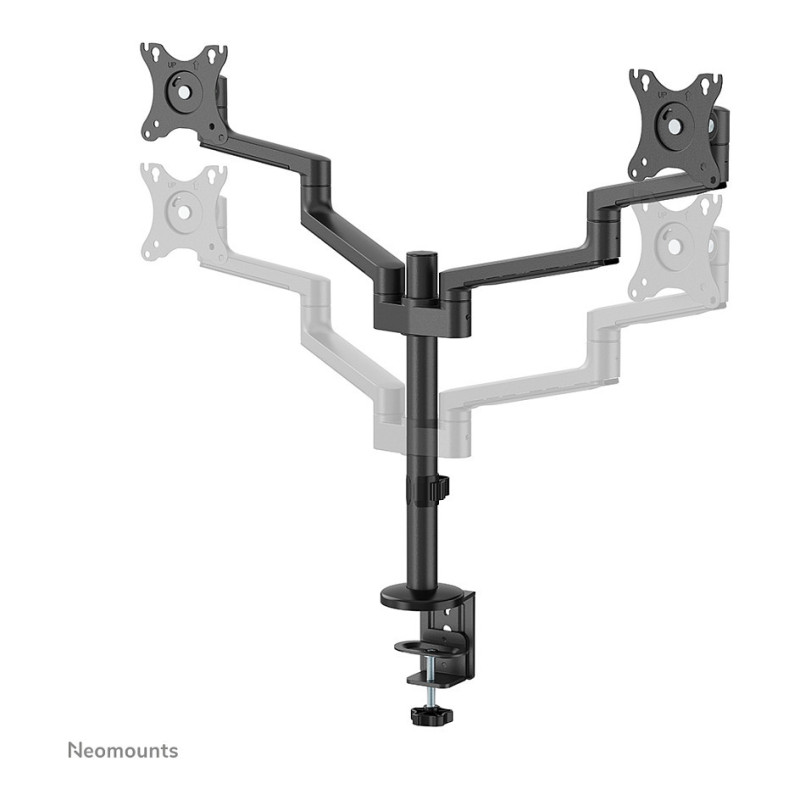

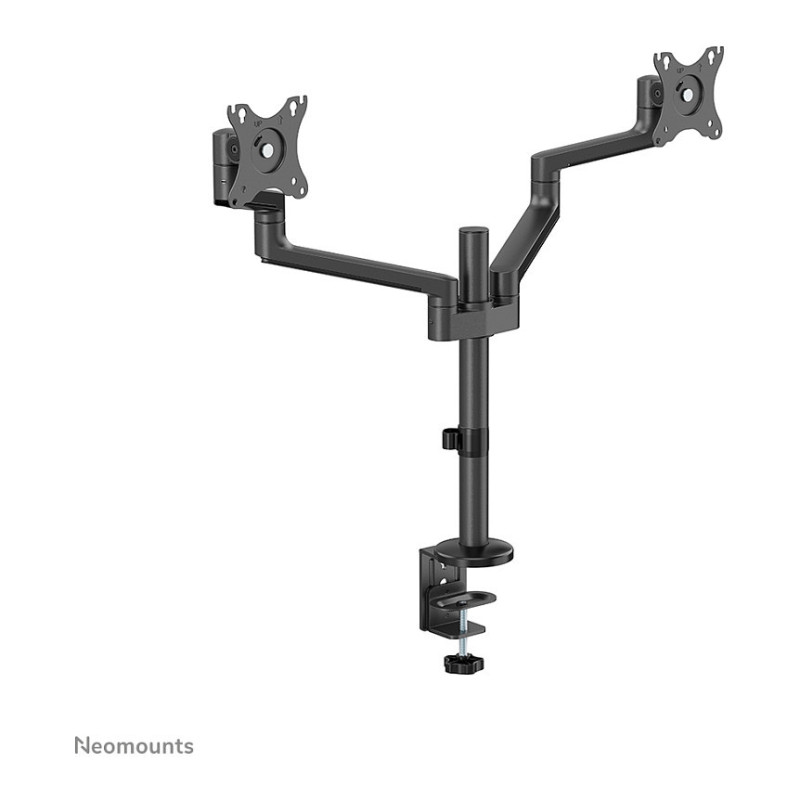

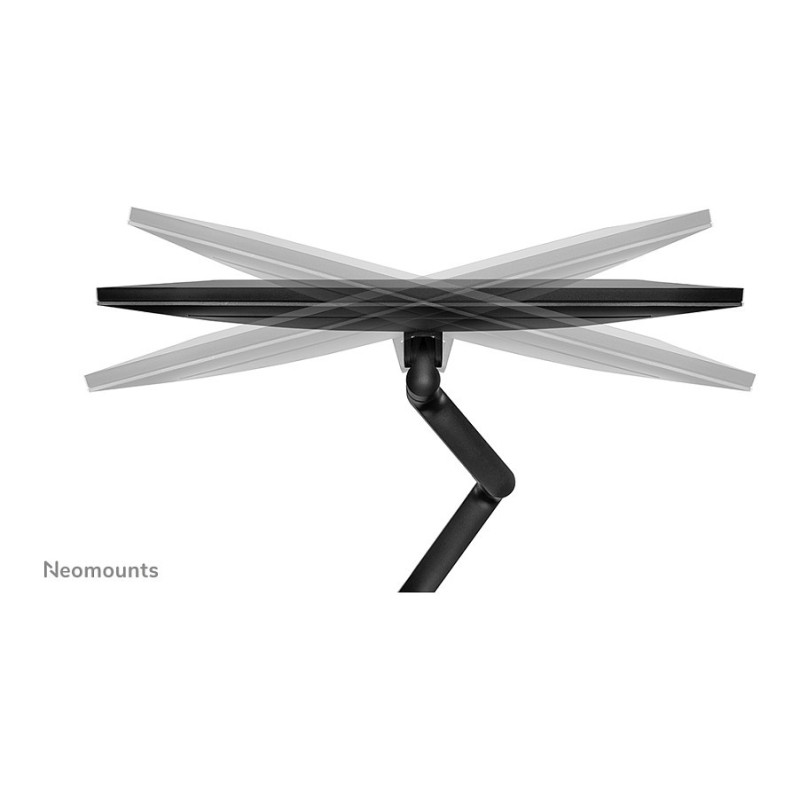

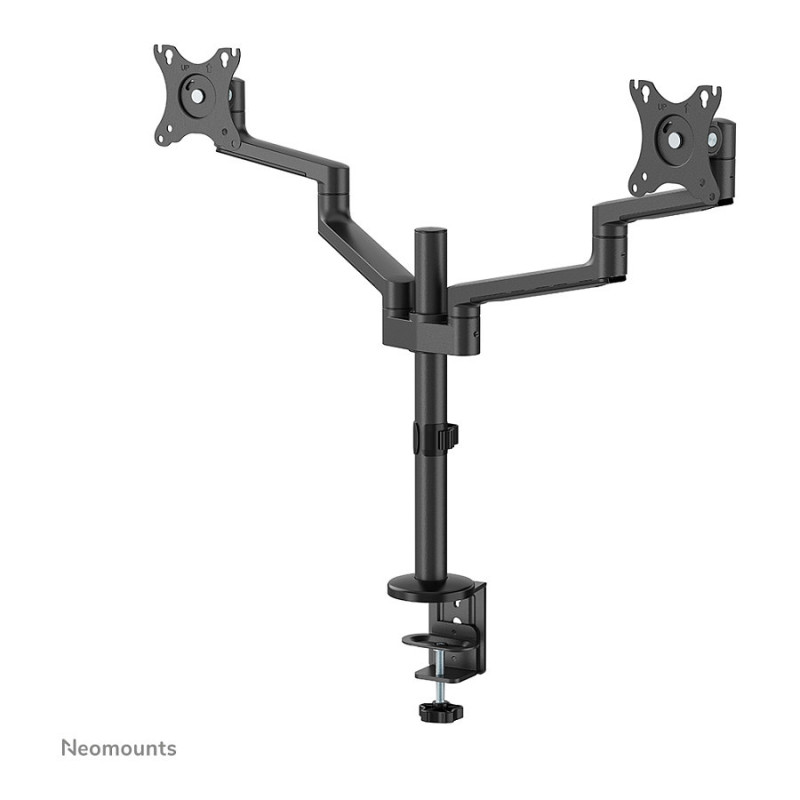

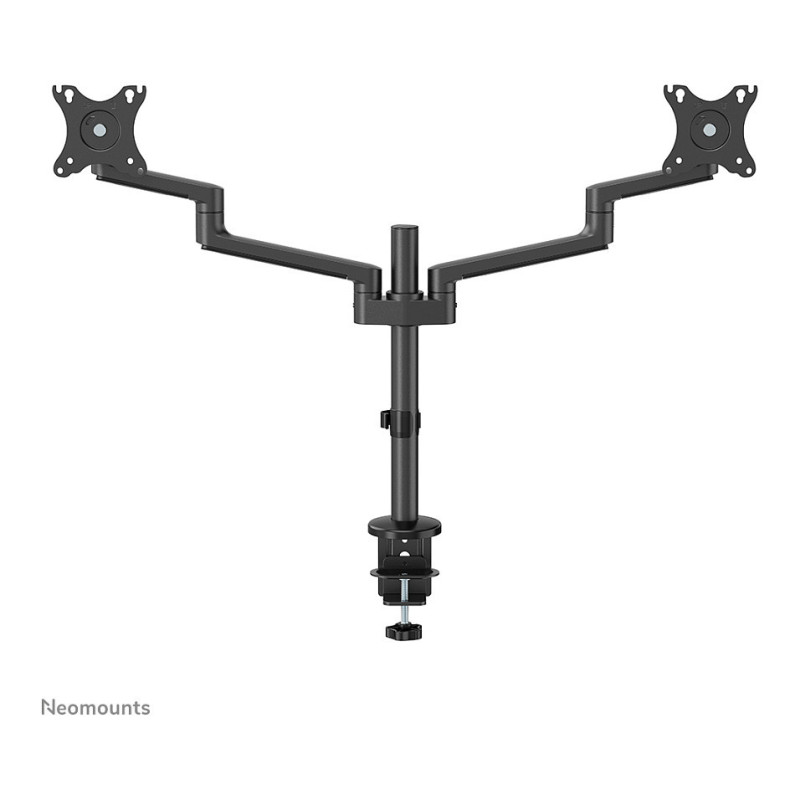

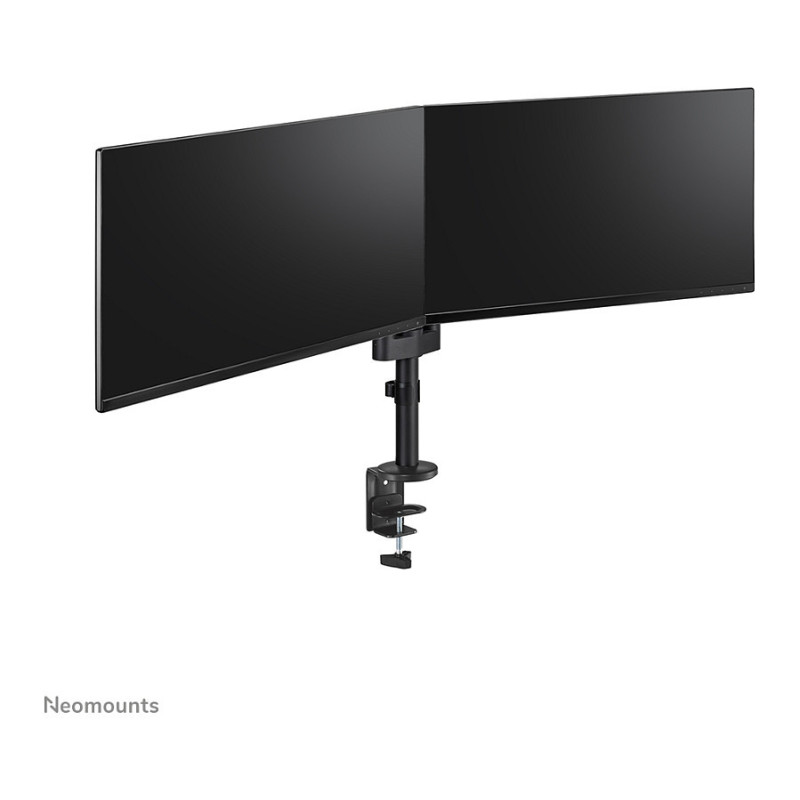

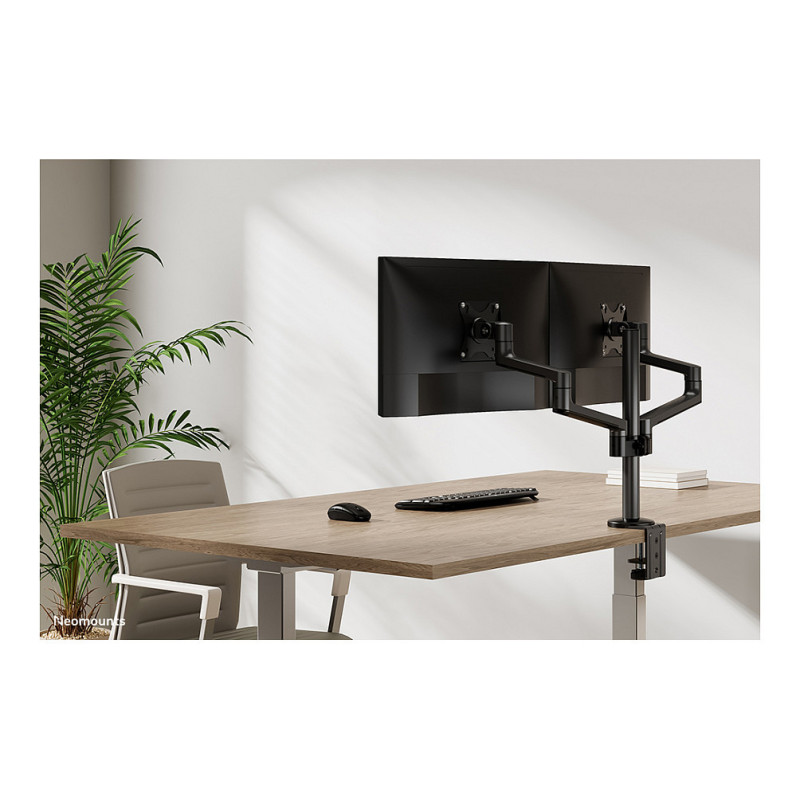

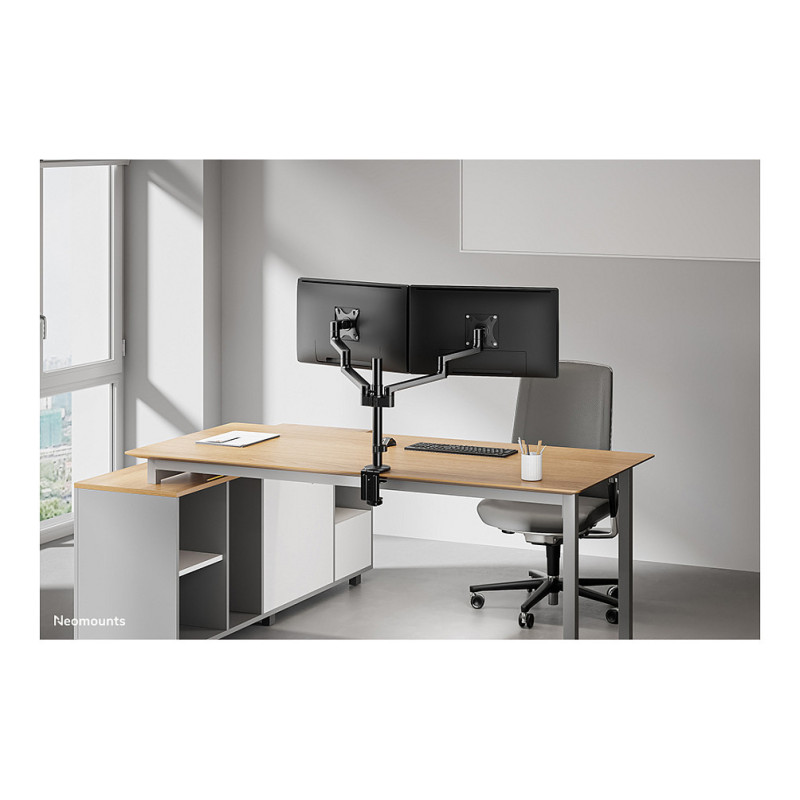

The Neomounts DS60-425BL2 NEXT Lite is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screens. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

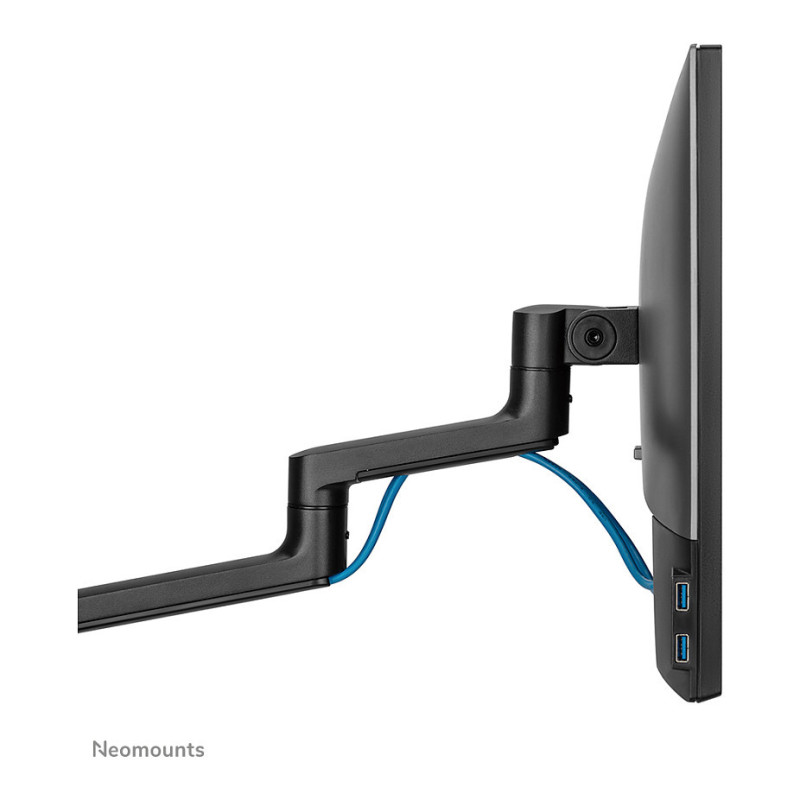

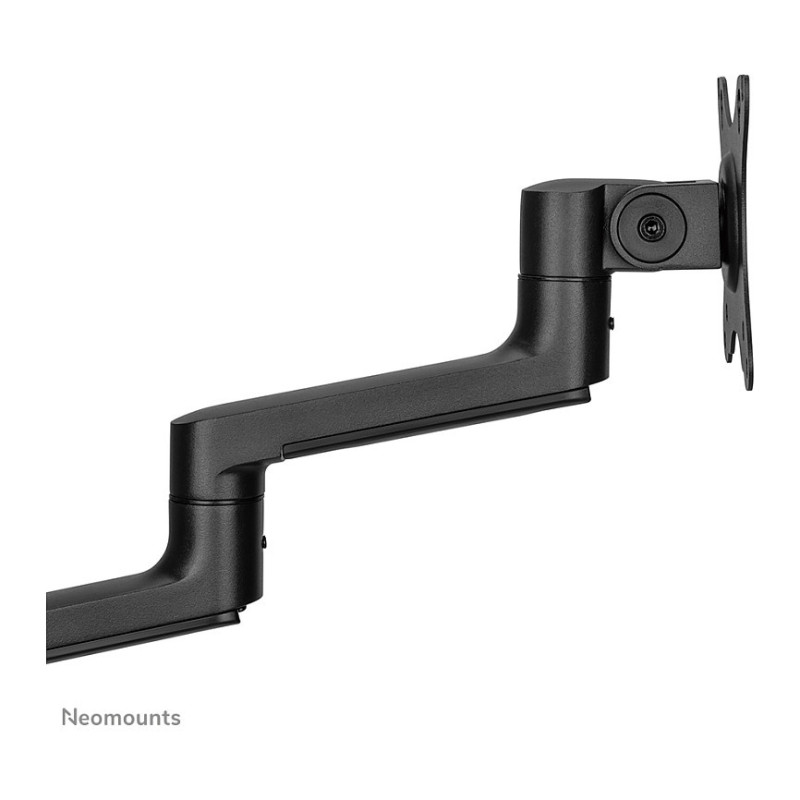

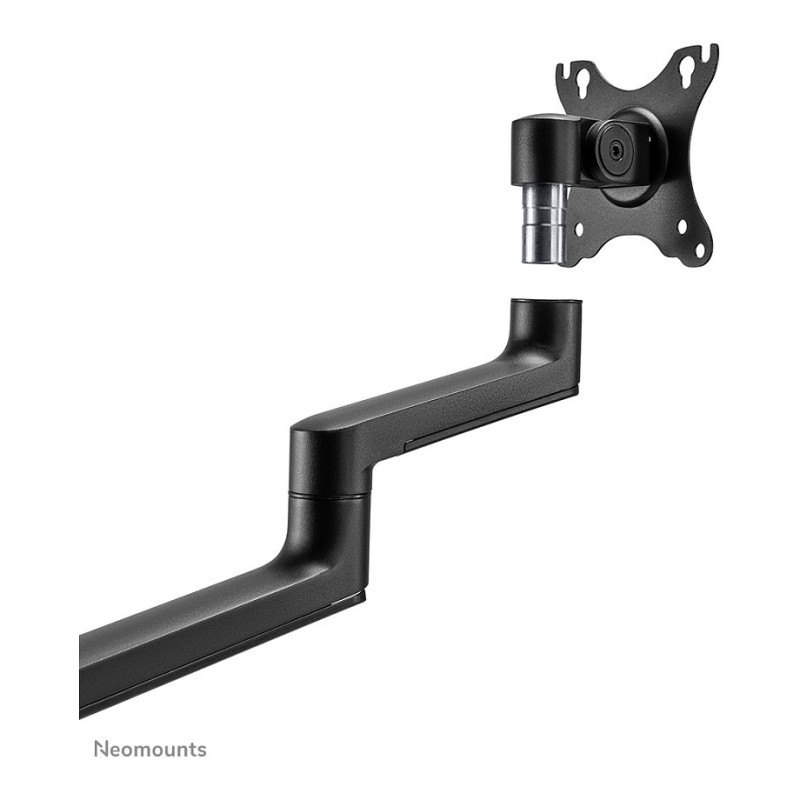

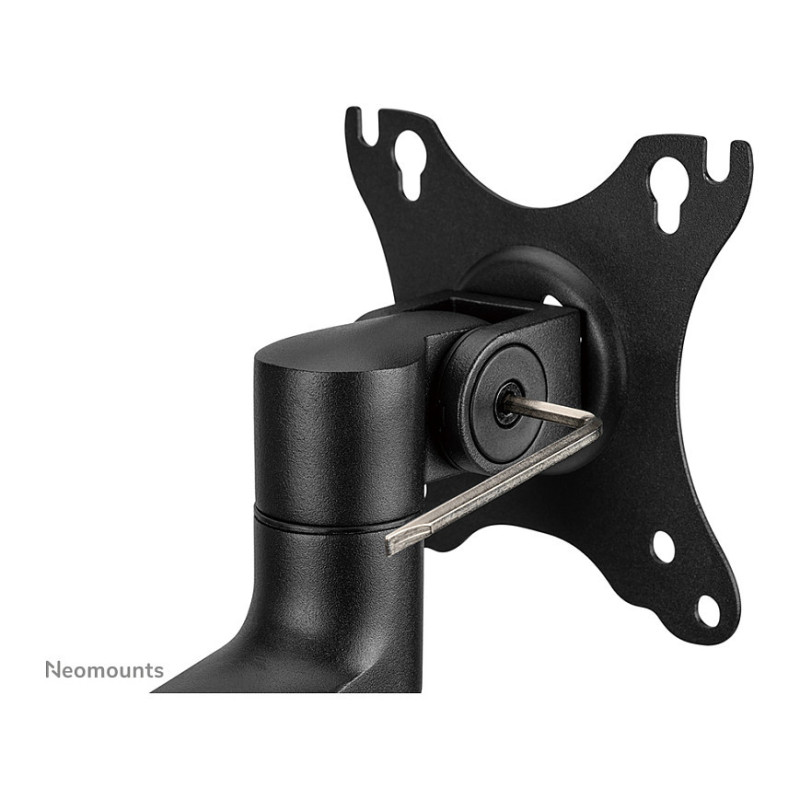

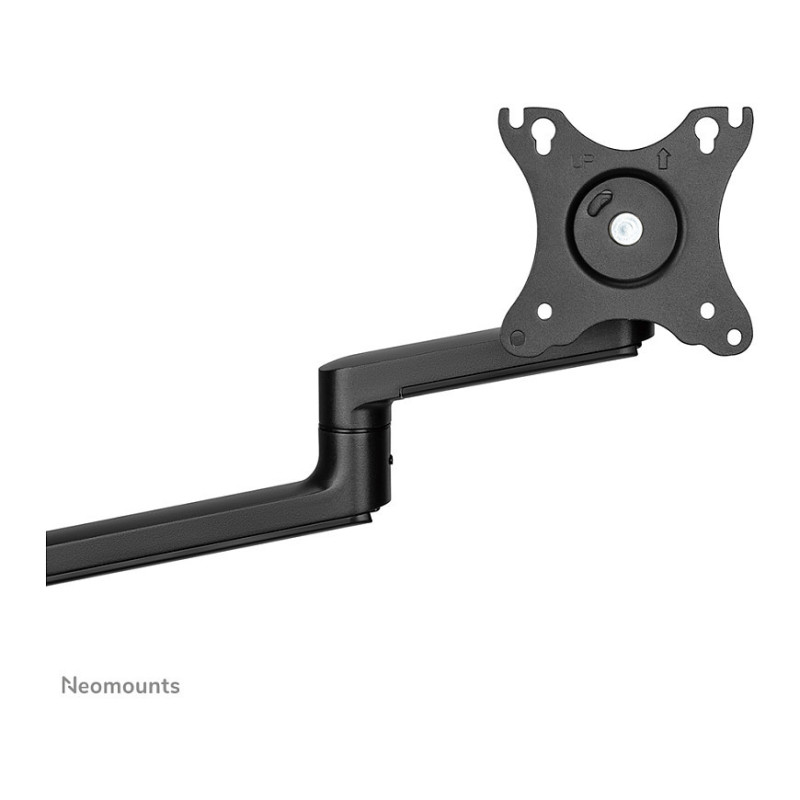

Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.

The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.

Mounting

Maximum weight capacity: 8 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 2
Maximum weight capacity (per display): 8 kg
Maximum screen size: 68.6 cm (27")
Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm

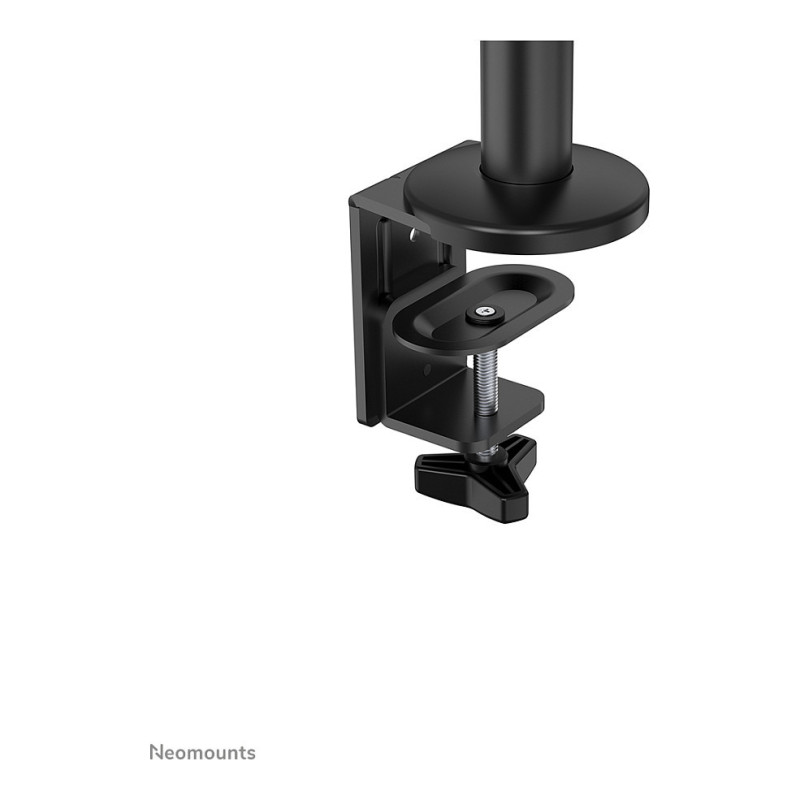

Desk thickness (min): 1 cm
Desk thickness (max): 8 cm
Clamp mount desk thickness (max): 8 cm
Grommet mount desk thickness (max): 4 cm
Distance to the wall (min): 12.8 cm
Distance to the wall (max): 46 cm

Ergonomics

Feature: Height adjustment
Height adjustment type: Manual

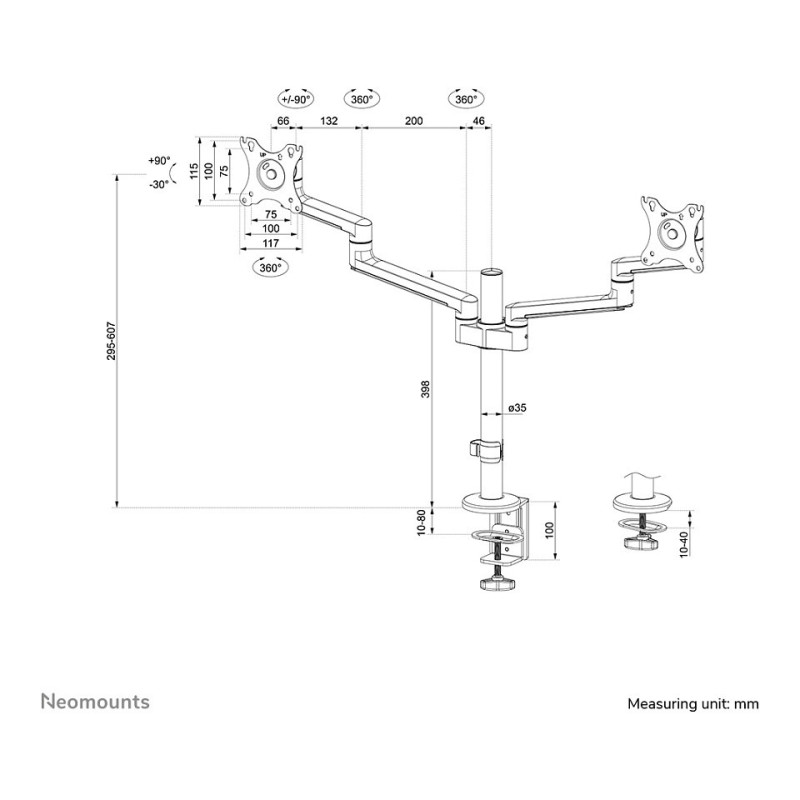

Height adjustment range: 295 - 607 mm
Feature: Adjustable depth
Depth adjustment range: 66 - 398 mm
Width adjustment: 33.2 cm
Tilt angle range: -30 - 90°
Feature: Swivelling
Swivel angle range: -90 - 90°
Angle of rotation: 360°
Feature: Cable management
Feature: Feet
Feet colour: Black

Design

Housing material: Steel
Product colour: Black

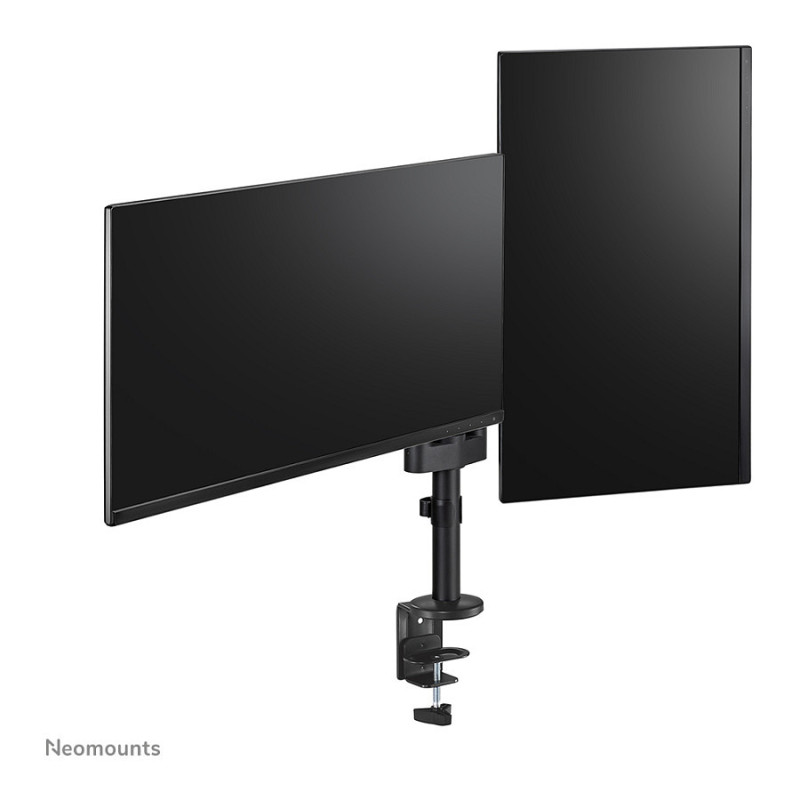

Orientation: Landscape/Portrait

Weight & dimensions

Width: 888 mm
Depth: 460 mm
Height: 763 mm
Weight: 3.78 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 210 mm
Package depth: 105 mm
Package height: 440 mm
Package net weight: 4.6 kg
Package weight: 4.6 kg

Packaging content

Feature: Clamp included
Feature: VESA mount included

Other features

Width adjustment range: 0 - 332 mm

Logistics data

Master (outer) case width: 220 mm
Master (outer) case length: 435 mm
Master (outer) case height: 455 mm
Master (outer) case gross weight: 18.4 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Master (outer) case net weight: 15.1 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 84 pc(s)
