Neomounts Desk mount for monitor 17" - 49" (DS70PLUS-450WH1)
Neomounts Desk mount for monitor 17" - 49" (DS70PLUS-450WH1)
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days

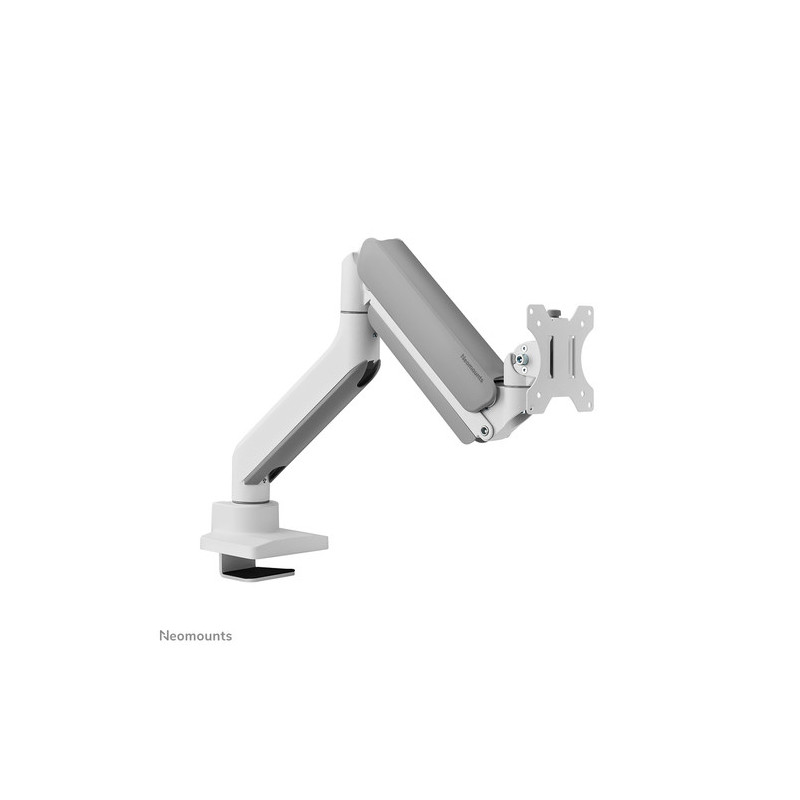

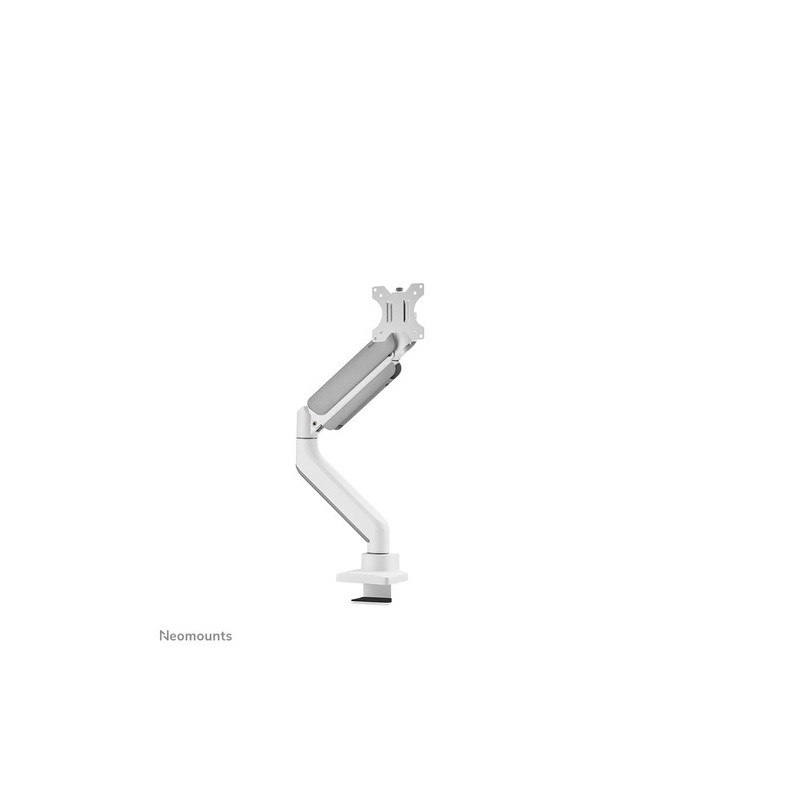

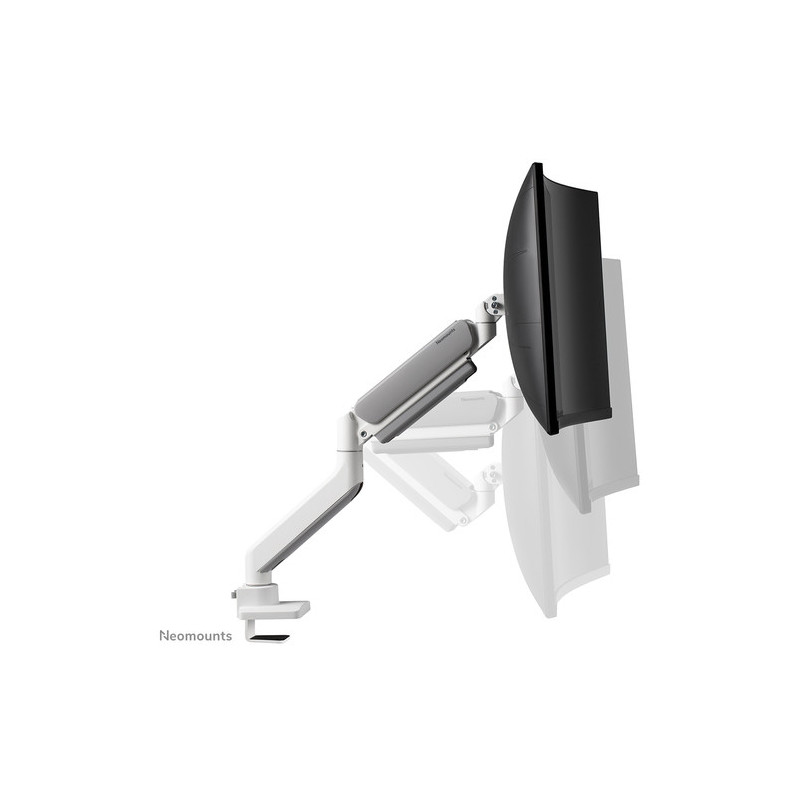

The Neomounts DS70PLUS-450WH1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49". The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has spring height adjustment (26.1-55 cm) and depth adjustment (5.4-49.7 cm), to create the perfect working position. 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70PLUS-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
| Summary: | Neomounts DS70PLUS-450WH1 Monitor arm 17-49" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Swivel angle range: -90 - 90°. Product color: White |
| Vendor Homepage: | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70PLUS-450WH1 |
| Category Code: | MAS |
| CnCode: | 83021000 |
| Unit Box Height: | 0.13 |
| Unit Box Length: | 0.45 |
| Unit Box Width: | 0.285 |
| Desk thickness (max): | 45mm |
| Desk thickness (min): | 10mm |
| Distance to the wall (max): | 568mm |
| Distance to the wall (min): | 108mm |
| Maximum screen size: | 49" |
| Maximum VESA mount: | 100 x 100mm |
| Maximum weight capacity: | 18kg |
| Maximum weight capacity (per curved/ultra-wide display): | 14kg |
| Maximum weight capacity (per display): | 18kg |
| Minimum screen size: | 17" |
| Minimum VESA mount: | 75 x 75mm |
| Mounting: | Clamp/Grommet |
| Mounting type: | Desk |
| Number of displays supported: | 1 |
| Panel mounting interface: | 100 x 100/75 x 75mm |
| Adjustable depth: | Yes |
| Angle of rotation: | 360° |
| Cable management: | Yes |
| Depth adjustment range: | 54 - 511mm |
| Height adjustment: | Yes |
| Height adjustment range: | 261 - 555mm |
| Height adjustment type: | Gas spring |
| Pivot angle: | -180 - 180° |
| Rotating: | Yes |
| Swivel angle range: | -90 - 90° |
| Swivel: | Yes |
| Tilt adjustment: | Yes |
| Tilt angle range: | -45 - 45° |
| Width adjustment: | 920mm |
| Housing material: | Steel |
| Product colour: | White |
| Depth: | 568mm |
| Height: | 653mm |
| Weight: | 3980g |
| Width: | 120mm |
| Package depth: | 127mm |
| Package height: | 445mm |
| Package net weight: | 5100g |
| Package type: | Box |
| Package weight: | 5100g |
| Package width: | 280mm |
| Quantity per pack: | 1pc(s) |
| Minimum weight: | 1kg |
| Width adjustment range: | 0 - 920mm |
| Country of origin: | China |
| Harmonized System (HS) code: | 7326909890 |
| Master (outer) case gross weight: | 20500g |
| Master (outer) case height: | 580mm |
| Master (outer) case length: | 275mm |
| Master (outer) case net weight: | 16000g |
| Master (outer) case width: | 460mm |
| Products per master (outer) case: | 4pc(s) |
| Products per pallet (EU): | 64pc(s) |
| Model: | DS70PLUS-450WH1 |
| Units per Shipping Box: | 4 |
| Unit Calculated Volume: | 0.0183425m³ |
| Unit Calculated Weight: | 5.05kg |
