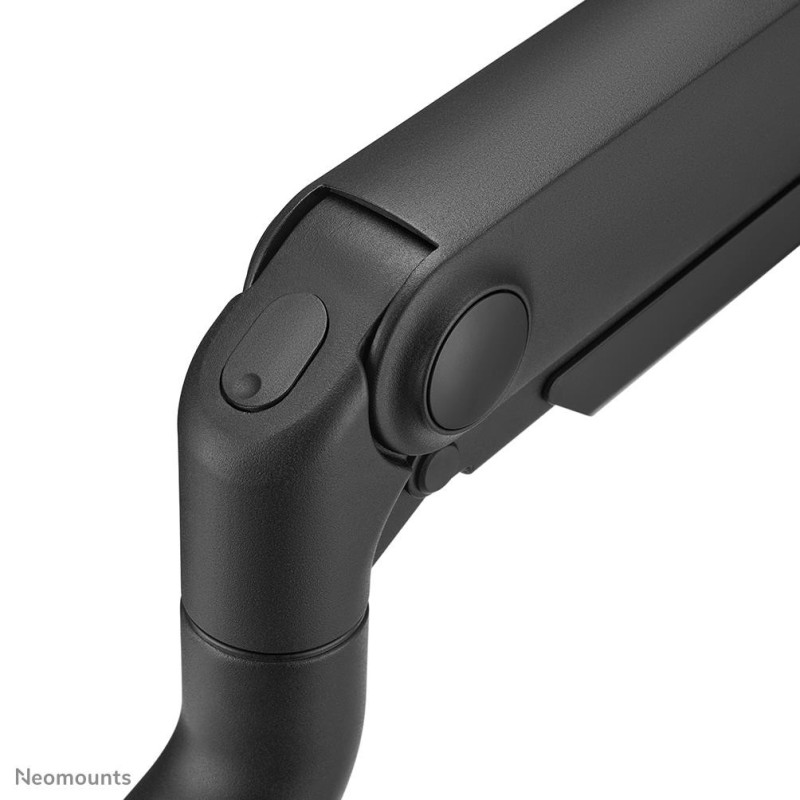

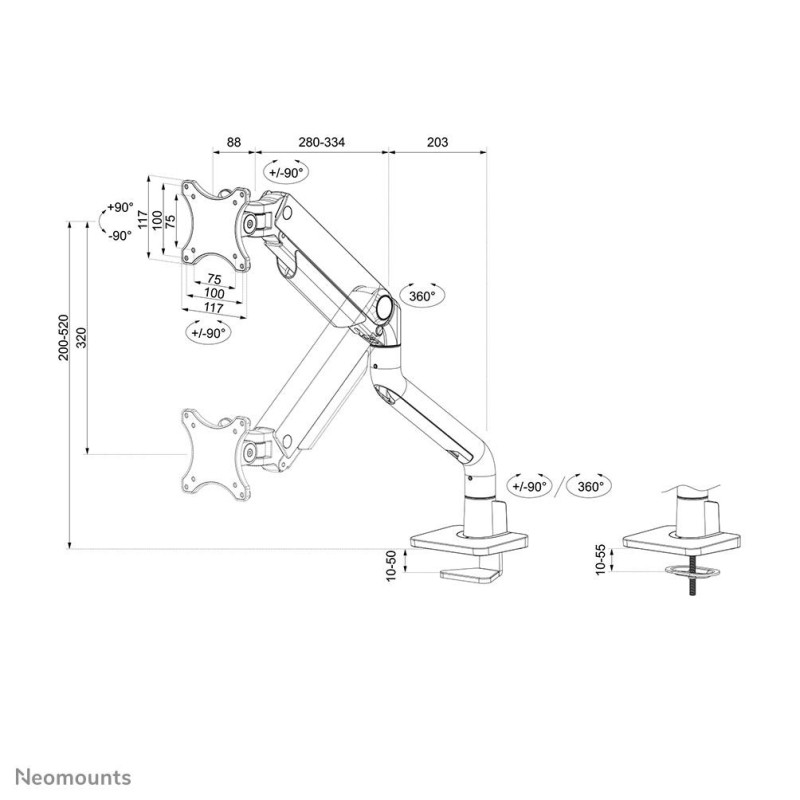

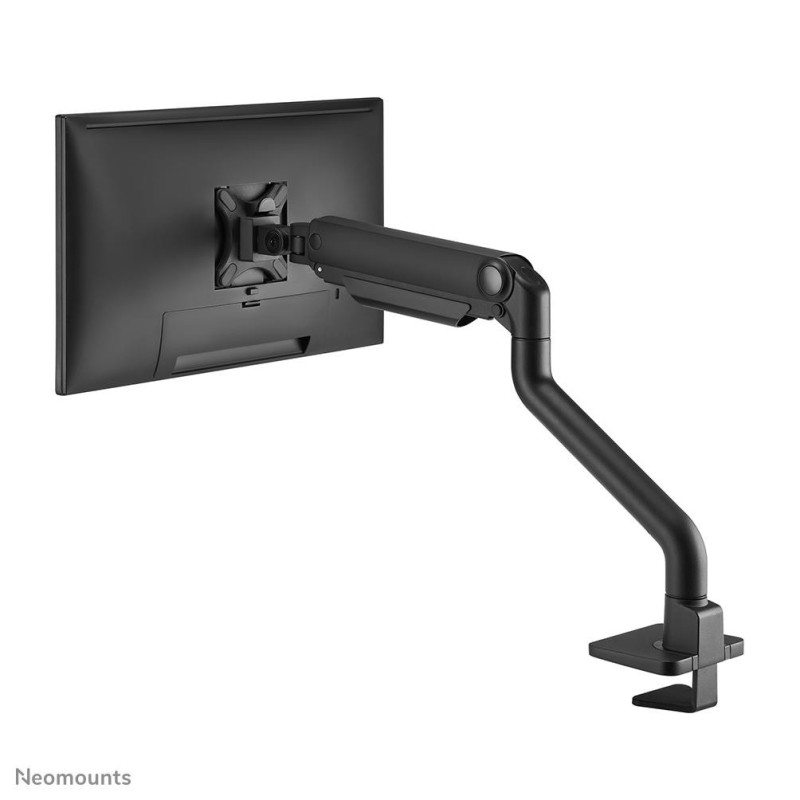

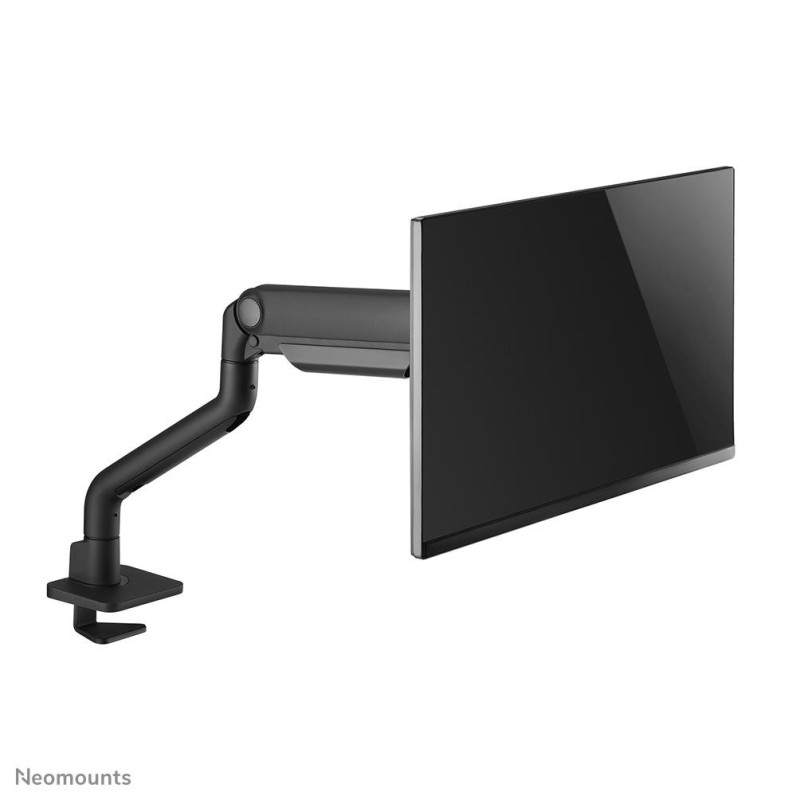

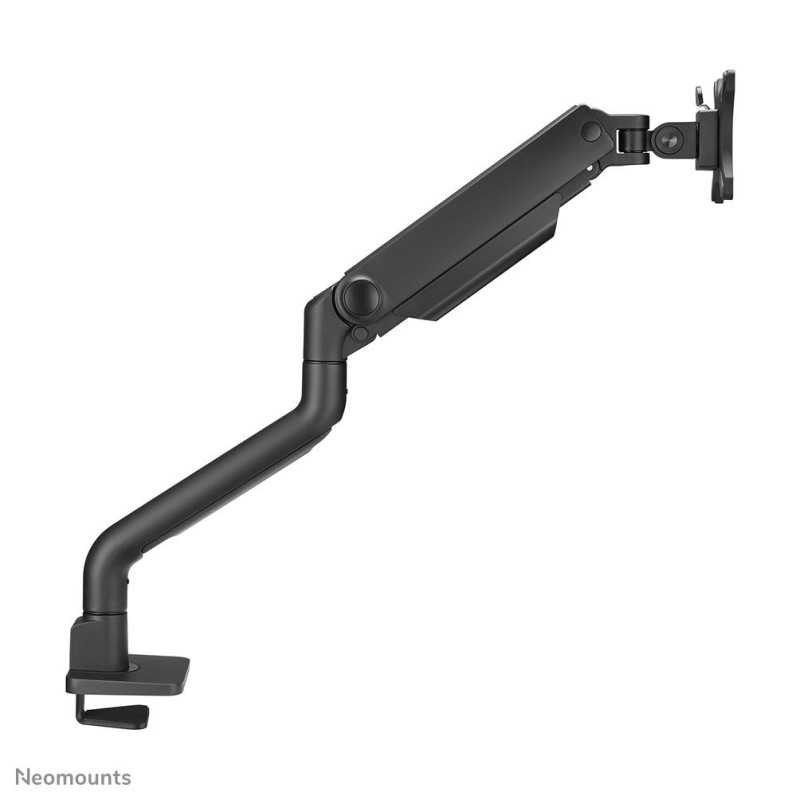

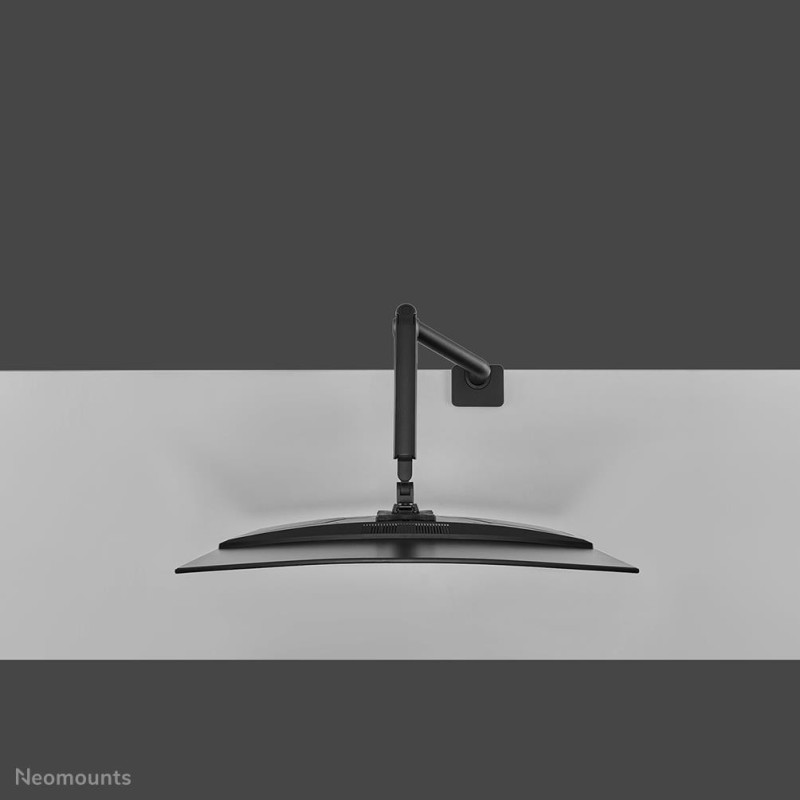

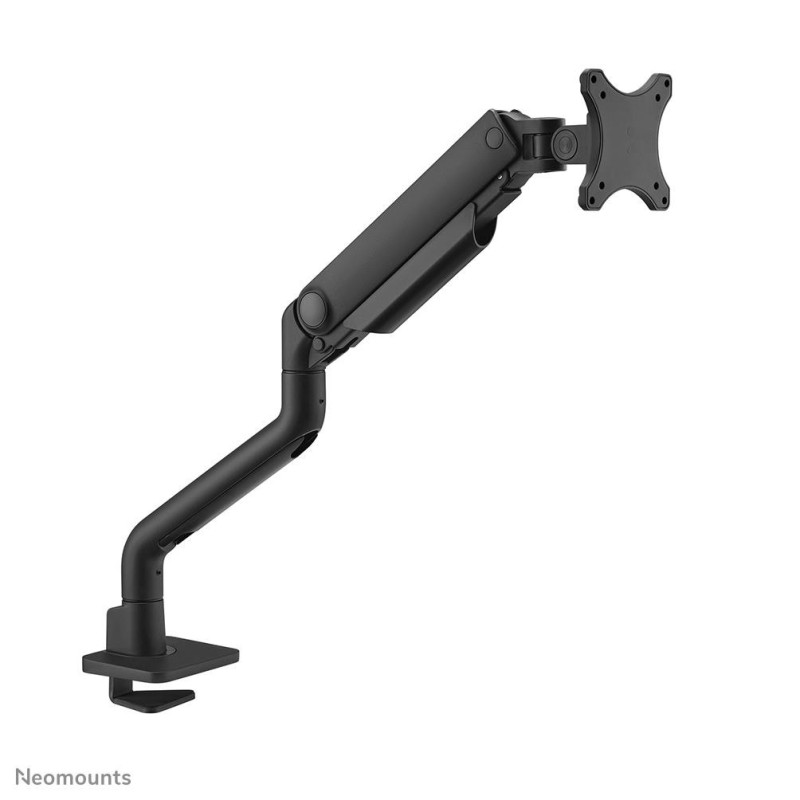

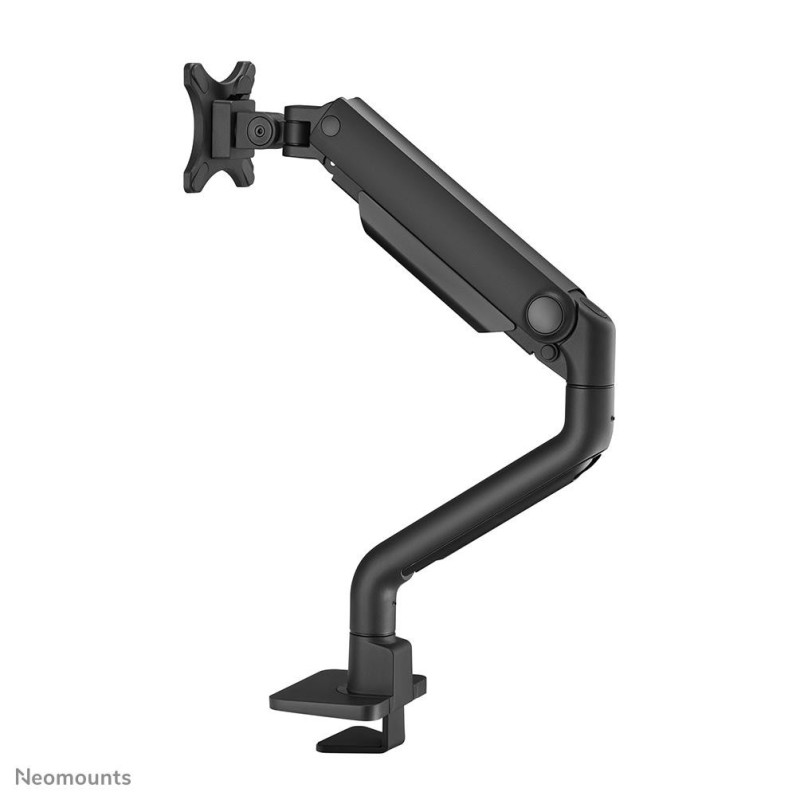

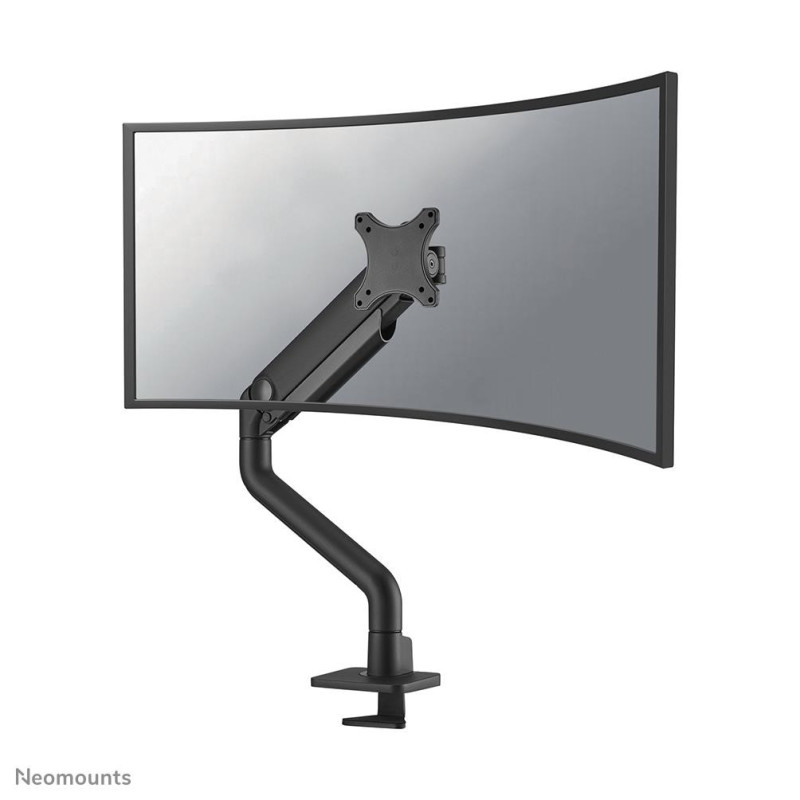

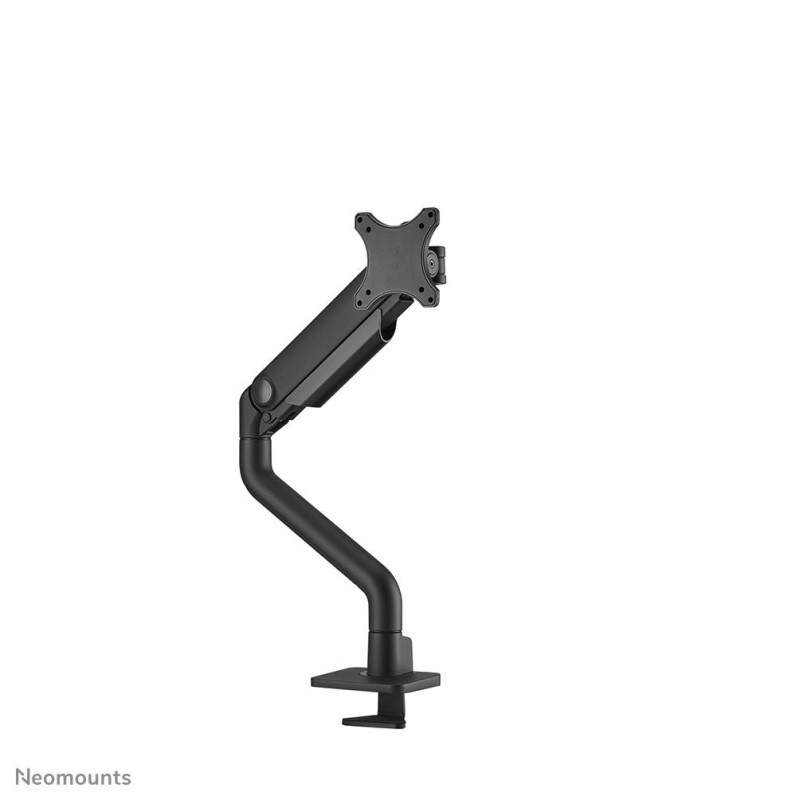

The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

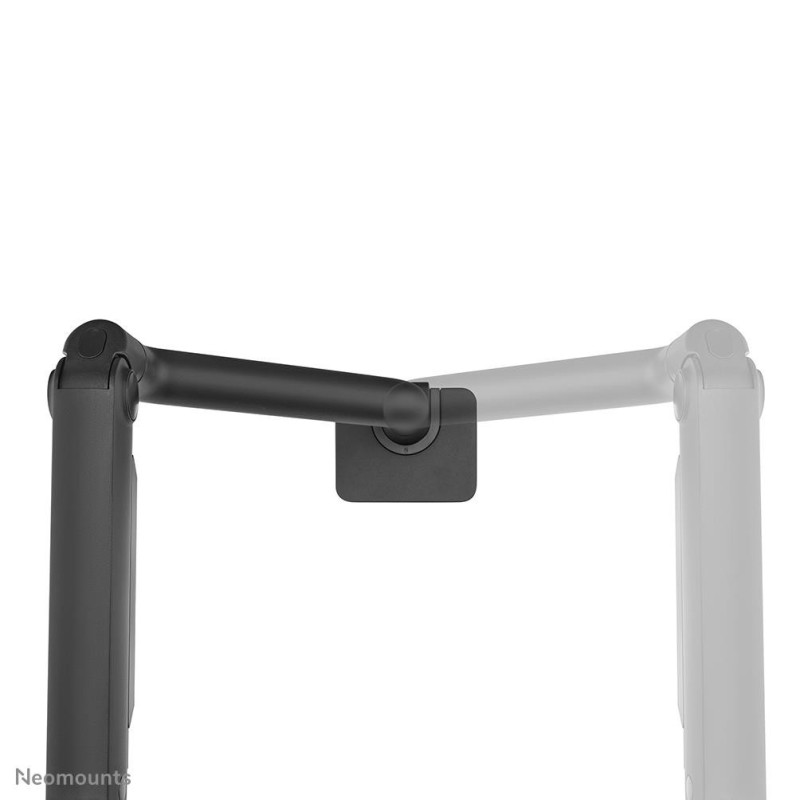

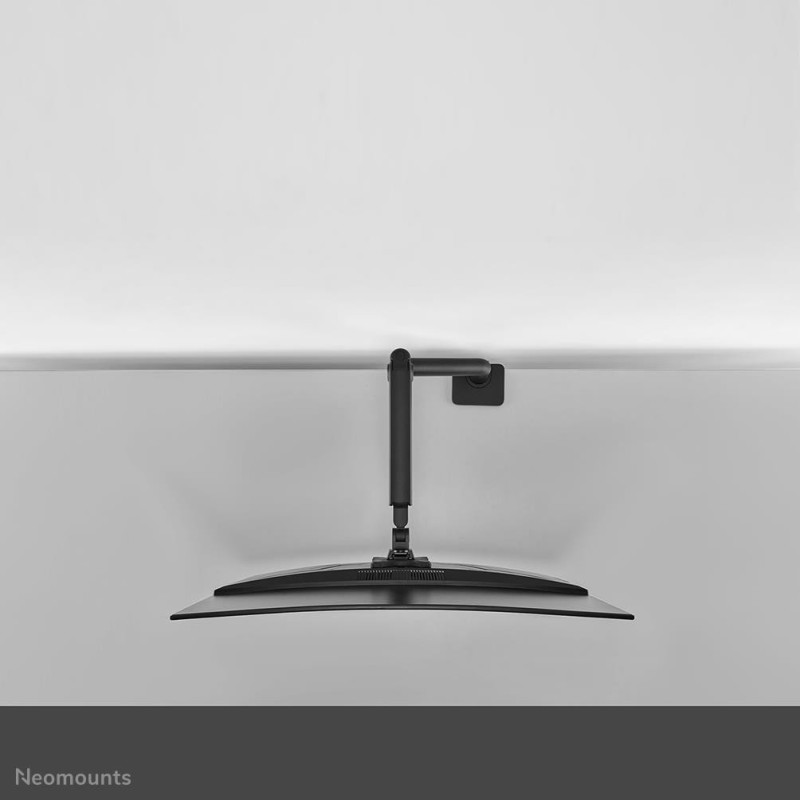

The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

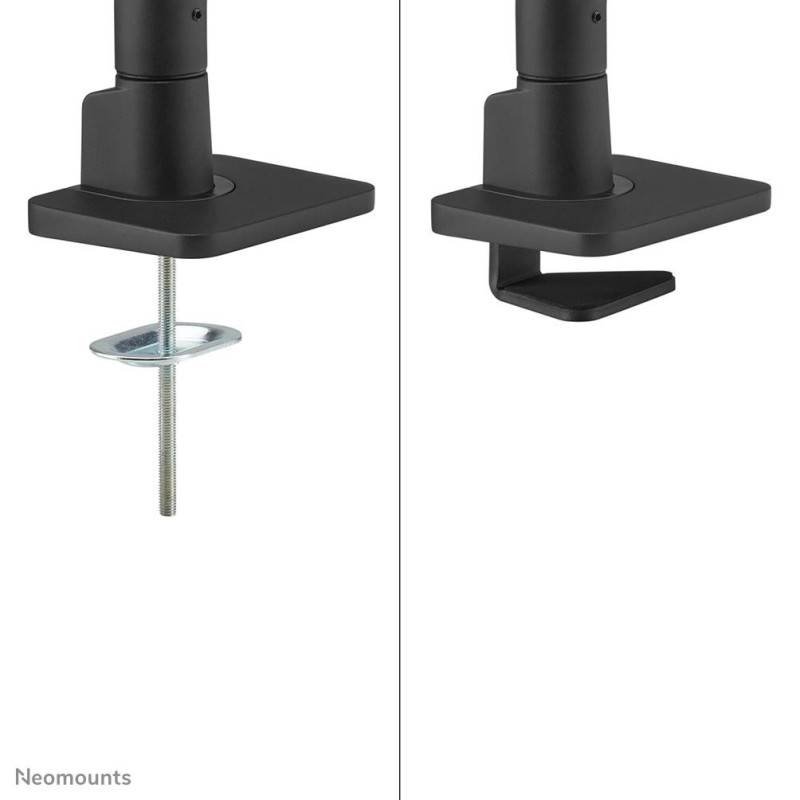

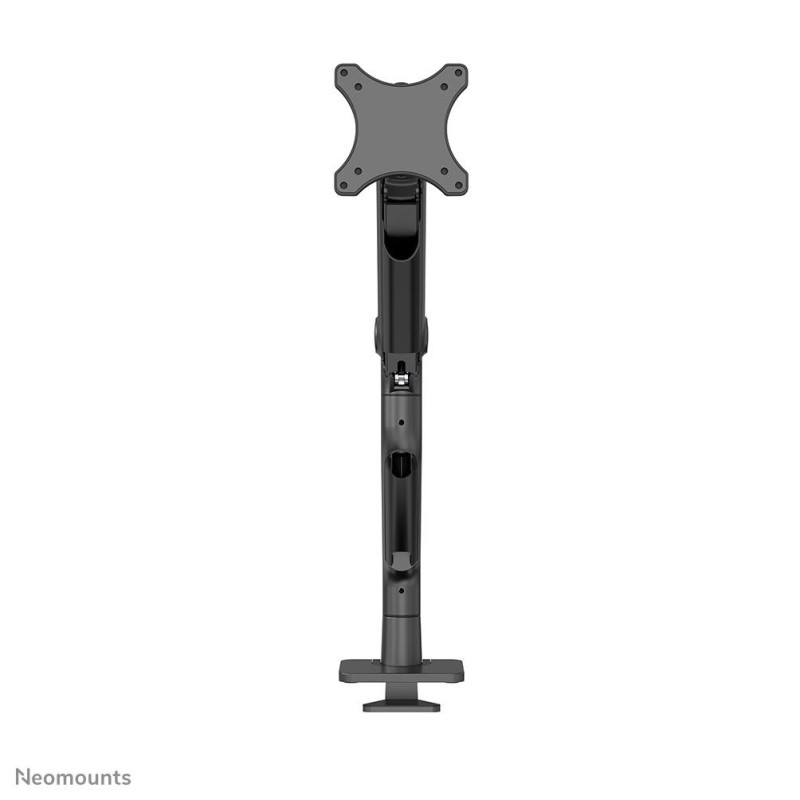

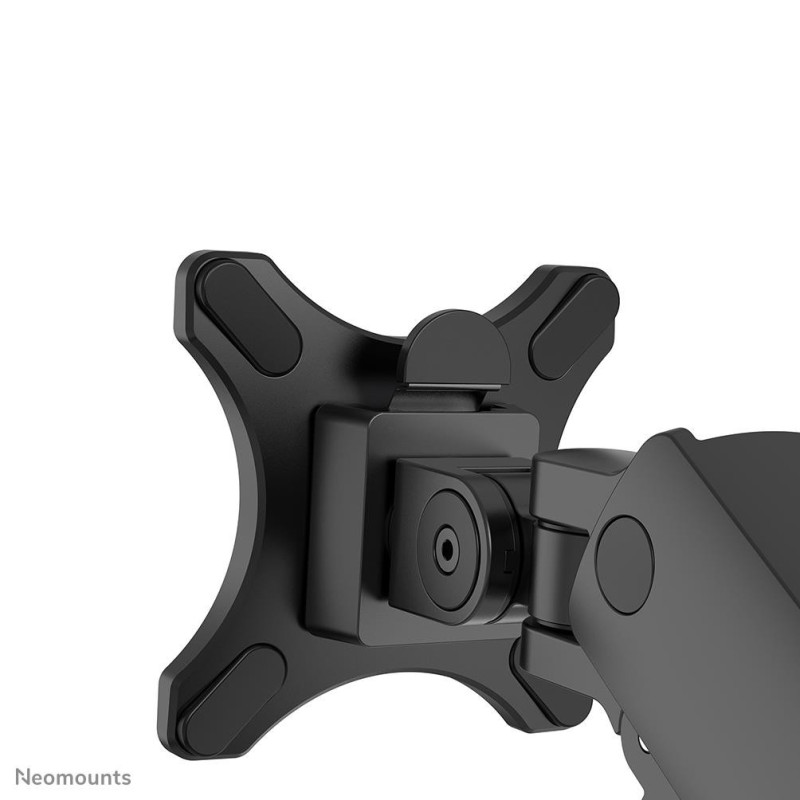

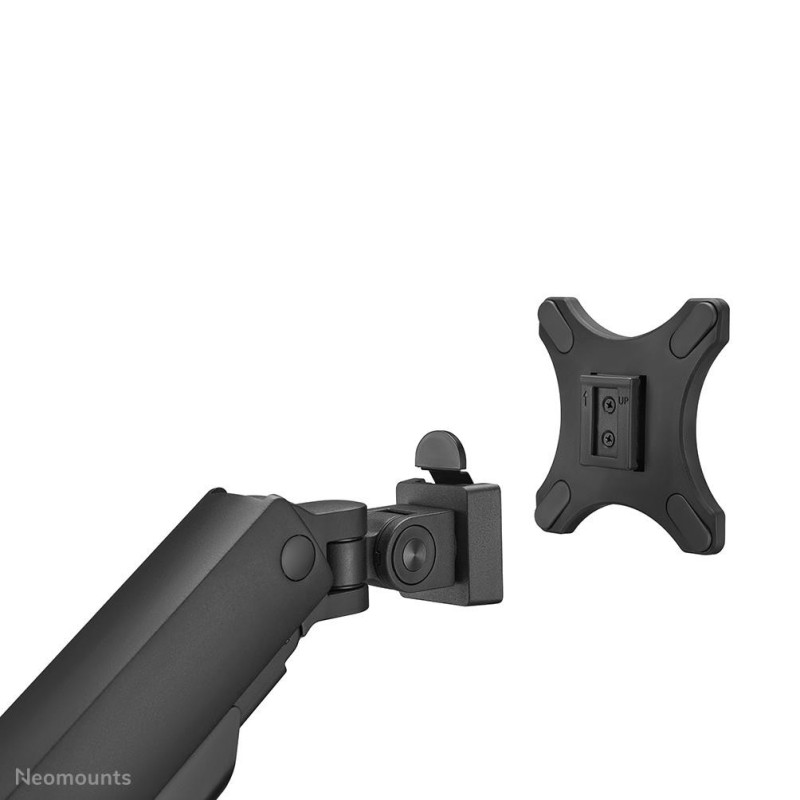

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

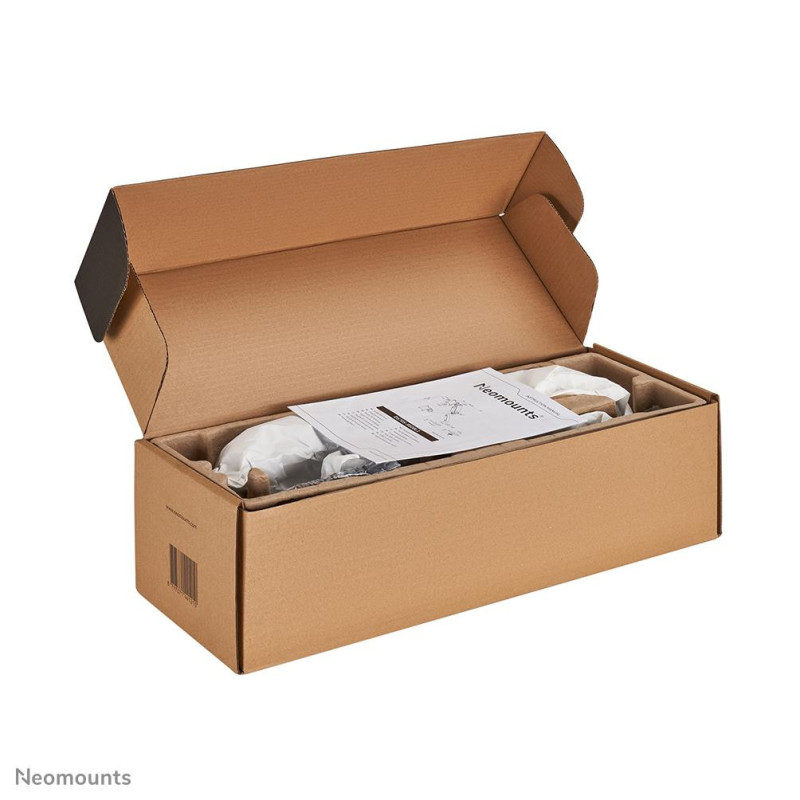

The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Clamp mount desk thickness (max) | 50 mm |
| Country of origin | China |
| Depth | 656 mm |
| Depth adjustment range | 88 - 625 mm |
| Desk thickness (max) | 55 mm |
| Desk thickness (min) | 10 mm |
| Distance to the wall (max) | 656 mm |
| Distance to the wall (min) | 119 mm |
| Easy to install | Yes |
| Grommet mount desk thickness (max) | 55 mm |
| Harmonized System (HS) code | 7616991099 |
| Height | 579 mm |
| Height adjustment | Yes |
| Height adjustment range | 200 - 520 mm |
| Height adjustment type | Gas spring |
| Housing material | Aluminium |
| Master (outer) case gross weight | 17900 g |
| Master (outer) case height | 490 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case net weight | 14900 g |
| Master (outer) case width | 355 mm |
| Maximum screen size | 49 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 18 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 15 kg |
| Maximum weight capacity (per display) | 18 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Minimum weight | 1 kg |
| Model | DS70S-950BL1 |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Name | MONITOR ACC DESK MOUNT 17-49"/DS70S-950BL1 NEOMOUNTS |
| Number of arms | 1 |
| Number of displays supported | 1 |
| Package depth | 122 mm |
| Package height | 423 mm |
| Package net weight | 4300 g |
| Package type | Box |
| Package weight | 4300 g |
| Package width | 333 mm |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Pivot angle | -180 - 180 ° |
| Product colour | Black |
| Product Net Weight | 4.1 kg |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 80 pc(s) |
| Rotating | Yes |
| Shipping Box Depth | 49.5 cm |
| Shipping Box Height | 29 cm |
| Shipping Box Weight | 18 kg |
| Shipping Box Width | 36.5 cm |
| Summary | Neomounts DS70S-950BL1 Monitor arm 17-49" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -90 - 90°. Product colour: Black |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -90 - 90 ° |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.48 |
| Unit Box Width | 0.17 |
| Unit Calculated Volume | 0.0131 cubm |
| Unit Calculated Weight | 4.5 kg |
| Units per Shipping Box | 4 |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70S-950BL1 |
| Warranty period | 10 year(s) |
| Weight | 3720 g |
| Width | 135 mm |
| Width adjustment | 1074 mm |
| Width adjustment range | 0 - 1074 mm |
