MONITOR ACC DESK MOUNT 17-42" / DS70-450WH1 NEOMOUNTS

Product reference: 2-8717371449483

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

155,25 €

Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Ask about product

Your message has been successfully sent!

Fill in the required fields*

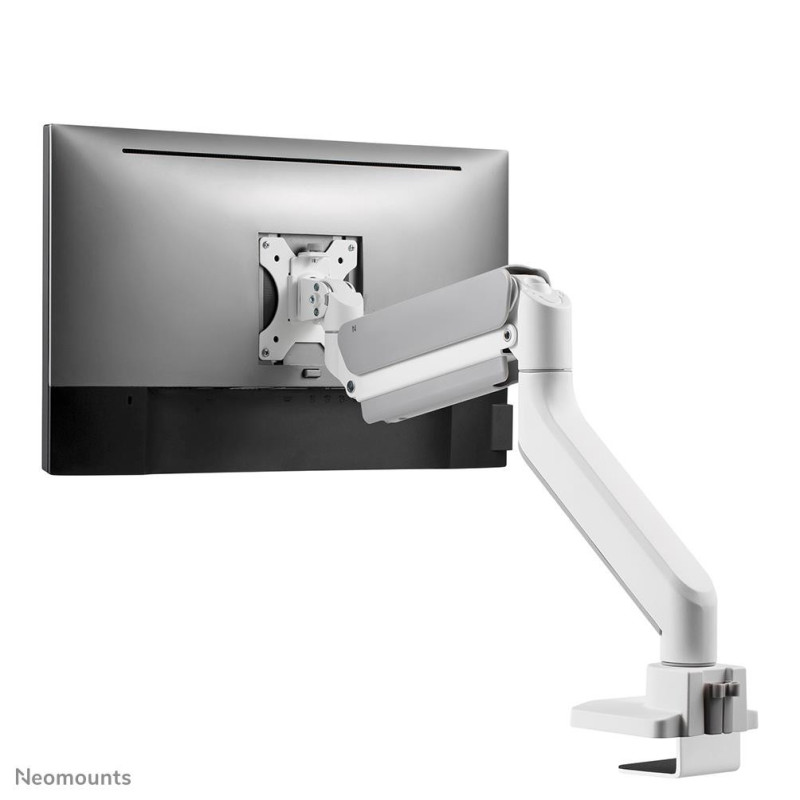

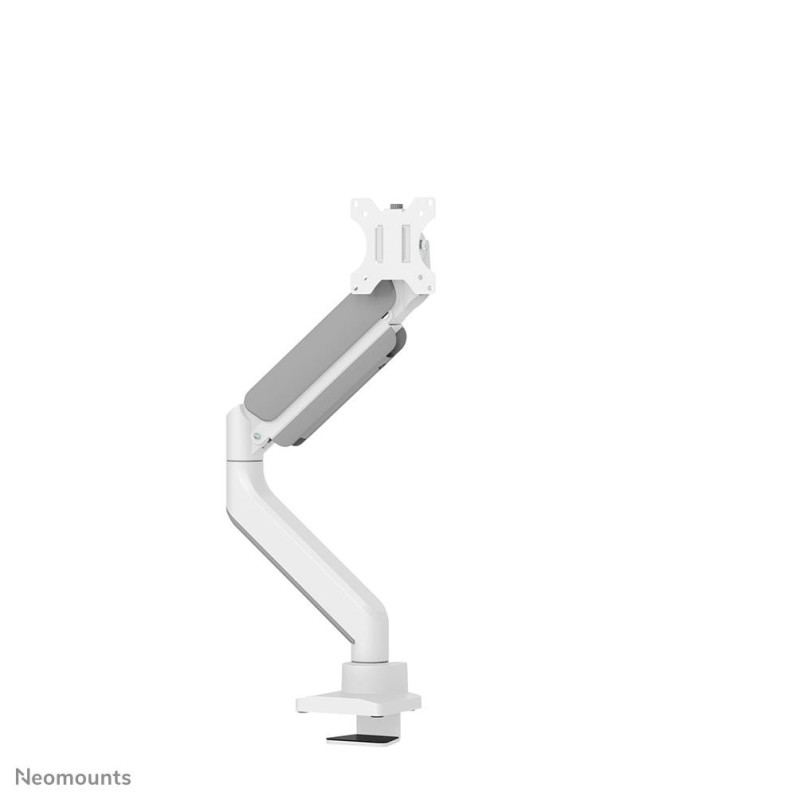

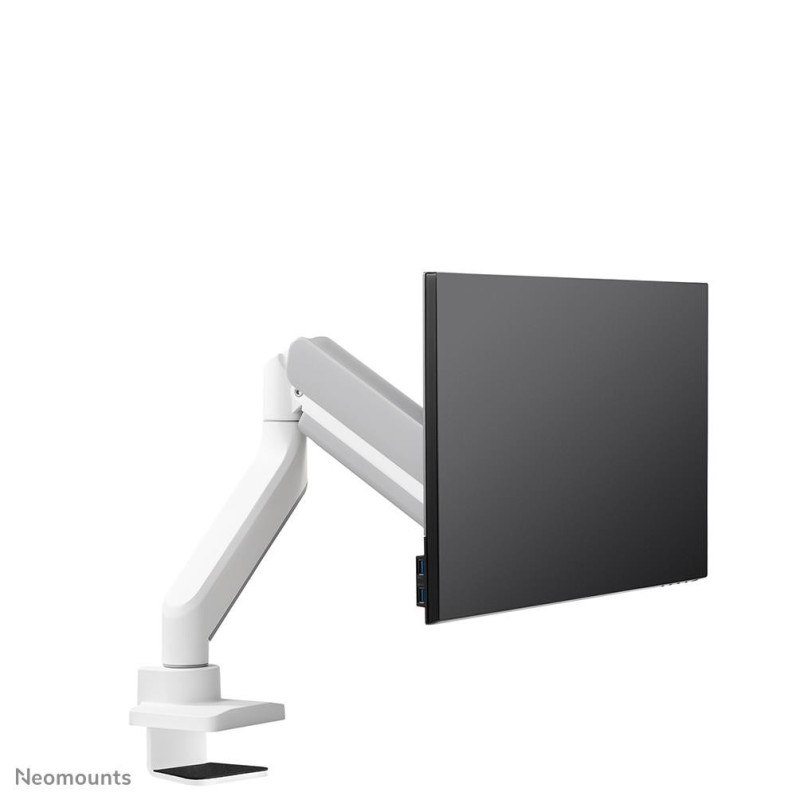

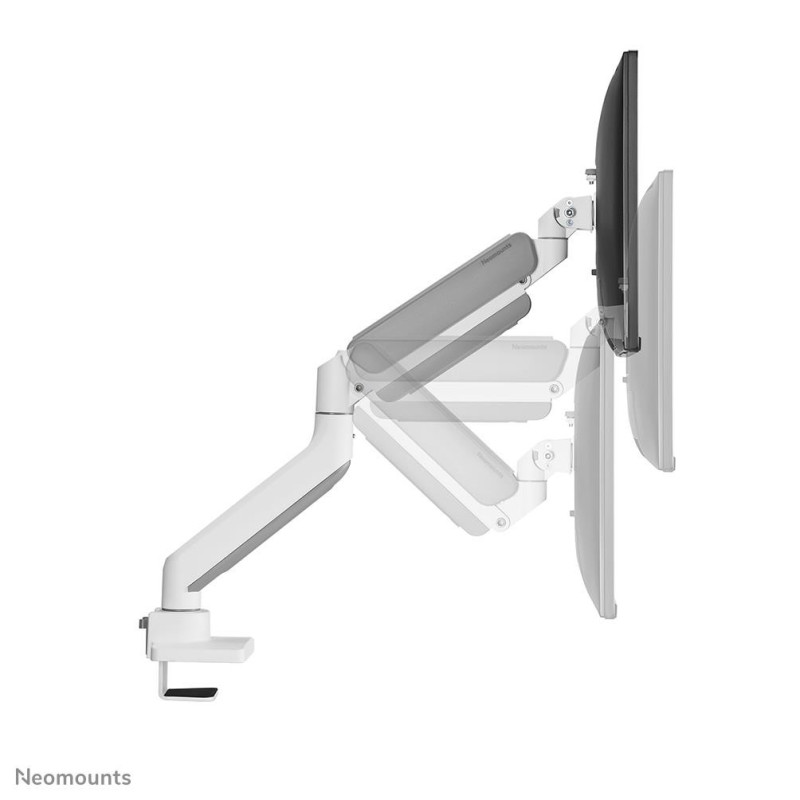

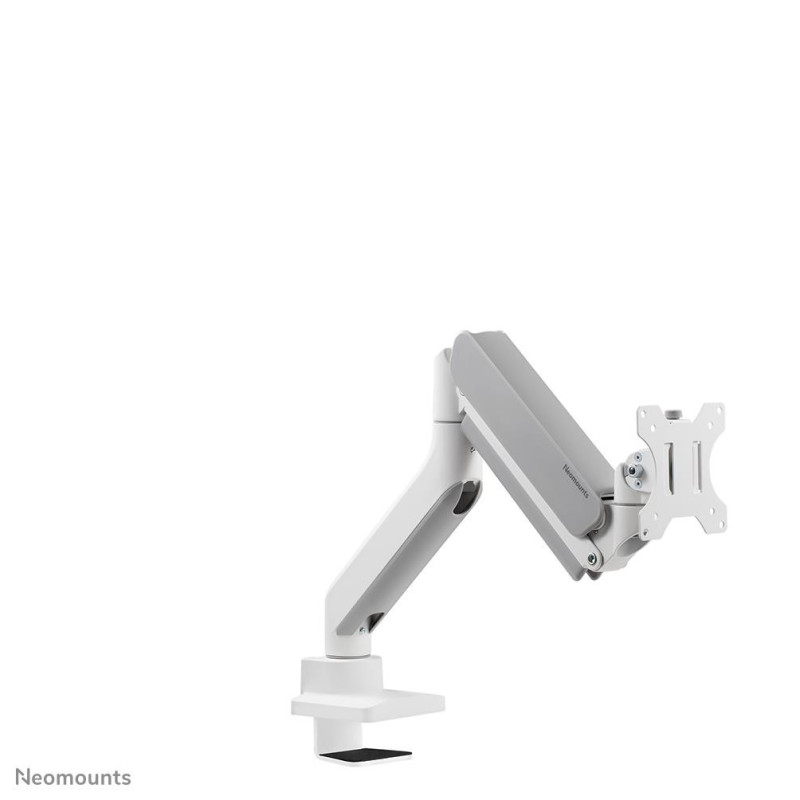

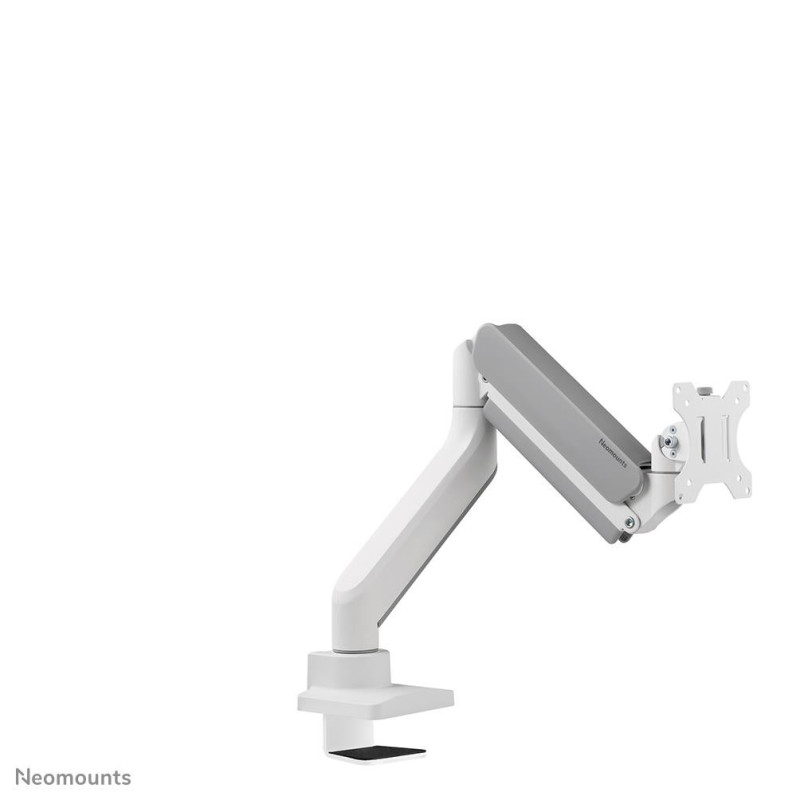

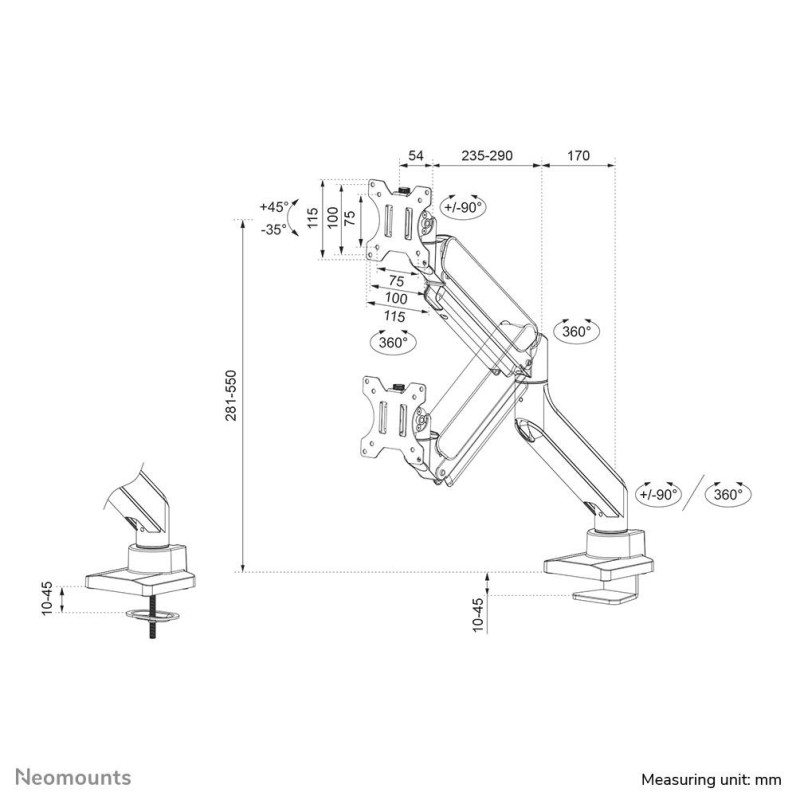

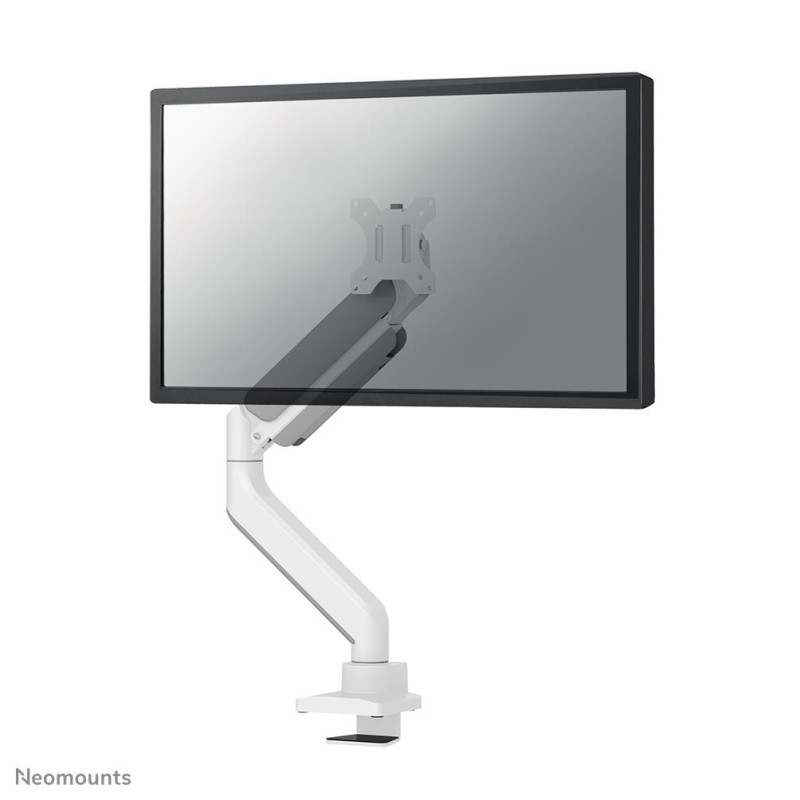

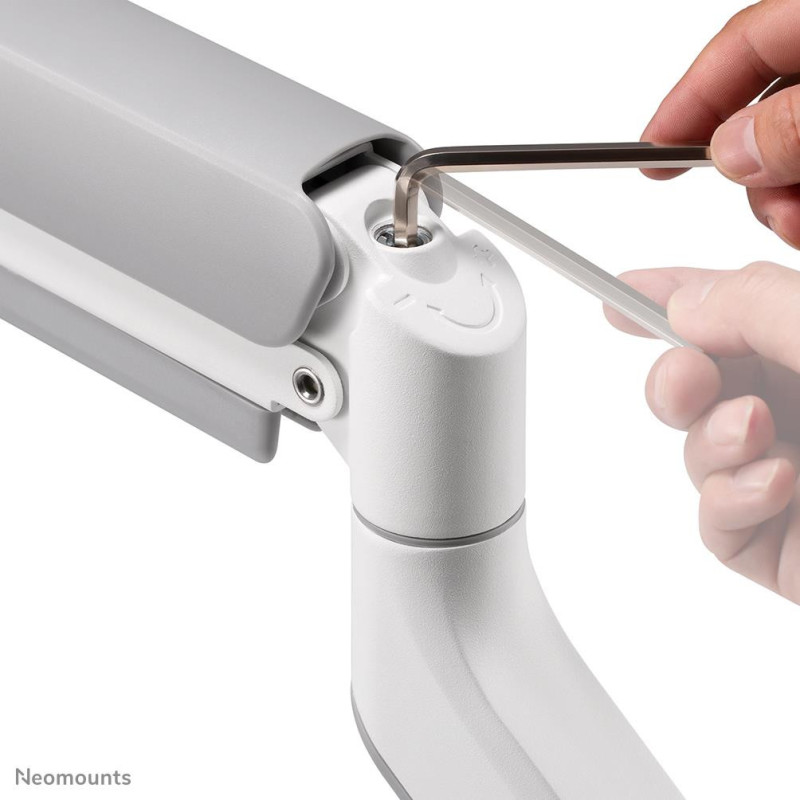

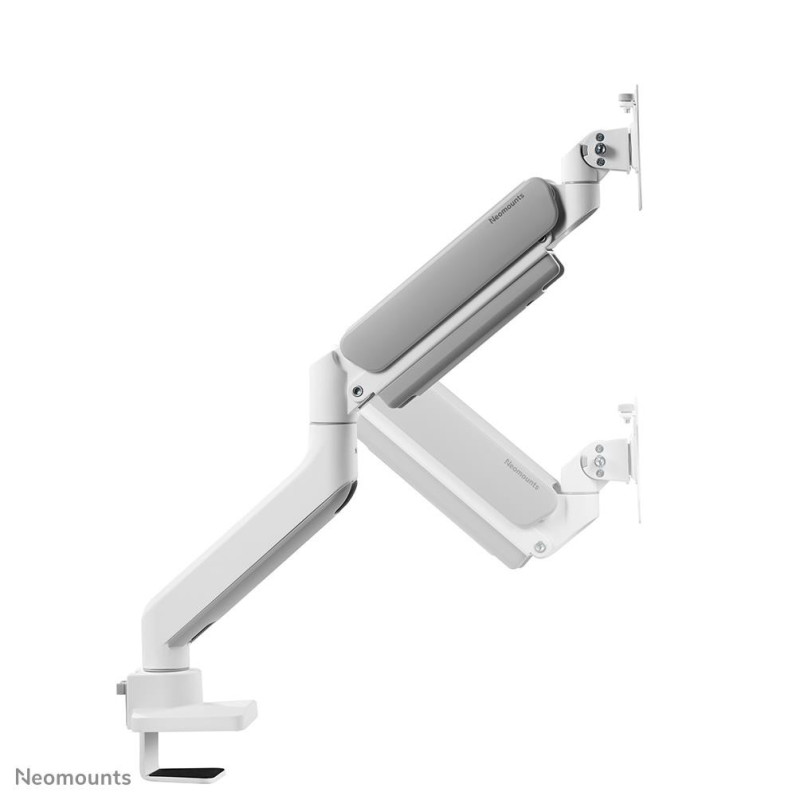

The Neomounts DS70-450WH1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.

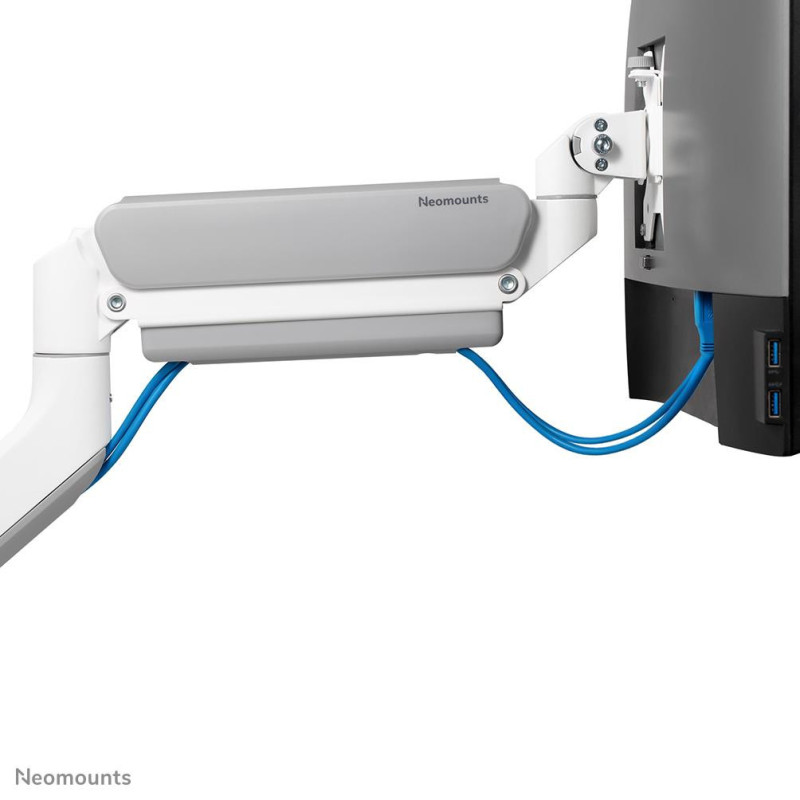

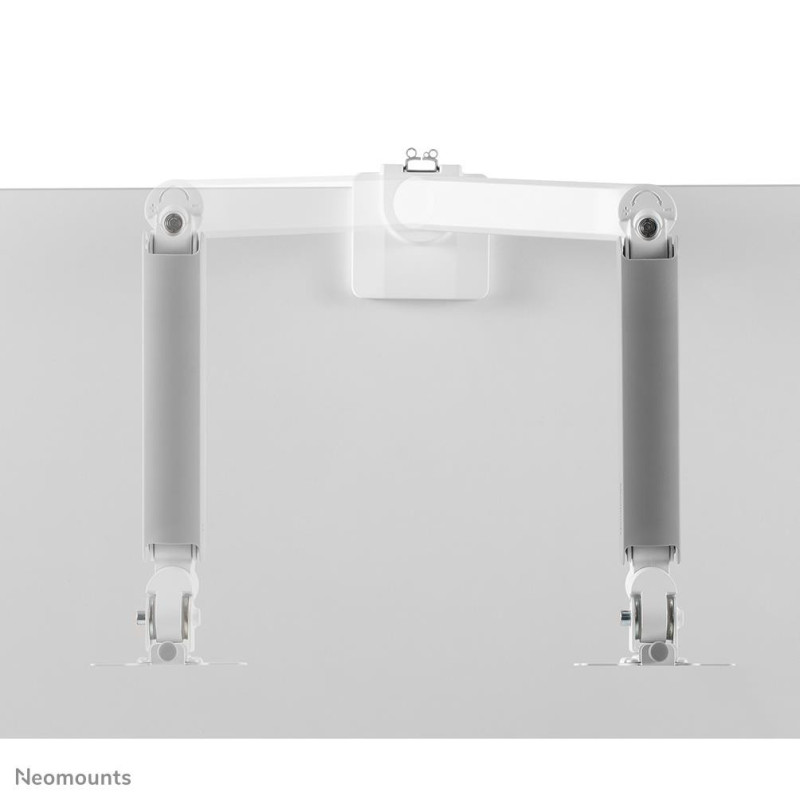

The DS70-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

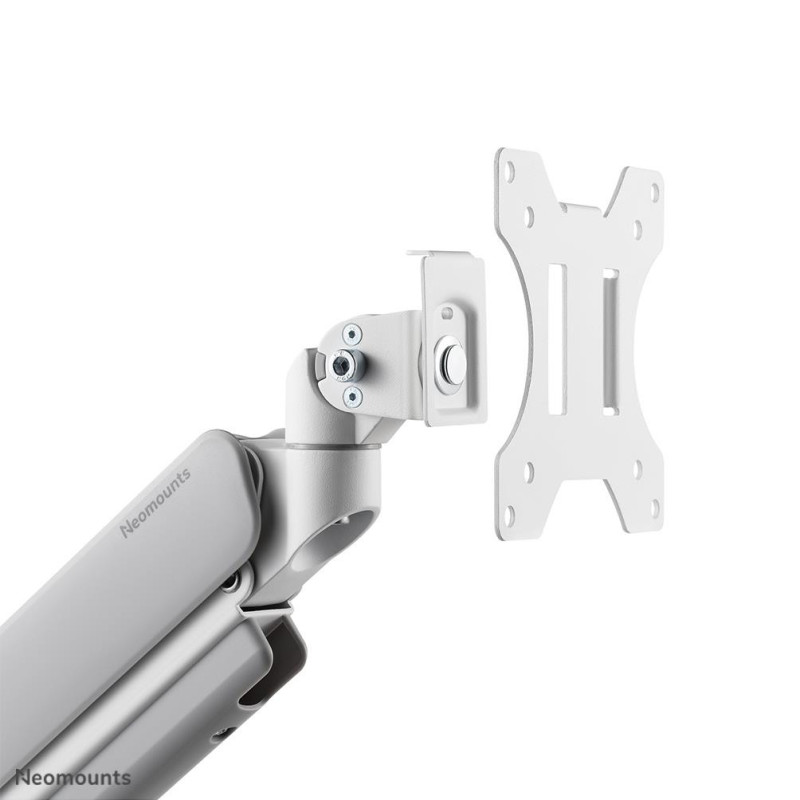

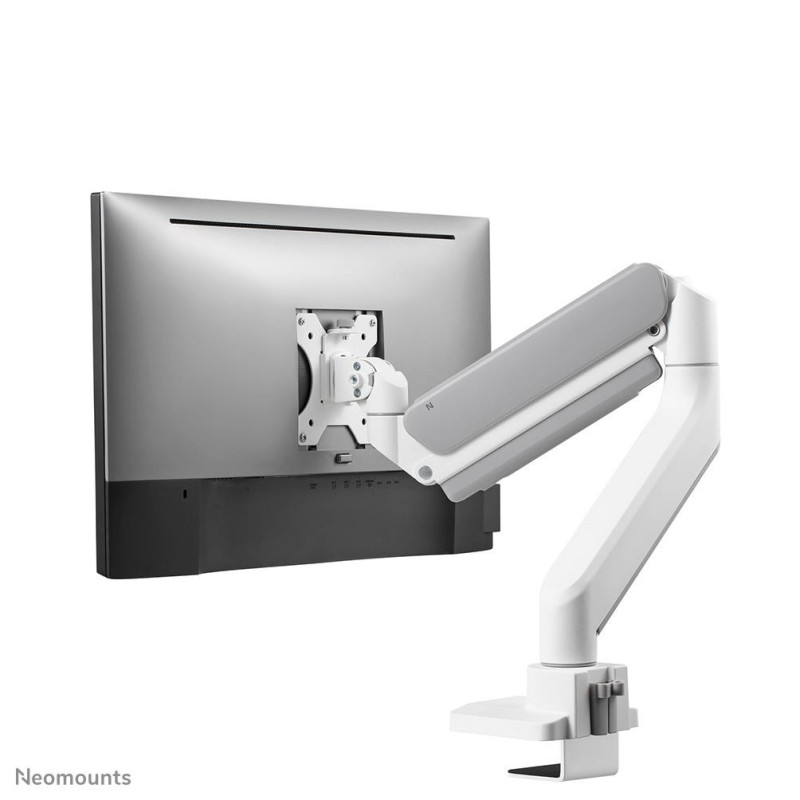

The DS70-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

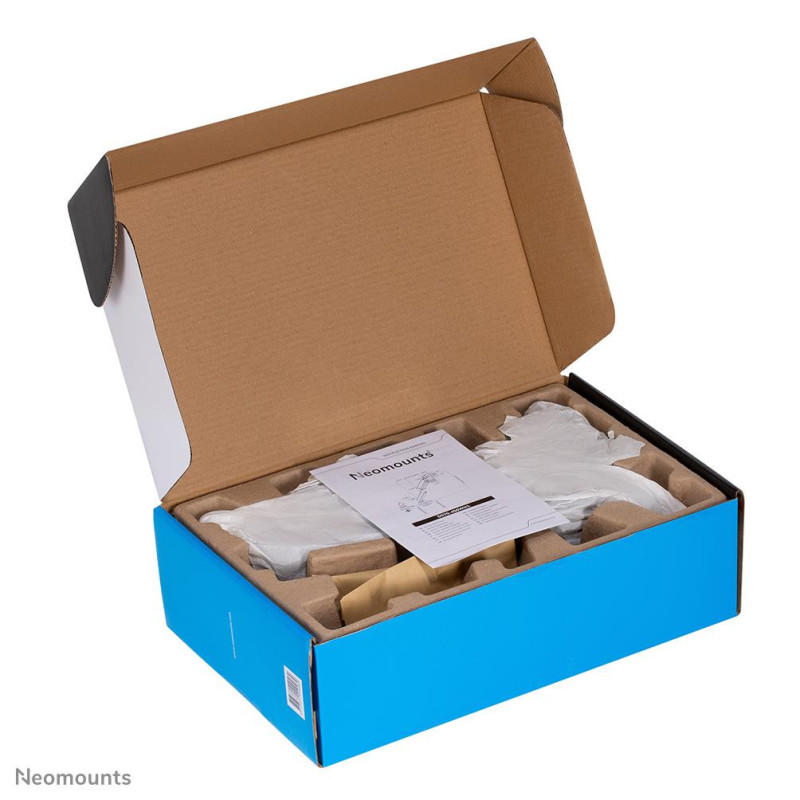

The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.

For wall installation, the AWL75-450WH wall adapter is optionally available.

Adjustable depth	Yes
Angle of rotation	360 °
Cable management	Yes
Country of origin	China
Depth	568 mm
Depth adjustment range	54 - 511 mm
Desk thickness (max)	45 mm
Desk thickness (min)	10 mm
Distance to the wall (max)	568 mm
Distance to the wall (min)	108 mm
Harmonized System (HS) code	7326909890
Height	653 mm
Height adjustment	Yes
Height adjustment range	261 - 555 mm
Height adjustment type	Gas spring
Housing material	Steel
Master (outer) case gross weight	20500 g
Master (outer) case height	580 mm
Master (outer) case length	275 mm
Master (outer) case net weight	18400 g
Master (outer) case width	460 mm
Maximum screen size	42 "
Maximum VESA mount	100 x 100 mm
Maximum weight capacity	15 kg
Maximum weight capacity (per curved/ultra-wide display)	11 kg
Maximum weight capacity (per display)	15 kg
Minimum screen size	17 "
Minimum VESA mount	75 x 75 mm
Minimum weight	1 kg
Model	DS70-450WH1
Mounting	Clamp/Grommet
Mounting kit	Yes
Mounting type	Desk
Number of displays supported	1
Package depth	127 mm
Package height	445 mm
Package net weight	5100 g
Package weight	5100 g
Package width	280 mm
Panel mounting interface	100 x 100/75 x 75 mm
Pivot angle	-180 - 180 °
Product colour	White
Products per master (outer) case	4 pc(s)
Products per pallet (EU)	64 pc(s)
Rotating	Yes
Summary	Neomounts DS70-450WH1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 15 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: White
Swivel angle	180 °
Swivel angle range	-90 - 90 °
Swivelling	Yes
Tilt adjustment	Yes
Tilt angle range	-45 - 45 °
Unit Box Height	0.285
Unit Box Length	0.45
Unit Box Width	0.125
Unit Calculated Volume	0.01603 cubm
Unit Calculated Weight	4.9 kg
Units per Shipping Box	1
Vendor Homepage	https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-450WH1
Warranty period	5 year(s)
Weight	3980 g
Width	120 mm
Width adjustment	920 mm
Width adjustment range	0 - 920 mm
