MONITOR ACC DESK MOUNT 17-32" / DS75-450BL2 NEOMOUNTS
Product reference: 2-8717371449476

MONITOR ACC DESK MOUNT 17-32" / DS75-450BL2 NEOMOUNTS

Product reference: 2-8717371449476
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
207,96
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

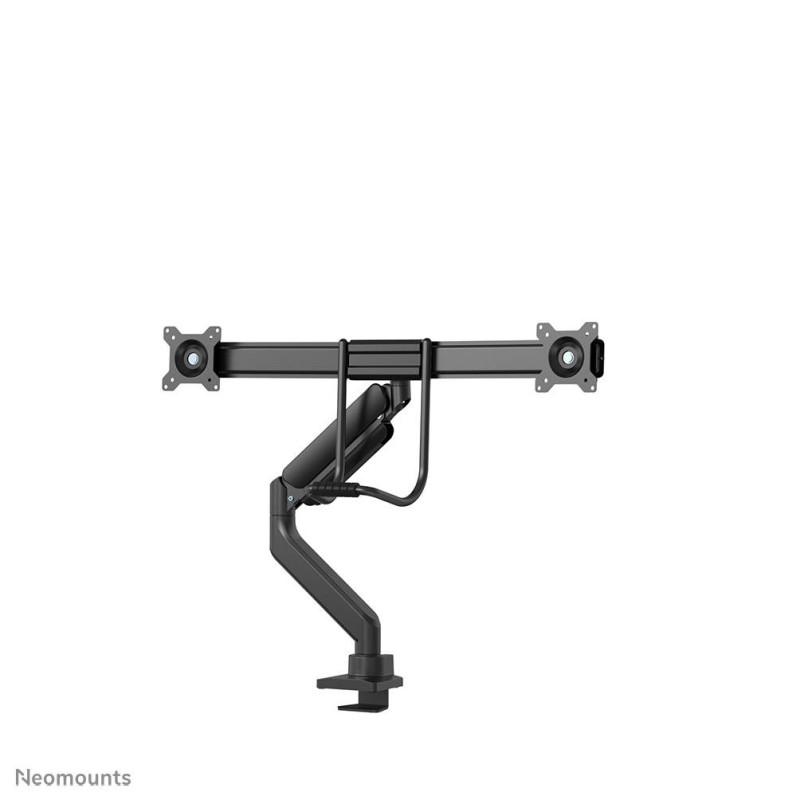

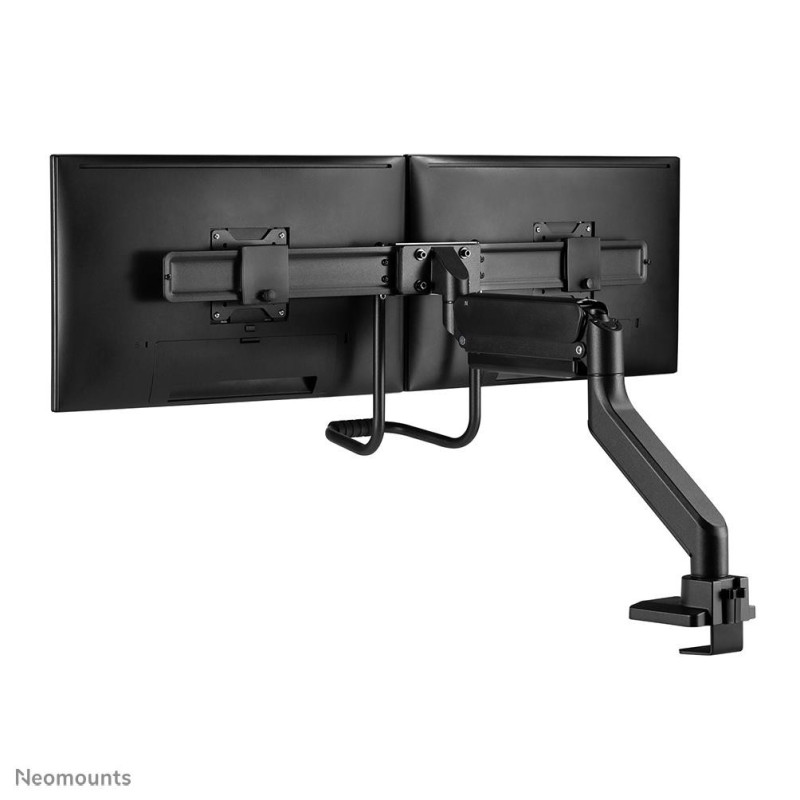

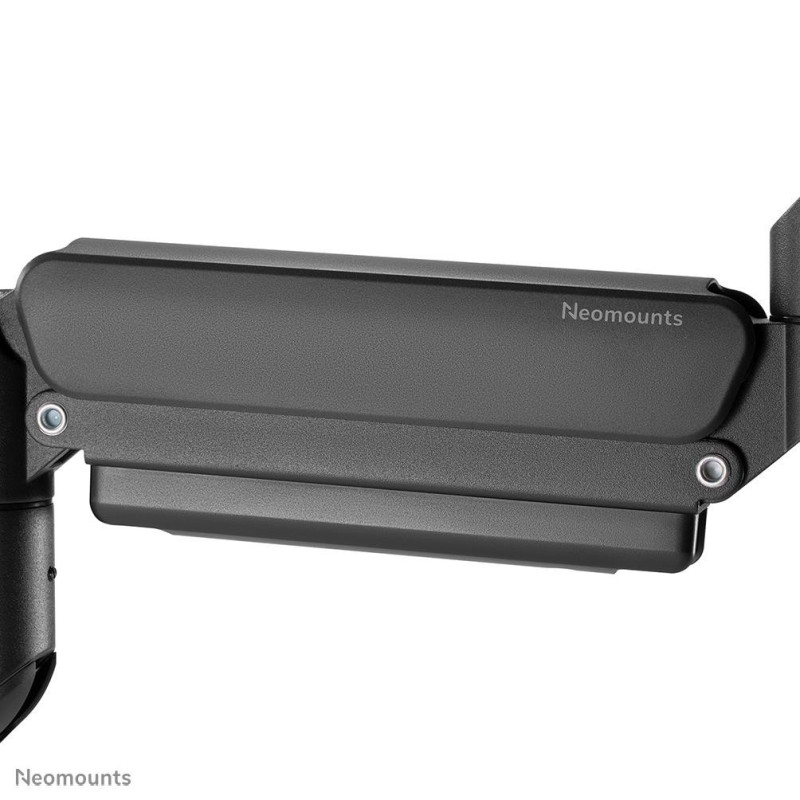

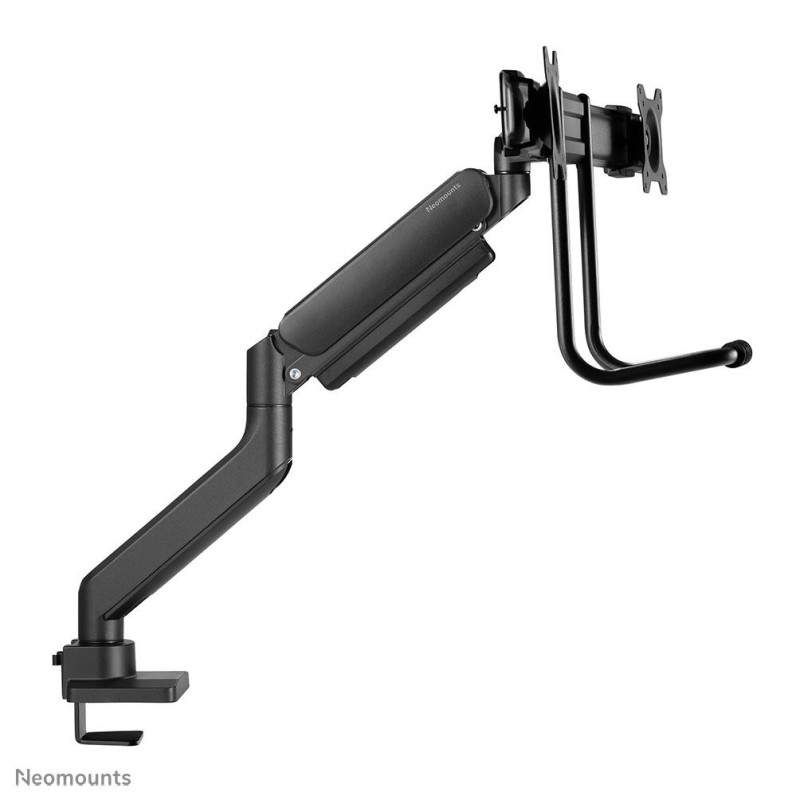

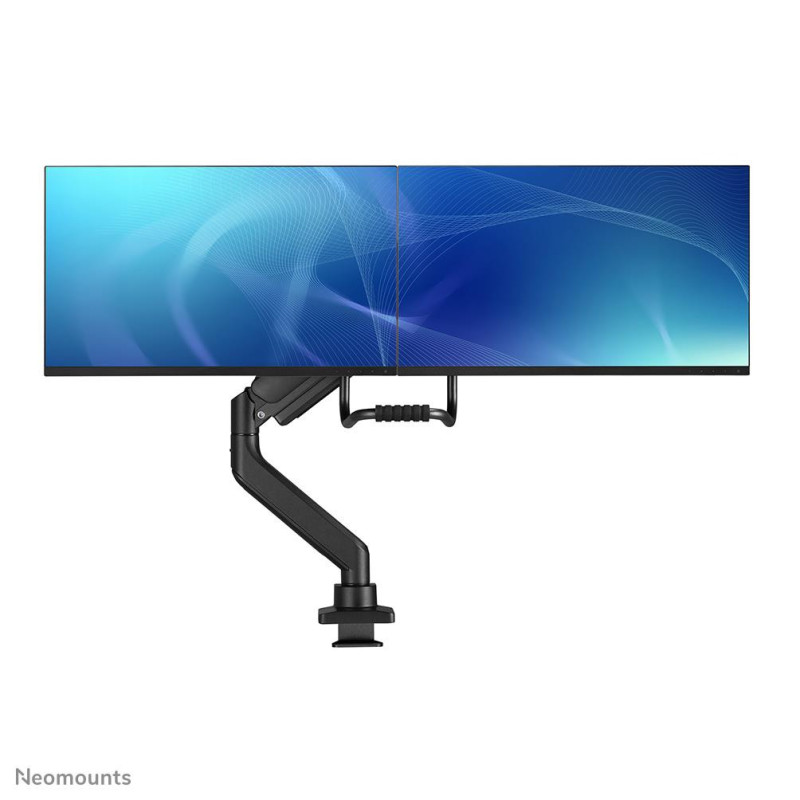

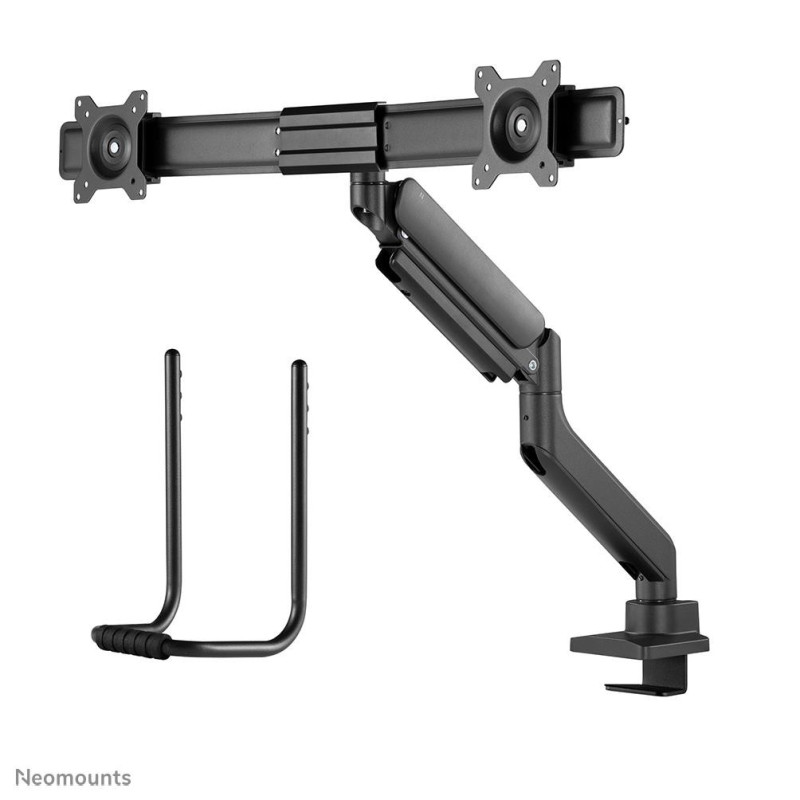

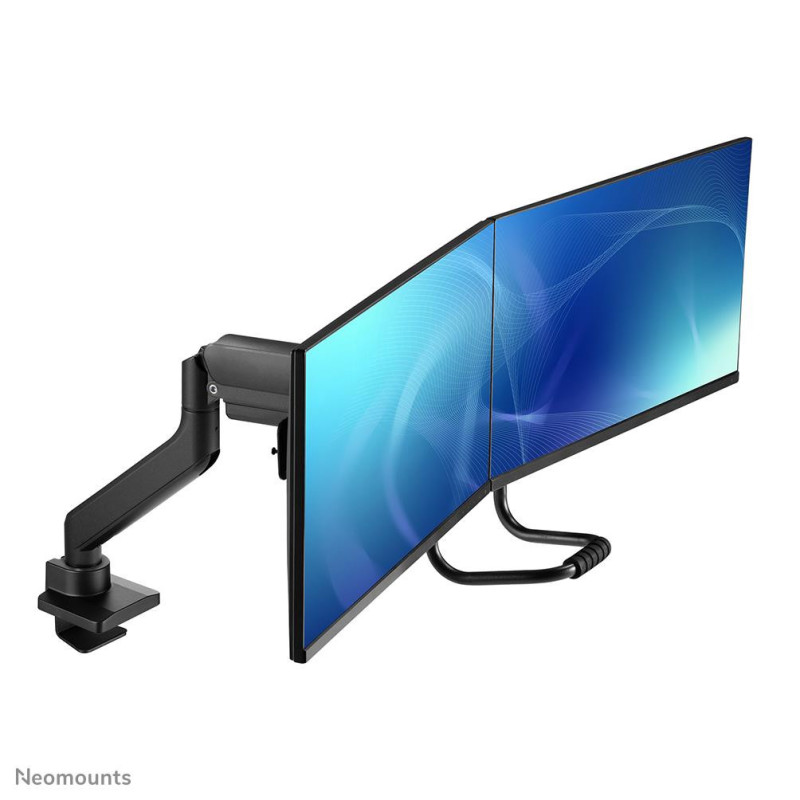

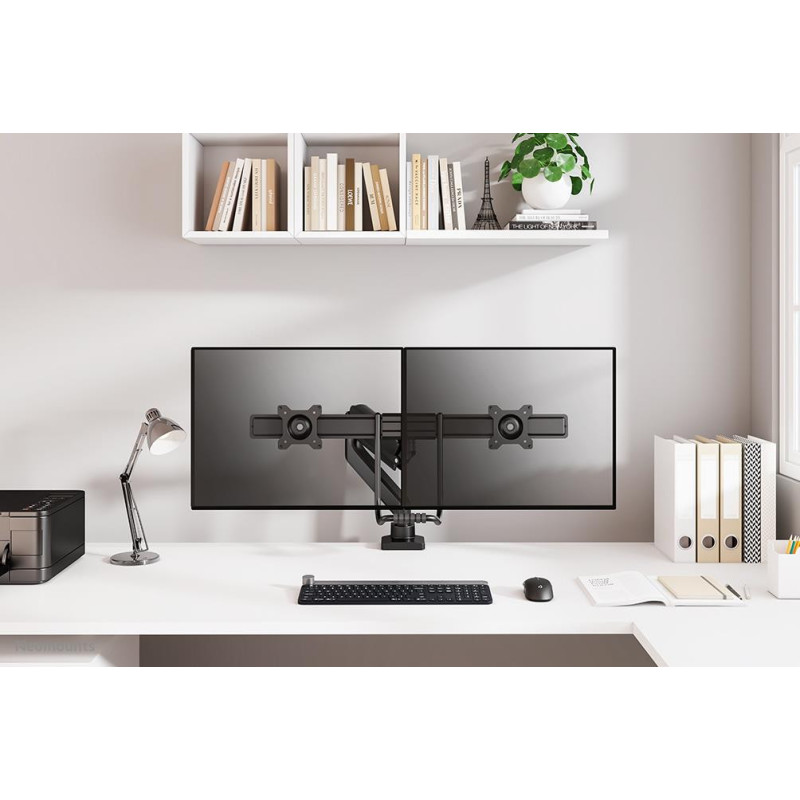

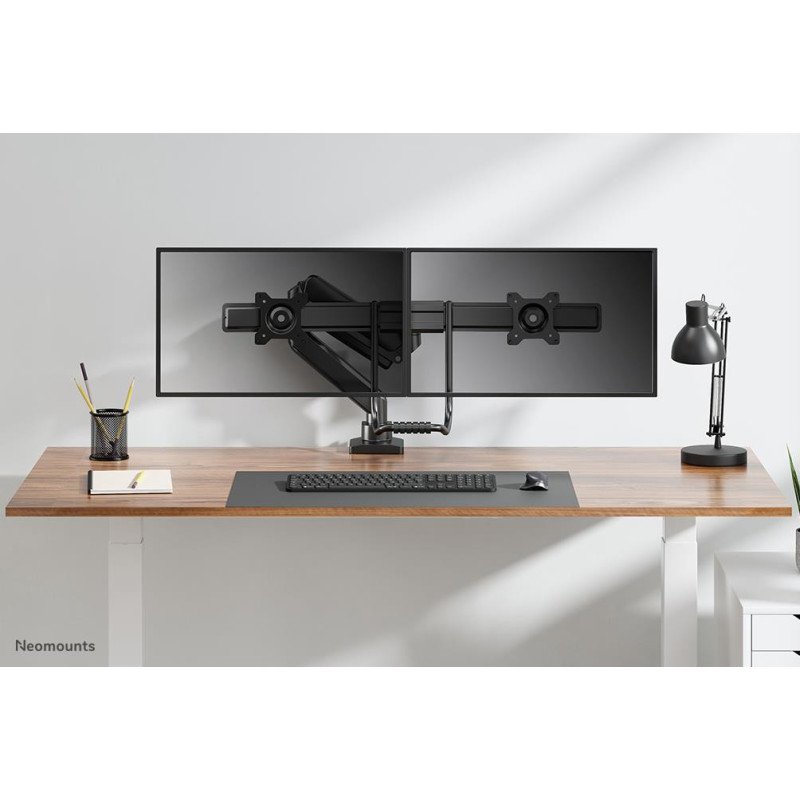

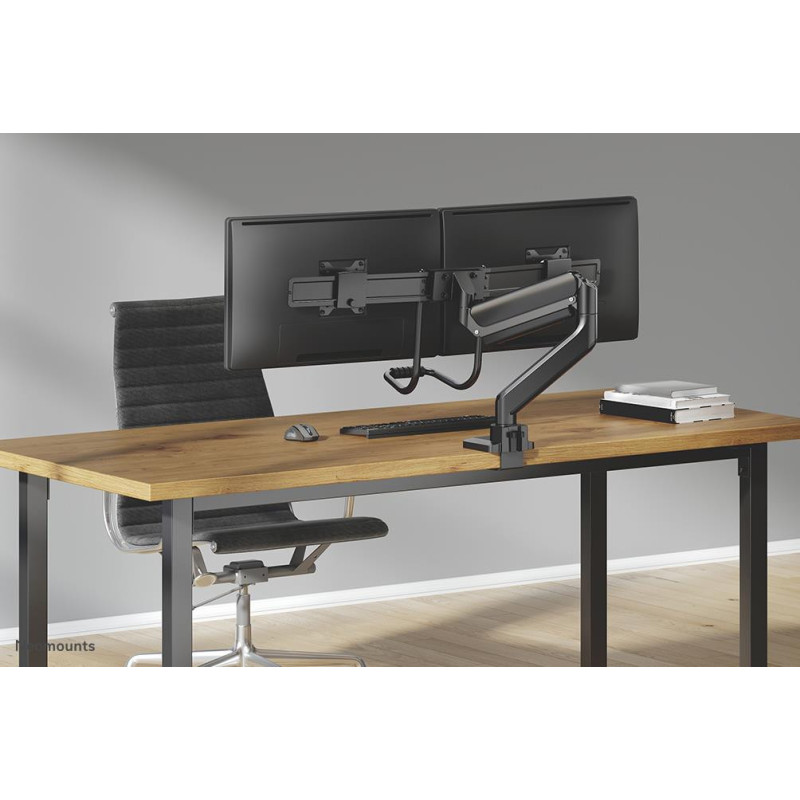

The Neomounts DS75-450BL2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (29,1-56 cm) and depth adjustment (14,3-55,3 cm), to create the perfect working position.

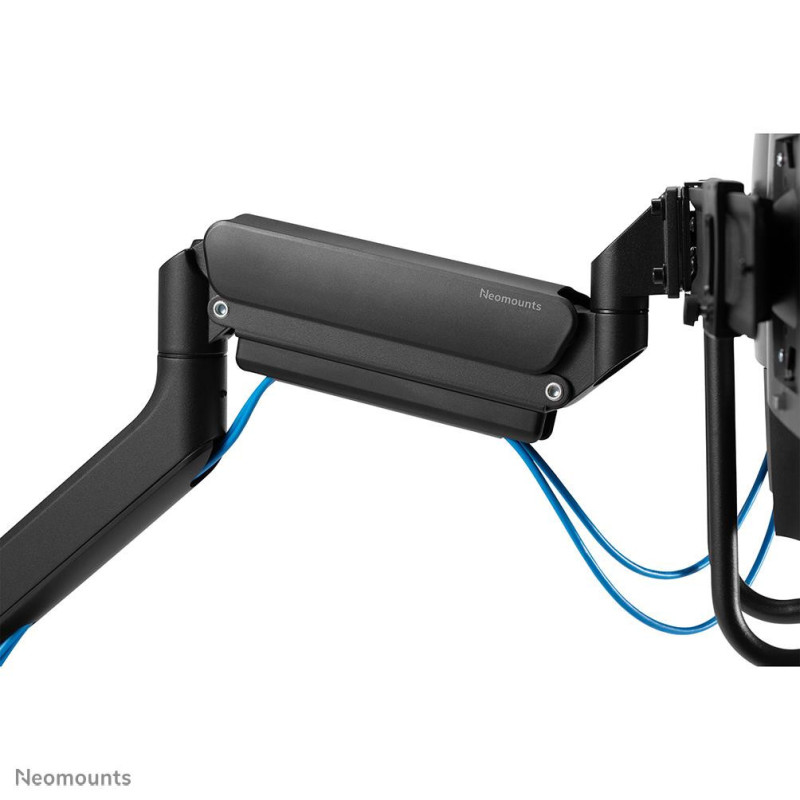

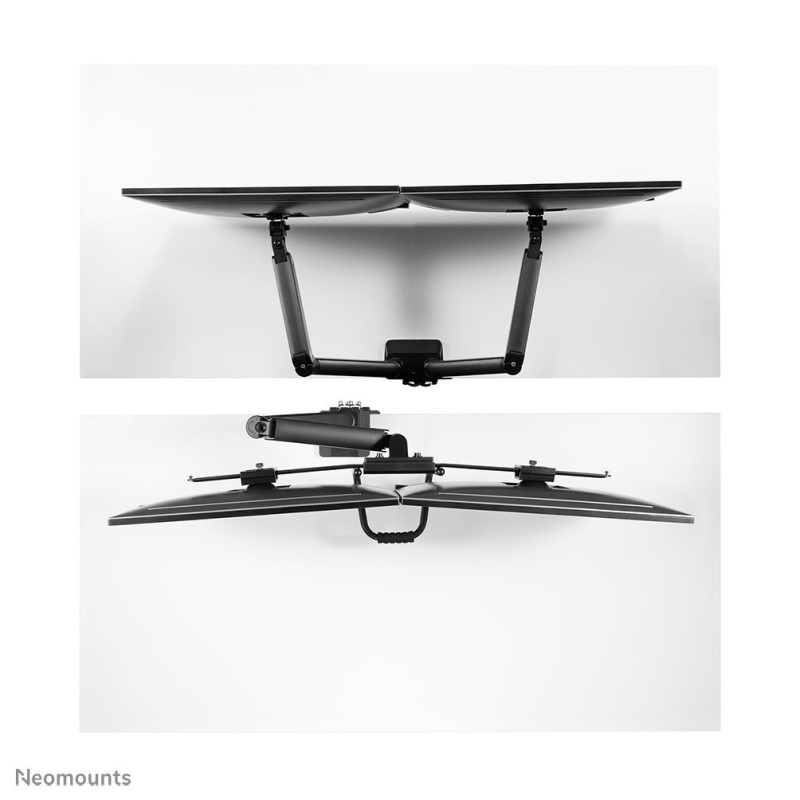

The DS75-450BL2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

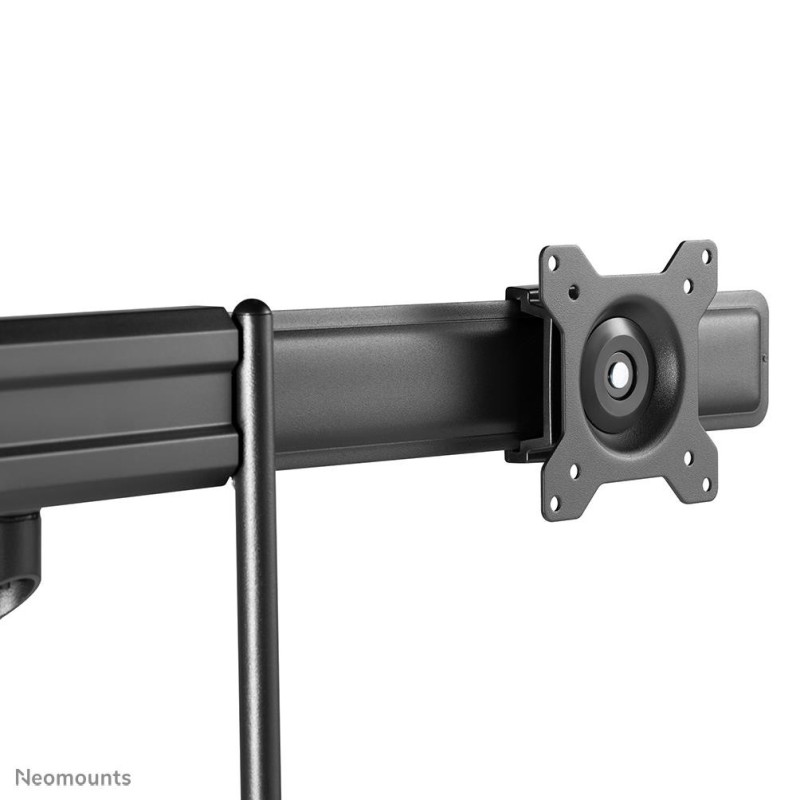

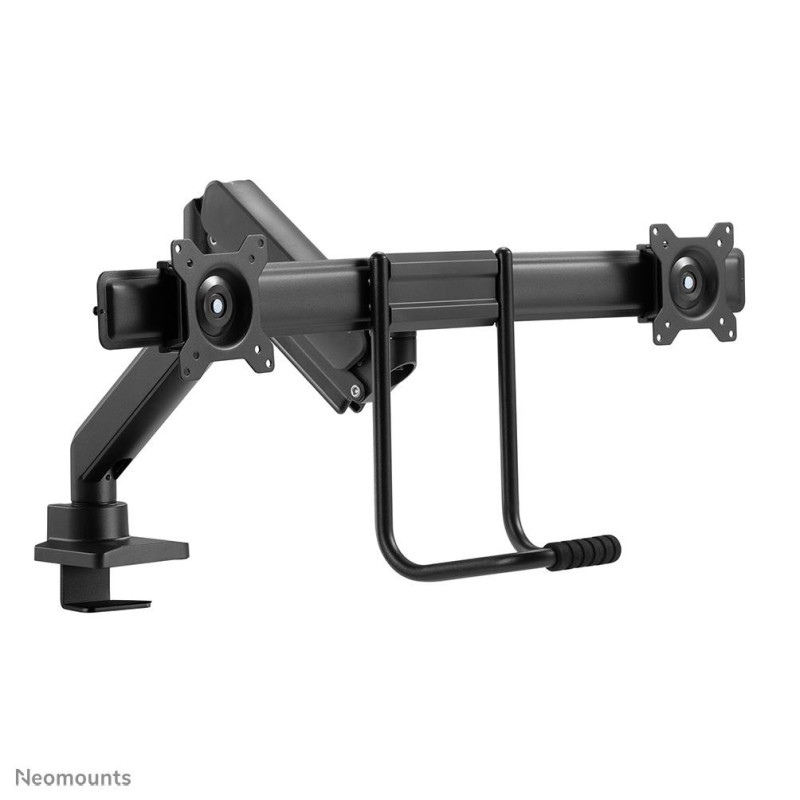

The DS75-450BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.

For wall installation, the AWL75-450WH wall adapter is optionally available.


Summary Neomounts DS75-450BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -10 - 10°. Product colour: Black
Vendor Homepage https://www.neomounts.com/default.asp?pageid=44&artdetail=DS75-450BL2
Unit Box Height 0.325
Unit Box Length 0.45
Unit Box Width 0.155
Desk thickness (max) 45 mm
Desk thickness (min) 10 mm
Maximum screen size 32 "
Maximum VESA mount 100 x 100 mm
Maximum weight capacity 8 kg
Maximum weight capacity (per display) 8 kg
Minimum screen size 17 "
Minimum VESA mount 75 x 75 mm
Mounting Clamp/Grommet
Mounting type Desk
Number of displays supported 2
Panel mounting interface 100 x 100/75 x 75 mm
Adjustable depth Yes
Angle of rotation 360 °
Cable management Yes

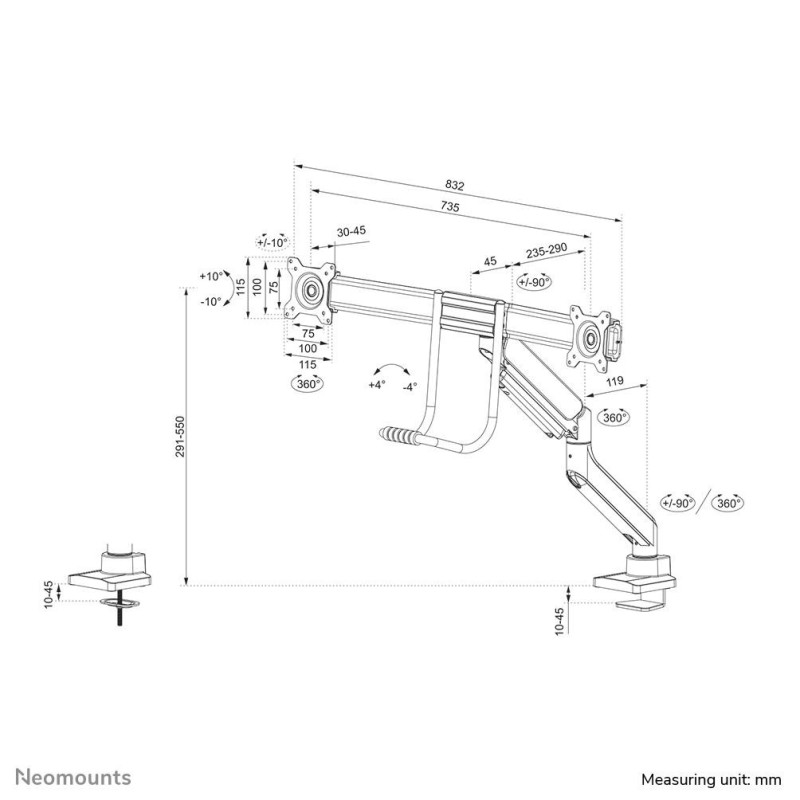

Depth adjustment range 143 - 553 mm
Height adjustment Yes
Height adjustment range 291 - 560 mm

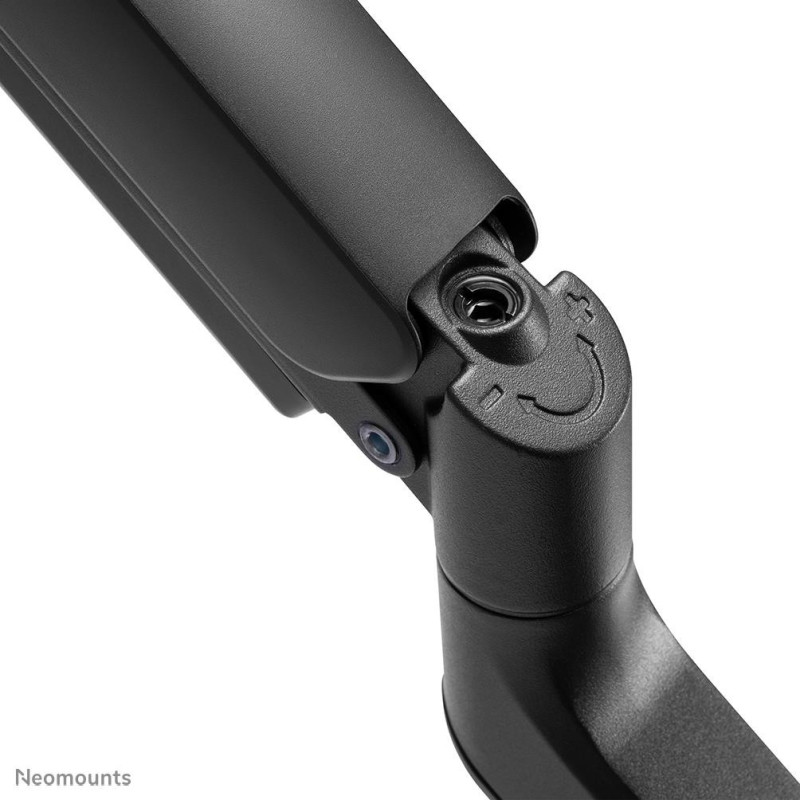

Height adjustment type Gas spring
Pivot angle -180 - 180 °
Rotating Yes
Swivel angle 20 °
Swivel angle range -90 - 90 °
Swivelling Yes
Tilt adjustment Yes
Tilt angle range -10 - 10 °
Width adjustment 990 mm
Housing material Steel
Product colour Black
Depth 115 mm
Height 646 mm
Weight 6400 g
Width 761 mm
Package depth 152 mm
Package height 445 mm
Package net weight 7900 g
Package weight 7900 g
Package width 320 mm
Mounting kit Yes
Minimum weight 1 kg
Warranty period 5 year(s)
Width adjustment range 0 - 990 mm
Country of origin China
Harmonized System (HS) code 7326909890
Master (outer) case gross weight 15900 g
Master (outer) case height 460 mm
Master (outer) case length 325 mm
Master (outer) case net weight 14300 g
Master (outer) case width 335 mm
Products per master (outer) case 2 pc(s)
Products per pallet (EU) 40 pc(s)
Model DS75-450BL2
Units per Shipping Box 1
Unit Calculated Volume 0.02267 cubm
Unit Calculated Weight 7.55 kg
