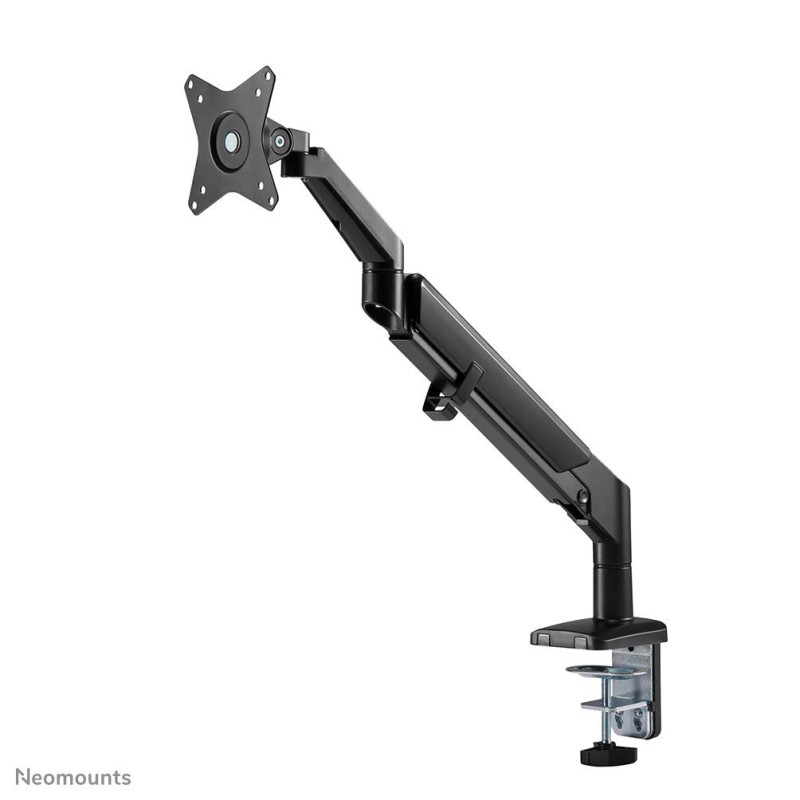

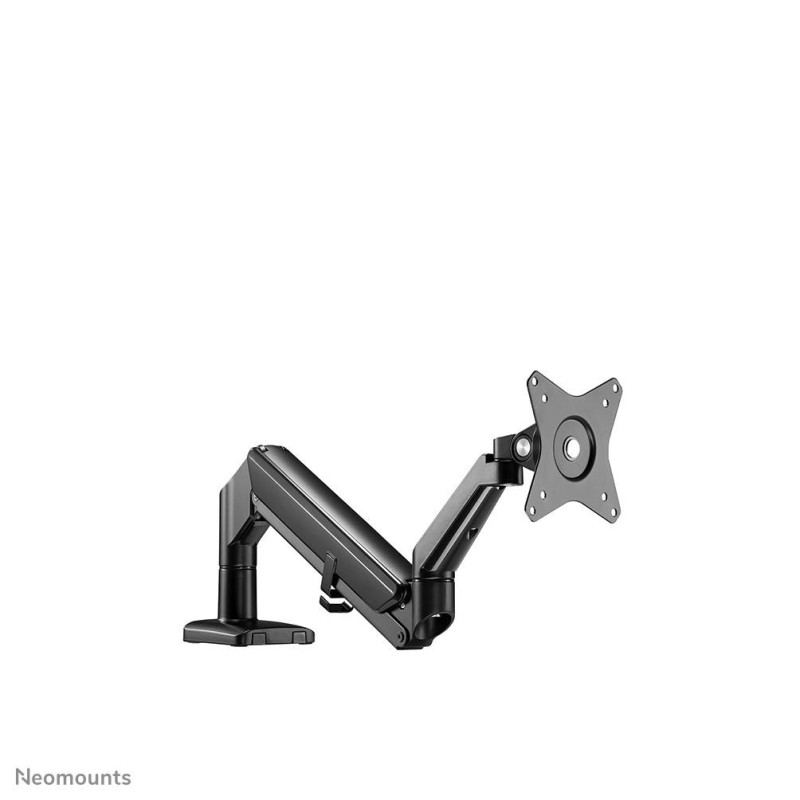

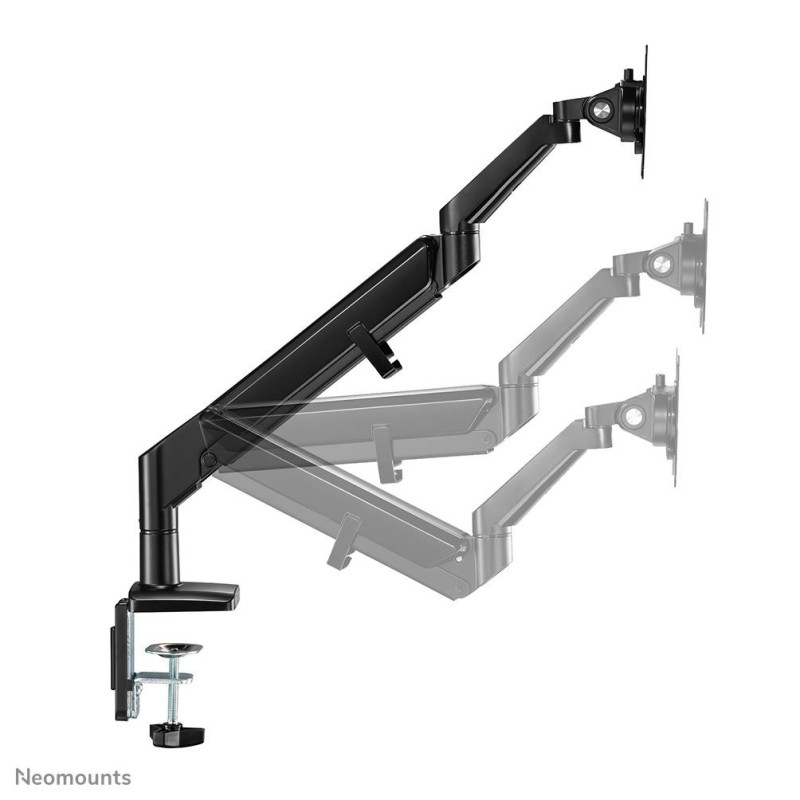

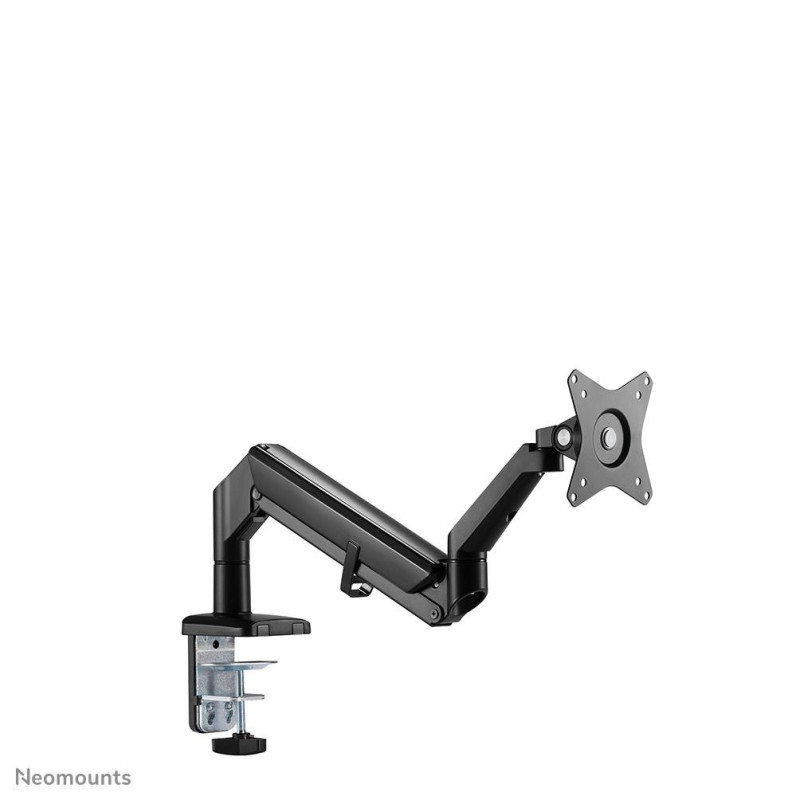

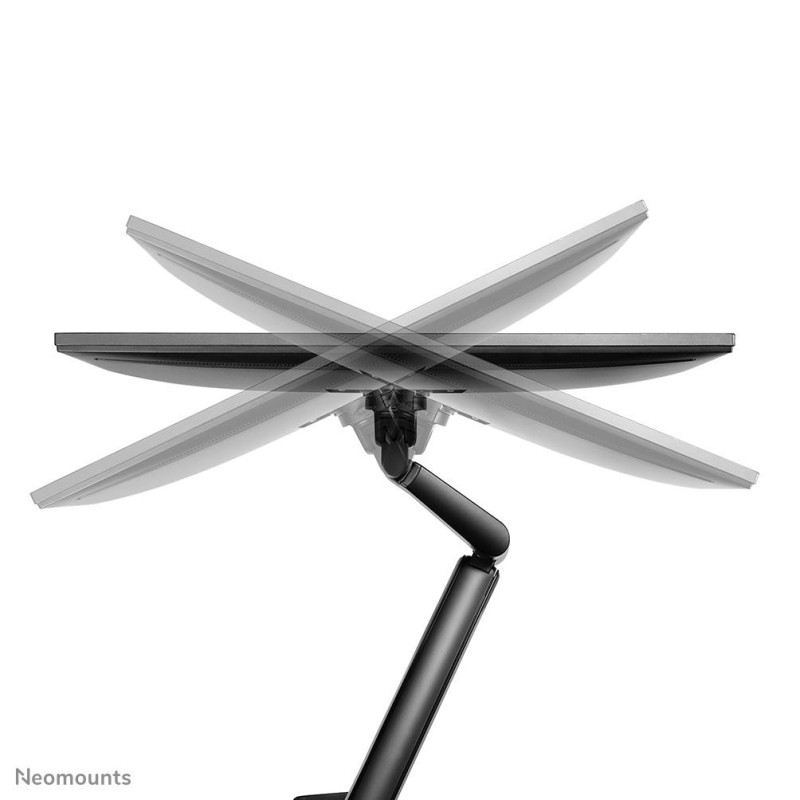

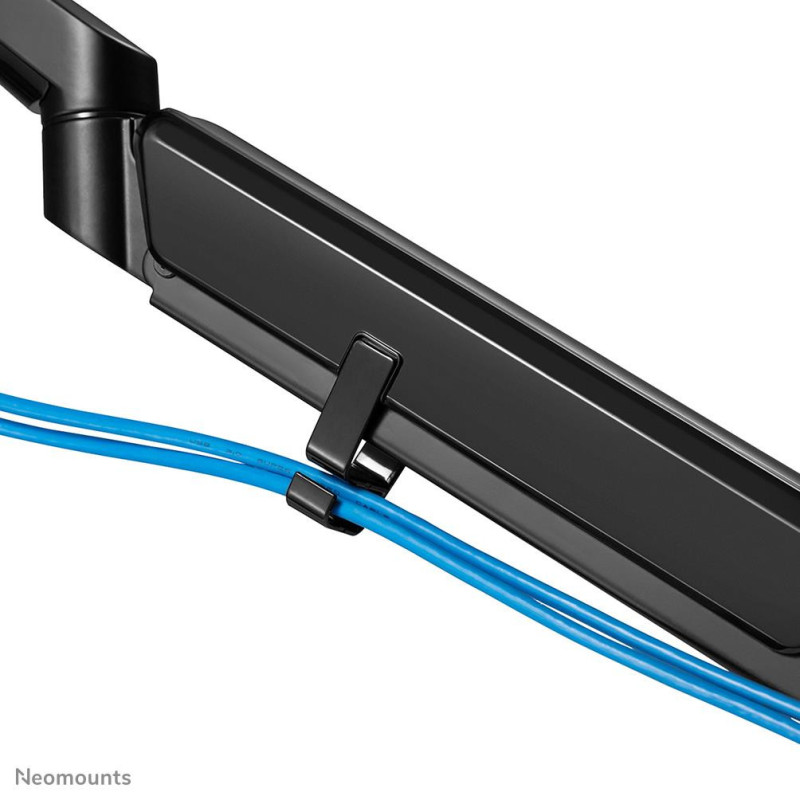

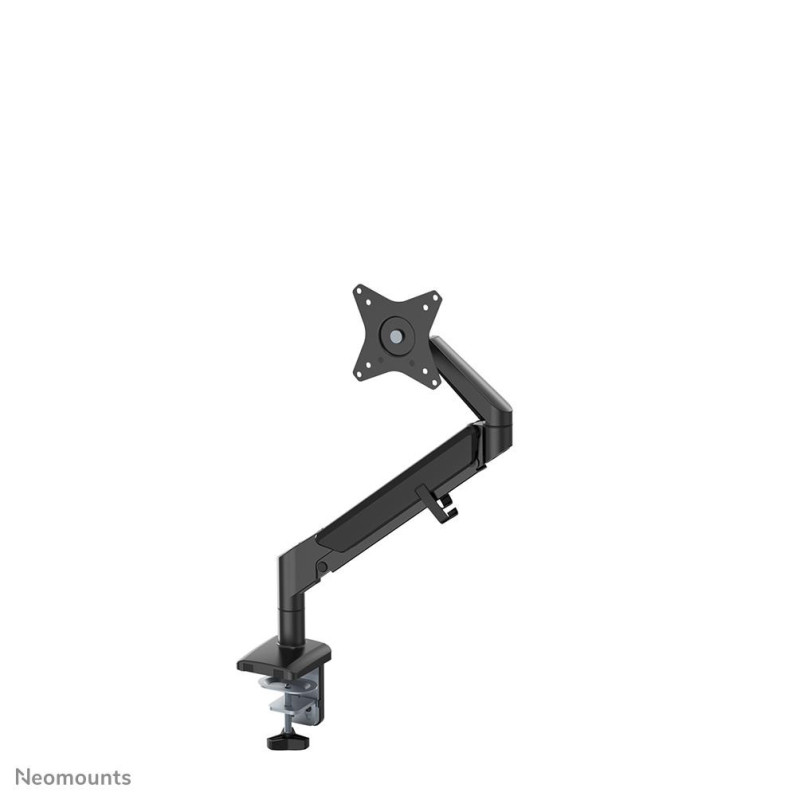

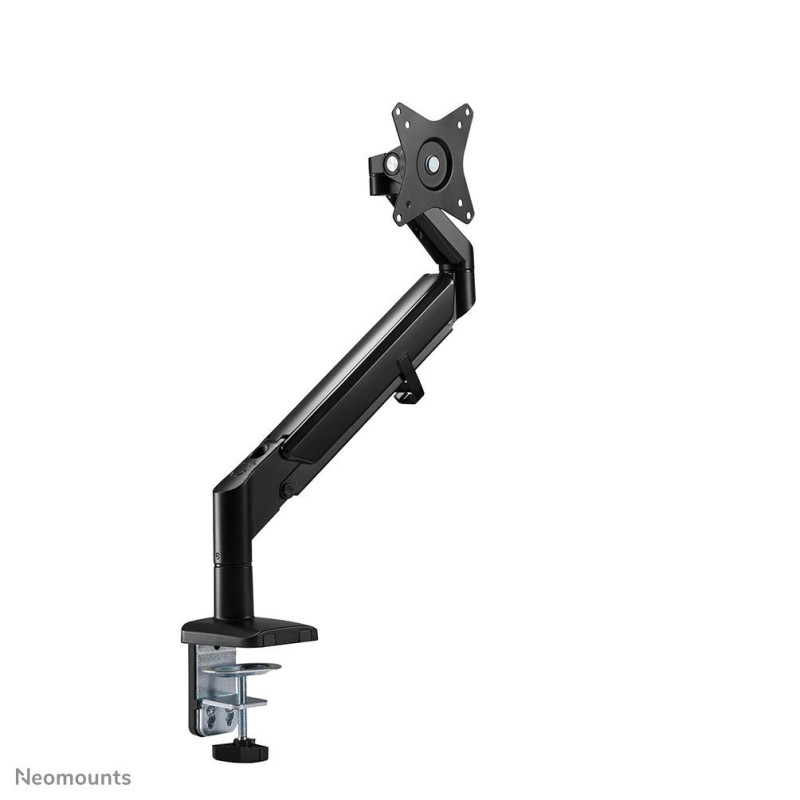

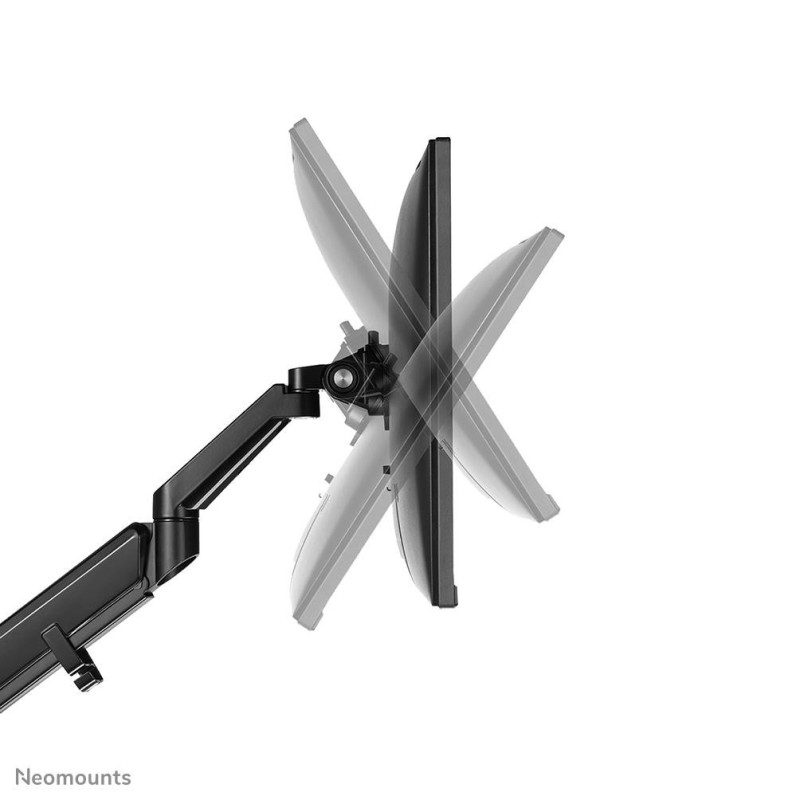

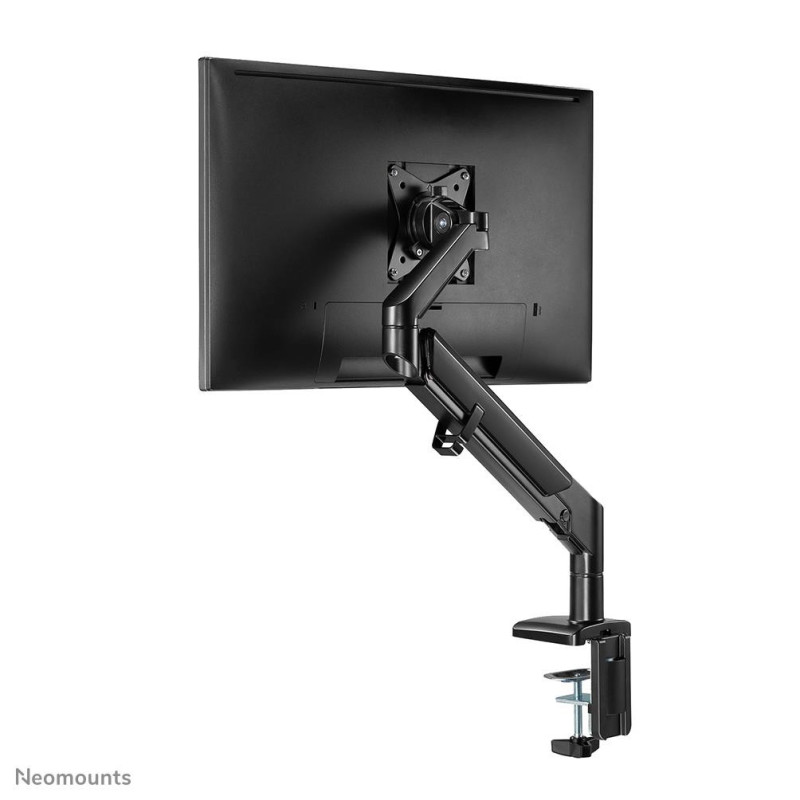

The Neomounts DS70-810BL1 is a full motion desk mount for one flat screen up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management clips ensure orderly routing of the cables.

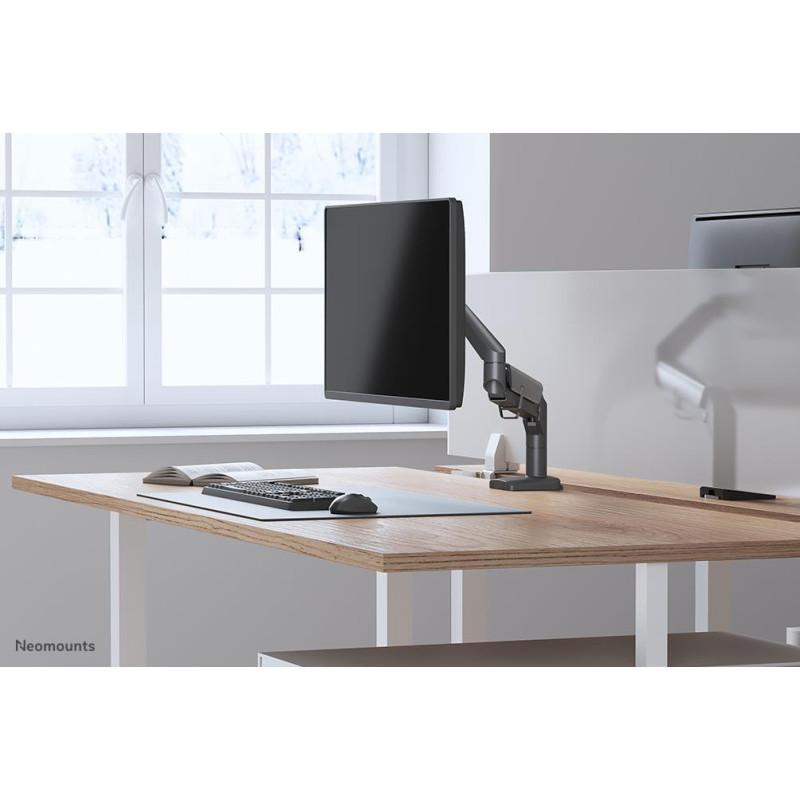

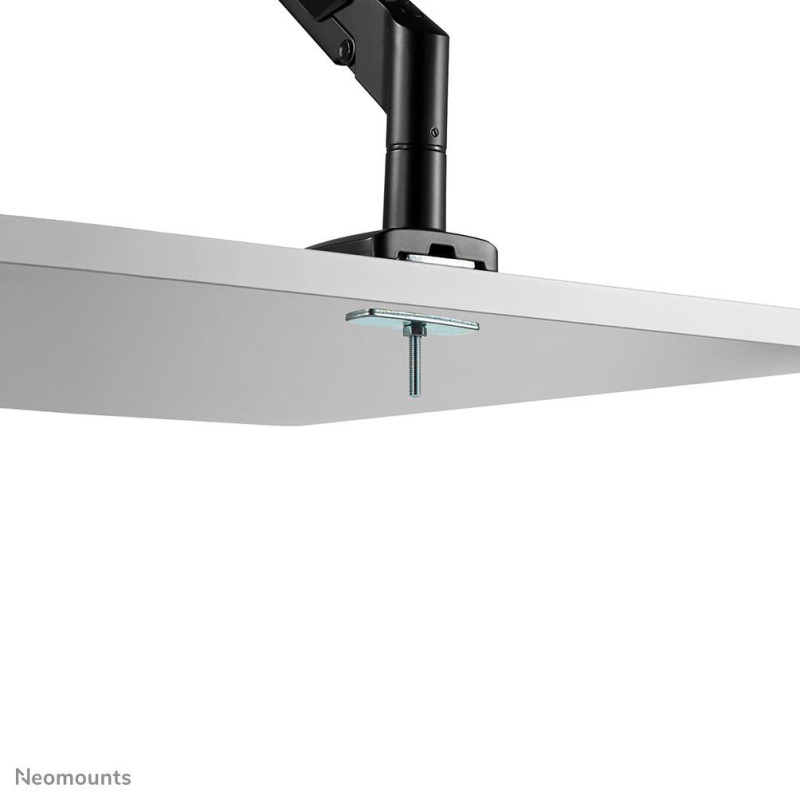

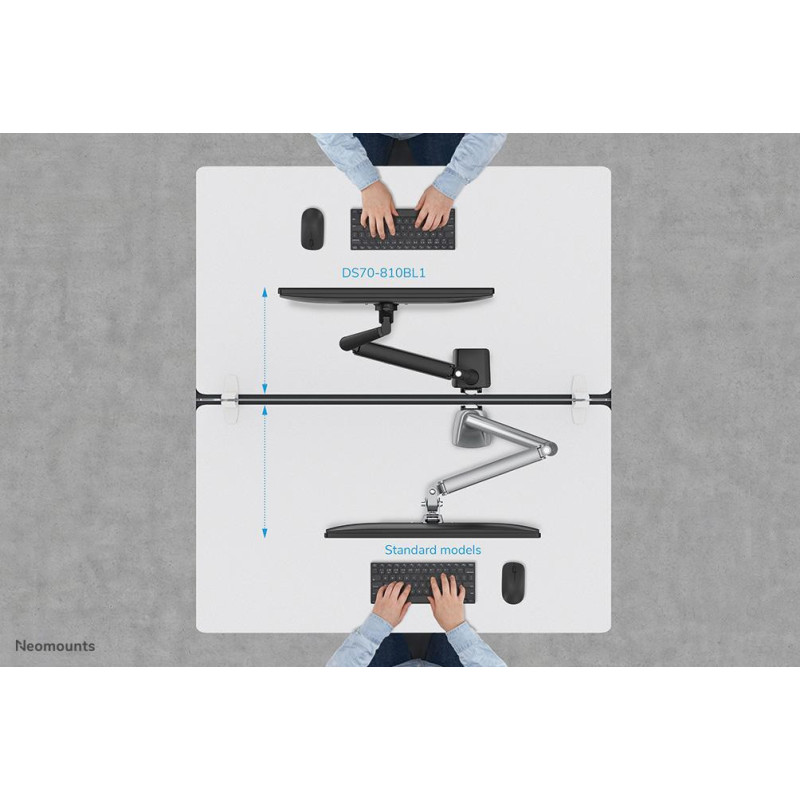

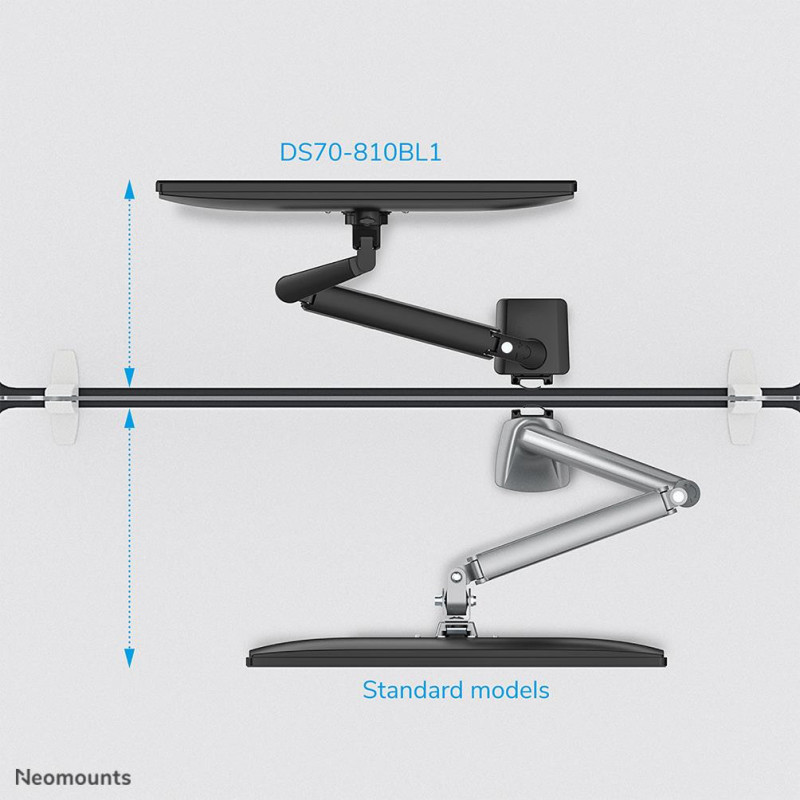

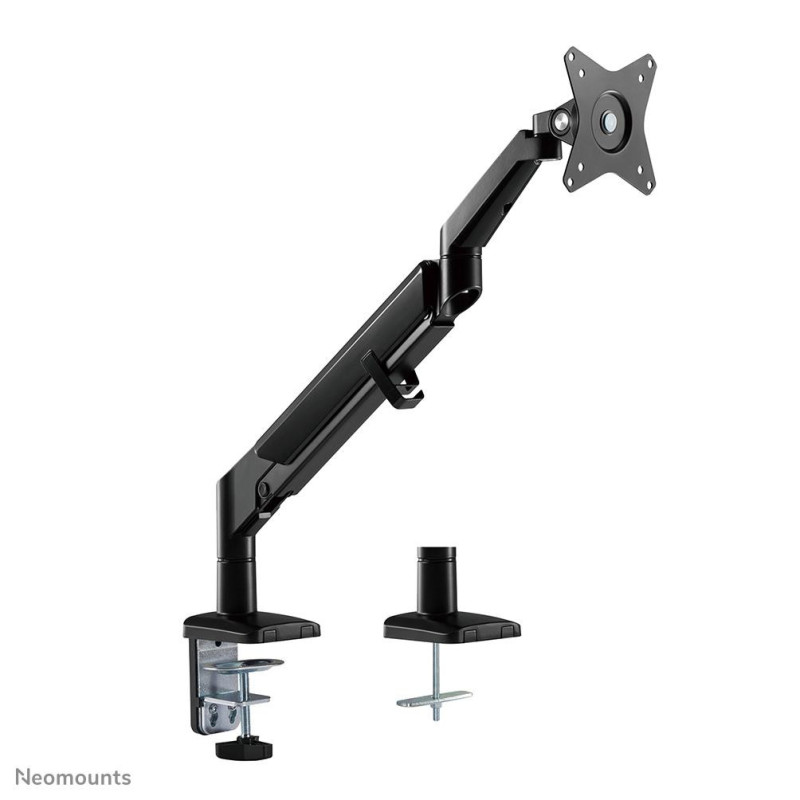

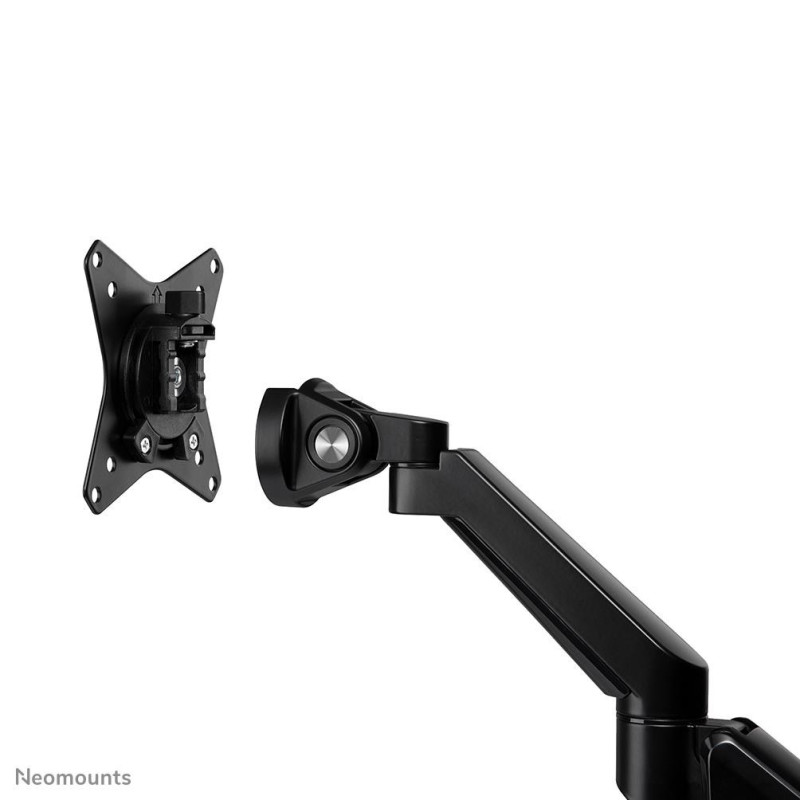

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL1 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.

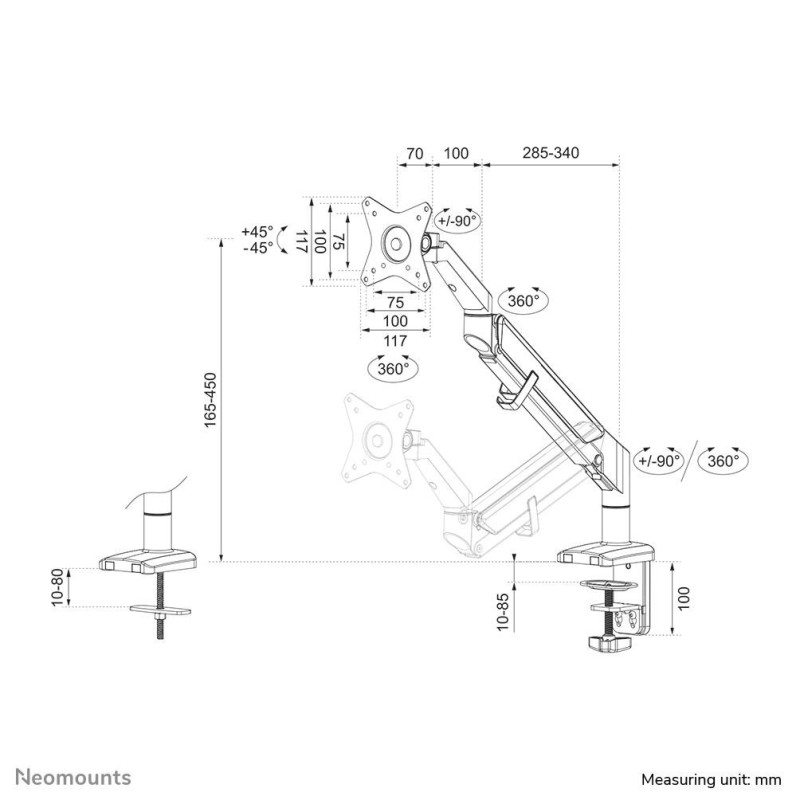

| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Country of origin | China |
| Depth | 555 mm |
| Depth adjustment range | 0 - 490 mm |
| Desk thickness (max) | 85 mm |
| Desk thickness (min) | 10 mm |
| Harmonized System (HS) code | 7326909890 |
| Height | 615 mm |
| Height adjustment | Yes |
| Height adjustment range | 265 - 550 mm |

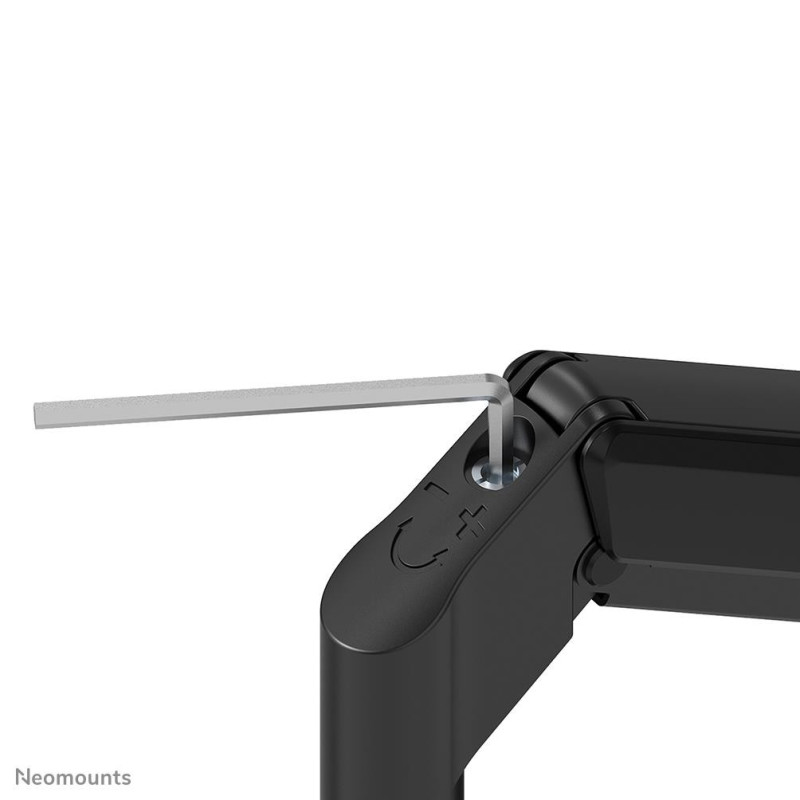

| Height adjustment type | Gas spring |
| Housing material | Steel |
| Master (outer) case gross weight | 22300 g |
| Master (outer) case height | 370 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case net weight | 18000 g |
| Master (outer) case width | 465 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 9 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 9 kg |
| Maximum weight capacity (per display) | 9 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Minimum weight | 1 kg |

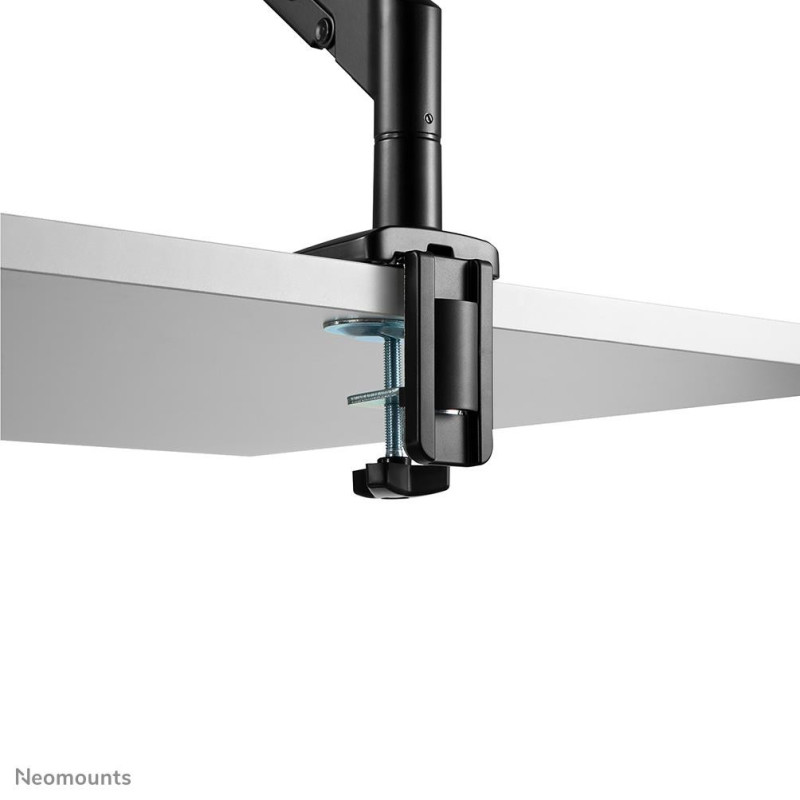

| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Orientation | Landscape/Portrait |
| Package depth | 117 mm |
| Package height | 400 mm |
| Package net weight | 3600 g |
| Package weight | 3600 g |
| Package width | 222 mm |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Pivot angle | -180 - 180 ° |
| Product colour | Black |
| Product Net Weight | 3 kg |
| Products per master (outer) case | 6 pc(s) |
| Products per pallet (EU) | 72 pc(s) |
| Quantity per pack | 1 pc(s) |
| Rotating | Yes |
| Shipping Box Depth | 41 cm |
| Shipping Box Height | 23 cm |
| Shipping Box Weight | 3.6 kg |
| Shipping Box Width | 12 cm |
| Summary | Neomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space saving - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45 ° |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.41 |
| Unit Box Width | 0.12 |
| Unit Calculated Volume | 0.01132 cubm |
| Unit Calculated Weight | 3.6 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-810BL1 |
| Weight | 3000 g |
| Width | 117 mm |
