MONITOR ACC DESK MOUNT 17-27\'\' / DUAL DS60-425BL2 NEOMOUNTS
Product reference:
2-8717371449841
MONITOR ACC DESK MOUNT 17-27\'\' / DUAL DS60-425BL2 NEOMOUNTS
Product reference:
2-8717371449841
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days

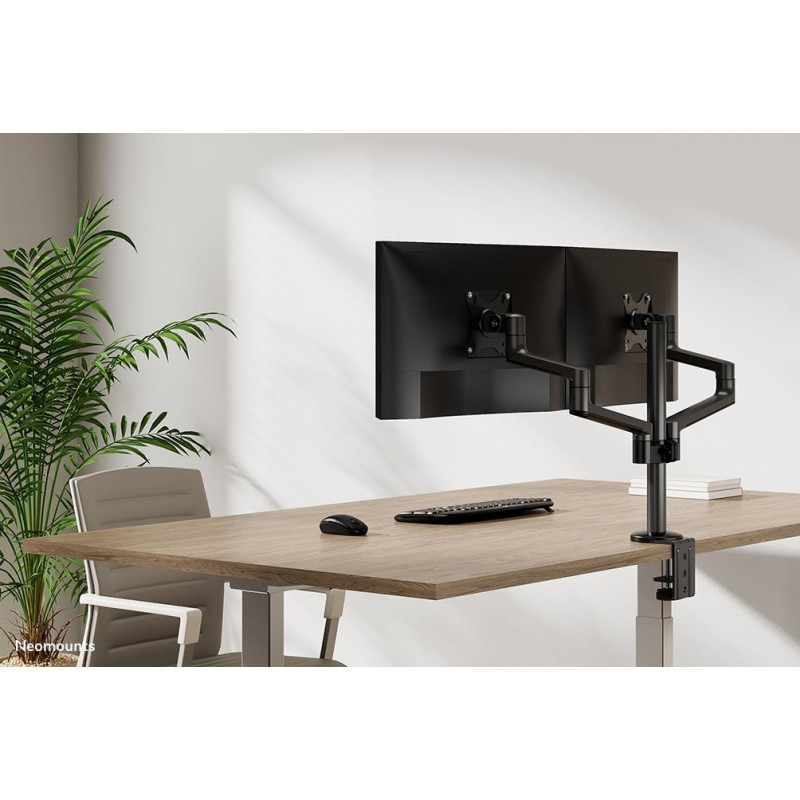

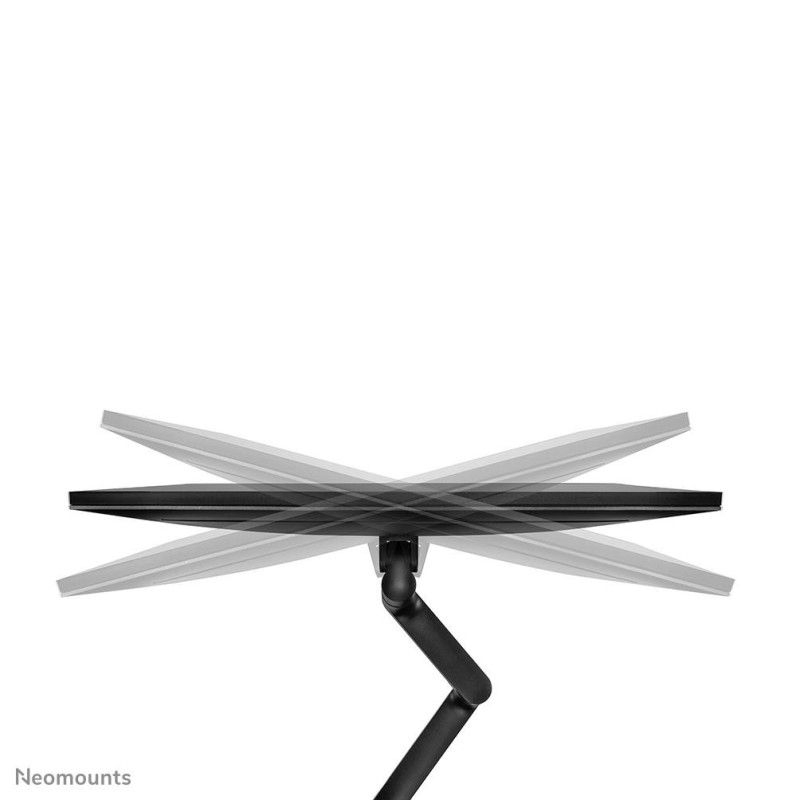

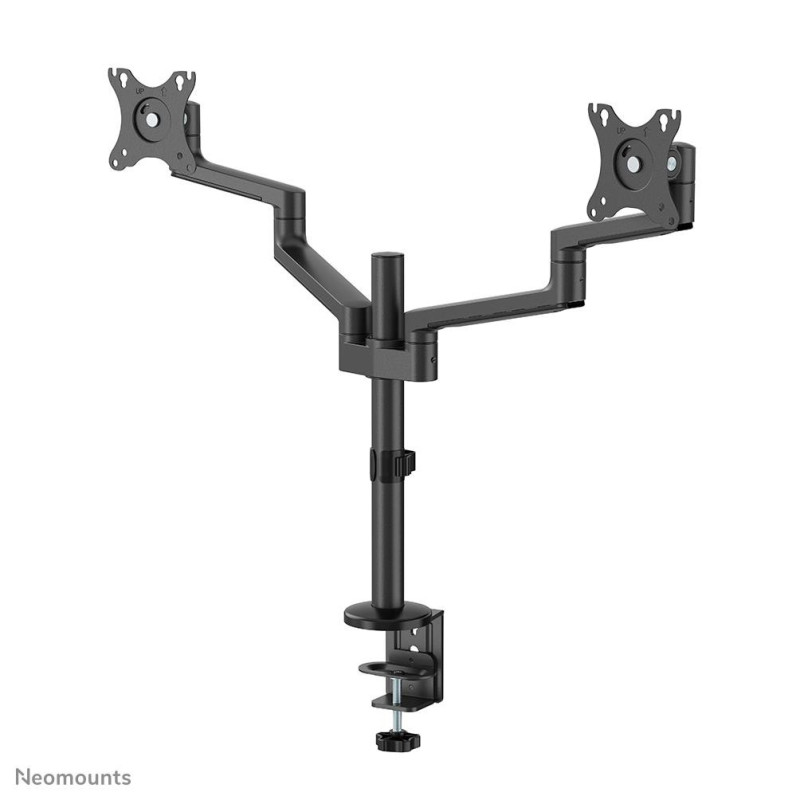

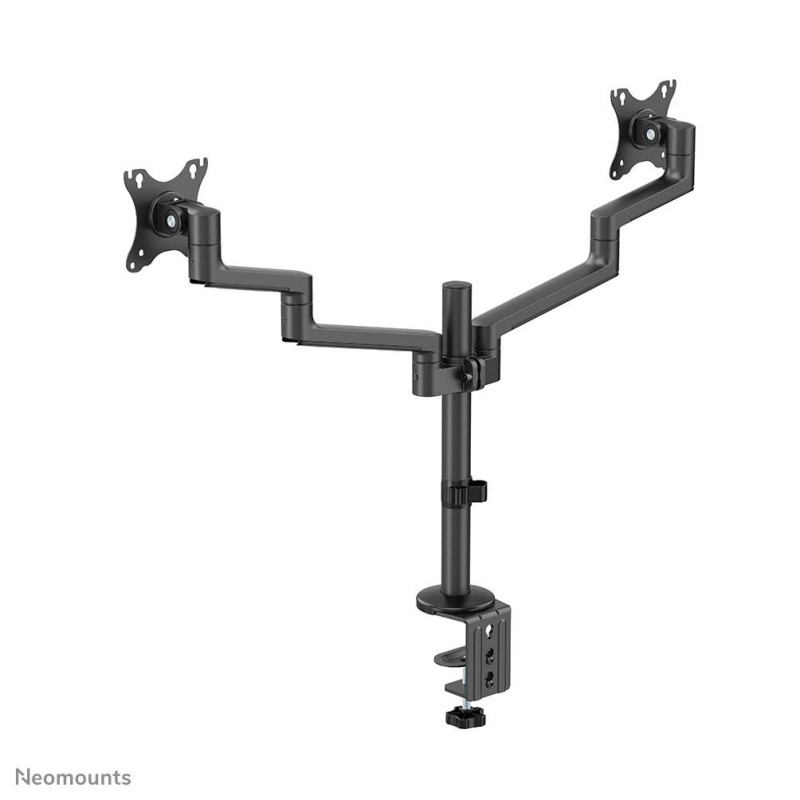

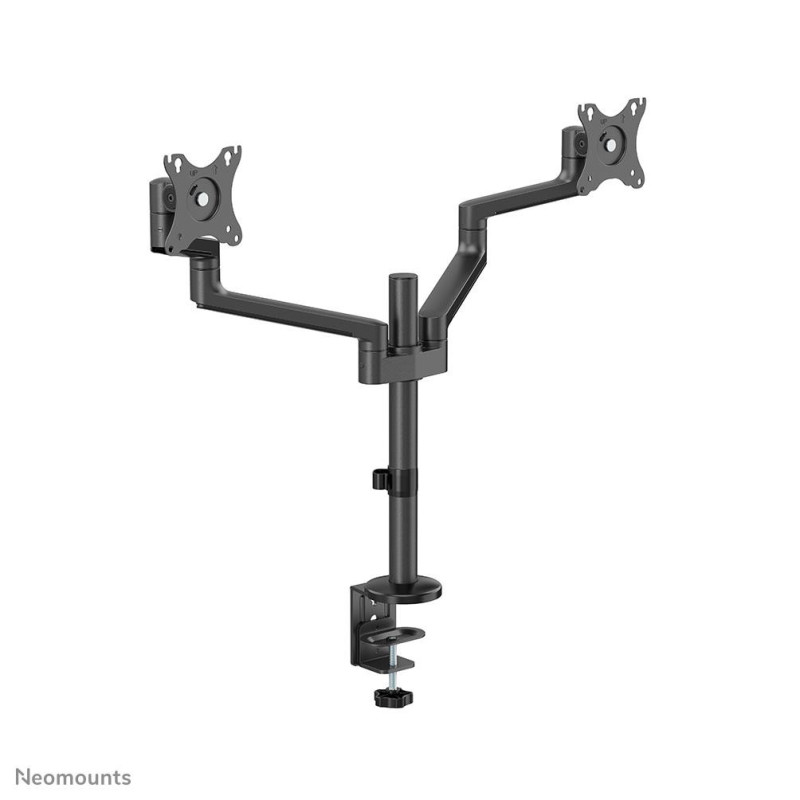

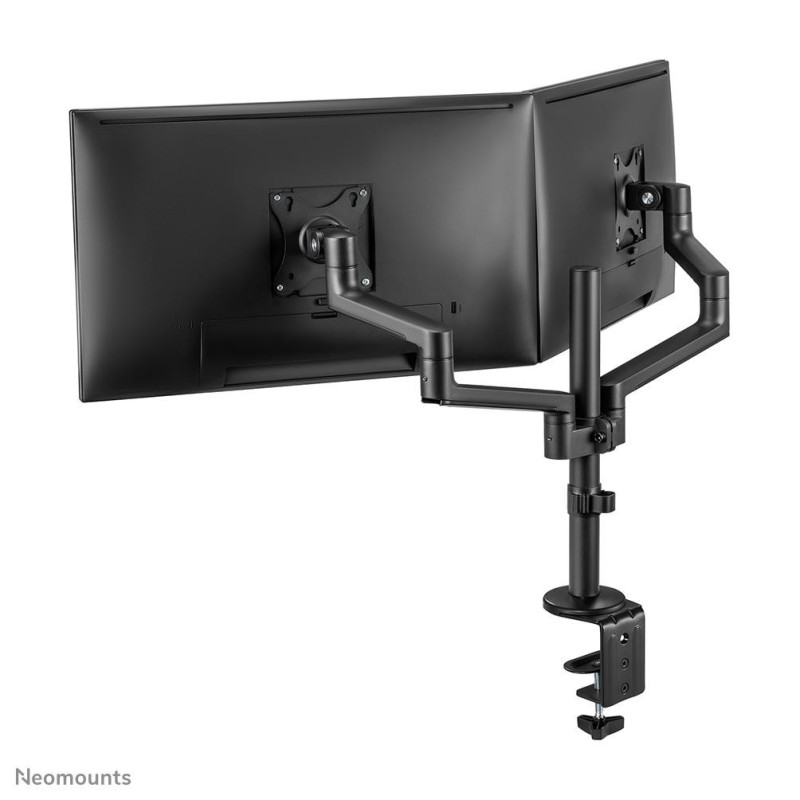

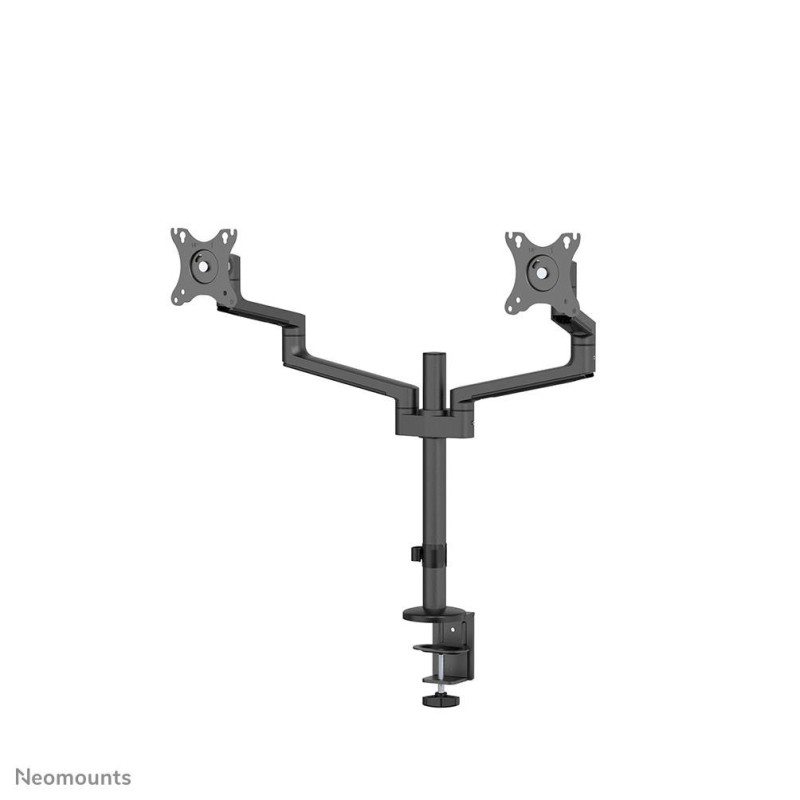

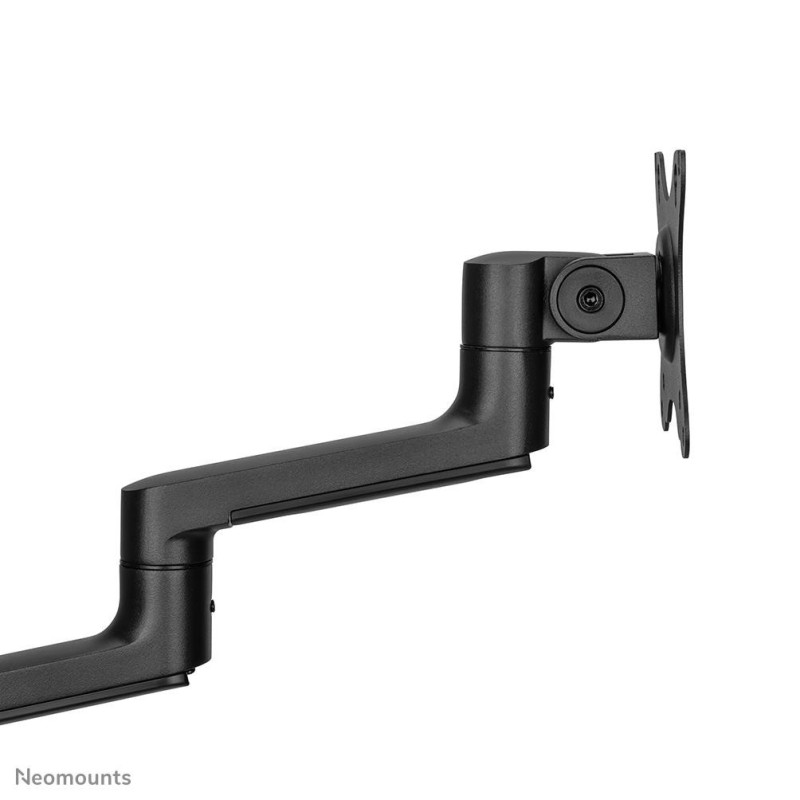

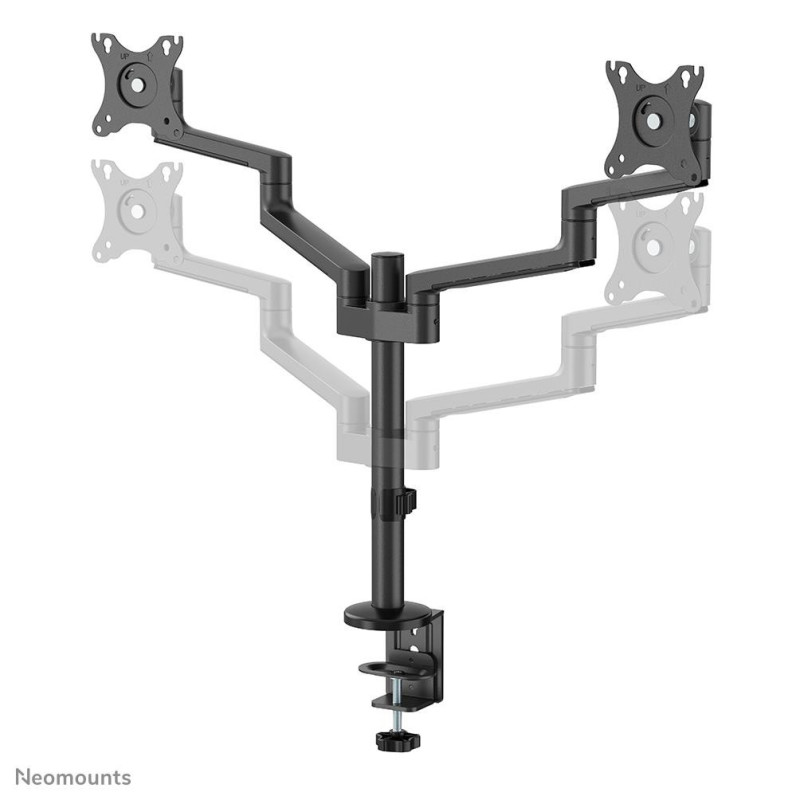

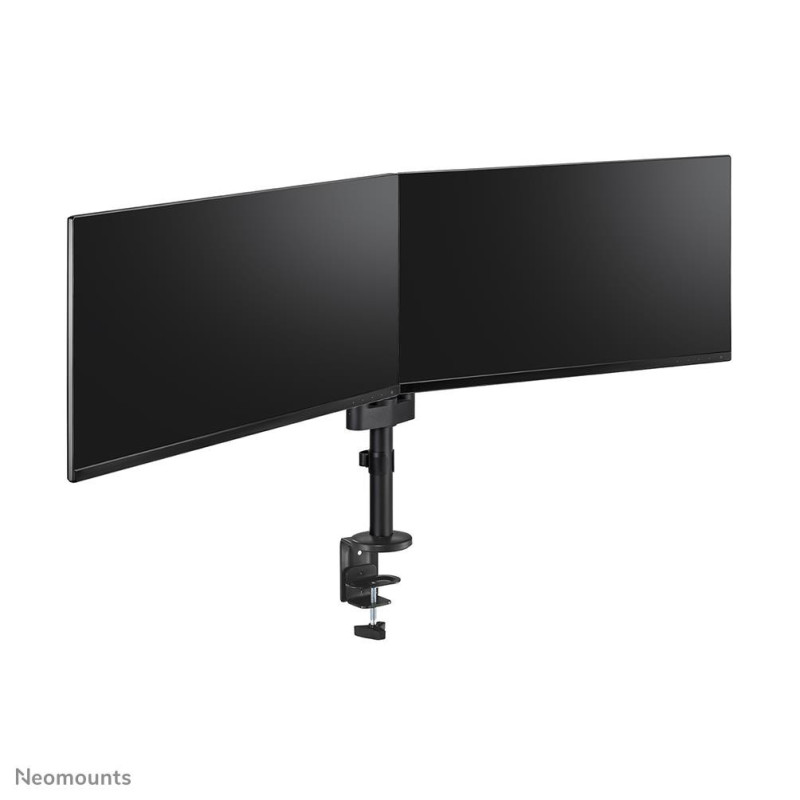

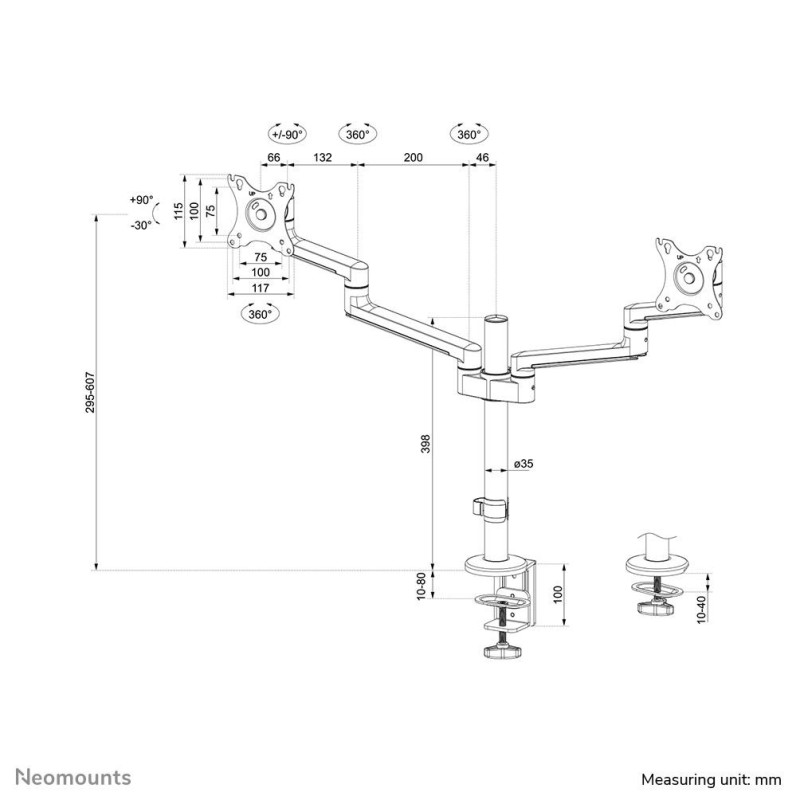

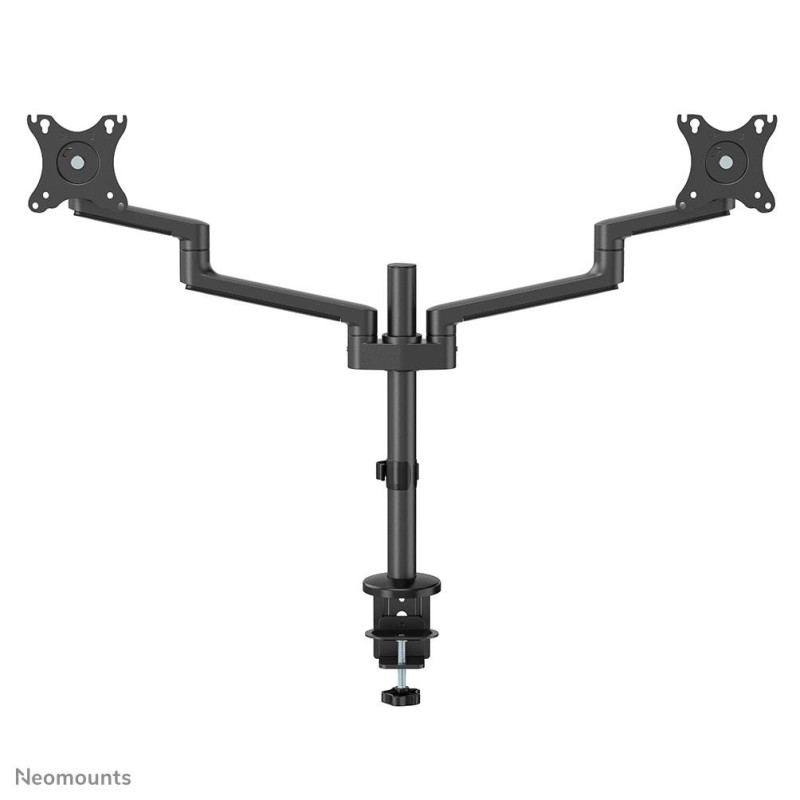

The Neomounts DS60-425BL2 NEXT Lite is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screens. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

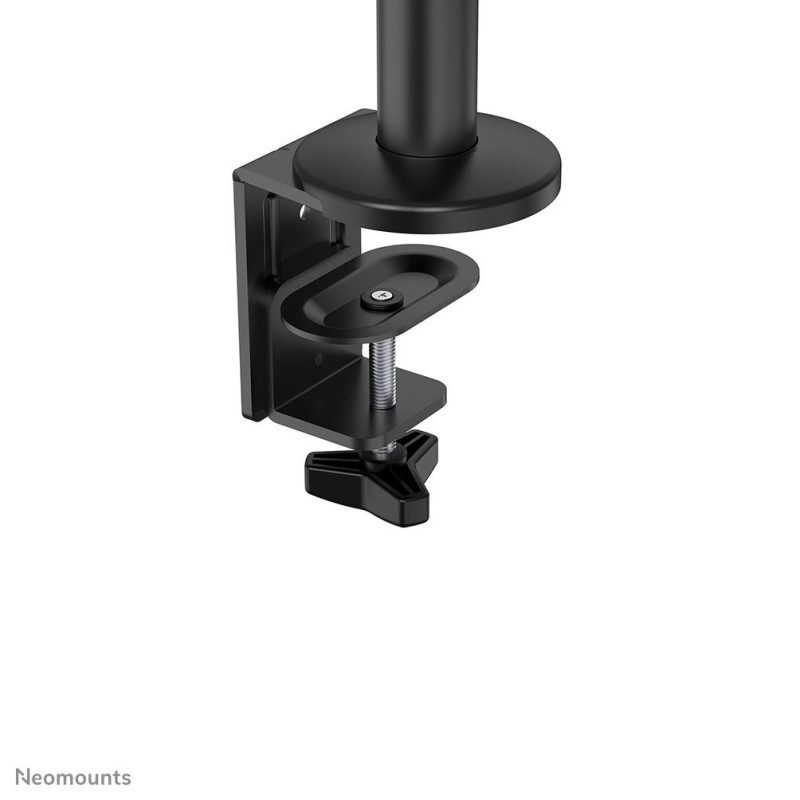

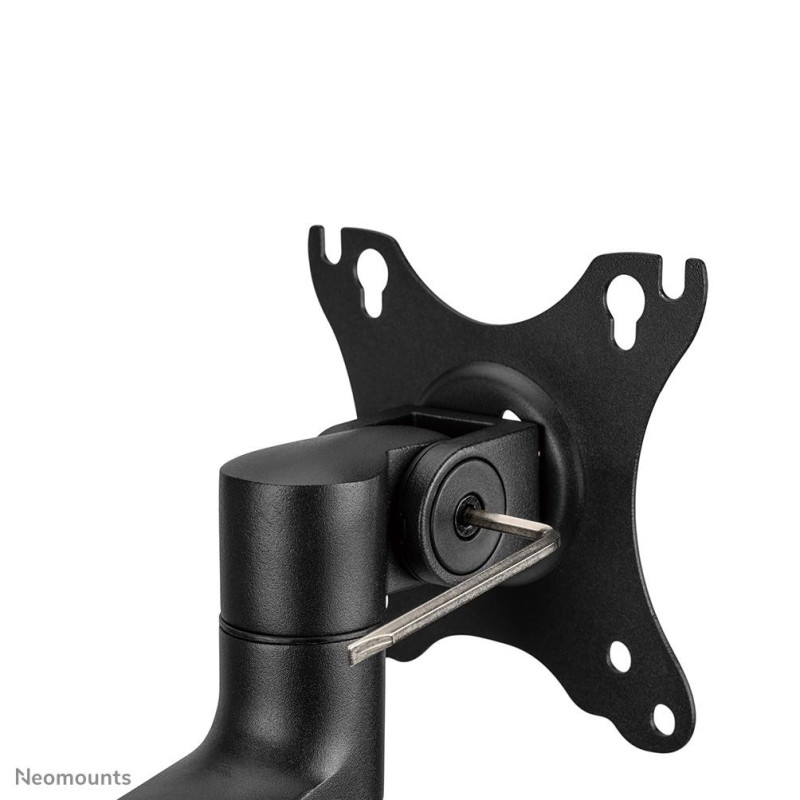

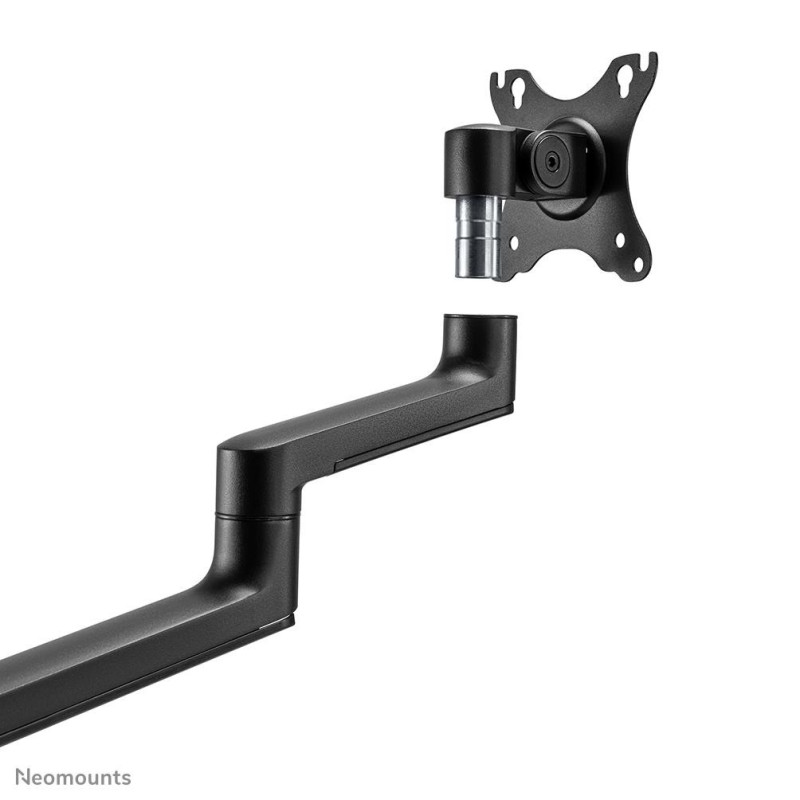

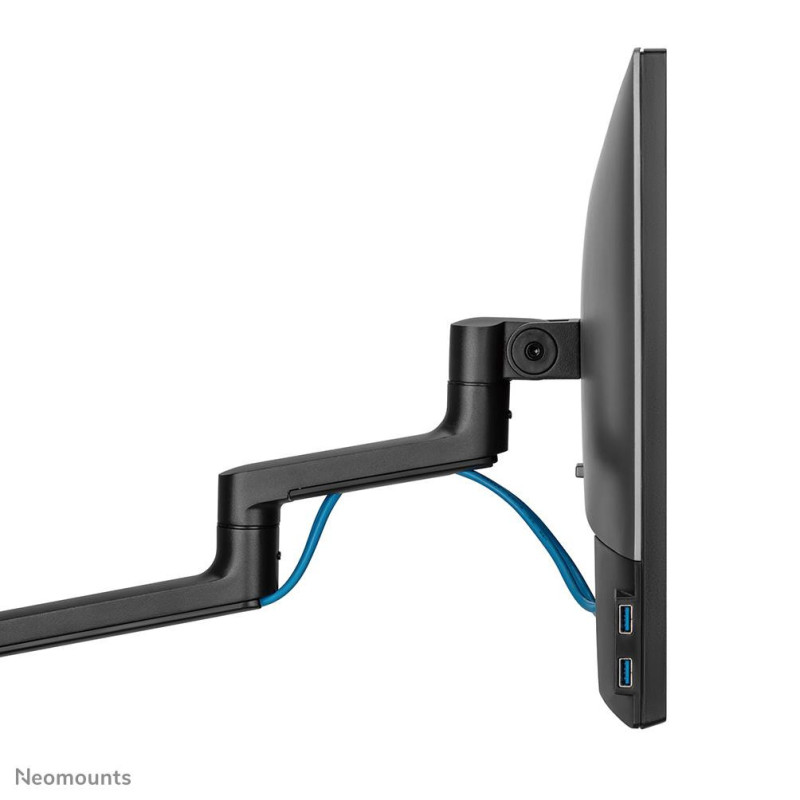

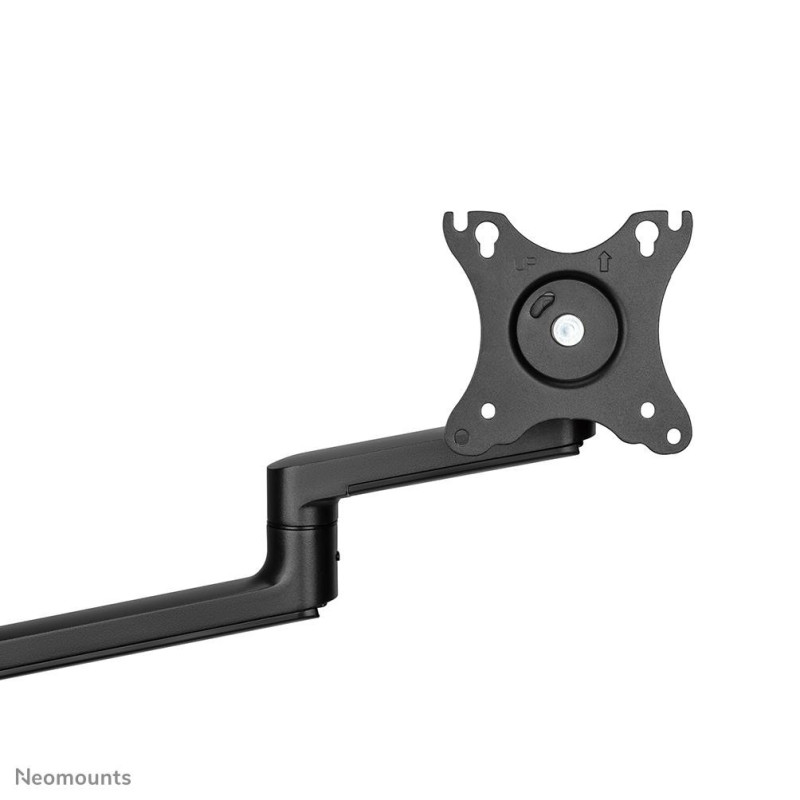

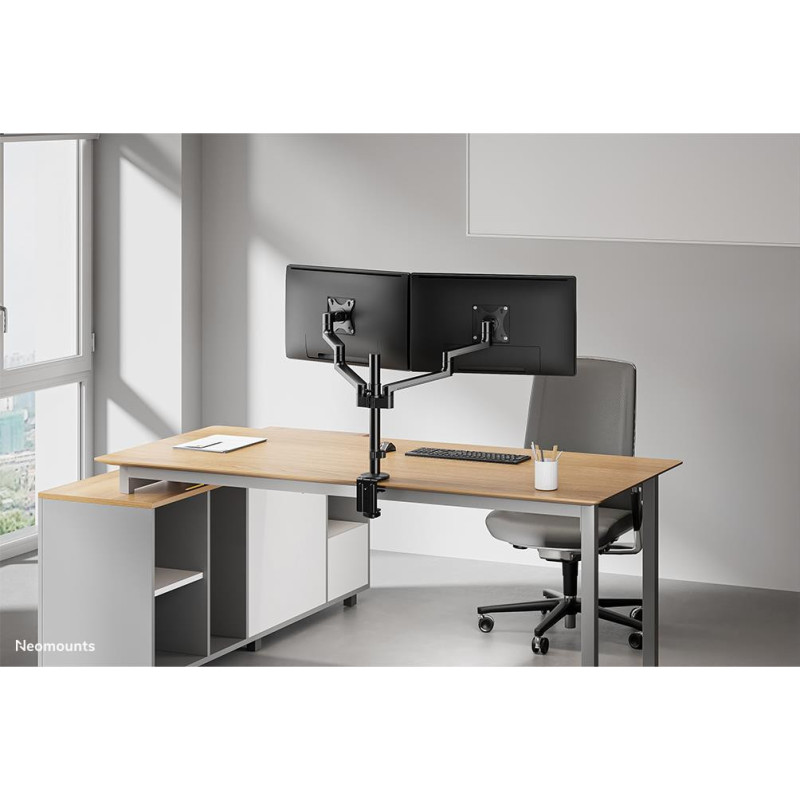

Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
| Accepts padlock | No |
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Clamp included | Yes |
| Clamp mount desk thickness (max) | 80 mm |
| Country of origin | China |
| Depth | 460 mm |
| Depth adjustment range | 66 - 398 mm |
| Desk thickness (max) | 80 mm |
| Desk thickness (min) | 10 mm |
| Distance to the wall (max) | 460 mm |
| Distance to the wall (min) | 128 mm |
| Feet | Yes |
| Feet colour | Black |
| Grommet mount desk thickness (max) | 40 mm |
| Harmonized System (HS) code | 7326909890 |
| Height | 763 mm |
| Height adjustment | Yes |
| Height adjustment range | 295 - 607 mm |
| Height adjustment type | Manual |
| Housing material | Steel |
| Master (outer) case gross weight | 18400 g |
| Master (outer) case height | 455 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case net weight | 15100 g |
| Master (outer) case width | 220 mm |
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Model | DS60-425BL2 |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |

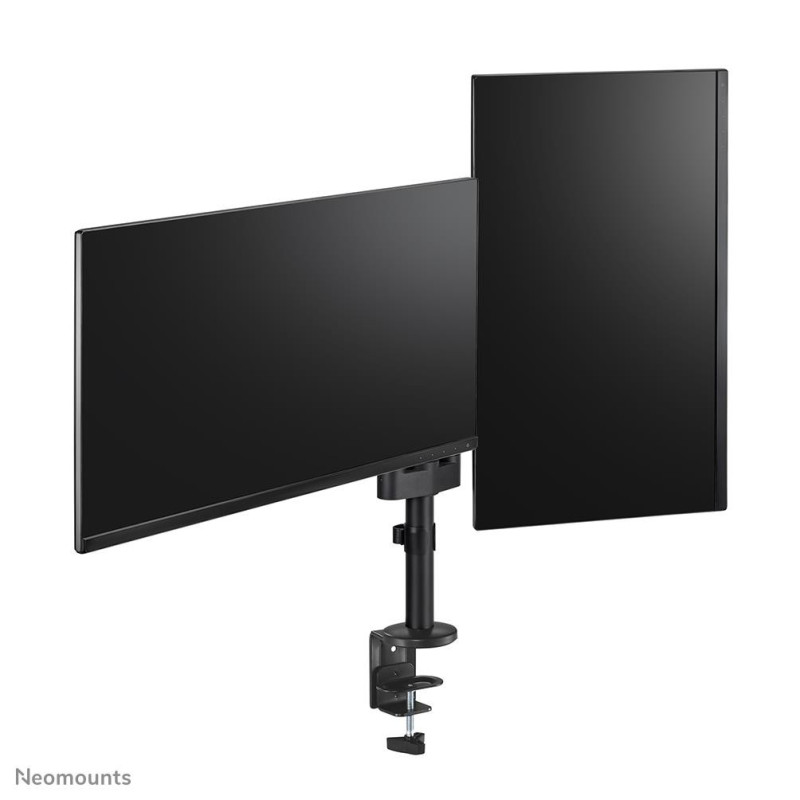

| Orientation | Landscape/Portrait |
| Package depth | 105 mm |
| Package height | 440 mm |
| Package net weight | 4600 g |
| Package weight | 4600 g |
| Package width | 210 mm |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Product colour | Black |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 84 pc(s) |
| Quantity per pack | 1 pc(s) |
| Summary | Neomounts DS60-425BL2 Monitor arm 17-27" - space saving. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -30 - 90°. Product colour: Black |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt angle range | -30 - 90 ° |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.44 |
| Unit Box Width | 0.21 |
| Unit Calculated Volume | 0.01139 cubm |
| Unit Calculated Weight | 4.58 kg |
| Units per Shipping Box | 4 |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS60-425BL2 |
| VESA mount included | Yes |
| Weight | 3780 g |
| Width | 888 mm |
| Width adjustment | 332 mm |
| Width adjustment range | 0 - 332 mm |
