MONITOR ACC DESK MOUNT 17-27" / DS70-750BL1 NEOMOUNTS

Product reference: 2-8717371449193

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

94,08 €

Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Ask about product

Your message has been successfully sent!

Fill in the required fields*

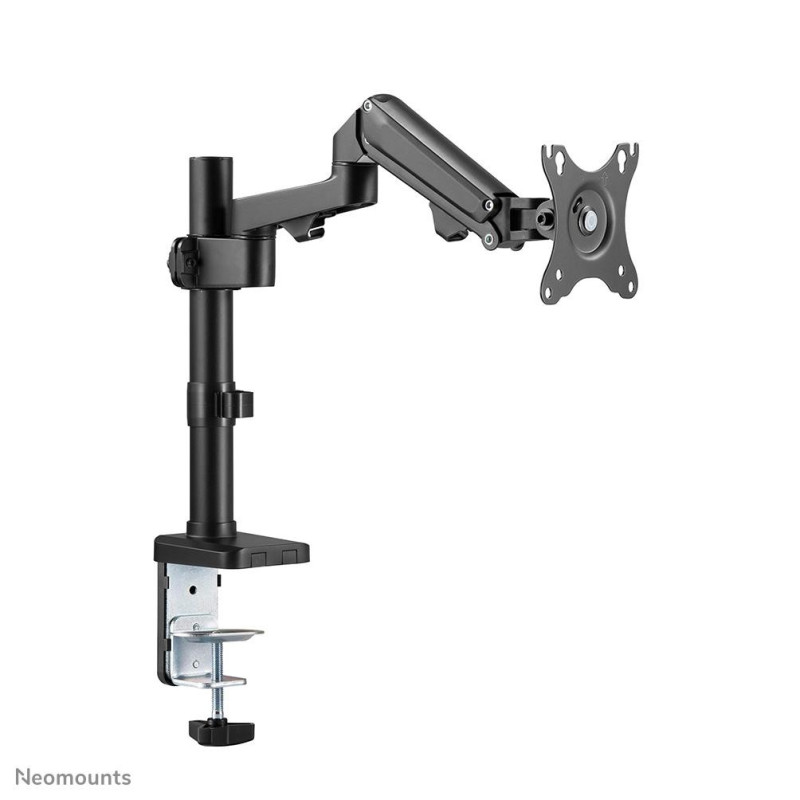

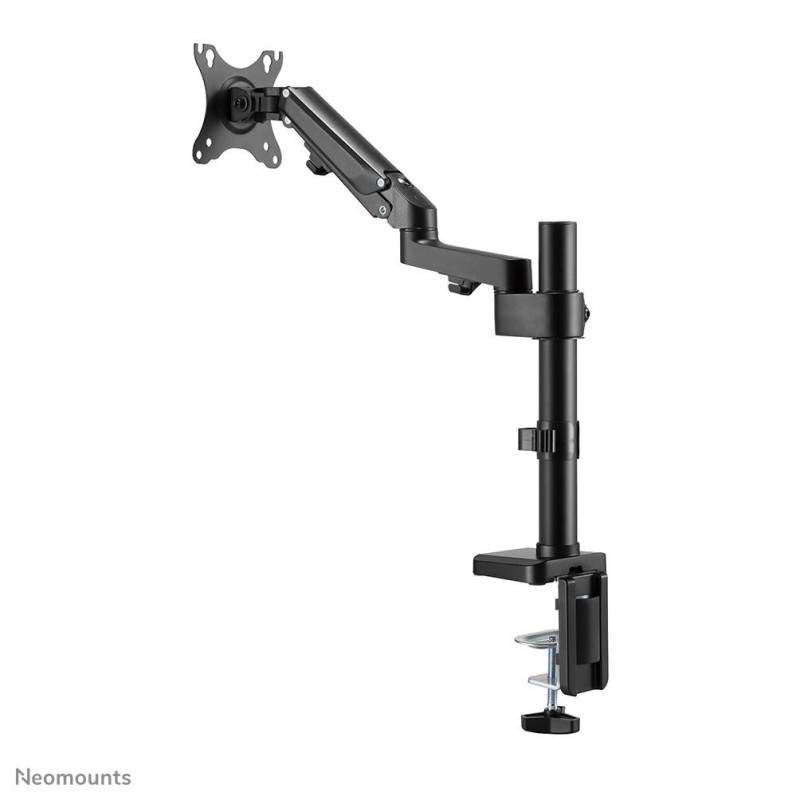

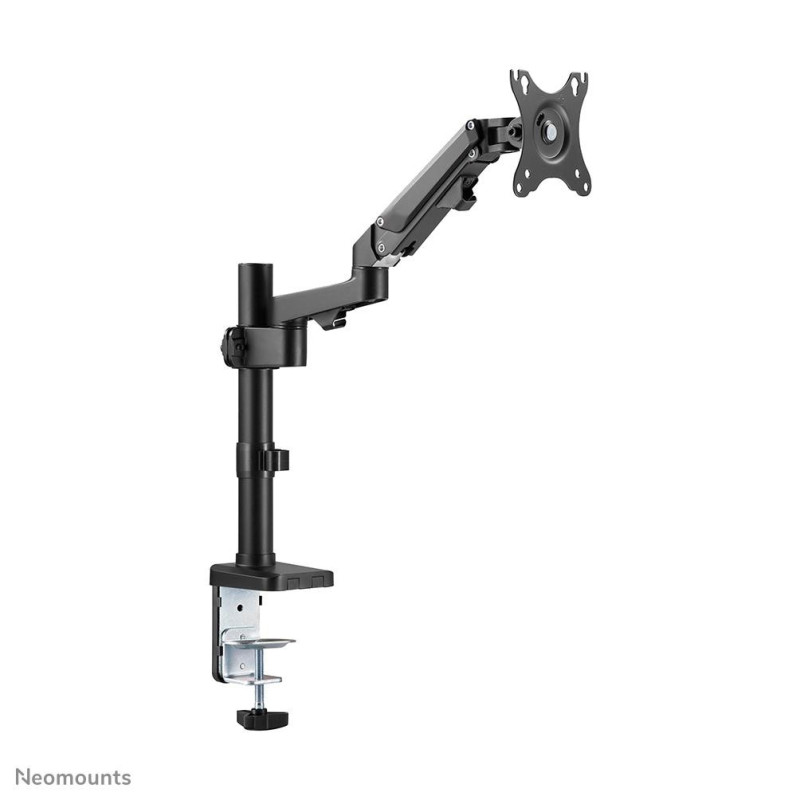

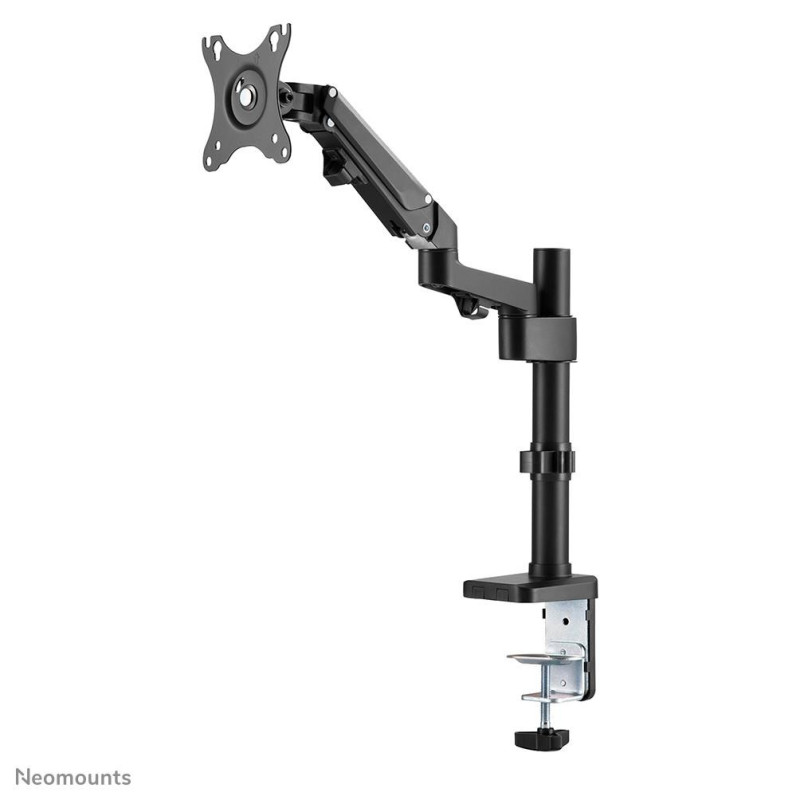

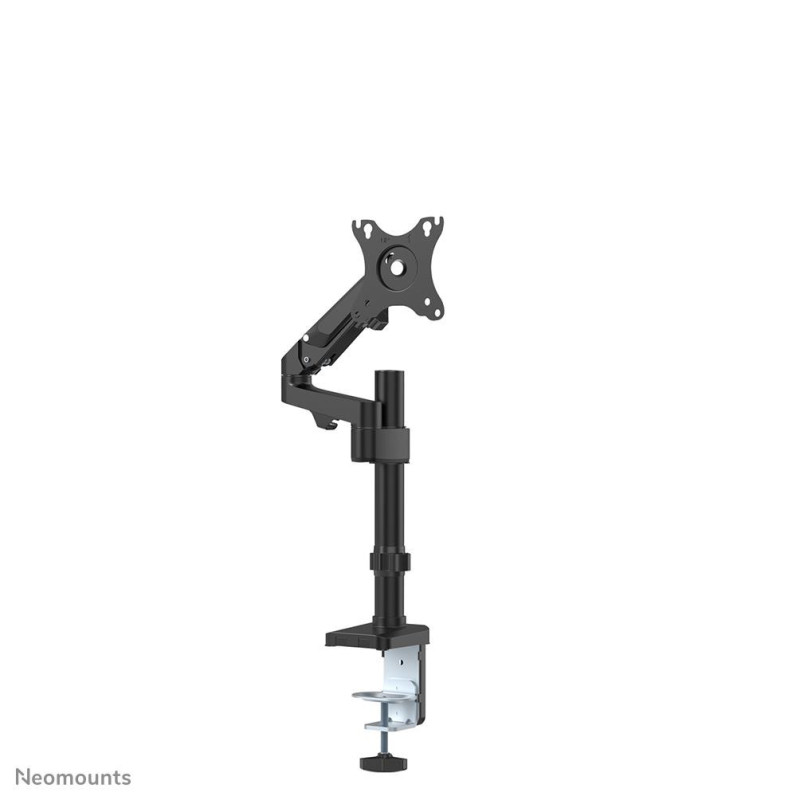

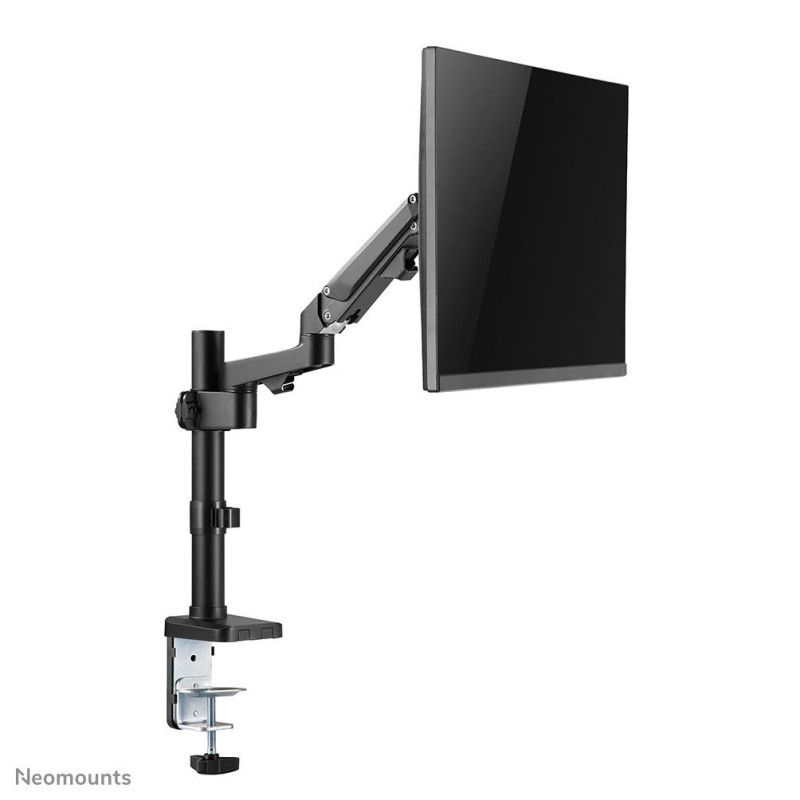

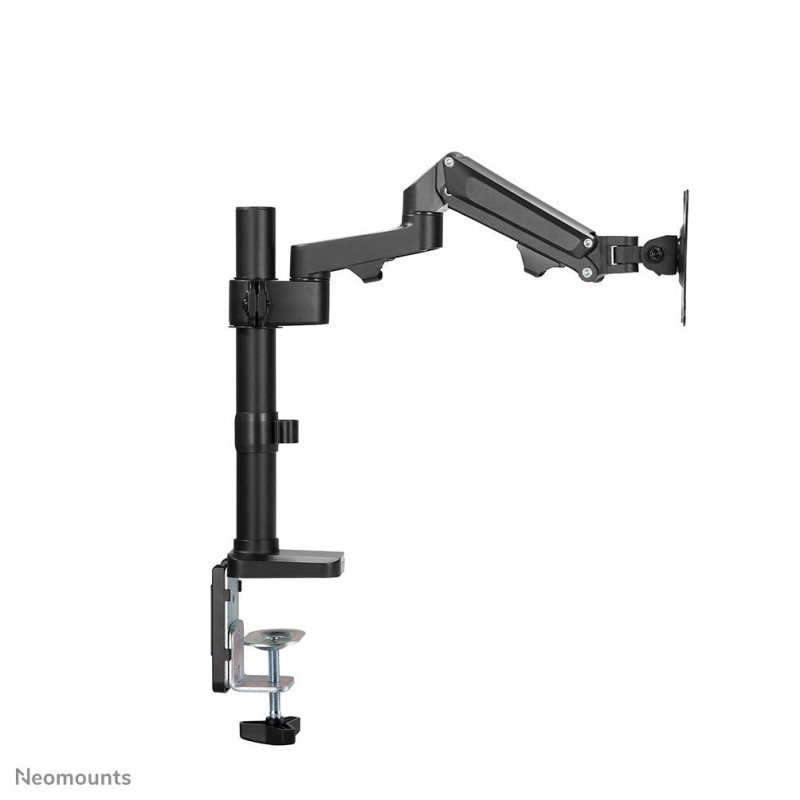

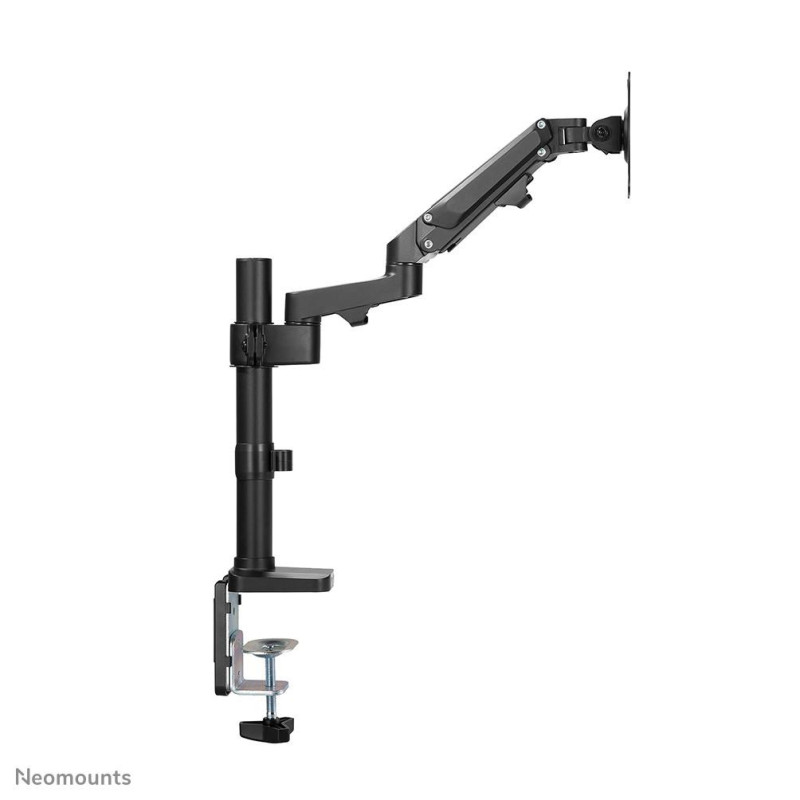

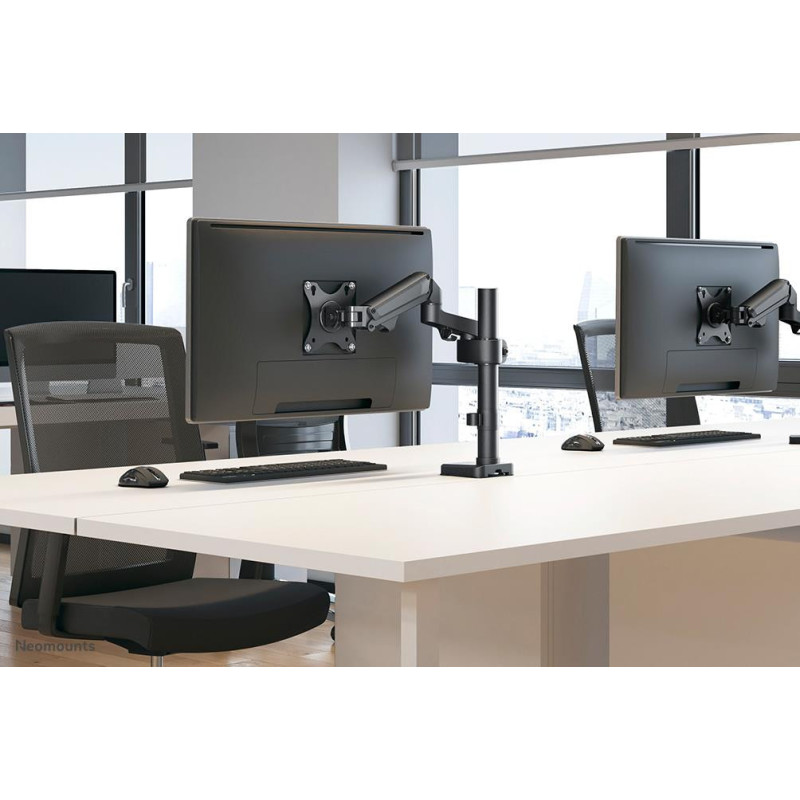

The Neomounts DS70-750BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position.

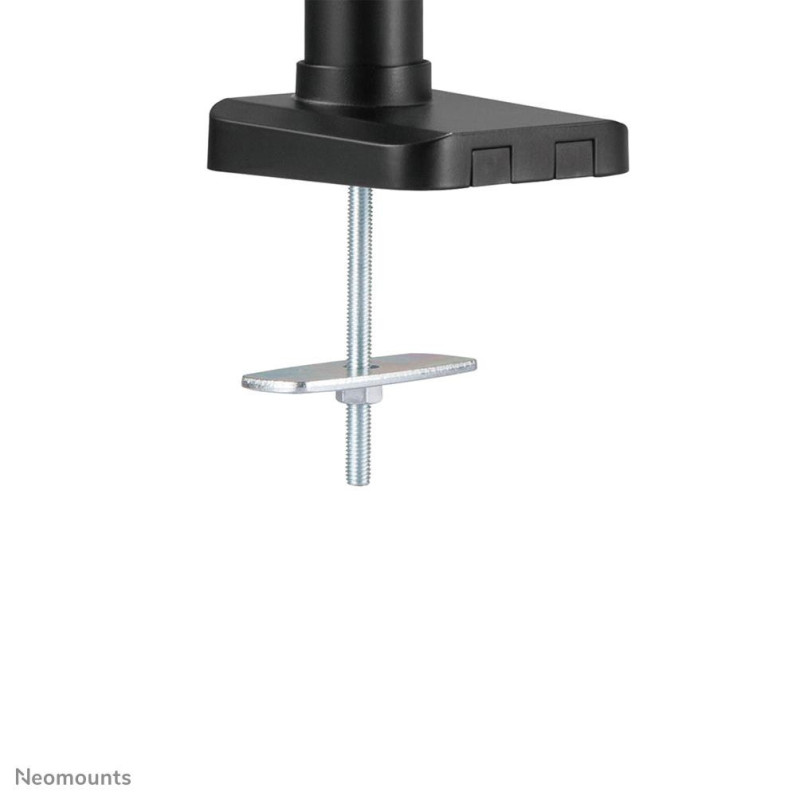

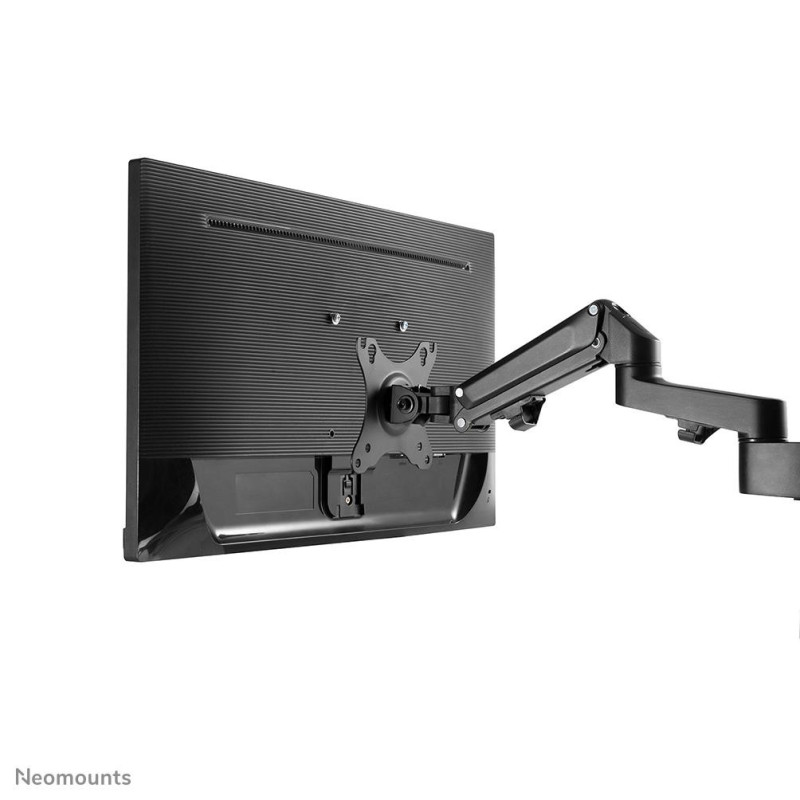

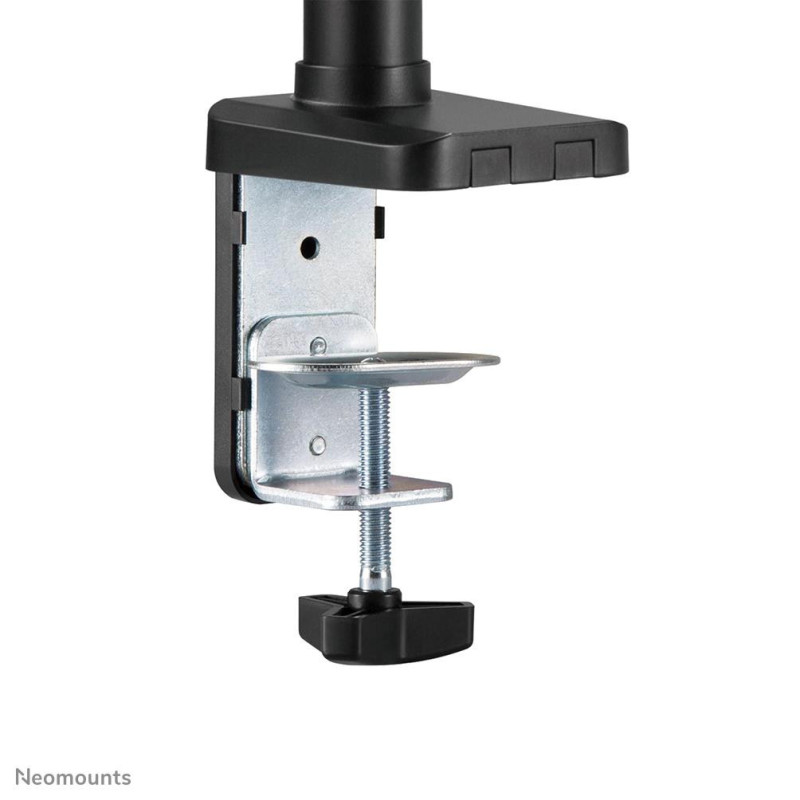

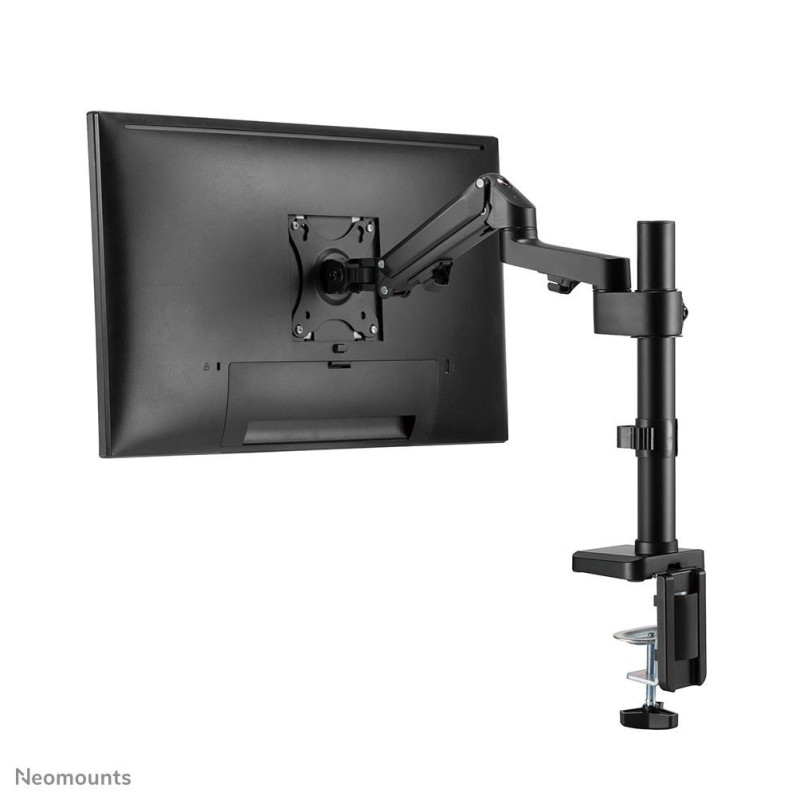

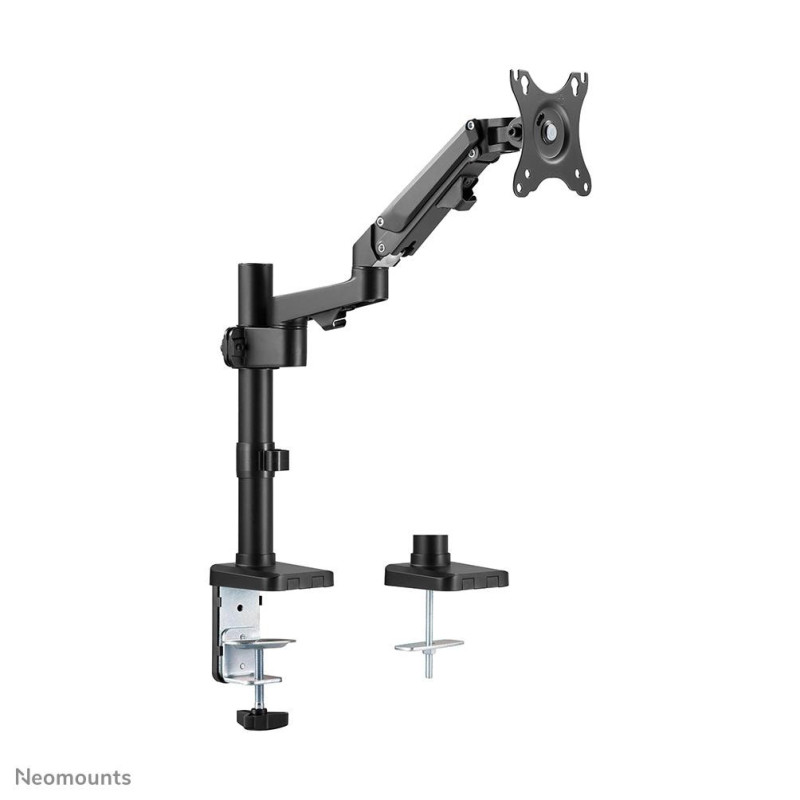

The DS70-750BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.

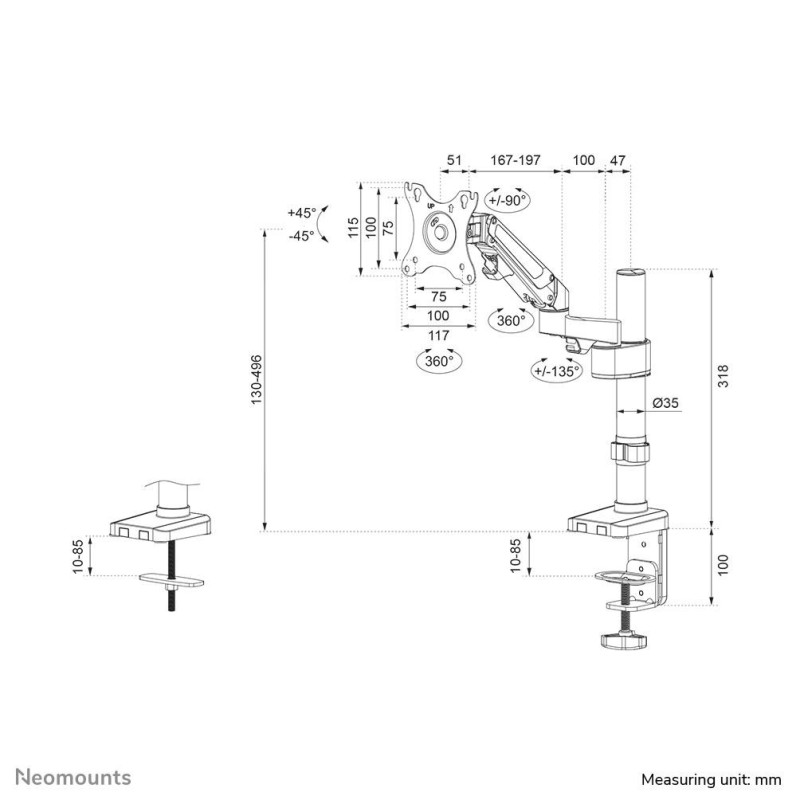

Adjustable depth	Yes
Angle of rotation	360 °

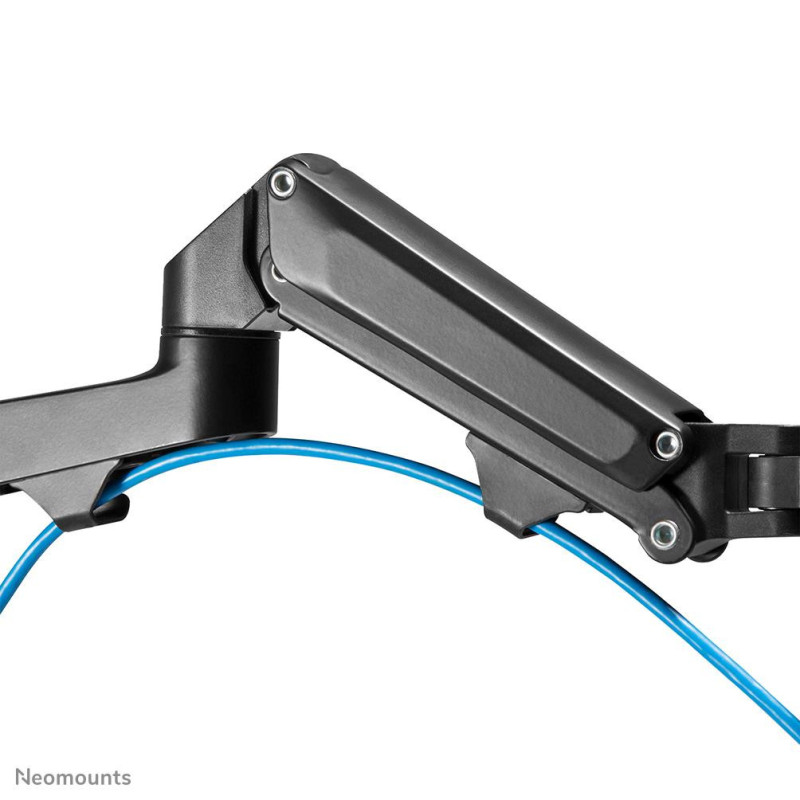

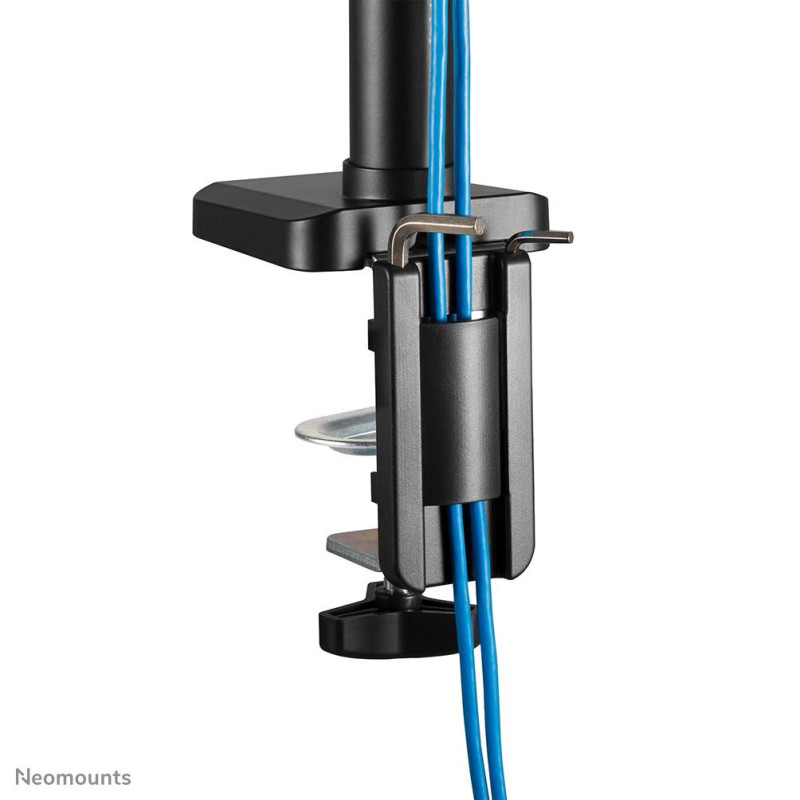

Cable management	Yes
Country of origin	China
Depth	440 mm
Depth adjustment range	0 - 440 mm
Desk thickness (max)	85 mm
Desk thickness (min)	10 mm
Harmonized System (HS) code	7326909890
Height	679 mm
Height adjustment	Yes
Height adjustment range	73 - 481 mm
Height adjustment type	Gas spring
Housing material	Steel
Master (outer) case gross weight	19500 g
Master (outer) case height	365 mm
Master (outer) case length	380 mm
Master (outer) case net weight	15200 g
Master (outer) case width	495 mm
Maximum screen size	27 "
Maximum VESA mount	100 x 100 mm
Maximum weight capacity	7 kg
Maximum weight capacity (per curved/ultra-wide display)	7 kg
Maximum weight capacity (per display)	7 kg
Minimum screen size	17 "
Minimum VESA mount	75 x 75 mm
Minimum weight	2 kg
Mounting	Clamp/Grommet
Mounting type	Desk
Number of displays supported	1
Orientation	Landscape/Portrait
Package depth	116 mm
Package height	365 mm
Package net weight	3100 g
Package weight	3100 g
Package width	240 mm
Panel mounting interface	100 x 100/75 x 75 mm
Pivot angle	-180 - 180 °
Product colour	Black
Product Net Weight	3 kg
Products per master (outer) case	6 pc(s)
Products per pallet (EU)	96 pc(s)
Quantity per pack	1 pc(s)
Rotating	Yes
Shipping Box Depth	37 cm
Shipping Box Height	12 cm
Shipping Box Weight	3.13 kg
Shipping Box Width	25 cm
Summary	Neomounts DS70-750BL1 Monitor arm 17-27" - gas spring. Mounting: Clamp/Grommet, Maximum weight capacity: 7 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black
Swivel angle range	-90 - 90 °
Swivelling	Yes
Tilt adjustment	Yes
Tilt angle range	-45 - 45 °
Unit Box Height	0.12
Unit Box Length	0.37
Unit Box Width	0.25
Unit Calculated Volume	0.0111 cubm
Unit Calculated Weight	3.13 kg
Units per Shipping Box	1
Vendor Homepage	https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-750BL1
Weight	2540 g
Width	117 mm
Width adjustment range	0 - 378 mm
