Manhattan 462419 TV mount / stand

Manhattan Wall Mount for TV & Monitors (Full Motion), For screens 32" to 55", VESA compatibility: all between 100x100mm to 400x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 35kg, Black, Bracket. Maximum weight capacity: 35 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -15 - 3°, Swivel angle range: -90 - 90°, Distance to the wall (min): 6.3 cm, Distance to the wall (max): 35.8 cm. Product colour: Black

Articulating TV Wall Bracket - fully adjustable mounting bracket to fit almost any space

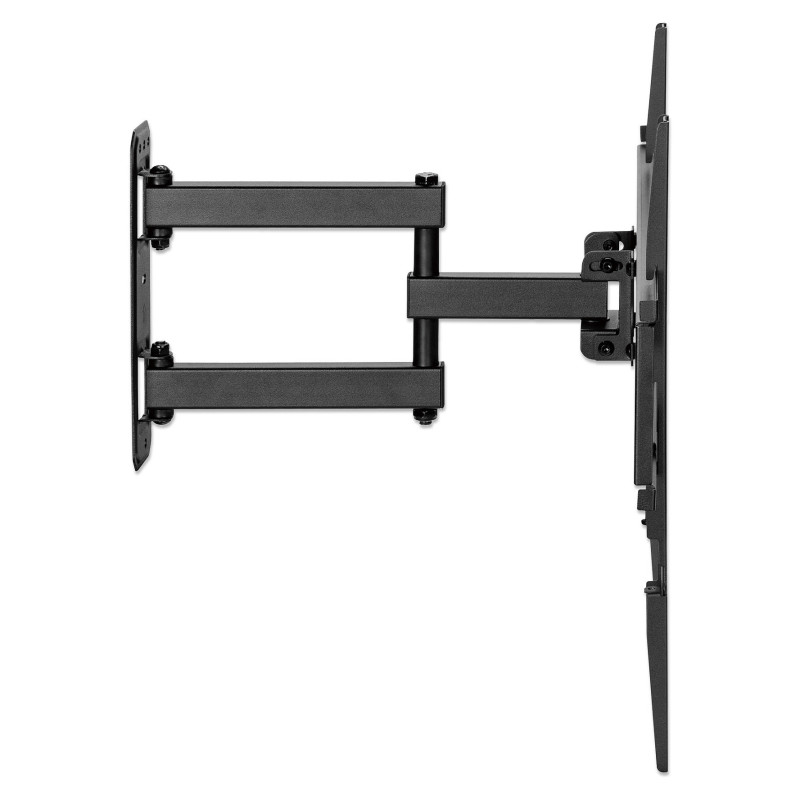

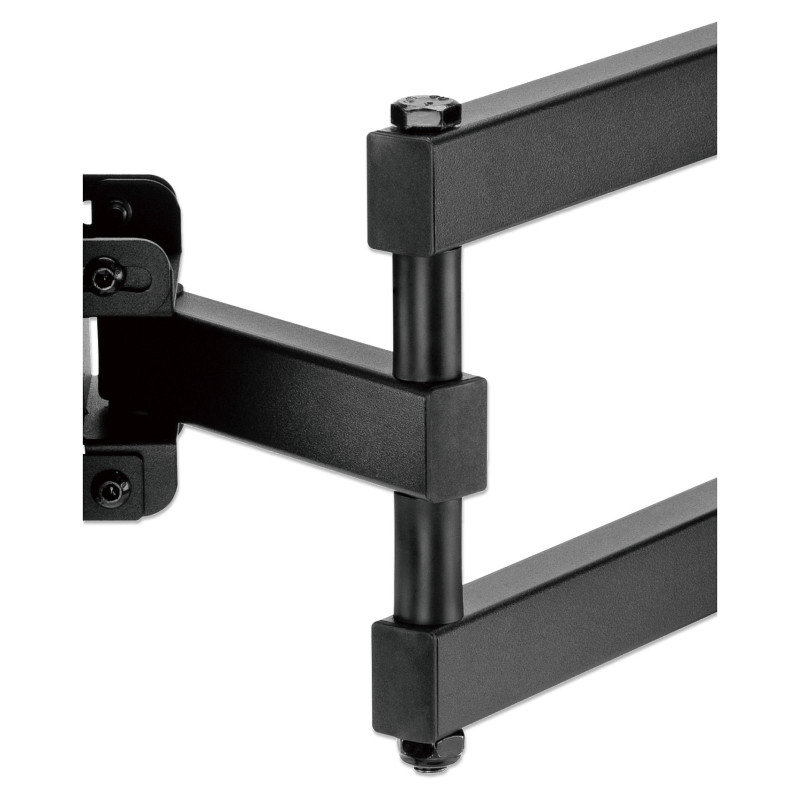

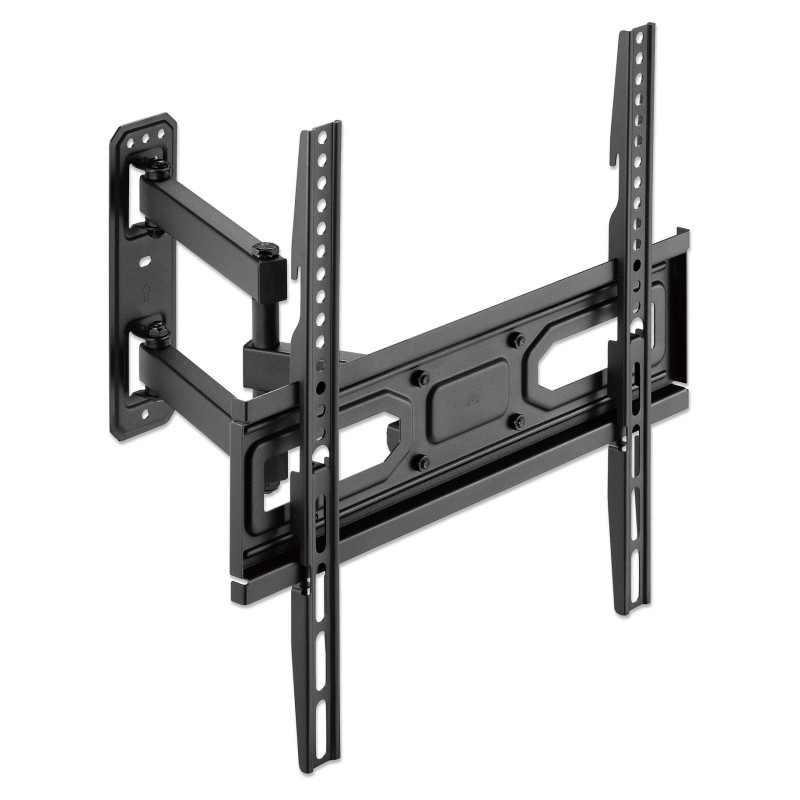

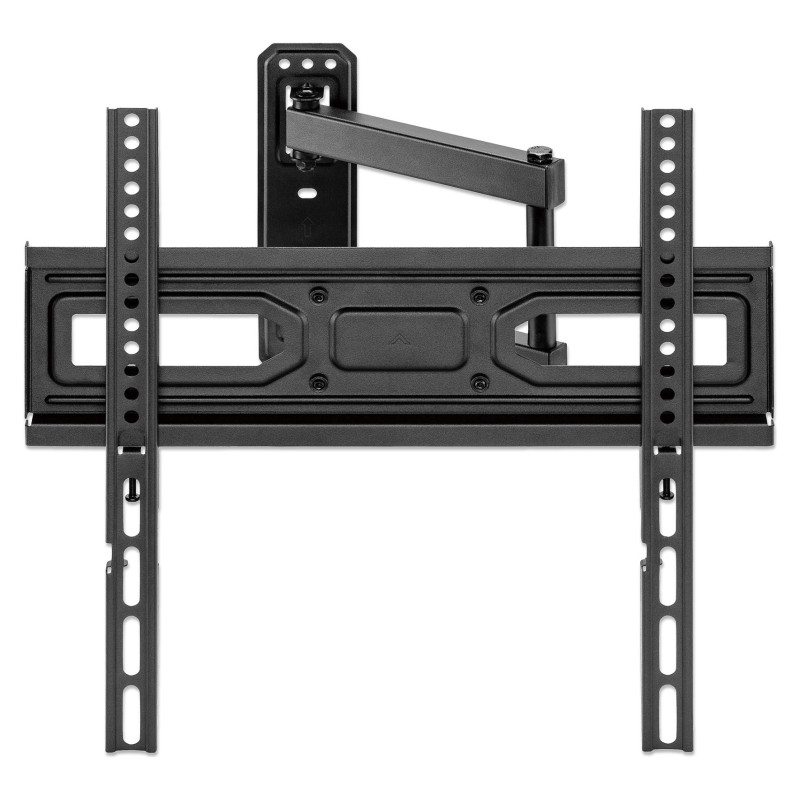

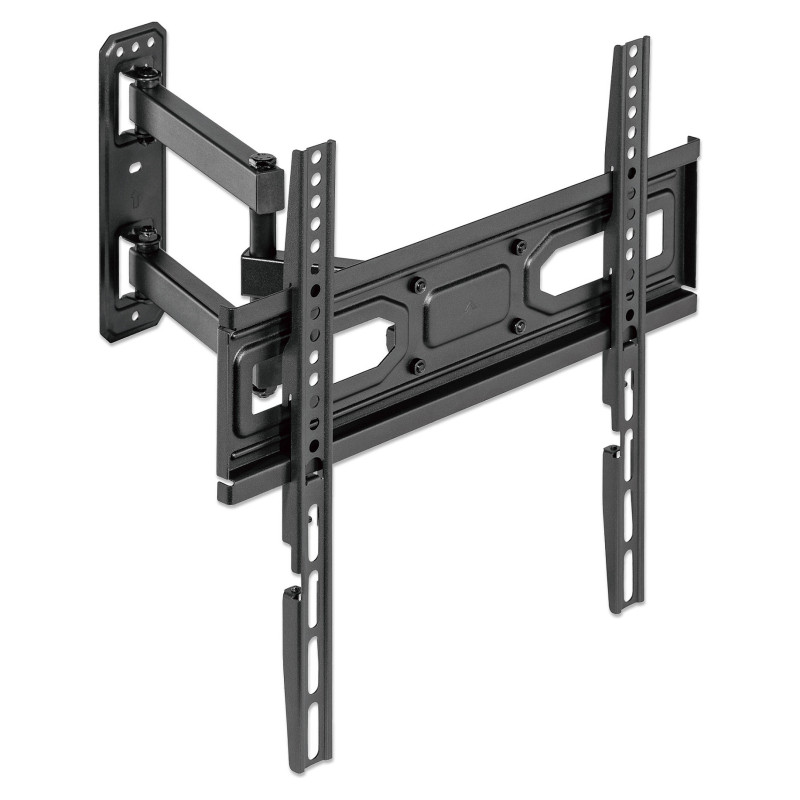

This strong, Full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-90° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 55"" and weighing up to 35 kg (77lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.

Mounting

Maximum weight capacity: 35 kg
Minimum screen size: 81.3 cm (32")
Number of displays supported: 1
Maximum screen size: 139.7 cm (55")
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 400 x 400 mm
Mounting type: Wall

Ergonomics

Feature: Adjustable depth
Feature: Tilt adjustment
Tilt angle range: -15 - 3°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Built-in spirit level
Distance to the wall (max): 35.8 cm

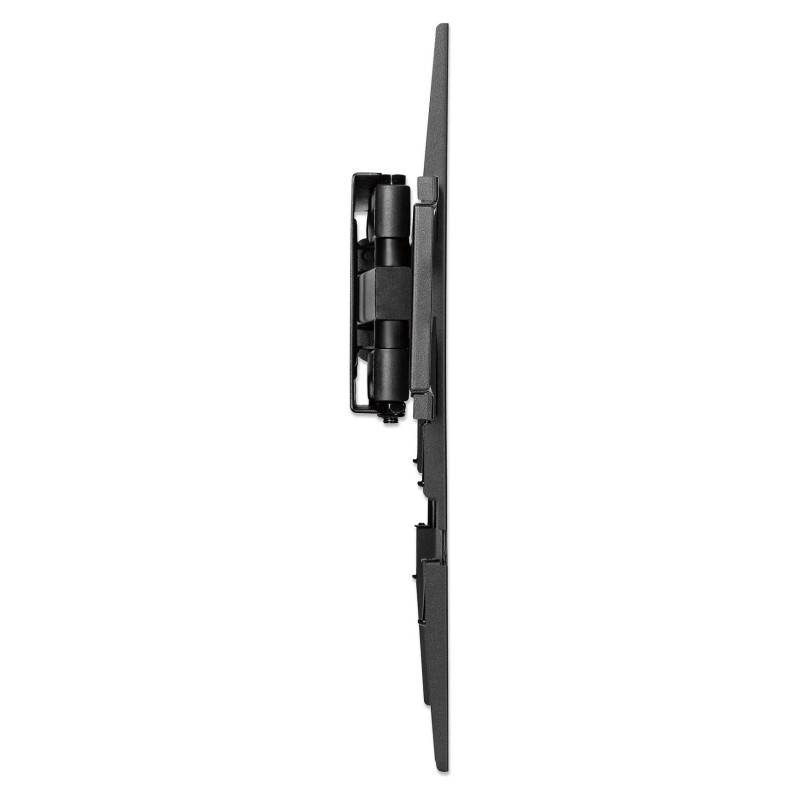

Distance to the wall (min): 6.3 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Quantity per pack: 1 pc(s)

Packaging content

Feature: Manual
Feature: Mounting kit
Packaging content: Full-Motion TV Wall Mount with Post-Leveling AdjustmentAttachable bubble levelInstallation hardware with instructions

Weight & dimensions

Width: 440 mm
Depth (max): 35.8 cm
Height: 420 mm
Weight: 2.2 kg

Packaging data

Package width: 445 mm
Package depth: 62 mm
Package height: 250 mm
Package weight: 2.63 kg
Package type: Box

Logistics data

Master (outer) case width: 520 mm
Master (outer) case length: 460 mm
Master (outer) case height: 270 mm
Master (outer) case gross weight: 22.9 kg
Products per master (outer) case: 8 pc(s)
