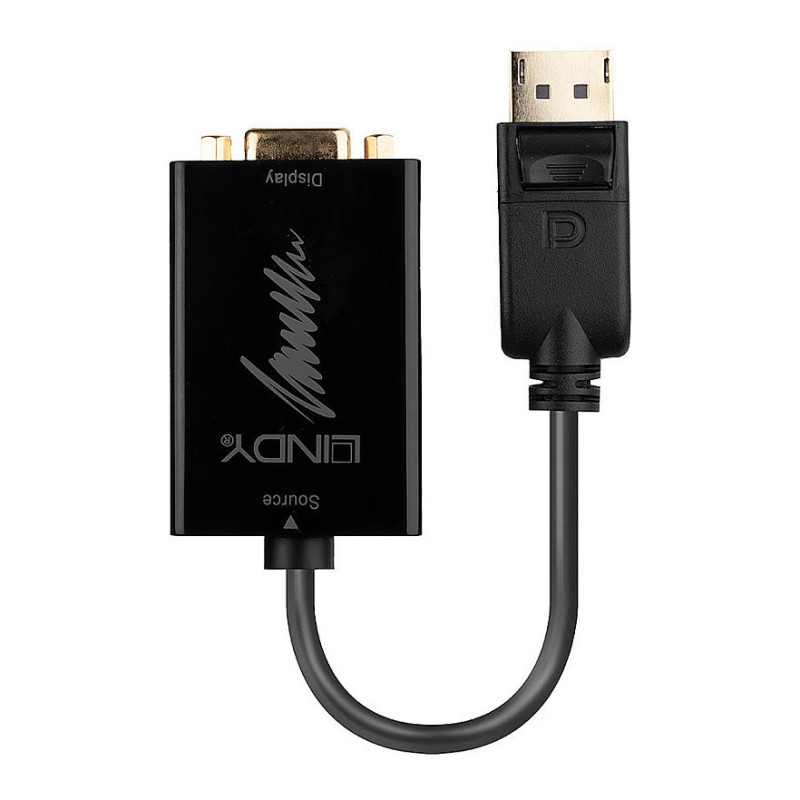

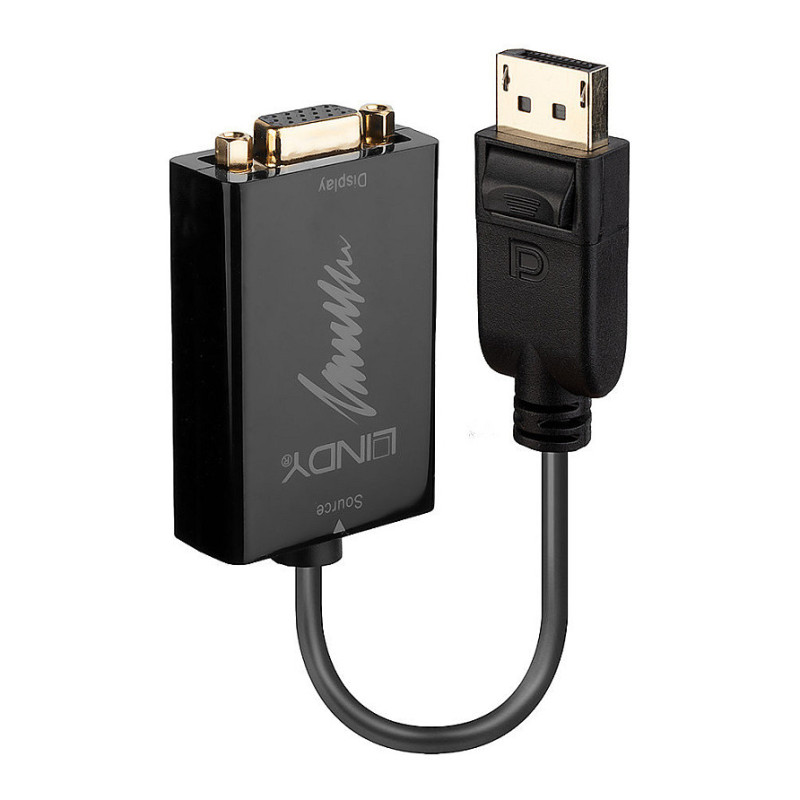

Lindy 41006 video cable adapter

Lindy DisplayPort 1.2 to VGA Active Converter. Cable length: 0.15 m, Connector 1: VGA (D-Sub), Connector 2: DisplayPort. Certification: CE, UKCA, FCC, RoHS, REACH. Cable diameter: 6.5 mm, Connector 1 dimensions (WxDxH): 38 x 61 x 17 mm, Connector 2 dimensions (WxDxH): 20 x 36 x 11 mm. Package width: 160 mm, Package depth: 20 mm, Package height: 160 mm. Quantity per pack: 1 pc(s)

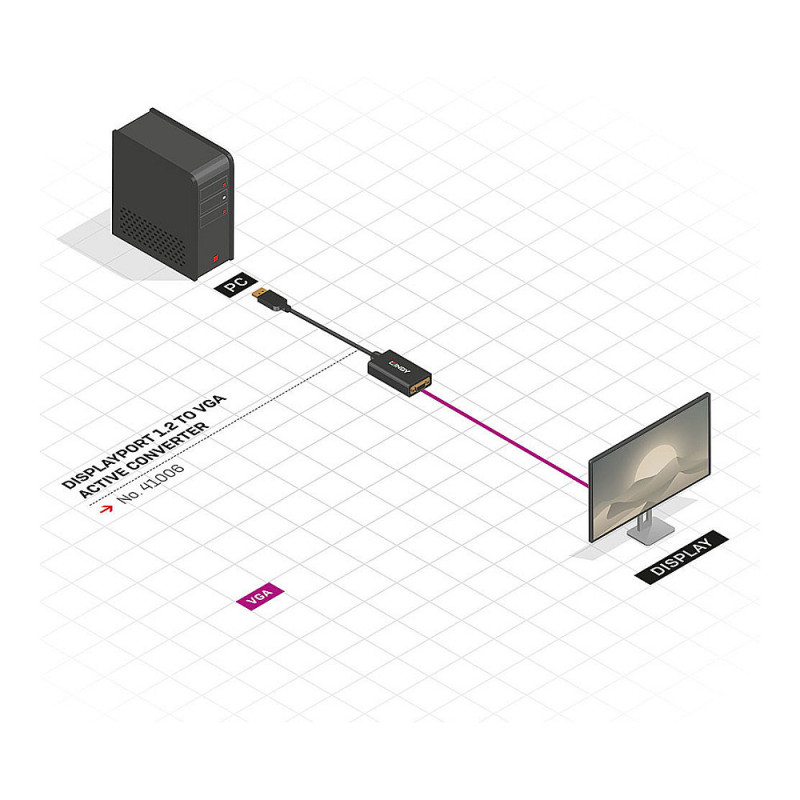

The Lindy DisplayPort 1.2 to VGA Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a VGA monitor. It supports high definition video resolutions up to 1920x1080@60Hz. Active conversion ensures compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage.

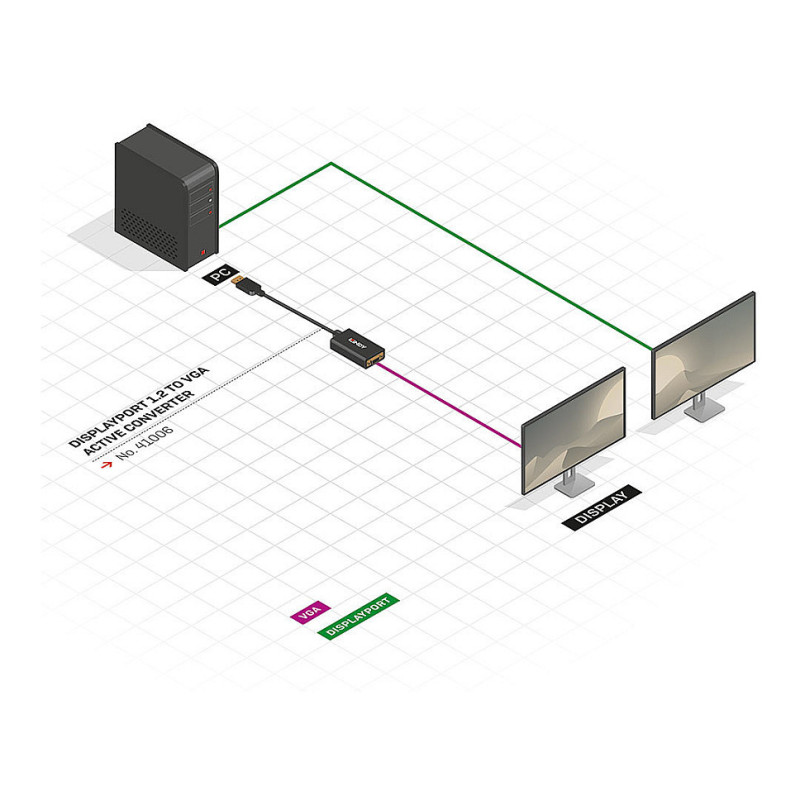

The converter can also be used to add another display to extend the available desktop workspace and increase productivity. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug and Play installation.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Cable length: 0.15 m
Connector 1: VGA (D-Sub)
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Female
DisplayPort version: 1.2
Maximum resolution: 1920 x 1080 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Data transfer rate: 10.8 Gbit/s
Maximum refresh rate: 60 Hz
Bend radius (min): 7 cm
Product colour: Black
Chipset: ANX9833
Jacket material: Polyvinyl chloride (PVC)
Connector housing material: Thermoplastic elastomer (TPE)
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): -20 - 80 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 20 - 90%

Certificates

Certification: CE, UKCA, FCC, RoHS, REACH

Weight & dimensions

Cable diameter: 6.5 mm
Connector 1 dimensions (WxDxH): 38 x 61 x 17 mm
Connector 2 dimensions (WxDxH): 20 x 36 x 11 mm
Weight: 45 g

Packaging data

Package width: 160 mm
Package depth: 20 mm
Package height: 160 mm
Package weight: 49 g
Package type: Polybag

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
